USER MANUAL
CLASS III SYMBOL
A Class III appliance is designed to be supplied from a separate/safety
extra-low voltage (SELV) power source. The voltage from a SELV supply is
low enough that, under normal conditions, a person can safely come into
contact, without the risk of electrical shock. The extra safety features built
into Class I and Class II appliances are, therefore, not required. For medical
devices, compliance with Class III is not considered sufcient protection,
and further, more-stringent regulations apply to such equipment.
TECHNICAL DATA
SAFETY NOTICE
This device is only for use by trained PMU or tattoo artists and not for use by children or persons of reduced physical,
sensory or mental capabilities.
BARRIER PROTECTING YOUR DEVICE
We strongly suggest the use of barrier products to protect your device. For a visual demonstration of
barrier protection methods, please visit our Microbeau YouTube channel.
Operating Voltage: 4-12V DC
Current: UP TO 1.0A
Ambient Temperature: +10 to +35 °C
Relative Humidity: 30 to 75%
Dimensions (Ø X L): H126.5 x W36.5 X L27mm
Weight: Approx. 85g (3oz)
Charging Port: USB-C

4
USER MANUAL
FLUX S MAX INTRO

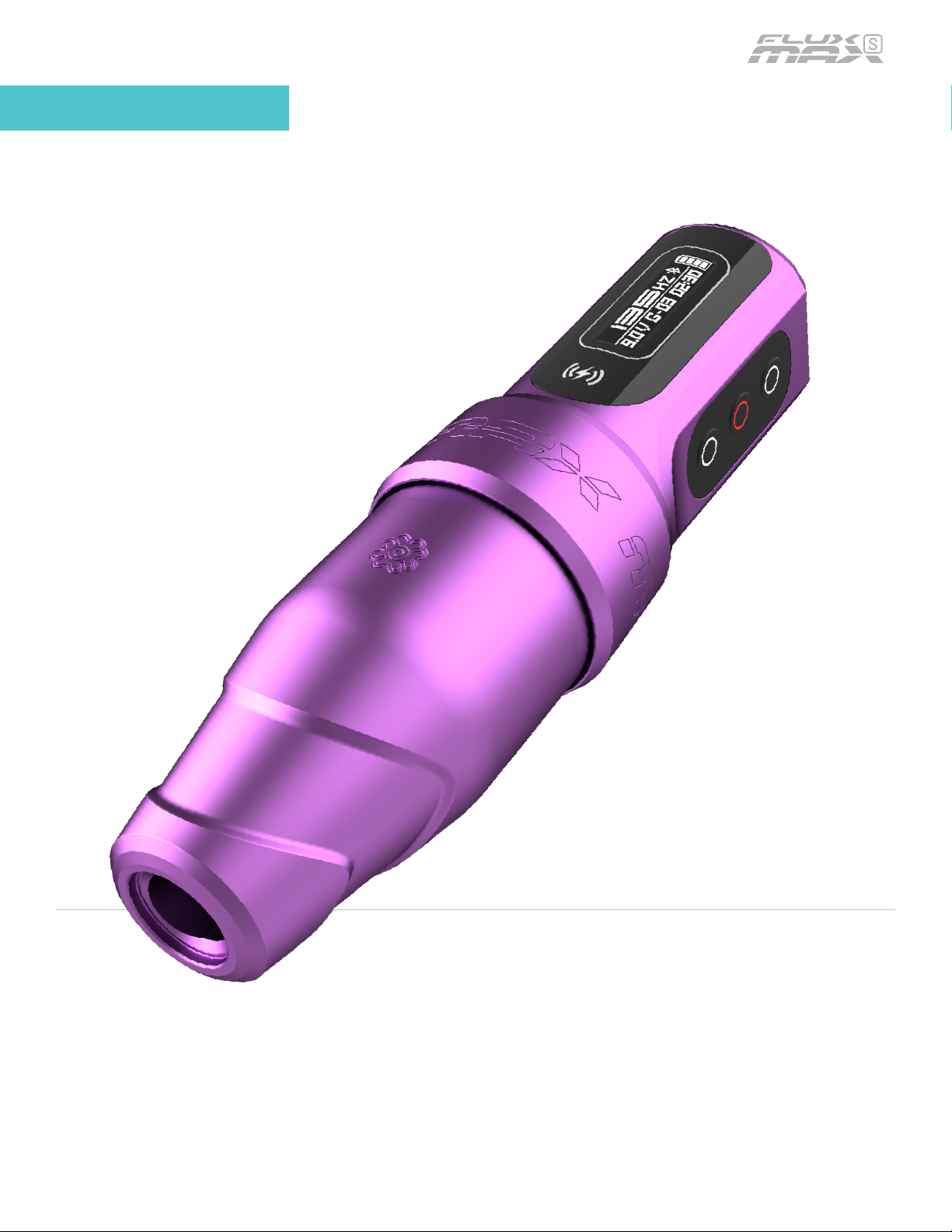

Flux S Max
Take control of your PMU with our most versatile device yet.
Longer strokes, better control, and easier accessibility.

5
USER MANUAL

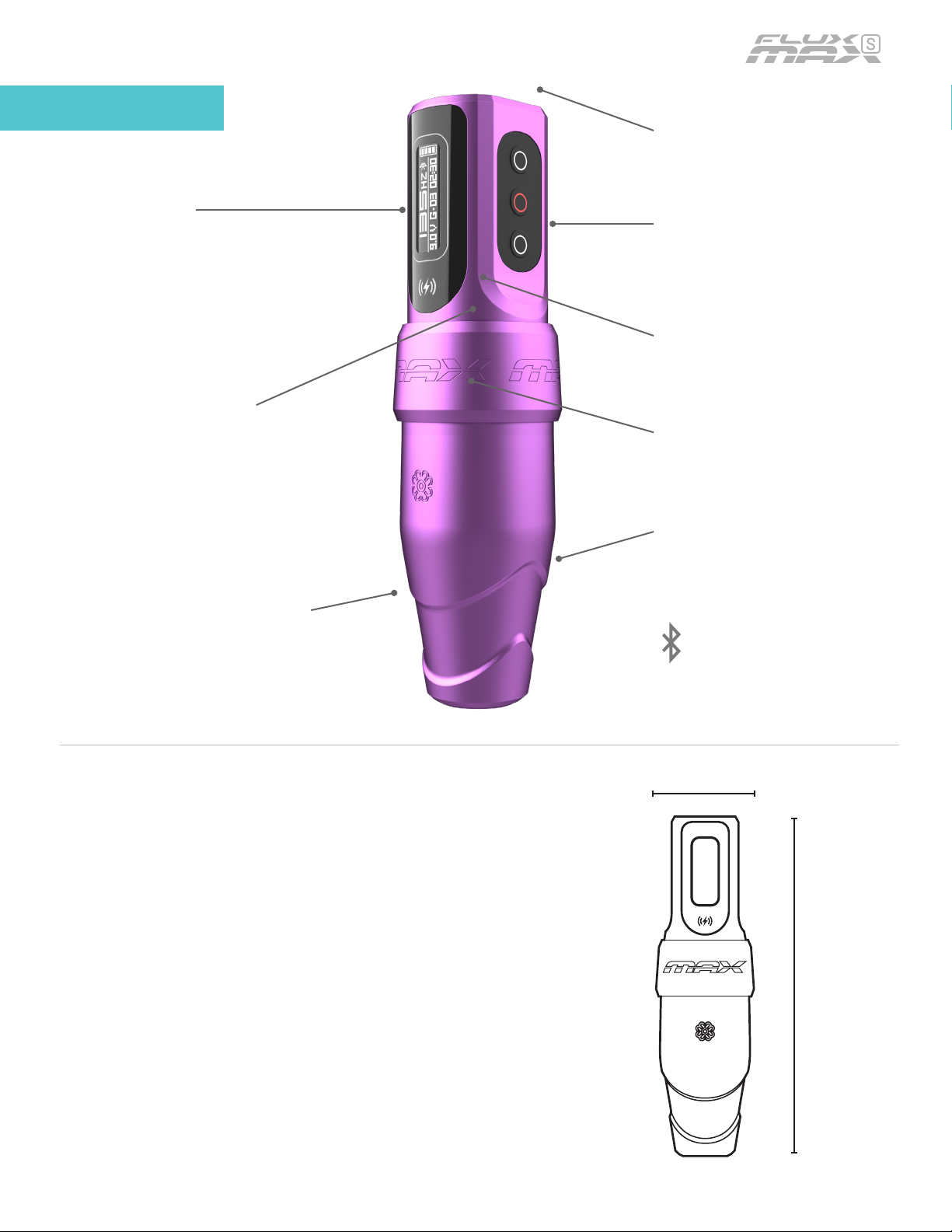

Compact Battery Housing
USB-C Port
Display Screen Control Buttons
SPECIFICATIONS
• Output Voltage: 4-12V
• Increment/decrement voltage interval: 0.5 or 0.1V*
• Maximum output current: 1A
• Charger Input: USB-C
• Size: H 126.5mm x W 36.5mm
• Weight: 205g (7.23oz)
• Battery Life: ~ 6-10 Hours
(based on operating parameters)
Dynamic Power Path Management
USB-C Li-ion Battery
9-Watt brushless motor
Ratcheted, adjustable needle
depth system
Redesigned, ergonomic grip wrap for
maximum, functional comfort
OVERVIEW
36.5mm
126.5mm
Bluetooth Enabled:
Pair with Darklab app

6
USER MANUAL
Device Reset: Hold the Up and Down buttons at the same time to reset your device.
eGive: Use the up and down buttons to select level. Level 0 = disabled,
Level 1 = Hard, Level 2 = Medium and Level 3 = Soft. When changing eGive
please allow device to nish sensing needle before using.
Footswitch: On/Off select with Up/Down buttons. The Killswitch will remain
connected until user disconnects it in the PowerBolt II menu.
Timer: Start/Stop select with Up/Down buttons. The timer is 0-24 Hrs in
one minute intervals, once timer is stopped it resets back to zero.
Display: Use Up/Down buttons to select Voltage or Hertz as main power display.
Voltage: Use Up/Down buttons to select increments of 0.1 or 0.5 Volts.
Screen Orientation: Use Up/Down buttons to select left or right hand operation.
Battery Disconnect: Use Up/Down buttons to select Cancel/Off.
To reactivate PowerBolt II, plug into any USB-C
FEATURES
THE POWERBOLT II

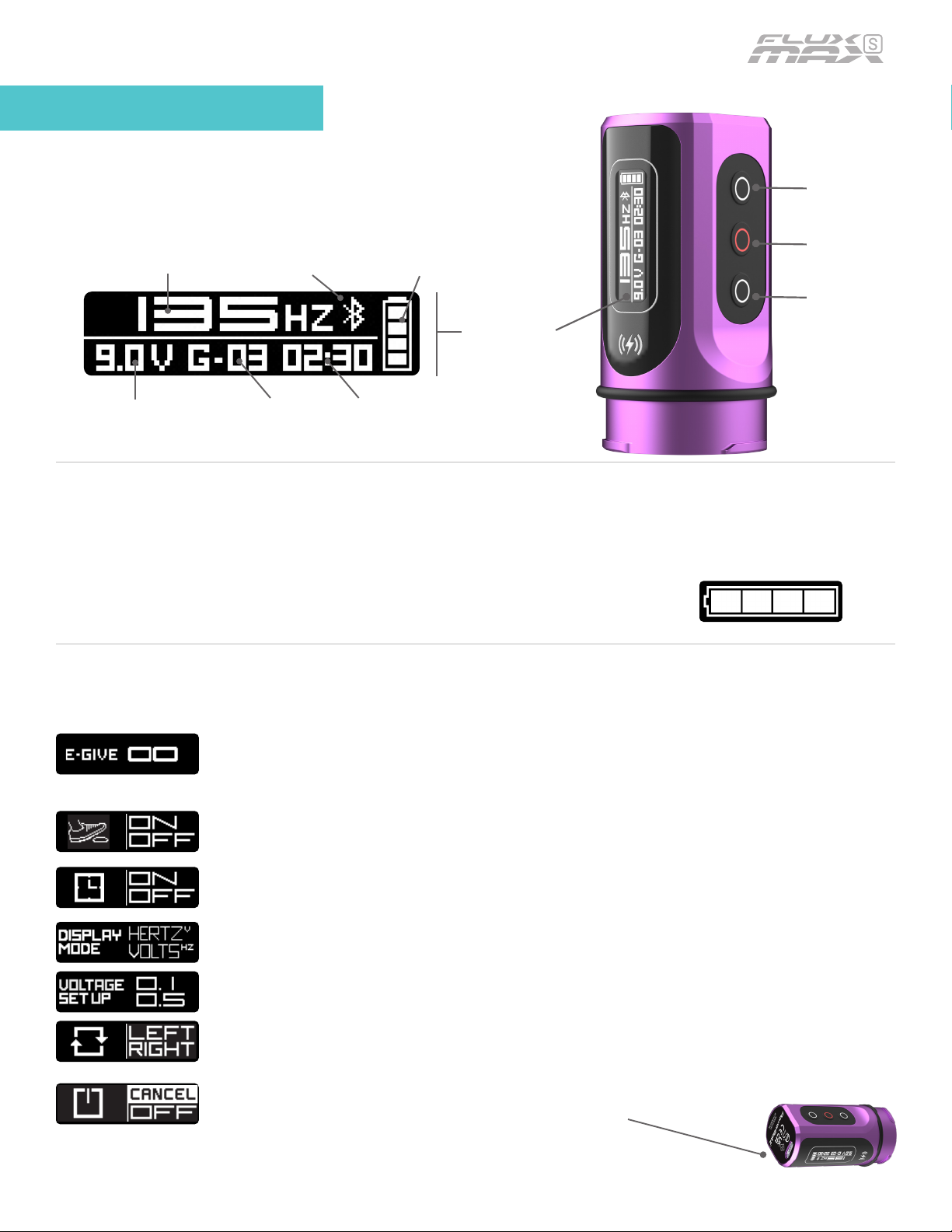

OLED Display
Main Power Display
(Hertz or Volts)
Battery charge
Indicator
Bluetooth
Indicator
Secondary Power
Display (Hertz or Volts)
eGive Level Timer
Up Button
Center Button
Down Button
Battery Charge: 4 bars = 100%, 3 bars = 75%, 2 bars = 50% and 1 bar = 25%.
Single bar will blink to indicate when there is aproximately 5 minutes left of operation.
Note: Screen will switch to sleep mode after 15 seconds when device not in use.
Press the power button to wake.
Charging: When USB-C is plugged in, screen mode will show battery charging.
For best results, use provided charging cable.
Modes Menu: Hold the power button (center button) for 3 seconds to display built-in menu.
Keep holding power button to cycle through menus. Release to stay on a chosen screen.

7
USER MANUAL
Center Button
DETACHING THE POWERBOLT II
DETACHING THE POWERBOLT II

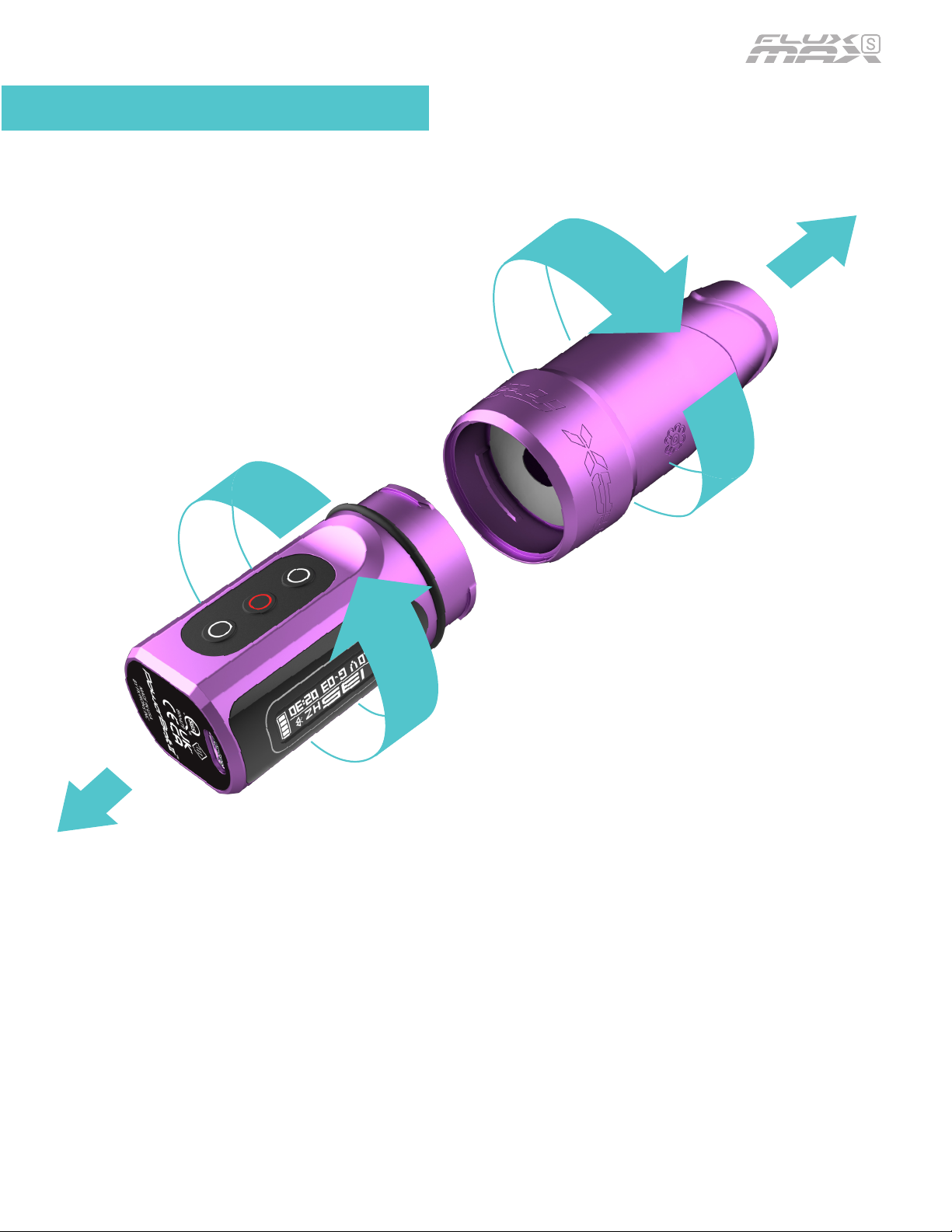

The PowerBolt II is compatible
with the Flux S Max, Flux Max,
Flux, Flux S and the EXO. To
detach your PowerBolt II, ensure
you have a rm grip on the body
of the Flux S Max and Grip.
Turn the PowerBolt II counter-
clockwise and pull out. To
attach the PowerBolt II, push in
while twisting clockwise. Ensure
lock mechanism moves freely.
PowerBolt II must sit correctly
to ensure power electric leads
align correctly. Avoid contact
with the PowerBolt II leads while
recharging or servicing.
Turn power off before removing
battery from device.
Ensure you have a rm grip on the
body and grip of the device.
Twist the PowerBolt II
as shown and remove.
Flux S Max shown in demostration image.

8
USER MANUAL
CONNECTING YOUR DEVICE
HOW TO
CHARGE
YOUR
DEVICE

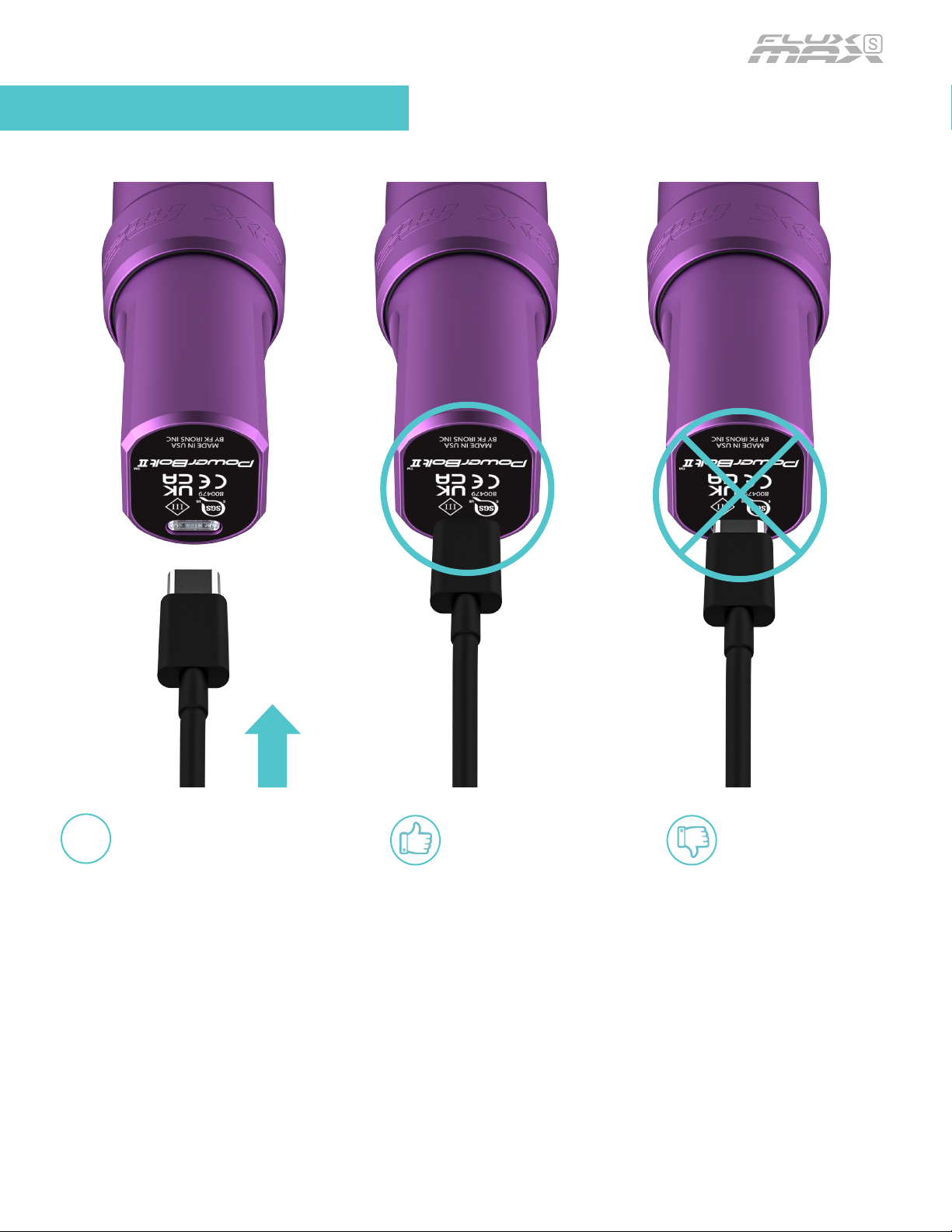

Insert the provided USB-C cable
into the back of the PowerBolt
II and connect to a Hover or
use wall adapter to connect to
power socket. Make sure the
cable is properly seated and is
fully inserted into PowerBolt II.
The PowerBolt II is not designed
Plug the USB-C cord into
the PowerBolt II connector. Best connection Improper connection
1
to operate while plugged in.
The USB-C connection is
intended only for charging your
PowerBolt II. PowerBolt II can
be recharged while not attached
to the Flux S Max.

9
USER MANUAL
ADJUSTING
NEEDLE
DEPTH

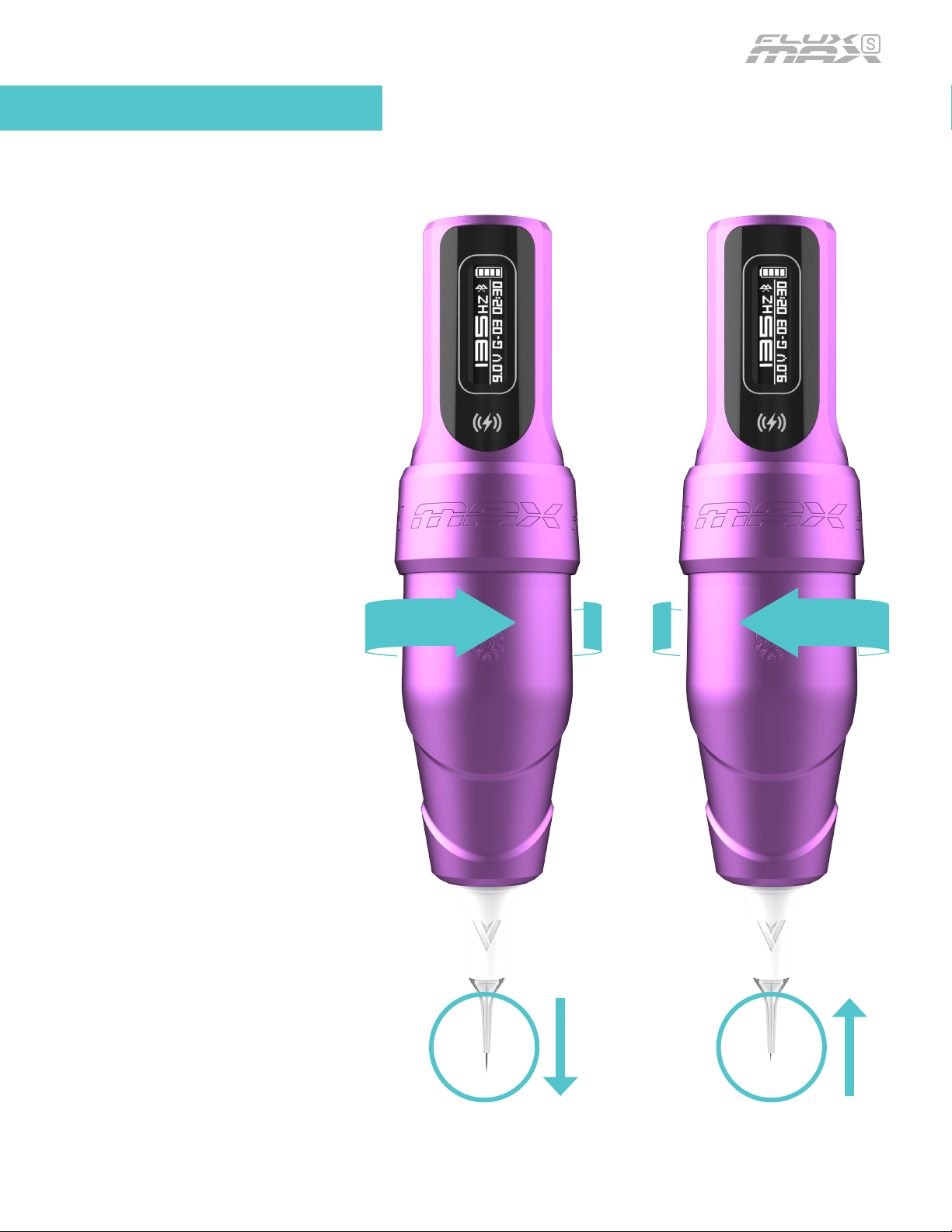

To adjust needle depth,
hold the device body and
PowerBolt II while turning
the Grip. A counter clockwise
turn decreases depth, while a
clockwise turn increases depth
(also known as needle hang).
Each time you turn the grip you
can feel the tactile feedback
of the ratcheting mechanism.
Each “click” displaces your
needle 0.2 mm and allows you
to set your needle precisely
without involuntarily turning
during procedures.
ADJUSTING NEEDLE DEPTH
Turning the grip as shown
increases needle depth.
Turning the grip as shown
decreases needle depth.
Increases needle depth Decreases needle depth

10
USER MANUAL
VOLTAGE/HERTZ PARAMETERS
While voltage/hertz is a parameter that will vary from artist to artist, the PowerBolt II has been tested
to operate at a minimum voltage of 4 Volts/66 Hertz to a maximum voltage of 12 Volts/199 Hertz.
Depending on the type of needle conguration, or brand you use, feel free to adjust the voltage or
hertz to obtain the desired performance.
WARRANTY
Microbeau warrants that the device will perform effectively when used as intended. Should this product
prove to be defective due to manufacturing issues, Microbeau will repair/replace the device free of
charge. This warranty will be void if the device shows signs of having been tampered, disassembled,
handled roughly, dropped, overexposed to moisture or damage resulting in compromised functionality.
HANDY TIPS
The following tips will help you get the most out of your PowerBolt II and avoid potential issues:
• Do not exceed the suggested voltage
• Use only FDA-approved cold sterilization solutions for disinfection
• DO NOT AUTOCLAVE
ADDITIONAL INFORMATION
TROUBLESHOOTING
1.- Device Manufacturer
FK Irons: 1771 NW 79th Avenue, Doral, Florida 33126
2.- Servicing Your Device
As for any mechanical device, Microbeau strongly suggests that you service your device once a
year to ensure all working parts are working as expected. This ensures the optimal condition of
all working parts, including internal device clean up and fresh lubrication. Routine servicing will
ensure that your device remains functioning as intended. Service is subject to fees.
3.- Warning
Disconnect device from any power source before making any adjustments.
For service inquiries, please contact [email protected].
For additional tips and tutorials, please visit Microbeau.com
