Microlife 3BT0-AP User manual

microlife Digital Fully Automatic Blood
Pressure Monitor with Patented
Irregular Heartbeat Detector
Model # 3BT0-AP Instruction Manual
CAUTION: If the Heartbeat Interval Irregularity Indicator icon comes on frequently, see your doctor. You
may require medical attention. Only a physician can diagnose irregular heartbeat.
US Patent # 6,485,429
(Irregular Heartbeat Detector)
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 1

Automatic Blood Pressure Monitor
Instruction Manual
Table of contents
1. Introduction
1.1. Features of your blood pressure monitor
1.2. Important information about self measurement
2. Important information on blood pressure and its measurement
2.1. How does high/low blood pressure arise?
2.2. Which values are normal?
2.3. What can be done if regular high/low values are obtained?
2.4. Irregular Heartbeat Detector
3. Components of your blood pressure monitor
4. Operation of your blood pressure monitor
4.1. Inserting the batteries
4.2. Using an A/C power adapter
4.3. Tube connection
Measurement Procedure
5.1. Before measurement
5.2. Common sources of error
5.3. Fitting the cuff
5.4. Setting the time and date
5.5. Measuring procedure
5.6. Memory – displaying the last measurement
5.7. Discontinuing a measurement
6. Error Messages/Troubleshooting
7. Care and maintenance
8. Warranty
9. Certifications
10. Technical specifications
11. How to Contact Us
1
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 2

1. Introduction
1.1.Features of your Microlife automatic blood pressure monitor,
model # 3BT0-AP
Your Microlife blood pressure monitor is a fully automatic digital blood pressure
measuring device with an integrated Irregular Heartbeat Detector, for use by adults on the
upper arm at home or in your doctor’s/nurse’s office. It enables very fast and reliable
measurement of the systolic and diastolic blood pressure as well as the pulse by way of
the oscillometric method. This device offers clinically proven accuracy and has been
designed to be user friendly.
Before using, please read this instruction manual carefully and then keep it in a safe
place. Please contact your doctor for further questions on the subject of blood pressure
and its measurement.
Attention!
1.2.Important information about self-measurement
• Self-measurement means Control, not diagnosis or treatment. Unusual values
must always be discussed with your doctor. Under no circumstances should you
alter the dosages of any drugs prescribed by your doctor.
•The pulse display is not suitable for checking the frequency of heart pacemakers!
•In cases of irregular heartbeat (Arrhythmia), measurements made with this instrument
should only be evaluated after consultation with your doctor.
Electromagnetic interference:
The device contains sensitive electronic components. Avoid strong electrical or
electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones,
microwave ovens). These can lead to temporary impairment of the measuring accuracy.
2. Important information on blood pressure and its measurement
2.1. How does high/low blood pressure arise?
Your level of blood pressure is determined in the circulatory center of the brain and
adjusts to a variety of situations through feedback from the nervous system. To adjust
blood pressure, the strength and frequency of the heart (Pulse), as well as the width of
circulatory blood vessels is altered. Blood vessel width is effected by fine muscles in the
blood vessel walls.
Your level of arterial blood pressure changes periodically during heart activity: During the
“blood ejection” (Systole) the value is highest (systolic blood pressure value). At the end
2
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 3

of the heart’s “rest period” (Diastole) pressure is lowest (diastolic blood pressure value).
Blood pressure values must lie within certain normal ranges in order to prevent particular
diseases.
2.2. Which values are normal?
Blood pressure is too high if your diastolic pressure is above 90 mmHg and/or your systolic blood pressure
is over 160 mmHg, while at rest. In this case, please consult your physician immediately. Long-term val-
ues at this level endanger your health due to continual damage to the blood vessels in you body.
If your systolic blood pressure values are between 140 mmHg and 160mmHg and/or the diastolic
blood pressure values between 90 mmHg and 95mmHg, consult your physician. Regular self-checks
are necessary.
If you have blood pressure values that are too low, (i.e., systolic values under 105mmHg and/or diastolic
values under 60 mmHg), consult your physician.
Even with normal blood pressure values, a regular self-check with your blood pressure monitor is
recommended. You can detect possible changes in your values early and react appropriately.
If you are undergoing medical treatment to control your blood pressure, keep a record of values along with
time of day and date. Show these values to your physician. Never use the results of your measure-
ments to independently alter the drug doses prescribed by your physician.
Which values are normal?
The following standards for assessing high blood pressure (without regard to age) have been established
by the National Institutes of Health JNCVI.
3
Category Systolic Diastolic
(mmHg) (mmHg)
Optimal <120 <80
Normal <130 <85
High Normal 130-139 85-89
Hypertension
Stage 1 140-159 90-99
Stage 2 160-179 100-109
Stage 3 ≥180 ≥110
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 4

☞Further information
• If your values are mostly normal under resting conditions but exceptionally high under
conditions of physical or psychological stress, it is possible that you are suffering from
so-called “labile hypertension.” Consult your doctor.
•Correctly measured diastolic blood pressure values above 120mmHg and
require immediate medical treatment.
2.3. What can be done if regular high or low values are obtained?
a) Consult your doctor.
b) Increased blood pressure values (various forms of hypertension) are associated with
considerable health risks over time. Arterial blood vessels in your body are endangered
due to constriction caused by deposits in the vessel walls (Arteriosclerosis). A deficient
supply of blood to important organs (heart, brain, muscles) can result from
arteriosclerosis. Furthermore, the heart will become structurally damaged with
increased blood pressure values.
c) There are many different causes of high blood pressure. We differentiate between the
common primary (essential) hypertension, and secondary hypertension. The latter
group can be ascribed to specific organ malfunctions. Please consult your doctor for
information about the possible origins of your own increased blood pressure values.
d) There are measures which you can take to reduce and even prevent high blood
pressure. These measures must be permanent lifestyle changes.
A) Eating habits
• Strive for a normal weight corresponding to your age. See your doctor for your ideal
weight.
• Avoid excessive consumption of common salt.
• Avoid fatty foods.
B) Previous illnesses
• Consistently follow all medical instructions for treating illness such as:
• Diabetes (Diabetes mellitus or sugar diabetes)
• Fat metabolism disorder
• Gout
C) Habits
• Give up smoking completely.
• Drink only moderate amounts of alcohol.
• Restrict your caffeine consumption (coffee, tea, chocolate).
4
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 5

D) Your Physical condition
•After a medical examination, and with your doctor’s approval and direction;
exercise.
• Choose sports which require stamina and avoid those which require strength.
• Avoid reaching the limit of your performance.
• With previous illnesses and/or an age of over 40 years, please consult your doctor
before beginning your exercise routine. You must receive advise regarding the type and
extent of exercise that is appropriate for you.

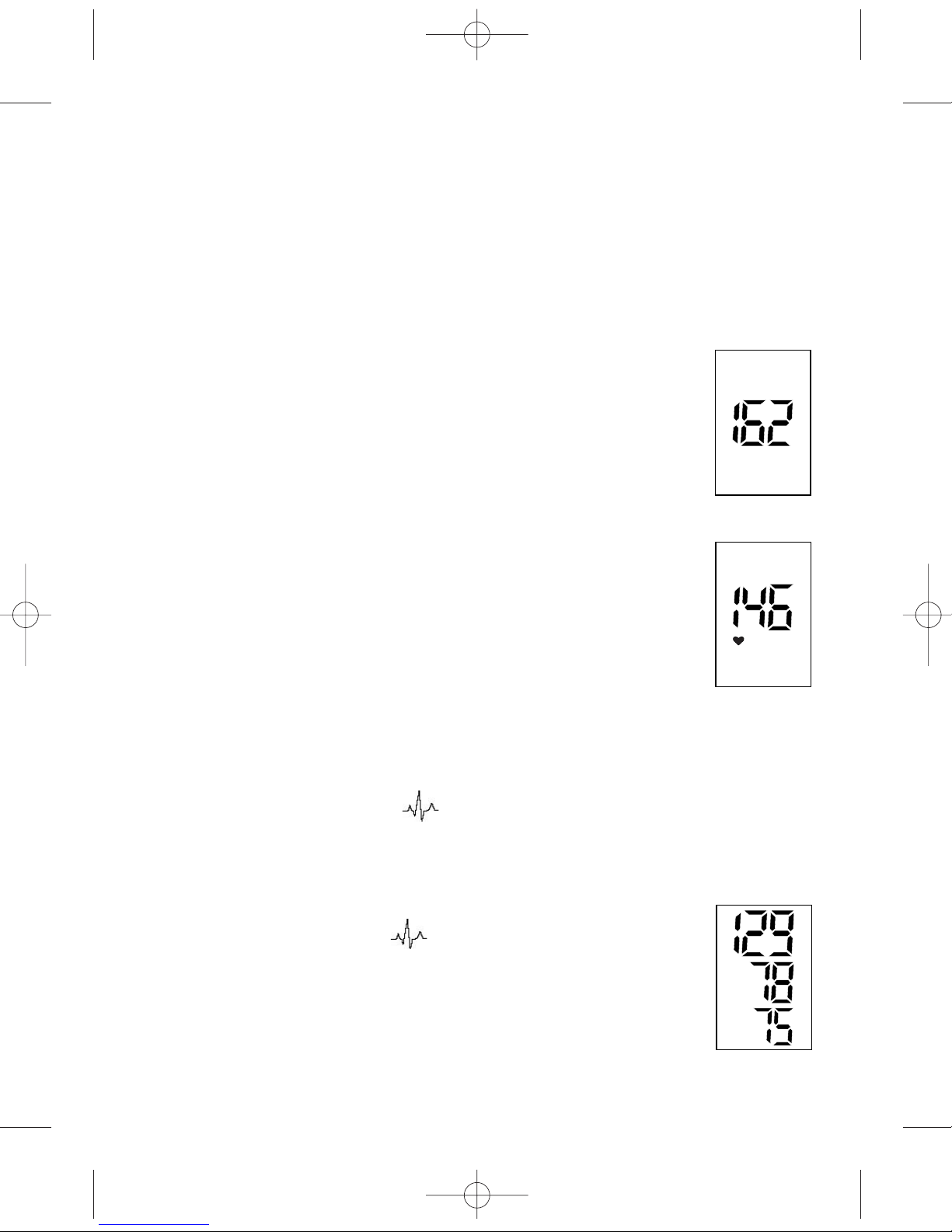

2.4. Irregular Heartbeat Detector
The appearance of this symbol signifies that a certain irregular heartbeat
was detected which could cause cardiovascular disease. This indicator is only a
caution. The Microlife Fully Automatic Blood Pressure Monitor with Heartbeat
Irregular Heartbeat Detector can detect blood pressure and pulse rate
measurement with specifications even when the patient is having an irregular
heartbeat interval. It is important that you be relaxed, remain still and do not talk
during the measurements.
Note: We recommend contacting your physician if you see this “ “ icon frequently.
CAUTION: An irregular heartbeat can be a serious medical condition requiring
medical attention. See your doctor if you suspect you have an irregular heartbeat.
3. Components of your blood pressure monitor
a) Measuring unit
5
AC/DC Power Port
Cuff Connection Port
START/STOP Button Memory Button
Time Button
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 6

b) Upper arm cuffs:
Type S101 for arm circumference 22-33.7 cm or
9.5” - 13.25” (included)
Type S102 for arm circumference 30.5-40.64 cm
12” - 16” (order as a special accessory)
Please Note:
Arm circumference should be measured with a measuring tape in the middle of the relaxed
upper arm. Do not force cuff connection into the opening. Make sure the cuff connection is
not pushed into the AC adapter port. If the cuff is too small, call for further
information.
4. Operation of your blood pressure monitor
4.1. Inserting the batteries
After you have unpacked your device insert the batteries. The battery compartment is
located on the back side of the device (see illustration).
a) Remove cover as illustrated.
b) Insert the batteries (4 AA, 1.5 V), following the
indicated polarity. (+ -)
c) If the low battery indicator appears in the
display, the batteries are discharged and the
unit will not function.
d) If batteries are inserted incorrectly, the display
may function erratically or not at all.
Check battery polarity.
+
++
+
Low Battery Indicator
6
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 7

Attention!
• After the low battery indicator appears, the device won’t function until the batteries
have been replaced.
• Please use “AA” Long-Life or Alkaline 1.5V Batteries.
• Do not use rechargeable batteries.
• If the blood pressure monitor is not used for long periods, remove the batteries from
the device.
Functional check: Hold the On/Off button down to test all the display elements. When
functioning correctly many icons will appear.
4.2. Using an AC power adapter (special accessory)
It is possible to operate this blood pressure instrument with an AC adapter. (output 6 V DC
/ 600 mA with DIN plug). Make certain that you use an adapter which fulfills the legal
requirements and electronic requirements in the U.S. (UL standard). Use of an AC adapter
other than a Microlife adapter may invalidate your warranty.
a) Push the plug into the socket at the left side
of the instrument.
b) Plug the AC adapter into a 110 V
power socket (U.S. or Canada).
c) Test that power is available by
pressing the On/Off button.
Note:
• No power is taken from the batteries while the AC adapter is connected to the
instrument.
• If the power is interrupted during a measurement (e.g. by removal of the adapter from
the wall socket), the instrument must be reset by removing the plug from the
instrument.
• Please call 1-800-568-4147 if you have questions
relating to the AC adapter.
4.3. Tube connection
Insert the cuff tube into the opening
provided on the side of the instrument,
as shown in the diagram.
Right Opening
7
Left Opening
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 8

5. Measurement Procedure
Please note: You should always be seated before and during measurement.
5.1. Before measurement:
• Avoid eating and smoking as well as all forms of exertion directly before
measurement. These factors influence the measurement result. Find time to relax by
sitting in an armchair in a quiet atmosphere for about ten minutes before
measurement.
• Remove any garment that fits closely to your upper arm.
• Always measure on the same arm (normally left).
• Always perform measurements at the same time of day, since blood pressure changes
during the course of the day.
5.2. Common sources of error:
Note: Comparable blood pressure measurements always require the same con-
ditions! Conditions should always be quiet.
•All efforts by the user to support the arm can increase blood pressure. Make sure you
are in a comfortable, relaxed position and do not flex any of the muscles in the meas-
urement arm during the measurement. Use a cushion for support if necessary.
•If the arm artery lies considerably lower or higher than the heart, an erroneously high or
low blood pressure will be measured! Each 15cm (6 inch) difference in height between
your heart and the cuff results in a measurement error of 10 mmHg!
•Cuffs that are too narrow or too short result in false measurement values. Selecting the
correct cuff is extremely important. Cuff size is dependent upon the circumference of the
arm (measured in the center). The permissible range is printed on the cuff. If this is not
suitable for your use, please contact microlife USA. Large cuff sizes are sold separately.
Note: Only use clinically approved microlife Cuffs!
•A loose cuff or a sideways protruding air pocket causes false measurement values.
•With repeated measurements, blood accumulates in the arm, which can lead to false
results. Consecutive blood pressure measurements should be repeated after a 1 minute
pause or after your arm has been held up in order to allow the accumulated blood to
flow away.
8
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 9

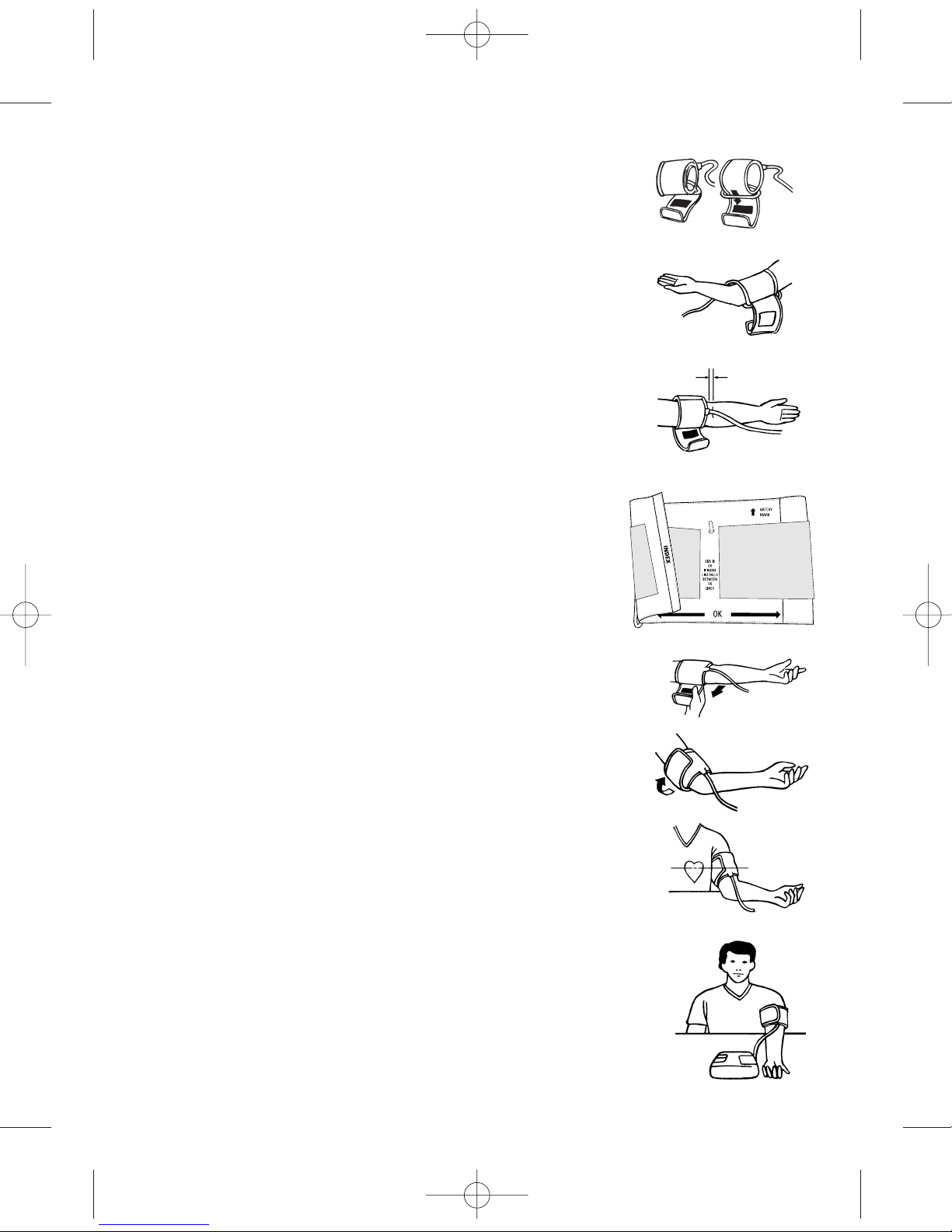

5.3. Fitting the cuff
a) Pass the end of the cuff through the flat
metal ring so that a loop is formed. The
velcro closer must be facing outward. (Ignore
this step if the cuff has already been
prepared.)
b) Place the cuff over the left upper arm so that
the tube is closer to your lower arm.
c) Lay the cuff on the arm as illustrated. Make
certain that the lower edge of the cuff lies
approximately 3/4” to 1”(2 to 3cm) above the
elbow and that the tube is closer to the inner
side of the arm.
Important! The small white arrow on the
cuff must lie exactly over the artery which
runs down the inner side of the arm.
d) Tighten the cuff by pulling the end and close
the cuff by affixing the velcro.
e) There should be little free space between the
arm and the cuff. You should able to fit 2
fingers between your arm and the cuff.
Clothing must not restrict the arm. Any piece
of clothing which does must be removed.
Cuffs that don’t fit properly result in false
measurement values. Measure your arm
circumference if you are not sure of proper
fit. Larger cuffs are available (Section 3B).
f) Lay your arm on a table (palm upward) so the
cuff is at the same height as your heart.
Make sure the tube is not kinked.
g) Remain seated quietly for two minutes
before you begin the measurement.
3/4”-1”
tube
Left Arm
9
MLUBPT0-AP-OCT04-1 copy 11/24/04 3:14 PM Page 10
