Microscan LVS-9510 Product guide

P/N 83-9310003-02 Rev A
LVS® 9510
Information Book

LVS-9510 Information Book 2 of 18
LVS-95XX Series Barcode Quality Station Operations Manual
LVS-95XX Series Barcode Quality Station 49fo2egaPhsilgnE-launaMsnoitarepO
Copyright ©2016
Microscan Systems, Inc.
Tel: [phone]
Fax: [phone]
All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers
to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other
purpose without written permission of Microscan.
Throughout this manual, trademarked names might be used. We state herein that we are using the names to the benefit of the
trademark owner, with no intention of infringement.
GS1 Solution Partner
Disclaimer
The information and specifications described in this manual are subject to change without notice.
Latest Manual Version
For the latest version of this manual, see the Download Center on our web site at:
www.microscan.com.
Technical Support
For technical support, e-mail: [e-mail].
Warranty
For current warranty information, see: www.microscan.com/warranty.
Microscan Systems, Inc.
United States Corporate Headquarters
+1.425.226.5700 / 800.762.1149
United States Northeast Technology Center
+1.603.598.8400 / 800.468.9503
European Headquarters
+31.172.423360
Asia Pacific Headquarters
+65.6846.1214

LVS-9510 Information Book 3 of 18
Table of Contents
Features ..................................................................................................................................4
Supported Symbologies..........................................................................................................5
Congurations.........................................................................................................................7
Engineering Specications .....................................................................................................8
Auxiliary Readhead.................................................................................................................9
Supported Standards............................................................................................................ 11
Software Overview................................................................................................................12

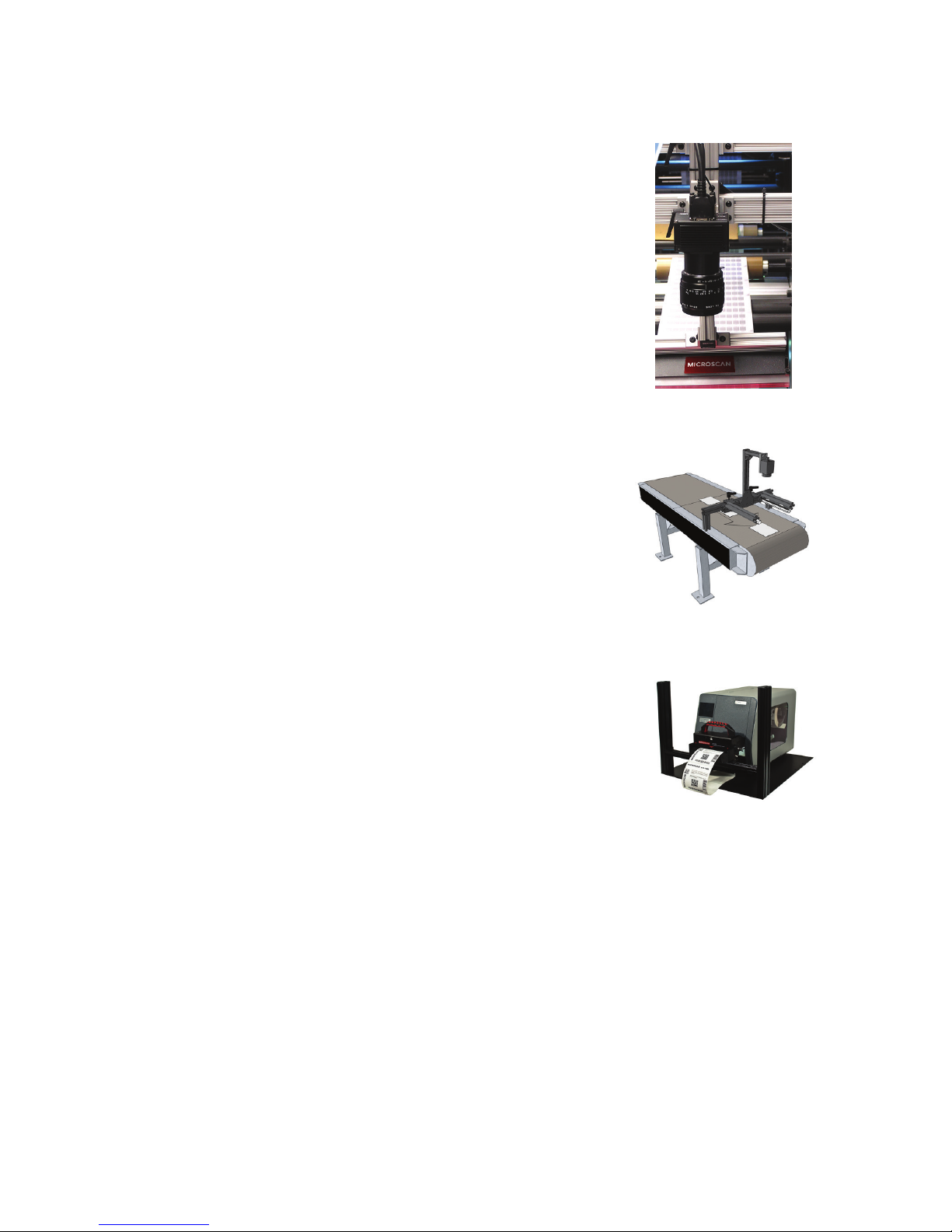

Our Products .........................................................................................................................16

LVS-9510 Information Book 4 of 18
Features
The LVS-9510 is for ofine verication of bar codes to ISO/IEC standards. The LVS-9510 is
unique in the world of ISO verication due to its ease of use and ability to verify linear (1D)
and two-dimensional (2D) codes without any change of equipment; autodiscriminate the
symbology, narrow bar width and aperature to be used to evaluate the code; and highlight
trouble spots in the code. Additional outstanding features include:
• GS1 US and 21 CFR Part 11 compliant-ready.
• Inspects all nine of the ISO (ANSI) parameters in linear (1D) codes, plus added features
of determining blemishes, opacity, and human readable validation. The LVS-9510 also
veries 2D codes (including Multi-row and Matrix codes) and reports all parameters as
specied in the applicable symbology specication.
• Analysis is color coded to show exactly where the problem is located within the bar
code, and sections of the bar code can be analyzed to determine how to solve the prob-
lem.
• High-resolution inspection of the bar code is possible due to the use of a 5.0 megapixel
high resolution camera, which allows reading and analyzing every two thousandth of an
inch (.002”/.05 mm) of the bar code height; this exceeds the minimum ten-scan average
required by ISO.
• Camera technology allows more detailed analysis of the bar code, and makes reading of
small and truncated codes possible, accurate and easy.
• Multiple codes, including any combination of Linear, Matrix (such as Data Matrix, QR
Code and Aztec Code) and Stacked Linear (such as PDF 417, Micro PDF and Compos-
ite Codes) can be veried on one label within the eld of view.
• Designed to ISO grade bar codes on various label sizes and nished products with at
or rounded sides.
• Supplied with a NIST traceable conformance standard test card provided by GS1 to
ensure that it is always within a known calibration standard.

Below are just a few of the Symbologies and Standards supported by the LVS-9510.
Contact Microscan for a full list of supported Symbologies and Standards.
1D (Linear) Codes: 2D (Two-Dimensional) Codes:
LVS-9510 Information Book 5 of 18
Supported Symbologies
• Codabar
• Code 128
• Code 39
• Code 93
• DataBar expanded
• DataBar limited
• DataBar omindirectional
• DataBar stacked
• DataBar truncated
• DataBar
• EAN/JAN-13
• EAN/JAN-8
• Enterprise Intelligent Barcode (EIB)
4State (4SB)
• GS1-128
• Hanxin Code
• HIBC
• Interleaved 2 of 5 (ITF)
• ITF-14
• Japan Post
• MSI Plessey
• Pharmacode – Italian
• Pharmacode – Laetus
• PZN 7 and PZN 8
• UPC-A
• UPC-E
• USPS-128
• USPS Intelligent Mail Barcode
(also referred to as 4-State Barcode)
Note: Composite Components are abbreviated as CC
• Aztec Code
• DataBar with CC-A, CC-B, or CC-C
• EAN/JAN-13 with CC-A, CC-B, or CC-C
• EAN/JAN-8 with CC-A, CC-B, or CC-C
• ECC-200 (Data Matrix) including:
• Enterprise Intelligent Barcode (EIB)
Complex Mail Data Marks (CMDM)
• French CIP
• GS1 Data Matrix
• NTIN
• PPN
• Contact LVS® for a complete list of
supported ECC-200 (Data Matrix)
codes
• GS1-128 with CC-A, CC-B, or CC-C
• MaxiCode
• Micro QR Code
• MicroPDF417
• PDF417
• QR Code
• UPC-A with CC-A, CC-B, or CC-C
• UPC-E with CC-A, CC-B, or CC-C

LVS-9510 Information Book 6 of 18
Installation of the LVS-9510 is easy! Simply install the LVS-9510 software (located on
the Installation CD) on a customer-supplied computer. The onscreen instructions guide
you through each step of the software installation process. Next, connect a USB cable
(included with purchase) from the LVS-9510 to the customer-supplied computer. An
onscreen Hardware Wizard appears, guiding you through each hardware installation step.
You are also provided with the “LVS-95XX Series Software Installation Guide” ensuring the
installation process is as simple as possible.

Congurations
LVS-9510 Information Book 7 of 18
The LVS-9510 offers ve available elds of view.
Minimum X Dimension
(Nominal)
Field Of View
(Approximate)
Calibration
Card
Part
Number
1D 2D
3.0 mils
(0.07 mm)
4.5 mils
(0.11 mm)
1.75 inches
(44 mm)
EAN/UPC
Part #: CAL002
9510-5-1.75-0
4.0 mils
(0.10 mm)
5.9 mils
(0.15 mm)
3.0 inches
(76 mm)
EAN/UPC
Part #: CAL002
9510-5-3.0
6.0 mils
(0.15 mm)
9.0 mils
(0.23 mm)
4.0 inches
(102 mm)
EAN/UPC
Part #: CAL002
9510-5-4.0
7.0 mils
(0.18 mm)
9.8 mils
(0.25 mm)
4.5 inches
(114 mm)
EAN/UPC
Part #: CAL002
9510-5-4.5
9.4 mils
(0.24 mm)
13.1 mils
(0.33 mm)
6.250 Inches
(159 mm)
GS1-128
Part #: CAL003
9510-5-6.250
Items Included with LVS-9510 purchase:
• Power Cord (for North America shipments only)
• Power Supply (requires localized power cord for shipments outside North America)
• USB Cable
• Top Cover (stabilizes labels on the viewing window)
• Installation CD (includes LVS-95XX software and “LVS-95XX Series Bar Code Quality
Station Operations Manual”)
• LVS-95XX Series Software Installation Guide
• NIST traceable Calibrated Conformance Test Card used for calibrating the LVS-9510. The
test card is provided by GS1 to ensure the LVS-9510 is always within a known calibration
standard. The type of test card received is based on the selected eld of view. Test cards
include EAN/UPC and GS1-128.

Engineering Specications
LVS-9510 Information Book 8 of 18
Physical Properties
• Depth = 9.062 inches (230 mm)
• Width = 11.125 inches (282 mm)
• Height = 11.25 inches (285.75 mm)
(height includes rubber feet on system
base)
• Viewing Window = 5 inches x 7 inches
(127 mm x 177.79 mm)
• Weight:
• Unpackaged weight (standalone LVS-
9510 unit) = 6 pounds
(2.72 kg)
• Shipping weight (includes all items
packaged in shipping box, such as
power supply, cables, manuals, etc.)
= 13 pounds (5.89 kg)
Top Cover
• 5.5 inches x 7.5 inches
(139.7 mm x 190.5 mm)
• Weight = 5.5 oz (162.65 grams)
Video Camera
• Monochrome. 5.0 megapixel
Minimum PC Requirements
(PC Supplied by Customer)
• Windows®7 Professional, Windows®
8.1 Professional, and Windows®XP
Professional
Windows®Vista is not supported
• Intel® Core™ 2 Duo or equivalent
(Intel® Core™ 2 Quad is preferred)
• 2 GB RAM (4 GB is preferred)
• 800 x 600 Resolution
• One available USB 2.0 port (additional
ports required for each Auxiliary
Readhead in use)
Viewing Window
IMPORTANT: The customer-supplied
computer connecting to the Auxiliary
Readhead must be running LVS-95XX
software version 3.0.8 or higher.
Light Source
• White Light. Red (660 nm) lter.
Optional clear window available for
purchase.
Inputs / Outputs
• USB 2.0 port
• Power Supply 12 vdc @ 2.5 amps
(minimum)
Operating Temperature
• 10º C (50º F) to 30º C (86º F)
Storage Temperature
• 0º C (32º F) to 40º C (104º F)
Relative Humidity
• 20% to 70% (no water condensation
allowed)
Calibration (one of the following:)
• EAN/UPC Calibrated Conformance
Test Card
• GS1-128 Calibrated Conformance Test
Card
Specications subject to change without notice.

Auxiliary Readhead
Auxiliary Readheads are used as an alternate reading device for grading barcodes of
different sizes that require a different eld of view and minimum X dimension or cell size
than the main INTEGRA Barcode Verier.
The Auxiliary Readhead connects to the LVS-9510 and a customer-supplied computer
installed with LVS-95XX software via a USB cable. Simply place a bar code on the view-
ing stage and the results are displayed on the computer screen. The Auxiliary Readhead
is designed to comply with ISO/IEC Standards.
IMPORTANT: The customer-supplied computer connecting to the Auxiliary Readhead
must be running LVS-95XX software version 3.0.8 or higher.
1D Codes
The Auxiliary Readhead is offered with ve available elds of view.
Minimum X Dimension
(Nominal)
Field Of View
(Approximate)
Calibration
Card
Part
Number
1D 2D
3.0 mils
(0.07 mm)
4.5 mils
(0.11 mm)
1.75 inches
(44 mm)
EAN/UPC
Part #: CAL002
9510-5-1.75-0
4.0 mils
(0.10 mm)
5.9 mils
(0.15 mm)
3.0 inches
(76 mm)
EAN/UPC
Part #: CAL002
9510-5-3.0
6.0 mils
(0.15 mm)
9.0 mils
(0.23 mm)
4.0 inches
(102 mm)
EAN/UPC
Part #: CAL002
9510-5-4.0
7.0 mils
(0.18 mm)
9.8 mils
(0.25 mm)
4.5 inches
(114 mm)
EAN/UPC
Part #: CAL002
9510-5-4.5
9.4 mils
(0.24 mm)
13.1 mils
(0.33 mm)
6.250 Inches
(159 mm)
GS1-128
Part #: CAL003
9510-5-6.250
LVS-9510 Information Book 9 of 18

Included With Purchase
• Power Cord (for North America shipments only)
• Power Supply (requires localized power cord for shipments outside North America)
• USB Cable
• LVS-95XX Series Software Installation Guide (includes Auxiliary Readhead installation
steps)
• Calibrated Conformance Test Card used for calibrating the Auxiliary Readhead. The
type of test card received is based on the selected eld of view. Test cards include Data
Matrix (2D), EAN/UPC, GS1-128 and GS1 DataBar (formally called RSS). The test
card used to calibrate the Auxiliary Reader may be different than the test card used to
calibrate the LVS-9510 unit.
LVS-9510 Information Book 10 of 18

LVS-9510 Information Book 11 of 18
Supported Standards
Below are a few of the standards supported by the LVS-9510. Contact Microscan for a full
list of supported standards.
Application Standards
• AIAG/DAMA/JAPIA/Odette
• ALDI
• ISO/IEC TR 29158 (DPM Cat 0)
• DHL
• FPMAJ
•French CIP
• GS1 General Specications
• HDMA Guidelines
• Health Industry Bar Code (HIBC)
•IFAH
• ISO/IEC 15415/15416
•Italian Pharmacode
• Japan Codabar
•Laetus Miniature Pharmacode
•Laetus Pharmacode
•Laetus Standard
• MIL-STD-130
• Pharmacy Product Number (PPN)
•Automatic GS1 or ISO
• Chinese Sensible (Han Xin) Code
• GS1 General Specications
• GS1 (NTIN)
• HDMA Guidelines
•Miniature Pharmacode
• Postal (EIB, USPS IMB/Code 128,
PostNet, Japan Post)
• PPN Code
• PZN-big, normal, small
(German Pharmacode)
• PZN 7 and PZN 8
GS1 US CERTIFICATION
• Data Matrix for Healthcare
• Data Matrix (ECC 200)
• EAN/UPC (and extended codes)
• EAN/UPC with CC
• GS1 DataBar Omnidirectional
• ITF-14
• GS1 Databar-14 with CC
(formerly RSS-14 with CC)
• UCC/EAN with Supplementals
• UCC/EAN-128
• UCC/EAN-128 with CC
ISO Conformance Standards
• ISO/IEC 15415
• ISO/IEC 15416
• ISO/IEC 15426-1
• ISO/IEC 15426-2
• ISO/IEC TR 29158 (DPM Cat 0)
• All supported ISO/IEC Symbology
Specications

LVS-9510 Information Book 12 of 18
Software Overview
The LVS-95XX software is comprised of tabs located across the top of the screen, each
designed to perform a specic function. Refer to the following sections for more informa-
tion on each tab.
Tabs
Welcome Tab
The Welcome tab is the rst tab to appear when logging onto the LVS-9510. This tab
provides the version number and allows the user to select the desired software language.
The LVS-9510 currently supports 14 languages.
Setup Tab
The Setup tab is where system settings are dened, such as:
• The preferred method of grading bar codes (automatic, manual or auto-sector)
• Single or Multi-bar code Verication
• Application Standards
• Camera options
• Operator names and passwords
• Local time of day, date, Greenwich Mean Time (GMT), and time zone
• Product Information (used for EAN-8, EAN-13, UPC-A, and UPC-E Symbologies)
• Distributor Information

LVS-9510 Information Book 13 of 18
Calibration Tab
The Calibration tab is where calibration of the system occurs. Two Calibrated Confor-
mance Standard Test Cards are available for calibration: GS1-128 and EAN/UPC. The
Calibration Card you use depends on your eld of view.
The Calibration Cards are used to certify that the system is calibrated according to ISO/
IEC 15416:2000(E) and is traceable to NIST standards.
Grading Tab

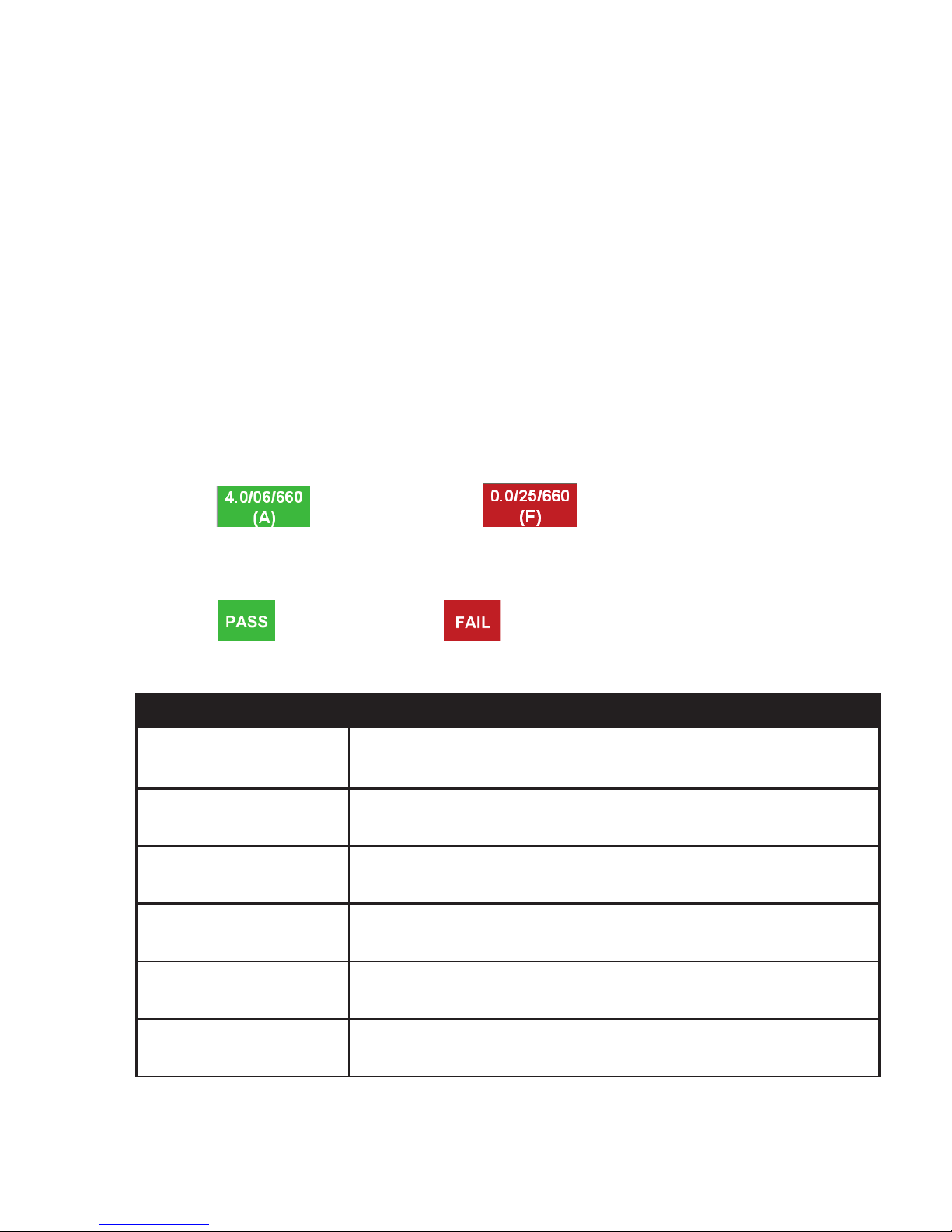

The Grading tab allows the user to perform the following functions:
• View the overall grade of the bar code.
• Select one of two ways to verify a bar code: Full or Pass/Fail.
• The “Full” option analyzes a bar code in detail and displays the ISO parameters.
Passing Grade Failing Grade
• The “Pass/Fail” option analyzes a bar code in detail and displays “Pass” if the
bar code passed or “Fail” if the bar code failed.
Passing Grade Failing Grade
• Viewing options such as:
Option Description
Contrast Contrast of each scan line on the bar code.
Modulation Allows you to view a modulation error.
Decodability Indicates the measurement of the deviation of the width of bars
and spaces when compared to their ideal widths.
Defects Indicates elements on the correct side of the global threshold
but have deviation in reectance.
OCR Veries the human readable portion of a bar code.
Zoom Allows you to zoom in on an image.

LVS-9510 Information Book 14 of 18
• Verify the following types of codes: linear codes, two-dimensional matrix codes and two-
dimensional multi-row codes.
• View all of the measured parameters individually, which are used to determine why a
bar code has a certain grade. There are numerous parameters listed, depending on the
symbology.
• Checks for Blemishes.
• Height and Width measurements of the bar code.
• Color Code legend which reports ISO/IEC grades by color code.
Zoom Tab
The Zoom tab allows you to further evaluate the quality of bar codes by magnifying the
bar code image up to four times. You can change the position of magnication by clicking
on a different position on the image, and you can also change the horizontal and vertical
position of the image.
SRP View Tab
The SRP (Scan Reectance Prole) tab allows you to further evaluate a bar code error by
selecting what type of error will be super-imposed onto the SRP graph. Options include:
• Element Reectance
• Modulation
• Decodability (width of each element)
• Defects (inection to element reectance)
• Full Screen Waveform
• Traditional Bar Growth and Shrinkage
Structure Tab
Many organizations throughout the world create bar code labels according to a set of
rules used to standardize how bar code data is to be structured in order to easily transfer
trade-related information between two parties. For the most part, these rules were cre-
ated and governed by an international group called ISO/IEC. The Structure tab shows
the data structure analysis of all bar code symbologies.
Archive Tab
When a bar code image is captured, the LVS-9580 analyzes the image and determines if
the image is different from the last bar code image collected. If the image is different, the

software stores the new report and marks it with a le number along with a new date/time
stamp. The Archive Tab allows you to access these various reports and les, which are
stored in an SQL-compatible database. Archive options include:
LVS-9510 Information Book 15 of 18
• Import Image from File
• Export Image to File
• Recent Reports (last 30 days)
• Delete Prior to Specic Date
• Software Version History File
• Calibration Report (History)
• Reference Report
• Export reference data
• Change SQL connection
• Create Backup database
• Audit Trail Report
• Browse Backup database

Our Products
Microscan provides vision inspection systems for both
off-line and in-line applications.
Off-line solutions include the LVS-95XX Series of bar
code veriers which validate the quality and data within
1D and 2D bar code symbologies to ISO, ANSI and GS1
standards. The LVS-95XX Series inspects all nine ISO/
ANSI parameters for 1D bar codes, plus added features
of determining blemishes, opacity and human read-
able validation. Analysis is color coded to show exactly
where the problem is located within the bar code making
problem solving quick and easy. The LVS-95XX Series
of veriers are certied by GS1 US and are 21 CFR Part
11 compliant-ready. The LVS-95XX Series includes the
LVS-9510 (desktop verier), LVS-9570 (hand-held veri-
er) and LVS-9580 (portable, hand-held verier).
In-line process control systems include the LVS-7000,
LVS-7300 and LVS-7500.
The LVS-7000 is a high speed vision system that im-
proves the quality inspection process. The LVS-7000
veries to ISO/IEC standards all bar codes and ma-
trix codes as they are printed, validates sequential or
random number sequences, and fulllls the normal print
quality inspection steps. Features include:
•Delta E Color Process Control – Detects color varia-
tions by comparing the trained color (also called the
master color) to the image color currently displayed in
the eld of view
•Master-to-Label Comparison (Blemish Detection) –
Detects blemishes, smears, skews, missing copy, print
registration and edge determination
•Full ISO (ANSI) verication of 1D and 2D Bar codes,
including Linear, Data Matrix and Stacked codes.
•OCR/OCV Inspection – File Matching; Duplicate
Checking; and Random or Sequential Data Validation
•Roll Inspection Mapping System (RIMS) – Map and
record each error detected on the press
LVS-9510
LVS-9570
LVS-9580
LVS-9510 Information Book 16 of 18

LVS-9510 Information Book 17 of 18
•HMI Command Center – View and interact with mul-
tiple vision systems in remote locations from a single
monitor
•Auto Scan (Web Viewer) – Simultaneously monitor
and analyze up to 16 areas of interest per job on the
web
•PDF Compare – Ensures the approved customer PDF
le matches the actual print job
The LVS-7300 utilizes the latest GbE and USB 3.0 tech-
nology to provide affordable vision inspection. Featuring
line scan and area scan camera technology, the LVS
7300 offers entry level inspection capabilities such as
back numbering, single lane ISO grading of 1D and 2D
bar codes, basic 100% inspection and color monitoring.
The LVS-7500 offers 100% print quality inspection and
bar code verication capabilities for use with thermal
printers, thermal transfer printers, and other slow-speed
roll/fan-fold printing applications. The LVS-7500 provides
a cost-effective means to identify defects, avoid liability,
reduce re-work, and control waste resulting from labeling
or print quality errors.
LVS-7000
LVS-7300
LVS-7500

SAFETY CERTIFICATIONS
DESIGNED FOR
FCC, CE, UL (Pending)
ROHS COMPLIANT
QMS CERTIFICATION
www.microscan.com/quality
©2016 Microscan Systems, Inc.
Warranty – For current warranty information about this
product, please visit www.microscan.com/warranty.
ISO 9001 Registered
www.microscan.com
LVS-9510 Information Book 18 of 18
