Features

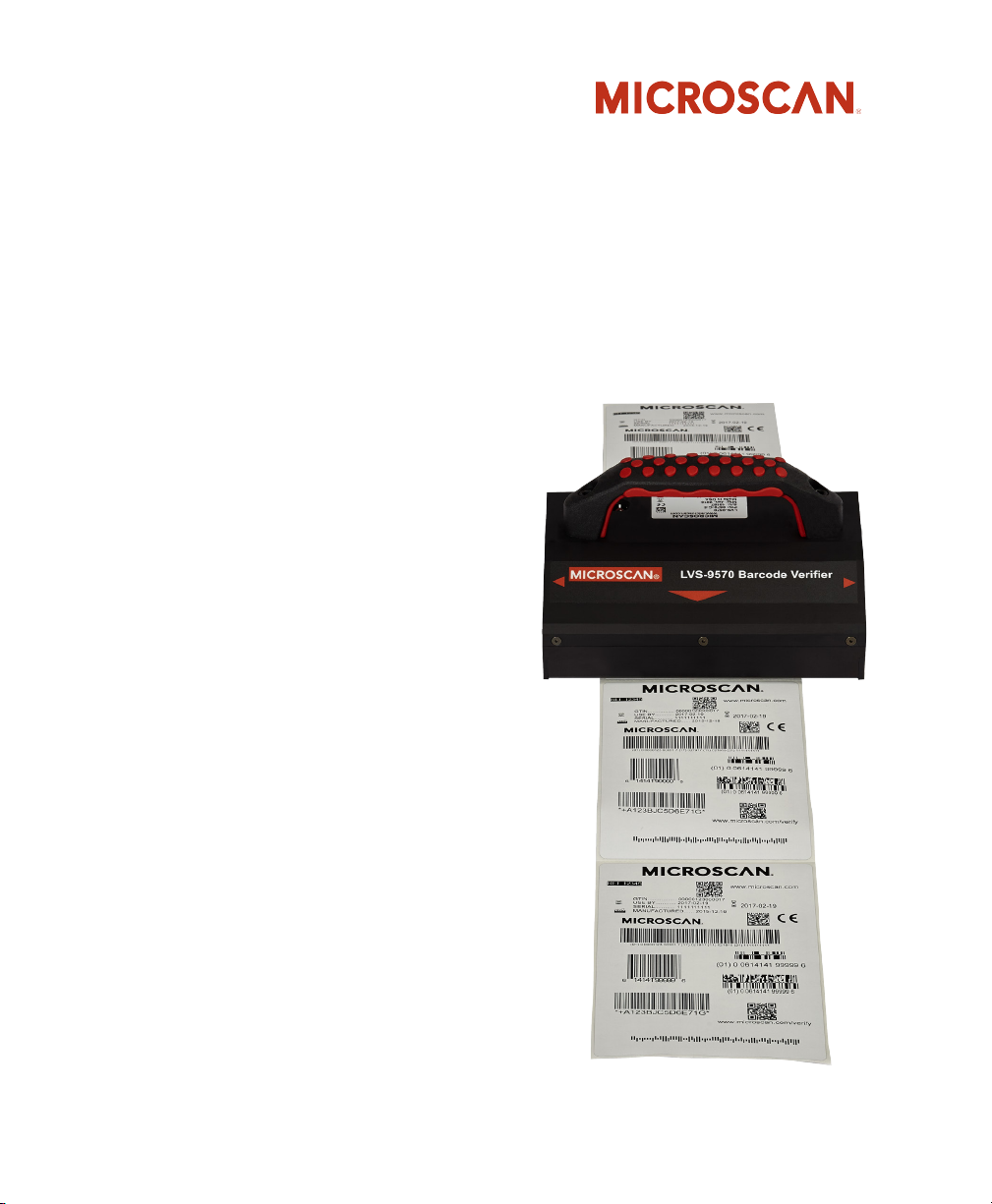

The LVS-9570 is a 1D and 2D handheld bar code verier designed for ofine verication
of bar codes to ISO/IEC standards. The LVS-9570 is unique in the world of ISO verication
due to its ease of use and ability to verify linear (1D) and two-dimensional (2D) codes
using a lightweight, handheld verier; autodiscriminate the symbology, narrow bar width
and aperature to be used to evaluate the code; and highlight trouble spots in the code.
Additional outstanding features include:
Inspection
Inspects all nine of the ISO (ANSI) parameters, plus added features of determining
blemishes, opacity, and human readable validation. The LVS-9570 also veries 2D codes
and reports all parameters as specied in the applicable symbology specication.
Detailed Analysis
Analysis is color coded to show exactly where the problem is located within the bar code,
and sections of the bar code can be analyzed to determine how to solve the problem.
Reference to an online Help screen aids in the analysis.
Advanced Technology
Sensor technology allows more detailed analysis of the bar code, and makes reading of
small and truncated codes possible, accurate and easy.
Numerous Verication Options
Multiple codes, including any combination of Linear, Matrix (such as Data Matrix, QR Code
and Aztec Code) and Stacked Linear (such as PDF 417, Micro PDF and Composite Codes)
can be veried on one label within the eld of view.
ISO Grading
ISO grades bar codes on various label sizes.
Accurate
The LVS-9570 is the most accurate handheld verier on the market today with the highest
degree of accuracy and repeatability.
Reliable
The LVS-9570 is the most reliable handheld verier on the market.

LVS-9570 Information Book 5of 12
EAN/UPC NIST Traceable Calibrated
Conformance Standard Test Card
The LVS-9570 is supplied with a NIST traceable calibrated conformance standard test card
provided by GS1 to ensure that the system is always within a known calibration standard.
21 CFR Part 11 compliant-ready

LVS-9570 Information Book 6of 12
Engineering Specications
Physical Properties
Scanner
• 400 DPI
• Floating Sensor Head
Overall Scanning Width
• 5.4 inches (137.16 mm) (picket fence format)
• 12.0 inches (305 mm) (ladder format)
Minimum X-Dimension
•1D (Narrow Bar Width)
8.8 mils (0.0088”) (0.223 mm)
•2D (Cell Size)
12.5 mils (0.0125”) (0.317 mm)
Verication
• 1D and 2D codes that comply with ISO/IEC
standards and GS1 General Specications
Minimum PC Requirements
(PC supplied by customer)
• Windows® 7 Professional,
Windows® 8.1 Professional,
and Windows® XP Professional
Windows® Vista is not supported
• Intel® Core™ 2 Duo or equivalent
(Intel® Core™ 2 Quad is preferred)
• 2 GB RAM (4 GB is preferred)
• 800 x 600 Resolution
• One available USB 2.0 port
2.13 inches 54.10 mm
4 inches 101.6 mm
3.94 inches 100.08 mm
6.56 inches 166.62 mm
2.3 pounds 1.04 kg
Height
•Verier height
•Total height
including handle
Length
Width
Weight
Light Source
• Red Light
• 660 nm
Inputs / Outputs
• USB 2.0 port
Operating Temperature
• 10º C (50º F) to 30º C (86º F)
Storage Temperature
• 0º C (32º F) to 40º C (104º F)
Relative Humidity
• 20% to 70% (no water
condensation allowed)
Calibration
• EAN/UPC Calibrated Conformance
Test Card (LVS® part # CAL002)
21 CFR Part 11 Compliant-Ready

The LVS-9570 uses a 400 dpi scanner to verify 1D and 2D codes that comply with ISO/IEC
standards and GS1 General Specications.
ITEMS INCLUDED WITH PURCHASE
• LVS-9570 Handheld Barcode Verier
• USB Cable
• EAN/UPC NIST traceable Calibrated Conformance Test Card (test card) used for
calibrating the INTEGRA 9570. The test card is provided by GS1 to ensure the LVS-
9570 is always within a known calibration standard.
• Installation CD (includes LVS-9570 software and “LVS-9570 Series Bar Code Quality
Station Operations Manual”)
• LVS-9570 Series Software Installation Guide
• “LVS-9570 Operating Instructions” manual
• Flash Drive (contains LVS-9570 demonstration video)
Note: The LVS-9570 connects to a customer-supplied computer.
See “Engineering Specications” section for minimum computer requirements.
INSTALLATION
Installation of the LVS-9570 consists of two easy steps:
1. Install the LVS-9570 software (located on the Installation CD) on a customer-supplied
computer. Onscreen instructions guide you through each step of the installation process.
2. Connect the USB cable from the computer’s USB port to the LVS-9570’s USB port.
An onscreen instructional Wizard is provided, along with an “LVS-9570 Series Software
Installation Guide,” ensuring the installation process is as simple as possible.
LVS-9570 Information Book 7of 12
Congurations
Minimum X Dimension
(Nominal):
Field of View (Approximate):
Calibration Card:
INTEGRA 9570 Part Number:
1D (Narrow Bar Width): 8.8 mils
(0.0088 inches) (0.223 mm)
2D (Cell Size): 12.5 mils (0.0125
inches) (0.317 mm)
5.4 inches (138 mm)
EAN/UPC (Part Number: CAL002)
9570-C-5-0

Below are just a few of the symbologies supported by the LVS-9570.
Contact Microscan® for a full list of supported symbologies.
Aztec Code
Composite Code CC-A
Composite Code CC-B
Composite Code CC-C
Codabar
Code 128
Code 39
Code 93
DataBar expanded
DataBar limited
DataBar stacked
DataBar-14
EAN/JAN-13
EAN/JAN-8
ECC-200 (Data Matrix)
GS1-128
The LVS-9570 supports the following standards:
APPLICATION STANDARDS:
Below are just a few Application Standards supported by the LVS-9570:
AIAG/DAMA/JAPIA/Odette
ALDI
AS9132-A /AIM DPM Cat 0
DHL
GS1 General Specications
IFAH
Italian Pharmacode
Japan Codabar
Laetus Miniature Pharmacode
Laetus Pharmacode
Laetus Standard
Hanxin Code
Interleaved 2 of 5 (ITF)
ITF-14
Japan Post
MaxiCode
Micro QR Code
MicroPDF417
MSI Plessey
PDF417
Pharmacode - Italian
Pharmacode - Laetus
QR Code
UPC-A
UPC-E
USPS Intelligent Mail Barcode
(also referred to as 4-State Barcode)
MIL-STD-130M
PZN (big, normal, small)
ISO CONFORMANCE STANDARDS:
ISO/IEC 15415:2004(E)
ISO/IEC 15416:2000(E)
ISO/IEC 15426-1:2000(E)
ISO/IEC 15426-2:2004(E)
All supported ISO/IEC
symbology specications
LVS-9570 Information Book 8of 12
Supported Symbologies
Supported Standards

The LVS-9570 software is comprised of tabs located across the top of the screen, each
designed to perform a specic function. Refer to the following sections for more information
on each tab.

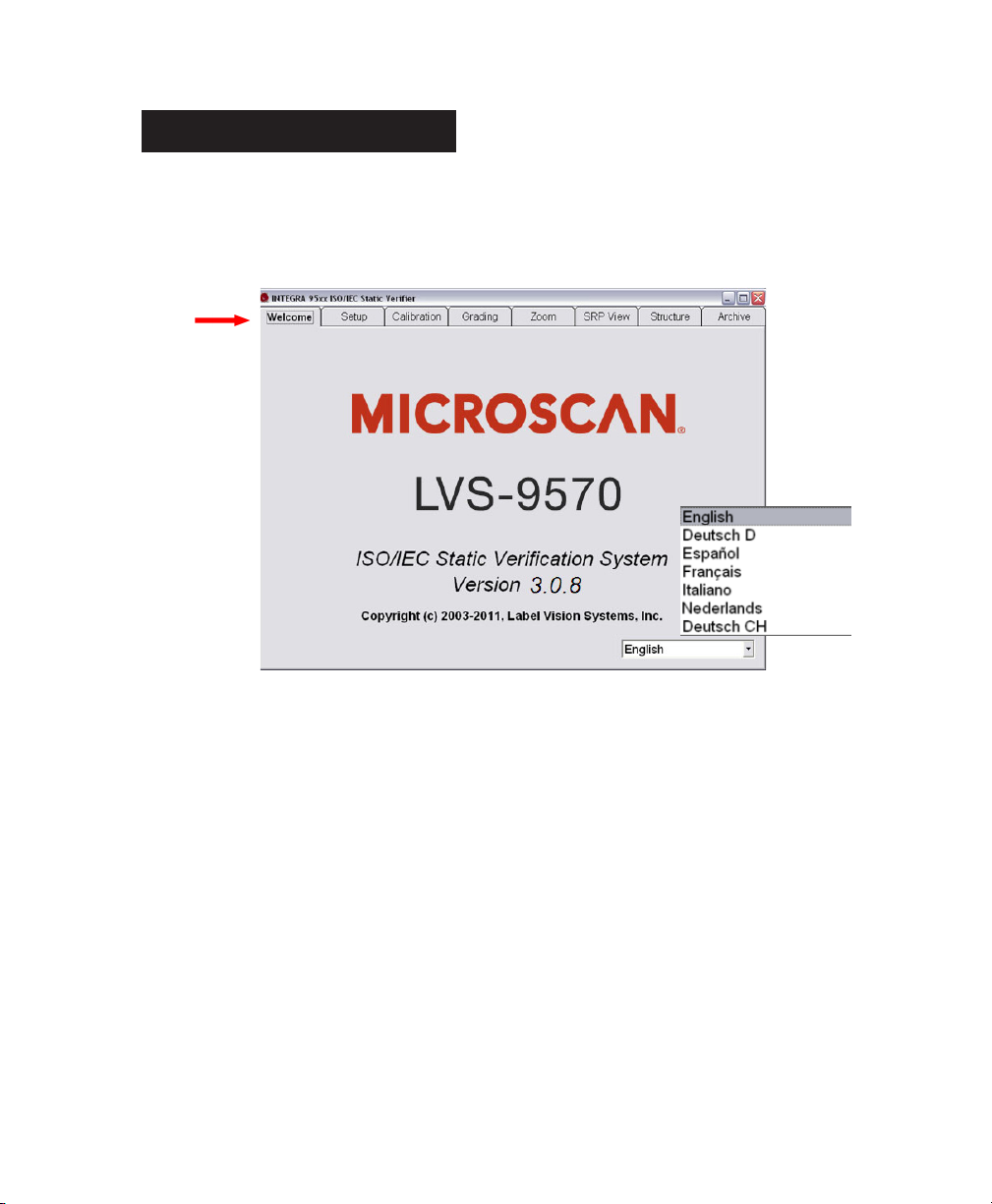

WELCOME TAB
The Welcome tab is the rst tab to appear when logging onto the LVS-9570. This tab
provides the version number and allows the user to select the desired software language.
The LVS-9570 currently supports 11 languages.
SETUP TAB
The Setup tab is where system settings are dened, such as:
• The preferred method of grading bar codes (automatic, manual or auto-sector)
• Single or Multi-bar code Verication
• Application Standards
• Camera options
• Operator names and passwords
• Local time of day, date, Greenwich Mean Time (GMT), and time zone
• Product Information (used for EAN-8, EAN-13, UPC-A, and UPC-E Symbologies)
• Distributor Information
LVS-9570 Information Book 9of 12
Software Overview
Tabs

CALIBRATION TAB
The Calibration tab is where calibration of the system occurs. An EAN/UPC NIST
traceable Calibrated Conformance Test Card (test card) used for calibrating the LVS-9570.
The test card is provided by GS1 to ensure the LVS-9570 is calibrated according to ISO/
IEC 15416:2000(E) and is traceable to NIST standards.
GRADING TAB
The Grading tab performs the following functions:
• Indicates the overall grade of the bar code.
• Single or Multi-bar code Verication
• Allows you to select one of two ways to verify a bar code: Full or Pass/Fail.
• The “Full” option analyzes a bar code in detail and displays the ISO parameters.
•The “Pass/Fail” option should be selected if you are not interested in the detailed
analysis of the bar code and are more interested in whether the bar code meets
your company’s minimum ISO grade requirements.
• Viewing options such as:
• Verify the following types of codes: linear codes, two-dimensional matrix codes
and two-dimensional multi-row codes.
•View all of the measured parameters individually, which are used to determine why
a bar code has a certain grade. There are numerous parameters listed, depending
on the symbology.
• Checks for Opacity and Blemishes.
• Height and Width measurements of the bar code.
• Color Code legend which reports ISO/IEC grades by color code.
LVS-9570 Information Book 10 of 12
OPTION DESCRIPTION
Contrast Contrast of each scan line on the bar code.
Modulation Allows you to view a modulation error.
Decodability Indicates the measurement of the deviation of
the width of bars and spaces when compared
to their ideal widths.
Defects Indicates elements on the correct side of the global
threshold but have deviation in reectance.
OCR Veries the human readable portion of a bar code.
Zoom Allows you to view small labels

ZOOM TAB
The Zoom tab allows you to further evaluate the quality of bar codes by magnifying the bar
code image up to four times. You can change the position of magnication by clicking on a
different position on the image, and you can also change the horizontal and vertical position
of the image.
SRP VIEW TAB
The SRP (Scan Reectance Prole) tab allows you to further evaluate a bar code error by
selecting what type of error will be super-imposed onto the SRP graph.
Options include:
• Element Reectance
• Modulation
• Decodability (width of each element)
STRUCTURE TAB
Many organizations throughout the world create bar code labels according to a set of rules
used to standardize how bar code data is to be structured in order to easily transfer trade-
related information between two parties. For the most part, these rules were created and
governed by an international group called ISO/IEC. The Structure tab shows the data
structure analysis of all bar code symbologies.
ARCHIVE TAB
The LVS-9570 constantly monitors the bar code image and determines if it is different
from the last bar code image collected. If the image is different, the software stores the
new report and marks it with a le number along with a new date/time stamp. The Archive
Tab allows you to access these various reports and les, which are stored in an SQL-
compatible database.
Archive options include:
• Import Image from File
• Export Image to File
• Recent Reports (last 30 days)
• Delete Prior to Specic Date
• Software Version History Files
• Audit Trail Report
LVS-9570 Information Book 11 of 12
• Defects (inection to element reectance)
• Full Screen Waveform
• Traditional Bar Growth and Shrinkage
• Calibration Report (History)
• Reference Report
• Export reference data
• Change SQL connection
• Create Backup database
• Browse Backup database

LVS-9570 Information Book 12 of 12
SAFETY CERTIFICATIONS
DESIGNED FOR
FCC, CE, UL (Pending)
ROHS COMPLIANT
QMS CERTIFICATION
www.microscan.com/quality
©2016 Microscan Systems, Inc.
Warranty – For current warranty information about this
product, please visit www.microscan.com/warranty.
ISO 9001 Registered
www.microscan.com
