Microsoft HD-500 User manual

User Guide
Display Dock
Issue 1.0 EN-US

Contents
For your safety 3
About your accessory 4
Keys and parts 5
Connect your accessory to the
monitor and the power supply 6
Connect your accessory to your
phone 7
Update your accessory software 8
Indicator lights 9
Product and safety info 10
Copyrights and other notices 10
User Guide
Display Dock
© 2015 Microsoft Mobile. All rights reserved. 2

For your safety
Read these simple guidelines. Not following them may be dangerous or against local laws and
regulations.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Microsoft Mobile for
use with this device. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
© 2015 Microsoft Mobile. All rights reserved. 3

About your accessory
This accessory lets you expand your phone’s capabilities for use on a big screen. Now you can
get things done like you would on a PC.

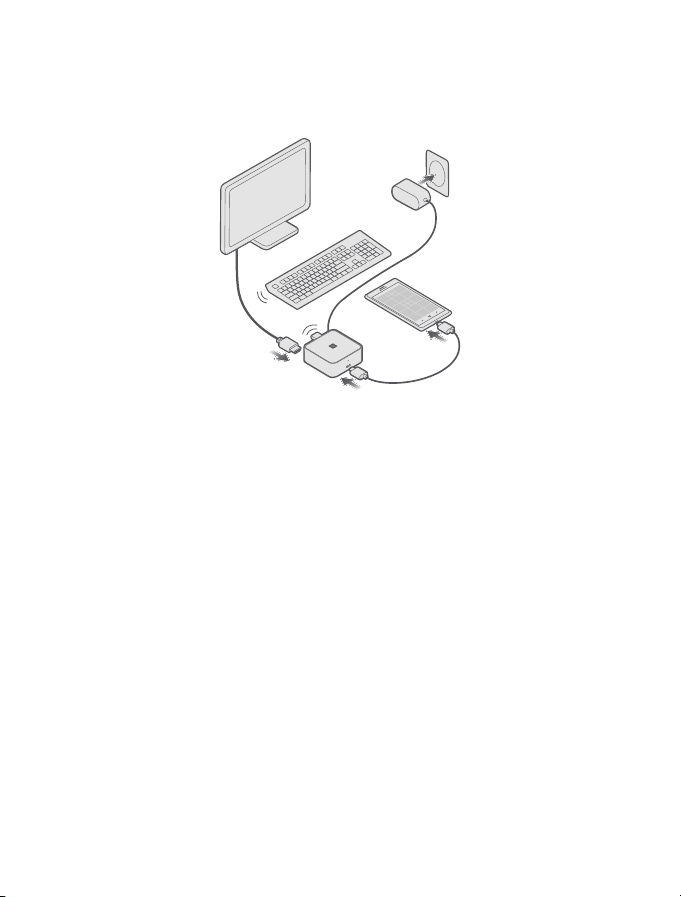

Connect the accessory to a screen (monitor or TV) and your phone, and then add a keyboard
and mouse. Apps scale smoothly to the screen size (note that app experiences may vary).*
You can continue to use the phone independently, using a different app than the one shown
on the big screen.
When connected, the accessory also charges your phone.
To use the accessory, you need a Windows 10 Microsoft Lumia phone with Continuum and a
USB-C™ connector supporting DisplayPort video output. You also need a display with a
DisplayPort or HDMI connector or a compatible adapter. The accessory supports USB 2.0
compatible mice, keyboards, and mass storage devices (depending on the phone operating
system).
For more information on Continuum, see the Continuum app.
For more information on compatibility, support, and troubleshooting, go to
www.microsoft.com/mobile/support/.
Read this user guide carefully before using the product. Also, read the user guide for the device
that you connect to the product.
© 2015 Microsoft Mobile. All rights reserved. 4

Keys and parts
Get to know your device.
1 USB-C connector for connecting
the phone
2 Indicator light
3 USB connector for charging other
devices
4 USB connectors for USB devices
5 HDMI connector for video output
6 DisplayPort connector for video
output
7 USB-C charger connector
8 USB-C cable
The USB-C charger and USB-C cable are included in the sales package.
HDMI and DisplayPort cables are sold separately.
Some of the accessories mentioned in this user guide may be sold separately.
Warning: The plugs of this product may contain a small amount of nickel. If you are
sensitive to nickel, prolonged skin contact with the parts may cause symptoms.
© 2015 Microsoft Mobile. All rights reserved. 5

Connect your accessory to the monitor and the
power supply
Connect an HDMI or DisplayPort cable, and plug in the power supply to get started.
1. Connect one end of an HDMI or DisplayPort cable (both available separately) to the HDMI
or DisplayPort connector of the accessory, and the other end to the monitor or TV.
Tip: If your monitor or TV doesn’t have an HDMI or DisplayPort connector, you can use
an adapter. For more information on recommended adapters, go to
www.microsoft.com/mobile/support/.
2. Connect the charger to the charger connector on the back of the accessory, and plug the
charger into a wall outlet. A red indicator light turns on.
3. Turn your monitor or TV on, and make sure that the correct input mode is selected.
You’re now ready to connect the accessory to your phone.
© 2015 Microsoft Mobile. All rights reserved. 6

Connect your accessory to your phone
Connect your accessory to your phone using a USB-C cable.
Make sure your accessory is connected to the monitor or TV and the power supply.
Connect one end of the USB-C cable (provided in the sales package and marked with a blue
sticker) to the connector on the front of the accessory, and the other end to your phone. A
white indicator light turns on, and you can see more information on what you can do with the
accessory.
Tip: Both ends of the USB-C cable are similar and reversible, so you don’t have to worry
about which way you connect the cable.
To control apps on the TV or monitor easily, connect a keyboard and a mouse to the USB
connectors on the back of your accessory.
Tip: If you want to have the USB connectors free for other devices, you can connect your
phone to a Bluetooth mouse or keyboard. You can also use your phone as a touchpad
and virtual keyboard.
Tip: If you just want to project the phone screen, swipe down from the top of the screen,
tap All settings > System > Display, and go to the advanced settings. You can see the
advanced settings only if you have connected your accessory to the monitor and phone.
USB device support depends on the phone operating system. For more instructions and a full
list of supported USB devices, go to www.microsoft.com/mobile/support/.
If your monitor doesn’t show the phone screen fully, change the picture size settings on your
monitor.
© 2015 Microsoft Mobile. All rights reserved. 7

Update your accessory software
Your phone notifies you when a new software version is available. Just follow the instructions
shown on your phone.
Tip: To check for updates manually, tap Gadgets > HD-500.
To make sure the update succeeds, do not disconnect the charger or unplug any cables during
the update.
When the update is ready, disconnect the charger from the wall outlet. To continue using the
accessory, plug the charger back into a wall outlet.
© 2015 Microsoft Mobile. All rights reserved. 8

Indicator lights
Wonder what the different lights on your accessory mean?
Indicator light patterns
Continuous red Your accessory is ready to be connected to
your phone
Continuous white Your accessory is connected to your phone
Flashing red There is an error. Follow the instructions
shown on your phone.
Alternating white and red Accessory software update is ongoing
Flashing red, followed by flashing white There is an error. Take the accessory to your
nearest authorized service facility.
© 2015 Microsoft Mobile. All rights reserved. 9

Product and safety info
Take care of your device
Handle your device, charger and accessories with care. The following suggestions help you keep your device operational.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode
electronic circuits. If your device gets wet, let the device dry.
• Do not use or store the device in dusty or dirty areas.
• Do not store the device in high temperatures. High temperatures may damage the device.
• Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can
form inside the device and damage it.
• Do not open the device.
• Unauthorized modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device or the battery. Rough handling can break it.
• Only use a soft, clean, dry cloth to clean the surface of the device.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This
way you help prevent uncontrolled garbage disposal and promote the recycling of materials. All materials of the device
can be recovered as materials and energy. Check how to recycle your products at www.microsoft.com/mobile/
recycle.
Battery and charger information
Charge your device with AC-100U charger.
Microsoft Mobile may make additional battery or charger models available for this device.
Copyrights and other notices
Declaration of Conformity
Hereby, Microsoft Mobile Oy declares that this HD-500 product is in compliance with the essential requirements and
other relevant provisions of Directive 2004/108/EC.
The availability of products may vary by region. For more information, contact your dealer. This device may contain
commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
