Middle Atlantic Products VTC Series User manual

- MODELS -
Video Tele-Presence Center
VTC Series
Instruction Sheet
PRODUCT FEATURES
Thank you for purchasing a Video Tele-Presence Center.
THANK YOU
VTC-4280S, VTC-4255D, VTC-5670D VTC-4280S-R, VTC-4255D-R, VTC-5670D-R
• (6) Front trim panels in Natural Nickel
powder coat finish
• (1) Connectivity Panel with knockouts for:
- (1) UCP LKO
- (6) AVIP LKO’s
- (1) 3” Gland Grommet LKO
• (10) Antenna LKO’s
• 4 space adjustable height (knobs up) equipment
mounting rails, set at 18” depth inside of uprights
• 2 space (23” usable) rack mounting in lower
hood compartment (front or rear loading) -or-
3 space (16” usable) in lower hood compartment
• Lever Lock™ - (4) LL receptacle brackets,
(2) LL-HC21 horizontal channels and
(1) LL-VP2110 vertical 10” deep plate
• Camera mount
• Middle Atlantic PD-815SC (8) outlet, 15 amp
power strip with surge and circuit breaker
• (6) Front trim panels in Natural Nickel
powder coat finish
• (1) Connectivity Panel with knockouts for:
- (1) UCP LKO
- (6) AVIP LKO’s
- (1) 3” Gland Grommet LKO
• (10) Antenna LKO’s
• 12 space / 14” depth equipment rack with glass
front door and wood top (VTC-R1214)
• 2 space (23” usable) rack mounting in lower hood
compartment (front or rear loading) -or- 3 space
(16” usable) in lower hood compartment
• Lever Lock™ - (4) LL receptacle brackets,
(2) LL-HC21 horizontal channels and
(1) LL-VP2110 vertical 10” deep plate
• Camera mount
• Middle Atlantic PD-815SC
(8) outlet, 15 amp power strip
with surge and circuit breaker
I-00579 Rev C
• VTC-4280S
• VTC-4255D
• VTC-5670D
• VTC-4280S-R
• VTC-4255D-R
• VTC-5670D-R

The product meets the requirements of the following standards:
• UL 962
• CSA C22.2 No.1-04
IMPORTANT SAFETY INSTRUCTIONS
!
Page 3
REGULATORY COMPLIANCE
WARNING/CAUTION! The exclamation point within an
equilateral triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying the
appliance
AVERTISSEMENT/ATTENTION! Le point d'exclamation
dans un triangle équilatéral est destiné à alerter l'utilisateur
de la présence d'importants instructions d’opération et de
maintenance (entretien) dans la documentation
accompagnant l'appareil.
!
!
WARNING! Failure to read, understand and follow the
following information can result in serious personal injury,
damage to the equipment or voiding of the warranty. It is
the responsibility of the Installer/User to ensure
that this product is loaded according to specifications.
AVERTISSEMENT! Refus de lire, comprendre et suivre
la renseignements suivants peut traduire par de graves
blessures, des dommages à l'équipement ou invalider la
garantie. Il est la responsabilité de l'installateur / utilisateur
de s'assurer que ce produit est chargé conformément aux
spécifications.
WARNING! The weight ratings of this product can be
found on the product. Exceeding these weight ratings can
result in serious injury or damage to the equipment. It is the
responsibility of the Installer/User to ensure the components
installed within this rack system do not surpass the weight
ratings as an unstable condition can occur which may cause
possible injury or damage.
AVERTISSEMENT! Les caractéristiques de poids
de ce produit peuvent être trouvées sur le produit. Le
dépassement de ces caractéristiques de poids peut
entraîner des blessures graves ou des dommages à
l'équipement.
!
!
!
!
CAUTION! To avoid an unstable condition, place heavier
components at the bottom of the cabinet. When more than
one component is placed in the cabinet, begin at the
bottom of the cabinet and place equipment at the lowest
available point, evenly distribute weight (vertically) within
the cabinet. (A rear rack-rail kit is available to assist in the
distribution of weight within the cabinet space.)
ATTENTION! Pour éviter une condition instable, placer
des composants plus lourds dans le bas de l'armoire.
Lorsque plus d'un composant sera placé dans l'armoire,
commencez en bas de l'armoire, placent l'équipement sur
le point le plus bas disponible, distribuant uniformément le
poids (verticalement) dans l l'armoire. (Un kit à crémaillère
arrière est disponible pour aider à la distribution de poids
dans l'espace de l'armoire.)
!
!
WARNING! For use with televisions weighing 35lbs (15.9
Kg) or less. Use with heavier televisions may result in
instability causing tip over resulting in death or serious
injury".
AVERTISSEMENT -. Pour utilisation avec des téléviseurs
pesant 35 lbs (15,9 kg) ou moins. Utilisation avec des
téléviseurs plus lourds peut provoquer une instabilité
entraînant l’unité a basculer, que peut causer la mort ou
des blessures graves. Capacité maximum du cabinet:
250lbs; Poids maximum du monitor: 35 lbs; Ne pas placer
l'équipement sur la surface supérieure.
!
!
WARNING! Relocating audio and/or video equipment to furniture
not specifically designed to support audio and/or
video equipment may result in death or serious injury due to
the furnishing collapsing or over turning onto a child".
AVERTISSEMENT - Déplacement de l’équipements audio et /
ou vidéo sur des meubles pas conçu spécifiquement à soutenir
l'équipement audio et / ou vidéo peuvent entraîner la mort ou
des blessures graves cause par l’effondrement du meuble ou
en basculant sur un enfant.
!
!
WARNING! Death or serious injury may occur when children
climb on audio and/or video equipment furniture. A remote control
or toys placed on the furnishing may encourage a child to climb
on the furnishing and as a result the furnishing may tip over on to
the child".
AVERTISSEMENT - Mort ou blessures graves peuvent se
produire lorsque les enfants montent sur des meubles pour
l'audio et / ou vidéo. Une télécommande ou des jouets mis sur
le mobilier peuvent encourager un enfant à grimper sur le
meuble, provoquant une instabilité et entraînant l’unité a basculer
sur l'enfant.
!
!
• Clean only with dry cloth
Nettoyer avec un chiffon sec seulemen

Important Safety Instructions Page 3
Regulatory Compliance Page 3
Introduction Page 5
Weight Ratings Page 5
Mobility Features Page 5
Tools Required Page 5
Hardware / Items Supplied Pages 6-7
Optional Accessories Page 8

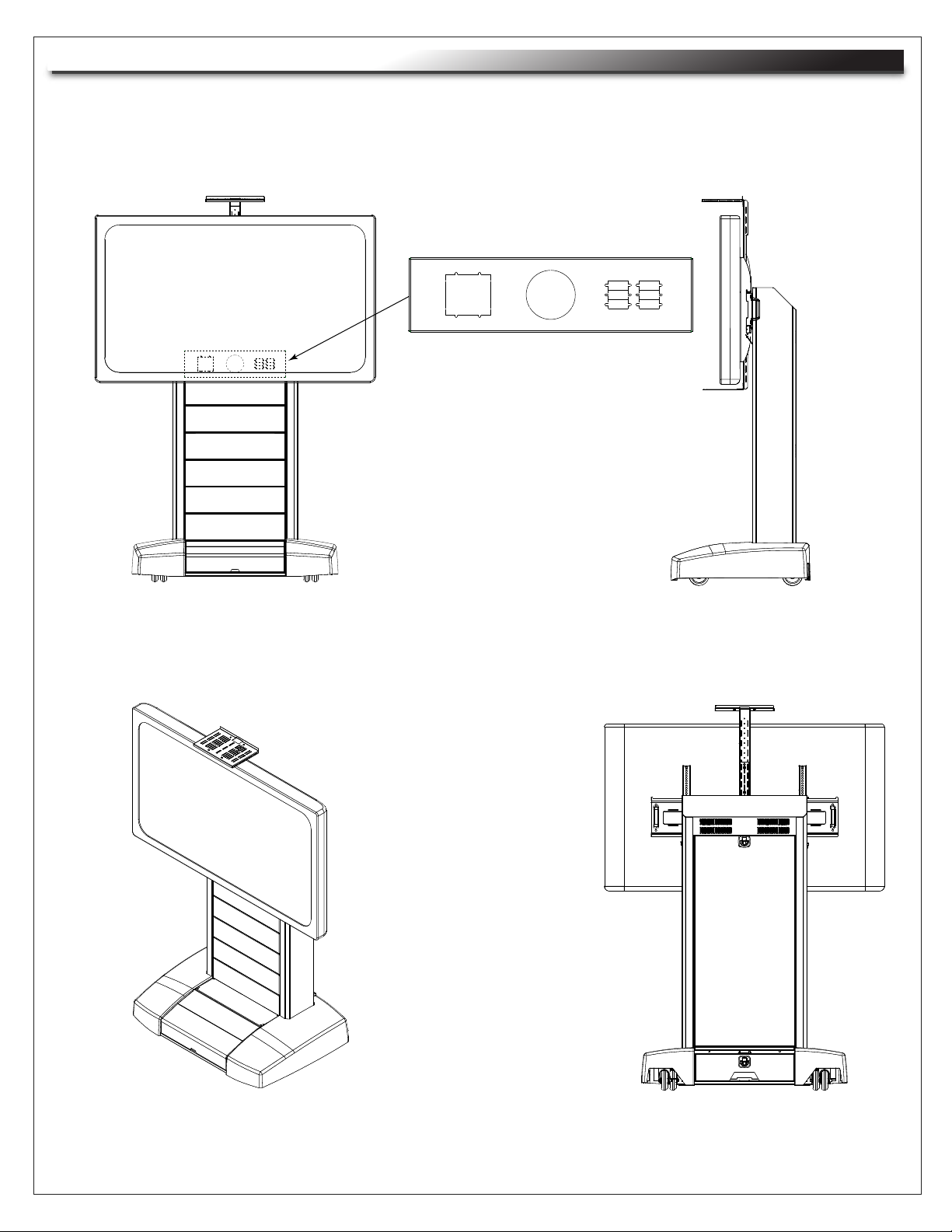

Physical Diagrams (VTC-4280S) Page 9
Physical Diagrams (VTC-4280S-R) Page 10
Physical Diagrams (VTC-4255D / VTC-5670D) Page 11
Physical Diagrams (VTC-4255D-R / VTC-5670D-R) Page 12
Rear Access Panel Removal / Installation Page 13
Front Hood Access Page 13
Rack Installation And Removal (-R Models Only) Page 14
Screen Access Panel Removal / Installation Page 15
Front Panel Configuration (When Installing Options) Page 15
Flat Panel Installation Pages 16-18
Camera Mounting (VTC-4280S / VTC-4280S-R) Page 19
Camera Mounting (VTC-4255D / VTC-4255D-R / VTC-5670D / VTC-5670D-R) Page 20
Lever Lock™ Tool Free Internal Management System Page 21
Front Hood Lock Cylinder Installation Page 22
Power Strip Removal / Installation Page 23
Warranty Page 24
Page 4
TABLE OF CONTENTS

This mobile mounting system supports video applications including video conferencing and
presentations by safely supporting large-format single (42” – 80”) or dual (42” – 70”) screens.
Electronic AV equipment can be mounted in the base and in the main column to support the
application, or in the optional 12U rackspace. Accessories are available including storage and
speaker mounts. Refer to OPTIONAL ACCESSORIES on page 8 for more information.
• #2 Phillips Screwdriver
• Protective Eyewear
• Adjustable Wrench
• 1/2” Socket
• 7/8” Socket
ITEM
Screen (VTC-4280S / VTC-4280S-R Only)
Screen (VTC-4255D / VTC-4255D-R / VTC-5670D / VTC-5670D-R Only)
Internal
Total
DETAILS
250 lbs.
(42” – 80” maximum)
125 lbs each (42” – 70” maximum) side by side
300 lbs.
550 lbs.
Two Rear Locking Casters
Provided To Lock VTC
In Place For Stability (Push
Lever To Lock / Lift To Unlock)
Two Rear Monitor Bracket
Handles Are Provided For
Ease Of Maneuverability
Page 5
INTRODUCTION
WEIGHT RATINGS
MOBILITY FEATURES
TOOLS REQUIRED

NOTE: Additional hardware may be included
which may not be required for your installation.
Page 6
HARDWARE/ITEMS SUPPLIED
Dual Monitor
Vertical Mounting
Brackets (Qty 4)
with Pre-Installed
Locking Clips (Qty 4) &
Locking Screws (Qty 8)
(VTC-4255D /
VTC-4255D-R /
VTC-5670D /
VTC-5670D-R Only)
Single Monitor
Vertical Mounting
Brackets (Qty 2)
with Pre-Installed
Locking Clips (Qty 2) &
Locking Screws (Qty 4)
(VTC-4280S /
VTC-4280S-R Only)
Thread Depth Indicator
(Qty 1)
5/16” Flat Washers
(Qty 10)
M5 x 12 (Qty 8)
M6 x 12 (Qty 8)
M4 x 16 (Qty 8)
(Qty 6)
M5 x 16
(Qty 6)
M5 x 20
M6 x 20 (Qty 6)
M8 x 20 (Qty 6)
(Qty 4)
M4 x 25
(Qty 4)
M5 x 25
M8 x 25 (Qty 6)
M8 x 30 (Qty 6)
M8 x 35 (Qty 4)
(Qty 8)
M5 x 50
M8 x 70 (Qty 4)
Universal Washers
(Qty 8)
Level
(Qty 1)
1/4” Large Nylon Spacers
(Qty 6)
1/2” Large Nylon Spacers
(Qty 12)
1” Nylon Spacers
(Qty 6)
1/4” Small Nylon Spacers
(Qty 6)
Nylon Spacers
(Qty 4)
1/2” Small Nylon Spacers
(Qty 6)
Single
Horizontal Monitor Mounting Bracket
(VTC-4280S / VTC-4280S-R Only)
Large Dual
Horizontal Monitor Mounting Bracket
(VTC-5670D / VTC-5670D-R Only)
Small Dual
Horizontal Monitor Mounting Bracket
(VTC-4255D / VTC-4255D-R Only)
5/16”-18 Hex Head
Monitor Mount Bolts
(1/2” Socket Req’d)
(Qty 4)
5/16”-18 Monitor Mount
Flange Nuts
(1/2” Socket Req’d)
(Qty 4)
FLAT PANEL MOUNTING HARDWARE

Page 7
HARDWARE/ITEMS SUPPLIED (CONTINUED)

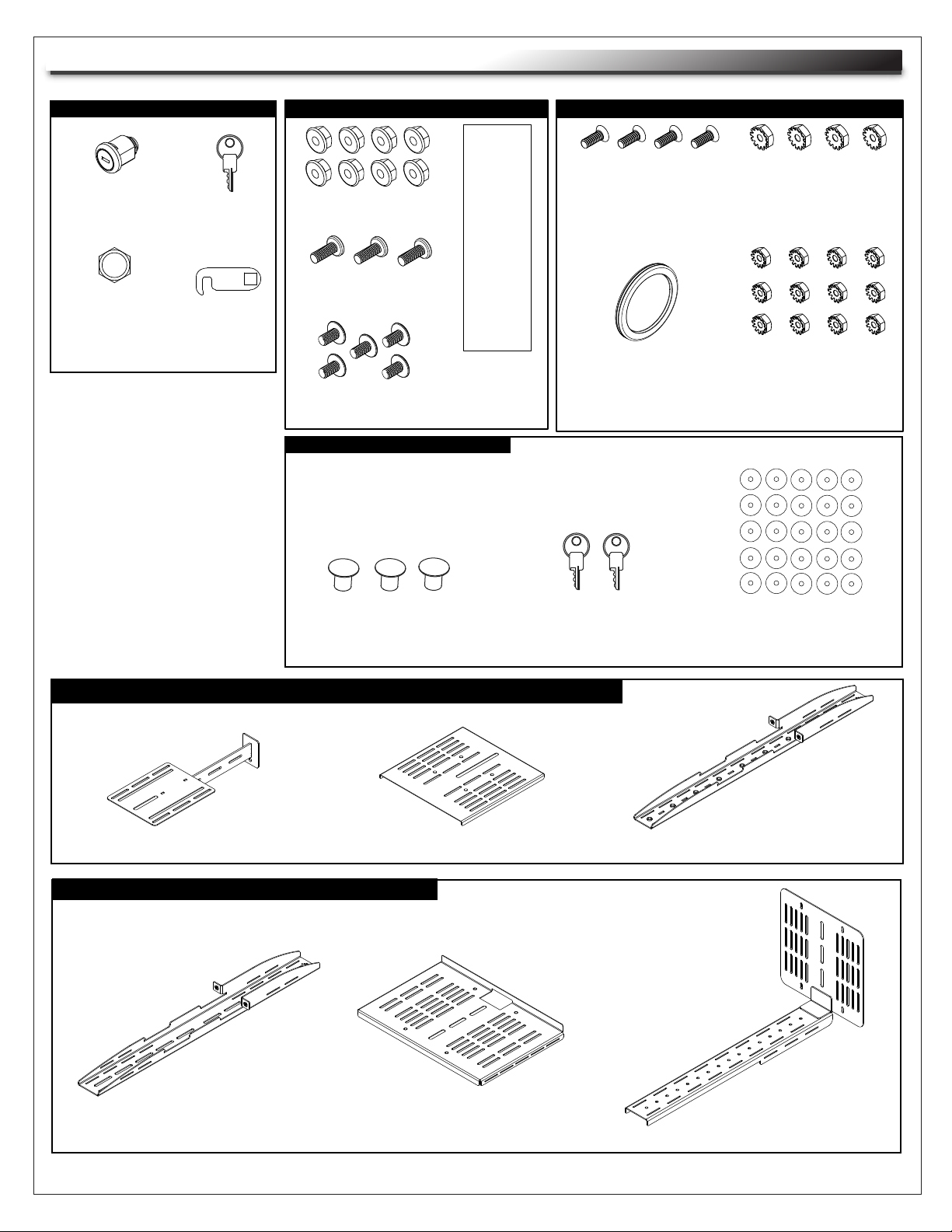

Front Hood Lock
Cylinder (Qty 1)
Front Hood
Lock Nut
(7/8” Socket Req’d)
(Qty 1)
Front Hood
Lock Cam
(Qty 1)
3” Rubber Grommet
(For Connectivity Panel
Pass Through)
(Qty 1)
4-40 KEP Nuts
(For AVIP Knockouts
in Connectivity Panel)
(Qty 12)
6-32 KEP Nuts
(For UCP Knockouts
in Connectivity Panel)
(Qty 4)
6-32 x 3/8”
Flat Head Screw
(For UCP Knockouts
in Connectivity Panel)
(Qty 4)
10-32 x 3/8” Pan Head
Phillips Screw (Qty 5)
10-32 Flange Nut
(Qty 8)
10-32 x 1/2” Pan Head
Phillips Screw (Qty 3)
2’ x 9’ Hook
And Loop
(Qty 1)
Extension Bracket (Qty 1)
Wide Mounting Base (Qty 1)
Camera Mounting Bracket (Qty 1)
Extension Bracket (Qty 1) Wide Mounting Base (Qty 1) Camera Mounting Bracket (Qty 1)
VTC-4255D / VTC-4255D-R / VTC-5670D / VTC-5670D-R CAMERA MOUNT KIT
VTC-4280S / VTC-4280S-R CAMERA MOUNT KIT
Keys (Qty 2)
FRONT HOOD LOCK CONNECTIVITY PANEL
CAMERA MOUNT
MISCELLANEOUS
Plastic Lever Lock
Locking Rivets (Qty 3)
Rear Access Panel Keys
(Qty 2)
#6 Washers For Mounting
Small-Screw Components
To Lever Lock™ (QTY 20)

VTC-4280S, VTC-4255D, VTC-5670D
VTC-4280S-R, VTC-4255D-R, VTC-5670D-R
Page 8
OPTIONAL ACCESSORIES
• VTC-DWR-5.5, 5.5” H VTC drawer
• LL-VTC-K, Doubles Lever Lock™ capacity = (2) LL receptacle brackets, (2) LL-HC21 horizontal
channels and (1) LL-VP2110 vertical 10” deep plate
• VTC-WS-32X12SL, 32” W X 12” D Slate finished work surface
• VTC-SPK-SH11 Speaker Shelf
• VTC-SPK-SH5.5 Speaker Shelf
• VTC-R1214, 12SP / 14” D Equipment rack
• VTC-DWR-5.5, 5.5” H VTC drawer
• LL-VTC-K, Doubles Lever Lock™ capacity = (2) LL receptacle brackets, (2) LL-HC21 horizontal
channels and (1) LL-VP2110 vertical 10” deep plate
• VTC-WS-32X12SL, 32” W X 12” D Slate finished work surface
• VTC-SPK-SH11 Speaker Shelf
• VTC-SPK-SH5.5 Speaker Shelf

VTC-4280S
(Front And Side Views)
VTC-4280S
(Angled and Rear Views)
Page 9
CONNECTIVITY PANEL
PHYSICAL DIAGRAMS (VTC-4280S)

VTC-4280S-R
(Front And Side Views)
VTC-4280S-R
(Angled and Rear Views)
Page 10
CONNECTIVITY PANEL
PHYSICAL DIAGRAMS (VTC-4280S-R)

VTC-4255D / VTC-5670D
(Front and Side Views)
VTC-4255D / VTC-5670D
(Angled and Rear Views)
Page 11
CONNECTIVITY PANEL
PHYSICAL DIAGRAMS (VTC-4255D / VTC-5670D)

VTC-4255D-R / VTC-5670D-R
(Front and Side Views)
VTC-4255D-R / VTC-5670D-R
(Angled and Rear Views)
Page 12
CONNECTIVITY PANEL
PHYSICAL DIAGRAMS (VTC-4255D-R / VTC-5670D-R)

1. Rear access panels lift and tilt out. (FIGURE A)
2. Re-install rear access panels in the reverse manner.
VTC-4280S, VTC-4255D, VTC-5670D
FIGURE A
VTC-4280S-R, VTC-4255D-R, VTC-5670D-R
Page 13
1. Lift front hood up (Hood will remain open). (FIGURE B)
2. Push hood down to close (Hood will close slowly).
NOTE: To adjust hood close speed, turn adjustment screw as
indicated. (FIGURE B)
NOTE: Refer to page 21 for Front Hood Lock Cylinder Installation steps.
FIGURE B
Adjustment Screw
I
n
c
r
e
a
s
e
S
p
e
e
d
D
e
c
r
e
a
s
e
S
p
e
e
d
Rear Access Panels
REAR ACCESS PANEL INSTALLATION / REMOVAL
FRONT HOOD ACCESS

Page 14
RACK INSTALLATION AND REMOVAL (-R MODELS ONLY)
2) Remove (2) 1/4”-20 x 5/8” Phillips hex head screws securing rack to VTC and slide out. (FIGURE D,
FIGURE E)
Screws (2) 1/4”-20 Phillips/Hex Head Combo
FIGURE D
NOTE: Remove squaring panels from rack only after the first rackmount component has been
installed.
FIGURE E
1) Remove (2) 6-32 x 3/8” flat head screws securing rear horizontal trim panel to VTC and slide out.
(FIGURE C)
Screws (2) 6-32 x 3/8” Flat Head
Rear Horizontal
Trim Panel
FIGURE C
3) Re-install rack and rear trim panel in reverse manner.

1. Remove screen access panel (Refer to SCREEN
ACCESS PANEL REMOVAL / INSTALLATION above).
2. Lift and tilt front panels out, always beginning with the
top-most panel. (FIGURE G)
3. Install options and configure front panels as needed.
4. Re-install front panels in the reverse manner.
FIGURE G
1. Remove topmost rear access panel (Refer to REAR ACCESS PANEL INSTALLATION / REMOVAL
on page 13).
2. Unfasten (4) wingnuts securing screen access panel to VTC and remove from rear. (FIGURE F)
3. Re-install screen access panel in the reverse manner.
FIGURE F
Page 15
Wingnuts (4)
Screen Access Panel
REAR VIEW SIDE CUTAWAY VIEW
Screen Access Panel
FRONT PANEL CONFIGURATION (WHEN INSTALLING OPTIONS)
SCREEN ACCESS PANEL REMOVAL / INSTALLATION

Page 16
Selecting The Mounting Hardware To Attach Brackets To Flat Panel
1) Identify the correct diameter screw for the flat panel threaded inserts. The correct screws should
thread easily and not pull out when tension is applied.
2) To determine proper screw length, insert thread depth indicator into a
threaded insert on the flat panel.
3) Mark the thread depth indicator 1/8” above the
depth of the threaded insert. (FIGURE I)
4) Select a screw that is shorter than the 1/8” mark
made on the thread depth indicator. Threaded Insert
!
FIGURE I
Thread Depth Indicator
Mark 1/8” Above Depth
Small Straw
or toothpick Depth Plus 1/8”
Mark Allowance
Small Straw
or toothpick
Depth Plus 1/8”
Allowance Mark
CAUTION! Do not use any screw longer than the 1/8”
mark or damage to the flat panel may occur.
1) Select desired height and
mount horizontal mounting
bracket to VTC using (4)
5/16”-18 Hex Head Monitor
Mount Bolts and (4) 5/16“-18
Flange Nuts. (FIGURE H)
NOTE: 1/2” Socket Required
NOTE: Screen Access Panel
may need to be removed to
facilitate flat panel installation.
Refer to SCREEN ACCESS
PANEL REMOVAL /
INSTALLATION on page 14.
Horizontal Mounting
Bracket
FIGURE H
Monitor Mount Bolts
5/16”-18 Hex Head (4) Flange Nuts
5/16”-18 (2)
Universal Washers
Universal washers are designed to accommodate the various M4, M5, M6 and M8 hole sizes found in
flat panels.
NOTE: When installing horizontal mounting
bracket, stops must face up
FLAT PANEL INSTALLATION

Page 17
Attaching Vertical Mounting Brackets to Flat Panel
NOTE: Be sure to observe the “up” arrow on each vertical
mounting bracket to maintain the proper orientation of the
flat panel. (FIGURE K)
1) Place the flat panel face down on a soft, flat surface and
identify the number and location of screws.
2) Align the holes on each vertical mounting bracket with the
threaded inserts on the flat panel.
NOTE: To ensure neat appearance, center vertical
mounting brackets on flat panel. Do not extend
brackets past top or bottom of flat panel.
3) Secure each vertical mounting bracket with the
screws and hardware identified in previous
steps. Use a minimum of (2) screws per vertical
mounting bracket.
NOTES:
• Place flat panel on soft, flat surface while working.
• Do not place excessive pressure on back of the flat
panel.
• Universal washers must be installed between
the head of the mounting screw and the
vertical mounting bracket as shown.
(FIGURE J)
Nylon Spacers
Nylon spacers add distance between vertical
mounting bracket and flat panel. They will fit all
supplied screw sizes. The spacers must be used
only when attaching flat panels which have:
• Recessed mount points
• Uneven mount points
• Any obstruction near the mount points
• A curved back
NOTES:
• Nylon Spacers must be stacked and oriented as shown.
• Nylon Spacers must only be installed between the
vertical mounting bracket and the flat panel.
FIGURE J
FIGURE K
M8
M6
M5
M4
Dimples (Face Up)
Flat Panel
Universal Washer
Nylon Spacer
Mounting Bracket
Mount Point
Mounting Screw
“Up” Arrow
FLAT PANEL INSTALLATION (CONTINUED)

FLAT PANEL INSTALLATION (CONTINUED)

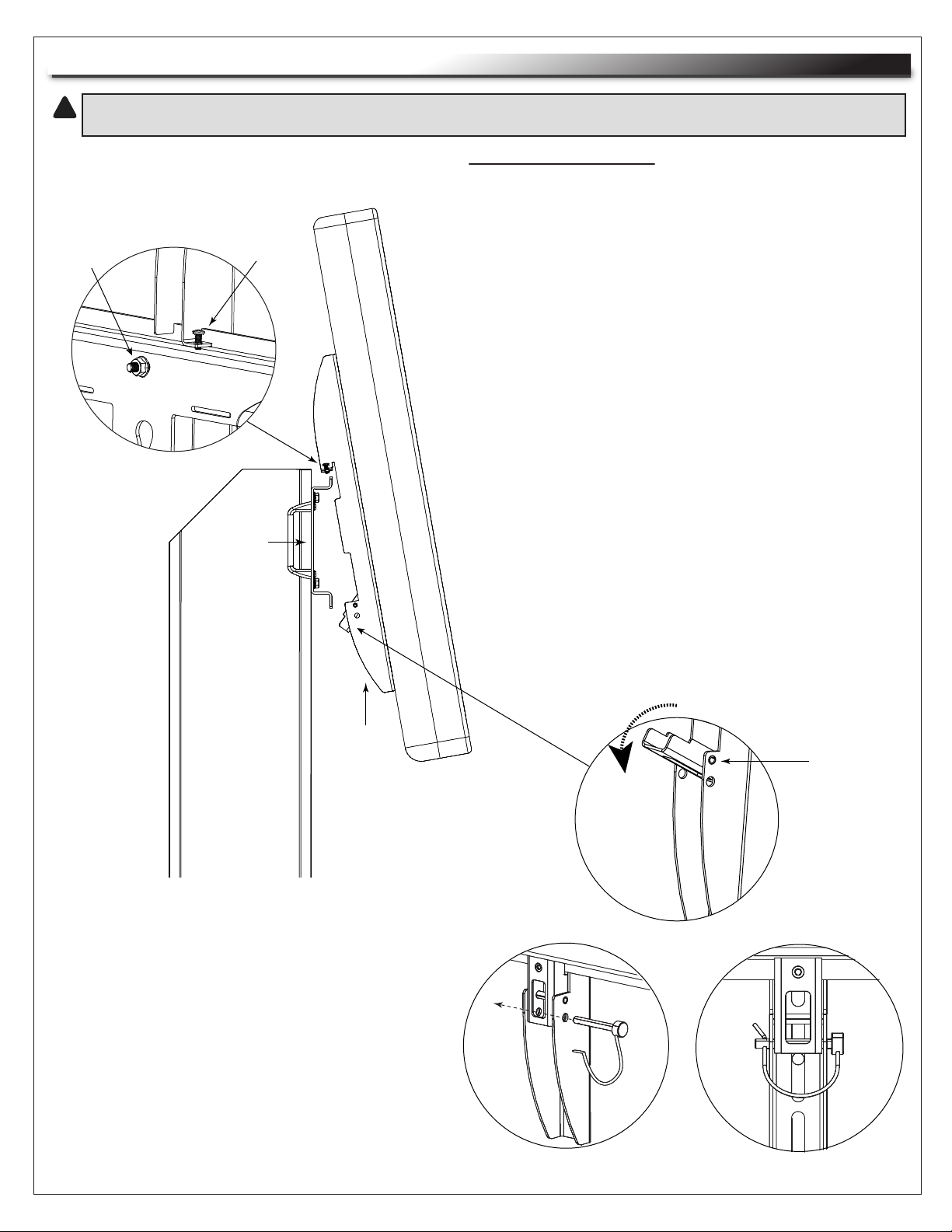

Hanging the Flat Panel
Top
Hook
Page 18
Locking
Clamp
Horizontal
Mounting
Bracket
FIGURE L
Vertical
Mounting
Bracket
Locking
Screw
1) Remove locking clips from vertical mounting
bracket and rotate locking clamps down.
(FIGURE L)
2) Raise the flat panel slightly above the top and
bottom rails on the horizontal mounting bracket.
(FIGURE L)
3) Place the flat panel down slowly, ensuring that
the top hook on the vertical mounting bracket
properly engages the horizontal mounting
bracket. (FIGURE L)
4) Check for proper height.
NOTE: Achieving desired height may require
repositioning of horizontal mounting bracket
and/or removal and re-installation of vertical
mounting brackets.
5) Rotate locking clamps on vertical mounting
brackets up and insert locking pins as shown.
(FIGURE M)
6) Position flat panel as needed and tighten
(1) one locking screw on each vertical
mounting bracket to secure in place.
(FIGURE L)
NOTE: Installation of locking clamps
may require removal of rear door
and screen access panel. Refer to
REAR ACCESS PANEL REMOVAL /
INSTALLATION and SCREEN ACCESS
PANEL REMOVAL / INSTALLATION on
pages 13 and 15, respectively.
FIGURE M
WARNING! This operation requires two people. Do not release your flat panel until you are certain that the top hook of each vertical
mounting bracket is securely seated on the upper rail of the horizontal mounting bracket.
!

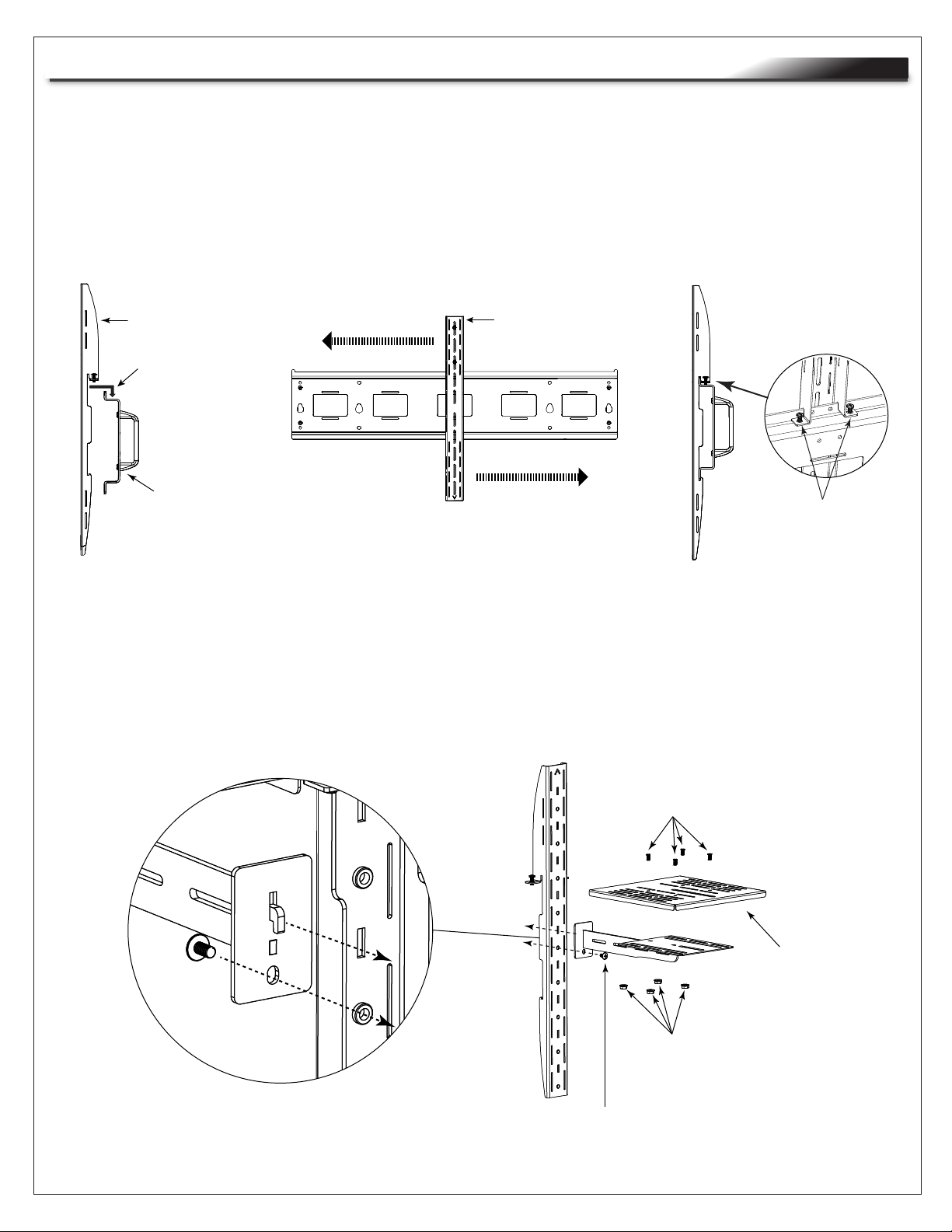

1) Place vertical camera mounting bracket onto horizontal monitor mounting bracket, ensuring that the
top hook is properly engaged. (FIGURE N)
NOTE: Observe the “Up” arrow to maintain proper orientation of the vertical mounting bracket.
2) Select desired mounting location (FIGURE O) and secure vertical camera mounting bracket to
horizontal monitor mounting bracket using (2) locking screws as shown. (FIGURE P)
3) Slide extension bracket into vertical mounting bracket (oriented up or down) to desired height.
(FIGURE Q)
4) Secure extension bracket to vertical mounting bracket using (2) 10-32 x 3/8” pan head Phillips
screws and two nuts as shown. (FIGURE Q)
NOTE: For smaller cameras, wide mounting base may be removed by unfastening
(4) 10-32 x 1/2” pan head Phillips screws and (4) 10-32 flange nuts as shown. (FIGURE R)
NOTE: Hook and loop provided to attach camera to base (if needed).
Page 19
FIGURE Q
Extension Bracket
(Oriented Up or Down)
Wide Mounting Base
(Removable as shown)
Flange Nuts (4)
10-32
Pan Head Phillips Screws (4) 10-32 x 1/2”
Pan Head
Phillips Screws (2)
10-32 x 1/2”
Vertical Camera
Mounting Bracket
FIGURE R
Locking Screws (2)
“Up” Arrow
Top Hook
Horizontal
Monitor
Mounting
Bracket
Vertical Camera
Mounting Bracket
FIGURE N FIGURE P
FIGURE O
Flange Nuts (4) 10-32
CAMERA MOUNTING (VTC-4280S / VTC-4280S-R)

3) Tilt camera mounting base into vertical camera mounting bracket at desired height and secure
using (1) 10-32 x 3/8” pan head Phillips screw as shown. (FIGURE V)
NOTE: For smaller cameras, wide mounting base may be removed by unfastening
(4) 10-32 x 1/2” pan head Phillips screws and (4) 10-32 flange nuts as shown.
NOTE: Hook and loop provided to attach camera to base (if needed).
Page 20

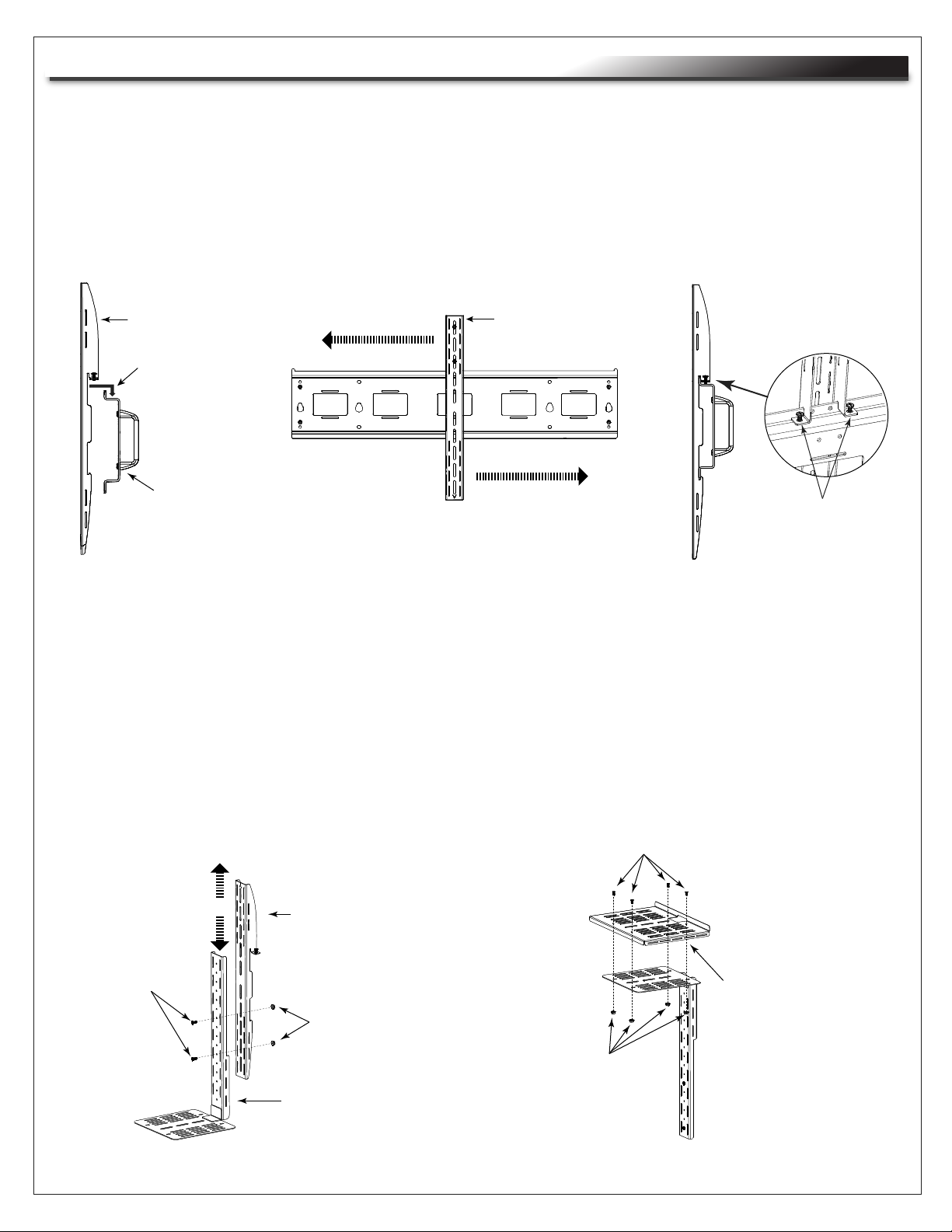

1) Place vertical camera mounting bracket onto horizontal monitor mounting bracket, ensuring that the
top hook is properly engaged. (FIGURE S)
NOTE: Observe the “Up” arrow to maintain proper orientation of the vertical mounting bracket.
2) Select desired mounting location (FIGURE T) and secure vertical camera mounting bracket to
horizontal monitor mounting bracket using (2) locking screws as shown. (FIGURE U)
Locking Screws (2)
“Up” Arrow
Top Hook
Horizontal
Monitor
Mounting
Bracket
Vertical Camera
Mounting Bracket
FIGURE S FIGURE U
FIGURE T
Pan Head
Phillips Screws (4)
10-32 x 1/2”
Wide Mounting
Base (Optional)
Flange
Nuts (4)
10-32
Pan Head
Phillips Screw (1)
10-32 x 1/2”
FIGURE V
CAMERA MOUNTING VTC-4255D / VTC-4255D-R / VTC-5670D / VTC-5670D-R
