Prentke Romich Company Vanguard Plus Guide

BLUETOOTH CARD INSTRUCTIONS for a BLUETOOTH CELL PHONE
15098v1.01
Setting up and Using the
Bluetooth Card
Cell Phone Instructions for Vanguard™ Plus and
Essence™|VG
Software Version 5.06 or higher
* For Bluetooth Card instructions for a Vantage+ or Vanguard II with
software version 5.0 – 5.05, please contact PRC or your distributor. Ask for
part number 14847 v 1.02.
PRC HEADQUARTERS PRC INTERNATIONAL
1022 Heyl Rd • Wooster, OH 44691 Liberator Ltd
Telephone: [phone] • [phone] Minerva Business Park
Fax: [phone] Lynch, Peterborough, Cambridgeshire
PE2 6FT UK
E-mail Address: [email protected] Fax: [phone]
Web Site Address: www.prentrom.com E-mail Address: [email protected]
Web Site Address: www.liberator.co.uk

BLUETOOTH CARD INSTRUCTIONS for a BLUETOOTH CELL PHONE
15098v1.01

BLUETOOTH CARD INSTRUCTIONS for a BLUETOOTH CELL PHONE
Vanguard
2
Vanguard Plus, Essence , Vanguard and PRC Bluetooth Card are trademarks of Prentke Romich Company.
Semantic Compaction, Minspeak and Unity are registered trademarks of Semantic Compaction Systems, Inc. in the U.S.
and other countries. Minspeak systems use the methodology derived from concepts covered by patents and patents
pending in the United States and other countries. All Unity, Minspeak and Semantic Compaction brand systems and their
derivative works are copyrighted by Semantic Compaction Systems, Inc. USA, 2004-2010.
Bluetooth Wireless Technology is a registered trademark of Bluetooth Sig, Inc. The Bluetooth word mark and logos are
owned by Bluetooh SIG, Inc.
Bluetooth Phone Card, Adapter and Switch:
These devices comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation. This device contains FCC-ID POOWML-C40. Bluetooth QD ID B014372, QD ID
B013848
Digital graphics courtesy of Douglas Miller
©2010 Prentke Romich Company. All rights reserved.

BLUETOOTH CARD INSTRUCTIONS for a BLUETOOTH CELLPHONE
Vanguard
3
PLEASE READ!
IMPORTANT NOTES
about using a Bluetooth Cell Phone and your Device!
With some phones there is the possibility that you will hear static and
buzzing from your device when you make a call. This is NOT a problem
with your device.It is due to your phone software and PRC cannot fix this.
There are not many phones that support Bluetooth text messaging, so do
not expect that your phone will. Look for "Text Messaging Supported" in the
Bluetooth Status box when you pair your device and phone. If you do not
see this message, text messaging is not supported.
When using a phone, your device and your phone should be within 10 feet
of each other for best results.

4

BLUETOOTH CARD INSTALLATION
Vanguard
5
Installing the Bluetooth Card - Vanguard+
Parts in the Bag:
You will not need the new memory door that is also in the Parts bag.
You must also have:
Your Vanguard
A Bluetooth cell phone
Audio Cable
Bluetooth Card

BLUETOOTH CARD INSTALLATION
Vanguard
6
Plug in the Audio Cable
Turn your Vanguard OFF before beginning this process.
Open the memory door on the right side of the case.
Plug the white end of the audio cable into the small white connector that you can see
below and to the right of the system card that is already in your Vanguard. Make sure the
pin holes in the cable connector match up with the pinholes in the Vanguard connector.
The holes on the cable connector should be toward the top of the connector. Push on the
connector until you feel it click into place.
Small, white end of
cable plugs in here.
Plug in the
cable.

BLUETOOTH CARD INSTALLATION
Vanguard
7
Insert the Bluetooth Phone Card
Place the phone card in Slot B (above the system card that is already in its place). The
end with the pin-holes goes in first and the side with PRC on the label should be facing
up as you insert the card.
To remove the card, press on the small button to the left of the card and the card will pop
out about 1/8th of an inch. Pull it the rest of the way out by grasping the card in your
fingers.
The side of the card with
PRC on the label faces
up.

BLUETOOTH CARD INSTALLATION
Vanguard
8
Plug the audio cable into the small hole that you see on the end of the phone card. You
will not be able to close the door once the cable is plugged in. Wrapping the cable as
shown above helps to keep it out of the way, but you do not have to do this. Just make
sure the cable is securely plugged in.
Plug cable into hole
on the end of the card.
Press here to remove
card. Use a pencil or
something similar to
press the button.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
9

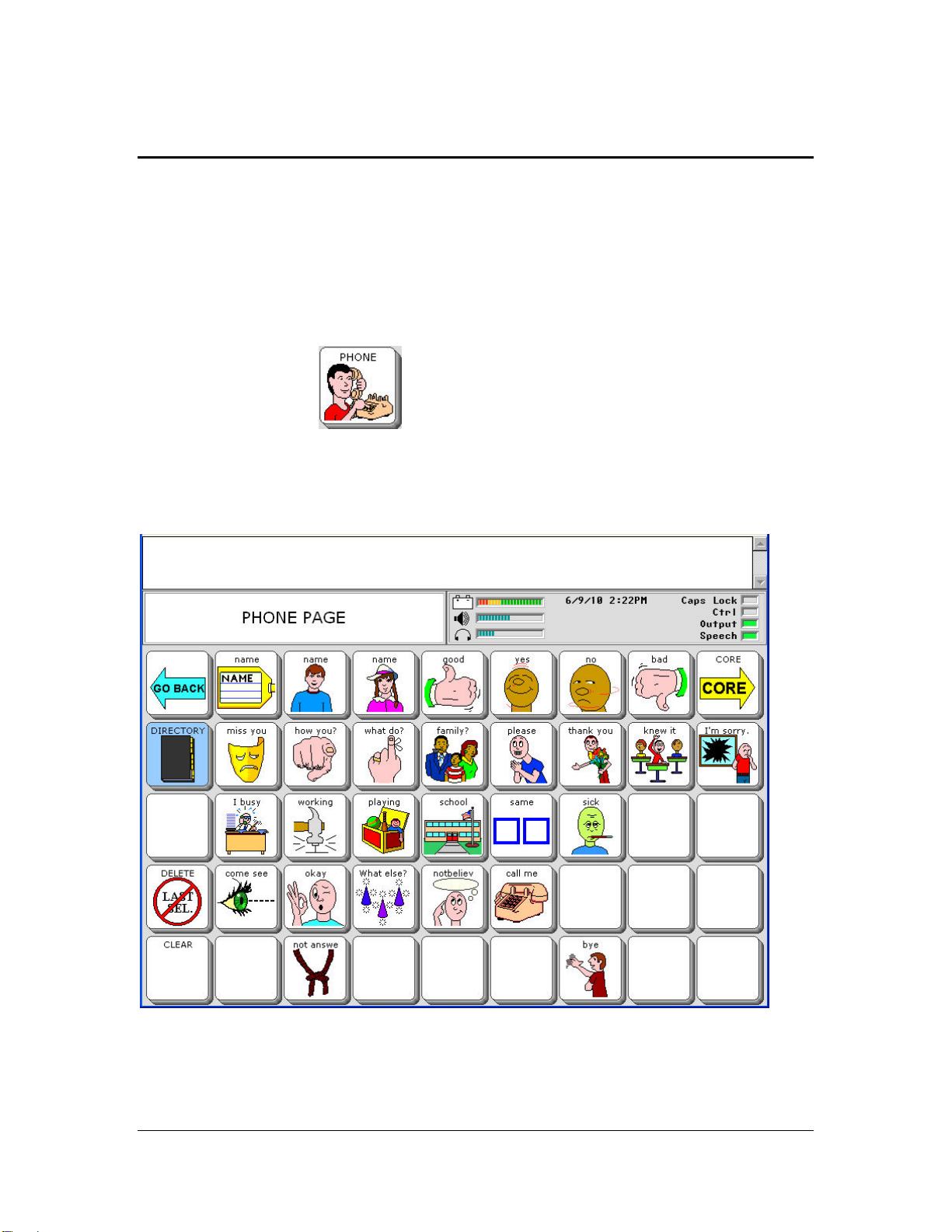

The Phone Page
There is a PHONE page that contains messages you can use to talk on the phone. You
cannot make calls or send text messages from this page, but you can use it to talk. The
Phone DIRECTORY on the PHONE page allows you to send and receive calls and text
messages.
Go to the PAGES page.
Select the PHONE key .
You see the PHONE page.
The Phone DIRECTORY key takes you to the Directory page where you can send
and receive calls and text messages.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
10

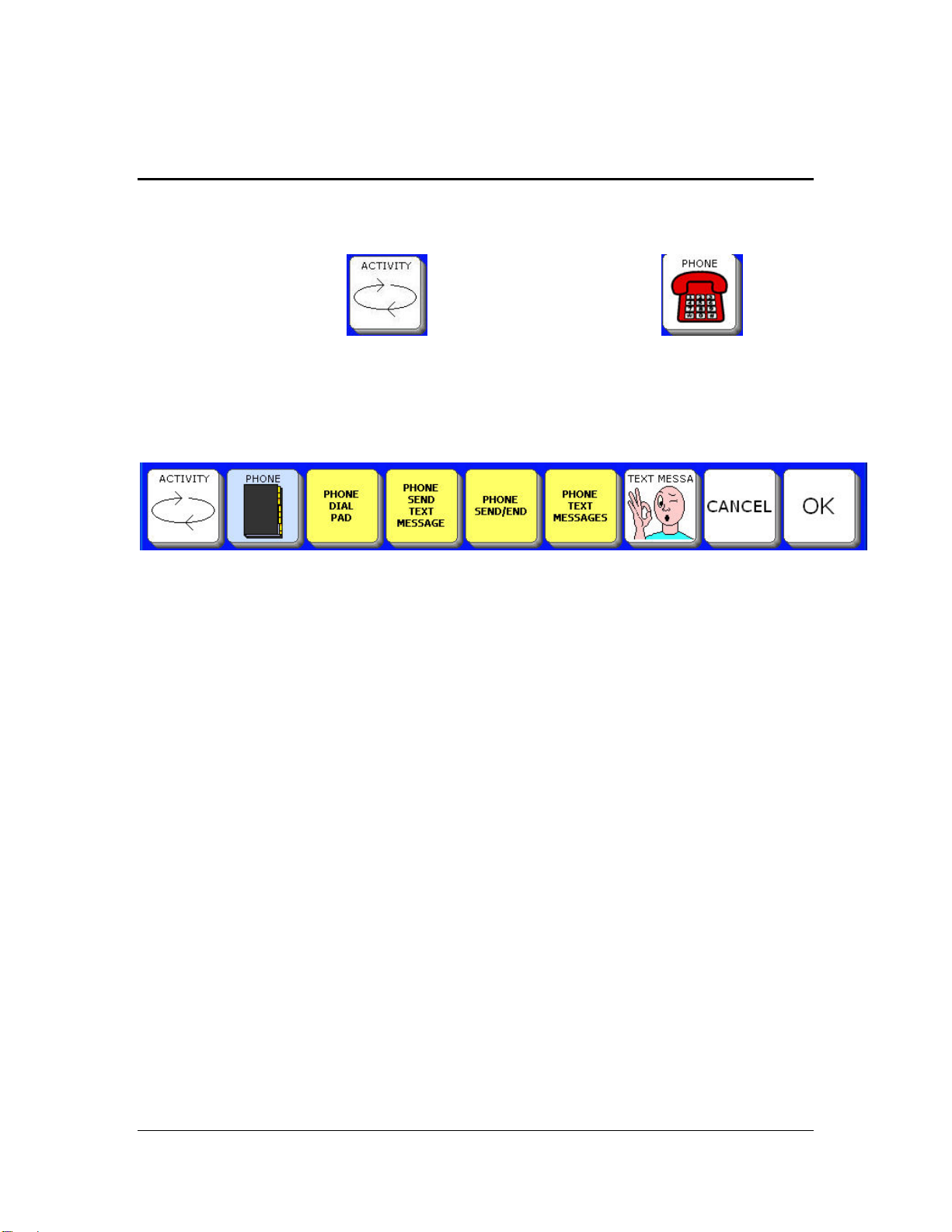

The Phone Activity Row
\
Go to your CORE overlay.
Select the ACTIVITY key until you see the PHONE key . Select
the PHONE key.
You see the PHONE Activity Row.
The Phone Activity Row allows you send and receive calls and text messages.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
11
Pair your Cell Phone with the Vanguard
In the PHONE Activity Row, select the PHONE DIAL PAD key .
You see:
Select the Phone Configuration key .
Select the Phone
Configuration key.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
12
On your phone, go to the "Bluetooth Menu". To find this menu you may have to
read the manual that came with your phone.
Put your phone in "discoverable" mode.
"Discoverable mode" on your phone may be labeled "discoverable" or "paired" or
"find me" or something else entirely. Different Bluetooth cell phones call the pair button
different things. If you are unsure which option to select, look at the instructions that
came with your cell phone.
On your Vanguard select the Pair to Phone key .
Your phone will display a message asking you to enter a passcode.
On your phone, enter four zeros: 0000. You must use this passcode. Then select
OK or the button on your phone that accepts your selections and exits.
When your cell phone is paired with the Vanguard you will see "Paired" or
"Connected" in the Bluetooth Status box in the Phone Configuration Menu. You will
also see Bluetooth cell phone icons in the Status Display Area of the Vanguard.
Once your phone is in
"discoverable" mode,
select the Pair to Phone
key.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
13
The Paired Devices key allows you to view any Bluetooth cell phones you have been
paired with.
The Disconnect key allows you to disconnect (or "un-pair") from the phone you are
currently using.
The Ringer Menu allows you to set the standard tones for Ringer and Notify Message.
The ability to import ring tones will be available in future software development.
Also in the Phone Configuration menu are Internal and Audio Volume Controls.
Internal Input Volume and Internal Output Volume refer to the Vanguard, not your
phone.
There is also an option to Turn Bluetooth Beep Output OFF/ON. When this is ON the
person you are talking to will be able to hear your Vanguard beep as you make message
selections or spell. If you turn it OFF, the listener will not hear anything while you select
your messages.
The MAINTENANCE MENU in the Vanguard's Toolbox also has a Phone
Configuration menu.

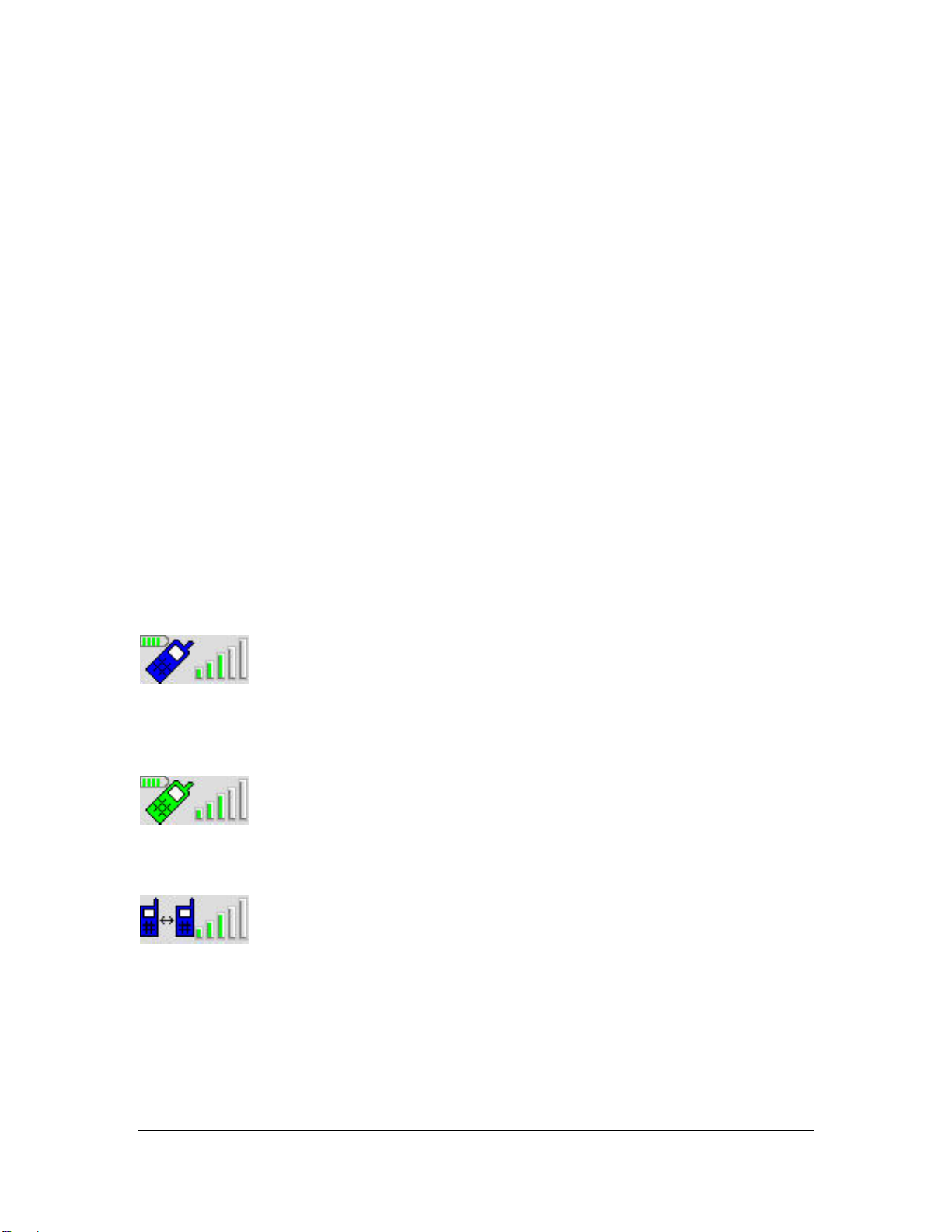

Bluetooth Icons Visible in Status Display Area
The green figure to the left of the cell phone indicates the battery charge. A blue phone
indicates you are not using the phone.
The green phone indicates that you are talking on the phone.
This icon indicates that you are making or receiving a call.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
14

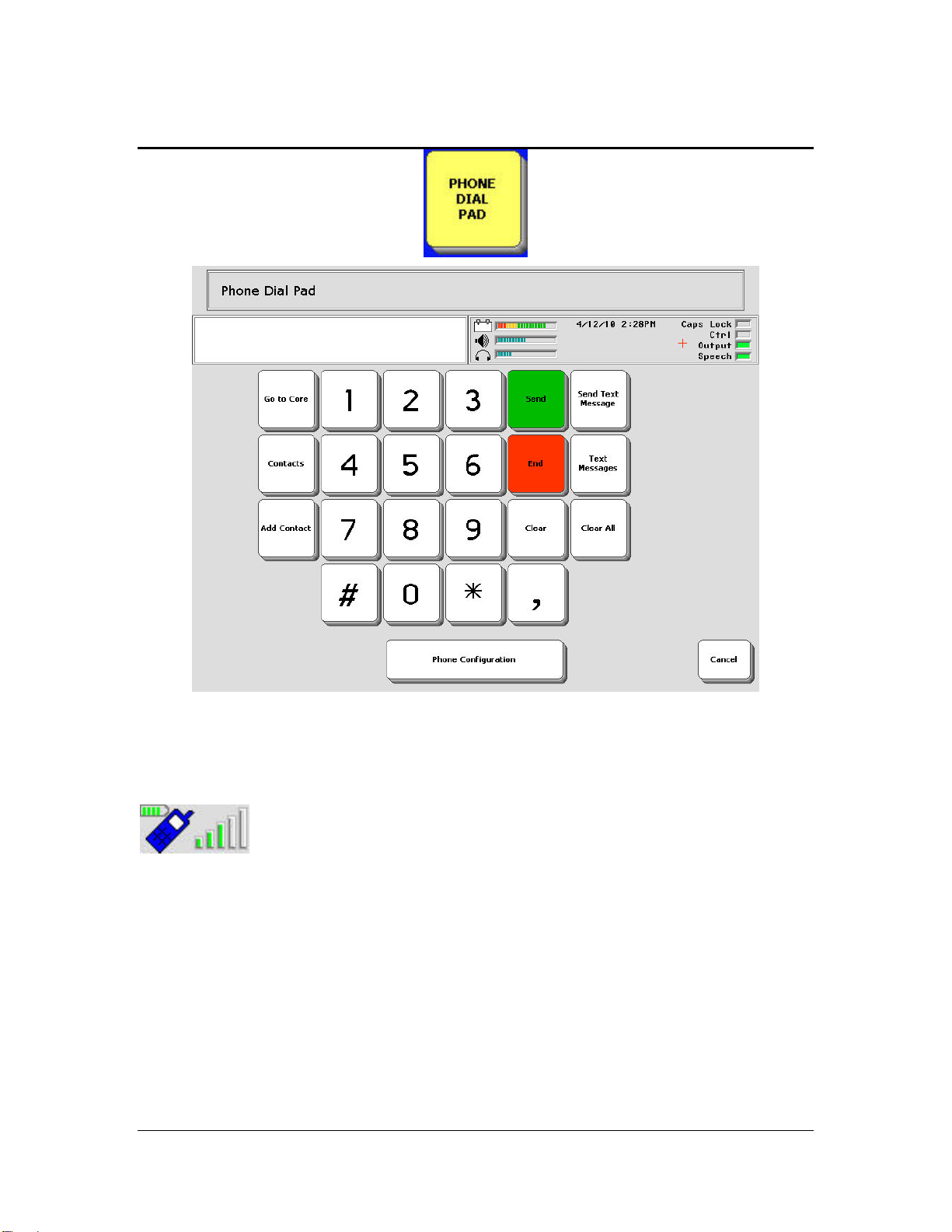

Using the Dial Pad
The Dial Pad allows you to perform all phone functions: dial calls, answer calls, go to
your PHONE page to carry on a conversation, send and receive text messages.
To make a call your phone must be paired with your Vanguard and this icon
must be visible in the Status Display Area of the Vanguard. Check to
make sure you have enough battery power available and some active signal bars showing
in the status area.
The Cancel key will take you back one page.
If you start on your Phone Directory page and select the PHONE DIAL PAD from
there, when you finish using the Dial Pad you can select the Cancel key to return to the
Directory page.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
15
To Make a Call
You can make calls using the Dial Pad, or, if you have numbers stored in your Phone
Directory, you can dial a call from there.
For un-stored numbers, use the Dial Pad to dial the phone number you want by
selecting the keys on the number keypad.
Select the Send key.
While the phone is ringing you can go to your PHONE page or your Spelling
Keyboard so you are ready to talk. While you are on the phone you will see this icon
in the Status Display Area of the Vanguard.
When the call has ended, select the End key on the Dial Pad or the PHONE
SEND/END key on the Phone Directory page.
The icon in the Status Display Area will switch to
Use commas when you dial phone numbers that contain extensions. For example:
3302621984,123. If a number contains more than one extension, use commas between
each extension.
To Answer a Call
You hear the phone ring or see the icon in the Status Display Area.
Select Send from the Dial Pad or PHONE SEND/END from the Phone Directory
page.
Use the PHONE page or your Spelling Keyboard to talk.
When the call has ended select the End key on the Dial Pad or the PHONE
SEND/END key on the Directory page.
The Phone Directory page contains a PHONE SEND/END key which allows you to
answer and hang up without having to go to the Dial Pad.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
16
Add Contacts
You can add contacts two different ways: from the Dial Pad and from the Directory
page.
First, let's look at the Contacts keys on the Phone Dial Pad.
To Add a Contact
Select the Add Contact key.
Type in the phone number you want to add. Do not use spaces or hyphens.
Select OK.
Type in the name of the contact.
Select OK.
You return to the Dial Pad.
Now select the Contacts key.
You should see a key labeled with the contact name. You will see a number of keys if
you have entered lots of contacts.
Contacts and
Add Contact
keys

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
17
Select a contact to dial.
You return to the Dial Pad.
Select the Send key to dial your number.
Add an Incoming Number
When you receive a call, the caller's number will be displayed in the Text Display Area.
You can add this number to your Contacts.
When you receive the call and know it is a number you want to add, go to the Phone
Dial Pad.
Select the Add Contact key.
You see a storing keyboard with the number on it.
Select OK
Now enter a name to go with the number.
Select OK.
Select the Contacts key. You new entry is there.
Saving Your Contacts List
If you want to save your Contacts list to a USB drive, you must use the TRANSFER
MEMORY MENU. Select either the Save Contacts key or Save Entire Device key.
Your list will not be saved if you select Save One Area.

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
18

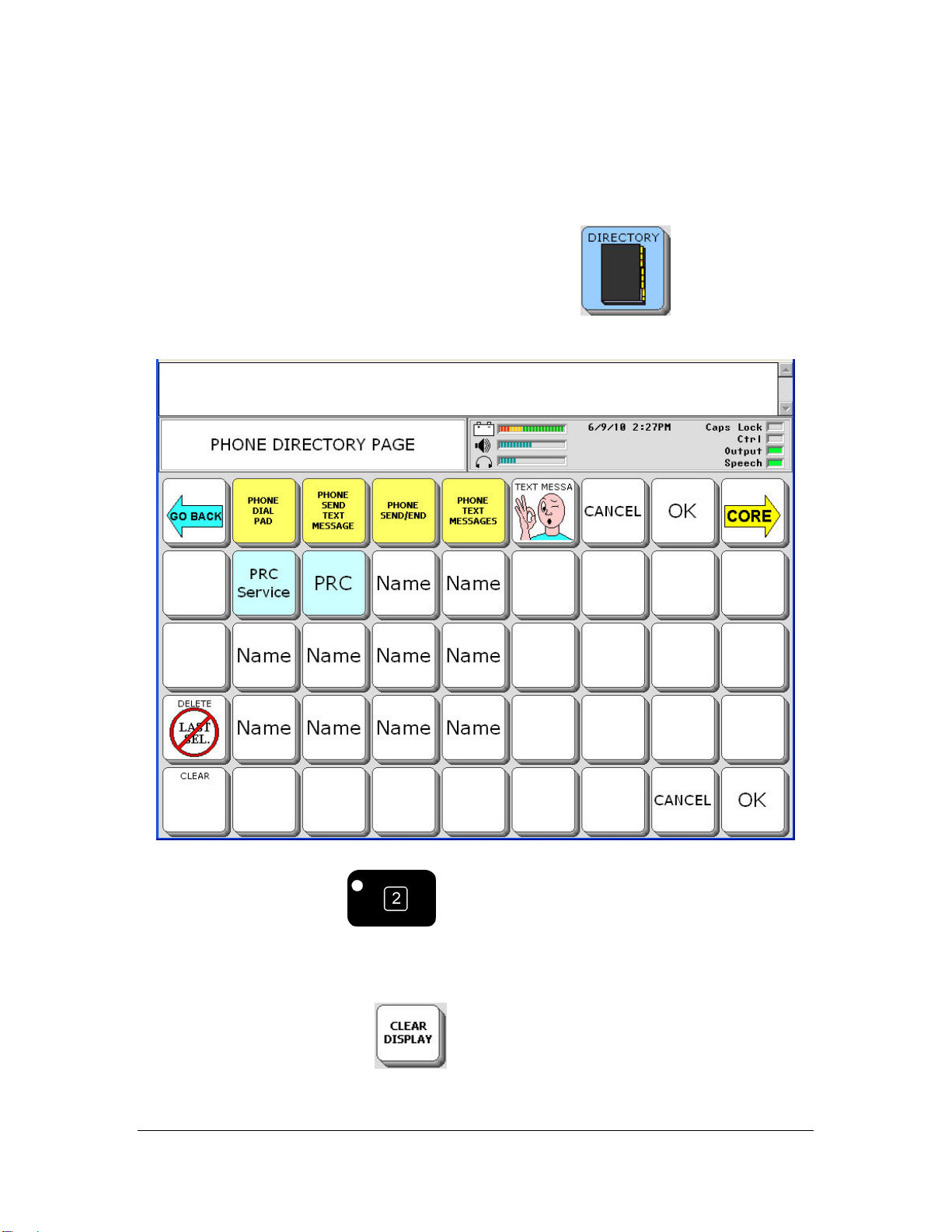

Add Numbers to the Phone Directory
You can also store numbers that you use a lot on using the Phone Directory on your
PHONE page.
Go to the PHONE page and select the DIRECTORY key
Select the SET-UP key from the front of the case.
Select one of the NAME keys.
Select the Spell Message or Define Key Function key.
Select CLEAR DISPLAY .

PAIR AND USE THE BLUETOOTH CELL PHONE
Vanguard
19
Select INSERT TOOL .
Use More Items until you see the PHONE DIAL NUMBER key . Select
this key.
Now enter the phone number you want and then select OK.
You see:
Select OK to keep the number and exit your Spelling page.
If you make a mistake, select CLEAR DISPLAY and start over.
Use CHANGE LABEL and/or CHANGE ICON to add a name/picture to your key
so you can remember what number is stored there.
