User’s Manual
Model: MAC-215F
Please read this manual carefully before running this air
cooler and save it for reference.
AIR COOLER
No. 28, East Area, Hesui Industrial Park, Dongfu Rd.,Dongfeng Town, Zhongshan City, Guangdong, China
Web Site:global.midea.com.cn
Guangdong Midea Environment Appliances Manufacturing CO.,LTD.

CONTENT
Important Safeguards ........................................................................................... 1
Working Principle.................................................................................................. 2
Function Introduction ............................................................................................ 2
Model&specification.............................................................................................. 2
Structural Diagram................................................................................................ 3
Installation and Use .............................................................................................. 3
Maintenance and Clean........................................................................................ 6
Troubleshooting.................................................................................................... 7

Important Safeguards
21.Unplug the appliance during filling and cleaning.
READ AND SAVE THESE INSTRUCTIONS!
1. Non-specialized personnel or unauthorized repair personnel shall not to repair or
modify the machine.
2. It is forbidden to operate with wet hands to avoid electric shock.
3. Any power cord, which suffers from aging and knotting and whose plug is damaged,
should be stopped its use immediately, and must be repaired by a professional
manufacturer or equally qualified personnel.
4. If the unit is not in use for a long time, unplug the power cord.
5. To prevent accidental injury or damage to the unit, please donot insert any foreign
matter into the air inlet and outlet, because the unit incorporates a high-speed wind
rotor.
6. It is prohibited to use this unit in environments with flammable and explosive gases
and direct sunlight for a long period shall be avoided.
7. Do not place this unit in an inclined or other uneven place to prevent the unit from
falling and causing damage to the unit or internal parts.
8. This machine is suitable for indoor use instead of outdoor use.
9. This machine has a safety switch. If the honeycomb filter supporthas not been
installed well, the unit will not work asusual; when the machine is working, do not
remove thehoneycomb filter frame.
10. At any time the water level in the tank shall not exceed "MAX"(maximum) scale, and
during humidification, the total water level in the tank shall be controlled, and shall not
be below "MIN" (minimum) scale.
11.After the water tank is filled with water,do not tilt or collide with the unit when placing
or moving it. To move the unit body, please drive it slowly from the side to prevent
water overflow.
12.In using the unit, prohibit overturning to avoid any accident. If the unit topples over
accidentally, and it contains water, unplug the power cord immediately and take it to
repair store.
13.Do not place items on the unit, and covering the outlet isstrictly prohibited.
14.When wash the unit appearance, apply a damp cloth (or adda little cleaning agent) to
wipe, and never use corrosive cleaning agent or solvent for cleaning. Never rinse the
unit with water.
15.Do not have the air inlet and outlet of the unit close to walls,curtains and other objects,
or they may block the airflow and affect air supply.
16.When the unit is running, do not knock at or shock the unit body forcibly or it may lead
to automatic shutdown, in whichcase simply restart the unit.
17.Do not place the unit directly below the power outlet.
18.Do not use the unit around the tub, sprinkler or swimming pool.
19.Appliance is not to be used by children or persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction.
20.Children being supervised not to play with the appliance.

Working Principle
The machine uses the pump to watering the honeycomb filterelement. The fan motor
drives the fan wheel to blow out the wet air. The moisture absorbs the heat in the air,
which achieves theeffect of reduction of temperature.
Function Introduction
Increase the humidity
The machine has the function of humidification and can increase the humidity
rapidly, which can avoid the skin chaps.
wide-angle air supply
wide-angle air supply, three-level (Low, Medium, High)air speed selection.
Long distance remote controller
The remote controller can be used in 6 meters and 120° wide-angle.
Operating beep prompt
It gives buzzing prompt to effective keying operation andremote control
operation, easy to use.
Model & Specification
Model MAC-215F
Voltage/frequency 220-240V～50Hz
Watt 60W
Net weight 7.3KG
Dimension(L×W×H) 390×350×705MM
Water fresh air, with ANION purify function, more clean air.
Physical cold storage, power saving, high efficiency, environment friendly;
With world leading ice crystal cold storage technology, with big amount of
cooling storage capacity, long cooling air release time, repeatly used. The
cool air is produced by blowing, the wattage is only 60W, 1/20 of common
air condition's power.
Unique aroma box design, user can put perfume, The fragrant cotton inside aroma box
release aroma by absorbing perfume, release by air flue which make indoor air more
comfortable. (Factory do not supply perfume)
Power off memory function:
When turn off unit or power cut off suddently, current working status will be recorded,
unit will resume previous working status when power on again.

Ice box
Remote control
Water tank 2
Water tank 1
Honeycomb Filter Frame
Control panel
Air outlet
Wheels
Structural Diagram
1. Unfold the package and take out the air cooler,put it on the ground.
2. Check out the spare part.
3. Install the universal wheel: take out the universal wheel and install it on the air cooler.
Pay attention to the Water line when watering. (Fig.3)
Attention
When watering, the water must not be higher than the “MAX” water line.
Installation and Use
Add water from top: rotate water tank's top cover, fill in water (FIG 1).
Ice box placed in the foam inside box.
Fill in water tank form bottom: hold filter support's handle, rotate to outside till seperate
4. Add water:
filter support from unit (FIG 1), when water tank spotted, fill in water (FIG 2).
When humidifying, the water must not be lower than the “MIN” water line.
Perfume box

If need to increase the cooling effect, can put the ice box into the water tank.
Check the power cord to find whether it is same with the rating label.
Attention: Do not connect the power cord with a wet hand.
Control panel
FIG 3FIG 2FIG 1
MIN
MAX
fill water from top
fill water from bottom
Remove the honeycomb
filter frame
open the water tank cover
If water is lower than MIN position of water level window, humidify function will
stop refill water avoid leakage.
stop,
Meanwhile, unit will beep 3 seconds, water pump will stop, please refill water.
If water is higer than MAX position of water level, unit will beep 10 seconds, please
Connect the power cord, then open the power button, you can use the air cooler
When connect the power cord, please make it contact well.
When remove the machine, please pull out the power cord.
water tank
water tank
ON/OFF: Plug the unit into an electric outlet, the unit will be ready to run,press the
ON/OFF button to start running.

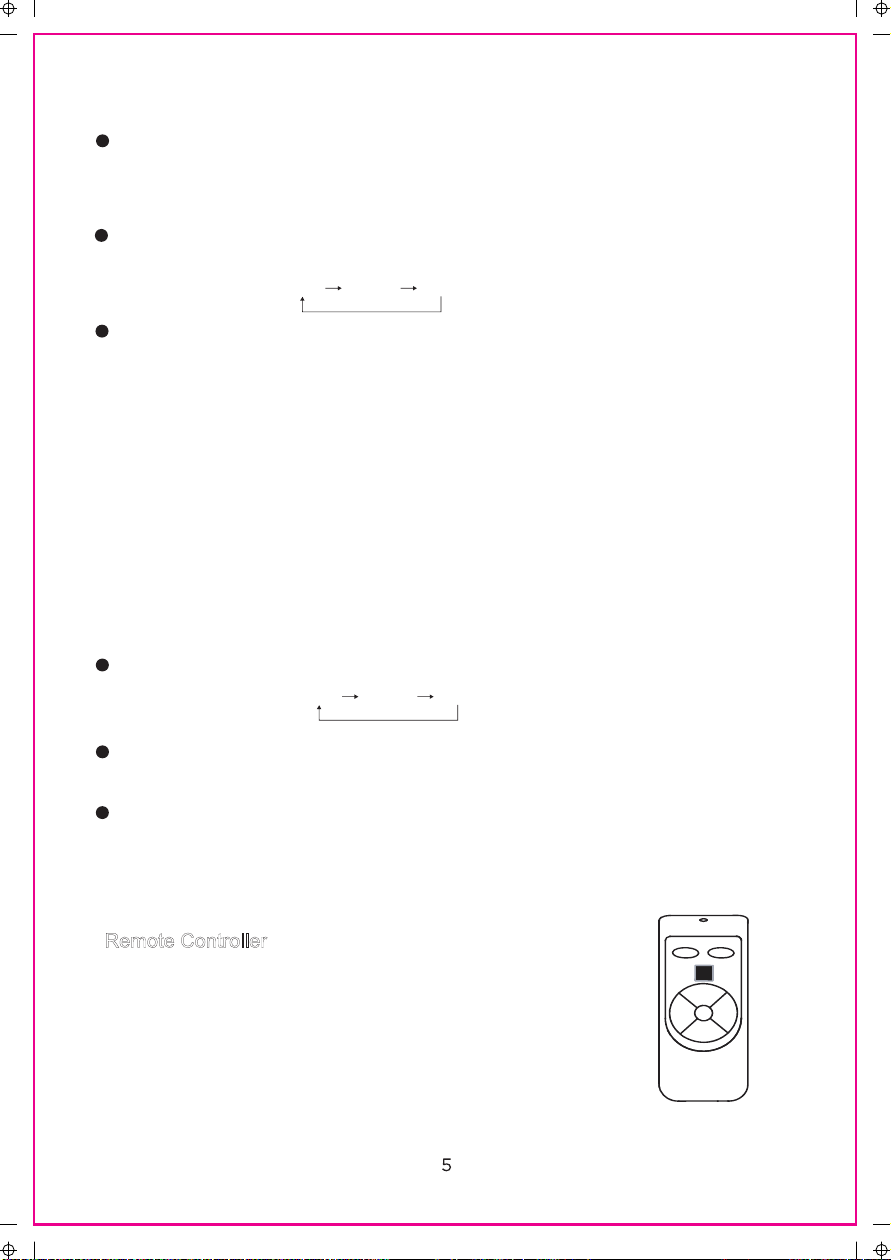

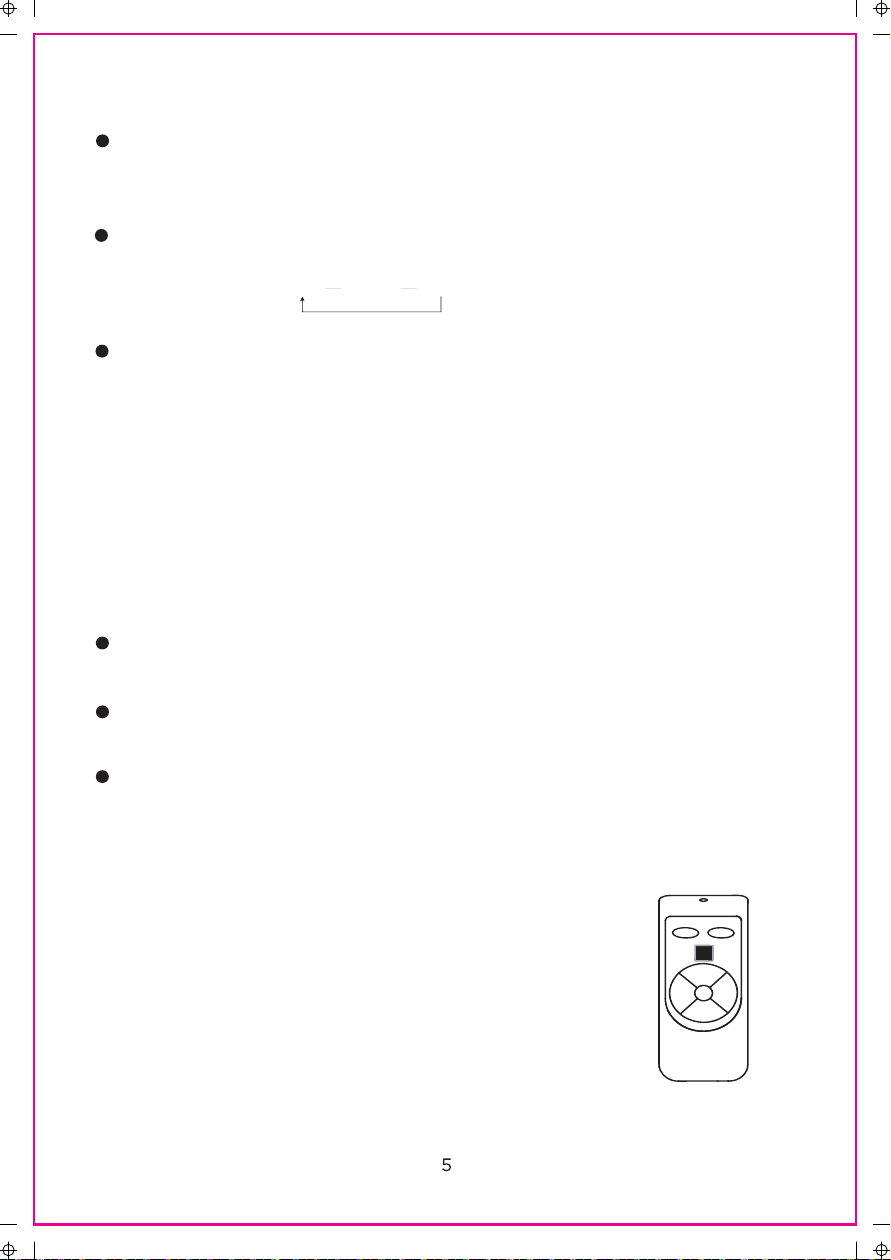

Remote Controller
1. Open the remote controller rear cover and set a CR2032
battery; then the remoter control can be used. It has the
same button with the control board.
2. The effective distance for the remote controller is 6 meter.
ION
ON/OFF
SPEED
EVAPORATOR
TIMEROSC.
STYLE
button is pressed continuously, the air speed will switch in the following manner:
Medium High Low
STYLE: Press this button , the run mode will vary according to the following order:
Natural NormalSleep
ION: Press this button , the function of Anion is turned on. Press the button again, this
EVA/COOLER : Press this button , the function of Humidifying is turned on, press the
button again, this function is turned off.
OSC: Press this button, the air direction oscillates automatically on a horizontal basis, and
meanwhile the air direction indicator illuminates; press this button again to cancel this
function; by operating the horizontal blades manually, you can choose air direction up and
SPEED:press this button , the start cooling fan is in high-level runningcondition; if the
PRO/TIMER:
function is turned off.
When unit is on "standby" , press TIME button, then progam power on function is on. Time
Progam power on function:
setting is from 1hour to 7 hours. Add up of all three pilots 1H, 2H, 4H means time setting, if
those three pilots are closed which means progam power on function is off. Time setting will
start from 1H—2H—3H......7H — progam power on function off and repeat. Timer indicator
always show rest time from setting.
Timing shutdown function：
When the air cooler is in working condition, press TIMER button, then the timing shutdown
function is on. Time setting is from 1 hour to 7 hours. Add up of all three pilots 1H, 2H, 4H
means time setting, if those three pilots are closed which means Timing shutdown function
is off. Time setting will start from 1H—2H—3H......7H —Timing shutdown function off and
repeat. Timer indicator always show rest time from setting.
down.

Ice Box
frozen.
3. Clean the cover
Clean the cover with a mild detergent and a soft cloth.
2. Cleaning the water tank
away the scale in the water tank, clean with clear water, and then replace it to the unit.
Note:
● Due to high voltage in the unit, be sure to unplug the power cord before cleaning
● No part of the control panel shall contact water
Honeycomb Filter
Frame
Honeycomb
Filter Frame Honeycomb Filter

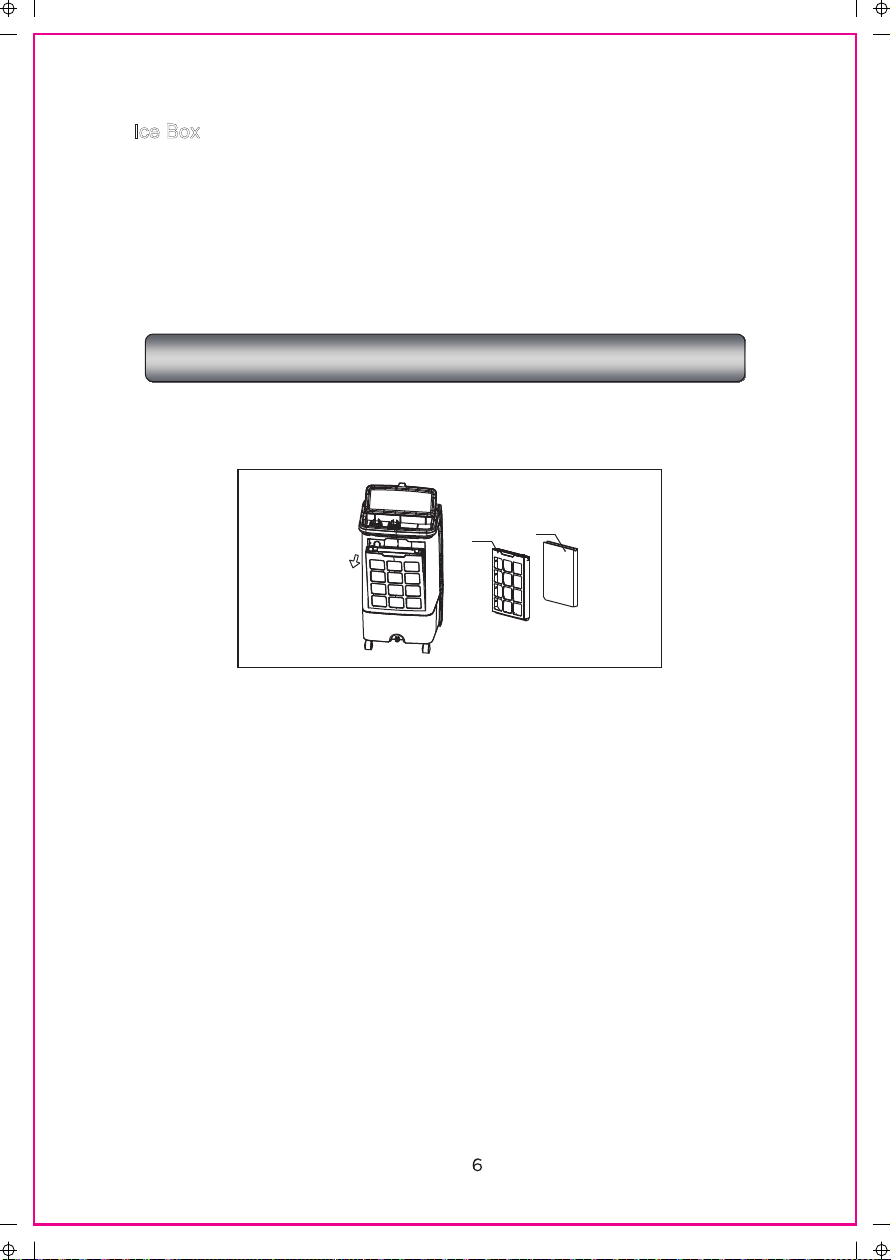

Maintenance and Clean
1. Cleaning the honeycomb filter and honeycomb frame
and dry, and then replace it to the unit.
FIG 4
Attention: While unit work long period, filter and blind cloth maybe blocked by
dust and dirt, suggest clean those parts each month.
Unplug the power cord, first remove the Honeycomb Filter Frame, then remove the
honeycomb Filter bracket, and take the honeycomb filter out of the bracket. With a
--=
Unplug the power cord, first remove the Honeycomb Filter Frame and the Honeycomb
Filter , and then remove the water tank. With a towel dipped with little detergent, wipe
The Ice box can absorb the heat in the water, which can lower the
temperature of the water tank. It can make the air cooler flow cooler air.
Use method:
1. Take out the ice box and put it into the refrigerator, till the icebox is totally
2. Put the frozen ice box into the water tank.

Troubleshooting
Please check the following items before having it repaired
Problem Reason Solution
Unit will not operate
1、ON/OFF key has not been
pressed.
2、The unit is unplugged.
3、The blind cloth frame has
not been installed and locked
into place
1、Press the ON/OFF key.
2、Check to make sure the unit
is plugged in.
3、Check to make sure the filter
is properly installed and the
inlet grill is installed and locked
into place.
Dedusting effect is poor
1、The honeycomb filter
is blocked
2、The air inlet is blocked
1、Pull down the honeycomb
filter and clean it .
2、Remove the foreign matter

User’s Manual
型号: MAC-215F
操作本机之前宜先详阅本手册，并好好保存以备日后参考
美的冷风扇
地址：广东省中山市东凤镇东阜路和穗工业园东区28号
网址：global.midea.com.cn
广东美的环境电器制造有限公司

目录
............................................................................................... 1
产品结构
安装与使用
清洁与保养
排除故障

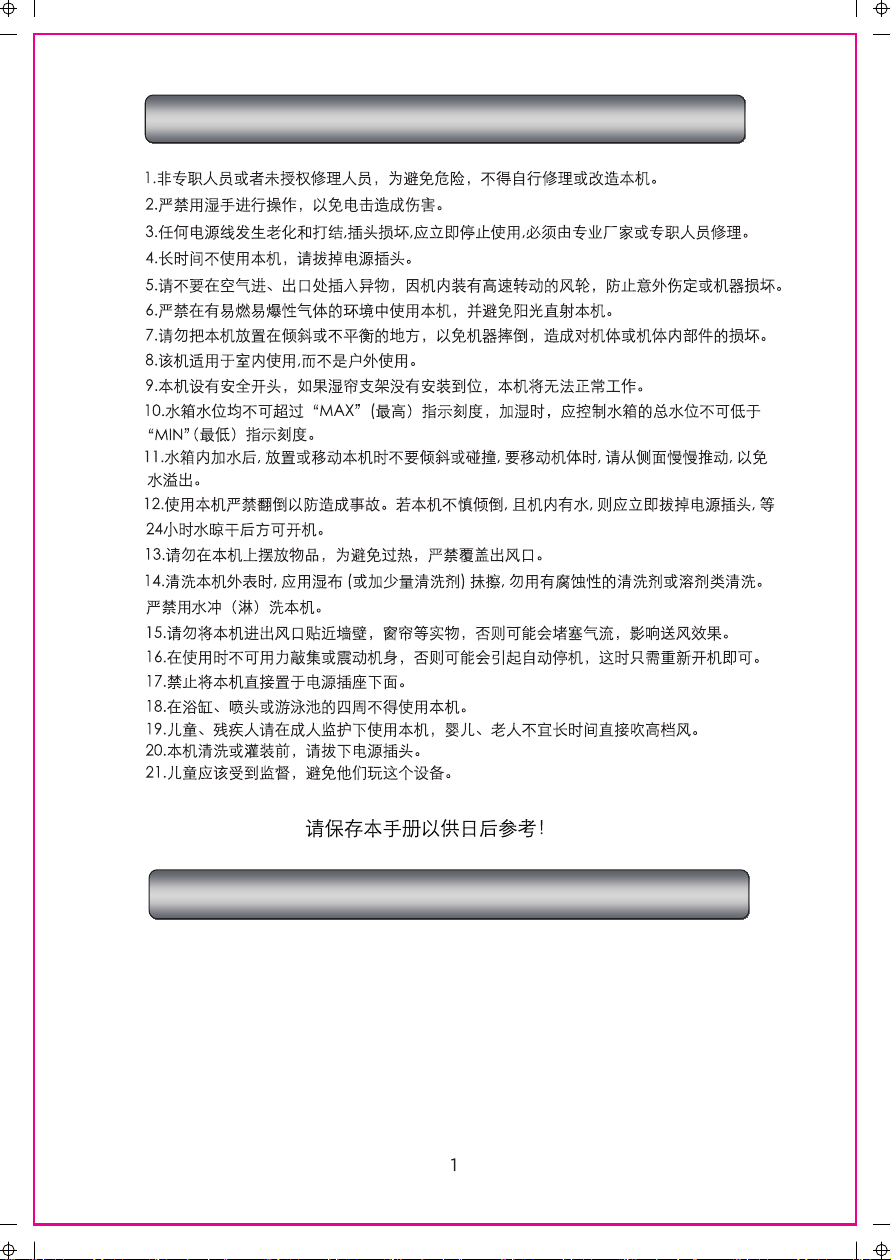

安全措施
工作原理
功能特点
产品型号&规格
............................................................................................... 1
............................................................................................... 2
....................................................................................... 2
............................................................................................... 3
........................................................................................... 3
........................................................................................... 6
............................................................................................... 7

安全措施
工作原理
利用水泵将水箱中的水淋到环保湿帘上， 由风轮电机驱动内部风轮把环保湿帘周围具有
一定湿度的空气吹出，水份蒸发吸热，从而达到降低温度和加湿的作用。

功能特点
增加空气湿度
本机采用空气加湿技术，可迅速提高空气相对湿度。
广角送风
广角送风，并设低速、中速、高速三档风速选择。
远距离遥控功能
6米远距离遥控，120°大角度接收。
键控蜂鸣提示功能
键控功能，对有效的按键进行蜂鸣提示，使用方便。
产品型号 & 规格
型号 MAC-215F
电压/频率 220-240V～50Hz
功率 60W
净重 7.3KG
产品尺寸(长×宽×高) 390×350×705MM
水洗空气，并附带负离子空气净化功能，空气更清新。
60W物理储能制冷，省电、高效、环保
采用世界先进的冰晶储能制冷技术，冰晶储冷量大，释放时间长，可长期反复使用。
辅助吹出凉爽的冷风，且加湿输入总功率为60W，是一般空调电量的1/20，节能省电。
关机自动记忆功能
用按键关机或拔掉电源插头或其他方式断开电源时，当前工作状态被记忆；重新开机后，
机器按记忆设置自动运行。
香薰功能
独特的芳香盒设计，用户可以在芳香盒内添加香水，芳香棉吸附香水散发香味，经风系统
导出，空气芳香舒适（工厂不提供香水）

冰晶盒
遥控器
上水箱
下水箱
湿帘支架
控制面板
出风格栅
万向轮
产品结构
1. 打开包装取出蒸发式冷风扇，将其放在水平地面。
2. 检查备件。
3. 安装万向轮：取出万向轮，并将它安装在空气冷却器底部。
加水时请注意机器前面的水尺. (图3)
注意：冰晶盒放在包装箱内泡沫中。
加水时水箱水位不可以超过“MAX”（最高）指示刻度。 加湿时应控制水箱的总水位
不可以低于“MIN”(最低）指示刻度。
安装与使用
上加水：旋转打开上水箱盖板，往上水箱注入清洁的自来（图 1）。
下加水：握住湿帘支架把手向外旋转，再将湿帘支架与机体分离（图 1），露出水箱。
往水箱中加入清洁的自来水（图 2）
4. 加水:
芳香盒

如欲加强冷却效果，可将冰或经过冷冻的冰晶盒放在水箱内。
检查电源是否与本机的铭牌参数一致。
插上电源，按下“开/关”按键，即可运行蒸发式冷风扇。
注意 : 不要湿手插拔电源，以免触电导致危险；
控制面板
图3图2图1
MIN
MAX
上水箱加水
下水箱加水
打开并取出湿帘支架
打开上水箱盖
水位低于水尺所标明的最低水位线时，本机会发出3秒钟蜂鸣警告，然后水泵停止
运转，此时需要重新加水才能运行加湿功能。
当水箱水位超过最高水位时，本机会发出10秒钟蜂鸣器警告提示用户，防止加水时
过满导致溢水。
将机器电源插头插入电源插座中，并保持接触良好。
移动机器时，要拔掉电源插头；
ON/OFF（开/关键）: 连接电源，本机处于待机状态，按ON/OFF键以启动本机。

遥控器
1. 打开遥控器背部电池盖，装上一颗CR2032纽扣电池，即可使用。
遥控器与控制面板具有同样的功能。
2. 遥控器有效使用距离为6米。
ION
ON/OFF
SPEED
EVAPORATOR
TIMEROSC.
STYLE
中档 高档
低档
STYLE（风类键）：按下此键，可在正常风、自然风、睡眠风功能切换。
ION（负离子键）：按下此键，开启或关闭负离子功能。
EVA/COOLER（加湿/冷风键）：按EVA./COOLER键一次，本机将变成蒸发器。若
配合冰盒使用，本机可降低周围温度约摄式3度。
OSC.（摆风键）：按OSC.键一次以启动摆动功能，本机将以120度横向摆动，再按此键一
次则停止摆动功能。
SPEED（风速键）：一旦开启本机，风扇将以中速旋转3秒钟，转以低速旋转。每按
SPEED键一次，风速将循环如下：
PRO/TIMER（预约/定时键）:
定时关机设定：
开机后首次按定时（TIMER）键，定时关机功能开启，定时时间可在1~7小时内任选。
指示灯1H、2H和4H点亮数字之和指示定时时间，1H、2H和4H均不亮时表示定时功能
关闭。定时按“1H→2H→3H……→7H→定时关”的顺序循环选择。定时指示灯始终显示
定时剩余时间。
预约开机设定：
在待机状态下，按定时（TIMER）键，预约开机功能开启，定时时间可在1~7小时内任
选。指示灯1H、2H和4H点亮数字之和指示预约定时时间，1H、2H和4H均不亮时表示
预约定时功能关闭。定时按“1H→2H→3H……→7H→预约定时关”的顺序循环选择。指
示灯1H、2H和4H始终显示定时剩余时间。

冰晶盒
3. 清洗外壳
用温和的清洗剂和柔软抹布清洗。
2. 清洗水箱
注意:
● 因机内有高压，清洗时必须拔掉电源插头，断电操作。
● 控制面板的任何部分不可沾水。
清洁与保养
1. 清洗空气过滤网和滤网支架
图4
温馨提示: 本机经过长时间运行后，空气过滤网和湿帘因灰尘等污物堵塞会影响
风量和除尘效果，建议根据实际情况每月清洗一次。
拔掉电源插头，握住湿帘支架的把手向外旋转，即可拆下过滤网支架，然后取下滤网，
用温和的清洗剂和软毛刷清洗空气过滤网和滤网支架，并用清水洗净晒干，再装回机上。
拔掉电源插头，先取下湿帘支架，用毛巾沾少许清洁剂将水箱内的水垢擦净，并用清
水冲洗干净。
冰盒将缓缓吸附水中热能，使水箱温度保持低于周围温度，并使本机吹出凉爽
的风：
使用方法:
1. 将冰盒放入冰箱，使冰盒中的液体完全凝结。
2. 冰盒放将进水箱
取下湿帘支架
湿帘支架 湿帘

排除故障
将本机送往检修之前请先根据下列步骤检查和排除故障
故障现象 可能原因 解决办法
本机无法操作
1、
2、
3、
1、
2、
3、
除尘效果差
过滤器框架未安装妥当
和锁紧.
插头未插上.
未按开/关键.
检查插头是否插妥.
按开/关键.
检查过滤器框架是否安装
妥当，进气口的格栅是否
安装妥当和锁紧.
1、
2、
进风口被异物堵住.
空气过滤网因灰尘等污
物堵塞影响风量.
1、
2、
移除进风口的异物.
拆下并清洗空气过滤网.
