Midea MAW12AV1QWT User manual

midea.com
Window Air Conditioner
MAW12V1QWT
MAW12AV1QWT
MAW10V1QWT
MAW08V1QWT
USER MANUAL
en
MAW
Warning notices: Before using
this product, please read this
manual carefully and keep it for
future reference. For additional
support, please call customer
service at 1-866-646-4332.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
Capacity: 8000 ~ 12000BTU/h
Free 3 months
extension* of the
original limited warranty
period! Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the
three months immediately following
the completion of the product’s
original warranty period.
version G - 10 - 2022

Page 2
Read This Manual
Inside you’ll find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save youagreat deal of time
and money over the life of your air conditioner. You’ll find many answers to common
problems in the troubleshooting tips - you should be able to fix most of them quickly
before calling service. These instructions may not cover every possible condition of
use, so common sense and attention to safety is required when installing, operating
and maintaining this product.
• For support, please call the Service Center at 1-866-646-4332.
• This appliance is not intended for use by people (including children) with reduced
physical, sensory,or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a humid room such as a bathroom or laundry
room.
CAUTION
SAFETY PRECAUTIONS ............................................................................. 3
OPERATING INSTRUCTIONS .................................................................... 8
INSTALLATION INSTRUCTIONS .............................................................. 13
CARE AND CLEANING ............................................................................. 24
TROUBLESHOOTING TIPS ...................................................................... 25
REMOTE CONTROL AND APP INSTRUCTIONS ................................. 27
WARRANTY ................................................................................................ 36
Owner’s Manual

Page 3
SAFETY PRECAUTIONS
Safety
Precautions
To prevent injury to the user or other people and property damage, the instructions
shown here must be followed. Incorrect operation due to ignoring ofinstructions may
cause harm or damage. The level of risk is shown by the following indications.
WARNING
• Be sure the air conditioner has been securely and correctly installed according to
the installation instructions in this manual. Save this manual for possible future use
in removing or installing this unit.
• Plug in power cord plug properly.
Otherwise, it may cause electric shock or fire due to excess heat generation.
• Do not modify power cord length or share the outlet with other appliances as it
may cause electric shock or fire due to overheating.
• Always ensure effective grounding.
Incorrect grounding may cause electric shock.
• Unplug the unit if you notice unusual sounds or smells or smoke coming from it.
A damaged product may cause fire and electric shock.
• Ventilate room before operating the air conditioner if there is a gas leakage from
another appliance.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.
• Do not operate with wet hands or in very humid environments.
It may cause electric shock.
• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.
• Do not use the socket if it is loose or damaged.
It may cause fire and electric shock.
• Do not use or keep the power cord close to heating appliances.
It may cause fire and electric shock.
• Do not use any devices or materials for installation that are not recommended in
this manual.
WARNING This symbol indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
This symbol indicates a hazardous situation, which, if not
avoided, could result in minor or moderate injury.
NOTICE
This symbol addresses practices not related to physical
injury.

Page 4
WARNING
• Do not disassemble or modify unit.
It may cause failure and electric shock.
• Do not damage or use an alternate power cord.
It may cause fire and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an
authorized service center or a similarly qualified person in order to avoid a hazard.
• Do not direct airflow straight into persons to avoid possible health hazard.
• Do not open the unit during operation.
It may cause electric shock.
• Do not use the power cord near flammable gas or combustibles, such as gasoline,
benzene, thinner, etc.
It may cause an explosion or fire.
• Do not let children hang on the air conditioner or bracket.
A serious injury may occur.
• Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor
plug. Do not remove any prongs from the power cord.
• Be sure the air conditioner is properly grounded. To minimizeshock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit installation.
• Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
cabinet and behind the grille.
• Do not drink the drain water. It may contain mold and bacteria that can lead to
death if ingested.
CAUTION
• Whenthe air filter is to be removed, do not touch the metal parts of theunit.
It may causeinjury.
• When the unit needs cleaning, switch off, and turn off the circuit breaker.
Do not clean unit when power is on as it may cause fire, electric shock orinjury.
• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.
• Clean with asoft cloth only. Do not use strong detergents that contain wax or
thinners as it may damage the product.
• Usecaution when unpacking and installing. Sharp edges could cause injury.
Safety
Precautions

Page 5
Safety
Precautions
CAUTION
• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to
electric shock.
• Do not put a pet or house plant where it will be exposed to direct air flow.
This could injure the pet or harm theplant.
• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.
• Ensure that the installation is properly secured to prevent the product from
potentially falling.
• Do not place heavy objects on the power cord and ensure that the cord is not
compressed.
Otherwise, there is danger of fire or electric shock.
• If water is spilled on the unit, turn off the unit and switch off the circuit breaker.
Isolate supply by taking thepower-plug out and contact aqualified service
technician.
• Do not use near gas stove or other gas burning appliances,as air flow may affect
gas combustion.
• Do not use for any purpose other than room comfort.
Do not use this air conditioner to preserve precisiondevices, food, pets,plants,
and art objects. It may cause deterioration.
• Turn off the mainpower switch if the unit is not to be used for an extended time.
• Always insert the filters securely. Clean filter once every two weeks.
Operation without filters may cause failure.

Page 6
Safety
Precautions
NOTICE
• Do not use this device to turn the unit on or off.
• Always make sure the RESET button is pushed in for correct operation.
• The power supply cord must be replaced if it fails to reset when either the TEST
button is pushed, or it can not be reset. Please contact Customer Service.
NOTICE
The power supply cord withthis
air conditioner contains acurrent
detection device designed to reduce
the risk of fire.
In the event that the power supply
cord is damaged, it can not be
repaired. It must be replaced with a
cord from the manufacturer.
Grounding type wall receptacle
Do not, underany
circumstances, cut,
remove or bypass
the grounding prong.
Power supply cord with 3-prong grounding
plug and current detection device.
The power supply cord contains a current
measuring device that detects damage to
the power cord. Test your power supply
cord as follows:
1. Plug in the air conditioner.
2. The powersupply cord will have TWO
buttons on the plug head. Pressthe
TEST button.You will notice a click as
the RESET button pops out.
3. Press the RESETButton.You will
notice a click as the button engages.
4. The power supply cord is now
supplying electricity to theunit. (On
some products this is also indicated
by a light on the plug head.)
RESE T
TEST
Plug in &
press RESET
Operation of Current Device

Page 7
Safety
Precautions

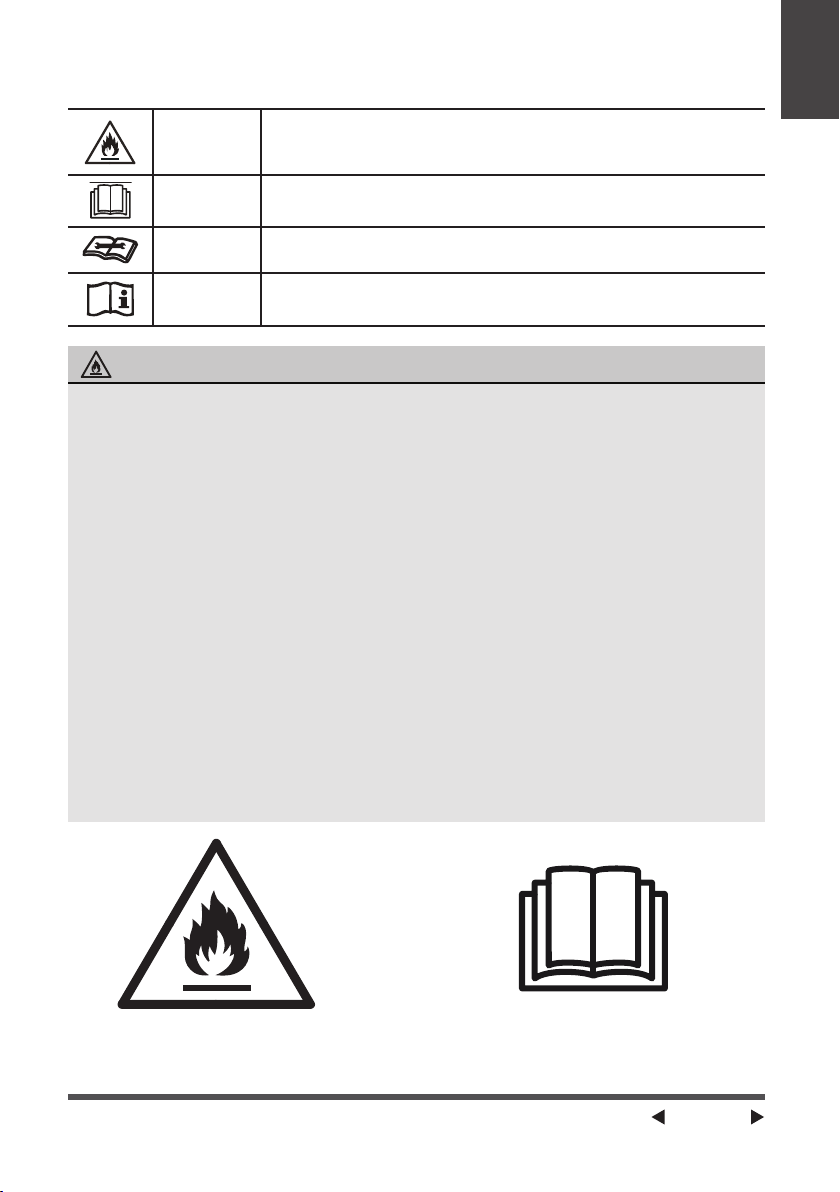

WARNING
This symbol shows that this appliance used a flammable
refrigerant. If the refrigerant is leaked and exposed to an
external ignition source, there is a risk of fire.
CAUTION This symbol shows that the operation manual should be read
carefully.
CAUTION This symbol shows that a service personnel should be handling
this equipment with reference to the installation manual.
CAUTION This symbol shows that information is available such as the
operating manual or installation manual.
EXPLANATION OF SYMBOLS DISPLAYED ON THE UNIT
• Do not try to accelerate the defrosting process or methods of cleaning that are
not recommended by the manufacturer.
• The appliance shall be stored ina room without a continuously operating ignition
source (for example, open flames or an operating gas appliance) or an ignition
source (for example, an operating electric heater) close to the appliance. The
appliance shall also be stored ina room without ignition sources.
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.
•Unit is only to be serviced by a Midea authorized servicer, please call Customer
Service at 1-866-646-4332 for support.
• Flammable refrigerant R32 is used within air conditioner. Please follow the
instructions carefully to handle, install,clean, and service the air conditioner
to avoid damageor hazard. Do not dispose of air conditioner in regular trash.
Contact qualified agency for proper disposal.
• No open fire or devices that generate spark/arcing shall be around the air
conditioner to avoid causing ignition of the flammable refrigerant used. Please
follow the instructions carefully to store or maintain the air conditioner to
prevent mechanical damage from occurring.
WARNING
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE: Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.

NOTICE
All the illustrations in this manual are for explanation purpose only. The actual
installation may vary.
Page 8
Normal Sounds
Sound of Rushing Air
In front of the unit, you
may hear the sound of
rushing air being moved
by the fan.
High Pitched Chatter
Vibration
Unit may vibrate and
Trickling Sound
Gurgle/Hiss
noises may be heard
Operating
Instructions
OPERATING INSTRUCTIONS

Page 9
NOTICE
Always wait 3 minutes when turning the unit off and then on again, or when changing from
cool to fan and back to cool. This prevents damage from occurring to the compressor.
Air Conditioner Operation
WARNING
To reduce the risk of fire, electrical shock, or injury to people or property, read the
SAFETY PRECAUTIONS before operating this appliance.
To begin operating the air conditioner, follow these steps:
1. Plug in the air conditioner (be sure to follow the power cord instructions).
2. Turn thepower on to the air conditioner, using theON/OFF button.
3. Set the thermostat to the coldest temperature setting.
4. Select the Cool mode setting.
5. Adjust the louver for comfortable air flow (see Air Directional Louvers).
6. Once the room has cooled, adjust the thermostat to the setting you find most comfortable.
7. Make sure the air flow inside and outside is not obstructed by anything.
Cooling Operation
Outdoor temp.: 64°F ~ 109°F / 18°C ~ 43°C
Indoor temp.: 60°F ~ 90°F / 16°C ~ 32°C
NOTICE
• The relative humidity of the room should be less than 80%. If the unit is used in a condition
with a relative humidity over 80%, there will be condensed water on thesurface of the unit.
• Performance may be reduced outside of these operating temperatures.
Operating
Instructions
Air Directional Louvers
The louvers will allow you to direct the air
flow up ordown (on some models) and left
or right throughout the room as needed.
Use the SWING button until the desired
up/down direction is obtained.
Move the louvers from side to side until the
desired left/right direction is obtained.
Air Direction
Use SWING button for up/down direction
Adjust louvers for left/right direction

1
235
46 7 8 9
10
Page 10
Operating
Instructions

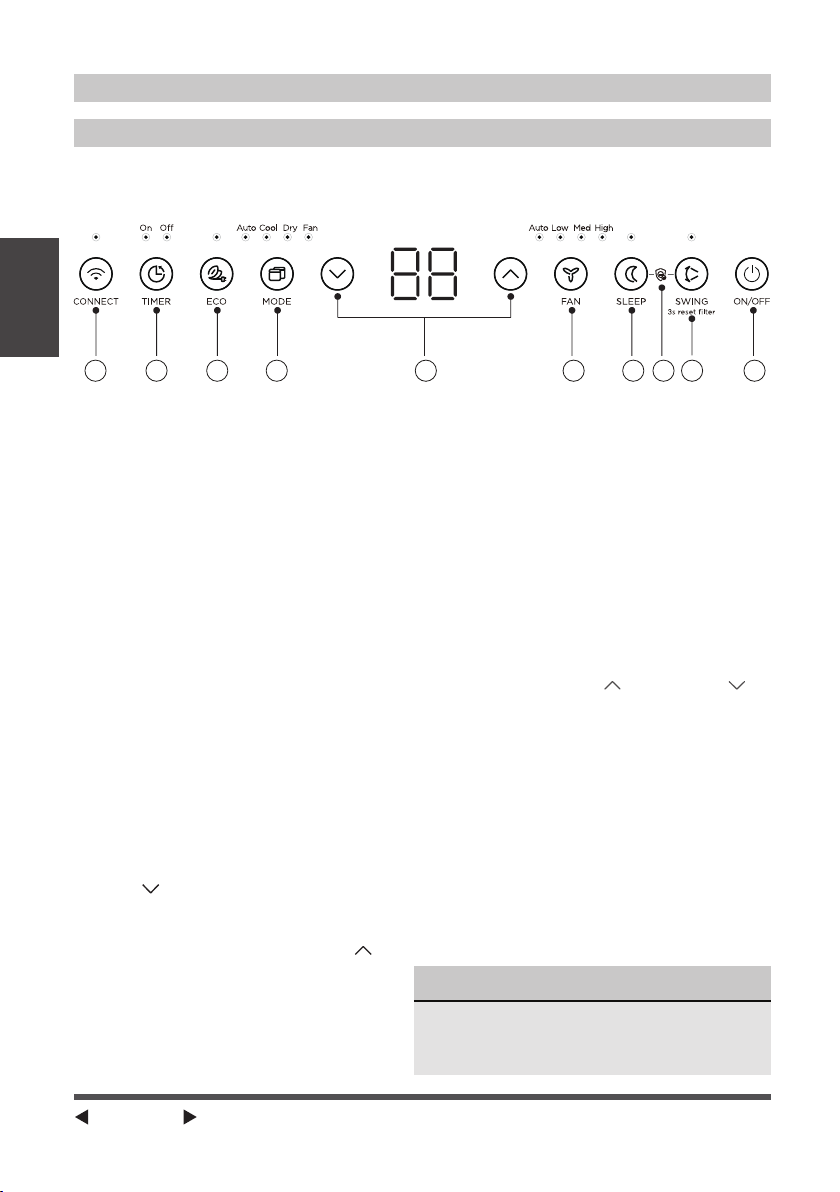

ELECTRONIC CONTROL OPERATING INSTRUCTIONS
3. Timer Button: Auto Start/Stop Feature
• When the unit is on, press the Timer
button. The “Timer off” LED indicator
light will illuminate indicating the Auto
stop feature has been activated.
• When the unit is off, press the Timer
button. The “Timer on” LED indicator
light will illuminate indicating the Auto
start feature has been activated.
• When the time of TIMER ON is displayed,
press the Timer button again. The TIMER
OFF indicator light illuminates. It indicates
the Auto Stop program has initiated.
• Press or hold the UP ( ) or DOWN ( )
button to change the Auto time by 0.5 hour
increments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control will
count down the time remaining until start.
• The selected time will register in 5
seconds, and the system will automatically
revert back to display the previous
temperature setting or room temperature
when the unit is on. (when the unit is off,
there isno display.)
• Turning the unit ON or OFF at any time
or adjusting the timer setting to 0.0 will
cancel the Auto Start/Stop timed program.
1. ON/OFF Button
Press ON/OFF button to turn unit on or
off.
2. CONNECT Button
When connecting your air conditioner
to Wireless, press the CONNECTbutton
for 3 seconds to initiate the Wireless
connection mode. The display shows
‘AP’ to indicate the unit is in the Wireless
connection mode. Refer to the Wireless
section for further instructions.
If connection (router) is successful
within 8 minutes, the unit will exit Wireless
connection mode automatically and the
CONNECT indicator illuminates.
If connection failed within 8 minutes,
the unit exits Wireless connection mode
automatically and the CONNECT
indicator does not illuminate.
After Wireless connection is successful,
you can press and hold CONNECT and
DOWN ( ) buttons at the same time
for 3 seconds to turn off Wireless function
and the LED DISPLAY shows ‘OF’ for 3
seconds, press CONNECT and UP ( )
buttons at the same time to turn on WiFi
function and the LED DISPLAY shows
‘On’ for 3 seconds.
Before you begin, thoroughly familiarize yourself with the control panel as shown below
and all its functions, then follow the symbol for the functions you desire. The unit can be
controlled by the control panel, remote control, smart phone app or voice control.
NOTICE
To cancel timer operation, press and
hold the timer button for 2 seconds until
the beep/buzzer is heard.
Air Conditioner Features

Page 11
Operating
Instructions
4. EC0 Button
Press the ECO button to initiate the Energy
Saver function. This function is available
on COOL, DRY, and AUTO (only AUTO-
COOLING and AUTO-FAN) modes. The fan
will continue to run for 3 minutes after the
compressor shuts off.
Thefan then cycles on for 2 minutes
at 10 minute intervals until the room
temperature is above the set temperature,
at which time the compressor turns back
on and Cooling Starts.
5. MODE Button
• To choose the operating mode, press
the MODE button. Each time you press
the button, a mode is selected in a
sequence that goes from Auto, Cool,
Dry and Fan. The indicator light beside
the button will be illuminated and
remain on once that mode is selected.
• When the unit is turned off and back
on via the power button, the unit will
automatically switch on the Energy
Saver Function for the following modes:
Cool, Dry, Auto.
To operate on AUTO feature:
• When you set the air conditioner to
AUTO mode, it will automatically select
cooling or fan only operation, depending
on what temperature you have selected
and the current room temperature.
• The air conditioner will automatically
control the room temperature according
to the temperature you’ve set.
• In this mode, the fan speed cannot be
adjusted and is automatically controlled
based on the temperature setting and
room temperature.
To operate on COOL mode:
• Choose Cool Mode to set the cooling
function. Use the UP () or DOWN
() buttons to choose the desired
temperature. When Cool Mode is
selected, the fan speed can be adjusted
by pressing the FAN button.
To operate on DRY mode:
• In this mode, the air conditioner will
generally operate as a dehumidifier.
Since the conditioned space isa closed
or sealed area,some degree ofcooling
willcontinue.On Dry mode, thefan
speed is not adjustable.
To operate on FAN mode:
• Use this function only when cooling
is not desired,such asfor room air
circulation. You can choose any fan
speed you prefer.
• In Fan Only mode, thetemperature can
not beadjusted and thedisplaywill show
the actualroom temperature, not the set
temperature asin the cooling mode.
6. UP/DOWN Button
Press UP ( ) or DOWN ( ) button to
change temperature setting.
7. FAN SPEED Button
PressFAN button to select theFan Speed
in four steps- Auto,Low, Med orHigh.
Each time thebutton is pressed, the fan
speed modeisshifted.
8. SLEEP Button
Press SLEEP button to initiate the
sleep mode. In this mode the selected
temperature will increase (in cooling
mode) by 2°F (1°C) 30 minutes after
themode is selected. The temperature
will then increase (in cooling mode) by
another 2°F (1°C) after an additional 30
minutes.
This new temperature will be maintained
for 7 hours before it returns to the
originally selected temperature.
This ends theSleep mode and the unit
will continueto operate as originally
programmed. The Sleep modeprogram
can be cancelled at any time during
operation by pressing theSLEEP button
again.

Page 12
Error codes:
The unit may stop operation due to a
malfunction with the unit. If this occurs,
an error code may appear on the display
like below.
Wait10 minutes as the problem may
resolve itself. If not, disconnect the
power, then connect it again. Turn the
unit on.
If the problem persists, disconnect the
power and contact customer service.
Error code appears and begins with the
letters as the following in the window
display of indoor unit:
EH(xx), EL(xx), EC(xx) , PH(xx), PL(xx),
PC(xx).
NOTICE
If the unit turns off unexpectedly due to
the power being cut, it will automatically
restart with the previous function setting
when the power resumes.

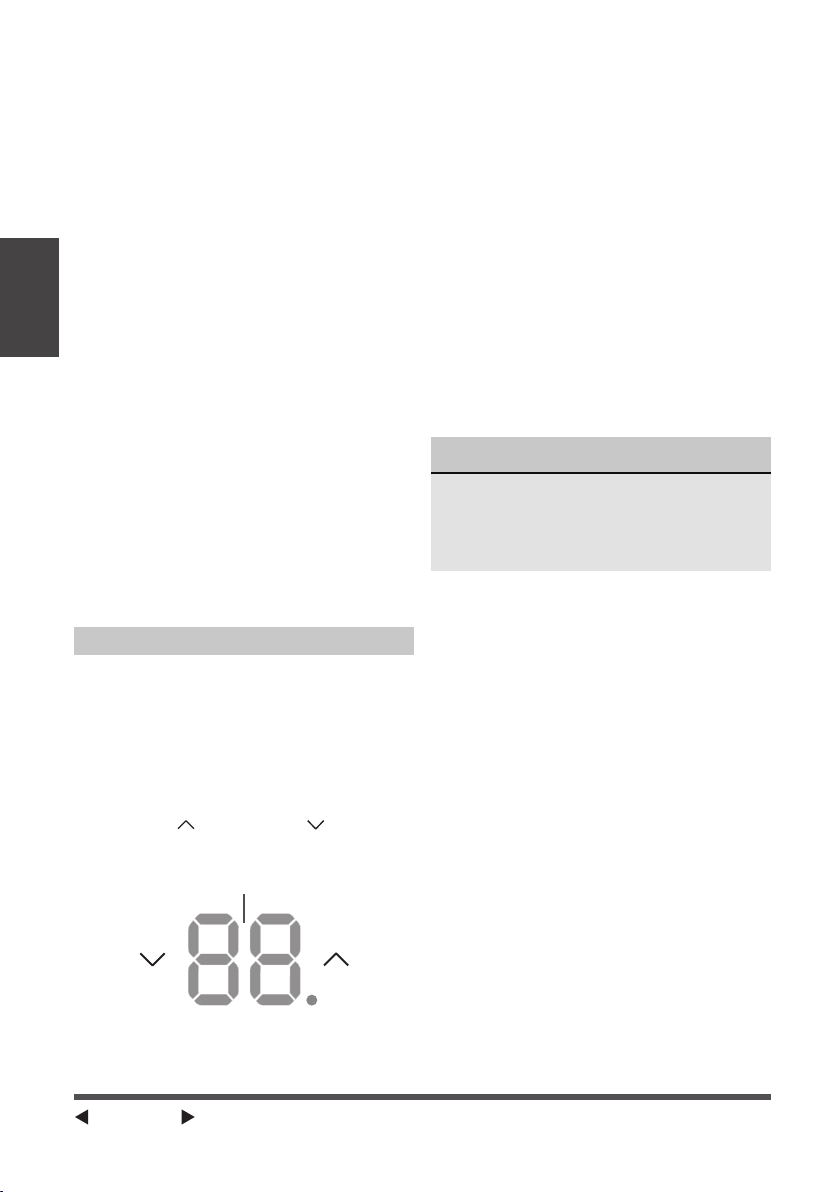

LED Display:
Shows the set temperature in “°C” or
“°F” and the Auto-timer settings. While
on Fan Only mode, it shows the room
temperature. If the room temperature is
too high or low, it will display “ HI” or “ LO”.
To change between °F and °C, press and
hold the UP ( )and DOWN ( ) buttons
at the same time for 3 seconds.
Display
DISPLAYS
Operating
Instructions
9. SWING Button
10. MShield feature
Use the SWING button to initiate the
auto swing feature for the outlet louver.
When the auto swing ison, pressing the
SWING button can stop the louver at the
desired angle.
Check Filter Feature:
The Check Filter feature is a reminder
to clean the air filter for a more
efficient operation. The light above the
button will illuminate after 250 hours
of operation. After cleaning the filter,
press the SWING button for 3 seconds
to reset the Check Filter feature turning
the light off.
Press SWING button and SLEEP button
at the same time for 3 seconds to initiate
MShield featureand the MShield light
illumiantes, the LED DISPLAY shows 'On'
for 3 secondsfor some units. Press it for
3 seconds again to stop the MShield
featureand the MShield light turn dark,
the LEDDISPLAY shows 'OF' for
3 seconds for some units.

Page 13 
INSTALLATION INSTRUCTIONS
Installation
Instructions
Scan the QR code with your mobile device to watch an installation video of the Midea U.
Installation Video

Page 14 
Installation
Instructions
WARNING - Before You Begin
Read these instructions completely
and carefully.
• IMPORTANT - Savethese instructions.
• IMPORTANT - Observe all governing
codes and ordinances.
We recommend that two people
install this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper
installation is not covered under the
Limited Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
Do not, underany circumstances, cut
or remove the third (ground) prong
from thepower cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house wiring may present
special problems - consult a qualified
electrician.
When handling theair conditioner, be
careful to avoid cuts from sharp metal
edges and aluminum fins onfront and
rear coils. Please wearcut-resistant
gloves.
Bracket should only be used for
its intended purpose. If not, the
warranty will be voided.

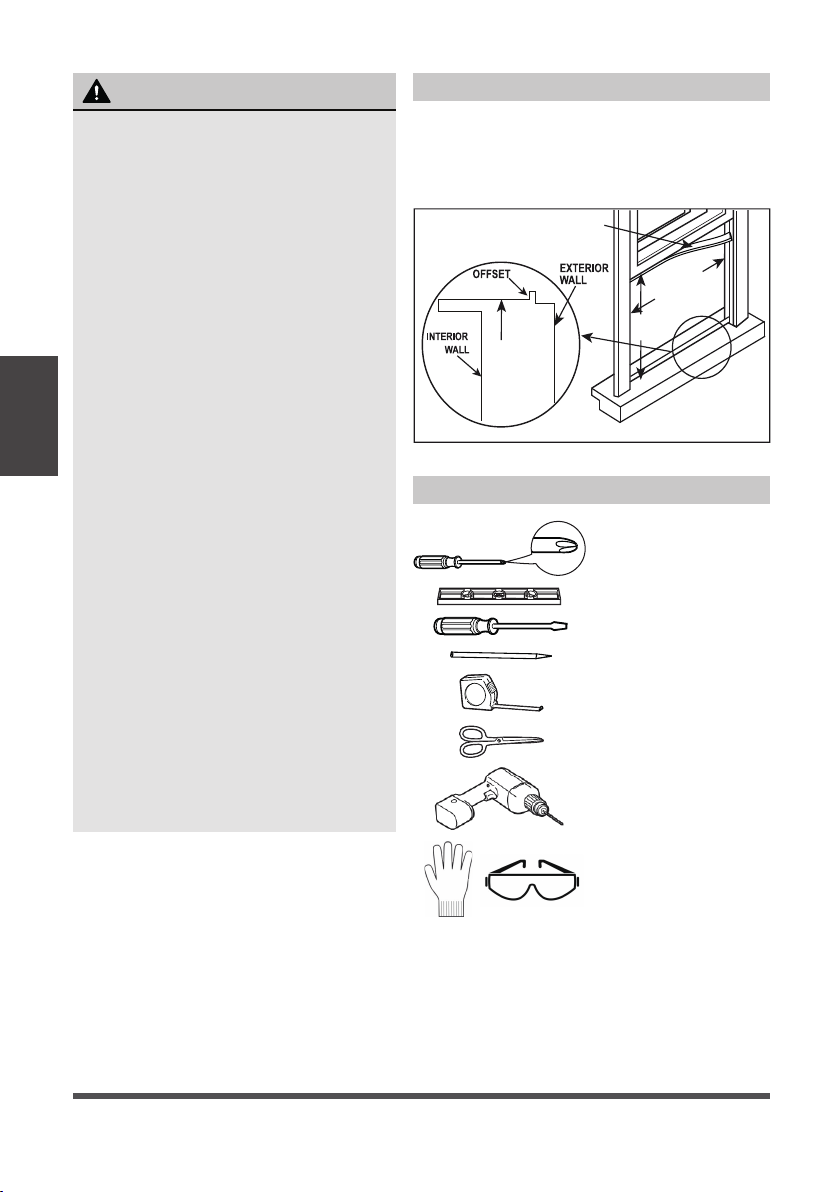

Tools You Will Need
Window Requirements
Your airconditioner isdesigned to install in
standard double hung windows with opening
widths of 22 to 36 inches (558mm to 914mm)
and a windowheight of 13.75” (349mm).
Flathead Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
Drill and 1/8” drill bit
Phillips
Screwdriver
Level
Proper PPE
Vinyl-Clad Windows
INNER
WINDOW SILL
13.75" min
(349 mm)
22" to 36"
(558 mm to 914mm)
SEAL FOAM

Page 15 
Installation
Instructions
NOTICE
Savecarton and these Installation
Instructions for futurereference. The
carton is thebest way tostore unit
during winter, or when not in use.
If any piece of hardware is missing, DO
NOT INSTALL THE PRODUCT,and call
customer service at 1-866-646-4332.
* Denotes extra hardware provided in
separate bag.

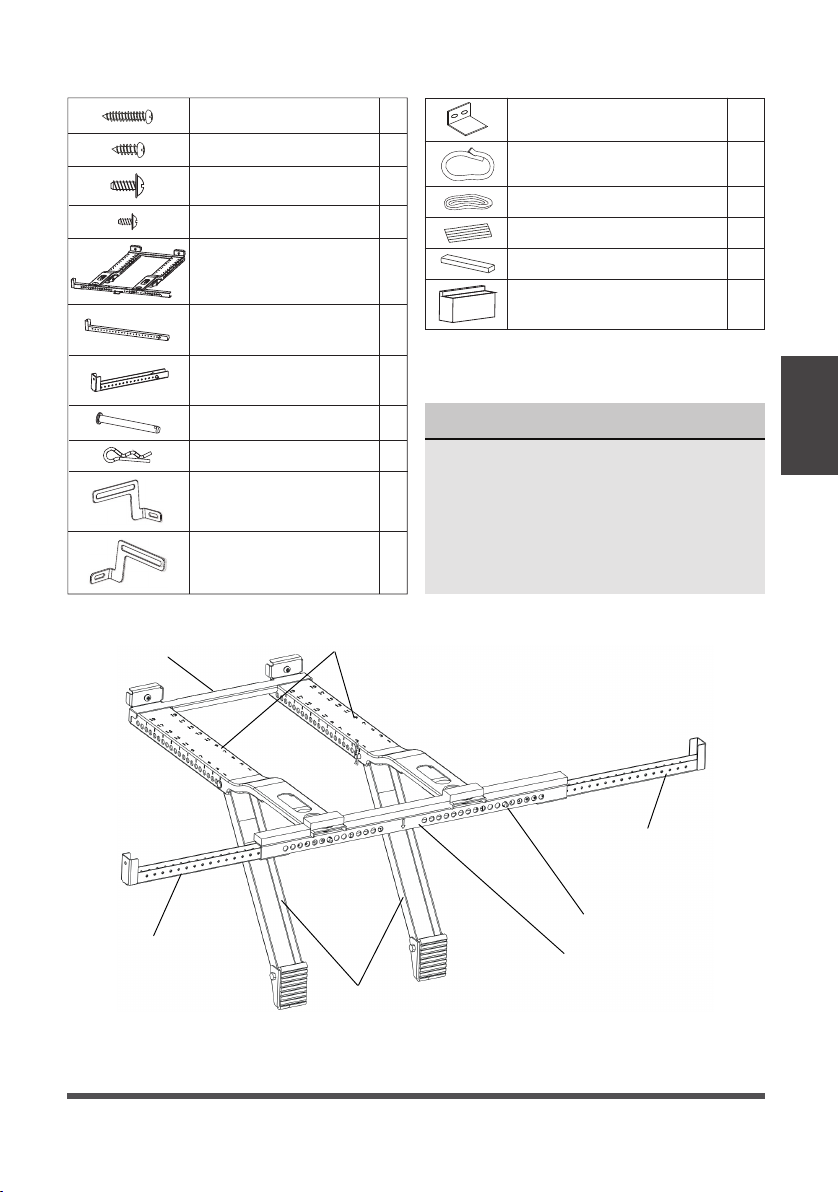

Installation Hardware
RightExtension Arm – Short
(For 22”-26” windows) 1
Cotter Pin 2*
Main Support Pin 2*
Right Extension Arm
(For 26”-36” windows) 1
1
Main Bracket
1/2” Type B Screw 2*
1/4” Type B Screw 2*
1/2” Type A Screw 3*
Open Window Bracket – RH1
Open Window Bracket – LH 1
1” Type A Screw 2*
Window Sealing Foam 1
Window Sash Lock 1
Window Sash Foam 1
Bracket Sealing Foam 1
Additional Side Arm Foam 2
Side Arm Foam 2
Angled Support Arms
Horizontal Bracket
Spring Push Pin
Main Support
Right
Extension
Arm
Left
Extension
Arm
Rear Cross
Brace
Fig. 1

Page 16
Remove the top foam insert containing the bracket and hardware from the carton.
Installation
Instructions
1. Prepare the Bracket – Install Video Time 1:48
A. Measure the inside opening of your window sill and use that distance to set the total
width of the bracket Extension Arms. To adjust the extension arms, press the Spring
Push Pin, slide the Left Extension Arm out and then install the Right Extension Arm.
Use the short arm for 22-26” windows, and the long arm for 26-36” windows.
B. Apply Bracket Sealing Foam strips to the bottom of the bracket as shown. Repeat
on both sides.
Center
Adjust
Adjust
Fig. 2
Lower sash must open sufficiently to allow a clear vertical opening of 13.75 inches.
Side louvers and the rear of the AC must have clear air spaceto allow enough
airflowthrough the condenser for heat removal. The rear of the unit must be
outdoors, not inside a building or garage. Find the center of your window and
lightly mark with a pencil.
2. Prepare the Window – Install Video Time 1:58
Apply Bracket
Sealing Foam
Fig. 3

Page 17
A. Install the Main Support Bracket into
the window opening. Ensure that the
Horizontal Bracket and Extension Arms are
located on the indoor side of the window.
WARNING
Maintain control of thebracket until
installation is complete.
3. Install Support Bracket – Install Video Time 3:12
Fig. 4
B. Move the Angled Support Arms
toward the exterior wall until
the feet touch the wall.Place
the level on thebracket and
adjust the Support Arms so that
it is level or tilted 1/4 bubble
downward and towards the
outside. If exactly 1/4 bubble
cannotbe achieved, set the
angled support arms to the
closest setting so that a slight
outward tilt exists.
Here is what
1/4 bubble on
the level
should look
like.
Depending on the
level used, place at
either location below
to check level.
Fig. 5
Fig. 6
C. Insert the Main SupportPin
through the holes in the Main
Support and Angled Support Arm.
Match the hole numbers on both
Main Supports for alignment.
If furtheradjustment is needed,
use alternate holes where the
Main Supports attach to the
HorizontalBracket
Installation
Instructions

Page 18
D. Checkthe level again and
ensure the bracket feels secure.
After making any necessary
adjustments, insert the cotter
pinsinto the Main Support Pins.
Cotter Pin
Fig. 7
Fig. 10
Cover holes with
Bracket Sealing Foam
Cover holes with
Bracket Sealing Foam
E. If necessary, cover the holes on the front of the bracket with the Bracket Sealing Foam.
Secure thebracket to the windowsill by
drilling 1/8” pilot holes and installing the
1/2” Type A screws as shown in Fig. 9.
If your window has a lip, make sure the
bracket is placed as shown in Fig. 8.
Installation
Instructions
INSIDE OUTSIDE
Vinyl-Clad Windows
Vinyl Lip
Fig. 8
Fig. 9
1/2” Type A1/2” Type A
1” Type A
(Flat Sill)
1” Type A
(Flat Sill)
If your window does not have a lipped sill,besure
to drill 1/8” pilot holes and install the 1” Type A
(Flat Sill) screws as shown inFig. 9 below.

Page 19
Installation
Instructions
4. Install Air Conditioner – Install Video Time 4:36
A. Setthe air conditioner on top of the support
bracket. Ensure the grooves on the bottom
of the air conditioner align with the Main
Supports. Using a level, check for proper tilt
towards the outside.
Fig.12
WARNING
Do not leave the unit unattended
during installation.
This side faces indoors
Fig.13
Fig.11
WARNING
Failing to install theOpen Window
Brackets could causeinjury or
property damage.
C. Next, you must install the Open
Window Brackets using the
provided screws as shown.
Use the 1/2” Type B screw.
Use the 1/4”
Type B screw.
Fig.14
B. Pull thewindow down into the slot
to help align the unit in the correct
location. Keep the window partially
inserted into the slot to maintain
alignment during installation. Fold
down both Side Arm Hinges.

Page 20
Installation
Instructions
A. Measure the distance
between the Side Arm
Hinge and theclosest
partof the window frame
in line with the Side Arm.
Add 1/4” to this distance
and cut the Side Arm
Foam to length.
WARNING
Do not leave the unit
unattended during
installation.
5. Foam Installation – Install Video Time 5:33
Fig. 15
B. Apply Window Sealing Foam to
the Side Arm Foam as shown.
Note that the Window Sealing
Foam attaches to the side next to
the air conditioner.
If your window does not have a
lipped sill, apply the Additional
Side Arm Foam as shown with
the dotted line.
Window Sealing Foam
Window Sealing Foam
Fig. 16
Air Conditioner Side
Window
Sealing Foam
Side Arm Foam
Additional SideArm
Foam (Flat Sill only)
