Midea MDW12RSS User manual

PART Ⅰ: Generic VersionMDW12RSS / MDW12RBS / MDW12RWHPlease read this manual carefully before using the dishwasher and Keep this manual for future reference.

SAFETY INFORMATION3CONTENTSPRODUCT OVERVIEW8USING YOUR DISHWASHERBasket Used Tips99MAINTENANCE AND CLEANINGExternal CareInternal CareCaring For The Dishwasher11111114INSTALLATION INSTRUCTION 151516171818NOTE:Reviewing the section on troubleshooting Tips will help you solve some common problems by yourself.If you cannot solve the problems by yourself, please ask for help from a professional technician.The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.About Power ConnectionWater Supply And DrainConnection Of Drain HosesPosition The ApplianceFree Standing InstallationBuilt-In Installation(for the integrated model)TROUBLESHOOTING TIPS2428LOADING THE BASKETS ACCORDING TO AS/NZS 2007.119

SAFETY INFORMATIONWARNINGWhen using your dishwasher , follow the precautions listed below:Installation and repair can only be carried out by a qualified technicianThis appliance is intended to be used in householdand similar applications such as:-staff kitchen areas in shops, offices and other working environments;-farm houses;-by clients in hotels, motels and other residential typeenvironments;-bed and breakfast type environments.This appliance can be used by children aged from 8years and above and persons with reduced physical,sensory or mental capabilities or lack of experienceand knowledge if they have been given supervision orinstruction concerning use of the appliance in a safeway and understand the hazards involved.Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1)This appliance is not intended for use by persons (including children ) with reduced physical, sensory or3

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 )Packaging material could be dangerous for children!This appliance is for indoor household use only.To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.Please unplug before cleaning and performing maintenance on the appliance.Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.Earthing Instructions4This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.When loading items to be washed:1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.Check that the detergent powder is empty after completion of the wash cycle.5

6Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations.Use only detergent and rinse agents recommended for use in an automatic dishwasher.Never use soap, laundry detergent, or hand washing detergent in your dishwasher.The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.During installation, the power supply must not be excessively or dangerously bent or flattened.Do not tamper with controls.The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.To save energy, in stand by mode , the appliance will switch off automatically while there is no any operation in 30 minutes .

DisposalFor disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. 7

PRODUCT OVERVIEWTo get the best performance from your dishwasher, read all operating instructions before using it for the first time. DispenserFilter assemblyLower spray armInner pipeIMPORTANT:8Cutlery basketupper spray armUpper basketLower basketCup rackPictures are only for reference, different models may be different. Please prevail in kind.NOTE:

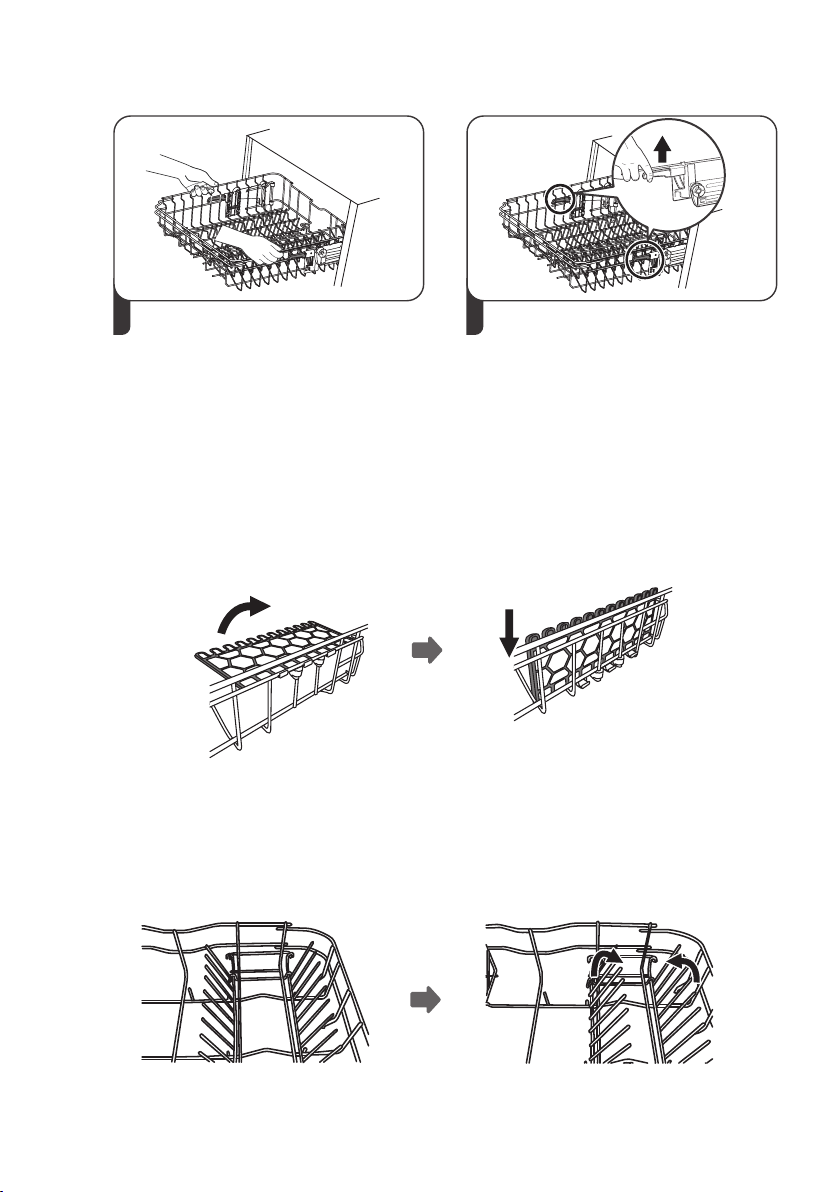

USING YOUR DISHWASHER1. Loading the basket2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) 1. Loading the basket2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) 9Adjusting the upper basketThe height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.To adjust the height of the upper rack, follow these steps:Type 1:Basket Used TipsBefore using your dishwasher :Inside Outside41Pull out the upper basket.2Remove the upper basket.3Re-attach the upper basket to upper or lower rollers.Push in the upper basket.lower positionupper position

10raise upwardsfold backwards1To raise the the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.upper basket just lift ,2To lower the lift the adjust handles on each side to release the basket and lower it to the lower position.upper basket, Type 2:Folding back the cup shelvesTo make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.Folding back the rack shelvesThe spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items.

MAINTENANCE AND CLEANINGExternal CareThe door and the door sealClean the door seals regularly with a soft damp cloth to remove food deposits.When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.The control panelIf cleaning is required, the control panel should be wiped with a soft damp cloth only.To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.WARNINGInternal CareFiltering systemThe filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.Follow the steps below to clean the filters in the wash cabinet.NOTE:Pictures are only for reference, different models of the filtering system and spray arms may be different. 11

12Hold the coarse filter and rotate it anticlockwise to unlock the filter.Lift the filter upwards and out of the dishwasher.The fine filter can be pulled off the bottom of the filter assembly.The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away. 34Larger food remnants can be cleaned by rinsing the filter under running water.For a more thorough clean, use a soft cleaning brush.Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.WARNING Main filter Main filterCoarse filterCoarse filterFine filter12OpenOpen

Spray armsWash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.To clean the spray arms, follow the instructions below:23To remove the lower spray arm, pull out the spray arm upward.131To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwiseto remove it.

Caring For The DishwasherFrost precautionPlease take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:1. Cut off the electrical power to the dishwasher at the supply source.2. Turn off the water supply and disconnect the water inlet pipe from the water valve.3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)4. Reconnect the water inlet pipe to the water valve.5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.After every washAfter every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.Remove the plugBefore cleaning or performing maintenance, always remove the plug from the socket.No solvents or abrasive cleaningTo clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.When not in use for a longtimeIt is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.Moving the applianceIf the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.14SealsOne of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTIONEnsure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.Electrical requirementsElectrical connectionEnsure that proper earthing exists before useAbout Power ConnectionWARNINGFor personal safety:Do not use an extension cord or an adapter plug with this appliance.Do not, under any circumstances, cut or remove the earthing connection from the power cord.The installation of the pipes and electrical equipments should be done by professionals.AttentionWARNINGElectrical Shock Hazard Disconnect electrical power before installing dishwasher.Failure to do so could result in death or electrical shock.15Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Water Supply And DrainCold water connectionConnect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place.If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.ordinary supply hoseHow to connect the safety supply hose1. Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.2. Tighter the screws of the safety supply hose to the faucet with thread 3/4 inch.3. Turn water fully on before starting the dishwasher.How to disconnect the safety supply hose1. Turn off the water.2. Unscrew the safety supply hose from the faucet.16

Connection Of Drain HosesPlease securely fix the drain hose in either position A or position B B A
MAX 1000mm
CounterDrain hoseInsert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.Extension hoseWater outletHow to drain excess water from hosesSyphon connection If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.The waste connection must be at a height less than 1000mm (maximum) from the bottom of the dish. The water drain hose should be fixed . If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced.17Back of dishwasherWater InletDrain PipeMains Cable

Position The AppliancePosition the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.Levelling the applianceOnce the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.In any case, the appliance should not be inclined more than 2°. NOTE:Only apply to the free standing dishwasher.18Free Standing Installation
Fitting between existing carbinets
The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

Underneath existing work top
(When fitting beneath a work top)In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).aabbBuilt-In Installation(for the integrated model)Step 1. Selecting the best location for the dishwasherThe installation position of dishwasher should be near the existing inlet and drain hoses and power cord.Illustrations of cabinet dimensions and installation position of the dishwasher.1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.90°90°580mm580mm820mm820mm100100Electrical, drain and water supply line entrancesElectrical, drain and water supply line entrancesSpace between cabinet bottom and floorSpace between cabinet bottom and floor600 mm(for 60cm model)450 mm(for 45cm model)8080After removing the work top, the screws must be screwed again under the rear edge of the top (b).AttentionThe height will then be reduced to 815 mm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top 19

Step 2. Aesthetic panel's dimensions and installation2. If dishwasher is in stalled at the corner of the cabinet, there should be some space when the door is opened.CabinetDishwasherDoor of dishwasherMinimum space of 50mmNOTE:Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.20The aesthetic wooden panel could be processed according to the installation drawings.The aesthetic wooden panel could be processed according to the installation drawings.AMagical pasterMagical pasterMagical paster A and magical paster B be disjoinedon, magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure B) .Semi-integrated modelB2.Pin up the four long screws 1.Take away the four short screws
