Dish Washer

THANK YOU LETTER 01
02
15
12
11
26
29
32
33
08
10
34
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS,COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
CONTENTS

Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
02
The following safety guidelines are intended to
prevent unforeseen risks or damage from unsafe
or incorrect operation of the appliance. Please
check the packaging and appliance on arrival to
make sure everything is intact to ensure safe
operation. If you find any damage, please contact
the retailer or dealer.
Please note modifications or alterations to the
appliance are not allowed for your safety concern.
Unintended use may cause hazards and loss of
warranty claims.
●
●
Danger
This symbol indicates that there are dangers
to the life and health of persons due to
extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger
to life and health of persons due to voltage.
Warning
The signal word indicates a hazard with a
medium level of risk which, if not avoided,
may result in death or serious injury.

Read these operating instructions carefully and
attentively before using/commissioning the unit and
keep them in the immediate vicinity of the installation
site or unit for later use!
03
Caution
The signal word indicates a hazard with a
low degree of risk which, if not avoided,
may result in minor or moderate injury.
Attention
The signal word indicates important
information (e.g. damage to property),
but not danger.
Observe instructions
This symbol indicates that a service
technician should only operate and maintain
this appliance in accordance with the
operating instructions.

04
DANGER: Risk of Fire/Flammable materials
●●
●
●
●
●
●
●
●
●
When using your dishwasher, follow the precautions
listed below:
Installation and repair can only be carried out by a
qualified technician.
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be done by children
without supervision.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.

Earthing Instructions
05
●
●
●
●
●
●
●
●
●
●
●
●
Please unplug before cleaning and performing main-
tenance on the appliance.
Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all
local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
Do not modify the plug provided with the appliance
if it does not fit the outlet.
Have a proper outlet installed by a qualified
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.

06
●
●
●
●
●
●
●
●
●
●
●
●
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their points
facing down or placed in a horizontal position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is
open.
Check that there are no detergent residues after
completion of the wash cycle.
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended
for use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not
be reused.

Disposal
07
●
●
●
●
●
●
●
●
●
To save energy, in stand by mode , the appliance will
switch off automatically while there is no any
operation in 30 minutes.
The maximum number of place settings to be
washed is 8.
The maximum permissible inlet water pressure is
1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
For disposing of package and the appliance please
go to a recycling center.
Therefore cut off the power supply cable and make
the door closing device unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.

08
SPECIFICATIONS
Height (H)
Width (W)
Depth (D1)
Depth (D2)
W
D1
H
D2
35.63 inches
17.64 inches
23.63 inches (with the door closed)
46.26 inches (with the door opened 90°

09
Product information sheet
09
Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010:
Standard place setting
Standard cleaning cycle
Energy consumption of the standard cleaning cycle
Water consumption of the standard cleaning cycle
Annual energy consumption
Noise level
Mounting
Could be built-in
Rated power uasge (Heater)
Rated voltage / frequency
Used water pressure
8
Normal
0.56-0.64 kWh
9.7-19 L
237 kWh
52 dB(A) re 1 pW
Portable
No
1000W
AC 120V/60Hz
20-120 psi (140-830 kPa)

10
Product
PRODUCTOVERVIEW
IMPORTRANT
To get the best performance from your dishwasher, read all operating
instructions before using it for the first time.
NOTE
Pictures are only for reference, different models may be different.

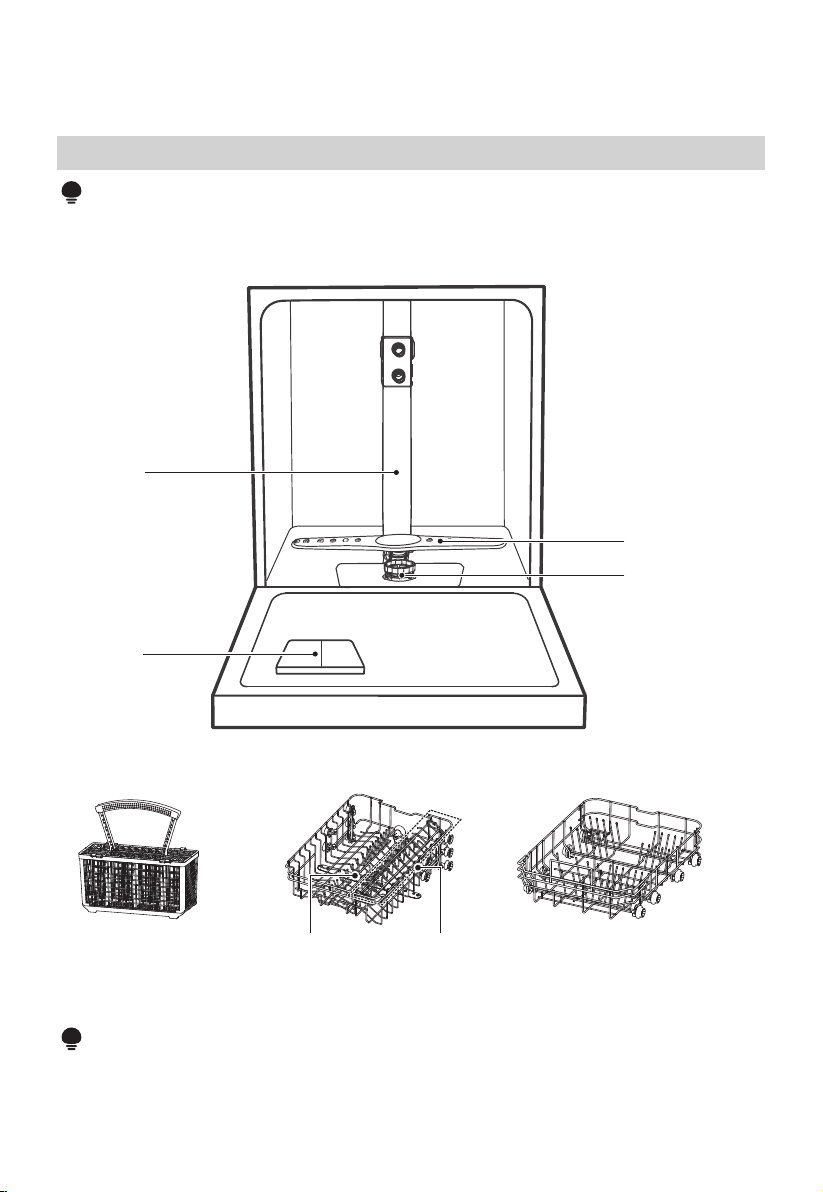

Upper spray arm
Upper basket
Cup rack
Lower basket
Cutlery basket
Dispenser
Lower spray arm
Filter assembly
Inner pipe

QUICK START GUIDE
Please read the corresponding content in the instruction manual
for detailed operating method.
11

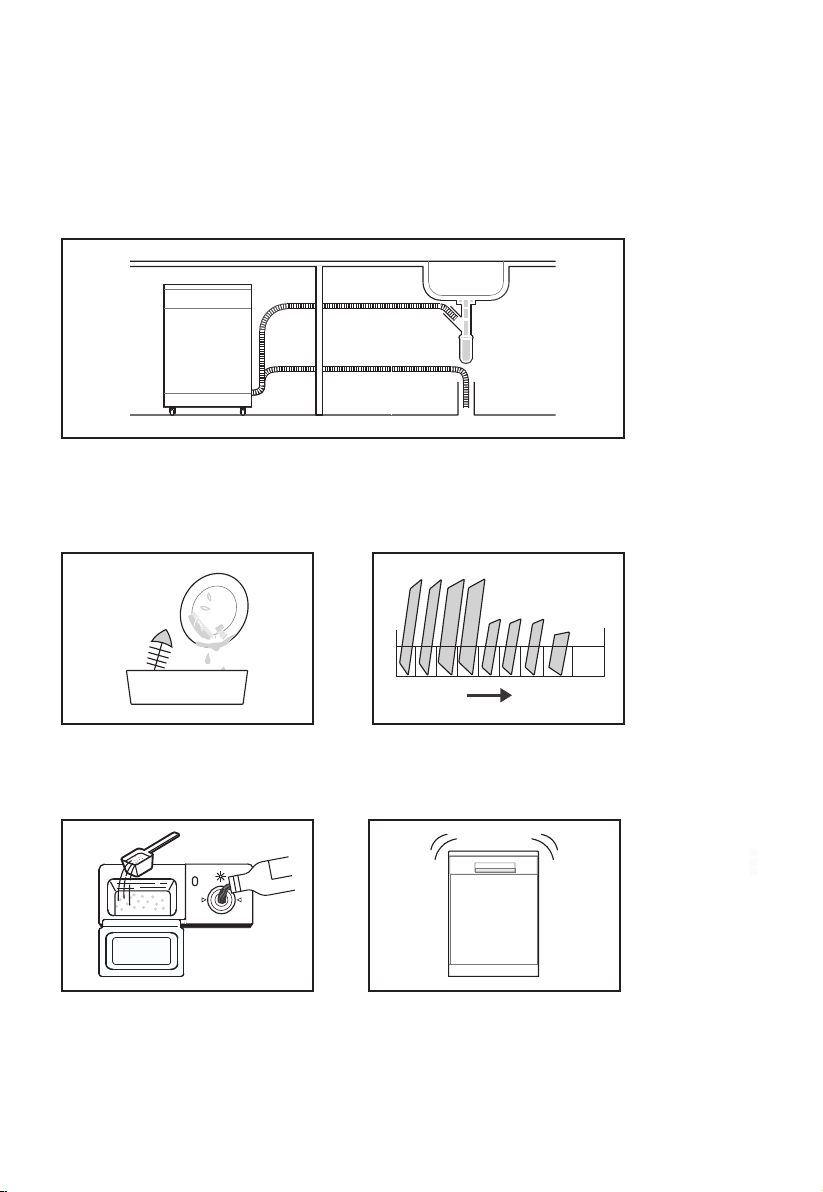

1.Install the dishwasher
3. Load the baskets.
Inside Outside
5. Select a suitable program
and start the dishwasher.
4. Fill the dispenser with
detergent and rinse aid.
2. Remove larger residue
from dishes.
Avoid pre-rinsing.
B
A

About Power Connection
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing
connection from the power cord.
The installation of the pipes and electrical equipments should
be done by professionals.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or
circuit breaker recommended and provide separate circuit serving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Ensure that proper earthing exists before use
WARNING
WARNING
Attention
12
PRODUCTINSTALLATION

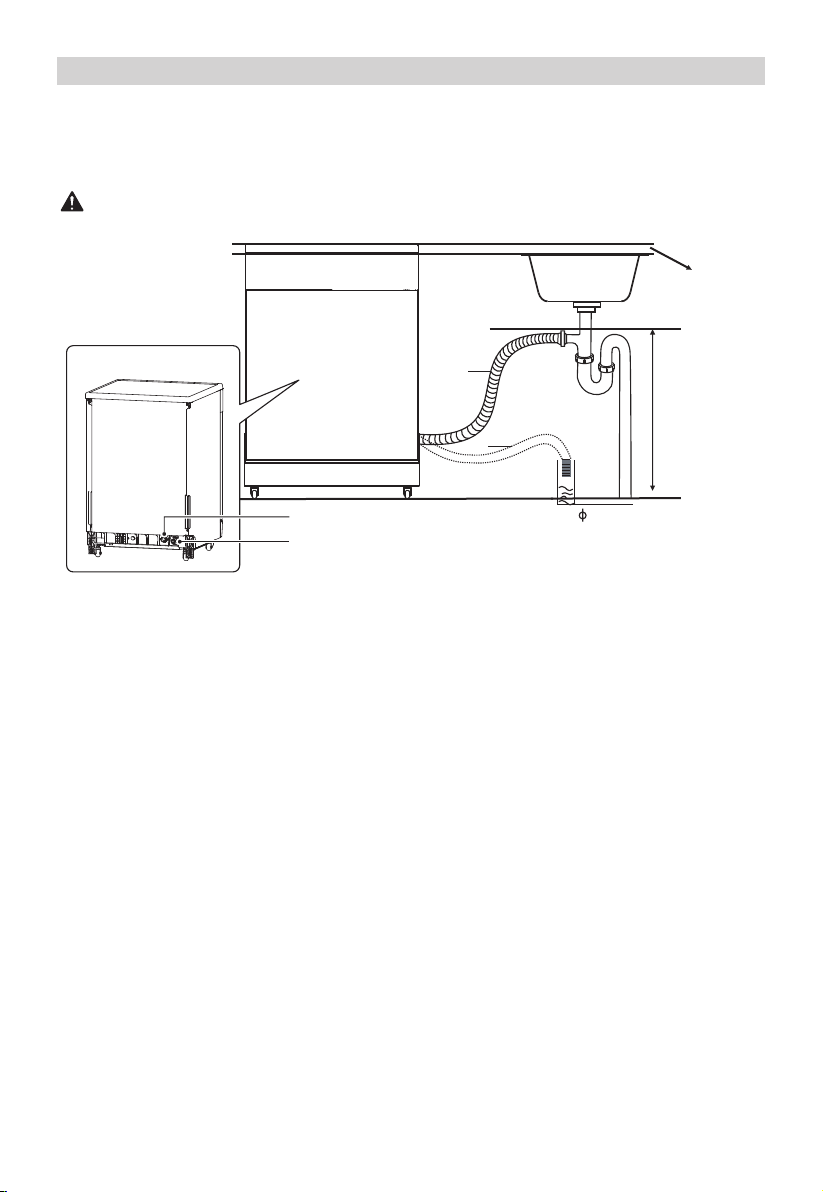

Positioning The Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.

Water Supply And Drain
Connect the unicouple to the faucet
Attach the unicouple to the faucet adapter following
the three steps below:
1. Depress the locking collar at the top of the
unicouple.
2. Place the unicouple completely over the faucet
adapter.
3. Release the locking collar. The unicouple should
now be locked onto the faucet adapter.
13
Remove unicouple from faucet
1. Turn off cold water.
2. Relieve water pressure from the unicouple
assembly before disconnecting it from the
faucet by depressing the red pressure relief
button on the unicouple.
3. Depress the locking collar and remove the
unicouple from the faucet.
Depress collar to
release unicouple
from faucet
Depress red button to
release water pressure
Collar

14
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher
could be reduced.ance.
Syphon connection
The waste connection must be at a height less than 1000 mm (maximum) from the
bottom of the dishwasher.
How to drain excess water from hoses
If the connection to the drain pipe is positioned higher than 1000 mm, excess water
may remain in the drain hose. It will be necessary to drain excess water from the hose
into a bowl or suitable container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
Insert the drain hose into a drain pipe with a minimum diameter of 1.47 inches, or let it
run into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 39.37 Inches. The free end of the hose must not be immersed in water
to avoid the back flow of it.
Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
B
A
MAX 39.37 inches
Drain hose
Counter
1.47 inches
Back of dishwasher
Water inlet
Drainage outlet

Control Panel
OPERATIONINSTRUCTIONS
Description
●
No.1 Press this button to turn on your dishwasher,the
screen lights up.
15
●Press the Delay button to increase the delay start
time. Delay a cycle for up to 24 hours in one-hour
increments. After setting the delay time, press the
Start/Pause button to start.
Power
No.2 Delay start
●For heavily soiled items include pots and pans.
With dried on food.
No.5
Heavy
●This is the standard program suitable for normally
soiled loads, such as pots, plates, glasses and lightly
soiled pans.
Normal
●For normally soiled loads, such as pots, plates,
glasses and lightly soiled pans.
ECO
●For lightly soiled crockery and glass.Glass
●For normally soiled loads that need quick wash.
●A shorter wash for lightly soiled loads that do not
need drying.
90 min
Rapid
●Select the appropriate washing program, the selected
program indicator will be lit.
Program
No.3
●To start the selected washing program.
Press the button for 3 seconds to cancel the program
when the dishwasher is working.
No.4 Start/Cancel
1 2 3 45 6 7
8

16
Description
No.8
Progress
indicator
●
Rinse Aid If the “ ” indicator is lit, it means the dishwasher is
low on dishwasher rinse aid and needs to be refilled.
●To show the reminding time, delay time, error code
etc.
●The progress light that corresponds to the current
operation turns on to show the progress of the cycle.
No.6
indicator
No.7
Pre-wash
Main-wash
Rinse
Drying
Program end

Program Description
Of Cycle
Running
Time(min)
Energy
(kWh)
Water
(L)
Detergent
Pre/Main Wash
Heavy
Normal
(*Test cycle)
Glass
90 min
Rapid
Pre-wash 1
Pre-wash 2
Main wash(65
°C )
Rinse 1
Rinse 2
Last Rinse(68
°C )
Drying
Pre-wash 1
Pre-wash 2
Main wash
(45-60
°C )
Rinse 1
Rinse 2
Last Rinse(65
Drying
Pre-wash
Main-wash(50
Rinse 1
Rinse 2
Last Rinse(62
Drying
Pre-wash
Main wash(50
Rinse 1
Rinse 2
Last Rinse(62
Drying
Pre-wash(55 °C )
Main wash(60
°C )
Rinse(55
°C )
Rinse(58
°C )
Drying
16
0/17.8g
AHAM/NSF:
0/17.8g
DOE: 0/8.9g
0/17.8g
0/17.8g
190.76
9.7-190.56-0.64
130.56
0/17.8g
160.53
0.60
0/17.8g
130.83
165
121-150
60
155
125
90
Pre-wash(50
Main wash(60
Rinse(55
Last Rinse(68
Drying
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs. Consumption values and program duration are only indicative except
for the ECO program.
Programmes
17

18
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
For washing the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
NOTE
Are of limited suitability
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from your model.)
Place objects in the dishwasher in the following way:
tems such as cups, glasses, pots, pans, etc. must face downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards
so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as glasses,
coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.

LOADING THE BASKETS
19
Loading the upper basket (8 place setting)
The upper basket has been designed for small plates, mugs, glasses, and plastic items
marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so
that the front of each plate faces the back of the plate in front of it, and the open sides
of the plates at the center of the dishwasher face each other.
When loading dishes, pull the upper basket out sufficiently so you can load it without
striking the counter.
Loading the lower basket (8 place setting)
The lower basket has been especially designed for dinner dishes, soup bowls, plates,
pots, lids, casserole dishes, and plates.
Load large items such as pans and pots into the dishwasher so their open sides face
downwards.
