Midea MD-7388 User manual

Tumble Dryer
Read all instructions and explanations before use.
Follow the instructions carefully.
Keep the operation instructions handy for later use.
if the appliance is sold or passed on then ensure
that the new owner always receives these operation
instructions.This manual is available on website:
www.midea.com.cn
OWNER’S MANUAL
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
MD-7388

1 2
• The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance. In EN standard countries, this appliance
can be used by children from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play
with the appliance, leaning and user maintenance shall not be
made by children without supervision.
• The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble
dryer.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substance such as
cooking oil,acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with a extra amount of detergent
before being dried in the tumble dryer.
• Items such as foam rubber (latex form), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried
in the tumble dryer.
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATIONS
Quick Start .............................................................
Before Each Drying ..................................................
Control Panel .........................................................
Drying Programmes Table .....................................
MAINTENANCE
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
2
7
7
9
10
11
12
13
14
15
CONTENTS SAFETY INSTRUCTIONS
Safety Instructions

• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature the ensures that the items will not be
damaged.
• The exhaust air must not be discharged into a flue which
is used for exhausting fumes from appliance burning gas
or other fuels.
• The appliance must not be install behind a lockable door
a sliding door or a door with a hinge on the opposite side ,
to that of the tumble dryer. In such a way that a full
opening of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil.Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard.
• The appliance should not be overturned during normal
use or maintenance.
• Remove all objects from pockets such as lighters and
matches.
Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
• For appliances with ventilation openings in the base, that
a carpet must not obstruct the openings.
• If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Plug must be accessible after installation.
3 4
Correct Disposal of this product:
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Warning!
！

Power supply and grounding
•
Grounding
The dryer employs alternative current with the rated voltage and frequency. When the
voltage fluctuates between 6% of rated voltage, the dryer can work normally.
A special power socket with a capacity 10A for the dryer had better be set beside the
dryer for convenience and safety. The method of connection of the
socket is as the figure below.
To be safe, please make improvements as soon as possible
according to the rules and suggestions mentioned above.
The socket and the grounding wire must be installed by an electrician to prevent
incorrect installation or use of the socket and to guarantee the safety of use of
electricity. No connection of the grounding wire and the neutral wire, otherwise the
cabinet will be charged, which is likely to cause the danger of electric shock.
• Precautions
Install or store where it will not be exposed
to temperatures below freezing or exposed
to water or weather, which could cause
permanent damage and invalidate the
warranty.
Keep area around the exhaust opening and
adjacent surrounding areas free from the
accumulation of lint, dust and dirt. An
obstructed port might reduce the airflow.
Thoroughly spin the laundry in washing
machine. High spin speed can reduce the
drying time and save energy consumption.
Make sure combustible sprayer will not be
close to dryer when it is working, and once
the gas leaks, do not touch plug or
start/pause on it.
Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.).
Never attempt to operate this appliance if it
is damaged, malfunctioning, partially
disassembled,or has missing or broken parts,
including a damaged cord or plug.
Do not allow children on or in the appliance.
Close supervision of children is necessary
when the appliance is used near children.
Please do not use the machine when your
foot or hand with water.
Do not store plastic, paper or clothing that
may burn or melt on top of the dryer during
operation.
The exhaust air must not be discharged into
a flue which is used for exhausting fumes
from appliance burning gas or other fuels.
Do not dry articles containing rubber, plastic
or similar materials such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs,
baby pants, raincoat plastic bags or pillows
that may melt or burn. Some rubber
materials, when heated, can under certain
circumstances produce fire by spontaneous
combustion.
The door can be opened only after the
programme of the drying machine is
completed.Do not open the door before the
programme finished to avoid the human
skin from being scalded by hot steam or over
heated drying machine.
5 6
≥
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Warning!
！

Top board
Control panel
Door
Front panel
Side panel
Filter
Flexible duct
Power plug
Switch
Tumble Door
7 8
•
not less than 10cm distance from the wall. It is suggested
there are no obstacles within 1.5m in front of dryer and
keep ventilated.
Dryer should be placed in a ventilated area with
>10cm
INSTALLATION INSTALLATION
Product Description
Installation
the dryer will work unbalanced or stop working sometimes.
if dryer could not be placed horizontally (the lean angle is no more than 2°,
Notice when installing:
• Do not install the dryer in the open air or place easily
damaged by rain;
• Do not place the back of dryer near curtain or something
in the wind;
• Do not place the dryer near gas or flammable area.
•
• Connect one end of flex tube with whorl to the back vent, then fix it deasilly till tight.
• The other end of flex tube will be extended to outdoor, please refer the right
assemble way to the below pictures.
Flex tube fixing:
Note!
• Level Adjusting
Once in its permanent operating position,
check that the dryer is absolutely level with the aid
of a spirit level. If it is not, adjust the feet with a tool.

After Drying
Drying
Before using, please make sure it's installed properly.
Buzzer beep or " :00"on display.0
9 10

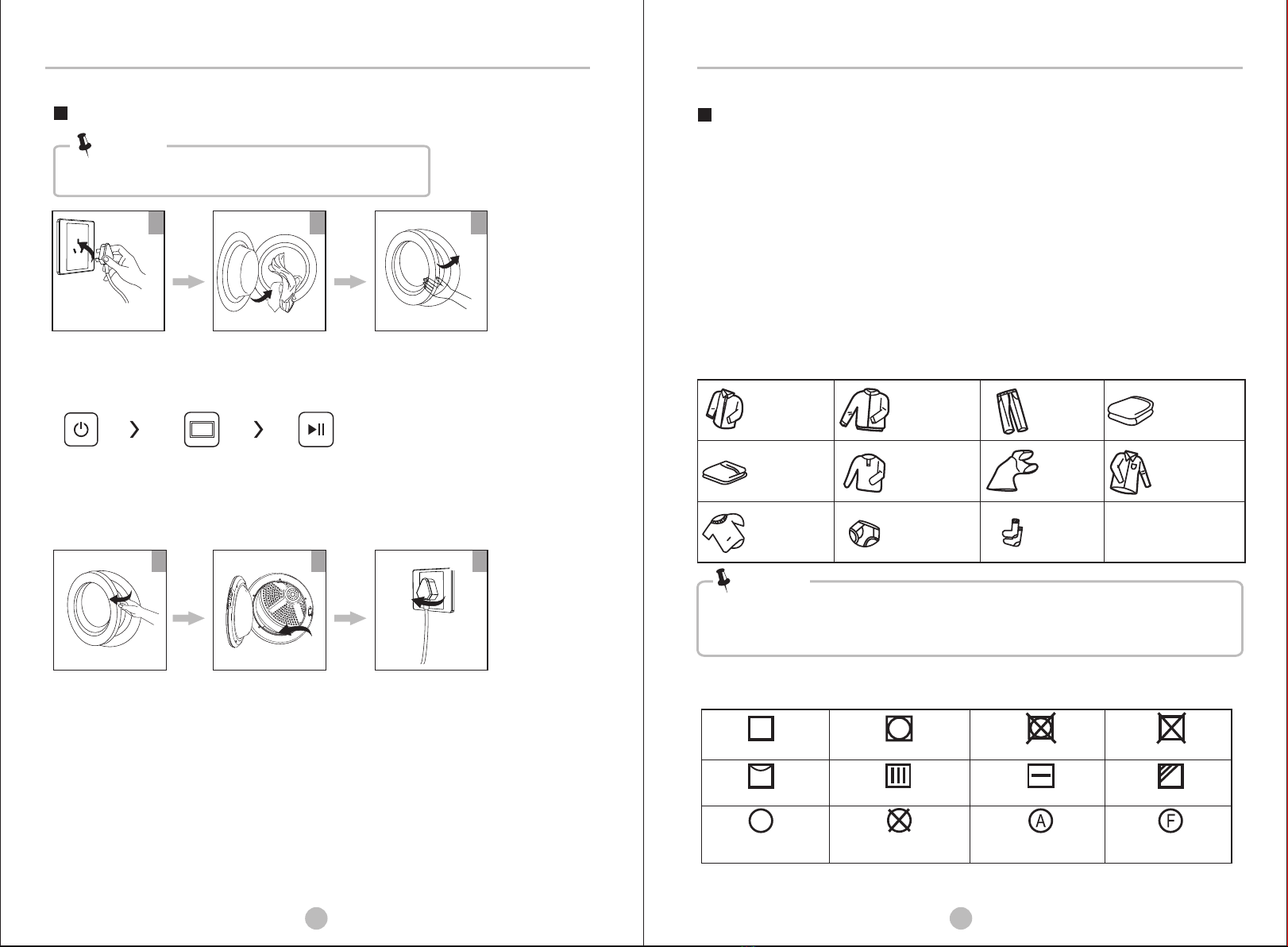

Before Each Drying
Never overload.
• Not for textile with dropping water. The dryer could be damaged, even fire.
• Not suitable for silk or woolen textiles.
•
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed can
the drying time and save energy consumption.
2.For uniform drying result, sort the laundry according to fabric type and drying programme.
3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4.Do not over dry the clothes, because over dried clothes can easily get creases.
5.Do not dry the articles containing rubber or similar elastic materials.
6.The door can be opened only after the programme of the drying machine is human skin
from being scalded by hot steam or over heated drying machine.
7.Clean the lint filter and empty container after each use to avoid extension of drying time
and energy consumption.
8.Do not dry these clothes after dry-clean process.
reduce
The reference weight of dry clothes (each)
Please pay attention to use the drying machine if the materials of your clothes can not be
dried by it or contain the symbols as follows:
start
on select function
or default
1
plug in
2
load
3
close door
Note!
OPERATIONS OPERATIONS
Quick Start
Note!
1
unload clean filter
3
unplug
2
Dry
Dry clean
Line dry / hang to dry Drip dry
Do not dry clean
Normal Do not dry
In the shade
Dry flat
Not tumble dry normal
Dry clean normal cycle
with any solvent
Dry clean normal cycle
petroleum solvent only
Mixed-fabric clothes
(about 800g)
Jacket
(about 800g cotton)
Jeans
(about 800g)
Towel quilt
(about 900g cotton)
Single bedsheet
(about 600g cotton)
Short sleeve shirt
(about 180g cotton)
Work clothes
(about 1120g)
Short pants
(about 70g cotton)
Sleepwear
(about 200g)
Socks
(about 50g
mixed-weave)
Long sleeve shirt
(about 300g cotton)

11 12
Drying Programmes Table
• 【Program】 button to select the desired programme.
•
• Press the【Anti-Crease】 button to start Anti-Crease function.
• Press the 【Start/Pause】button.
• If users need child lock function, pressing the 【Program】 and 【Dryness Level】
buttons simultaneously for over 3 seconds to start child lock function.
• The buzzer will prompt from the dryer when finishing the cycle. Press the
【On/Off】 button and pull out the power cable.
• Clean the filter, cabinet and inner tube.
• This symbol means the energy efficiency test programme “standard cotton
programme”, which is most suitable to dry normal cotton load at rated load
capacity.
Press the
Press the 【Dryness Level】button to select the desired programme.
Clothing
Type
Approximate amount of
remaining humidity
Capacity
(KG)
Programs Note
Cotton
70%
60%
40%
6 / 3 / 1
Mix
Synthetic
Please according
to the Type and
Capacity of the
clothing to select
the most suitable
Program and
Dryness Level.
Dryness
Level
Extra
Cotton
Less
6 / 3 / 1
6 / 3
Cotton
70%
60%
6 / 3 / 1
6 / 3 / 1
Extra
Mix
50% 3 / 1
3 / 1 Synthetic
Extra
Standard
Standard
Cotton
Standard
Mix
Cotton 1 1Hr
Synthetic
• Cold wind function means there is only cold wind for circulating before finishing
heating 3 minutes.(Except 1hour program which runs 10 minutes cold wind.)
• If Anti-Crease option is selected, the anti-crease process will enlarge to 2 hours,
otherwise it keeps 30min without this option.
•
• time
•
The inside temperature and humidity will affect drying time.
Check the label attached on clothes and choose the right temperature and
according to the explanation.
Suggestion:
When clothes is less than 0.5kg, please select an hour dry and Extra for drying.
OPERATIONS OPERATIONS

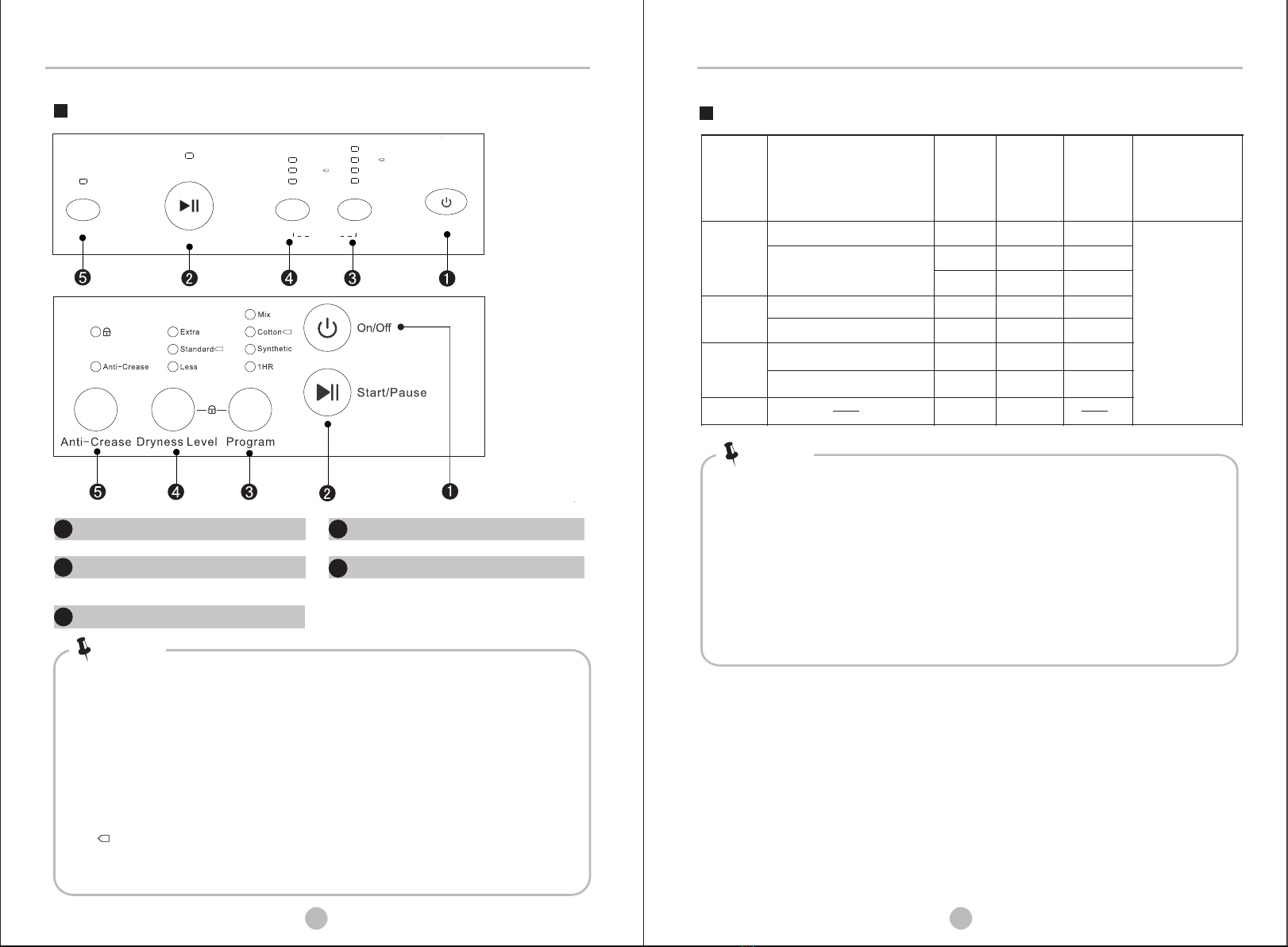

Start/Pause
Dryness Level Program On/Off
Lock Extra
Standard
Less
Mix
Cotton
Synthetic
1 Hr
Lock
Anti-Crease
Anti-Crease
Control Panel
On/Off Start/Pause
Dryness Level
(Extra/Standard/Less)
Program
(Mix/Cotton/Synthetic/1hour))
1
1
3
1
2
4
5Anti-Crease
Note!
Note!

13 14

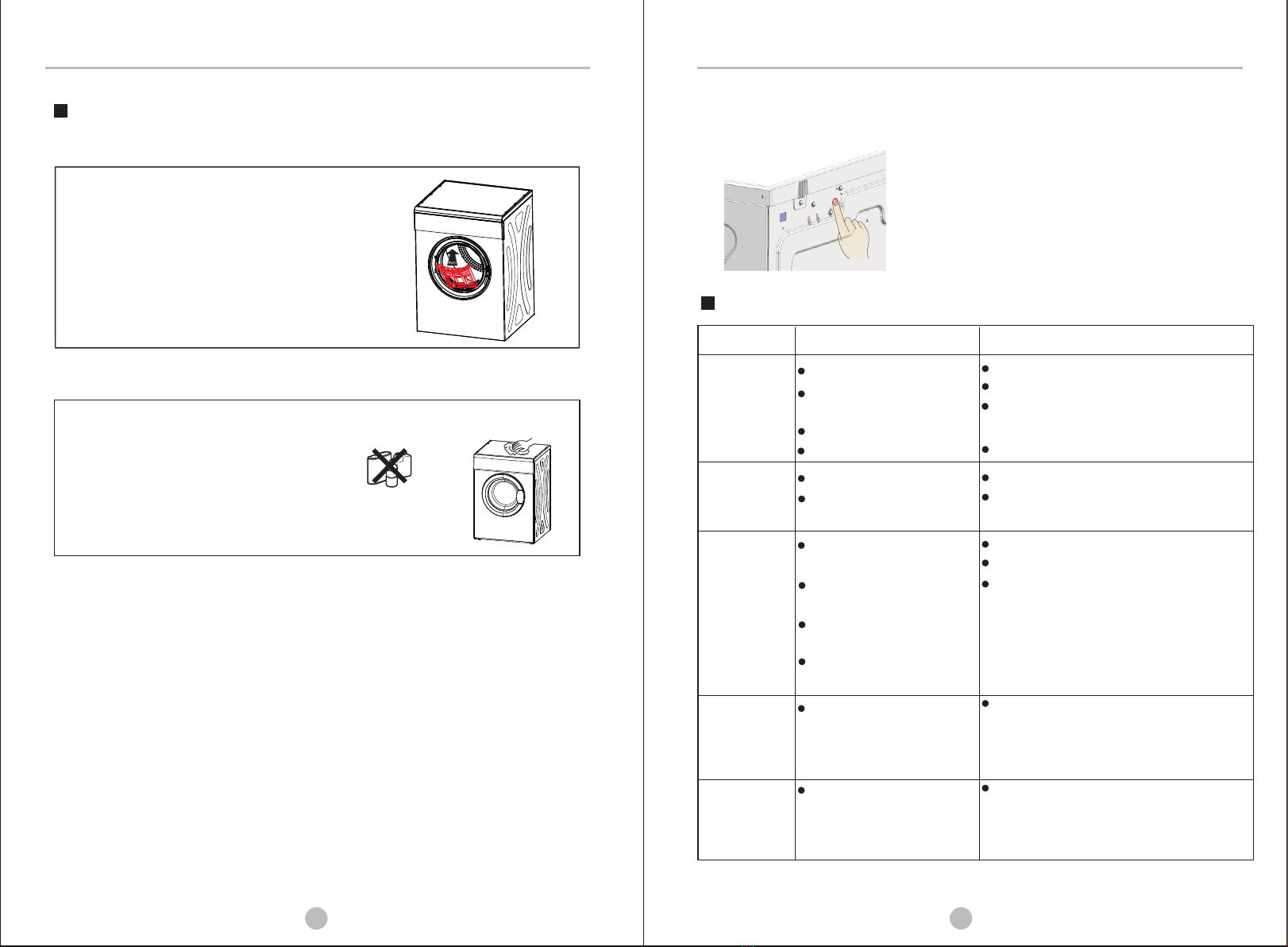

Safety Reset Button
Use your finger or a pencil to press the button in until you feel it click.
Trouble Shooting
Filter clean
•
•
•
Clean the lint filter after each use.
Remove by pulling straight up.
Cleaning filter
Use wiping cloth or your fingers.
Install filter
If the filter is cleaned by damp cloth
or water, please install after
the sun dry.
Cleaning cabinet and inner tube
•
•
•
•
•
Use soft damp cloth wipe when
cleaning cabinet and inner tube.
Not to rinse by water direct.
Not to use neutral scour wipe.
Not to use gasolene and alcohol wipe.
Make sure open the front door for aeration after
cleaning the inner tube.
Safety reset
1. These dryers have a safety cut out switch which is activated by temperature.
2. The safety reset button is on the backboard. If your dryer not heating this button must
be reset before the dryer can heat again. You may need to wait 10 minutes for cooling
down.
3. The most common reason for the dryer if overheat is a blocked filter.
4.Clean the line filter after each load to prevent overheating of the dryer
The cut out switch may operate for the following reasons:
1. Lint filter is blocked.
2. Exhaust outlets blocked at the back of the dryer.
3. Poor ventilation in the laundry or room-open a window or door
4. Lightweight garment eg. handkerchief, sucked over the filter.
MAINTENANCES MAINTENANCES
Cleaning And Care
Trouble Cause Solution
Will not start
External hot or
can smell hot
Clothes too dry
Clothes shrink
Hairball on
clothes
Power cut.
The power plug is not
plugged tight.
Dry clothes exceed.
The temperature fuse is cut.
The lint filter is dirty.
The uptake or exhaust duct is
dirty.
The clothes in machine are
too full.
Not to take out the clothes
in time when finish.
The clothes don’t assort
properly.
The temperature is enacted
too high.
Too dry.
It is right for synthetic fibre
and permanent press fibre
causing hairballs.This is
because the right rub causing.
Wait for switching on electricity.
Check the power socket,make sure plug tight.
The clothes in drier must be after spinning,
and drying clothes can not exceed 7kg.
Please career man restore the temperature fuse.
Make sure clean the lint filter in time.
Clean out the stem.
Make sure the clothes are not too full.
Take out the clothes immediately when finish.
Observe the maintenance label on clothes.
Observe the maintenance label on clothes.
if easy to shrink,should examine the clothes
when dry.Take out the clothes when tiny damp
for too dry.Then hang the clothes until full dry.
Use fabric softener lubricate fibre,please spray
settled gule on cuff and neckline when iron
clothes.Turn the sarcenet out for reducing
rub.

15
The sound of dryer when runs can cause
Due to heavy wet clothes’ turning and bumping, and
this will cause noise accordingly.
Air bumping: When drying, machine will generate steam which will come
out from pipe and this will cost bumping with the bottom of inner tub.
220-240V~
Rated capacity
Rated frequency
Dimension
(L*W*H)
Rated input power
Rated voltage
555*595*840(mm)
2000W
Weight of product 33kg
6.0kg
50Hz
Model
Parameter MD-7388
E3
E4
Temperature
Sensor error
Temperature
Sensor error
Temperature Sensor
is open or PCB fault
Temperature Sensor
is short or PCB fault
Stop the program
and go to fault
state
Stop the program
and go to fault
state
Led less and
standard
flashing
Led extra
flashing
Error
code description Criteria Action after fault
debounced
Failure
indication
Other functions description
MAINTENANCES
Technical Specifications
Note!
The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the
appliance do not exceed the rated capacity each time.
