Midea MD200H80W Series User manual

MODEL: MD200H80W Series
USER MANUAL
EN
www.midea.com
Read This Manual
Read all instructions and
explanations before use.
Follow the instructions carefully.
Keep the operation instructions
handy for later use. If the
appliance is sold or passed on
then ensure that the new owner
always receives these operation
instructions.
Dryer
TUMBLE DRYER

CONTENTS
1
SAFETY INSTRUCTIONS
INSTALLATION
OPERATION
MAINTENANCE
Safety Instructions ..................................................
Product Description ................................................
Installation ...........................................................
Quick Start .............................................................
Before each Drying ..................................................
Control Panel .........................................................
Option....................................................................
Display....................................................................
Programmes............................................................
Drying Programmes Table ........................................
Consumption Data...................................................
Smart Function........................................................
Cleaning and Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
2
9
9
12
13
15
16
18
19
20
21
22
25
28
30

SAFETY INSTRUCTIONS
Safety Instructions
2
Warning!
！
To prevent any damages to your and others' life or
property, you have to follow the safety notes.
This heat pump dryer is intended for drying typical
amounts of household laundry, which have been washed
with water. It has been designed solely for private use
and is not suitable for commercial or shared use (i.e. by
several families in an apartment building).
• Use this appliance only as described in this user manual.
• This appliance is for indoor use only.
• Any other use is deemed improper and may result in
damage to property or even personal injury.
• The manufacturer accepts no liability for damage caused
by improper use.
•
Safety Instructions
•
only be connected to a plug with a protective conductor
that has been installed properly. When connecting the
appliance to the mains, make sure that the mains voltage
is correct. You can find more information about this on
the rating plate.
The appliance corresponds to protection class I and may
Intended use
CAUTION: RISK OF FIRE !

SAFETY INSTRUCTIONS
3
• The electrical safety of this tumble dryer can only be
guaranteed when correctly earthed. It is essential that
this standard safety requirement is met. If in any doubt,
please have the household wiring system tested by a
qualified electrician. The manufacturer cannot be held
liable for the consequences of an inadequate earthing
system (e.g. electric shock).
Warning!
！
Electric shock hazard
•
connection parameter on the rating plate (fuse rating,
voltage and frequency) match the mains electricity supply.
If in any doubt, consult a qualified electrician.
• The electrical safety of this tumble dryer can only be
guaranteed when correctly earthed. It is essential that
this standard safety requirement is met. If in any doubt,
please have the household wiring system tested by a
qualified electrician. The manufacturer cannot be held
liable for the consequences of an inadequate earthing
system (e.g. electric shock).
• Do not pull the power cord forcefully. Please grasp the
mains plug instead
• Do not plug/draw the mains plug with wet hands.
• Do not bend, clamp or damage the power cord and the
power plug.
• If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Before connecting the tumble dryer, ensure that the

SAFETY INSTRUCTIONS
4
•
external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by a utility.
• Do not connect the appliance to the mains electricity
supply by an extension lead, multi-socket adapter or similar.
• The accessibility of the plug must always be ensured, in
order to disconnect the tumble dryer from the mains.
• If the appliance appear high temperature abnormally,
please draw the mail plug immediately.
Warning: The appliance must not be supplied through an
Injury danger
•
a sliding door or a door with a hinge on the opposite side
to that of the tumble dryer, in such a way that a full
opening of the tumble dryer door is restricted.
• Do not disassemble or install the dryer without any
instruction or supervision.
• Do not stack this dryer on washing machine without
stacking kits. (If you want to stack this dryer on a washing
machine, please purchase the independent parts.
Installation shall be done by the manufacturer, its service
agent or similarly qualified persons to avoid any hazards.)
• Do not lean on the opened door of the dryer.
• Condensed water is not drinking water. It can cause
health problems in both people and animals if consumed.
The appliance must not be installed behind a lockable door,
Damage danger
•
See the related chapter in the user manual.
Do not put more load than rated in this user manual.

SAFETY INSTRUCTIONS
5
• Do not operate the dryer without the door filter.
• Do not dry the clothes before being spun.
• Do not expose the dryer directly under the sun.
• Do not install the dryer in humid and drenching
environment.
• While cleaning and maintenance, please do remember to
pull out the power plug and do not directly spray the dryer
with water.
• The appliance should not be overturned during normal use
or maintenance.
CAUTION: RISK OF FIRE !
Explosion & Fire danger
•
substances such as kerosene or alcohol. Otherwise, there
may be explosion.
• The appliance contains an environmentally friendly but
flammable R290 refrigerant. Keep away from open flame
and other sources of ignition.
• The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
Please do not dry the clothes with any flammable

SAFETY INSTRUCTIONS
6
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and
matches.
• If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be
washed in hot water with extra detergent. This will reduce,
but not eliminate, the hazard.
• WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the
tumble dryer.

Safety with children
SAFETY INSTRUCTIONS
7
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be done by
children without supervision.
• Children should be supervised to ensure that they do not
play with the appliance.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Always close the door after use. In this way you will avoid
the danger of:
1. Children climbing onto or into the dryer or hiding things
in it.
2. Pets or other small animals climbing into it.

SAFETY INSTRUCTIONS
8
Model Rated capacity
MD200H80W Series 8.0kg
The packaging is designed to protect the appliance from
damage during transportation. The packaging materials
are environmentally friendly and should be recycled.
Recycling the packaging can reduce the use of raw
materials in the manufacturing process and the amount
of waste in landfill sites.
•
Disposal of packaging material
Correct Disposal of this product:
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.

INSTALLATION
9
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Product Description
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Maintenance cover
Drum
Top board
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Connector
Hose holder
Drain hose joint
Pull up the drain
hose joint
Pull up the upper drain hose Connect the external
drain hose to the water
pump
Put the external drain hose
into the floor drain
(be careful not to bend the
external drain hose)

10
INSTALLATION
Installation Position
Transport
Move cautiously. Do not grasp any salient parts of machine. The machine door cannot
be used as the handle for transport. If the dryer can't be transported erectly, the dryer
can be tilted to right less than 30°.
Risk of injury and damage!
Improper handling of the appliance may result in injury.
• The appliance is very heavy. Never transport or carry the appliance alone; always
with the assistance of another person.
• Remove all obstacles on the transport route and from the installation location, e.g.
open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage.
Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring.
At temperatures around freezing point the tumble dryer may not be able to operate
properly. There is a risk of damage if the condensed water is allowed to freeze in the
pump and hoses.
Warning!
！
• Children can become entangled in the packaging film or swallow small parts and s
uffocate. Do not allow children to play with the packaging.
• The appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the tumble dryer, in such a way that a
full opening of the tumble dryer door is restricted.
• Do not restrict the floor clearance through deep pile carpets, strips of wood or
similar. This might cause heat built-up which would interfere with the operation of
the appliance.
1. It is recommended that, for your convenience, the machine is positioned close to
your washing machine.
2. Do not stack this dryer on washing machine without stacking kits. (If you want to
stack this dryer on a washing machine, please purchase the independent parts.
Installation shall be done by the manufacturer, its service agent or similarly qualified
persons to avoid any hazards.)
3. The tumble dryer must be installed in a clean place, where dirt does not accumulate.
Air must be able to circulate freely around the appliance. Do not obstruct the front
air inlet or the air intake grilles at the back of the machine.

11
INSTALLATION
Level Adjusting
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit level.
If it is not, adjust the feet by hand or using a tool.
Power Supply Connection
4. To keep vibration and noise within minimum level when the dryer is in use, it must
be placed on a firm and level surface.
5. The feet must never be removed.
1.Make sure that the voltage of the power supply is the same as the electric specification.
2.Do not connect the dryer with the power connection board, a universal plug or socket,
do not use multi-plug adapters and extension cables.

OPERATION
12
After Drying
Drying
Buzzer beep and "End"on display.
1 2 3 4 5
open the door and
take out laundry
pull out the
container
pour out
condensate water
clean the filter power off

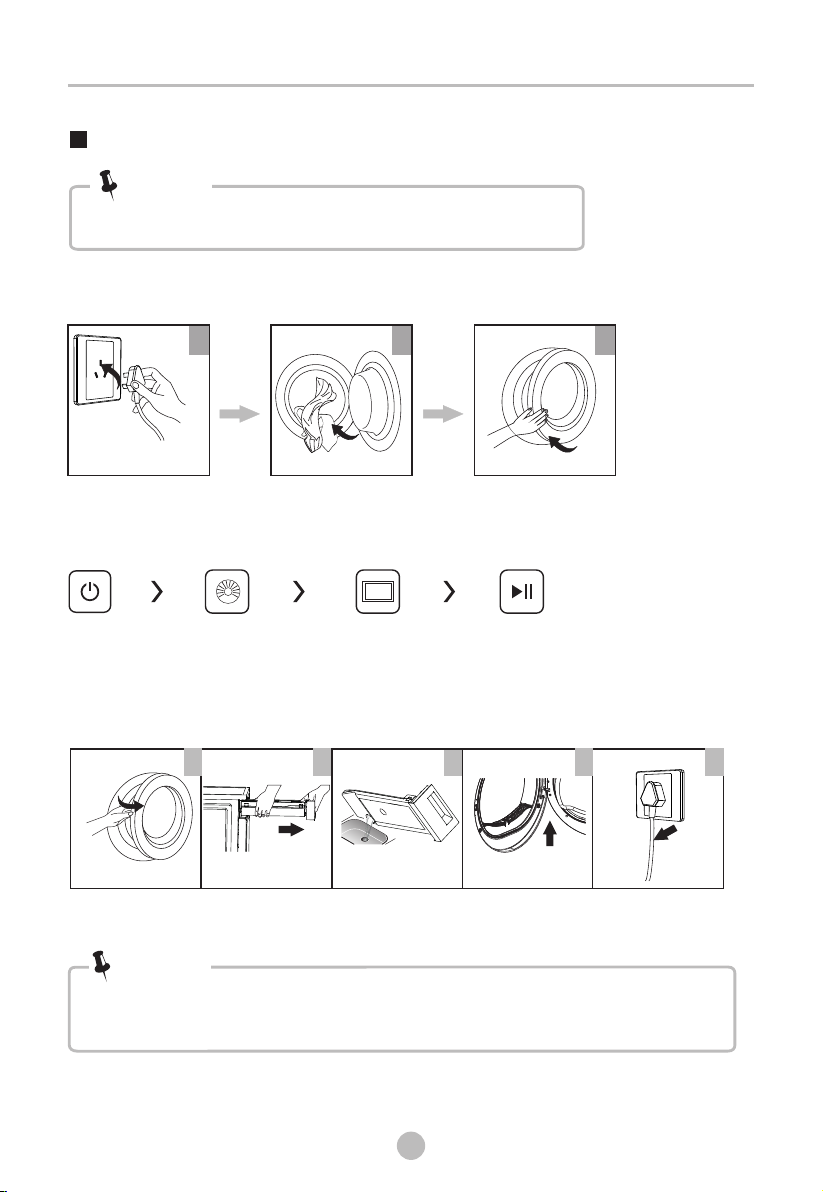

Quick Start
Before using, make sure the tumble dryer is installed correctly.
Note!
1
plug in
2
load
3
close the door
start
on select program select function
or default
• If the socket with a switch is used, please press the switch to turn off the power
directly.
Note!
Before Drying

13
OPERATION
Before Each Drying
• Leave it to stand for 2 hours after transporting. Before first use, please use
the soft fabric to clean the inside drum..
1. Put some clean rags into the drum.
2.Plug the power, press 【 】.
3. Select the 【Airfresh】 Programme, press 【 】 button.
4. After finishing this programme, please follow the “cleaning and care ”
to clean the filter door.
• During drying, the compressor and the water will generate some noise
which is entirely normal.
Note!
1 Before drying, thoroughly spin the laundry in washing machine. High spin speed
shortens the drying time and saves energy.
2.For uniform drying result, sort the laundry according to fabric type and select the
appropriate drying programme.
3.Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
4.Remove all objects from pockets such as lighters and matches.
5.Sew in or remove underwiring from bras.
6.Close duvet covers and pillow cases to prevent small items from being rolled up
inside them.
7.Leave jackets open and undo any long zips so that textiles dry evenly.
8.Do not over dry the clothes, because over dried clothes can easily get creases.
9.Do not dry the articles containing rubber or similar elastic materials.
10.Keep the area around the tumble dryer clean. Coal dust or flour may cause an
explosion.
11.The door shall be opened only after the programme of the tumble dryer is finished
to avoid being scalded by hot steam or over heated drying machine.
12.Clean the lint filter and empty water container after each use to avoid extension of
drying time and increase of energy consumption.
13.Do not dry clothes after dry-clean process.
.

14
OPERATION
• Do not dry dripping wet laundry. The dryer might get damaged
• Do not put more load than rated.
Note!
The reference weight of dry clothes (weight per item)
Sweater
(mixed 800g)
Jacket
( 800g ) cotton
Jeans
(800g)
Bath Towel
( 900g )cotton
Single bedsheet
( 600g )cotton
T-Shirt
( 180g )cotton
Work clothes
( 1120g)
Underwear
(cotton 70g )
Pyjamas
( 200g)
Socks
( 50g )mixed-weave
Shirt
( 300g )cotton
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Suitable for tumble drying
Normal drying process: Drying in the tumbler is possible under normal load and
temperature 80°C.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
Do not tumble dry: Articles unsuitable for drying in the tumbler.

15
OPERATION
Control Panel
On/Off
Product is switched on or off.
1
1
Start/Pause
drying cycle.
Press the button to start or pause the
1
2
Option
These buttons are used for setting
additional functions.
3
Display
The display shows the setting, estimated
program time remaining and status messages
of your dryer.
4
Programmes
Different drying cycles can be selected
according to the users need and the type of
laundry to be dried.
5
412
3
5

16
OPERATION
Option
Time
When the【 Time Dry】 programme is selected, the 【Time+】, button can
be used to adjust the drying time in 10 min. steps.
【Time-】
Delay
This function is used for delaying the start of the drying programme up to 24 hours.
When the delayed programme starts, the time starts to countdown on the display and
the delay icon illuminate.
1.Load your laundry and make sure the machine door is closed.
2.Press the 【 】button,then use the programme selector knob to select
the desired programme.
3.You can additionally select the 【Anti-Crease】or【Signal】functions according to
your need.
4.Press the【Delay】 button.
5.Repeatedly to press the 【Delay】button to select the desired delay time.
6.After the 【 】 button is pressed, the Dryer is at the running condition.
The drying procedure will be automatically performed when the delay time is over.
7.If you press the【 】button again, the delay function will be paused.
8.If you want to cancel the “Delay” function, please press the 【 】button.
Delay
Time
Intensity
You can adjust the dryness level of the laundry by pressing the【Intensity】button.
There are four grades.
1.The intensity function can be activated only before the programme starts.
2.Press the【Intensity】button repeatedly to increase the drying grade.
3.Except the【1 Shirt 】,【Bed Linen】,【Time Dry】,【Wool】,【Cool】,【Cotton】,
【Iron】,【Airfresh】programme, all the other programmes can be adjusted with the
【Intensity】function.
Intensity
Lamp
The drum light will be on for 1 minute when the button is pressed or 1 minute when the door
is open.
Lamp
Signal
Set the buzzer on or off. In default condition, the buzzer is on.
When the buzzer is on:
1.The dryer will affirm pressed function button by a sound.
2.If the programme knob is rotated during the dryer is running, the buzzer will remind the user
that this is an invalid operation.
3. When the drying programme is done, the buzzer will beep.
Signal

17
OPERATION
Anti-Crease
Child Lock
WiFi
Press【 】 3 seconds ,the machine will be connected to the internet on your
smartphone, you can go to the settings and turn on the wireless connection and
select an AP (Access Point).
Remote Control
After connecting your device to WiFi, press 3 seconds, indicating that it has
entered the remote control state.
Smartphone remote control should meet the following conditions:
1. The appliance should connect to the internet;
2. The door of drum should be closed.
Remark:
-. If the door is open in anytime, the remote control function will be failure.
-. The remote control function is turned off at the end of each cycle
automatically,
if you want to use remote control function again, you need turn on it again.
The details of Wi-Fi connect, please check the part of Smart Function. This is the
Wi-Fi switch, if you want to make your appliance connect to the internet. You
need turn on this button.
Anti-Crease
At the end of the drying cycle, the anti-crease time is 30 minutes (default) or 120
minutes (selected). This function prevents the laundry from creases. The laundry can be
removed during the anti-crease phase. Except【Wool】and【Airfresh】, all the other
programmes have this function.
Child Lock
1.This machine incorporates a special child safety lock, which can prevent children from
carelessly pressing buttons or making the faulty operation.
2.When the dryer is running or pausing, press the【 】 at the same time for 3
seconds to activate child lock.
3.When child lock function is set, the display will show Child lock icon and all button are
deactivated, except【 】button.
4.To deactivate the child lock function, the【 】button shall be pressed at the
same time for 3 seconds.

18
OPERATION
Delay
Child Lock
Remaining Time indicator/Error message
Clean filters (warning)
Empty water container (warning)
Intensity (three grades)
Lamp
Signal
Anti-Crease
Display

19
OPERATION
Programme selector
1.When the LED display screen brightens up, rotate the programme knob to select the
desired programme.
2.Select the Delay Time+ Intensity Anti-Crease or
【Signal】 functions for additional options.
3.Press the【 】button.
4.Press the【 】button after the programme has comlpeted.
【 】, 【 】, 【Time-】,【 】, 【 】
Programme start
Programme end
The drum will rotate after the programme starts. The cycle phase LED in the display
will light up and the remaining programme time will be displayed.
Programmes
1 The drum will stop rotating after the programme ends. The display will show "End",
and LED will illuminate. The dryer will start【Anti-Crease】function if user doesn't
remove the load.
Please press【 】button after unloading the tumble dryer to cut off power and
pull out the plug.
2.Deal with the problems according to “Trouble Shooting” section, if there is an
unexpected stop during the drying procedure or the dryer shows an Error Code.
.
