Midea MDS70-VR072/A04-AU User manual

Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual. MODEL:
MDS70-VR072/A04-AU
EN
TUMBLE DRYER
Dryer

1
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATION
Quick Start .............................................................
Before each Drying ..................................................
Control Panel .........................................................
Drying Programmes Table ........................................
MAINTENANCE
Cleaning and Care ..................................................
Trouble Shooting ....................................................
Technical Specification...........................................
2
8
8
10
11
12
13
15
17
18
CONTENTS
Warning;Risk of fire / Flammable materials
Explanation of symbols
Read operator’s manual

2
SAFETY INSTRUCTIONS
Safety Instructions
• The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• This appliance can be used by children from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children shall not play with the appliance.cleaning and user
maintenance shall not be made by children without supervision.
• The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble
dryer.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substance such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with a
extra amount of detergent before being dried in the tumble dryer.

3
SAFETY INSTRUCTIONS
• Items such as foam rubber (latex form), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried
in the tumble dryer.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• The exhaust air must not be discharged into a flue which
is used for exhausting fumes from appliances burning gas
or other fuels.
• The appliance must not be installed behind a lockable door,
a sliding door or a door with a hinge on the opposite side
to that of the tumble dryer, in such a way that a full opening
of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil.Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard.
• The appliance should not be overturned during normal
use or maintenance.
• Remove all objects from pockets such as lighters and
matches.
Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
Warning!

4
SAFETY INSTRUCTIONS
Correct Disposal of this product:
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
• Ventilation openings in the base must not be obstructed by
carpets.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Plug must be accessible after installation.
• Warning: The appliance must not be supplied through an
external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
• Remove all packages before using the appliance.
Otherwise,serious damage may result.
• Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires.
Model Rated capacity
MDS70-VR072/A04-AU
7.0kg
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should first be
washed in hot water with extra detergent-this will reduce,but not eliminate,the
hazard.
Warning!

5
SAFETY INSTRUCTIONS

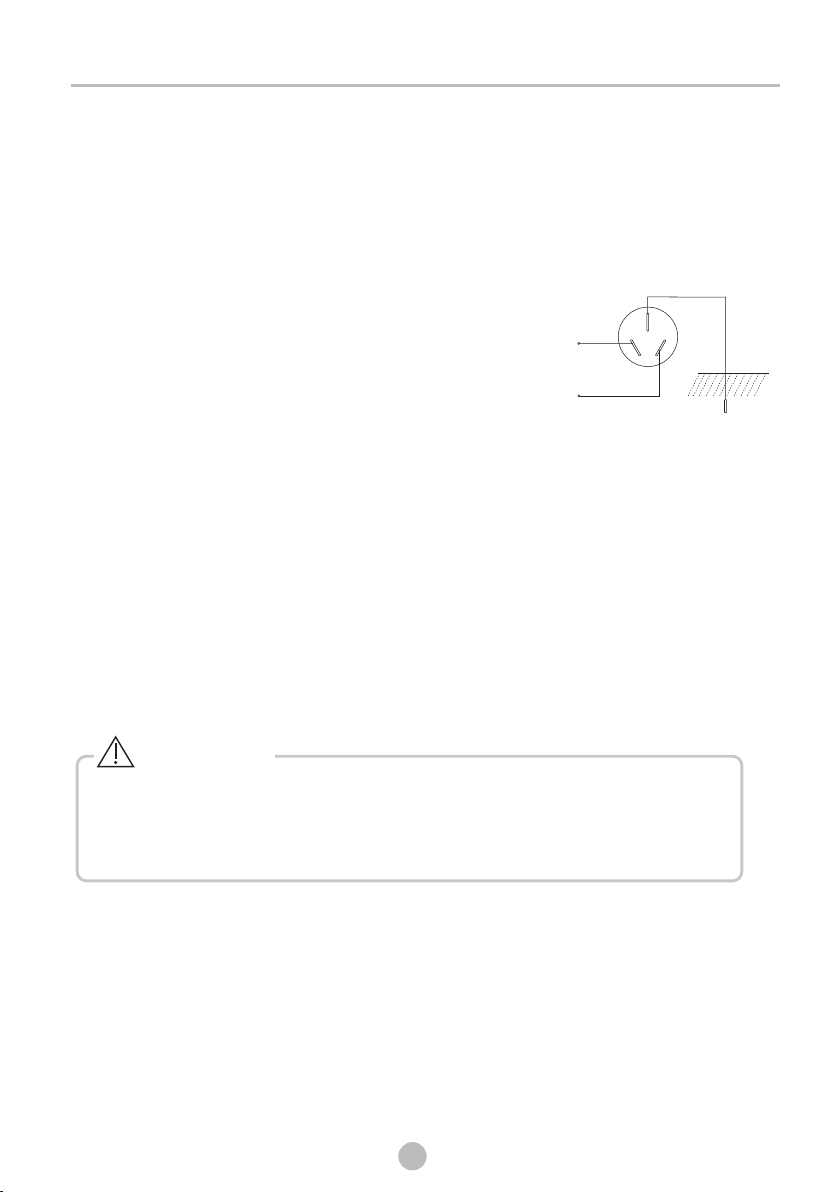

Power supply and grounding
•
• The dryer employs alternating current with the rated voltage and frequency.
When the voltage fluctuates between 6% of rated voltage, the dryer can work normally.
• A special power socket with a capacity 10A for the dryer had better be set beside the
dryer for convenience and safety. The method of connection of the socket is as the
figure below.
• To be safe, please make improvements as soon as
possible according to the rules and
suggestions mentioned above.
• The appliance corresponds to protection class I and may only be connected to a plug
with a protective conductor that has been installed properly. When connecting the
appliance to the mains, make sure that the mains voltage is correct. You can find more
information about this on the rating plate.
• The electrical safety of this tumble dryer can only be guaranteed when correctly
earthed. It is essential that this standard safety requirement is met. If in any doubt,
please have the household wiring system tested by a qualified electrician.
The manufacturer cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
The socket and the grounding wire must be installed by an electrician to prevent
incorrect installation or use of the socket and to guarantee the safe use of
electricity. No connection of the grounding wire and the neutral wire, otherwise the
cabinet will be charged, which is likely to cause the danger of electric shock.
≥
Warning!
Grounding

6
SAFETY INSTRUCTIONS

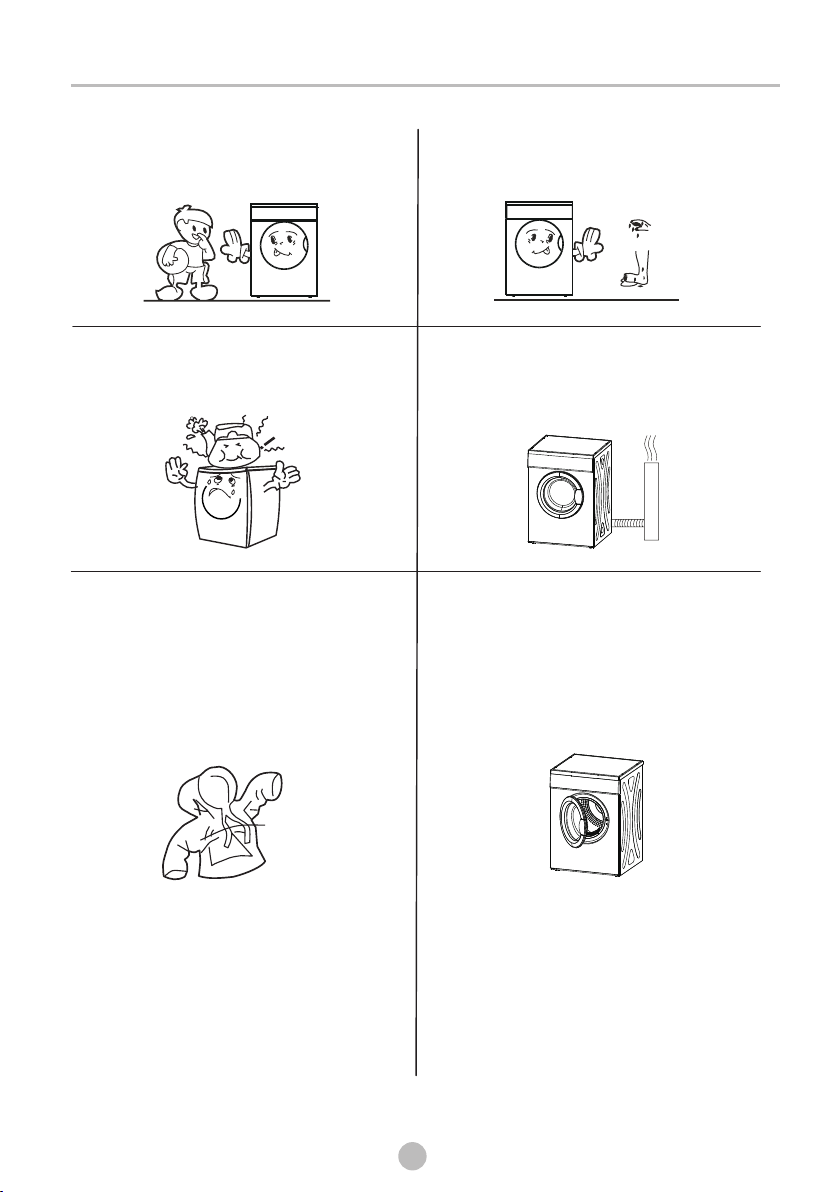

• Precautions
Install or store where it will not be exposed
to temperatures below freezing or exposed
to water or weather, which could cause
permanent damage and invalidate the
warranty.
Keep area around the exhaust opening and
adjacent surrounding areas free from the
accumulation of lint, dust and dirt. An
obstructed port might reduce the airflow.
Thoroughly spin the laundry in washing
machine. High spin speed can reduce the
drying time and save energy.
Make sure combustible sprays will not be close
to the dryer when it is working, and once the
leaks, do not touch plug or start/pause it.gas
Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
( such as wax, oil, paint, gasoline,
dry-cleaning solvents, kerosene,
etc.).
degreasers,
Never attempt to operate this appliance if it
is damaged, malfunctioning, partially
disassembled,or has missing or broken parts,
including a damaged cord or plug.

7
Do not allow children on or in the appliance.
Close supervision of children is necessary
when the appliance is used near children.
Do not use the machine when your hands are
wet.
Do not store plastic, paper or clothing that
may burn or melt on top of the dryer during
operation.
The exhaust air must not be discharged into
a flue which is used for exhausting fumes
from appliances burning gas or other fuels.
Do not dry articles containing rubber, plastic
or similar materials such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs,
baby pants, raincoats, plastic bags or pillows
that may melt or burn. Some rubber
materials, when heated, can under certain
circumstances produce fire by spontaneous
combustion.
The door shall be opened only after the
programme of the drying machine is
completed.Do not open the door before the
programme finished to avoid the human
skin from being scalded by hot steam or over
heated drying machine.
SAFETY INSTRUCTIONS

8
Top board
Control panel
Door
Front panel
Side panel
Lint filter
Exhaust duct
Power plug
Door lock
Drum
>10cm
INSTALLATION
Product Description
Installation
Note: Please see the products you purchased in kind prevail.
Dryer should be placed in a ventilated area with
than 10cm distance from the wall. It is suggested there
are no obstacles within 1.5m in front of dryer to assure
ventilation.
not less
• Installation Position Selection

9
INSTALLATION
work properly.
If the dryer is not placed horizontally (tilt angle more than 2°), the dryer may not
Notice when installing:
• Do not install the dryer in the open air or a place where
it can be damaged easily by rain;
• Do not place the back of dryer near curtain or something
moved by wind;
• Do not place the dryer near gas or flammable materials.
•

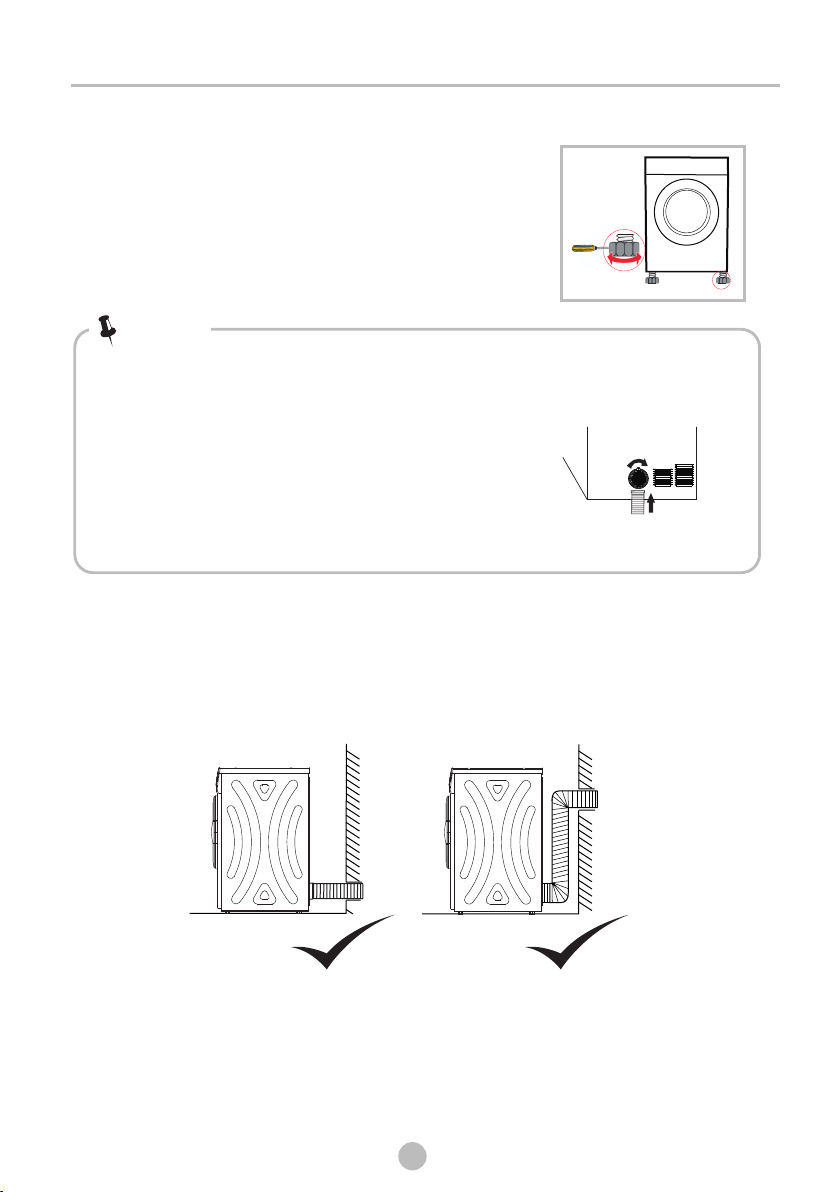

• Connect one end of the flex tube to the back vent, then fix it firmly until it's tight.
• The other end of flex tube will be extended to outdoor, for the proper assembly please
refer to the below pictures.
Exhaust duct installation:
Note!
• Level Adjusting
Once in its permanent operating position,
check that the dryer is absolutely level with the aid
of a spirit level. If it is not, adjust the feet with a tool.

10
OPERATION
After Drying
Drying
Before use, please make sure the tumble dryer is installed properly.
Buzzer beep.
1
plug in
2
load
3
close the door
Quick Start
Note!
1
unload clean filter
3
unplug
2
Before Drying
start
Turn the knob to
select the program

11
OPERATION

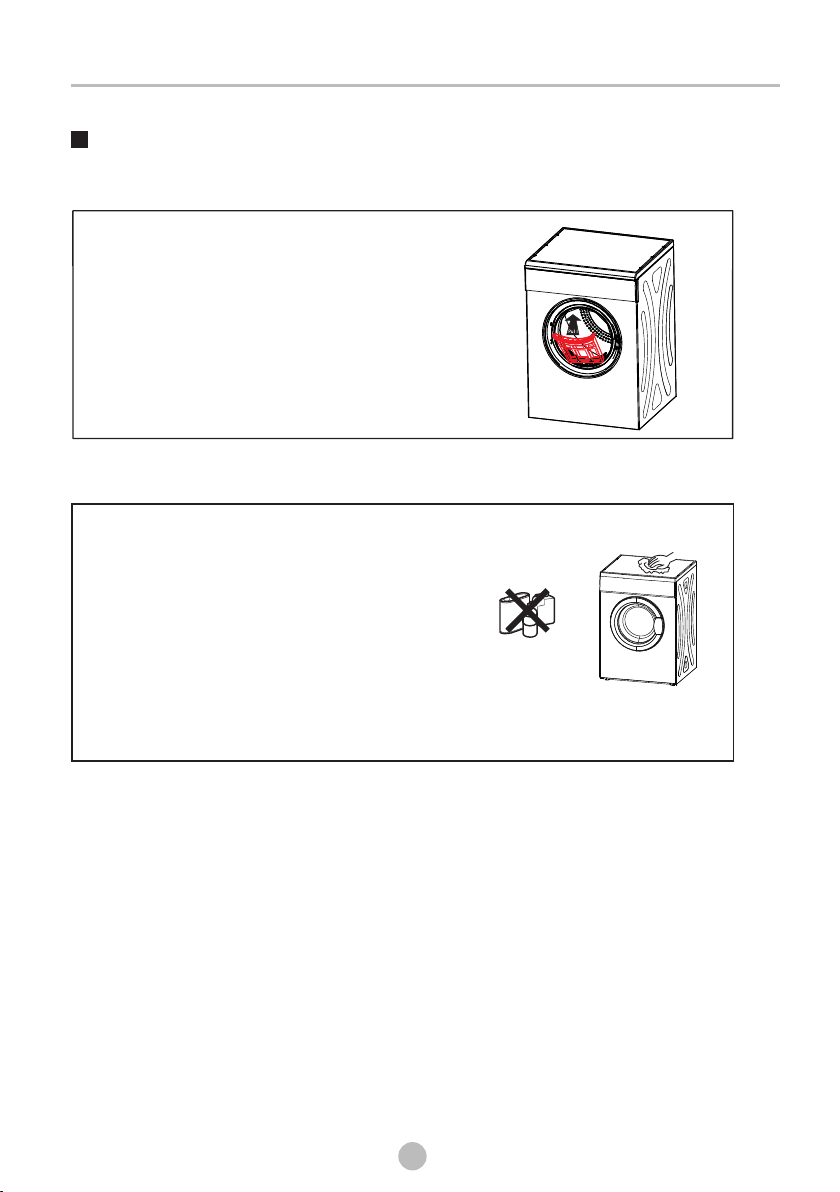

Before each Drying
Do not overload the dryer.
• Not for dripping wet textiles. The dryer could be damaged or even cause a fire.
• Not suitable for silk or woolen textiles.
•
1.Before drying, thoroughly spin the laundry in a washing machine. High spin speed can
the drying time and save energy consumption.
2.For uniform drying result, sort the laundry according to fabric type and drying programme.
3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4.Do not over dry the clothes, because over dried clothes can easily get creases.
5.Do not dry articles containing rubber or similar elastic materials.
6.The door shall be opened only after the programme of the drying machine is completed.
Do not open the door before the programme finished to avoid the human skin from being
scalded by hot steam or over heated dryer.
7.Clean the lint filter each use to avoid extension of drying time and energy consumption.
8.Do not dry clothes after dry-clean process.
reduce
Reference weight of dry clothes (each)
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Note!
Sweater
(about 800g)
Jacket
(about 800g cotton)
Jeans
(about 800g)
Bath towel
(about 900g cotton)
Single bedsheet
(about 600g cotton)
T-shirt
(about 180g cotton)
Work clothes
(about 1120g)
Underware
(about 70g cotton)
Sleepwear
(about 200g)
Socks
(about 50g
mixed-weave)
Long sleeve shirt
(about 300g cotton)
Suitable for tumble drying
Normal drying process: Drying in the tumbler is possible under normal load and
temperature 80°.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
Do not tumble dry: Articles unsuitable for drying in the tumbler.

12
OPERATION
Control Panel
On/Off
Turn to select any dry cycle to turn on
your dryer.
1
1
Start/Pause
the button to start or pause the
drying cycle.
Press
1
2
Programmes
Different Dryer cycle can be selected
according to the user's needs to make the
clothes have more effective drying results.
3
.
32
1

13
OPERATION
Drying Programmes Table
Synthetics
Cotton
(max)
Weight
Programme Application/Properties
7.0kg
Air Fresh
5.0kg
7.0kg
0.6kg
AUTO
3.0kg
Mix
Delicate
150 min
90 min
120 min
3.0kg
To dry cotton pieces of clothing. Drying level: standard dry.
To dry mix pieces of clothing. Drying level: extra dry. If you can not determine what
the clothing's material is, please choose Mix.
To dry delicate laundry that is suitable for drying or laundry which is advised to be
hand-washed at a lower temperature.
Time 150 min.
Time 90 min.
Time 120 min.
It is recommended to choose this program to dry the bed sheet, quilt cover,
or other big loads.
To dry synthetics pieces of clothing. Drying level: standard dry. For non-iron washing
made of synthetic and blended fabrics,cotton.
60 min
45 min
30 min
15 min
Time 60 min.
Time 45 min.
Time 30 min.
Time 15 min.
Cotton Extra To dry cotton pieces of clothing. Drying level: extra.
Cotton Less To dry cotton pieces of clothing. Drying level: less.
7.0kg
7.0kg
To dry unknown material clothes automatically.
To air clothes without heating for 20 min。

OPERATION
14
• The programmes above are only recommended for using, users can choose the
appropriate programme according to the personal habits.
•
•
•
The room temperature and humidity will affect the drying time.
Check the clothes care label and choose the corresponding programme accordingly.
Recommendation:
For load less than 0.5kg, please select 1 hour programme and dry grade Extra for
drying.
Note!

15
Filter clean
•
•
•
Clean the lint filter after each use.
Remove the filter by pulling it straight up.
Filter cleaning
Use a wiping cloth or your hands to remove lint.
Install filter
If the filter is cleaned by damp cloth
or water, please dry thoroughly before installation.
Cleaning cabinet and drum
WARNING!
• Disconnect the power cord before cleaning!
• Clean the dryer with a wet cloth which is
only damped by clean water.
• Do not rinse water over the machine directly.
• Do not use solvents, abrasive cleaners, glass
cleaners or all-purpose cleaners. These could
damage plastic surfaces and other parts.
• Before starting the dryer, dry all parts with a soft cloth.
MAINTENANCE
Cleaning and Care

16
Safety reset
1. This dryer has a safety cut out switch which is activated by temperature.
2. If your dryer is not heating this button must be reset, before the dryer can heat again.
You may need to wait 10 minutes for cooling down.
The safety reset button is on the backboard.
3. The most common reason for the dryer to overheat is a blocked filter.
4.Clean the lint filter after each cycle to prevent overheating of the dryer.
The cut out switch may operate for the following reasons:
1. Lint filter is blocked.
2. Exhaust outlets blocked at the back of the dryer.
3. Open the windows or the door, if there is poor ventilation in the room.
4. Lightweight garment eg. handkerchief, sucked over the filter.
MAINTENANCE

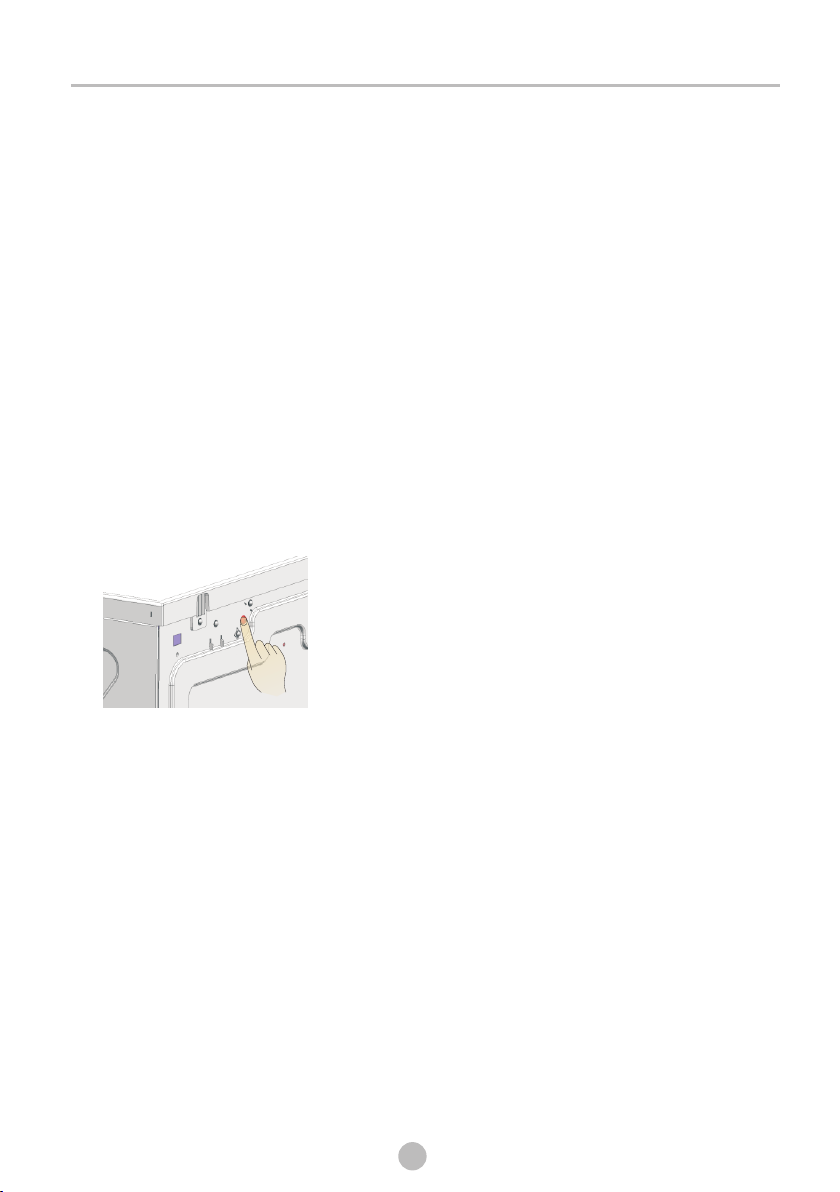

Safety Reset Button
Use your finger or a pencil to press the button in until you feel it click.

17
Trouble Shooting
Problem Cause Solution
Dryer does
not start
The appliance
gets hot or
burnt smell
Clothes are
too dry
Clothes shrink
Pilling on
clothes
• Power cut off.
• The power plug is not
plugged tight.
• The dryer is overloaded.
• The temperature fuse is cut.
• The lint filter is clogged.
• The uptake or exhaust duct is
clogged.
• The machine is overloaded.
• Clothes are not taken out in
time after finish.
• Clothes are not sorted
properly.
• The selected temperature is
too high.
• Laundry is over-dried.
• Laundry is sensitive for
rubbing.
MAINTENANCE
• Wait for restore of electricity.
• Check the power socket,make sure the plug
is inserted tightly.
• The clothes must be spun and drying load can
not exceed the rated capacity.
• Restore the temperature fuse.
• Observe the care label on clothes.
• If items are sensitive to shrink, examine the
clothes when dry. Take out the clothes when
damp.Then hang the clothes until fully dry.
• Use fabric softener to lubricate fibres,
please spray laundry starch on cuff and
neckline when ironing clothes. Turn the
laundry inside out to avoid pilling
• Make sure to clean the lint filter after
each cycle.
• Clean the exhaust duct.
• Do not exceed the rated capacity.
• Take out the clothes immediately after
programme end.
• Observe the care label on clothes.
Heavy wet clothes turning and bumping will cause noise accordingly while to dryer runs.
During the drying cycle, the machine will create airflow, which will cause noise when hitting
the drum.

18
MAINTENANCE
Note!
The rated capacity is the maximum capacity. Make sure that the dry clothes which are loaded to the
appliance do not exceed the rated capacity any time.
Other failure
Technical Specification
Display Reason Solutions
Please contact your local
problem occurs.
service center if the
1: Temperature sensor is short circuited
or broken
2: PCB failure
PCB fault
The light flashes 4 times
and turn off 3 seconds
220-240V~
Rated capacity
Rated frequency
Dimension
(L*W*H)
Rated input power
Rated voltage
555*595*840(mm)
2000W
Weight of product 33.5kg
7.0kg(Dry clothes)
50Hz
Model
Parameter
MDS70-VR072/A04-AU
Ambient temperature
+5°c~+35 c°
The light flashes 4 times
and turn off 5 seconds

16138200A13589
V1.0
