Midea MDV160-V02A2/F01-US1305 User manual

Laundry
DRYER MACHINE
Service Manual
Models:
MDV160-V02A2/F01-US1305
MDV160-VG02A2/F01-US13
MDV160-V022/F01-US1305
MDV160-VG022/F01-US13
CAUTION
READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLES CORRECTLY BEFORE OFFERING SERVICE.

Service manual for Dryer Machine
-------------------------------------------------------------------------------------------------------------------------------------------------------
－2 －
CONTENTS
1. PRECAUTION..........................................................................................................................6
1.1 Safety precaution.................................................................................................................................... 6
1.2 Warning.................................................................................................................................................. 6
1.3 Caution................................................................................................................................................... 8
2. HOW TO USE...........................................................................................................................9
2.1 Controls and function............................................................................................................................. 9
2.2 Cycle guide with option settings...........................................................................................................11
3. DIMENSION AND INSTALLATION .....................................................................................12
3.1 Unit dimension..................................................................................................................................... 12
3.2 Ducting requirements........................................................................................................................... 14
3.3 Exhausting requirements...................................................................................................................... 15
3.4 Gas requirements.................................................................................................................................. 16
3.5 Electric requirements............................................................................................................................ 17
3.6 Grounding............................................................................................................................................. 18
3.7 Tools needed in installation.................................................................................................................. 19
3.8 Installation steps................................................................................................................................... 19
3.9 Door reversal........................................................................................................................................ 24
3.10 Change the dryer vent location........................................................................................................... 26
4. TROUBLE SHOOTING.........................................................................................................29
4.1 Test mode............................................................................................................................................. 29
4.2 Error codes ........................................................................................................................................... 30
4.3 Wiring diagram and terminals.............................................................................................................. 31
4.4 Trouble shooting .................................................................................................................................. 33
5. HOW TO DISASSEMBLY THE UNIT..................................................................................37
6. EXPLODED VIEW .................................................................................................................49
7. SPARE PARTS.......................................................................................................................51
8. SPECIFICATION....................................................................................................................55

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－3 －
WARNING: For your safety the information in this
manual must be followed to minimize the risk of fire or
explosion, or to prevent property damage, personal
injury or death.
–Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
–WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Clear the room, building, or area of all occupants.
Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire
department.
–Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
WARNING
Fire Hazard
Failure to follow safety warnings exactly could result in
serious injury, death or property damage.
Do not install a booster fan in the exhaust duct.
Install all clothes dryers in accordance with the
installation instructions of the manufacturer of the dryer.

Service manual for Dryer Machine
-------------------------------------------------------------------------------------------------------------------------------------------------------
－4 －
WARNING
This conversion kit shall be installed by a qualified service
agency in accordance with the manufacturer’s
instructions and all applicable codes and requirements of
the Authority Having Jurisdiction. The information in
these instructions must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal
injury, or death. The qualified service agency is
responsible for the proper installation of this kit. The
installation is not proper and complete until the operation
of the converted appliance is checked as specified in the
manufacturer’s instructions supplied with the kit.
CAUTION
THE CONVERSION SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING JURISDICTION AND
IN ACCORDANCE WITH THE REQUIREMENTS OF THE
CSA B149.1, INSTALLATION CODE.

Service manual for Dryer Machine
-------------------------------------------------------------------------------------------------------------------------------------------------------
－5 －
Temperature conversion:
℃
℉
℃
℉
℃
℉
340
644
75
167
18
64.4
330
626
70
158
17
62.6
320
608
65
149
16
60.8
310
590
60
140
15
59
300
572
55
131
14
57.2
290
554
50
122
13
55.4
280
536
45
113
12
53.6
270
518
40
104
11
51.8
260
500
39
102.2
10
50
250
482
38
100.4
9
48.2
240
464
37
98.6
8
46.4
230
446
36
96.8
7
44.6
220
428
35
95
6
42.8
210
410
34
93.2
5
41
200
392
33
91.4
4
39.2
190
374
32
89.6
3
37.4
180
356
31
87.8
2
35.6
170
338
30
86
1
33.8
160
320
29
84.2
zero
32
150
302
28
82.4
-1
30.2
140
284
27
80.6
-2
28.4
130
266
26
78.8
-3
26.6
120
248
25
77
-4
24.8
110
230
24
75.2
-5
23
100
212
23
73.4
-6
21.2
95
203
22
71.6
-7
19.4
90
194
21
69.8
-8
17.6
85
185
20
68
-9
15.8
80
176
19
66.2
-10
14
Centigrade=5/9(F-32) Fahrenheit=9/5C+32

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－6 －
1. PRECAUTION
1.1 Safety precaution
For your safety the information in this manual must be followed to minimize the risk of fire or explosion,
or to prevent property damage, personal injury or death.
–Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
–WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
–Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
1.2 Warning
Do not dry articles that have been
previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning
solvents, other flammable or explosive
substances as they give off vapors that
could ignite or explode.
Do not use the dryer to dry clothes which
have traces of any flammable substance,
such as vegetable oil, cooking oil, machine
oil, flammable chemicals, thinner, etc., or
anything containing wax or chemicals, such
as mops and cleaning clothes. Flammable
substances may cause the fabric to catch
fire by itself.
Do not store or use gasoline or other
flammable vapors and liquids near this or
any other appliance.
Do not allow children to play on or in the
appliance. Close supervision of children is
necessary when the appliance is used near
children.
Before the appliance is removed from
service or discarded, remove the lid of the
washing or door of the drying compartment.
Do not reach into the appliance if the drum
is moving.
Do not install or store this appliance where it
will be exposed to the weather or freezing
temperatures.
Do not tamper with the controls.
Do not repair or replace any part of the
appliance or attempt any servicing unless it
is specifically recommended in the
user-maintenance instructions or in
published user-repair instructions that you
understand and have the skills to carry out.
Keep the area underneath and around your
appliances free of combustible materials
(lint, paper, rags, etc.), gasoline, chemicals
and other flammable vapors and liquids.
Do not place items exposed to cooking oils
in your dryer. Items contaminated with
cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
To reduce the risk of fire due to
contaminated loads, the final part of a
tumble dryer cycle occurs without heat (cool
down period). Avoid stopping a tumble dryer
before the end of the drying cycle unless all

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－7 －
items are quickly removed and spread out
so that the heat is dissipated.
Turn off the water faucets and unplug the
dryer if the machine is to be left for an
extended period of time, such as during
vacations.
Packaging material can be dangerous for
children. There is a risk of suffocation! Keep
all packaging from children.
Always check the inside of the dryer for
foreign objects before loading laundry. Keep
the door closed when not in use.
Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or
product.
Clean the lint screen before or after each
load.
Keep the area around the exhaust opening
and surrounding areas free from lint, dust,
and dirt.
The interior of the dryer and exhaust duct
should be cleaned periodically by qualified
service personnel.
Do not place items exposed to cooking oils
in your dryer. Items contaminated with
cooking oils may contribute to a chemical
reaction that could cause a load to catch
fire.
This appliance must be grounded. See
“Electric requirements” and “Grounding” in
the “INSTALLATION REQUIREMENTS”
section.
This appliance must be properly grounded.
Never plug the power cord into a receptacle
that is not grounded adequately and in
accordance with local and national codes.
Refer to installation instructions for
grounding this appliance.
Ensure pockets are free from small
irregularly shaped hard objects and foreign
material, i.e. coins, knives, pins, etc. These
objects could damage your dryer.
Do not use heat to dry articles containing
foam rubber or similarly textured rubber-like
materials.
Do not dry items that have been previously
cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances.
They emit vapors that could ignite or
explode. Any material that has been in
contact with a cleaning solvent or
flammable liquids or solids should not be
placed in the dryer until all traces of these
flammable liquids or solids and their fumes
have been removed.
There are many highly flammable items
used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid
household cleaners, some spot removers,
turpentine, waxes, and wax removers.
Do not dry items containing foam rubber
(may be labeled latex foam) or similarly
textured rubber-like materials on a heat
setting. Heated foam rubber materials can,
under certain circumstances, produce fire
by spontaneous combustion.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－8 －
1.3 Caution
Do not sit on top of the dryer.
Because of continuing product
improvements, Midea America reserves the
right of change specifications without notice.
For complete details, see the Installation
Instructions packed with your product before
selecting cabinetry, making cutouts, or
beginning installation.
Do not dry clothing with large buckles,
buttons, or other heavy metal or solid things.
Install and use in accordance with the
manufacturer’s instructions.
Do not place items in your dryer that have
been spotted or soaked with vegetable oil or
cooking oil. Even after being washed, these
items may contain significant amounts of
these oils.
Residual oil on clothing can ignite
spontaneously. The potential for
spontaneous combustion increases when
items containing vegetable oil or cooking oil
are exposed to heat. Heat source such as
your dryer can warm these items, allowing
an oxidation reaction in the oil to occur.
Oxidation creates heat. If this heat cannot
escape, the items can become hot enough
to catch fire. Piling, stacking, or storing
these kinds of items may prevent heat from
escaping and can create a fire hazard.
Take care that children’s fingers are not
caught in door when closing it. This may
result in injury.
Gas leaks may occur in your system,
resulting in a dangerous situation.
Gas leaks may not be detected by smell
alone.
Gas suppliers recommend you purchase
and install a UL approved gas detector.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－9 －
2. HOW TO USE

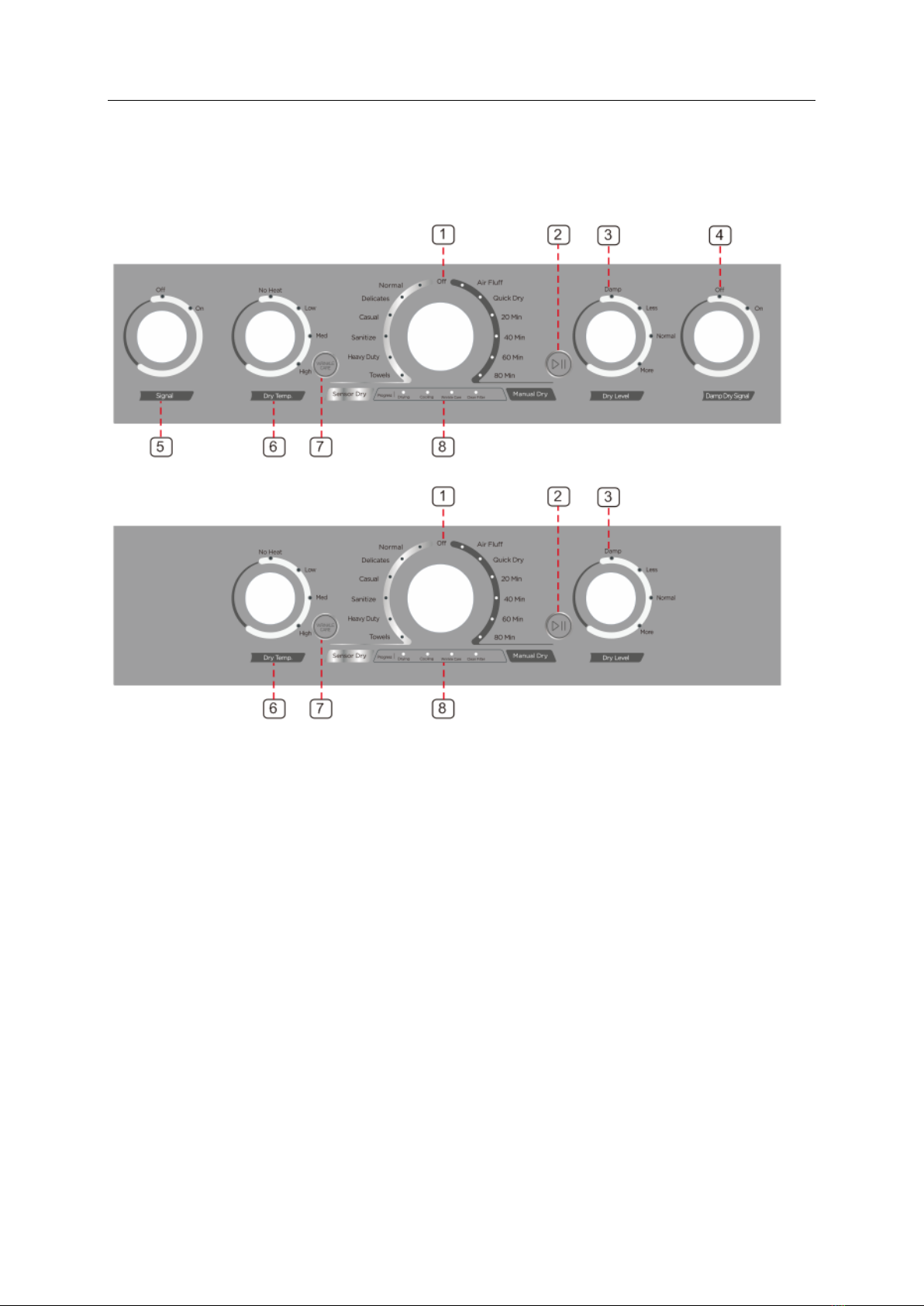

2.1 Controls and function
1. Cycle selector
Select your desired cycle for the type of load.
The cycle you select determines the heat control for the cycle.
The Normal, Delicates, Casual, Sanitize, Heavy Duty and Towels are Sensor Dry cycles.
The Quick Dry, 20Min, 40Min, 60Min, 80Min andAir Fluff are Manual Dry cycles.
Turn the knob to “Off” to turn off the machine.
2. START/PAUSE
Press to start or pause the program. You can’t change any setting except add a garment.
3. Dry Level
Turn the knob to select the dry level. Different dry level will result in different drying time. For
clothes to be ironed manually, a lower dry level should be selected.
4. Damp Dry Signal
This function is useful when you want to take some garments out for ironing. The unit will beep 6
times when the moisture in the clothes is good for ironing.At this time, you can take those
garments out and continue drying the other by pressing the “START/PAUSE” button once.
NOTE: The unit will not stop operating if you don’t take those garments
out for ironing.
Turn the knob to “Off” to stop the buzzer sound.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－10 －
5. Signal
Turn the knob to “Off” to stop the buzzer sound.
Turn the knob to “On” to activate the sound.
Your selection will be kept until next pressing.
6. Dry Temp.
Press the button to select the drying temperature.
High - For sturdy cottons or those labeled Tumble Dry.
Med - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium.
Low - For lower heat than Medium to dry synthetic or washable knit fabrics.
No Heat - Provides just the air cycle without any heat.
7. WRINKLE CARE
Press the “WRINKLE CARE” button to add the Wrinkle Care step into the operating program. The
“Wrinkle Care” indicator lit.
Press again to cancel selection.
Wrinkle Care provides approximately 90 minutes of intermittent tumbling in unheated air at the end
of the cycle to reduce wrinkling. The load is already dry, and can be removed at any time during
the Wrinkle Care cycle.
8. Cycle status display
The relative indicator Light will be flash when the dryer is in its drying program, other process
indicators to be executed are lit.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－11 －
2.2 Cycle guide with option settings
* Table in grey is an initial setting. “Y” are all optional functions you can select.
* For even better drying effect, please select higher dryness level.
* FOLLOW GARMENTS LABELS REQUIREMENTS.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－12 －
3. DIMENSION AND INSTALLATION
3.1 Unit dimension
-The dryer should be located where there is enough space at the front for loading the dryer, and
enough space behind for the exhaust system.
-This dryer is factory-ready for the rear exhaust option. To exhaust out the bottom or left, use the
accessory exhaust kit. Instructions are included with the kit.
-Make sure the room in which the dryer is located has enough fresh air. The dryer must be located
where there are no air-flow obstructions.
-For gas dryers, adequate clearance must be maintained as noted on the data plate to ensure
adequate air for combustion and the proper dryer operation.
-The dryer must not be installed or stored in an area where it will be exposed to water and/or
weather. The dryer area must be kept clear of combustible materials, gasoline, and other
flammable vapors and liquids.A dryer produces combustible lint. The area around the dryer
should be kept lint-free.
Alcove or closet or wall insert/recessed installations
-The dryer must be exhausted to the outside to reduce the risk of fire when installed any place
inside the house.
-No other fuel-burning appliance should be installed in the same closet as the dryer.
Minimum clearances between the dryer and adjacent walls or other surfaces :
Sides
1 in. (25mm)
Rear
5 in.(127mm)
Top
24 in.(610mm)
Closet front
2 in.(51mm)
A
41.1 in. (1043mm)
B
27 in.(686mm)
C
30 in.(763mm)
D
49.2 in.(1250mm)

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－13 －

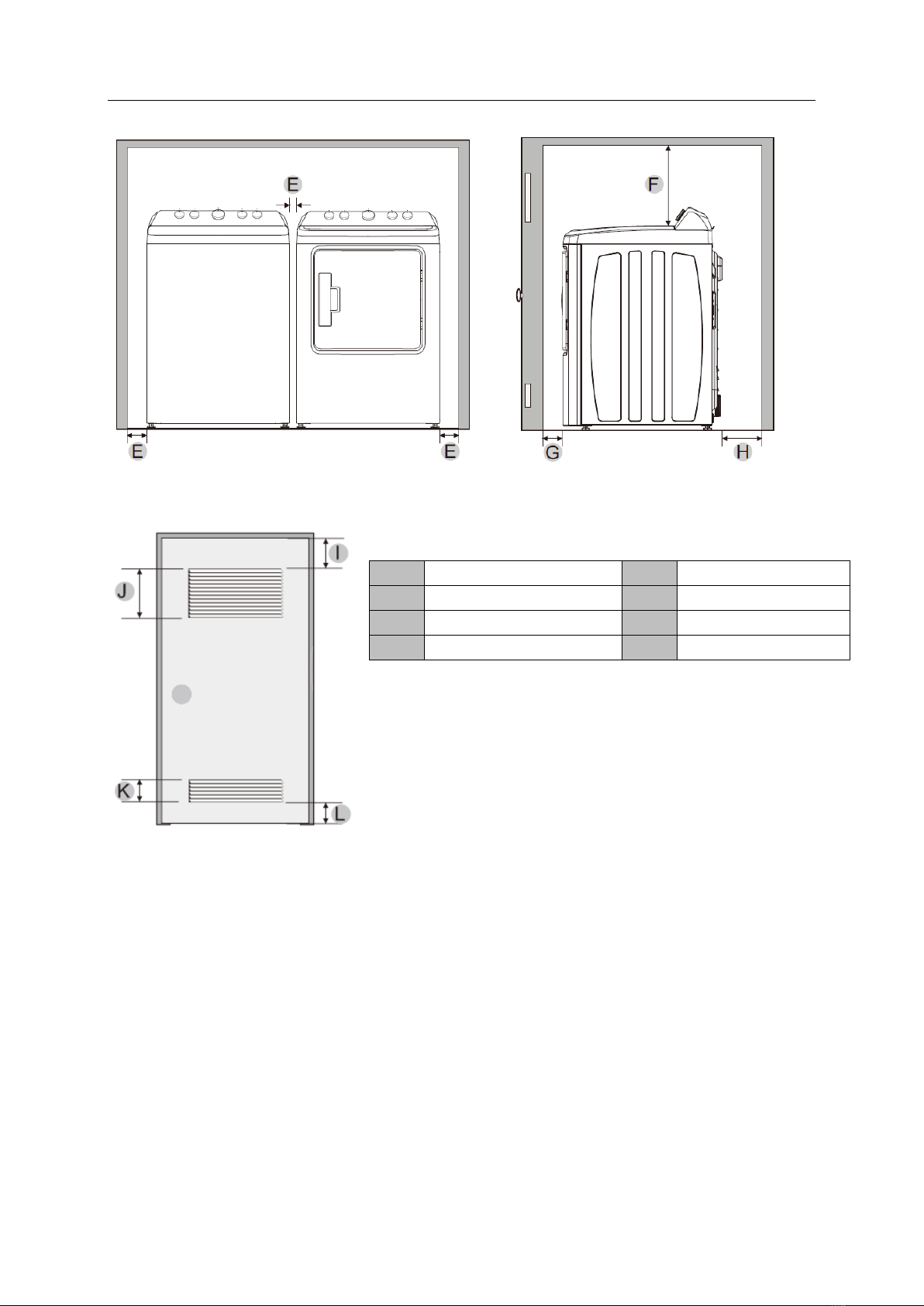

NOTE:
The front of the closet must have two unobstructed air openings for a combined minimum total
area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76 mm) at the top and bottom. A
slatted door with equivalent space clearance is acceptable.
E
1 in. (25mm)
F
24 in.(610mm)
G
2 in.(51mm)
H
5 in.(127mm)
I
3 in. (76mm)
J
48 in.2(31000 mm2)
K
24 in.2(15500mm2)
L
3 in. (76mm)

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－14 －

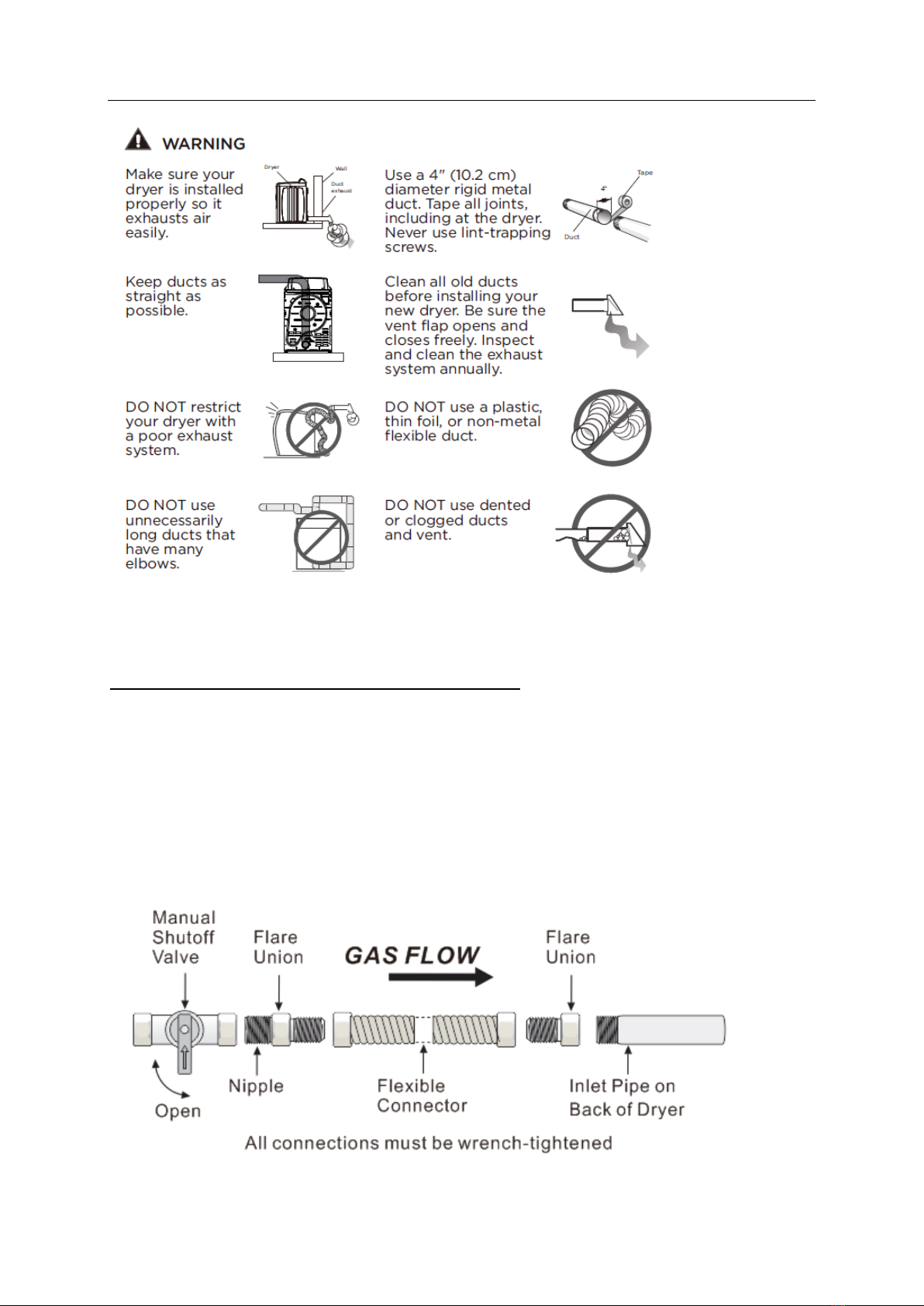

3.2 Ducting requirements
If this new dryer is installed into an existing exhaust system you must make sure:
-The exhaust system meets all local, state, and national codes.
-That a flexible plastic duct is not used.
-To inspect and clean all lint buildup from inside the existing duct.
-The duct is not dented or crushed.
-The exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system for best results shall be between 0.3 to 0.8
inches of water column, and cannot be less than 0 under any circumstances. with installed
duct of 4 inch diameter. Measurement must be done with the empty dryer working with a
manometer at the point where the exhaust duct connects to the dryer.
A no-heat setting should be used. Lint filter must be clean.
The correct exhaust installation is YOUR RESPONSIBILITY.
1. Use a 4-inch (10.2cm) diameter rigid aluminum or rigid galvanized steel duct.
2. Do not use a smaller duct.
3. Ducts larger than 4 inches (10.2cm) in diameter can result in increased accumulation of lint.
4. Lint should be removed regularly.
5. If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a
flexible duct with a thin foil wall.A serious blockage can result if the flexible metal duct is bent
too sharply.
6. Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
7. Keep the exhaust duct as straight and short as possible.
8. Secure joints with aluminum tape. Do not use screws.
9. Plastic flexible ducts can kink, sag, be punctured, reduce airflow, extend drying times, and
affect the dryer operation.
10. Exhaust systems longer than recommended can extend drying times, affect machine
operations, and collect lint.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－15 －
11. The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back
drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper.
12. The hood should have at least 12 inches (30.5cm) of clearance between the bottom of the
hood and the ground or other obstruction. The hood opening should point down.
13. Never install a screen over the exhaust outlet.
14. To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust
under a house or porch.
15. If the exhaust duct must run through an unheated area, the duct should be insulated and slope
slightly down towards the exhaust hood to reduce condensation and lint buildup.
16. Inspect and clean the interior of the exhaust system at least once a year. Unplug the power
cord before cleaning.
17. Check frequently to make sure the exhaust hood damper opens and closes freely.
18. Check once per month, and clean at least once per year. Note: If your clothes are not getting
dry, then check the ducting for obstructions.
19. Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building,
gas vent, or any other common duct or chimney. This could create a fire hazard from the lint
expelled by the dryer.
20. Do not use non-metallic flexible duct.
21. To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS without obstruction
around the outlet.
3.3 Exhausting requirements
WARNING
- The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or
a concealed space of a building.
- The dryer must be exhausted to the outside to reduce the risk of fire when installed in alcove
or closet.
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being
blown into the room.
- NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT
- If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
- Use only a metal exhaust duct that is non-flammable to ensure containment of the exhaust
air heat, and lint.

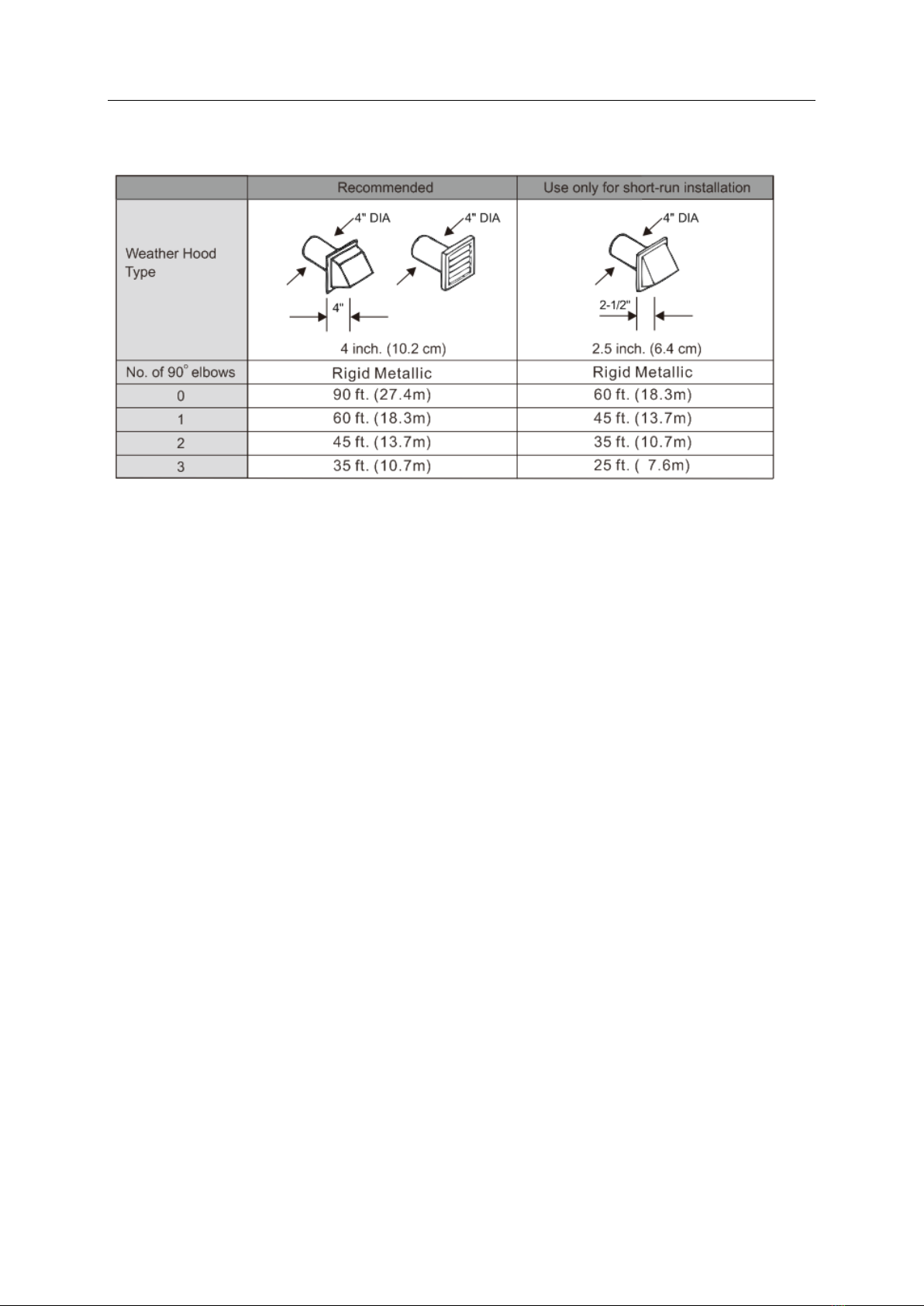

-Refer to the “Ducting requirements” section for the maximum duct length and number of
bends.
- All dryers must be exhausted to the outside.
-Do not assemble the duct with screws or other fastening means that extend into the duct and
catch lint.
- The exhaust duct should be 4 inches (102mm) in diameter.
-The total length of flexible metal duct shall not exceed 7.8 feet (2.4 meters).

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－16 －
3.4 Gas requirements
Use only natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF
LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE,ANSIZ223.1/NFPA 54, LATEST
REVISION (FOR THE UNITED STATES), OR THE NATURAL GASAND PROPANE
INSTALLATION CODE, CSA B149.1, LATEST REVISION (FOR CANADA).
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer
with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified
service technician.
A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1
cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved
manual gas shut-off valve be installed within 6" (15,24 cm) of your dryer.
Gas dryers installed in residential garages must be raised 18" (46cm) above the floor.
Additionally, a 1/8" (0.3cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test
gauge connection, must be installed immediately upstream of your dryer ’s gas supply connection.
Your dryer must be disconnected from the gas supply pipe system during any pressure testing of
the system.
This dryer must be connected to the gas supply piping with a listed flexible gas connector that
complies with the standard for connectors for gas appliances,ANSI Z21.24 or CSA6.10.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the
American GasAssociation (CGAin Canada).
- Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
- As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner. There is no
constant burning pilot.
COMMONWEALTH OF MASSACHUSETTS INSTALLATION INSTRUCTIONS
Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve
must be installed in the gas supply line to installed dryer at location of operation.
If a flexible gas connector is used to connect dryer, the connector may not be longer than 3' (36",
91.5cm).
WARNING
-Gas leaks may occur in your system, creating a dangerous situation.
-Gas leaks may not be detected by smell alone.
-Gas suppliers recommend that you purchase and install a UL-approved gas detector.
-Install and use it in accordance with the manufacturer ’s instructions.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－17 －
3.5 Electric requirements
The wiring diagram is located on the back board of the unit.
-The improper connection of the equipment grounding conductor can result in the risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your
dryer is properly grounded. Do not modify the plug provided with your dryer - if it doesn’t fit the
outlet, have a proper outlet installed by a qualified electrician.
-To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA No. 70 - Latest Revision (for the U.S.) or the Canadian
Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It is your
responsibility to provide adequate electrical services for your dryer.
-All gas installations must be done in accordance with the National Fuel Code ANSI/Z2231 -
Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for
Canada) and local codes and ordinances.
Electrical connections
An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE
AN EXTENSION CORD.
Gas models - U.S. and Canada
A 120Volt, 60HzAC approved electrical service, with a 15 ampere fuse or circuit breaker is
required.
Electric models - U.S. only
The dryers require a 120/240 volt, 60HzAC approved electrical service.
The electric service requirements can be found on the data label located behind the door.
A 30-amperefuse or circuit breaker on both sides of the line is required.
-If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
-The power cord is NOT provided with U.S. electric model dryers.
Electrical Shock Hazard
When local codes allow, the electrical supply of the dryer may be connected by means of a new
power supply cord kit, marked for use with a dryer, that is UL listed and rated at a minimum of
120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop
terminals, open-end spade lugs with turned up ends, or with tinned leads.
-Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must
be retained at the dryer cabinet with a suitable UL-listed strain relief.
-Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2)
mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding
through the neutral conductor. (Use a 4-prong plug for 4 wire receptacles, NEMAtype 14-30R.)

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－18 －
Electric models - Canada only
-A 120/240 volt, 60HzAC approved electrical service fused through a 30-ampere fuse or circuit
breaker on both sides of the line is required.
-All Canadian models are shipped with the power cord attached. The power cord should be
plugged into a 30-ampere receptacle.
3.6 Grounding
This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
Gas and Electric models
- Certain internal parts are intentionally not grounded and may present a risk of electric shock
only during servicing. Service Personnel –Do not contact the following parts while the
appliance is energized: inlet valve, control board and temperature-regulating thermistor
(located on blower housing).
Gas models
-Your dryer has a three prong power cord with grounding conductor.120V 60 Hz
-The plug must be plugged into an appropriate individual outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Electric models
Dryer must be grounded with 3 or 4 wire cord power cord with ground grounding conductor and a
grounding plug, which is sold separately.
- The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
- Do not modify the plug provided with your dryer - if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
- If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be
connected to a permanently grounded metal wiring system, or an equipment grounding
conductor must be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the dryer.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－19 －

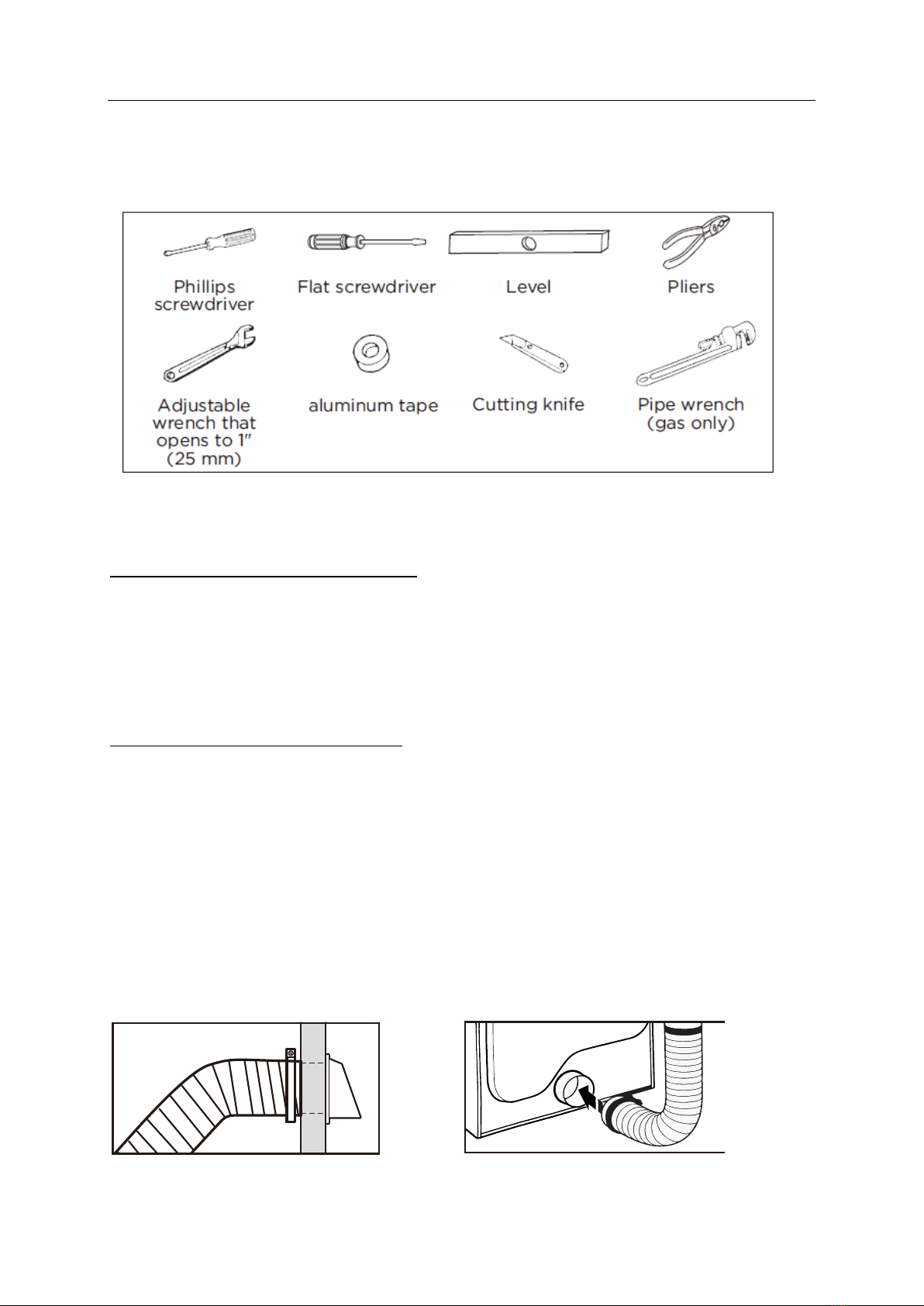

3.7 Tools needed in installation
Tools needed:
3.8 Installation steps
CHOOSE THE PROPER LOCATION
1. Move your dryer to an appropriate location for the installation. Consider installing the dryer and
washer side-by-side, to allow access to the gas, electrical, and exhaust connections. Place two
of the carton cushion-tops on the floor. Tip your dryer on its side so it lies across both
cushion-tops.
2. Set your dryer back in an upright position.
INSTALL THE EXHAUST SYSTEM
1. Review the “Exhausting requirements” section before installing the exhaust system.
2. Install the ductwork from your dryer to the exhaust hood. The crimped end of the duct sections
must point away from your dryer.
3. DO NOT use sheet metal screws when assembling the ducting.
4. These joints should be taped.
5. Never use plastic flexible exhaust material.
6. Tip for tight installations: install a section of the exhaust system onto your dryer before putting it
in place.
7. Use aluminum tape to secure this section to your dryer, but do not cover the ventilation slots at
the back of the unit in dryer cabinet.

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－20 －
CONNECT THE GAS LINE (FOR GAS MODELS)
Review the “Gas requirements” section. Remove the pipe thread protective cap.
Apply a pipe joint compound or about 1 ½” wraps of teflon tape over all threaded connections.
-The pipe joint compound must be resistant to the actions of any liquefied petroleum gas.
Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9cm)
female thread end of a flexible connector to the 3/8" (1cm) male threaded end on the dryer.
Securely tighten the gas line fitting over the threads.
Turn on the gas supply.
