Midea DMDHP70 User manual

Tumble Dryer
Read all instructions and explanations before use.
Follow the instructions carefully.
Keep the operation instructions handy for later use.
if the appliance is sold or passed on then ensure
that the new owner always receives these operation
instructions.This manual is available on website:
www.midea.com.cn
OWNER’S MANUAL
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !

• This product belongs to Category Ⅰ electrical appliances, and
only for drying textiles which have been washed with water in
the household. Please pay attention to the safety of power
use during the operation!
• The power source with reliable earthing must be used. Its
earth wire must be buried under the ground and shall not be
connected with the public utilities such as city water pipe or
gas pipe etc. The earth wire and null wire shall be
distinguished and shall not be connected together.
• The power wire shall be met IEC and must be able to
withstand the current above 10A. To ensure your and your
family's safety, please make improvement immediately if any
power use at your home does not meet the above-mentioned
requirements.
• Do not put more load than recommended. Obey the maximum
load volume. See the related chapter in the user manual.
• That the tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in
the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried
in the tumble dryer.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
1 2
CONTENTS SAFETY INSTRUCTIONS
Safety Instructions
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATIONS
Quick Start .............................................................
Before Each Drying ..................................................
Control Panel .........................................................
Other Functions......................................................
Drying Programmes Table ........................................
MAINTENANCE
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
2
7
7
9
10
12
14
17
18
19
21
Warning!
！
To prevent any damages to your and others' life or
property, you have to follow the safety notes.

• The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be damaged.
• The lint trap has to be cleaned frequently.
• The lint must not to be allowed to accumulate around the
tumble dryer.
• Adequate ventilation has to be provided to avoid the
back flow of gases into the room from appliance burning
other fuels, including open fires.
• The exhaust air must not be discharged into a flue which
is used for exhausting fumes from appliance burning gas
or other fuels.
• The appliance must not be install behind a lockable door,
a sliding door or a door with a hinge on the opposite side
to that of the tumble dryer. In such a way that a full
opening of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be
washed in hot water with extra detergent-this will reduce,
but not eliminate, the hazard.
• The appliance should not be overturned during normal use
or maintenance.
• Remove all objects from pockets such as lighters and
matches.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.(This warning is
only for EUROPEAN market)
• If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• This appliance is for indoor use only.
• The openings must not be obstructed by a carpet.
• Children of less than 3 years should be kept away unless
continuously supervised.
• If the appliance appears high temperature abnormally ,
please draw the mail plug immediately.
• The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they
do not play with the appliance.(This warning is not for
EUROPEAN market)
3 4
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Never stop a tumble dryer before the end of the drying
cycle otherwise too much heat will diffuse and may
cause harm.
Warning!
！

5 6
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Correct Disposal of this product:
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
Damage danger
Explosion danger
Injury danger
Electric shock hazard
• Do not draw the power cord forcefully to pull out the mains
plug.
• Please do not plug/draw the mains plug with wet hands.
• Do not damage the power cord and the power plug.
• Do not disassemble and install the dryer under no instruction
or supervision.
• Do not stack this dryer on washing machine without stacking
kits.(if want stacking on washing machine, please purchase
the independent parts and it must be installed by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.)
• Do not lean on the opened door of the dryer.
• Do not put any pyrotoxin on the dryer, such as the candle,
electric cooker.
• Do not dry over the rated capacity.
• Do not operate the dryer without the filter door and filter base.
• Do not dry the clothes before being spun.
• Do not expose the dryer directly under the sun, and indoor
use only.
• Do not install the dryer in humid and drenching environment.
• While cleaning and maintenance, please do remember to
pull out the power plug and do not directly wash the dryer
with water.
Please do not dry the clothes with some flammable substances
such as coal oil, alcohol or there will be explosion.

7 8
INSTALLATION
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves and them
following the instruction below .
install
Hose holder(optional)
Condensing drain
hose(optional)
Use pliers to remove
the drain hose from
the hose connector.
Insert the
external
drainage
hose.
Product Description
Max.120cm
200cm
Put the hose holder on the washing
basin or any other sink.
Installation
INSTALLATION
Installation Position
Transport
Move cautiously. Do not grasp any salient parts of machine. The machine
door can not be used as the handle for delivery. If the dryer can’t be transported erectly,
the dryer could be slant to right less than 30°.
Level Adjusting
Once in its permanent operating position,
check that the dryer is absolutely level with the aid
of a spirit level. If it is not, adjust the feet with a tool.
Power Supply Connection
1.It is recommended that, for your convenience, the machine is positioned close to
your washing machine.
2.The tumble dryer must be installed in a clean place, where dirt does not build up.
Air must be able to circulate freely all round the appliance. Do not obstruct the
front air inlet or the air intake grilles at the back of the machine.
3.To keep vibration and noise to a minimum when the dryer is in use, it should be
placed on a firm and level surface.
4.The feet must never be removed. Do not restrict the floor clearance through
deep pile carpets, strips of wood or similar. This might cause heat built-up which
would interfere with the operation of the appliance.
1.Make sure that the voltage of the power supply is the same as the electric specification
2.Do not connect the dryer with the power connection board, the universal plug or socket.
of the dryer.
Power Cord
Filter door
Container
Door
Control panel
Air inlet
Filter base
Maintenance cover
Drum
Top board

910
OPERATIONS
After Drying
Drying
Buzzer beep or " :00"on display.0
1 2 3 4 5
open the door and
take out laundry
pull out the
container
pour out
condensate water
clean the filter power off

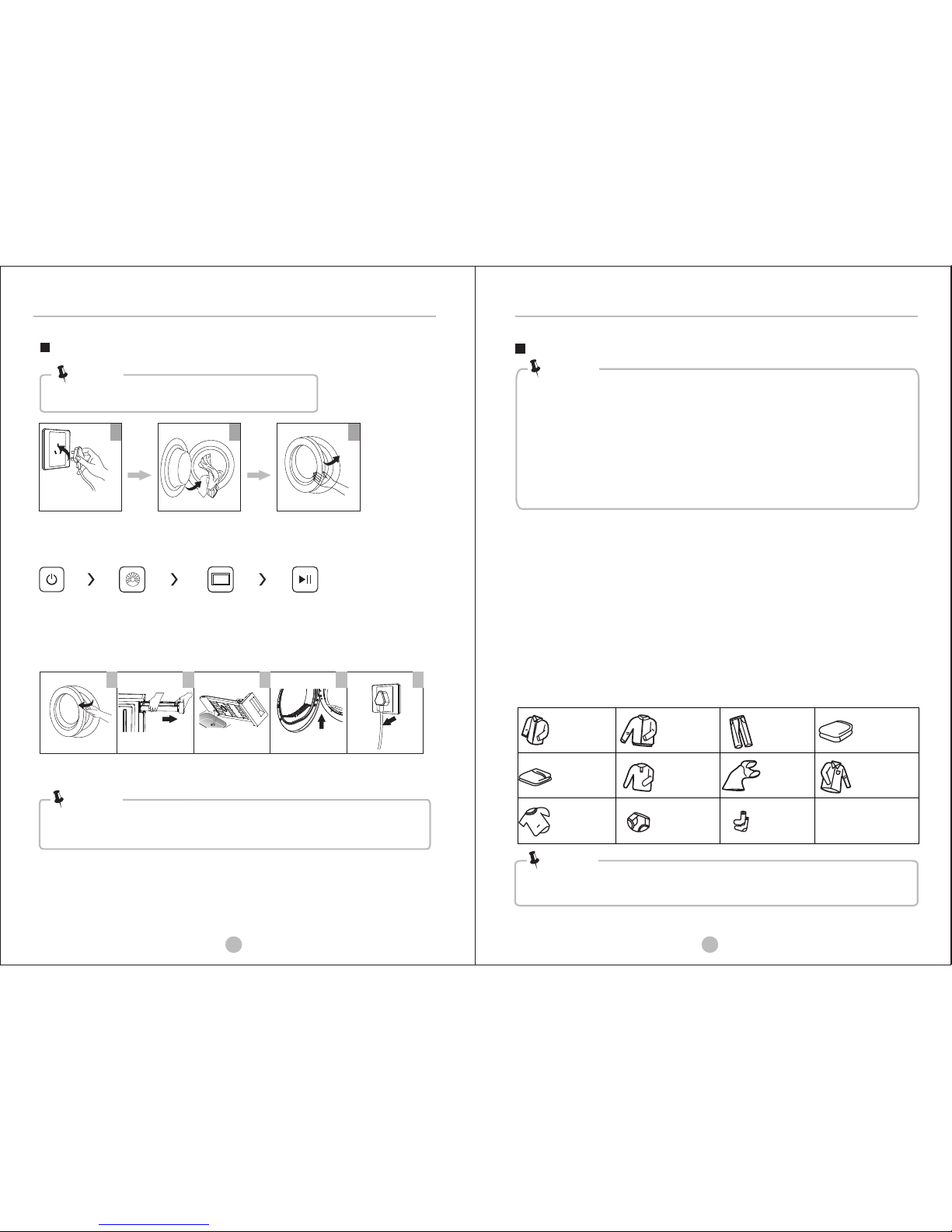

Quick Start
Before using, please make sure it's installed properly.
Note!
1
plug in
2
load
3
close door
start
on select program select function
or default
• If use the socket with a switch, please press the switch to turn off the power
directly.
Note!
OPERATIONS
Never overload.
• Not for textile with dropping water. The dryer could be damaged, even fire.
•
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed can
the drying time and save energy consumption.
2.For uniform drying result, sort the laundry according to fabric type and drying programme.
3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4.Do not over dry the clothes, because over dried clothes can easily get creases.
5.Do not dry the articles containing rubber or similar elastic materials.
6.The door can be opened only after the programme of the drying machine finishes to
from being scalded by hot steam or over heated drying machine.
7.Clean the lint filter and empty container after each use to avoid extension of drying time
and energy consumption.
8.Do not dry these clothes after dry-clean process.
9.
reduce
prevent human skin
Please choose the related programme when deal with wool material clothes, to make the
cloth more fresh and fluffy.
The reference weight of dry clothes (each)
Mixed-fabric clothes
(about 800g)
Jacket
(about 800g cotton)
Jeans
(about 800g)
Towel quilt
(about 900g cotton)
Single bedsheet
(about 600g cotton)
Short sleeve shirt
(about 180g cotton)
Work clothes
(about 1120g)
Short pants
(about 70g cotton)
Sleepwear
(about 200g)
Socks
(about 50g
mixed-weave)
Long sleeve shirt
(about 300g cotton)
Note!
Before Each Drying
•
Put some clean rags into the drum.
Plug the power, press 【On/Off 】
Select the 【Refresh】 Programme, press 【Start/Pause】 button
After finishing this programme, please follow the “Cleaning And Care”
(refer to page 18) to clean the filter door.
• During drying, the compressor and the water pump generate some noise
which is entirely normal.
Leave it to stand for 2 hours after transporting. Before first use, please use
the soft fabric to clean the inside drum.
.
1.
2. .
3. .
4.
Note!

Please pay attention to use the drying machine if the materials of your clothes can not be
dried by it or contain the symbols as follows:
Dry
Dry clean
Line dry / hang to dry Drip dry
Do not dry clean
Normal Do not dry
In the shade
Dry flat
Not tumble dry normal
Dry clean normal cycle
with any solvent
Dry clean normal cycle
petroleum solvent only
OPERATIONS OPERATIONS
11 12

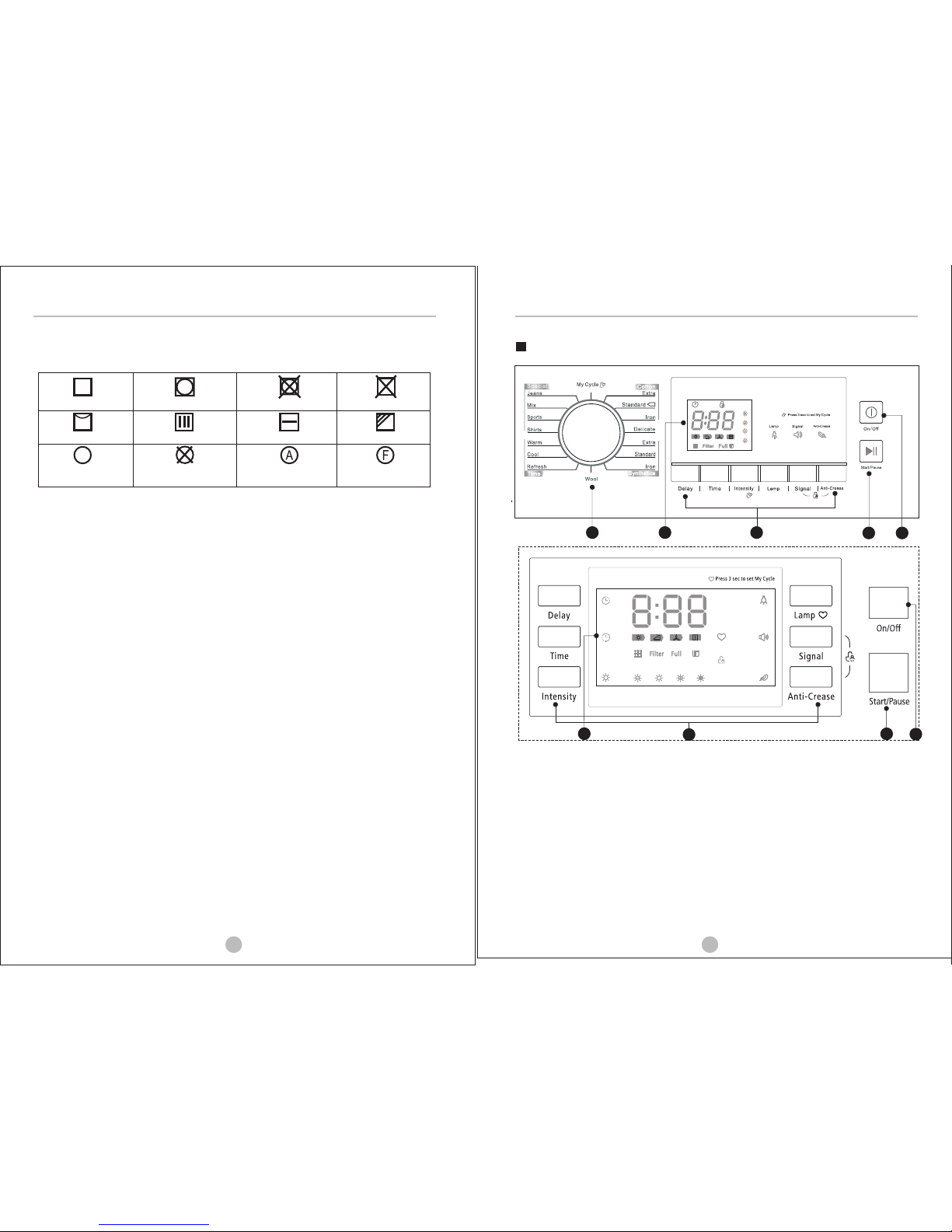

Control Panel
1
1
1
51
2
1
41 3
1
1
1
2
1
3
1
4

OPERATIONS OPERATIONS
13 14
Programme selector
Other Functions
• of the 【Delay】function Instructions
1. When the LED display screen brightens up, rotate
the programme knob to select the desired programme.
2.Select the【Delay】,【Time】,【Intensity】,【Anti-Crease】or【Signal】
functions for additional option.
3.Press the【Start/Pause】key.
Press the 【On/Off】button.
Programme start
Programme end
1.The drum will stop running after the programme ends, the display will show " ",
the state light of "End" and related light will illuminate. The dryer will start
Anti-crease function if user doesn’t remove the load in time (refer to page 15).
Please press key to cut off power and pull the plug out.
2.Deal with the problems accroding to “Malfunction display and solutions , if there
is an unexpected stop during the drying procedure and the dryer show information
(refer to page 18 ).
【 】
【On/Off】
”
The drum will keep rotating after the programme starts, the state light in the display
area will flash in sequence, the remaining time displayed will change automatically.
This function is used for delaying clothes drying time within
24 hours. The delay
time means the programme will start after x hours. When the delay programme
starts, the time starts to decrease on the display and the delay icon blinks.
Steps in details:
1.Load your laundry and make sure the machine door is closed.
2.Press the 【On/Off】button,then to turn the programme selector knob and
select a desired programme.
3.You can select the 【Anti-Crease】or【Signal】functions according to your need.
4.To press the【Delay】 key.
5.Continue to press the 【Delay】to select the delay time.
6.After the 【Start/Pause】 key is pushed, the Dryer is at the run condition.
The drying procedure will be automatically performed when the delay time is over.
7.If you push the【Start/Pause】button again, the delay function will be paused.
8.If you want to cancel the “Delay” function, please press the 【On/Off】button.
Fliter
Please clean the filter when the“ ” is lighting, after the dryer stops.
Tank
Please empty the container when the“ ” is lighting, after the dryer stops.
On/Off
Product is switched on or off.
1
1
Start/Pause
the button to start or pause the
drying cycle.
Press
1
2
Specialty function
These buttons are used for setting
additional functions.
3
Display
This display shows the settings, estimated
remaining time and status messages of
your dryer.
4
Programmes
Different Dryer cycle can be selected
according to the user's needs to make the
clothes have more effective drying result.
5
Delay start
Child lock
Remaining Time indicator/Error message
Cycle phase status
Clean filters (warning)
Empty water container (warning)
Dryness level (four grades)
Drum lamp indicator
Signal indicator
Anti-crease mode
Time
My cycle

15 16
OPERATIONS OPERATIONS
• Instructions of the Anti-Crease function【 】
At the end of the drying cycle,the anti-crease phase time is 30 minutes (default )
or 120 minutes (selected).
This function prevents the laundry from creases. The laundry can be removed
during the anti-crease phase. Except 【Cool】,【Wool】and【Refresh】, all
the other programmes have this function.
Set the buzzer on or off. In general condition, the buzzer is off. Please touch
it if needed.
When the buzzer is on:
1.The dryer will give the leading sound if press the extra function buttons.
2.If the dryer is running, rotate the programme knob, the dryer will
the operator it is an invalid choose.
3.When the drying programme is done, the buzzer will beep to remind the user.
remind
• Instructions of the【Signal】function
• 【 】Instructions of the Child Lock function
1.This machine incorporates a special child safety lock, which can prevent
children from carelessly pressing keys or making the faulty operation.
2.When the dryer is at the operation state, press the【Anti-Crease】and
【Signal】buttons at the same time for over 3 seconds to start child lock
function. When child lock function is set, the display will show Child lock
icon and no key can effect to the dryer except 【On/Off】button. Under the
start state of the child lock, the【Anti-Crease】and 【Signal】buttons shall
be pressed at the same time for over 3 seconds to release the child lock
function.
• Instructions of the 【My Cycle】 function
Used to define and save your favorite proragmmes that are used frequently.
1.Use the programme knob to select the required programme and other drying
functions.
2.Press and hold the 【Intensity】 button for 3 seconds until the beep and the
required programme has been saved.
3.Turn the programme selector to the 【My Cycle】 position, you can start your
favorite proragmmes. If you want to change the 【My Cycle】 settings, repeat
the steps (1) and (2).
• Instructions of the 【Time】 function
When the warm or cool or refresh programme is selected, the 【Time】button can be
used to adjust the drying time in 10 min. steps.
• Instructions of the 【Intensity】 function
Use for adjusting the dryness level of the laundry.
The level has four grades.
The drying time increases 3 minutes in every grade.
1.The intensity function can be activated only before the programme start.
2. Press the 【Intensity】 button repeatedly to select the drying time.
3.Except the 【Cotton Iron】 【Delicate】 【Synthetic Iron】 【Wool】【Time】,
all the other programmes can be set the 【Intensity】function.
• Instructions of the 【Lamp】 function
The lamp inside the drum will lighten about 3 minutes when the button is pressed
or 1 minute the door is opened.

17 18
OPERATIONS
Drying Programmes Table
For a fluffy and fresh wool clothing(Can not be used for drying wool clothing),
take out the clothes at once, let them dry in the air.When the cycle is done,
Y N
YN Y N Y N
Y N Y Y
Iron
For non-iron washing made of synthetic and blended fabrics,cotton.
For cottons and coloureds made of cotton or linen.
Standard Standard
Synthetics
Shirts
Jean Mix
Extra Sports Iron
My Cycle
Cotton
Extra
(max)
Weight
Special
Programme
Define and save your favorite programme.
Warm
Time
To warm clothes from minimum 10 min. to maximum 120 min.(in 10 min. steps). To dry thin synthetic fabrics which are not ironed, such as easy care shirts,
table linen, baby clothes, socks.
To dry thick or multi-layered synthetic fabrics. Drying level: extra dry. To dry cotton pieces of clothing. Drying level: applicable to iron. To dry cotton pieces of clothing. Drying level: cupboard dry. To dry cotton pieces of clothing. Drying level: extra dry.
Application/Properties
To dry thin synthetic fabrics which are also to be ironed, such as knitwear, shirts.
1.0kg
Wool Cool Refresh
To cool clothes without blowing hot air from minimum 10 min. to maximum To dry jeans or leisure clothes that are spun at high speeds in the washing machine. If you can not determine what the clothing's material is, please choose Mix. To dry sportswear, thin fabrics, polyester,which are not ironed. For easy care clothes such shirts and blouses with anti-crease mechanism
for minimum ironing effort. Place clothes loosely in the dryer. Once dried,
hang it on a clothes hange
time from minimum 20 min. to maximum 150 min.(in 10 min. steps). To refresh the clothes that have been kept at closed environments for a long
Delay Time
Delicate YN
Wool
My Cycle Y
3.5kg 3.0kg 5.0kg 3.5kg 1.0kg 1.0kg 1.0kg
7.0kg
7.0kg
30 min.(in 10 min. steps).
Delicate To dry delicate laundry that is suitable for drying or laundry which is
at a lower temperature.advised to be hand-washed
Empty the water container
Clean filter base
Filter door
Locking
lever
Maintenance cover
Filter
base

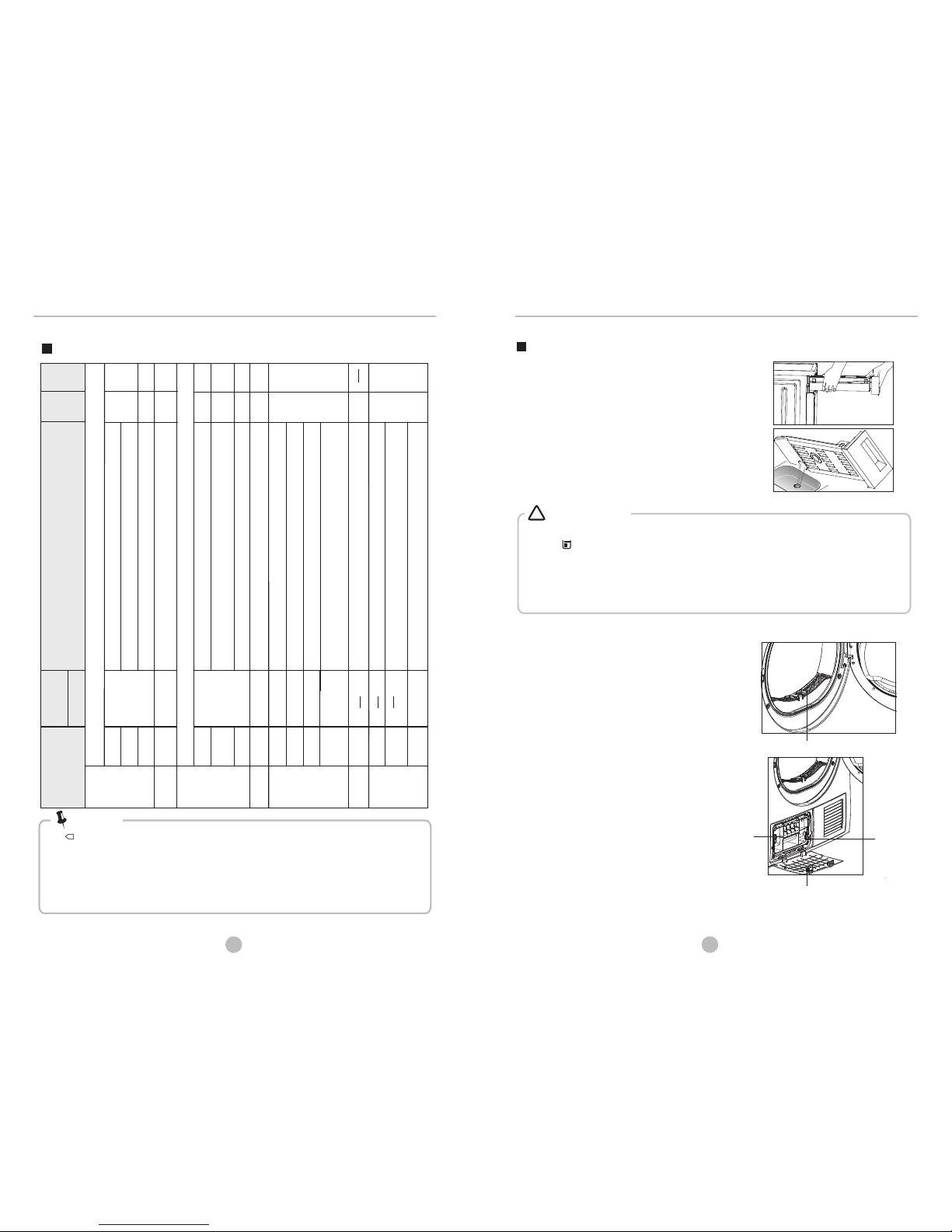

1. Hold and pull out the water container
with two hands.
2. Tilt the water container, pour out the
condensate water into basin.
3. Install the
water container.
Clean the filter door
Cleaning And Care
• Empty the water container after each use, the programme will be paused and
the “ ” icon will light if the water container is full during the drying process.
After the container is emptied, the dryer can be restarted by pressing
【Start/Pause】 button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.
Warning!
！
1.
2.
3.
Open the door.
Take out the filter door.
Clean the filter door; wipe off the scrap
threads accumulated on the filter door.
4.Reinstall the filter door.
1.
2.
3.
Open the cover.
Unscrew both locking levers towards
each other.
Clean the filter base completely.
4.Re-insert the filter base!
5.Screw both locking levers.
6.Close the cover until it locks into position.
MAINTENANCE
• This symbol means the energy efficiency test programme “standard cotton programme”, which is
accordance with the applicable EN 61121 standard and most suitable to dry normal cotton load at rated
load capacity.
• Thick or multi-layered fabrics,e.g. bedlinen, jeans, jackets etc, are not easy to dry.
You'd better choose Cotton Extra programme.
• As the uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the
appropriate time drying programme to dry them if some parts of the clothes still damp after programme
finished.
Note!

19 20
MAINTENANCE
As necessary, approx. once every 2 months,
remove the fluff from the heat exchanger
using the sponge or soft brush.
When doing this, please use gloves.
•
•
Clean heat exchanger
MAINTENANCE
extension of drying time and energy consumption.
• Do disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the filter after each use to prevent lint accumulation inside the dryer.
• The fluff accumulated on the filter will block the air circulation, which will cause the
Note!
first dampened.
• The fluff can be removed more easily if it is
Note!

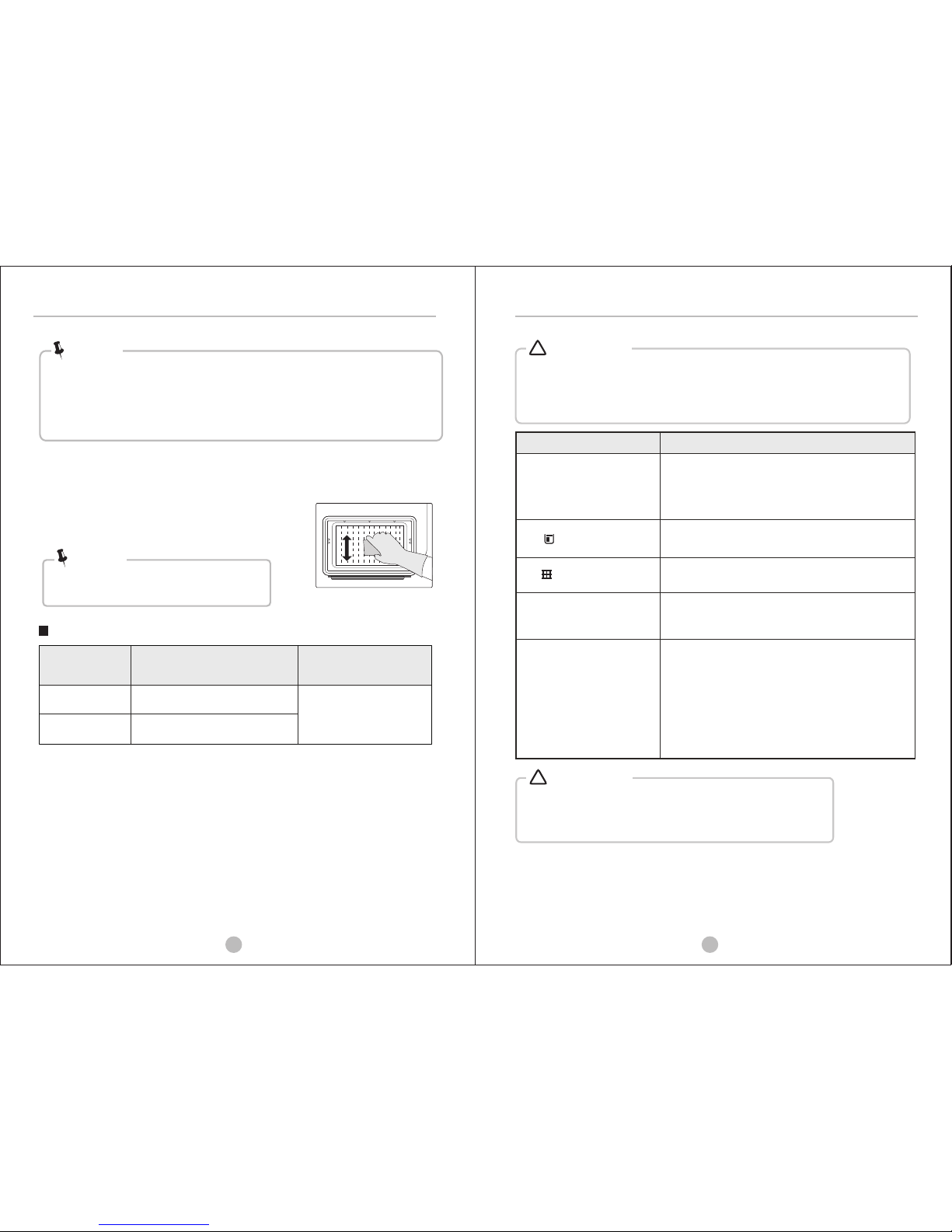

Trouble Shooting
“ ”E32
“ ”E33
Dispiay Reason Solutions
P lease contact your
local service center
if the problem
persists
Humidity sensor error
Temperature sensor error
• Only authorised technicans can carry out repairs.
• Before you call service,
fault yourself or if you have followed the user instructions.
• A technician will charge you for advice, even during the warranty period.
please check if you have dealt with the
If you cannot deal with the fault by yourself and need help:
• Press the 【On/Off】button.
• Pull out the mains plug and call the service.
Warning!
！
Warning!
！
• Clean lint filter and .
• Empty container.
• Check drain hose.
• Dryer installation place is too restricted.
• Clean the moisture sensors.
• Keep the Air inlet clean.
• Use higher drying intensity level programme or
time programme.
heat exchanger
• “ ”is lighting
•“ ”is inglight
Problem Solution
•Display does not on
• Check if the power supply works.
• Check if the mains plug is inserted.
• Check the selected programme .
• Press the 【On/Off】button.
• Empty water container.
• If the light is still on, please call the service.
• Clean heat exchanger.
• Clear lint filter.
•Dryer does not start
• the door has closed.
• Check the programme has set.
• Check the start button has selected.
Check the
•Degree of dryness was
reached or drying time too
long
not

21
MAINTENANCE
• The rated capacity is the maximum capacity, make sure that the dry clothes
which are loaded to the appliance do not exceed the rated capacity each time.
• Do not install the tumble dryer in a room when there is a risk of frost occurring.
At temperatures around freezing point the tumble dryer may not be able to
operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the
pump, hoses and / or condensate water container.
+5°c ~ +35°c
Technical Specifications
220-240V~
Rated capacity
Rated frequency
Dimension(L*W*H)
Rated input power
Rated voltage
622*595*845(mm)
650W
Weight of product 51kg
7.0kg
50Hz
Model
Parameter DMDHP70
Ambient temperature
Note!
Refrigerant R134a
Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
Hermetically sealed.
