Midea MDV-120W/DON1 Operating manual

1 phase, 220-240V, 50Hz & 1 phase, 208-230V, 60Hz
MDV-120W/DON1
MDV-140W/DON1
MDV-160W/DON1
Model:
Technical Service Manual
Mini VRF

Contents
Part 1 General Information ................................................................ 1
Part 2 Specifications & Performances.............................................. 9
Part 3 Installation.............................................................................. 44
Part 4 Troubleshooting..................................................................... 58
Manufacture reserves the right to discontinue, or change at any time, specifications or designs
without notices and without incurring obligations.

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
General Information 1
Part 1 General Information
1. Product Lineup .................................................................................................2
2. Nomenclature....................................................................................................3
3. Features.............................................................................................................4
4. Indoor Units Lineup..........................................................................................7

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
2General Information
1. Product Lineup
Outdoor Units
Model name
Dimension body(mm)
Net/Gross weight (kg)
Power supply
MDV-120W/DON1
Width:900
Height:1327
Depth:400
95/105
220-240V~50Hz
208-230V~60Hz
MDV-140W/DON1
Width:900
Height:1327
Depth:400
99/109
220-240V~50Hz
208-230V~60Hz
MDV-160W/DON1
Width:900
Height:1327
Depth:400
100/110
220-240V~50Hz
208-230V~60Hz

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
General Information 3
2. Nomenclature
M D V - 120 W / D O N1
*Note: the actual cooling capacity please refer to the nameplate.
Refrigerant type
N1:R410A
Power Supply
O: 220-240V~50Hz & 208-230V~60Hz
Inverter Type
D: DC Inverter
W: Outdoor unit
Cooling Capacity (×100W)*
Midea

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
4General Information
3. Features
3.1 High efficient DC inverter compressor
At the heart of Mini VRF system is a high efficiency twin rotary compressor. It enables the outdoor output to
be modulated by the cooling or heating demands of the control area, ensures precise temperature regulation
and highly efficiency energy usage.
3.2 High performance heat exchanger
The new designed window fins enlarge the heat-exchanging area,
which decrease the air resistance, save more power and enhance heat
exchange performance.
Hydrophilic film fins and inner-threaded copper pipes optimize heat
exchange efficiency.
3.3 Newly designed air outlet grill
Optimally designed fan shape and newly designed grill ensure both safety and air volume.
New air outlet grill
Compressor
(Twin Rotary) structure
Highly Efficient DC Motor:
- Creative motor core design
- High density neodymium magnet
- Concentrated type stator
-Wider operating frequency range
Better balance and Extremely Low Vibration:
- Twin eccentric cams
- 2 balance weights
Highly Stable Moving Parts:
- Optimal material matching rollers and vanes
-Optimize compressor drive technology
- Highly robust bearings
-Compact structure
2
2

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
General Information 5
46°C
-15°C
COOLINGMODE
27°C
-15°C
HEATINGMODE
3.4 Wide operation temperature range
No matter in extremely cold winter when outdoor temperature gets as low as -15°C or in hot summer when
temperature is up to 46°C, the Mini VRF system will keep stable performance.

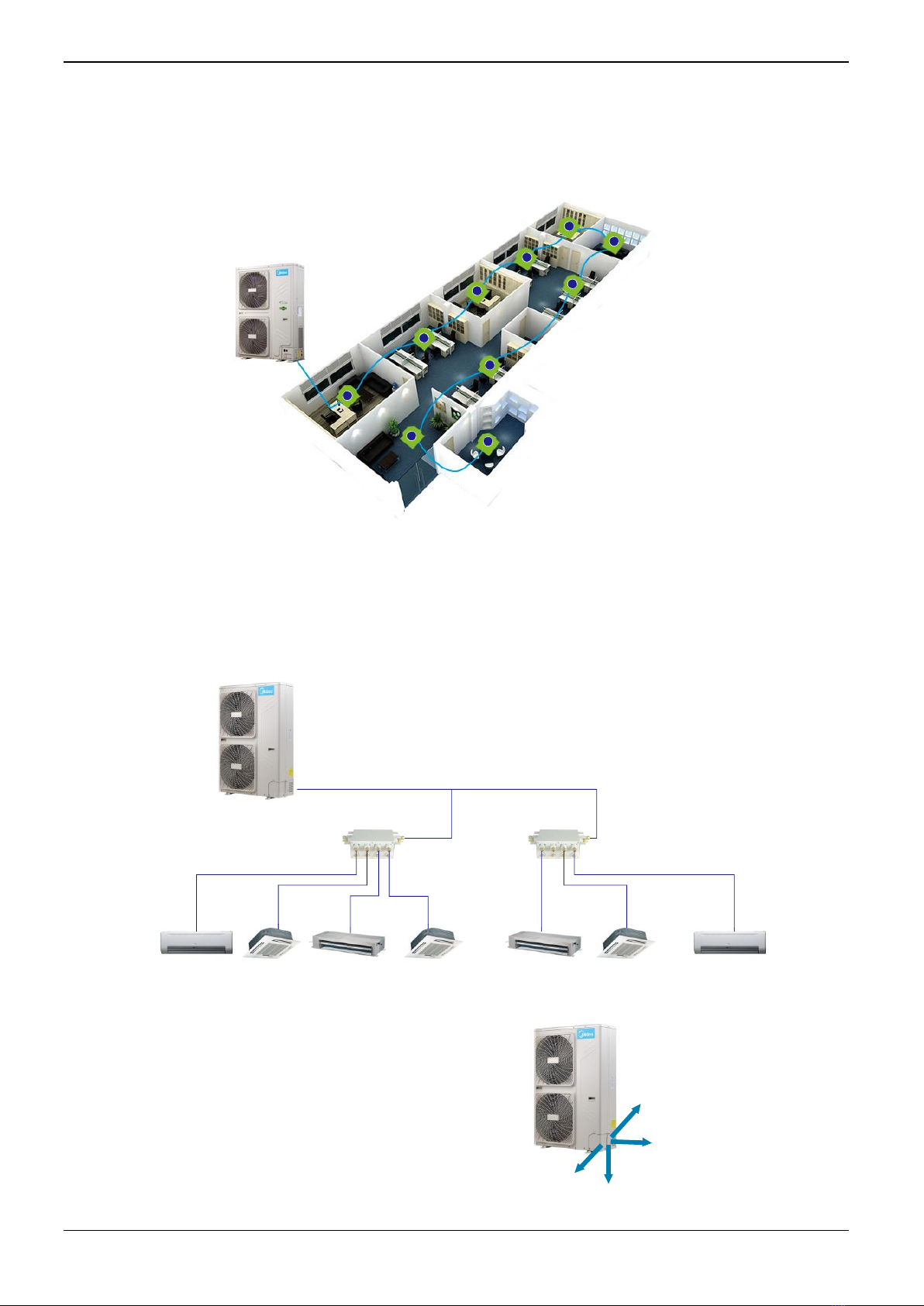

3.5 Flexible piping design
3.6 Space saving design
The Mini VRF units are slimmer and more compact, resulting in significant savings in installation space.
In some large residential and light commercial areas, such as villas, restaurants, usually it need more than
one indoor unit, which in turn requires multiple outdoor units.
Midea's Mini VRF system solves this problem, and retains buildings' original aesthetics.
The longest piping length is 70m
The first branch joint to the farthest IDUis 20m The IDUto the nearest branch joint is 15m
Level difference between IDUand ODUis 30m
Level difference between IDUs is 8m
Piping Length
Permitted Value
Total piping length (Actual) 100m
Longest piping
length
Actual 60m
Equivalent 70m
The first branch joint to the farthest IDU
20m
The IDU to the nearest branch pipe 15m
Level difference
between ODU~IDU
ODU up 30m
ODU down 20m
Level difference between IDU~IDU 8m

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
6 General Information
Front side
Bottom side
Back side
Right side
3.7 Auto Addressing
Outdoor unit can distribute addresses for indoor units automatically.
Wireless and wired controllers can query and modify each indoor unit's address.
3.8 More Convenient Piping Connector –Branch Box
Easier and safer installation thanks to a branch box that simplifies piping work and the adoption of screw
connection.
Both left and right pipe flare connectin from outdoor unit to branch box is reserved, which greatly simplifies field
installation.
3.9 Four-Way Piping Connection
A four-direction space is available for connecting
pipes and wiring in various installation sites.
1
2
3
4
5
6
7
8
910

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
General Information 7
4. Indoor Units Lineup

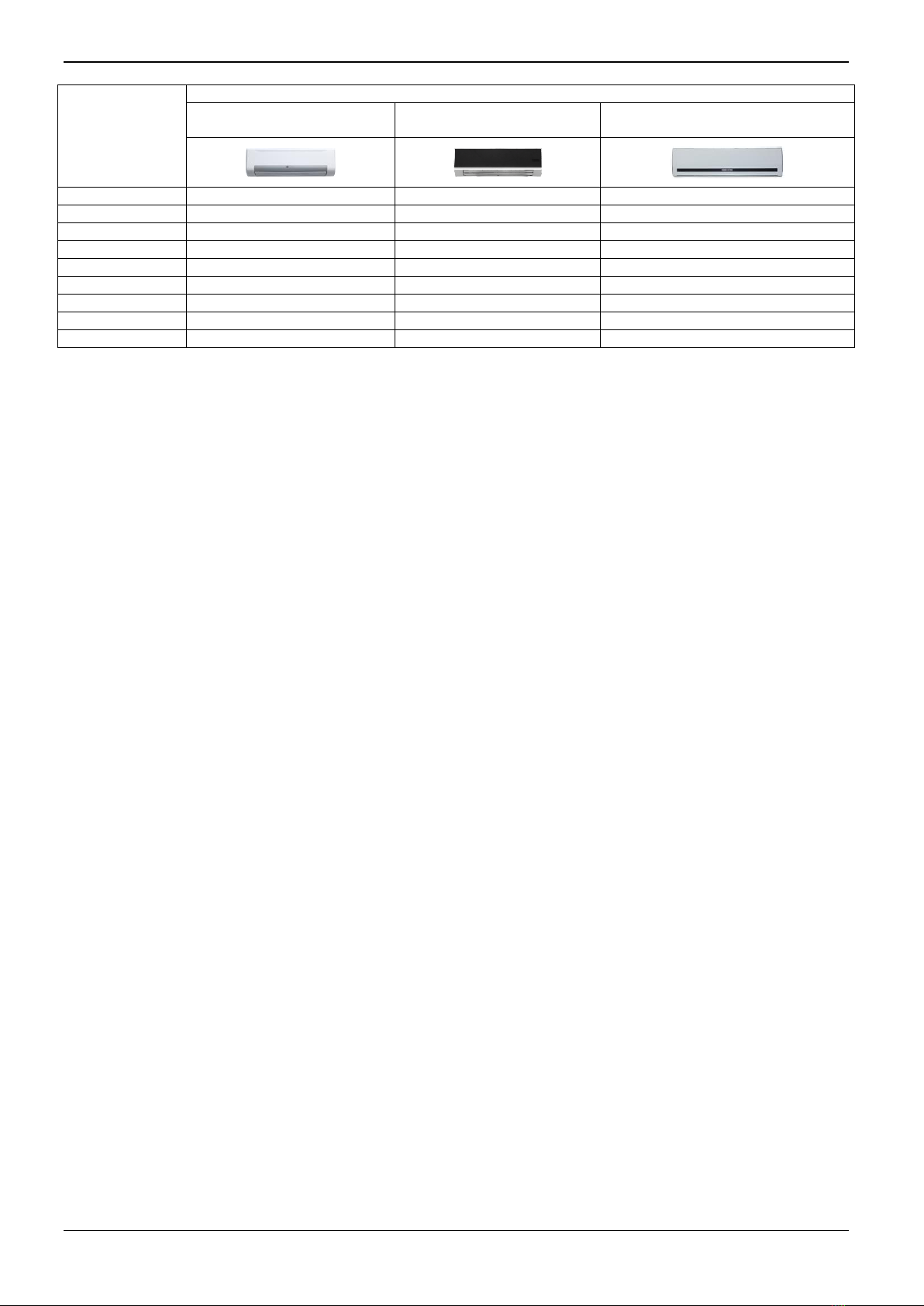

Capacity
(×100W)
Cassette type
One-way cassette
Two-way cassette
Compact four-way
cassette
Four-way cassette
15
●
18
●
22
●
●
●
28
●
●
●
●
36
●
●
●
●
45
●
●
●
●
56
●
●
●
71
●
●
80
●
90
●
100
●
112
●
140
●
Capacity
(×100W)
Duct type
Low static pressure duct
Medium static pressure duct
High static pressure duct
15
●
18
●
22
●
●
28
●
●
36
●
●
45
●
●
56
●
●
71
●
●
●
80
●
●
90
●
●
100
112
●
●
140
●
●
160
●
Capacity
(×100W)
Floor-standing/Ceiling & Floor/Console
Floor standing (exposed)
Floor standing (concealed)
Ceiling & floor
console
22
●
●
●
28
●
●
●
36
●
●
●
●
45
●
●
●
●
56
●
●
●
71
●
●
●
80
●
●
●
90
●
112
●
140
●
160
●

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
8General Information
Capacity
(×100W)
Wall mounted
Wall mounted
(S panel)
Wall mounted
(C panel)
Wall mounted
(R panel)
15
●
22
●
●
28
●
●
36
●
●
45
●
●
56
●
●
71
●
80
●
90
●
Note: If ODU connect only one IDU, the capacity of IDU should be not more than ODU.
If ODU connect more than one IDU, the capacity of each IDU should be not more than 8kW for refrigerant uniform distribution.
Due to continuous improvement, specifications are subject to change without prior notice.

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
Specifications & Performance 9
Part 2 Specifications & Performance
1. Specifications ..............................................................................................10
2. Dimensions ..................................................................................................12
3. Service Space ..............................................................................................13
4. Piping Diagrams...........................................................................................14
5. Wiring Diagrams ..........................................................................................15
6. Field Wiring ..................................................................................................16
7. Capacity Tables............................................................................................17
8. Electric Characteristics...............................................................................41
9. Sound Levels ...............................................................................................42
10. Operation Limits........................................................................................43

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
10 Specifications & Performance
1. Specifications
Sale Model
MDV-120W/DON1
MDV-140W/DON1
MDV-160W/DON1
Power supply
V-Ph-Hz
220-240V~50Hz & 208-230V~60Hz
Cooling
Capacity
kW
12.5
14.0
16.0
Input
kW
3.31
3.95
4.66
EER
kW/ kW
3.78
3.54
3.43
Heating
Capacity
kW
14.0
16.0
17.5
Input
kW
3.68
4.32
4.92
COP
kW/ kW
3.80
3.70
3.56
Max. current
A
30
Compressor
Model
ATQ420D1UMU
Type
Rotary
Brand
GMCC
Capacity
W
13100
Input
W
3420
Rated current(RLA)
A
6.85
Crankcase
W
25
Refrigerant oil
ml
VG74 1400ml+100ml
VG74 1400ml+100ml
VG74 1400ml+250ml
Outdoor fan
motor
Model
WZDK100-38G
Type
DC Motor
Brand
Panasonic / Nidec
Insulation class
E
Safe class
IP23
Input
W
2×100
Output
W
2×85
Rated current
A
2×0.9
Speed
r/min
800
Outdoor fan
Material
ASG20
Type
Axial fan
Diameter
mm
508
Height
mm
170
Outdoor coil
Number of rows
1.5
2
2
Tube pitch(a) ×row
pitch(b)
mm
25.4×22
Fin spacing
mm
1.4
Fin type (code)
Hydrophilic aluminum
Tube outside dia.and
type
mm
Ф7.94
Inner groove tube
Coil length ×height
mm
(870+840)×1276
Number of circuits
7
Outdoor air flow
m3/h
6000
Outdoor sound level(sound pressure
level )
dB(A)
57
Indoor unit connectable (Total Capacity)
45%~130%
Max. quantity of indoor unit
7
8
9
Outdoor
unit
Dimension
(W×H×D)
mm
900×1327×400
Packing
(W×H×D)
mm
1030×1456×435
Net/Gross weight
kg
95/105
99/109
100/110
Refrigerant
Type
R410A
R410A
R410A

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
Specifications & Performance 11
Charged volume
g
2800
3200
3800
Throttle type
Electronic expansion valve
Design pressure
MPa
4.4/2.6
Refrigerant
piping
Liquid side/ Gas side
mm
Ф9.53/Ф15.9
Ф9.53/Ф15.9
Ф9.53/Ф19.1
Max. refrigerant pipe
length
m
100
Max. difference in
level between indoor
units
m
8
Ambient temperaure
℃
Cooling: -15 to 46; Heating: -15 to 27
Notes:
Capacities are based on the following conditions:
Cooling: Indoor temperature 27℃DB/19℃WB; Outdoor temperature 35℃DB/24℃WB;
Heating: Indoor temperature 20℃DB/15℃WB; Outdoor temperature 7℃DB/6℃WB.
Piping length: Interconnecting piping length is 7.5m, level difference is zero.
Sound values are measured in a semi-anechoic room, at a position 1m in front of the unit and 1.2m above the floor.
Specifications are subject to change without prior notice for product improvement.

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
12 Specifications & Performance
2. Dimensions
Unit:mm
MODEL
A
B
C
D
E
F
H
120/140/160
900
600
366
320
400
360
1327
H
A
B
C D
E
F

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
Specifications & Performance 13

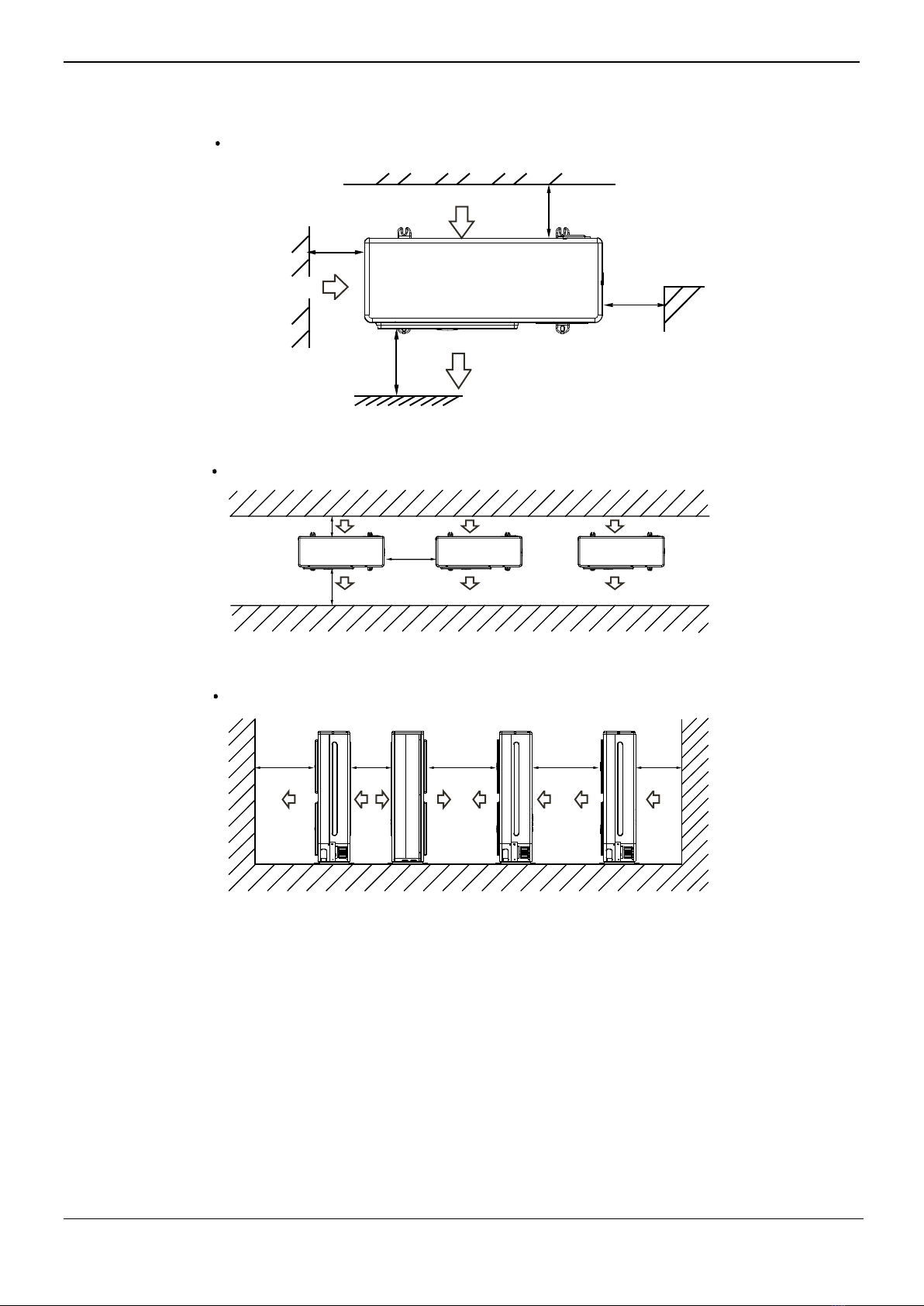

3. Service Space
Unit: mm
>300
>600
>300
>
2000
(Wall or obstacle)
Maintain
channel
Air outlet
Air inlet
Air inlet
Single unit installation
>600
>2000
>300
Parallel connect the two units or above
>2000 >500 >3000 >3000 >300
Parallel connect the front with rear sides

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
14 Specifications & Performance

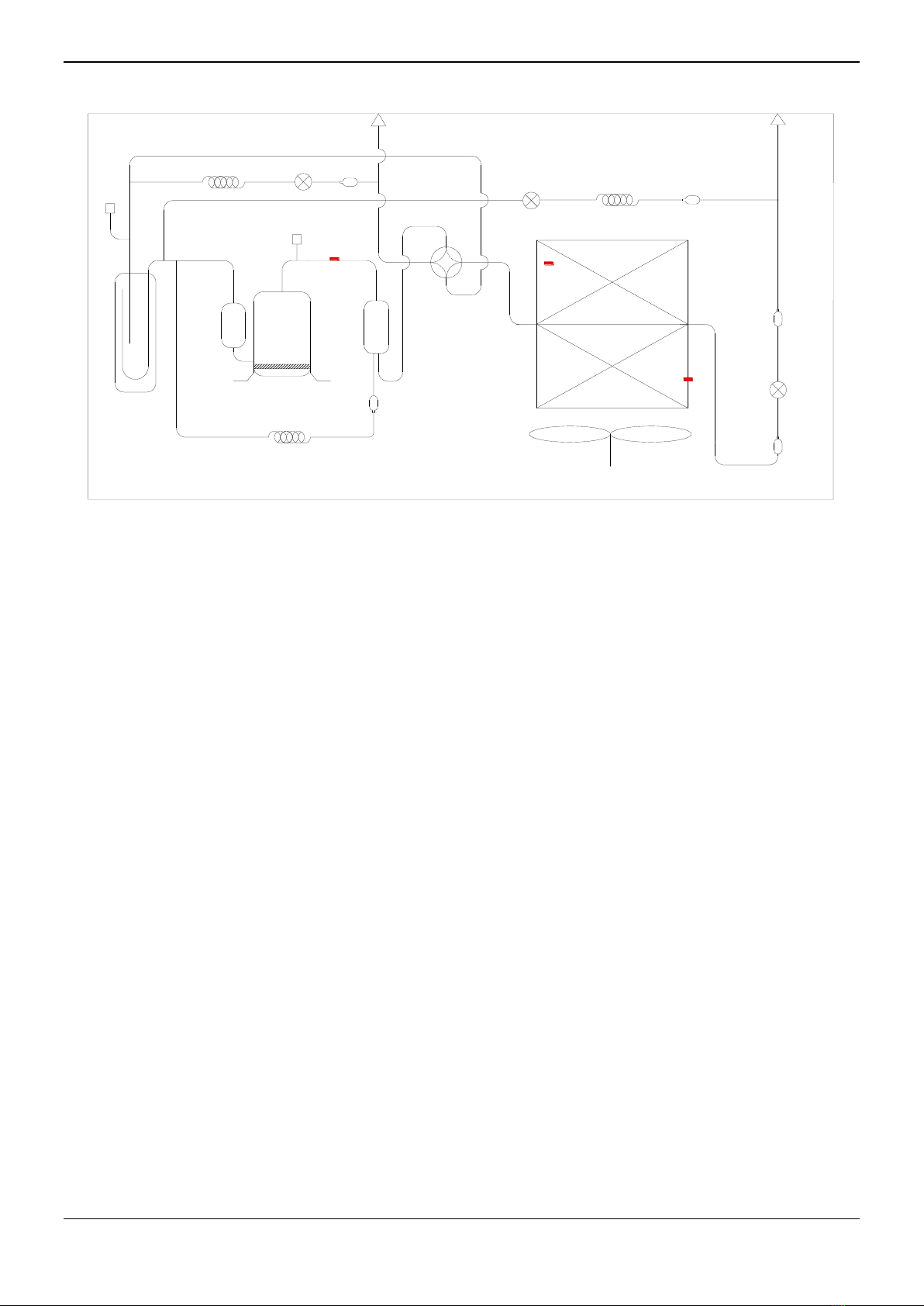

4. Piping Diagrams
High
pressure
switch
SV6
Low
pressure
switch
Compressor
Oil
seperator
Low
pressure
liquid
accumulator
can
Oil
seperator
Discharge
temperature
sensor
4-way
valve
Ambient
temperature
sensor
Condenser
temperature
sensor
DC fan
motor
Electronic
expansion
valve
SV5
Oil
return
capilary
Oil separator: used to separate oil from high pressure & temperature gas refrigerant, which is pumped out
from compressor. It makes the oil return back to each compressor very soon.
Low pressure liquid receiver: It is used to store the liquid refrigerant and oil; it can protect the compressor
from liquid hammer.
4-way valve: Closed in cooling mode and open in heating mode
Electronic expansion valve: The opening is of the valve is regulated according to the discharge air
temperature of compressor, used to regulating refrigerant flow.
High Pressure Switch: When the discharge pressure of compressor is 4.2Mpa or higher, the protection
switch will be triggered, and if the discharge pressure is down to 3.3MPa, the protection switch will be
recovered.
Low Pressure Switch: When thegas pressureback to compressor is 0.14Mpa or lower, the protection switch
will be triggered, and if the discharge pressure is down to 0.3MPa, the protection switch will be recovered.

MCAC-VTSM-2016 02-
R410A All DC Inverter Mini VRF
5. Wiring diagrams
15
Specifications & Performances
CT1
T5
T3
T4
PQ
XY(E) (E)
L
H-PRO
L-PRO
SV5
BLUE
BLUE
U
V
W
N
U
V
W
P
TR
STF1
BLUE
BLUE
T6
A2
A1
A3
123
45
EEV
FAN-DOWN
FAN-UP
3
3
SW3 Function
CT1
MAIN BOARD
POWER DRIVER
BOARD
3
3
OFF
Auto addressing
1
ON
2
ON
OFF
Cancel address
Manual addressing
Heating priority mode
Factory default
Cooling priority mode
First running
priority mode
Only response to
heating mode
Only response to
cooling mode
ORANGE
ORANGE
HEAT1
SV6
BLUE
BLUE
0
13 14
15
19
16
18
17
12
NO . NO .
20
21
L0
L1
L2
L5
L9
L8
L4
L7
Malfunction Code For Outdoor Unit
E.9.
unit and
CODE PART NAME
Speed difference >15Hz protection between
the front and the back clock
Speed difference >15Hz protection between
the real and the setting speed
Compressor discharge temperature
sensor malfunction
Compressor signal error
A fan in the A region run for more than
5 minutes in Heat mode
The bus voltage is less than 200V for 5S
Module protection
DC generatrix low voltage protection
DC generatrix high voltage protection
Phase sequence protection

R410AAll DC Inverter Mini VRF MCAC-VTSM-2016-02
16 Specifications & Performance
6. Field Wiring
Outdoor
Unit Indoor
Unit
Power wiring
(indoor)
Communication Bus
Power (220-240V~ 50Hz 1-Phase)
(208-230V~ 60Hz 1-Phase) Power (220-240V~ 50Hz 1-Phase) (208-230V~ 60Hz 1-Phase)
Indoor
Unit Indoor
Unit
wire distribution box
Switch / Circuit breaker Switch / Circuit breaker
Power wiring
(outdoor)
Central control
monitor (CCM) Computer
in broken line table, users can purchase the Central
control montior when necessary.
Single phase indoor unit
W ire controller
The reserved w ire control
function is indicated in broken
line table, users can purchase
the w ire controller when
necessary.
To wire controller
Display
board
WHITE
BLUE
BLACK
P QX Y E
YELLOW
GRAY
To outdoor
COMM.BUS
To Central Control
Monitor (CCM)
COMM. BUS
Power supply
Y/G
N
L
Please use Three-core shielded wire, and
connect the shielded layer to Grounding
XT1
XT3
BLACK
E

MCAC-VTSM-2016-02 R410AAll DC Inverter Mini VRF
Specifications & Performance 17
7. Capacity Tables
MDV-120W/DON1
Cooling
Combination
(%)
(Capacity
index)
Outdoor
temperature
(°C DB)
Indoor temperature(°CDB/WB)
DB:20.8,WB:14
DB:23.3,WB:16
DB:25.8,WB:18
DB:27,WB:19
DB:28.2,WB:20
DB:30.7,WB:22
DB:32,WB:24
TC
PI
TC
PI
TC
PI
TC
PI
TC
PI
TC
PI
TC
PI
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
130%
-5
11.0
1.35
13.1
1.65
15.2
1.77
15.7
1.84
16.5
1.90
16.9
2.06
17.3
2.07
-2
11.0
1.35
13.1
1.68
15.2
1.77
15.7
1.85
16.5
1.90
16.9
2.09
17.3
2.10
0
11.0
1.38
13.1
1.71
15.2
1.84
15.7
1.96
16.5
2.01
16.9
2.11
17.3
2.12
2
11.0
1.40
13.1
1.72
15.2
1.90
15.7
2.07
16.5
2.03
16.9
2.13
17.3
2.16
4
11.0
1.43
13.1
1.75
15.2
1.97
15.7
2.08
16.5
2.06
16.9
2.16
17.3
2.20
6
11.0
1.46
13.1
1.79
15.2
2.04
15.7
2.09
16.3
2.12
16.7
2.19
17.1
2.21
8
11.0
1.50
13.1
1.83
15.2
2.14
15.7
2.19
16.1
2.19
16.5
2.20
16.9
2.23
10
11.0
1.53
13.1
1.87
15.2
2.22
15.7
2.27
15.9
2.23
16.3
2.24
16.7
2.30
12
11.0
1.55
13.1
1.90
15.2
2.26
15.5
2.30
15.7
2.26
16.1
2.27
16.5
2.31
14
11.0
1.59
13.1
1.94
15.1
2.30
15.3
2.34
15.5
2.30
15.9
2.30
16.3
2.37
16
11.0
1.61
13.1
1.98
14.9
2.33
15.1
2.37
15.3
2.36
15.7
2.34
16.1
2.40
18
11.0
1.64
13.1
2.02
14.7
2.37
14.9
2.38
15.1
2.39
15.5
2.42
15.9
2.44
20
11.0
1.68
13.1
2.15
14.5
2.48
14.7
2.50
14.9
2.51
15.3
2.53
15.7
2.56
21
11.0
1.72
13.1
2.22
14.4
2.54
14.6
2.55
14.8
2.57
15.2
2.59
15.6
2.62
23
11.0
1.85
13.1
2.38
14.2
2.66
14.4
2.67
14.6
2.68
15.0
2.71
15.4
2.74
25
11.0
1.97
13.1
2.55
14.0
2.77
14.2
2.79
14.4
2.80
14.8
2.83
15.2
2.86
27
11.0
2.11
13.1
2.73
13.8
2.89
14.0
2.91
14.2
2.92
14.6
2.95
15.0
2.98
29
11.0
2.25
13.1
2.92
13.6
3.00
13.8
3.02
14.0
3.04
14.4
3.07
14.8
3.10
31
11.0
2.40
13.0
3.09
13.4
3.13
13.6
3.14
13.8
3.16
14.2
3.19
14.6
3.23
33
11.0
2.56
12.8
3.21
13.2
3.24
13.4
3.26
13.6
3.28
14.0
3.31
14.4
3.35
35
11.0
2.73
12.6
3.32
13.0
3.36
13.2
3.38
13.4
3.40
13.8
3.44
14.2
3.47
37
11.0
2.90
12.4
3.44
12.8
3.48
13.0
3.50
13.2
3.52
13.6
3.56
14.0
3.60
39
11.0
3.09
12.2
3.48
12.6
3.60
12.8
3.62
13.0
3.64
13.4
3.68
13.8
3.73
41
11.0
3.25
12.1
3.51
12.4
3.63
12.7
3.65
12.8
3.68
13.2
3.69
13.3
3.76
43
11.0
3.33
12.0
3.53
12.4
3.64
12.6
3.67
12.7
3.68
13.0
3.70
13.1
3.77
45
11.0
3.50
11.9
3.56
12.2
3.68
12.5
3.70
12.5
3.70
12.7
3.71
12.8
3.84
120%
-5
10.1
1.31
12.0
1.58
14.0
1.87
14.9
2.04
15.7
2.12
16.0
2.19
16.4
2.25
-2
10.1
1.32
12.0
1.60
14.0
1.89
14.9
2.05
15.7
2.15
16.0
2.21
16.4
2.26
0
10.1
1.33
12.0
1.61
14.0
1.91
14.9
2.06
15.7
2.17
16.0
2.22
16.4
2.26
2
10.1
1.33
12.0
1.62
14.0
1.92
14.9
2.07
15.7
2.18
16.0
2.24
16.4
2.27
4
10.1
1.35
12.0
1.65
14.0
1.95
14.9
2.09
15.7
2.21
16.0
2.25
16.4
2.27
6
10.1
1.36
12.0
1.66
14.0
1.97
14.9
2.12
15.7
2.23
16.0
2.26
16.4
2.28
8
10.1
1.37
12.0
1.68
14.0
2.00
14.9
2.14
15.7
2.25
16.0
2.27
16.4
2.29
10
10.1
1.39
12.0
1.70
14.0
2.02
14.9
2.18
15.7
2.25
16.0
2.28
16.4
2.30
12
10.1
1.42
12.0
1.73
14.0
2.06
14.9
2.22
15.4
2.26
15.8
2.27
16.1
2.32
14
10.1
1.44
12.0
1.76
14.0
2.10
14.9
2.27
15.2
2.28
15.6
2.30
16.0
2.35
16
10.1
1.47
12.0
1.80
14.0
2.14
14.9
4.10
15.0
2.31
15.4
2.34
15.7
2.38
18
10.1
1.50
12.0
1.84
14.0
2.21
14.6
2.36
14.8
2.37
15.2
2.39
15.6
2.41
20
10.1
1.53
12.0
1.91
14.0
2.38
14.5
2.48
14.6
2.49
15.0
2.51
15.3
2.53
21
10.1
1.54
12.0
1.97
14.0
2.46
14.3
2.53
14.5
2.54
14.9
2.57
15.3
2.59
23
10.1
1.65
12.0
2.12
14.0
2.64
14.1
2.65
14.3
2.66
14.7
2.69
15.0
2.71
25
10.1
1.76
12.0
2.26
13.7
2.75
13.9
2.76
14.1
2.78
14.5
2.80
14.9
2.83
27
10.1
1.88
12.0
2.42
13.6
2.86
13.7
2.88
13.9
2.90
14.3
2.92
14.6
2.95
29
10.1
2.00
12.0
2.58
13.3
2.98
13.5
3.00
13.7
3.01
14.1
3.04
14.5
3.07
31
10.1
2.14
12.0
2.76
13.1
3.10
13.3
3.11
13.5
3.13
13.9
3.16
14.2
3.19
33
10.1
2.28
12.0
2.94
12.9
3.22
13.1
3.23
13.3
3.25
13.7
3.28
14.0
3.31
35
10.1
2.42
12.0
3.14
12.7
3.33
12.9
3.35
13.1
3.37
13.5
3.40
13.8
3.44
37
10.1
2.58
12.0
3.34
12.5
3.45
12.7
3.47
12.9
3.49
13.3
3.52
13.6
3.56
39
10.1
2.74
12.0
3.53
12.3
3.57
12.5
3.59
12.7
3.61
13.1
3.65
13.4
3.68
41
10.1
2.82
11.9
3.55
12.2
3.59
12.4
3.62
12.6
3.63
13.0
3.66
13.0
3.71
43
10.1
2.86
11.8
3.58
12.1
3.62
12.3
3.63
12.5
3.65
12.8
3.67
12.8
3.79
45
10.1
2.89
11.7
3.61
12.0
3.65
12.2
3.66
12.4
3.67
12.5
3.68
12.7
3.87
