Midea MF200D85 User manual

Read This Manual
Read all instructions and explanations for the installation before use.
Follow the instructions carefully. Keep the operation instructions
handy for later use. If the appliance is sold or passed on, ensure that
the new owner always receives this operation instructions.
OWNER’S MANUAL
Washer Dryer
MODEL:
MF200D85B
Washing Machine
Washer Dryer
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !

SAFETY INSTRUCTIONS
Safety Instructions ...........................................
INSTALLATION
Product Description ........................................
Installation ...........................................................
OPERATION

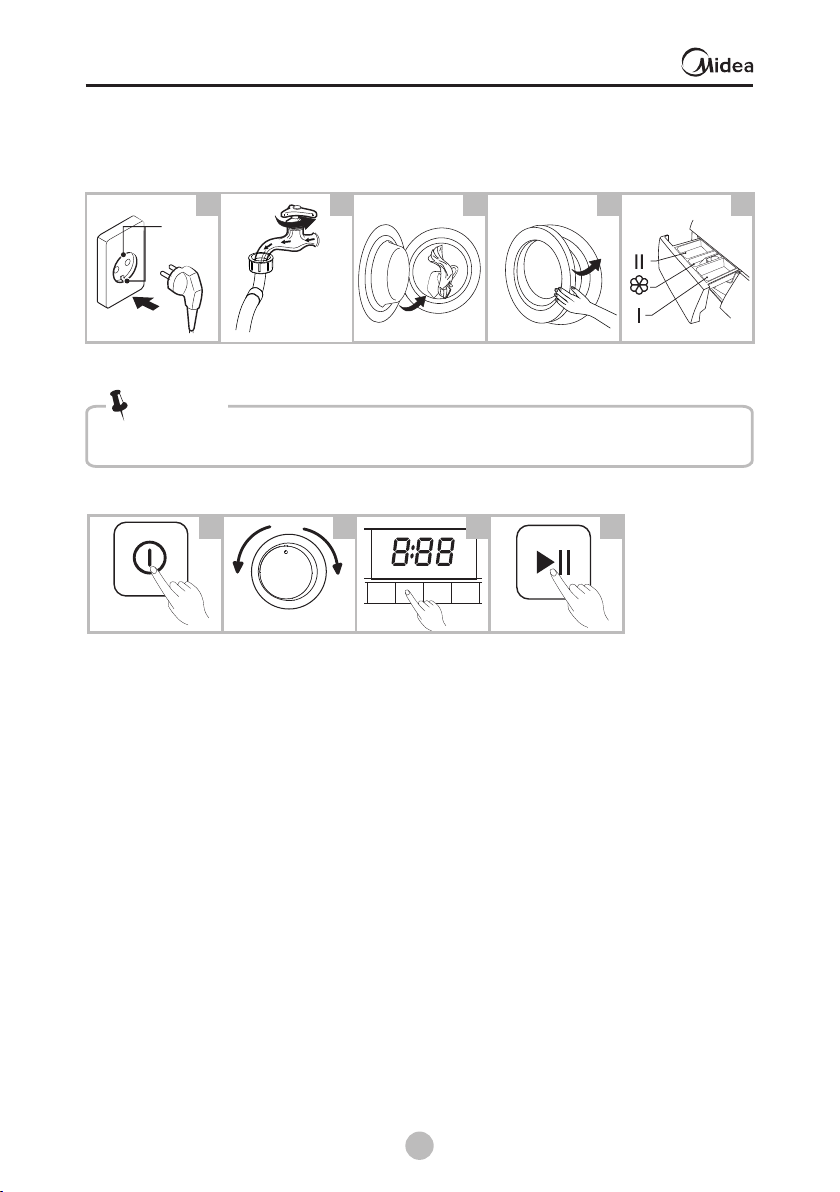

Quick Start ............................................................

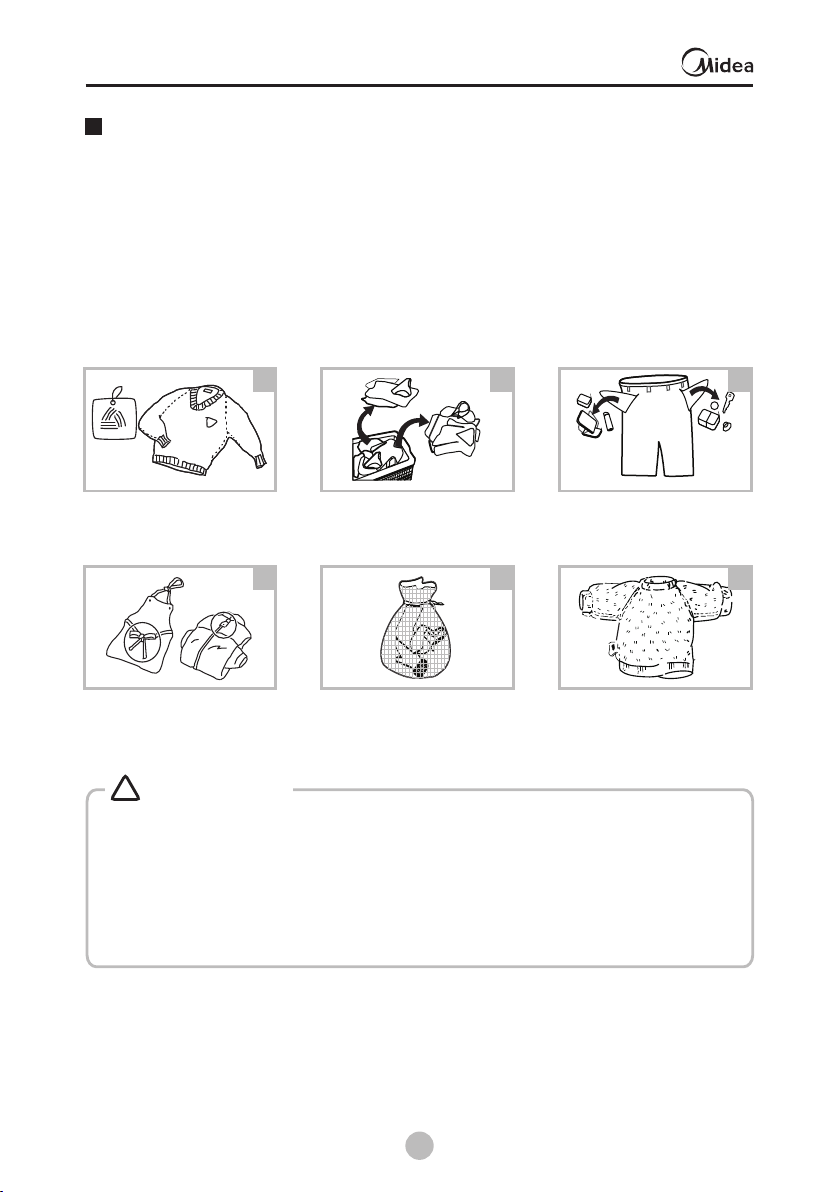

Before Each Washing ......................................

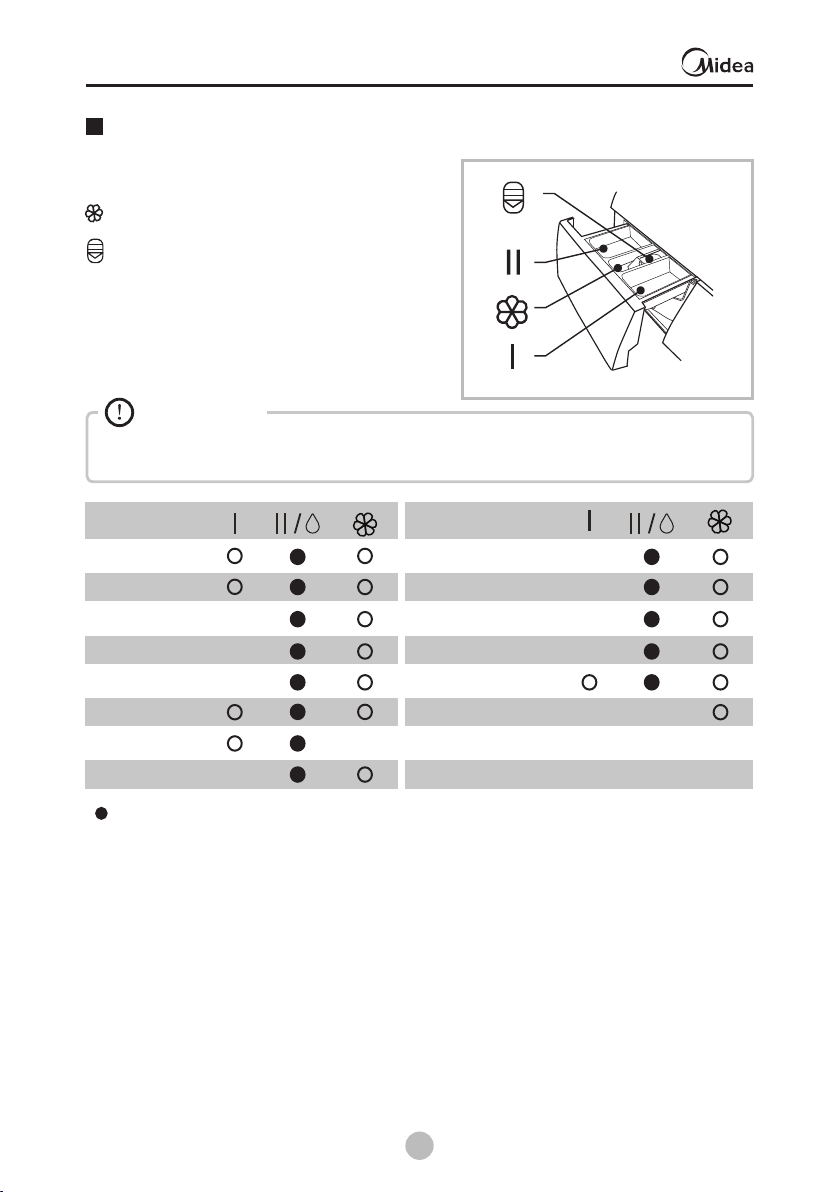

Detergent Dispenser .......................................
Control Panel .......................................................
Programmes.........................................................
Option............................................................. .......
MAINTENANCE
Cleaning and Care ................................... ........
Trouble Shooting ................................................
Technical Specifications ................................
..
..
2
9
10
13
15
16
18
19
21
25
29
30
CONTENTS
1

Please read the following safety information thoroughly and follow it
strictly to minimize the risk of fire or explosion, electric shock and to
prevent property damage, personal injury or loss of life. Failing to follow
these instructions shall void any warranty.
its service agent or similarly qualified persons in order to avoid a hazard.
•If the machine is damaged, it must not be operated unless repaired by
the manufacturer, its service agent or similarly qualified persons.
Risk of electric shock!
•If the supply cord is damaged, it must be replaced by the manufacturer,
ELECTRIC SHOCK HAZARD
SAFETY INSTRUCTIONS
Safety Instructions
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
This combination of symbol and signal word indicates
Warning!
a potentially dangerous situation which may result in
slight or minor injuries.
This combination of symbol and signal word indicates
Note!
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
This combination of symbol and signal word indicates
Caution!
Warning!
2

SAFETY INSTRUCTIONS
•The appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
•Children should be supervised that they do not play
with the appliance.
•Children 3 years and under shall be kept away from
the appliance or continuously supervised.
•Animals and children may climb into the machine.
Check the machine before every operation.
•Do not climb or sit on the appliance.
INSTALLATION LOCATION AND SURROUNDING
•All washing and additional substances are to be kept
in a safe place out of the reach of children.
•Do not install the machine on a carpet floor. The
obstruction of the openings by a carpet can damage
the machine.
•Keep the appliance clear from heating sources and
direct sunlight to avoid plastic and rubber parts to
corrode.
•Do not use the appliance in humid environments or
rooms containing explosive or caustic gas. In case of
water leakage or water splashes let the appliance dry
in the open air.
•The appliance must not be installed behind a
lockable door, a sliding door or a door with a hinge on
the opposite side to that of the washer dryer.
3

SAFETY INSTRUCTIONS
•Do not operate the machine in rooms with a
temperature of below 5°C. This can cause damages to
parts of it. If it is unavoidable, make sure to drain the
water completely from the appliance after every use
(see „Maintenance - Cleaning of drain pump filter“) to
avoid damages caused by frost.
•Never use flammable sprays or substances in the
immediate proximity of the appliance.
INSTALLATION
•Remove all packaging material and transport bolts
before using the appliance. Otherwise, serious
damage may result.
•This appliance is equipped with a single inlet valve
and can be connected to the cold water supply only.
•Mains plug must be accessible after installation.
•Before washing clothes for the first time, the product
shall be operated once throughout all the procedures
without any clothes inside.
•Before using the washer dryer, the product shall be
calibrated.
•Do not put any excessively heavy objects on the
appliance, like water containers or heating devices.
•The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
•Max. Inlet water pressure 1 MPa. Min. inlet water
pressure 0.05 MPa.
ELECTRICAL CONNECTION
•Make sure the supply cable is not trapped by the machine, it can get
damaged.
•Connect the product to a grounded outlet protected by a fuse
complying with the values in the “ Technical specifications“ table.
The grounding installation has to be made by a qualified electrician.
Ensure that the machine is installed in accordance with the local
regulations.
4

SAFETY INSTRUCTIONS
•Water and electrical connections must be carried
out by a qualified technician in accordance with the
manufacturer‘s instructions and local safety
regulations.
•Don´t use multiple plugs or extension cords.
•The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
•Do not pull the plug out of the mains outlet if there is flammable gas around.
•Never pull out power plug with wet hands.
•Always pull at the plug, not at the cable.
•Always unplug the appliance if it is not being used.
Warning!
WATER CONNECTIONS
•Check the connections of the water inlet tubes, the
water tap and the outlet hose for possible problems
due to changes of water pressure. If the connections
loosen or leak close the water tap and get it repaired.
Do not use the appliance before the pipes and hoses
are installed properly by qualified persons.
•Glass door may become very hot during the
operation. Keep children and pets far away from the
machine while it is operating.
•The water inlet and outlet hoses have to be safely
installed and remain undamaged. Otherwise, water
leakage can occur.
•Do not remove the drain pump filter while there is
still water in the appliance. Big quantities of water
can leak out, and there is a risk of scalding due to hot
water.
5

SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
•Never stop the washer dryer before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat can dissipate.
•The washer dryer is not to be used if industrial chemicals have been used for
cleaning. Risk of explosion.
Warning!
！
•Never use any flammable, explosive or toxic solvents.
Do not use gasoline and alcohol etc. as detergents. Only
select detergents that are suitable for machine washing.
•Make sure that all pockets are emptied. Sharp and rigid
items such as coins, brooches, nails, screws, stones etc.
may cause serious damages to this machine.
•Remove all objects from pockets such as lighters and
matches before use the appliance.
•Thoroughly rinse items that have been washed by
hand.
•Do not dry unwashed items in the appliance.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, wax and wax removers should be
washed in hot with an extra amount of detergent before
being dried in the appliance.
•Items containing foam rubber (latex foam), shower
caps, water proof textiles, rubber backed articles and
clothes or pillows fitted with foam rubber pads should
not be dried in the machine
•Fabric softeners or similar products should be used as
recommended in their instructions.
•Never try to open the door forcefully. The door will
unlock shortly after the end of a cycle.
•Please do not close the door with excessive force. If it is
found difficult to close the door, please check if the
clothes are properly inserted and distributed.
6

SAFETY INSTRUCTIONS
•Always unplug the appliance and close the water tap
before cleaning and maintenance and after each use.
•Never pour water over the appliance for cleaning
purpose. Risk of electric shock!
•Repairs shall only be carried out by the manufacturer,
its service agent or similarly qualified persons in order
to avoid a hazard. The producer will not be
responsible for damages caused by the intervention
of not authorized persons.
TRANSPORT
•Before Transport:
-Bolts shall be reinstalled to the machine by a
specialized person
-Accumulated water shall be drained out of the
machine
•This appliance is heavy. Transport with care. Never
hold any protruding part of the machine when lifting.
The machine door cannot be used as a handle.
INTENDED USE
The product is intended only for home use and for
textiles in household amounts suitable for machine
washing and drying. This appliance is for indoor use
only and not intended for built in use. Only use
according to these instructions. The appliance is not
intended for commercial use.
Any other use is considered as improper use. The
producer is not responsible for any damage or injuries
that may result of it.
•This appliance is intended to be used in household and similar
applications such as:
-Staff kitchen areas in shops, offices and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-Bed and breakfast type environments;
-Areas for communal use in blocks of flats or in launderettes.
7

SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging Old appliance/
8

INSTALLATION
Accessories
Product Description
4 x Cover caps
1 x Supply hose
cold water
• The product picture is for illustration only, please refer to real product as
reference.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service flap
Door
Water supply hose
Top cover
Drain hose
1 x Owner’s manual
9

INSTALLATION
Installation
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0°C
5.Keep far away from the heat sources such as coal or gas burning appliances.
Unpacking the washer dryer
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging.Make sure the small triangle
foam (a) is removed with the bottom packaging together. If not, lay the unit down on
the side surface and remove it manually.
4. Remove the inlet hose from the drum.
3. Remove the tape securing the power supply cord and drain hose.
• Stability is important to prevent the product from
wandering! Make sure the machine is standing leveled and
stable.
• Make sure that the product does not stand onto the power
cord.
• Make sure to maintain the minimum distances from the
walls as shown in the picture
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
w
w
W> 20mm
Installation area
a
10

INSTALLATION
Remove transport bolts
• You must remove the transport bolts from the backside before using the product.
Warning!
！
Loosen the 4
transport bolts with
a spanner.
Remove the bolts
including the rubber
parts and keep them
for future use.
Close the holes
using the cover
caps.
Levelling the washer dryer
• The lock nuts on all four feet must be screwed tightly against the housing.
Warning!
！
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with
a spanner. Make sure the machine is
level and steady.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush or modify water inlet hose.
Warning!
！
Connect the water supply
hose to the water inlet
valve and a water tap with
cold water as indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Note!
11

INSTALLATION

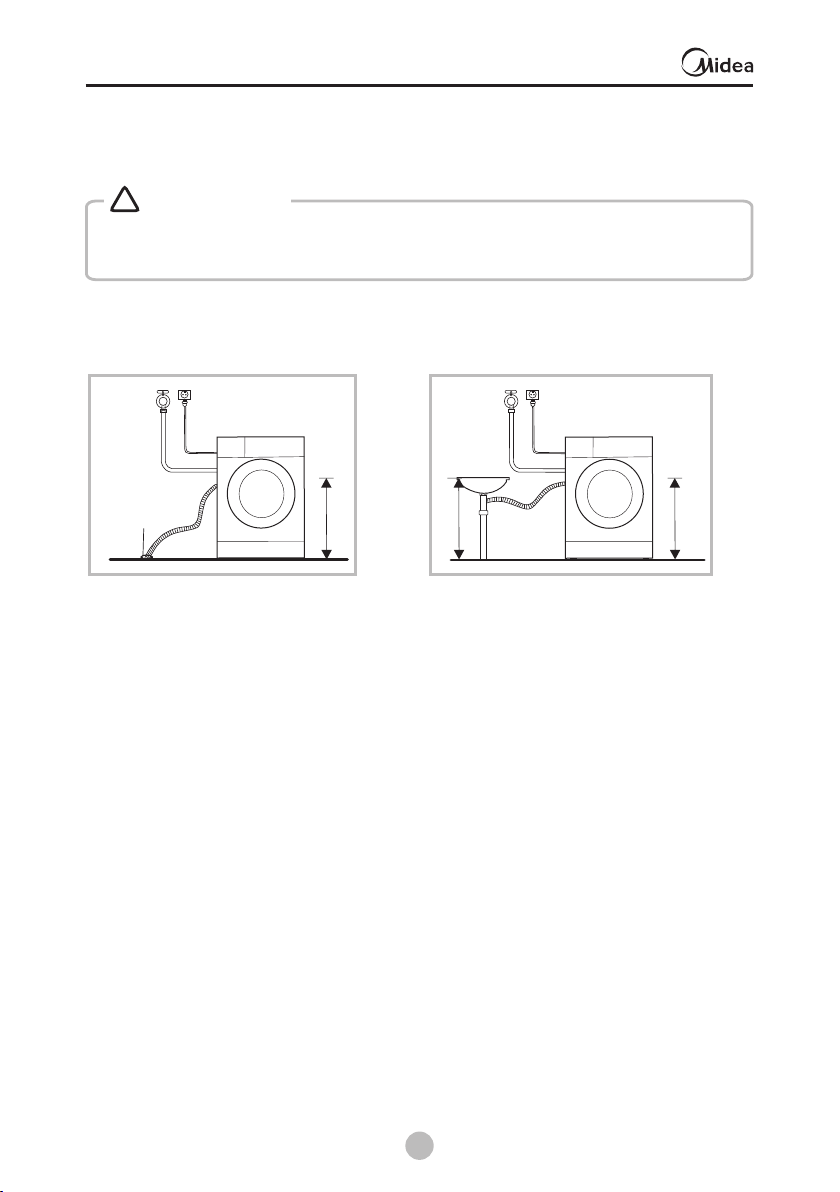

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough.
2.Connect it to the branch drain pipe of
the trough.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Warning!
！
Water
trough
100cm
Max.
Min.60cm
100cm
Max.
100cm
Max.
Min.60cm
12

• Before washing, please make sure the washer dryer is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove
any residual water and to neutralize potential odors, it’s recommended to
clean your appliance before first use. For this reason, start the Cotton program
at 90°C without laundry and detergent.
Quick Start
Caution!
OPERATION
It’s recommended to calibrate the washer dryer, so that provide the best
performance.
The appliance is able to detect the amount of laundry loaded. This function is
optimizing the product performance by minimizing energy and water
consumption, saving you money and time. For this reason it’s recommended to
calibrate the appliance for best use.
1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washer dryer and press “Turbo” and “Airfresh” simultaneously
for 10 seconds until “t19” is displayed;
4- Press [ ] to start the appliance and wait till “****” is displayed.
Calibration
13

OPERATION
2. Washing
Power on
Select programme Select function or
remain default
settings
Press
Start/Pause to
start the program
1 2 3 4
Buzzer beep and “End” on display.
3. After Washing
1. Before Washing
• Detergent need to be added in compartment I if the pre-wash function is selected.
Note!
Open tap
Load
Close door
Plug in
Add detergent
1 2 3 4 5
Main
wash
Prewash
Softener
earth
terminal
14

• Do not wash or dry articles that have been cleaned in, washed in, soaked in,
or dabbed with combustible or explosive substances like wax, oil, paint,
gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause
alarm due to unbalance. Therefore it is suggested to add one or two more
laundry items to the wash so that spin can be done smoothly.
• The ambient temperature of the washer dryer should be 5-40°C. If used under
0°C, the inlet valve and draining system may be damaged. If the machine is
installed under freezing conditions, it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose can unfreeze before
use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine
washing properly.
Tie together long textile
strips and belts, close zips
and button
Take all items out of the
pockets
Put small items into a
laundry bag
Check the care label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Sort laundry according to
color and textile type
Warning!
！
OPERATION
1 2 3
4 5 6
15

Detergent Dispenser
Caution!
• Detergent only need to be added in "compartment I “after selecting
pre-wash function.
OPERATION
Pre wash
Main wash
Softener
II
I
Release button to
pull out the dispenser
Programme
Cotton
Mix
Wash and Dry
Auto Dry
Time Dry
Allergy Care
Steam Care
1h WD
Programme
Quick 15’
Cold Wash
ECO 40-60
Wool
Bulky
Rinse & Spin
Spin Only
Drum Clean
Means must ○ Means optional
16

Detergent Recommendation
OPERATION
Agglomerating or ropy detergent or additive can be diluted in some water
before pouring it into the detergent dispenser, to avoid its inlet to get blocked
and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap
water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less
detergent.
• Highly concentrated (compact detergent) requires particularly accurate
dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the
laundry
•
Note!
Recommended washing
detergent
Heavy-duty detergent with
bleaching agents and
optical brighteners
Colour detergent without
bleaching agent and optical
brighteners
Color or mild detergent
without optical brighteners
Mild washing detergent
Special wool detergent
Wash cycles
Cotton,ECO 40-60,Mix,Bulky
Cotton,ECO40-60,Mix,Bulky,
Cold Wash
Cold Wash
Wool
Wool
Washing
temp.
20/30
40/60/
20 30/
20 30/
Type of laundry and textile
White laundry made from
boil-proof cotton or linen
Coloured laundry made
from cotton or linen
Coloured laundry made
from easy care fibres or
synthetic materials
Delicate textiles, silk,
viscose
Wool
Cold/20/
30/40
Cold/20/
30/40
17

OPERATION
On/Off
Turn the appliance on and off.
Start/Pause
Start or pause your programme.
Programmes
Available according to the laundry type.
Option
This allows you to select additional
functions and will light when selected.
1
1
3
1
2
4
Display
The display shows settings, estimated remaining time, options and status messages.
5
Control Panel
5
3
21
1
4
Reload
B
Door Lock
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
AB C
G
Delay
C
Child Lock
E
D E
KI
F
J
SteamCare
F
AutoClean
G
Pre Wash
H
Wash
I
Rinse
J
H
Spin
K
L
M
N
Dry
L
Dry
M
Time Dry
N
O
Airfresh
O
18

Programmes
OPERATION
Programme
Washing Load/Dry load(kg)
Display Time
8.5
Cotton
Mix
Wash and Dry
Auto Dry
Time Dry
Allergy Care
Steam Care
Quick 15’
Cold Wash
ECO 40-60
Wool
Bulky
Rinse & Spin
Spin Only
Drum Clean
1h WD
maybe different with the parameters in above mentioned table.
• The parameters in this table are only for user's reference. The actual parameters
Note!
8.5/6.0
8.5/6.0
6.0/6.0
--/6.0
--/0.5
4.0
4.0
2.0
4.0
8.5
2.0
8.5
8.5
8.5
--
1.0/1.0
8.5
3:49
1:30
5:04
4:14
0:40
2:38
1:57
0:15
0:58
3:35
1:07
1:48
0:30
0:12
1:18
0:59
19
