Midea MFC80-DU1403B/C14E-EU(NE) User manual

Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
OWNER’S MANUAL
Washer Dryer
MFC80-DU1403B/C14E-EU(NE)

1
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATIONS
Quick Start .............................................................
Before Each Washing ..............................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions .....................................................
Programmes ..........................................................
Washing Programmes Table .....................................
MAINTENANCES
Cleaning And Care ....................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiches ........................................................
2
8
9
12
13
14
15
16
18
20
21
22
25
26
27

For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the
appliance from the mains.
• If the supply cord is damaged, it must be replaced by the
The electric shock!
2
SAFETY INSTRUCTIONS
Safety Instructions
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
This combination of symbol and signal word indicates
Warning!
！
a potentially dangerous situation which may result in
slight or minor injuries.
This combination of symbol and signal word indicates
Note!
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
This combination of symbol and signal word indicates
Caution!
Warning!
！

3
• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
• Pull out its plug from the power socket before cleaning
or maintenance.
• Do not use any socket with rated current less than that
of appliance. Never pull out power plug with wet hand.
• Please remember to disconnect water and power supply
immediately after the clothes are washed.
Risk to children!
• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Kids should be supervised that they do not play with
the appliance.
SAFETY INSTRUCTIONS

• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of explosion!
•
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
• The washer dryer is not to be used if industrial chemicals
have been used for cleaning.
• The exhaust air must not be discharged into a flue which is
for exhausting fumes from appliances burning gas or
other fuels.
• Before hand thoroughly rinse items of washing by hand.
Do not wash or dry articles that have been cleaned in, washed
Installing the product!
4
• This appliance is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• The appliance shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• The appliance with single inlet valve only can be
connected to the cold water supply. The appliance with
double inlet valves should be correctly connected to the
SAFETY INSTRUCTIONS
Caution!

5
hot water and cold water supply.
• Plug must be accessible after installation.
• The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the washer dryer.
• The appliance shall not be installed at a humid place.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• The product is only for home use and is only designed for
the textiles suitable for machine washing and drying.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
5. That the hands shall not be inserted into running
water extracting tub.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
SAFETY INSTRUCTIONS
Operating the appliance!

6
• Before using the wash machine, the product shall be
calibrated.
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door. Please do not
open he door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• After the program is completed, Please wait for two
minutes to open the door(Some model).
• Never refill the water by hand during washing.
• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products. it be placed in a tumble dryer they should first
be washed in hot water with extra detergent , this will
reduce, but not eliminate, the hazard.
• Adequate ventilation has to be provided to avoid the
back flow of gases into the room from appliances
burning other fuels, including open fires.
• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers,turpentine,waxes and wax removers should be
washed in hot with an extra amount of detergent before
being dried in the appliance.
SAFETY INSTRUCTIONS

7
• Items such as foam rubber (latex foam), shower caps,
water proof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the machine.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• The machine whose lid can be opended during water
extraction,that it takes 15s or more for complete stop of
water extracting chamber tub.
• The final part of a washer dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.
• Remove all objects from pockets such as lighters and
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
matches before use the appliance.
• WARNING: Never stop a washer dryer before the end of
the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
SAFETY INSTRUCTIONS

8
INSTALLATION
Accessories
Product Description
Transport
hole plug
Supply hose hot
water (optional)
Supply hose
cold water
Drain hose
(optional
support
)
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual

9
INSTALLATION
Installation
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0°C
5.Keep far away from the heat resources such as coal or gas.
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing.Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
• Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on
the power cord.
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product , so make sure
you keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area

9
10
INSTALLATION
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washer dryer
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush, modify or sever water inlet hose.
• For the model equips hot valve,connect it to hot water tap with hot water supply
hose. Energy consumption will decrease automatically for some program.
!
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washer dryer
2.Connection between screw tap and inlet hose.
slide bushing

10
11
INSTALLATION
Warning!
！

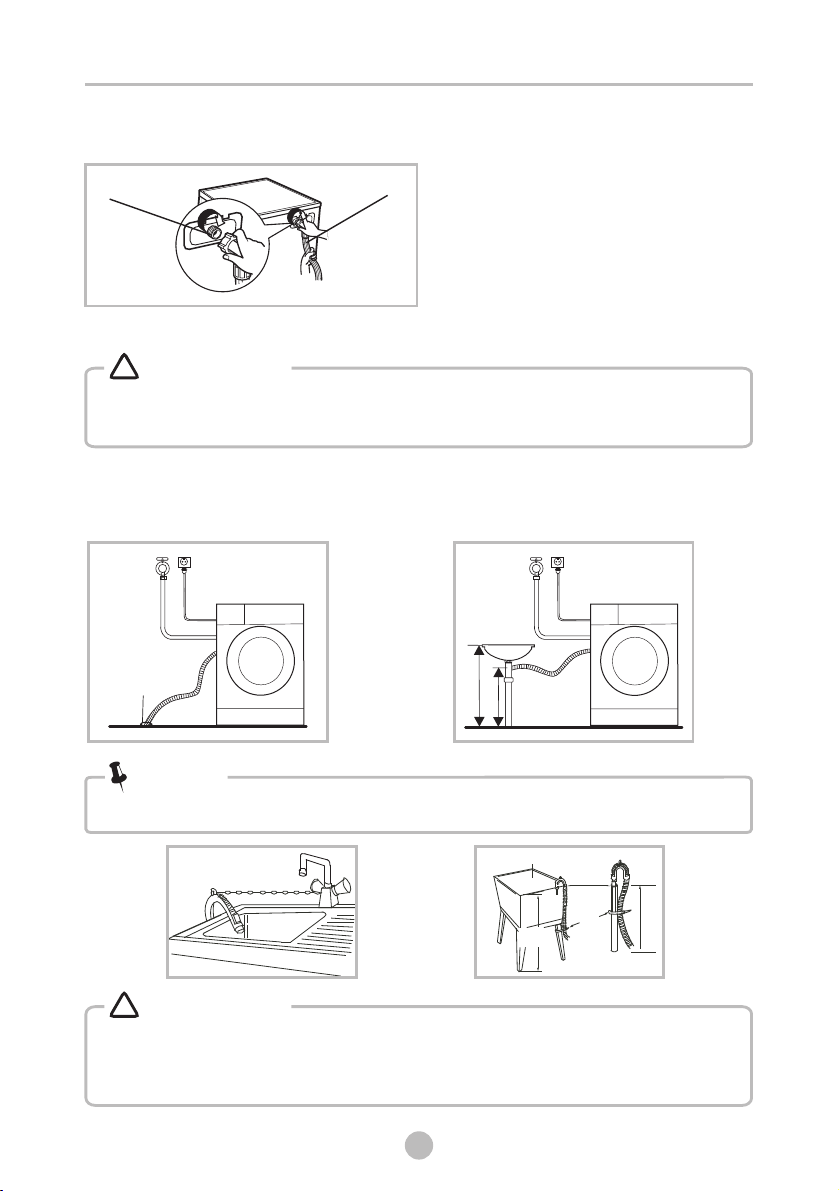

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
Min.60cm
100cm
Max.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
• If the machine has drain hose support, please install it like the following .
Warning!
！Warning! ！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

• Before washing, please make sure it’s installed properly.
• Before washing at first time, the washing machine shall be operated in one
round of the whole procedures without clothes in as follows.
1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
• Detergent need to be added in "case I “after selecting pre-washing for machines
with this function.
1 2 3 4 5
2. Washing
Power On
Select Programme Select function or
default
Start up
1 2 3 4
Note!
Caution!
OPERATIONS
Main
wash
Prewash
Softener
It’s recommend to calibrate the wash machine so that can serve you better.
1- Empty the wash machine;
2- Plug in;
3- Power on the wash machine and press “Speed” and “Delay” at the same time
within 10 seconds then display “t19”
4- Press to start the wash machine and wait till display “****”
Calibration
10
12

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0°Cor less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label

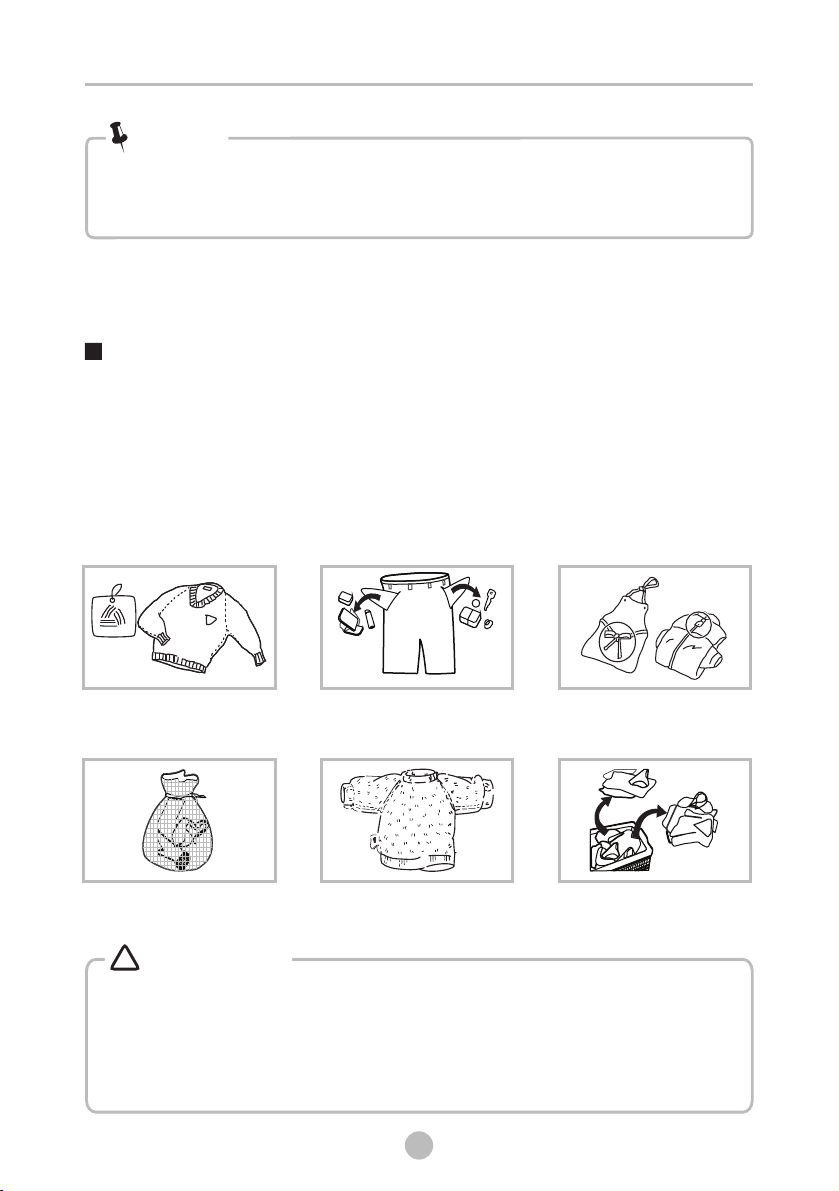

Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS
Buzzer beep or “End” on display.
3. After Washing
• 1.
2.
as standard.
If default is selected, step 3 can be skipped.
The function button line chart is for reference only, please refer to real product
Note!
10
13

10
14
Programme
1 Hour W/D
Cotton
Mix
Synthetic
Wash and Dry
Dry Only
Air Wash
Spin Only
Means must ○ Means optional
Programme
Rinse & Spin
ECO 40-60
Intensive
Delicate
Wool
20℃
Quick 15'
Detergent Dispenser
Pre Wash detergent
Main Wash detergent
Softener
II
I
Pull out the dispenser
 As for the agglomerated or ropy detergent or additive, before they are
poured into the detergent box, it is suggested to use some water for
dilution to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
 Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!
Caution!
 Detergent only need to be added in "case I after selecting pre-washing
for machines with this function.
OPERATIONS

On/Off
Product is switched On/Off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
 The chart is for reference only, Please refer to real product as standard.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
10
15
Control Panel
OPERATIONS
Model:MFC80-DU1403B/C14E-EU(NE)
531
2
41
1
600 800
ReLoad
M
Remain
A
Delay
B
Extra Dry
C
D
Normal Dry
E
F
G
Child Lock
K
L
Speed
I
Wash Time Delay Time Error End
H
Gentle Dry
Door Lock
J
O
Extra Wash-Soak-Anti-crease
No Buzzer
Prewash-Wash-Rinse-Spin
A B C D E
F
G
I
Temp.
H
J K L M
N
N
O
P
Speed Wash-Extra Rinse-Prewash
P
Air Dry
600 800

Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.);
3.Press [Start/Pause] to commence the delay operation
Choose the Programme StartSetting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme already started, should switch off programme to reset a new one.
Option
Caution!
 If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, the program will continue.
10
16
OPERATIONS
Extra Wash
Very dirty clothes can choose it, select it can increase the washing time and
intensity to increase the washing effect.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
Speed Wash
The function can decrease the washing time.
My Cycle
After choosing the programme and setting the options, press [Dry] 3 sec. before
start to wash.The default setting course is Cotton.
To memory the frequently used programme.
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Anti-Crease
Anti-Crease function can be used to reduce the wrinkles of clothes.

OPERATIONS
Reload
This operation can be executed during the washing progress. When the drum is
still rolling and there is large amount of water with high temperature in the drum.
The state is unsafe and the door cannot be opened forcefully. To press
[Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway
function. Please follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.
Start
Press[Start/Pause]3sec.
Clothes
Reload the clothes
10
17
Dry
Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry
(Normal)/ Gentle Dry(Soft).
Extra Dry:Need to wear clothes immediately ,we can choose this function
Normal Dry(Normal):The normal dry procedure
Gentle Dry(Soft):Only to dry slightly and then is just ok .
Air Dry: Clothes is roated to remove peculiar smell without water in high
temperature.
Note!
• Drying hints
- Clothes could be dried after spinning
- To ensure quality dry the textiles,please classify them according to their
kinds and the drying temperature.
- Synthetic should be set the proper drying time .
- If you want to iron the clothes after drying,please put them for a while.
• Clothes not suitable for drying
- Particularly delicate items such as synthetic curtains,woolen and silk,
clothes with metal inserts,nylon stockings,bulky clothes,such as
anoraks,bedcovers,quilts,sleeping bags and duvets must not be dried.
- Clothes padded with foam-rubber or materials similar to foam-rubber
must not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to avoid
the formation of harmful vapours.

Baby Care
Air Wash
20℃
Quick 15'
- 800
Spin
Press the button to change the speed.
1 4 0 0 : 0 - 6 00-800-1000-1200-1400
Temp.
Press the button to regulate the temperature(Cold,20℃,30℃, 40℃,60℃,90℃)
Other Functions
10
18
OPERATIONS
Programme Default Speed(rpm)
1 Hour W/D
Cotton
Wash and Dry
Synthetic
Mix
Dry Only
Programme Default Speed(rpm)
Spin Only
Rinse & Spin
ECO 40-60
Intensive
Delicate
Wool
1200
1400
1400
1000
600
600
1400
800
1000
1000
1400 1400
Model:MFC80-DU1403B/C14E-EU(NE)
1400
1400
800
Spin
-
1200
1500
1500
1000
1500
1500
1500
800
800
600
600
1500
800
1000
1000
1500
1 5 0 0 : 0 - 6 00-800-1000-1200-1500
Option Confirm
Select the Pre Wash,Extra Rinse,Extra Wash,Night Wash or
Anti-crease function.
Option Confirm
Confirm the selection of the Pre Wash,Extra Rinse,Speed Wash,Extra Rinse or
Anti-crease function.
Function
Select

Function Select
10
19
Mute the buzzer
To act the buzzer function, press the button again for 3 seconds. The setting
will be kept until the next reset.
 After Muting the buzzer function, the sounds will not be activated any more.
Caution!
OPERATIONS
Choose the Programme
When child lock is activated and program starts, child lock indicator will switch on,
and the CL and remaining time on the display are alternately displayed in 0.5s.
Press the other buttons will make child lock indicator flash for 3s. when program
finish,CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s
 Only press and hold the two button can release child lock, even power off,
switch off and program end
 The "Child Lock" will lock all buttons except Power button and Child Lock
button
 Please release child lock before selecting program and staring washing
Caution!
Child Lock
To avoid mis operation by children.
Press [Function] and [Select]
3 sec. till buzzer beep.
Press the [Temp.]and[Spin] for 3sec.,
the buzzer is mute.
Temp. Spin
