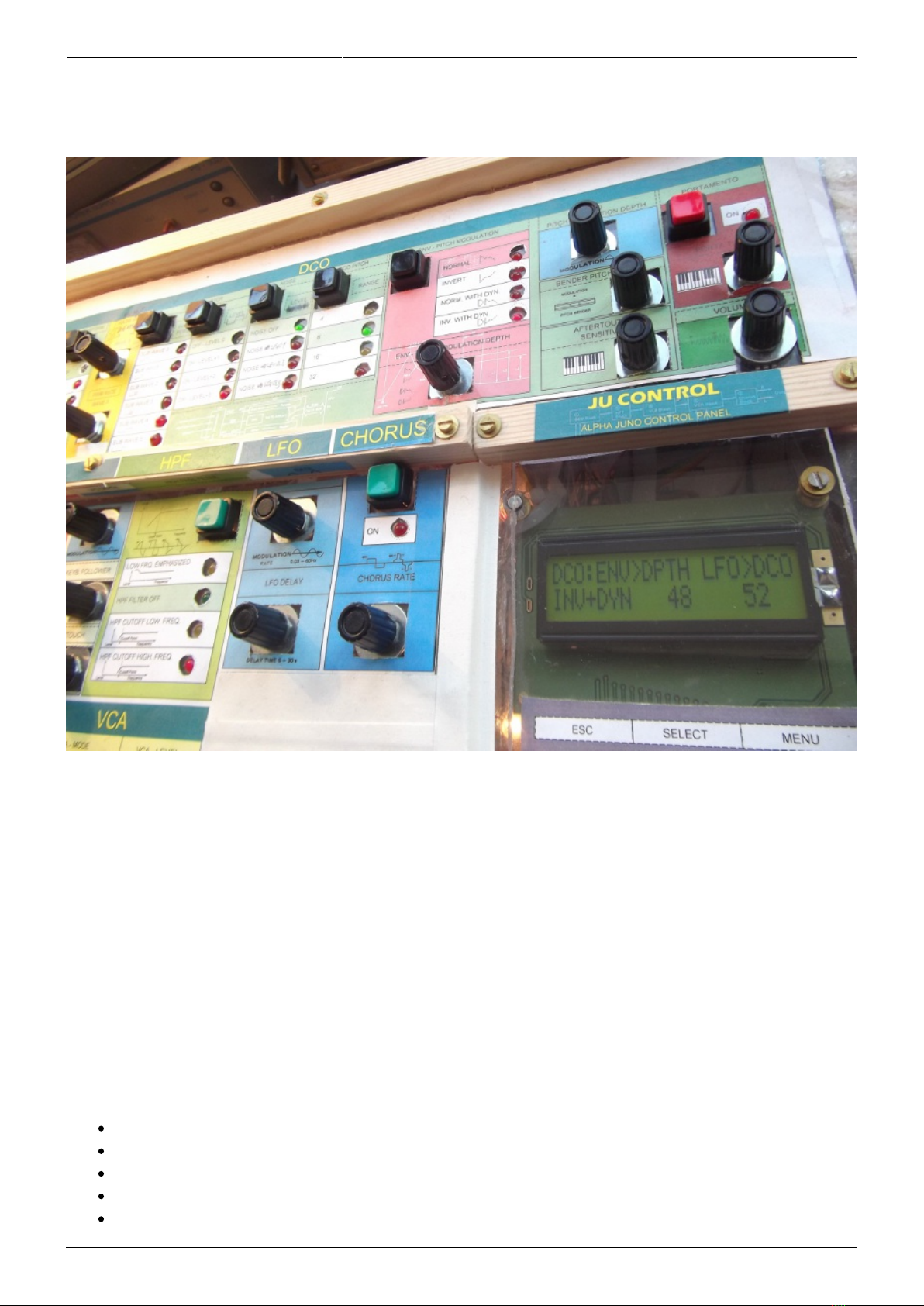

MIDIBox Juno Control (JuCtrl)
Project Description
The MIDIBox JuCtrl is a Alpha Juno MIDI Controller https://en.wikipedia.org/wiki/Roland_Alpha_Juno.
It's an additional control surface and MIDI Controller for the Roland Alpha Juno Synthesizer. I started
this Project because the original Juno User CS is very minimalistic (80s Style). With the MIDIbox
JuCtrl is every Tone parameter directly at hand. Furthermore you can store all 128 Juno Tone Colours
on one Banksticks (1024 Juno Tones with 8 Banksticks).
Functions
Control every Juno Tone Parameter with an encoder or button
Control one parameter (Juno IPR Sysex) or send all parameter at once (Juno APR Sysex)
Store Juno patches (Tones) on Bankstick (Juno BLD Sysex)
Have a clearly arranged parameter overview (via CS LCD & LED)
MIDI processing: MIDI CC to Juno Sysex conversation (and Juno Sysex to MIDI CC conversation)

Last
update:
2017/09/19
13:14
ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs
http://www.midibox.org/dokuwiki/ Printed on 2020/11/16 14:25
Use some extra Envelope functions (set all Envelope leve/time parameter to min or max &
manipulate all time or level parameter at once with an encoder)
Hardware
JuCtrl Hardware:
1x MBHP Core8 (PIC 18F4620) | ⇒ (http://www.ucapps.de/mbhp_core.html)
1x LCD Module: 2×20 LCD (8bit) | ⇒
(http://www.midibox.org/users/jim_henry/building_a_midibox_lcd_cable.pdf)
2x MBHP DOUTx4 | ⇒ (http://www.ucapps.de/mbhp_dout.html)
3x MBHP DINx4 | ⇒ (http://www.ucapps.de/mbhp_din.html)
1x MBHP IIC MIDI Module (extra MIDI IO for Juno Synth) IIC MIDI adr. = 0x10(J3 port) |
⇒(http://www.ucapps.de/mbhp_iic_midi.html)
1-8x Bankstick | Store 128-1024 Juno Tones [24256(32k)]
⇒(http://www.ucapps.de/mbhp_bankstick.html)
Details
Ju Control CS (LED's, Buttons, Encoders, LCD) | ⇒
juctrl_cs_mbhp_btn_led_enc_lcd_pin_numbers_and_symbols.pdf (08/2012)
Ju Control MBHP DIN & DOUT | ⇒ juctrldindout.pdf (08/2012)
JuCtrl Juno MIDI IO dataflow (overview) | ⇒ juctrldataflowoverview.pdf (08/2012)
CC MIDI
MIDI CC 001 - MODULATION WHEEL
MIDI CC 002 - DCO ENV MODE
MIDI CC 003 - VCF ENV MODE
MIDI CC 004 - FOOD CONTROL
MIDI CC 005 - PORTAMENTO TIME (REAL CC)
MIDI CC 006 - VCA ENV MODE
MIDI CC 007 - VOLUME (REAL CC)
MIDI CC 008 - DCO WAVEFORM Pulse (0..3)
MIDI CC 009 - DCO WAVEFORM Saw (0..5)
MIDI CC 010 - DCO SUB WAVEFORM (0..5)
MIDI CC 011 - DCO Range (0=4', 1=8', 2=16', 3=32')
MIDI CC 012 - DCO Sub Osc Level (0..3)
MIDI CC 013 - DCO Noise Level (0..3)
MIDI CC 014 - HPF Cutoff (0…3)
MIDI CC 015 - Chorus Switch (0=Off, 1=On)

2020/11/16 14:25 3/14 MIDIBox Juno Control (JuCtrl)
MIDIbox - http://www.midibox.org/dokuwiki/
MIDI CC 016 - DCO LFO Modulation (0..7F)
MIDI CC 017 - DCO Envelope Pitch Modulation Depth (0..7F)
MIDI CC 018 - DCO Aftertouch Modulation Sensitivity (0..7F)
MIDI CC 019 - DCO WAVE 3 PULSE WITH (0..7F)
MIDI CC 020 - DCO WAV3 PWM Rate (0..7F)
MIDI CC 021 - VCF Cutoff (0..7F)
MIDI CC 022 - VCF Resonance (0..7F)
MIDI CC 023 - VCF LFO Modulation Depth (0..7F)
MIDI CC 024 - VCF ENV Modulation Depth (0..7F)
MIDI CC 025 - VCF Key Follower (0..F)
MIDI CC 026 - VCF Aftertouch (0..F)
MIDI CC 027 - VCA Level (0..7F)
MIDI CC 028 - VCA Aftertouch Sesitivity (00..0F)
MIDI CC 029 - LFO Rate (0..7F)
MIDI CC 030 - LFO Delay (0..7F)
MIDI CC 031 - ENV T1 - Attack Time (0..7F)
MIDI CC 032 - ENV L1 - Attack Level (0..7F)
MIDI CC 033 - ENV T2 - Break Time (0..7F)
MIDI CC 034 - ENV L2 - Break Level (0..7F)
MIDI CC 035 - ENV T3 - Decay Time (0..7F)
MIDI CC 036 - ENV L3 - Sustain Level (0..7F)
MIDI CC 037 - ENV T4 - Release Time
MIDI CC 038 - ENV Key Follower (0..0F)
MIDI CC 039 - Chorus Rate (0..7F)
MIDI CC 040 - DCO Bender Range (0..C)
MIDI CC 041
MIDI CC 042
MIDI CC 043
MIDI CC 044
MIDI CC 045
MIDI CC 046
MIDI CC 047
MIDI CC 048
MIDI CC 049
MIDI CC 050
MIDI CC 051
MIDI CC 052
MIDI CC 053
MIDI CC 054
MIDI CC 055
MIDI CC 056
MIDI CC 057
MIDI CC 058
MIDI CC 059
MIDI CC 060
MIDI CC 061

Last
update:
2017/09/19
13:14
ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs
http://www.midibox.org/dokuwiki/ Printed on 2020/11/16 14:25
MIDI CC 062
MIDI CC 063
MIDI CC 064 - Hold ON/OFF (REAL CC)
MIDI CC 065 - Portamento ON/OFF (REAL CC)
MIDI CC 066
MIDI CC 067
MIDI CC 068
MIDI CC 069
MIDI CC 070
MIDI CC 071
MIDI CC 072
MIDI CC 073
MIDI CC 074
MIDI CC 075
MIDI CC 076
MIDI CC 077
MIDI CC 078
MIDI CC 079
MIDI CC 080
MIDI CC 081
MIDI CC 082
MIDI CC 083
MIDI CC 084
MIDI CC 085
MIDI CC 086
MIDI CC 087
MIDI CC 088
MIDI CC 089
MIDI CC 090
MIDI CC 091
MIDI CC 092
MIDI CC 093
MIDI CC 094
MIDI CC 095
MIDI CC 096
MIDI CC 097
MIDI CC 098
MIDI CC 099
MIDI CC 100
MIDI CC 101
MIDI CC 102
MIDI CC 103
MIDI CC 104
MIDI CC 105
MIDI CC 106

2020/11/16 14:25 5/14 MIDIBox Juno Control (JuCtrl)
MIDIbox - http://www.midibox.org/dokuwiki/
MIDI CC 107
MIDI CC 108
MIDI CC 109
MIDI CC 110
MIDI CC 111
MIDI CC 112
MIDI CC 113
MIDI CC 114
MIDI CC 115
MIDI CC 116
MIDI CC 117
MIDI CC 118
MIDI CC 119
MIDI CC 120
MIDI CC 121
MIDI CC 122 - Local ON/OFF (REAL CC)
MIDI CC 123 - ALL NOTES OFF(REAL CC)
MIDI CC 124 - OMNI OFF (REAL CC)
MIDI CC 125 - OMNI ON (REAL CC)
MIDI CC 126 - MONO ON (REAL CC)
MIDI CC 127 - POLY ON (REAL CC)
Notes
Note: Set SYSEX ON @AlphaJuno (JuCtrl will not work if SYSEX = off)
Note: JuCtrl CS will pick up all the TONE (Sound) Parameters automatically - if you make
changes @Alpha Juno
Note: HOW TO SET JUNO SYSEX ON
@Alpha Juno: Push the [MIDI] Button as many times until the MIDI SYSEX OPTION “MIDI1.
EXCL” appears.
Use the dial for changing.2.
By writing the data of the MIDI Function setting into the back-up memory, it can be3.
retained even when the Juno is turned off:
set the Memory Protect Switch to OFF position. Push the MIDI Button.
While holding the Write Button down, push the MIDI Button. The Juno Display will
change to: “Write MIDI FUNC.”
When the MIDI Button is pushed: “Write Complete!”
Note: WRITE JUNO TONE DATA TO BANKSTICK
SELECT THE PREFERRED BANKSTICK (1-8) with [SELECT BANKSTICK] BUTTON and [VALUE]1.
ENCODER
SELECT YOUR PREFERRED BANKSTICK AREA with the [MIDI ProgChange] ENCODER2.
MIDI ProgChange = 1-64 = You will WRITE Juno Tone Colours to BANKSTICK 1 -64
MIDI ProgChange = 65-128 = You will WRITE Juno Tone Colours TO BANKSTICK 65 -128
Set [PRESET] (64x PRESET TONE COLOURS) or [MEMORY] (64x MEMORY TONE COLOURS)1.
@Alpha Juno

Last
update:
2017/09/19
13:14
ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs
http://www.midibox.org/dokuwiki/ Printed on 2020/11/16 14:25
PRESS: [DATA TRANFERE] + [WRITE] + [DUMP] @Alpha Juno2.
Now JuCtrl will RECEIVE 64 TONE COLOURS via SYSEX-DATA and write 64x TONE PATCHES3.
to your selected BANKSTICK.
All Done.
BROWNS THE STORED TONE COLOURS with the “SELECT BANKSTICK TONE” ENCODER
(0-127)
THE TONE NAME WILL APPEAR ON THE JuCtrl LCD. LOAD A STORED TONE COLOUR WITH
THE BUTTON “SEND TONE TO CS”
NOW THE CS IS LOADED.
PRESS [SEND TONE TO JUNO] BUTTON for WRITING THE CURRENT CS DATA BACK TO
ALPHA JUNO
Note: ENVELOPE FUNCTIONS
There are some ENVELOPE FUNCTIONS:
LEVEL MAX: set all ENVELOPE LEVEL to max value (127)1.
LEVEL MIN: set all ENVELOPE LEVEL to min value (0)2.
ENVELOPE TIME MAX: set all ENVELOPE TIME PARAMETER to max value (127)3.
ENVELOPE TIME MIN: set all ENVELOPE TIME PARAMETER to min value (0)4.
IF YOUR LAST ACTION (@CS) WAS AN ENVELOPE MANIPULATION, YOU CAN MANIPULATE5.
ALL TIME or LEVEL PARAMETER with the [VALUE] ENCODER

2020/11/16 14:25 7/14 MIDIBox Juno Control (JuCtrl)
MIDIbox - http://www.midibox.org/dokuwiki/

Last
update:
2017/09/19
13:14
ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs
http://www.midibox.org/dokuwiki/ Printed on 2020/11/16 14:25
ProgChange
Juno ProgChange & JuCtrl Bankstick TONE (overview)
JuCtrl MIDI Juno Alpha Juno
JuCtrl
BANKSTICK
(1-8)
LCD ProgCh BANK
NUMBER GROUP TONE BS content BS content BS content
101 1 MEMORY 0MEMORY 1 1 or PRESET 1 1 or USER SAVED
“JuCtrl CS”
2 1 1 2 MEMORY 1 MEMORY 1 2 or PRESET 1 2 or USER SAVED
“JuCtrl CS”
3 2 1 3 MEMORY 2 MEMORY 1 3 or PRESET 1 3 or USER SAVED
“JuCtrl CS”
4 3 1 4 MEMORY 3 MEMORY 1 4 or PRESET 1 4 or USER SAVED
“JuCtrl CS”
5 4 1 5 MEMORY 4 MEMORY 1 5 or PRESET 1 5 or USER SAVED
“JuCtrl CS”
6 5 1 6 MEMORY 5 MEMORY 1 6 or PRESET 1 6 or USER SAVED
“JuCtrl CS”
7 6 1 7 MEMORY 6 MEMORY 1 7 or PRESET 1 7 or USER SAVED
“JuCtrl CS”
8 7 1 8 MEMORY 7 MEMORY 1 8 or PRESET 1 8 or USER SAVED
“JuCtrl CS”
9 8 2 1 MEMORY 8 MEMORY 2 1 or PRESET 2 1 or USER SAVED
“JuCtrl CS”
10 9 2 2 MEMORY 9 MEMORY 2 2 or PRESET 2 2 or USER SAVED
“JuCtrl CS”
11 10 2 3 MEMORY 10 MEMORY 2 3 or PRESET 2 3 or USER SAVED
“JuCtrl CS”
12 11 2 4 MEMORY 11 MEMORY 2 4 or PRESET 2 4 or USER SAVED
“JuCtrl CS”
13 12 2 5 MEMORY 12 MEMORY 2 5 or PRESET 2 5 or USER SAVED
“JuCtrl CS”
14 13 2 6 MEMORY 13 MEMORY 2 6 or PRESET 2 6 or USER SAVED
“JuCtrl CS”
15 14 2 7 MEMORY 14 MEMORY 2 7 or PRESET 2 7 or USER SAVED
“JuCtrl CS”
16 15 2 8 MEMORY 15 MEMORY 2 8 or PRESET 2 8 or USER SAVED
“JuCtrl CS”
17 16 3 1 MEMORY 16 MEMORY 3 1 or PRESET 3 1 or USER SAVED
“JuCtrl CS”
18 17 3 2 MEMORY 17 MEMORY 3 2 or PRESET 3 2 or USER SAVED
“JuCtrl CS”
19 18 3 3 MEMORY 18 MEMORY 3 3 or PRESET 3 3 or USER SAVED
“JuCtrl CS”

2020/11/16 14:25 9/14 MIDIBox Juno Control (JuCtrl)
MIDIbox - http://www.midibox.org/dokuwiki/
20 19 3 4 MEMORY 19 MEMORY 3 4 or PRESET 3 4 or USER SAVED
“JuCtrl CS”
21 20 3 5 MEMORY 20 MEMORY 3 5 or PRESET 3 5 or USER SAVED
“JuCtrl CS”
22 21 3 6 MEMORY 21 MEMORY 3 6 or PRESET 3 6 or USER SAVED
“JuCtrl CS”
23 22 3 7 MEMORY 22 MEMORY 3 7 or PRESET 3 7 or USER SAVED
“JuCtrl CS”
24 23 3 8 MEMORY 23 MEMORY 3 8 or PRESET 3 8 or USER SAVED
“JuCtrl CS”
25 24 4 1 MEMORY 24 MEMORY 4 1 or PRESET 4 1 or USER SAVED
“JuCtrl CS”
26 25 4 2 MEMORY 25 MEMORY 4 2 or PRESET 4 2 or USER SAVED
“JuCtrl CS”
27 26 4 3 MEMORY 26 MEMORY 4 3 or PRESET 4 3 or USER SAVED
“JuCtrl CS”
28 27 4 4 MEMORY 27 MEMORY 4 4 or PRESET 4 4 or USER SAVED
“JuCtrl CS”
29 28 4 5 MEMORY 28 MEMORY 4 5 or PRESET 4 5 or USER SAVED
“JuCtrl CS”
30 29 4 6 MEMORY 29 MEMORY 4 6 or PRESET 4 6 or USER SAVED
“JuCtrl CS”
31 30 4 7 MEMORY 30 MEMORY 4 7 or PRESET 4 7 or USER SAVED
“JuCtrl CS”
32 31 4 8 MEMORY 31 MEMORY 4 8 or PRESET 4 8 or USER SAVED
“JuCtrl CS”
33 32 5 1 MEMORY 32 MEMORY 5 1 or PRESET 5 1 or USER SAVED
“JuCtrl CS”
34 33 5 2 MEMORY 33 MEMORY 5 2 or PRESET 5 2 or USER SAVED
“JuCtrl CS”
35 34 5 3 MEMORY 34 MEMORY 5 3 or PRESET 5 3 or USER SAVED
“JuCtrl CS”
36 35 5 4 MEMORY 35 MEMORY 5 4 or PRESET 5 4 or USER SAVED
“JuCtrl CS”
37 36 5 5 MEMORY 36 MEMORY 5 5 or PRESET 5 5 or USER SAVED
“JuCtrl CS”
38 37 5 6 MEMORY 37 MEMORY 5 6 or PRESET 5 6 or USER SAVED
“JuCtrl CS”
39 38 5 7 MEMORY 38 MEMORY 5 7 or PRESET 5 7 or USER SAVED
“JuCtrl CS”
40 39 5 8 MEMORY 39 MEMORY 5 8 or PRESET 5 8 or USER SAVED
“JuCtrl CS”
41 40 6 1 MEMORY 40 MEMORY 6 1 or PRESET 6 1 or USER SAVED
“JuCtrl CS”
42 41 6 2 MEMORY 41 MEMORY 6 2 or PRESET 6 2 or USER SAVED
“JuCtrl CS”
43 42 6 3 MEMORY 42 MEMORY 6 3 or PRESET 6 3 or USER SAVED
“JuCtrl CS”
44 43 6 4 MEMORY 43 MEMORY 6 4 or PRESET 6 4 or USER SAVED
“JuCtrl CS”

Last
update:
2017/09/19
13:14
ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs
http://www.midibox.org/dokuwiki/ Printed on 2020/11/16 14:25
45 44 6 5 MEMORY 44 MEMORY 6 5 or PRESET 6 5 or USER SAVED
“JuCtrl CS”
46 45 6 6 MEMORY 45 MEMORY 6 6 or PRESET 6 6 or USER SAVED
“JuCtrl CS”
47 46 6 7 MEMORY 46 MEMORY 6 7 or PRESET 6 7 or USER SAVED
“JuCtrl CS”
48 47 6 8 MEMORY 47 MEMORY 6 8 or PRESET 6 8 or USER SAVED
“JuCtrl CS”
49 48 7 1 MEMORY 48 MEMORY 7 1 or PRESET 7 1 or USER SAVED
“JuCtrl CS”
50 49 7 2 MEMORY 49 MEMORY 7 2 or PRESET 7 2 or USER SAVED
“JuCtrl CS”
51 50 7 3 MEMORY 50 MEMORY 7 3 or PRESET 7 3 or USER SAVED
“JuCtrl CS”
52 51 7 4 MEMORY 51 MEMORY 7 4 or PRESET 7 4 or USER SAVED
“JuCtrl CS”
53 52 7 5 MEMORY 52 MEMORY 7 5 or PRESET 7 5 or USER SAVED
“JuCtrl CS”
54 53 7 6 MEMORY 53 MEMORY 7 6 or PRESET 7 6 or USER SAVED
“JuCtrl CS”
55 54 7 7 MEMORY 54 MEMORY 7 7 or PRESET 7 7 or USER SAVED
“JuCtrl CS”
56 55 7 8 MEMORY 55 MEMORY 7 8 or PRESET 7 8 or USER SAVED
“JuCtrl CS”
57 56 8 1 MEMORY 56 MEMORY 8 1 or PRESET 8 1 or USER SAVED
“JuCtrl CS”
58 57 8 2 MEMORY 57 MEMORY 8 2 or PRESET 8 2 or USER SAVED
“JuCtrl CS”
59 58 8 3 MEMORY 58 MEMORY 8 3 or PRESET 8 3 or USER SAVED
“JuCtrl CS”
60 59 8 4 MEMORY 59 MEMORY 8 4 or PRESET 8 4 or USER SAVED
“JuCtrl CS”
61 60 8 5 MEMORY 60 MEMORY 8 5 or PRESET 8 5 or USER SAVED
“JuCtrl CS”
62 61 8 6 MEMORY 61 MEMORY 8 6 or PRESET 8 6 or USER SAVED
“JuCtrl CS”
63 62 8 7 MEMORY 62 MEMORY 8 7 or PRESET 8 7 or USER SAVED
“JuCtrl CS”
64 63 8 8 MEMORY 63 MEMORY 8 8 or PRESET 8 8 or USER SAVED
“JuCtrl CS”
65 64 1 1 PRESET 64 PRESET 1 1 or MEMORY 1 1 or USER SAVED
“JuCtrl CS”
66 65 1 2 PRESET 65 PRESET 1 2 or MEMORY 1 2 or USER SAVED
“JuCtrl CS”
67 66 1 3 PRESET 66 PRESET 1 3 or MEMORY 1 3 or USER SAVED
“JuCtrl CS”
68 67 1 4 PRESET 67 PRESET 1 4 or MEMORY 1 4 or USER SAVED
“JuCtrl CS”
