mikroElektronika Click board TILT-n-SHAKE User manual

2 3

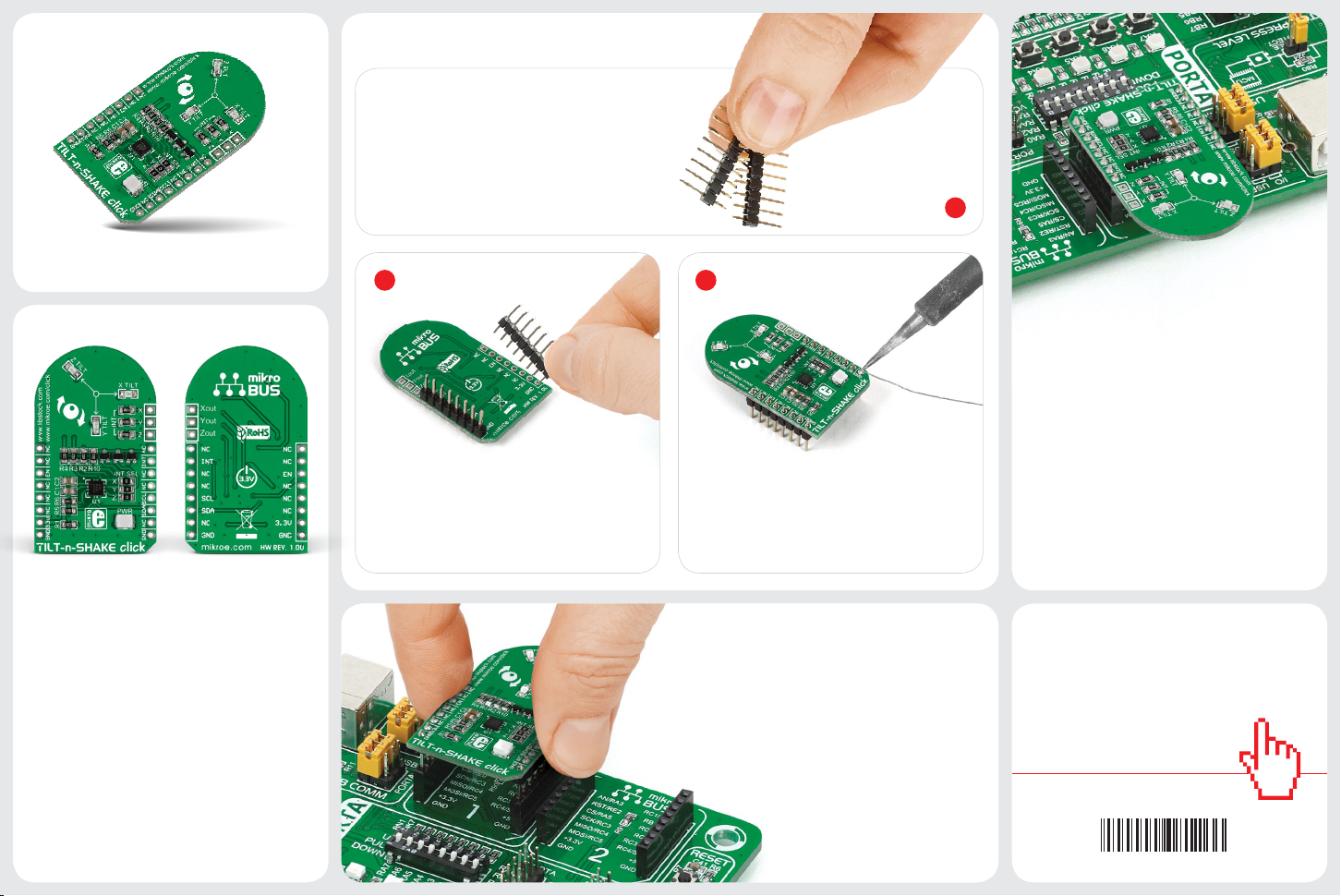

2. Soldering the headers
3. Plugging the board in
Once you have soldered the headers your
board is ready to be placed into the desired
mikroBUS™socket. Make sure to align the cut
in the lower-right part of the board with the
markings on the silkscreen at the mikroBUS™
socket. If all the pins are aligned
correctly, push the board all the
way into the socket.
Turn the board upward again. Make sure
to align the headers so that they are
perpendicular to the board, then solder the
pins carefully.
Turn the board upside down so that
the bottom side is facing you upwards.
Place shorter pins of the header into the
appropriate soldering pads.
Before using your click board™, make sure
to solder 1x8 male headers to both left and
right side of the board. Two 1x8 male headers
are included with the board in the package.
4. Essential features
To use TILT-n-SHAKE click as an accelerom-
eter, keep the enable pin (EN) pulled to logic
high. The 14-bit digital output has over ±8g
full-scale range with 1 mg/LSB sensitivity,
and a fast output time of about 700 micro-
seconds. As a tilt sensor, the MMA8491Q has
three detection outputs, one for each axis:
Xout, Yout and Zout. Three onboard LEDs will
also signal the tilt orientation.
1
TILT-n-SHAKE click carries Freescale’s
MMA8491Q IC. It’s a multifunctional 3-axis
digital accelerometer that can also be
congured as a 45-degree Tilt sensor. As
an accelerometer, it communicates with the
target MCU through mikroBUS™I2C pins (SCL,
SDA). When congured as a Tilt sensor, the
click board needs only one output pin — INT
(interrupt). TILT-n-SHAKE click is designed
to use a 3.3V power supply only.
1. Introduction
TILTnSHAKE click manual
ver 1.00
0100000081266
click
BOARD™
www.mikroe.com
TILT-n-SHAKE click

C2
100nF
C1
4.7uF
VCC-3.3V
R2 2K2
R1
2K2
AN
RST
CS
SCK
MOSI
MISO
+3.3V
GND
PWM
INT
RX
TX
SCL
SDA
+5V
GND
MIKROBUS
DEVICE CONN.
VCC-3.3V
VDD
SDA
BYP
SCL
EN
GND
GND
Zout
Yout
Xout
NC NC
U1 MMA8491Q
SCL
SDA
EN
PWR
EN
SDA
SCL
VCC-3.3V
VCC-3.3V
R5
R6
4K7 4K7
VCC-3.3V
Zout
Yout Xout
R3 2K2 R4 2K2
X
Y
Z
HD1
R7 470
R8 470
R9 470
R1
R2
Q1
PDTC114EU
R1
R2
Q2
PDTC114EU
R1
R2
Q3
PDTC114EU
VCC-3.3V
R10
4K7
INT
INT
VCC-3.3V
J1
0R
J2
0R
J3
0R
8. Code examples
MikroElektronika oers free tech support
(www.mikroe.com/support) until the end of
the product’s lifetime, so if something goes
wrong, we’re ready and willing to help!
Once you have done all the necessary
preparations, it’s time to get your click board™
up and running. We have provided examples
for mikroC™, mikroBasic™ and mikroPascal™
compilers on our Libstock website. Just
download them and you are ready to start.
.com
6. Dimensions
MikroElektronika assumes no responsibility
or liability for any errors or inaccuracies
that may appear in the present document.
Specication and information contained in
the present schematic are subject to change
at any time without notice.
Copyright © 2015 MikroElektronika.
All rights reserved.
mm mils
LENGTH 42.9 1690
WIDTH 25.4 1000
HEIGHT* 3.3 130
5. Schematic
9. Support
* without headers
10. Disclaimer
Depending on your ap-
plications you may not
need the tilt sensor to
react to every axis of
movement. You can
reduce its sensitivity to
two, or just one dimensions, by unsoldering
one of the three INT SEL jumpers.
25.4 mm / 1000 mils
42.9 mm / 1690 mils
7. INT SEL jumpers
