Miditech audiolink pro User manual

1
Miditech Audiolink Pro USB
"Class Compliant" USB Audio Interface
(WinXP/Vista no drivers necessary)
24 Bit/48 kHz input resolution, 24 Bit/96 kHz resolution output
LINE in / LINE out stereo interface
2 XLR Mic preamps with 48 V Phantom Power
with gain control
2 HI-Z guitar preamps with gain control
Adjustable stereo headphone output
Full duplex with compatible recording software
USB powered
Includes Magix Samplitude SE
ASIO driver
Typical applications:
Recording from a microphone, instruments and LINE devices,
e.g. cassette, CD-players or mp3-players
Low latency playing of VST instruments
eMail: [email protected] Internet: www.miditech.de

2
Audiolink Pro USB audio interface Owner’s Manual
Thank you for deciding to purchase the Miditech Audiolink Pro, we are certain you will be
delighted with its performance and advanced features. This interface brings an unparalleled level of
USB audio quality to a Mac or PC, with pristine 24-bit/96kHz A/D and D/A converters, ultra-low
jitter clock, and low noise mic/line/hi-Z preamps. Audiolink Pro enables you to easily digitize all
your analog sound sources, to record microphones, instruments and any LINE level devices, e.g.
music cassette decks or CD players etc. Not only does Audiolink Pro offer a simple solution to
digitizing analog sounds, it also gives you the very best HiFi audio quality. The included recording
software Magix "Samplitude SE" offers you the capability to edit previously digitized music or
speech. These operating instructions will give you some guidance on how to install and operate
your Audiolink Pro functions, also check the section on how to use the free bundled companion
Magix program - "Samplitude SE".
Audiolink Pro technical data and features:
Simple computer connection via USB
"Class Compliant" device - NO driver installation necessary, runs directly under Windows
2000 SP4, Windows XP SP2 and Windows Vista
24 Bit AD/DA Converters
Sample rate 32.0 kHz, 44.1 kHz, 48.0 kHz and 96.0 kHz
Outputs ¼“ and stereo LINE: dynamic range: >100 dB (typical, -60 dB input,A-weighted),
signal-to-noise ratio: >100 dB (typical,A-weighted) , THD -87 dB (typical)
Inputs XLR MIC (balanced): dynamic range: >100 dB (typical, -60 dB input,A-weighted),
signal-to-noise ratio: >100 dB (typical,A-weighted) , THD -80 dB (typical)
Inputs INSTR./LINE (¼“ balanced): dynamic range: 96 dB (typical, -60 dB input,A-
weighted), signal-to-noise ratio: 96 dB (typical,A-weighted) , THD -78 dB (typical), high-
impedance (for electric guitar & bass)
Stereo-LINE-input (¼“ balanced), Input Channel Gain Knob: +40 dB max
Input Channel LEDs: Clip (Red) and Signal-Present (Green)
Stereo-LINE-output (¼“ balanced, -10 dBV nominal, +1.7 dBV max)
2 XLR Microphone: balanced with switchable Phantom Power (+48 V)
Adjustable stereo headphone output for headphones.
USB Powered, i.e. power supplied via USB connection of the computer
System Requirements
The Audiolink Pro has been designed to work with Windows XP or Windows Vista
Windows PC:
Minimum Required:
• 350 MHz Pentium II
• 64MB RAM
• CD-ROM Drive
• Native USB 1.1 Port, on motherboard
• Windows 2000 (SP2), XP (SP1) Home or Pro (128 MB RAM required for XP Pro)
Recommended:
• 700 MHz Pentium III
• 128MB RAM

3
• CD-ROM Drive
• Windows 2000 (SP2), Windows XP (SP1) Home or Pro, Windows Vista
Hardware Setup

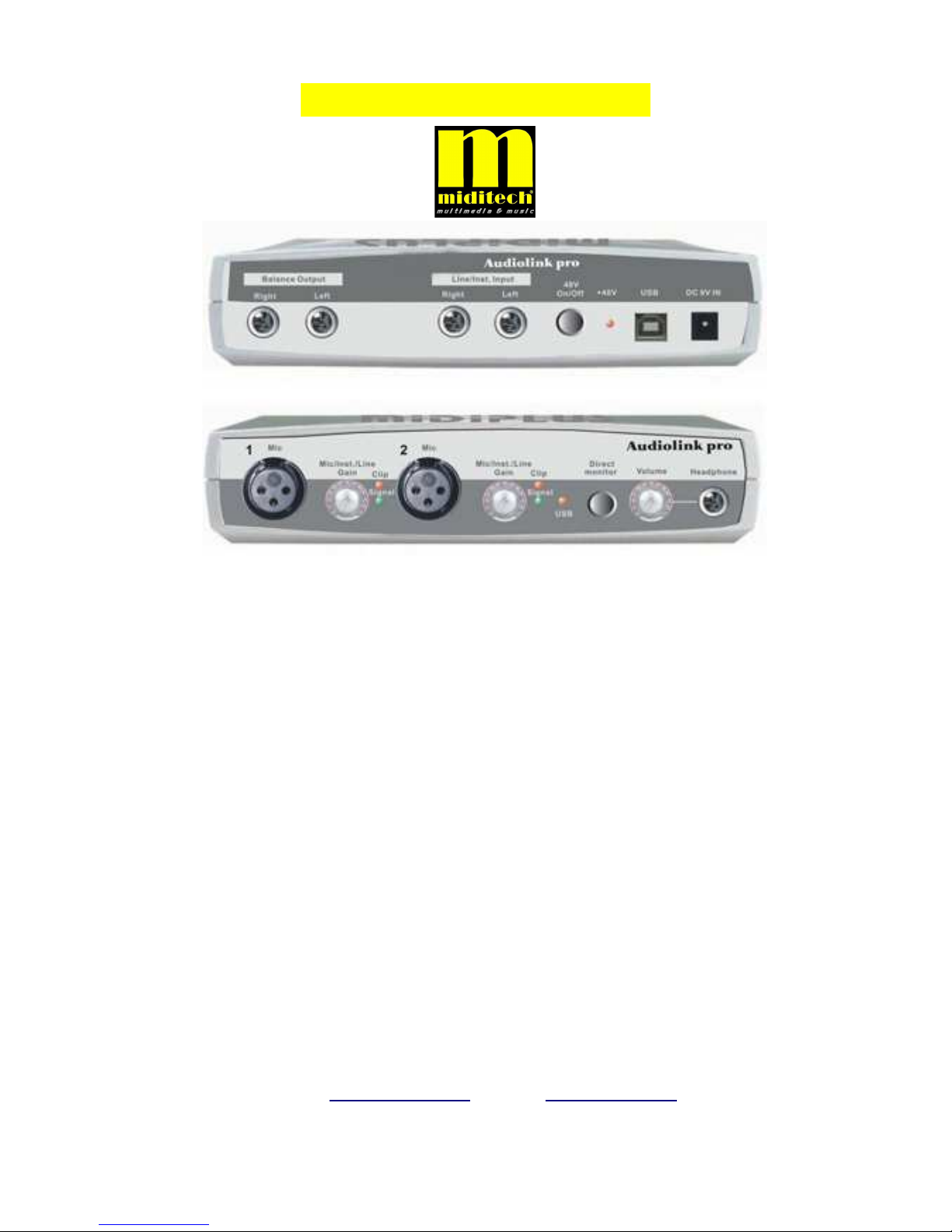

Front panel
The front panel of the Audiolink Pro provides the following functions:
1. Channel 1 XLR MIC Input : This XLR balanced connector accepts a MIC level signal for
Channel 1 of the Audiolink Pro. You can turn on the 48V phantom power for your condenser
microphone if required.
2. Channel 1 Level LEDs: These two LEDs show signal present and clipping for Channel 1.You
should adjust the Gain control so that the signal present is as high as possible, but without the Clip
LED coming on.
3. Channel 1 MIC Gain Knob: This control regulates the level of signal for channel 1 Mic input.
4. Channel 2 XLR MIC input : This XLR balanced connector accepts a MIC level signal for
Channel 2 of the Audiolink Pro. You can turn on the 48V phantom power for your condenser
microphone if required.
5. Channel 2 Level LEDs: These two LEDs show signal present and clipping for Channel 1.You
should adjust the Gain control so that the signal present is as high as possible, but without the Clip
LED coming on.
6. Channel 2 MIC Gain Knob: This control regulates the level of signal for channel 1 Mic input.7.
Direct Monitor Output Jack: when this switch is pressed, you can hear the output sound direct
from the analog input. When you turn your software monitor on, remember to turn the direct
monitor off.
8. Headphone Output Jack: This ¼“ stereo jack plays back outputs 1 and 2 through the Left and
Right speakers of your headphones.
9. Headphone Level Knob: This controls the level of the Headphone Out
10. Power Indicator: This LED indicator lights when the Audiolink pro is receiving power from
the USB port.
Rear panel
The rear panel of the Audiolink Pro houses features providing the following functions:
1. Output 1 and 2 Jacks: This pair of balanced ¼“ jacks provide the output the signal from your
computer and should be connected to a pair of powered speakers, a mixer or a stereo amplifier.
2. Input 1 and 2 Jacks: Using this pair of balanced ¼“ jacks you can connect any LINE level
device or instrument, these also provide HI-Z inputs for electric guitars and basses!
3. Phantom Power Switch: Press this switch to the „In“ position to provide voltage to
microphones that require phantom power on XLR Mic Inputs 1 and 2.
4. Phantom Power LED:This switch lights when phantom power is switched on.
5. USB Jack: This jack connects the Audiolink pro to your computer, using a USB 1.1 (or higher)
connection.
6.Power connector: for external 9V power supply.
Connection and operating devices:
The product case is printed with all relevant information! There are two XLR Mic sockets and the
adjustment switches for the input level next to them. On the front right side you can find the
headphone out and its level control. On the opposite side there are the ¼” LINE/INSTR. inputs, and

4
the LINE outputs. Connect the LINE out sockets with a regular ¼” jack cable to an amplifier. All
outputs, the LINE out and the headphone out, all provide the same mix.
USB Connection
The Audiolink Pro communicates with your computer through a USB port. It is also powered by the
USB connection. Because of this, we recommend that you plug the Audiolink Pro into one of the
built-in USB ports on your computer, not through a keyboard connection or USB hub.
To connect your Audiolink Pro, find an unused USB port on your computer and connect it to the
Audiolink Pro jack with the included USB cable.The computers USB socket will most often be
located on a rear panel and will probably be marked with a symbol looking
something like the one pictured here. When used with Windows XP & Vista, the Audiolink Pro is
class-compliant, making driver installation optional. To start using the Audiolink Pro, you may
simply plug the unit into a USB port . However, choosing to install the driver will allow the
following functions to be added:
Windows XP and Vista – A Device Control Panel and ASIO support with low-latency drivers
Connecting the Audiolink Pro to your computer
Connecting the Audiolink to a computer is very easy! Simply connect your Audiolink Pro with the
included USB cable, to a free USB port on your computer. When the Audiolink Pro is attached the
red POWER LED lights up briefly to signal a good power supply to the Audiolink Pro. The
installation under Windows will then take place automatically, a few seconds after connecting to
your computer-system it will find a "USB Audio Codec" or "USB Audio Device", which can be
used in each application and adjusted in the system control. By using this USB connection your
digitized audio data can now be transferred to your computer!
MIC and MIC/Instrument inputs
Connect your Microphones to input 1 and/or 2, or your electric guitar etc., to the rear panel inputs!
If you use a Microphone, which needs phantom power the phantom power switch is located on the
rear panel of the Audiolink Pro. You can adjust the input levels for MIC/LINE/INSTR. channels 1
and 2 separately with the two Input level controls next to the XLR input sockets.
LINE inputs (stereo ¼” jacks)
Connect your line level device to the two ¼” sockets marked „LINE input“ on the rear panel of the
Audiolink Pro. You can connect any devices with a LINE level output, e.g. Tape deck or CD player.
LINE-outputs (stereo ¼” jacks)
Connect your amplifier to these outputs to monitor recordings or sounds from the computer.
Stereo headphone-output
Connect your headphone to this output to monitor recordings or sounds from the computer.
SOFTWARE INSTALLATION
Windows XP/VISTA
Follow these instructions to install the ASIO2ks ASIO drivers on a Windows XP/VISTA computer.
1. First connect the Audiolink Pro to your computer using the supplied USB cable, turn it on.
2. Windows will detect the new USB device and install the USB audio device automatically.
3. Insert the Software/Manual Installation CD into your CD-ROM drive. Find the asio2ks.cpl in the

5
AudioLink Pro series driver directory.
4. Copy asio2ks.cpl into your System32 folder.
5. Go to Control Panel, double-click ASIO2KS and make your settings.
8. Your Miditech Audiolink Pro is now ready to use.
Control Panel Setup
Once setup is complete, you can control most aspects of the Audiolink Pro using its control
panel.To launch the control panel in your operating system, check the following instructions:
The control panel has the following sets of controls:
Configuration:
Device: Please chose the Audiolink Pro USB audio device.
Output: the 2 channel output of Audiolink Pro.
Format: you can set your Audiolink Pro playback sampling rate from 16bit/44.1kHz~24bit/96kHz.
Input: the 2 channel input of Audiolink Pro.
Format: you can set your Audiolink Pro input sampling rate from 16bit/44.1kHz~24bit/96kHz.
Latency setting: shorter latency time will require more CPU resources, 4~11msec for an average
PC. If you hear interference noise such as a “POP…”, increase latency to higher setting such as
8~20msec.
References to the driver attitude under Windows audio sequencer programs such as Cubase,
sonar or Samplitude:

6
The Audiolink Pro runs under hard disk recording programs in "Full Duplex Mode" (simultaneous
admission and rendition) but usually only with ASIO Multimedia drivers, the Windows WDM
driver only permits one direction (admission or rendition) at the same time. We recommend that you
download the Audiolink Pro ASIO2ks ASIO driver from our homepage www.miditech.de, or copy
it from the installation CD-ROM. The ASIO2ks driver makes it possible to use monitoring- and full
duplex- modes. Additionally, the latency time of the audio signal will be substantially reduced.
Hard disk-recording software "Magix Samplitude SE"
The bundled software, which is shipped with the Audiolink Pro, is special software for multiple
hard disk recording, cutting and editing recorded music and speech.
Regarding the driver set-up in "Samplitude SE"
To set-up the drivers for Audiolink Pro in "Samplitude SE", click the menus "options" and "system
options" in the „audio set-up“. If you have installed the ASIO2ks driver, you can adjust this here as
a "record and play“ device - please choose the ASIO2ks driver for Audiolink Pro. Below this the
actual latency time will be displayed after selecting the driver, also, by clicking the button
„Attitudes“ you can adjust the buffer size and the latency time of the driver itself. The latency time
is system-dependent and is different in various personal computers. Choose a value as low as
possible, if you adjust too low you hear interference noises, set the buffer and latency time of the
driver just above the noise threshold.
We hope you get a lot of enjoyment from this exciting program! After installation and activation via
www.magix.de this version is fully functioning.
Further information on extensions, updates and other products from Miditech please check out our
homepage http://www.miditech.de!
Changes of the technical data and the design are possible
No liability is assumed for misprints
