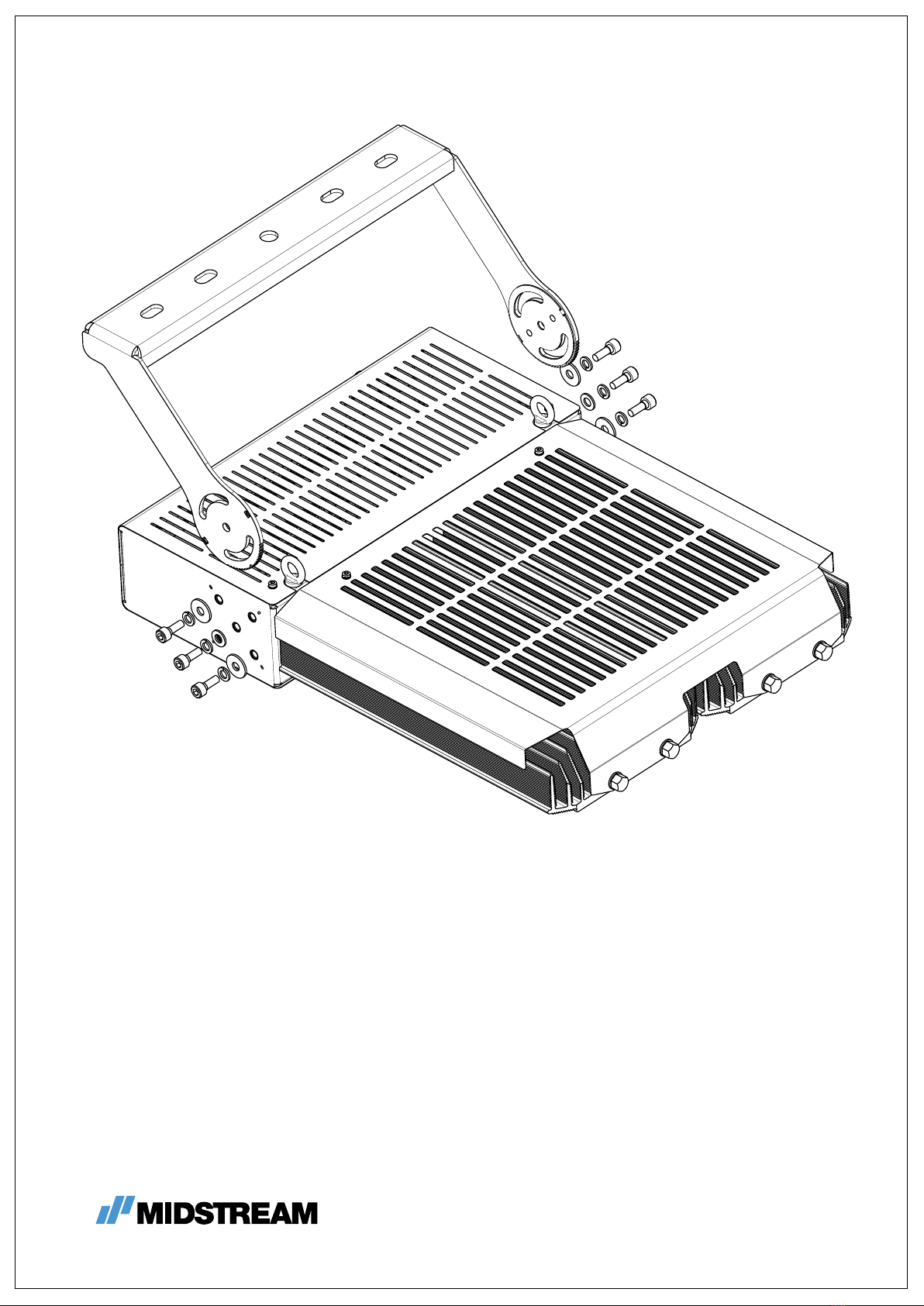

Midstream Titan Series User manual

INSTALLATION GUIDANCE
Titan Series
1
R
2345 67 8 910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Q
P
O
N
M
L
I
H
G
F
E
D
C
B
A
12 3 4567 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
I
L
M
N
O
P
Q
R
G
F
E
D
C
B
A
H
MIDSTREAM
REV. DOCUMENT N° DESCRIPTION ZONE DATE DRAWN CHECKED
This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.
MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph [phone]
Drawing Number ST00213A023D0 11-Jan-21
TITAN 720 Date
1:2 5/5
Description Scale Sheet
PA CP MIDSTREAM A0
Drawing by Checked by Approved by Weight Rev.

2 3
TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com [phone]
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
Contents 1. General notes
Section PAGE
1 General notes 3
2 Safety instructions 3
3 Contents 4
4 Electrical connection 6
5 Bracket mounting & Floodlight installation 8
6 Electricalspecications 10
7 Centreofgravity 10
8 Weight and windage 10
9 Dimensions 11
This user manual contains important information on safe
operation of the Luminaire.
Read and follow all safety notes and all instructions. Save
this manual for future reference. Make sure that it is available
to all persons using this device.
All wiring should be done by a licensed electrician
in accordance with state codes, local codes, and
National Electric Code (NEC) standards or International
Electrotechnical Commission (IEC) standards.
The Luminaire is suitable for wet locations.
DO
9Store the Luminaire with care, avoiding placing the lenses
to the ground which may scratch or damage them.
9To avoid damaging the Luminaire, keep it in the original
packaging when storing.
9When handling the Luminaire, wear industrial safety gloves
and safety boots.
DO NOT
8Apply mains voltage through the control system cable.
This will damage the luminaire.
8Unnecessarily remove the Luminaire from the box
8Leave the LED Luminaire switched on when rested on the
ground with optics facing down.
8Place the Luminaire with the lens on the pavement, dirt
and metal surfaces.
8Clean the lenses with any industrial detergent, but with
water-soaked cloth if needed
Two persons required to
complete the installation
The Luminaire should
be positioned so that
prolonged staring into the
luminaire at a distance
closer than 4 m (13 ft) is
not expected
Hard hats, safety
shoes, Hi-Vis vest and
safety gloves must
always be worn
Disconnect the electrical
supply power before
commencing the
installation: failure to
do so could result in
serious injury
The luminaire is not to be
placed face down on any
surface other than the
provided foam pad
The light source of this
appliance must only
be replaced by the
manufacturer, its
after-sales service or
qualiedpersonnel
2. Safety instructions
Use the device only as described in this user manual. Any other
use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage
as well as voiding the warranty..
No liability will be assumed for damages resulting from improper
installation. This device may be used only by persons with
sucientphysical,sensorial,andintellectualabilitiesandhaving
corresponding knowledge and experience.

4 5
TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com [phone]
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS

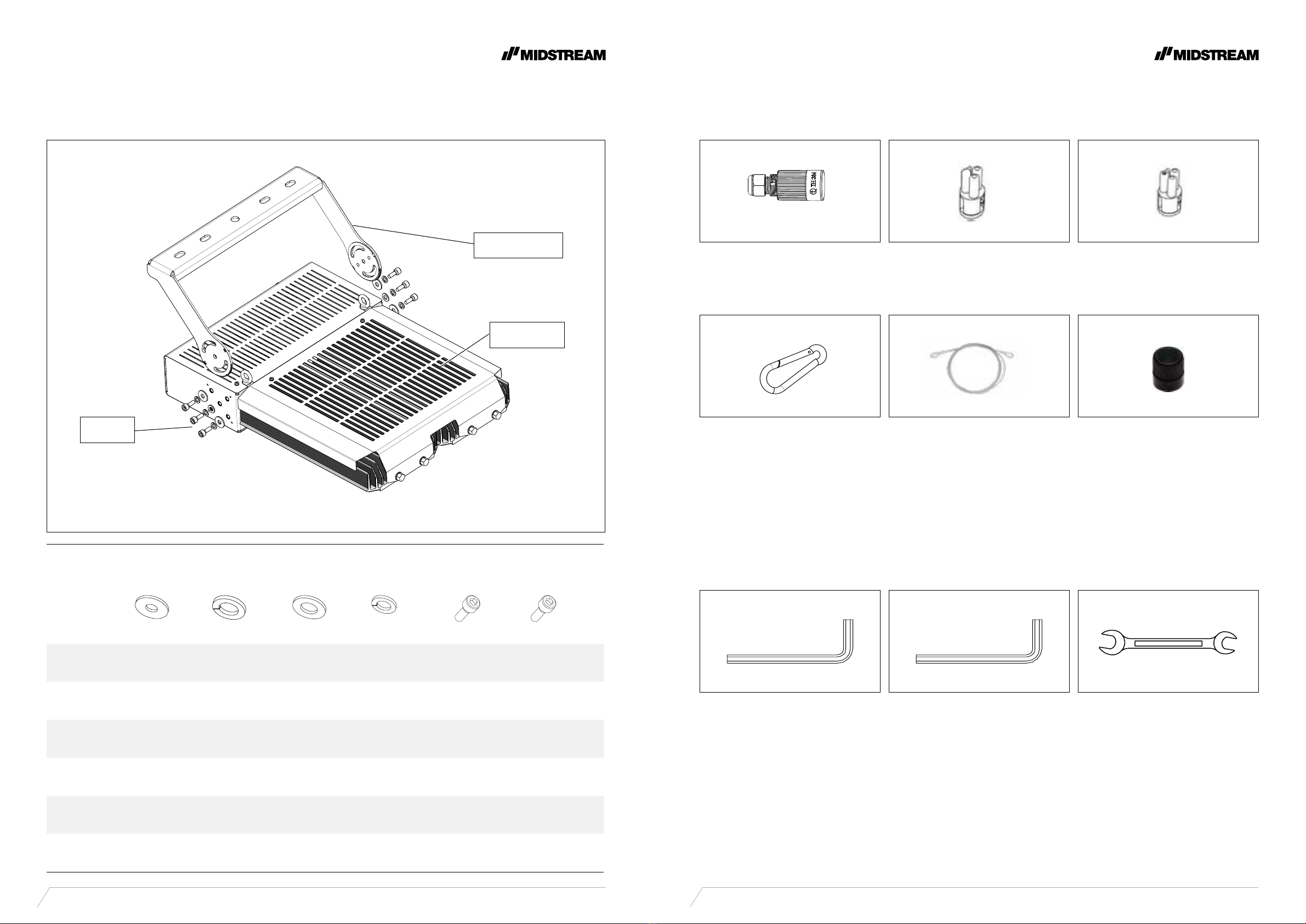

3. Contents Mounting accessories
Required tools
#8 Allen Key x1
Terminal Blocks x2
Carabiner Hook x1
#6 Allen Key x1
Power Socket Connector
2 Pole Yellow x1
Safety Cable
160cm / 63in x1
21mm Spanner x1
Power Socket Connector
3 Pole White x1
Closure Caps
1
R
2345 67 8 910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Q
P
O
N
M
L
I
H
G
F
E
D
C
B
A
12 3 4567 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
I
L
M
N
O
P
Q
R
G
F
E
D
C
B
A
H
MIDSTREAM
REV. DOCUMENT N° DESCRIPTION ZONE DATE DRAWN CHECKED
This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.
MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph [phone]
Drawing Number ST00213A023D0 11-Jan-21
TITAN 720 Date
1:2 5/5
Description Scale Sheet
PA CP MIDSTREAM A0
Drawing by Checked by Approved by Weight Rev.
Mounting Bracket
LED Luminaire
Parts
Model Large Plain
Washer for M8
Screws
Spring Washer
for M8 Screws
Plain Washer for
M10Screws
Spring Washer
forM10Screws
Hexagon Head
Cap Screw
Hexagon Head
Cap Screw
160 2x 2x 2x 2x 2x 2x
220 2x 2x 2x 2x 2x 2x
320 4x 4x 2x 2x 4x 2x
420 4x 4x 2x 2x 4x 2x
560 4x 4x 2x 6x 4x 2x
720 4x - 2x 6x - 6x
(ForM10screws)

6 7
TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com [phone]
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
4. Electrical connection
Theconnectorsocketcanta H05RN-F or H07RN-F
rubber cable with max outer diameter of 12mm and max
wire section of 1.5mm2.
Do not apply mains voltage through the
control System plug. This will damage the
luminaire.
Secure the control plug with the supplied closure cap when the control system is not in use.
Recommended cable
Control System
Plug(1-10VorDALI)
YELLOW
2 Pole
+
DA1
-
DA2
Power System
Plug
WHITE
3 Pole
GROUND
Dim
+
Dim
-
12v
NEUTRAL
Dim
+
Dim
-
12v
LIVE
Dim
+
Dim
-
12v
125mm "Self-piercing"
Strip the end of the power supply cable to a length of max.
25mm. The remaining internal wires do not need to be striped
asthesocketisttedwithpiercingclipterminals.
2
Insert the cable through the socket housing of the connector.
+
DA1
-
DA2
Insert each wire into the socket terminal, matching wire colour
with the “L”, “N” and “GND” symbol on the socket and tighten
the screws.
POWER
3 POLE
CONTROL
2 POLE
3
Insert the socket into the housing until the inner part
“clicks” in and then insert the gasket.
Insert the gasket.
CLICK
45

8 9
TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com [phone]
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS

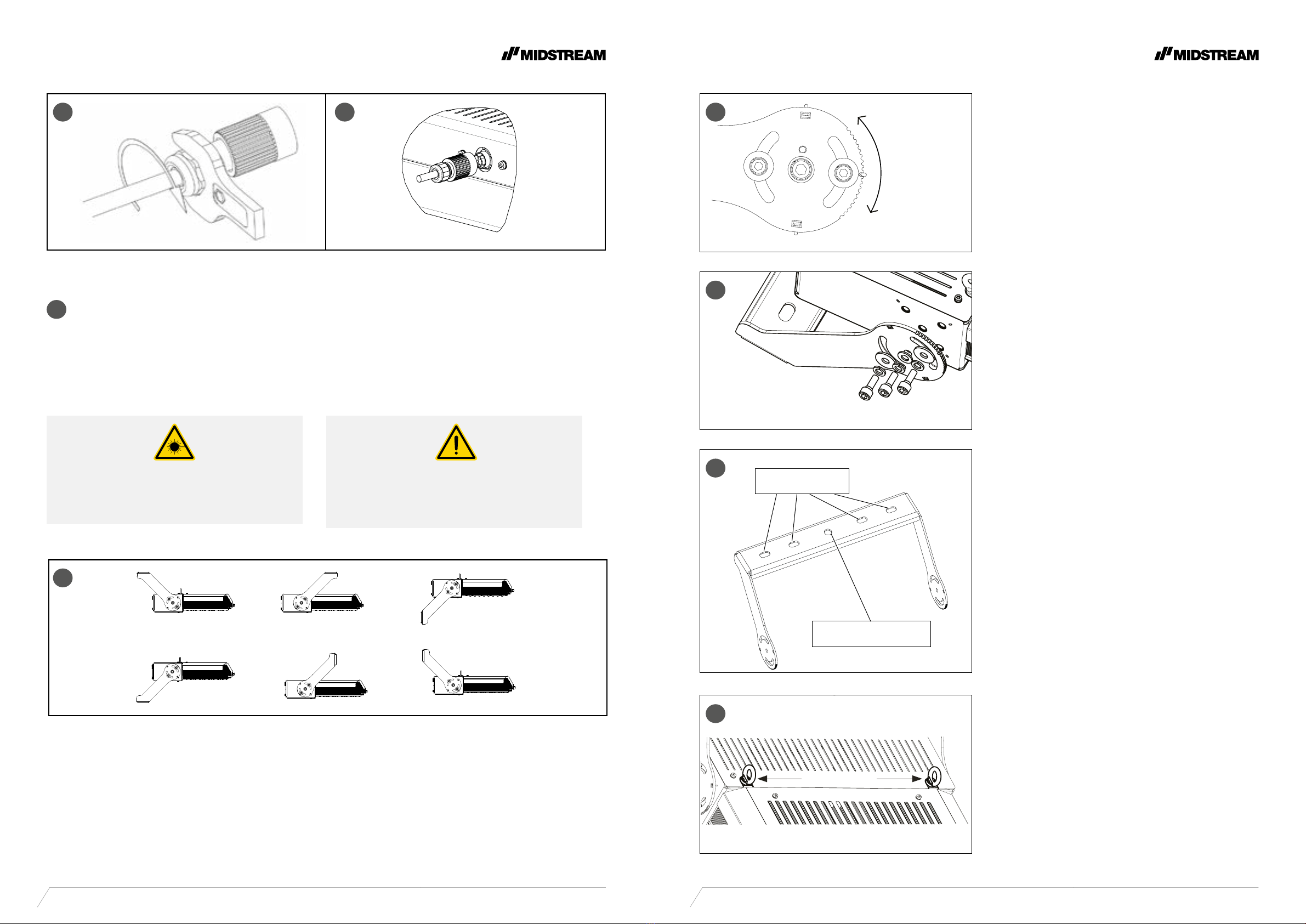

8
Position the bracket
Tighten screws
Secure mount
SCALE 3:10
SEE DETAIL
A
Tighten the nut using a 21 mm spanner
Test the luminaire before attaching it to the nal
connection point.
Connect the socket to the plug on the LED luminaire and
tighten the housing to ensure IP68 protection.
The luminaire bracket can be oriented as shown in the
followingpictures,choosethemoresuitableconguration
to your application.
6
1
7
8
5. Bracket mounting & Floodlight installation
The Luminaire should be positioned so that
prolonged staring into the luminaire at a distance
closer than 4 m (13 ft) is not expected
Use A2-80 stainless steel bolts or 8.8 Class steel
Bolts with hot dip galvanized coating and ISO 7093-
1Large plain washer.
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
Each notch
at 5o
increments
INSERT SAFETY CABLE
LEFT --OR-- RIGHT
InserteachM8/M10screwwithitsplanewasherandspring
washerthroughthecentralholeofthettingbracketangeand
loosely tighten.
With the screws loosely inserted, tilt the LED luminaire using the
teeth on the bracket as angle setting reference.
YoucanxthebracketeitherwithoneM20boltortwoM16
bolts.
ThebrackethasonecentralholetoinserttheM20boltand
a series of slots for M16 bolts (see reference picture below).
If rotation is needed, secure the connection using only the
central bolt.
Once the tilting operation is complete, tighten and lock all
screws(30NmtorqueforM10screws,20NmtorqueforM8
screws).
When the LED luminaire installation has been completed, insert
the safety cable in the left or right eye bolt. Connect the safety
cable to the holding frame.
2
4
3
5
Slots for M16 bolts
Central hole for M20 bolt

10 11
TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com [phone]
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
ThisdeviceissubjecttotheEuropeandirective2002/96/EC.
Do not dispose of the device with your normal household waste.
Disposeofthisdevicethroughanapprovedwastedisposalrmor
through your local waste facility.
When discarding the device, comply with the rules and regulations
that apply in your country.
If in doubt, consult your local waste disposal facility.
Waiver: This document represents information compiled to the best
of our present knowledge. It is not intended to as a representation or
warrantyoftnessoftheproductsdescribedforanyparticularpurpose.
This document details guidelines for general information purposes only.
Always seek specialist advice when planning installations and ensure the
installationiscarriedoutbyaproperlyqualiedinstallerincompliancewith
local laws and regulations
Further information
Two persons required to complete
the installation

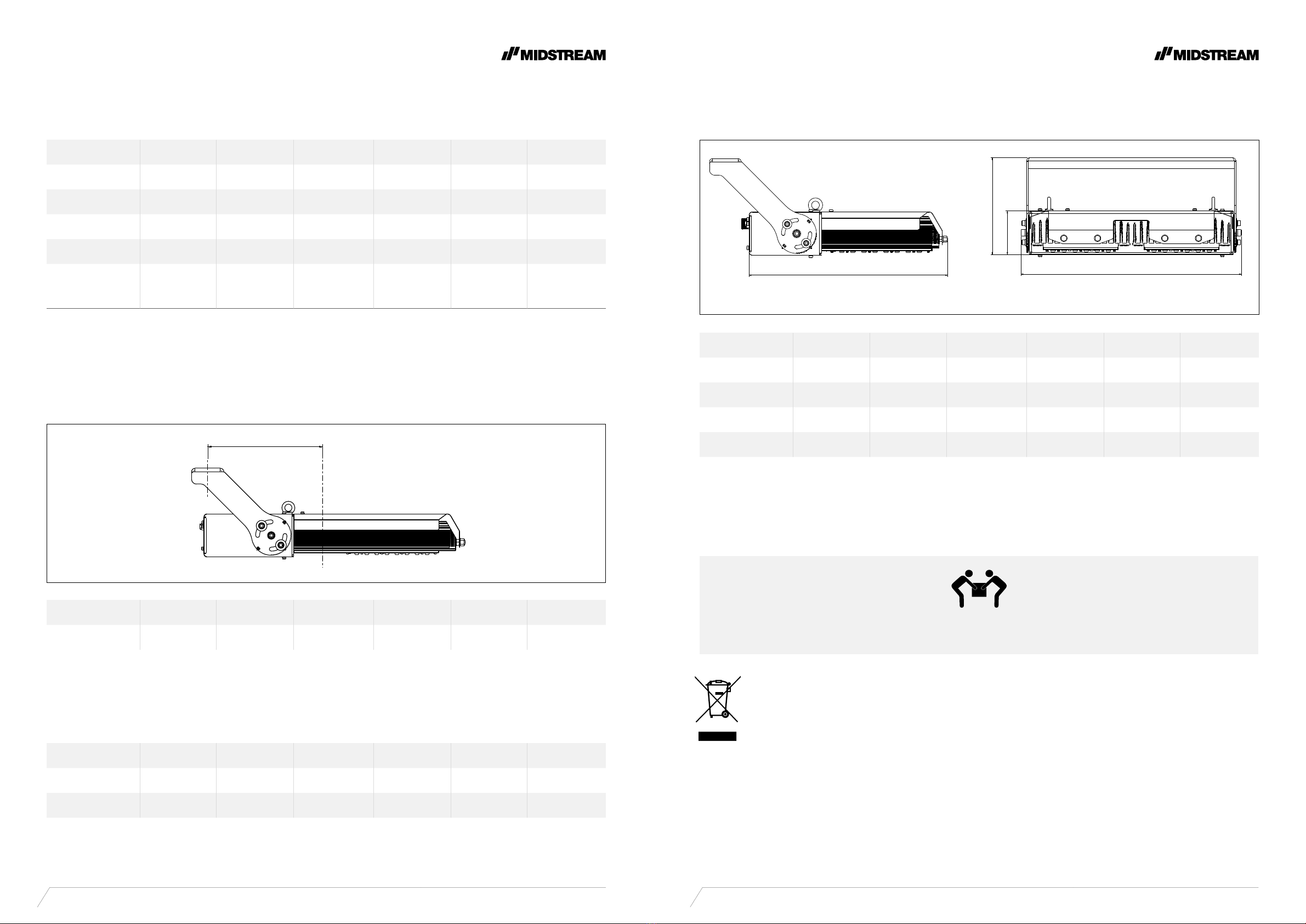

6. Electrical specifications
8. Weight and windage
9. Dimensions
7. Centre of gravity
TITAN 160 TITAN 220 TITAN 320 TITAN 420 TITAN 560 TITAN 720
Input Voltage 110V÷240V~ 110V÷240V~ 110V÷240V~ 110V÷240V~ 110V÷240V~ 110V÷240V~
Input Frequency 50Hz÷60Hz 50Hz÷60Hz 50Hz÷60Hz 50Hz÷60Hz 50Hz÷60Hz 50Hz÷60Hz
Absorbed Power typ. 167 W typ. 229 W typ. 326 W typ. 457 W typ.570W typ.705W
Power Factor 0.95 0.95 0.95 0.95 0.95 0.95
Inrush Current (I)
3,2 A2s
duration =
1,7ms*
2,1 A2s
duration =
1,8ms*
3,5 A2s
duration =
4ms*
4,2 A2s
duration =
1,8ms*
4,7 A2s
duration =
7,64ms*
3,8 A2s
duration =
3,52ms*
TITAN 160 TITAN 220 TITAN 320 TITAN 420 TITAN 560 TITAN 720
A540mm 445mm 546mm 502mm 502mm 727mm
B383mm 381mmz 557mm 557mm 557mm 560mm
C110mm 110mm 110mm 110mm 110mm 120mm
D244mm 242mm 244mm 244mm 244mm 247mm
TITAN 160 TITAN 220 TITAN 320 TITAN 420 TITAN 560 TITAN 720
Weight 12.5kg 13.6kg 20kg 24kg 24kg 34kg
Windage Area 0.038m20.043m20.045m20.049m20.049m20.085m2
*At220VACinput,25ºCcoldstart,10%Ipk-10%Ipk.
L
TITAN 160 TITAN 220 TITAN 320 TITAN 420 TITAN 560 TITAN 720
L240mm 260mm 252 mm 264 mm 264 mm 318 mm
AB
C
D

2020
For translations, digital versions or more
information please head to
https://www.midstreamlighting.com/installation-guides
