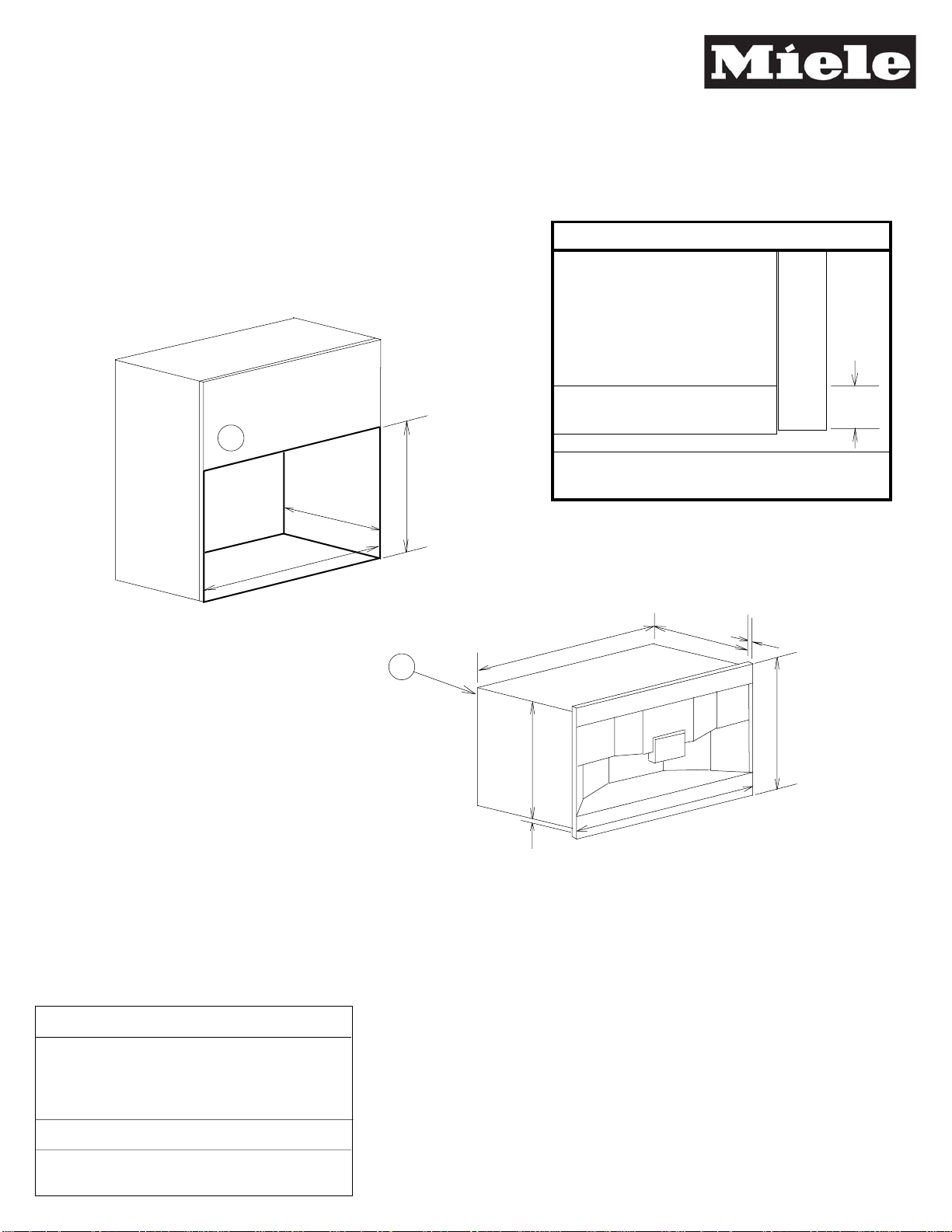

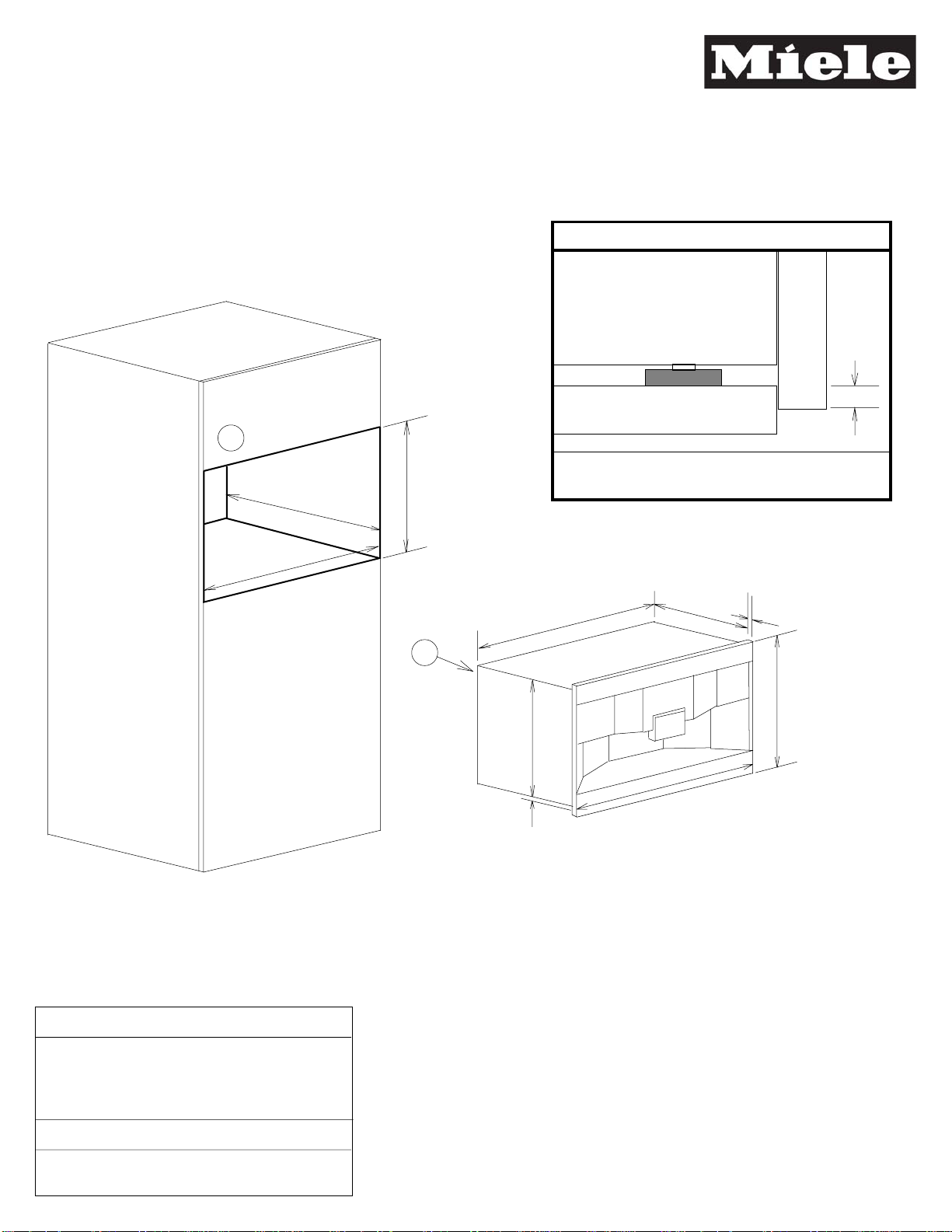

NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405
Product and Cut-out Dimensions
Built-in Coffee System
CVA 2650 - Wall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
19 1/2"
7/ 8"
14 5/ 8"
O
13 3/ 4"
See Detail
18 1/ 8" - 18 3/ 8"
18 1/16""
E
1/ 2"
Lower Edge Detail - Full overhang
CVA Housing
Cabinet base
Front of Unit
5/8"
Unit should be installed without removable feet.
Unit will overhang cabinet base
www.dexpress.com Page 2 of 105 12/31/2010
www.dexpress.com Page 2 of 105 12/31/2010
CVA2650
CVA2650
Mfr Guide
Mfr Guide

NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405
Product and Cut-out Dimensions
Built-in Coffee System
CVA 2650 - Tall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
19 1/2"
7/ 8"
14 5/ 8"
O
14 3/16"
See Detail
18 1/8" - 18 3/ 8"
18 1/16"
E
1/ 2"
Lower Edge Detail - Limited overhang
CVA Housing
Cabinet Shelf
Front of Unit
Removable feet (4)
1/4"
Unit should be installed with removable feet in
place to prevent contact with cabinet doors
www.dexpress.com Page 3 of 105 12/31/2010
www.dexpress.com Page 3 of 105 12/31/2010
CVA2650
CVA2650
Mfr Guide
Mfr Guide

The coffee system comes equipped
with a 6 ft. (1.8 m) power cord with a
NEMA 5-15P molded plug for
connection to a 120 V, 15 A, 60 Hz
power supply.
Connection should be made via a
suitable isolator, with an on-off switch
which should be easily accessible for
servicing work.
Installation, repairs and other work by
unqualified persons could be
dangerous. The manufacturer cannot
be held responsible for unauthorized
work.
Verify that the voltage, load and circuit
rating information found on the data
plate match that of the household
electrical supply before installing the
coffee system.
If there is any question concerning the
electrical connection of this appliance
to your power supply, please consult a
licensed electrician or call Miele’s
Technical Service Department.
U1-800-999-1360
V1-800-565-6535
Electrical connection
56
www.dexpress.com Page 4 of 105 12/31/2010
www.dexpress.com Page 4 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst

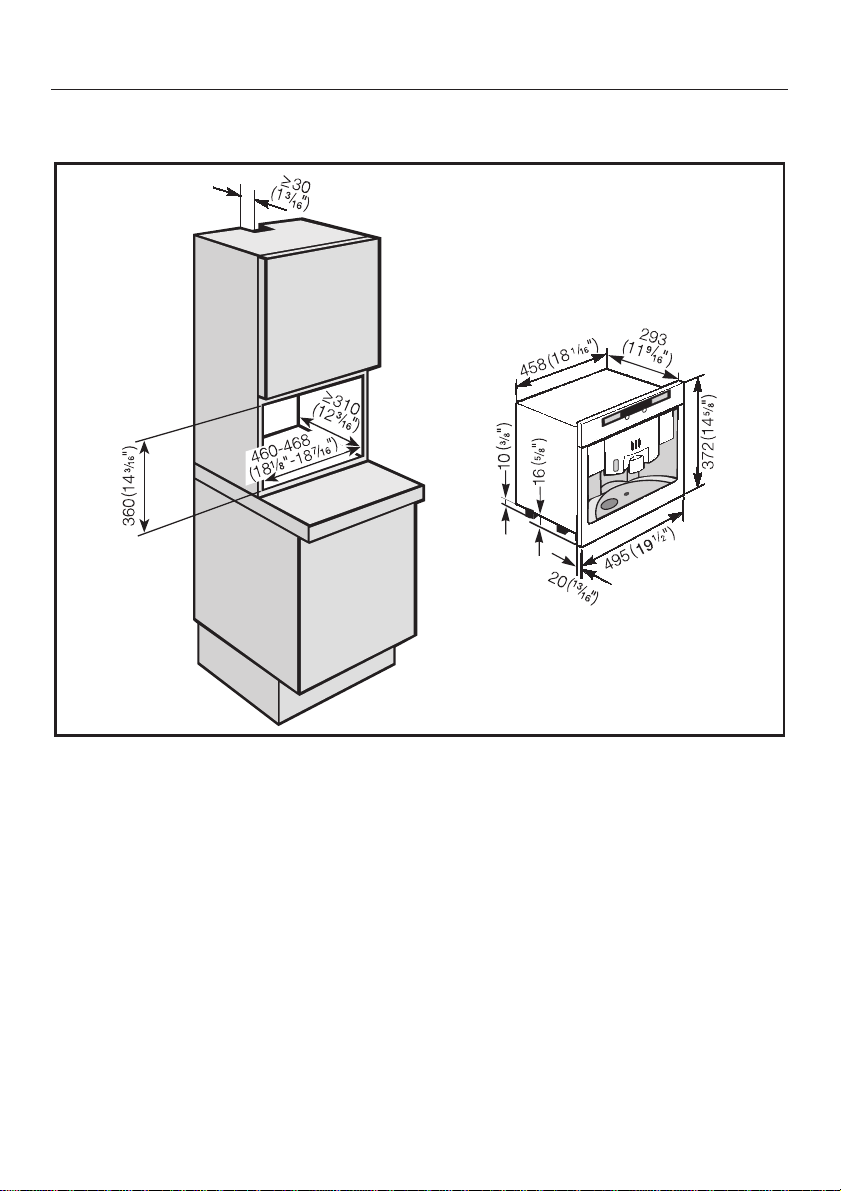

Installation options
A countertop option for the CVA 2650 is possible with the CVSG 50 casing.
The coffee system is designed to be built into cabinetry.
Installation
57
www.dexpress.com Page 5 of 105 12/31/2010
www.dexpress.com Page 5 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst

Installation
58
www.dexpress.com Page 6 of 105 12/31/2010
www.dexpress.com Page 6 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst

Installation
59
www.dexpress.com Page 7 of 105 12/31/2010
www.dexpress.com Page 7 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst

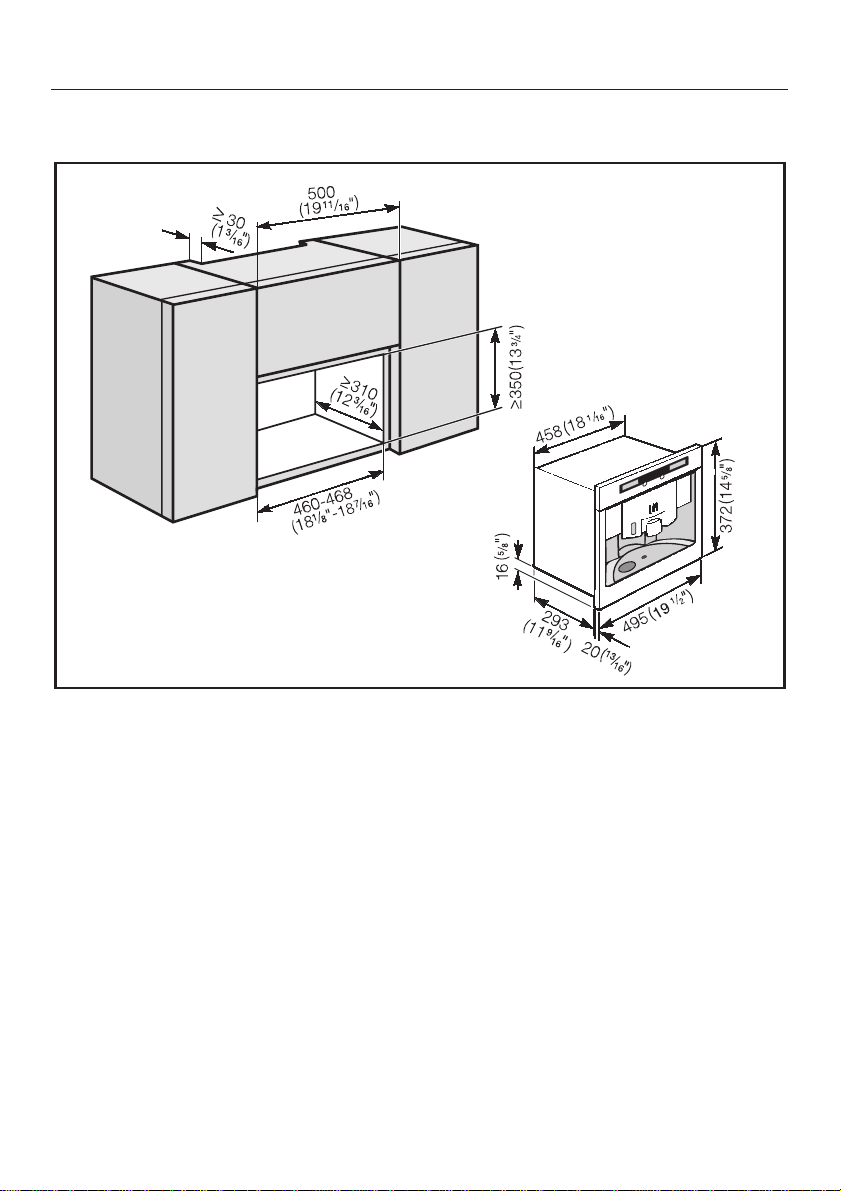

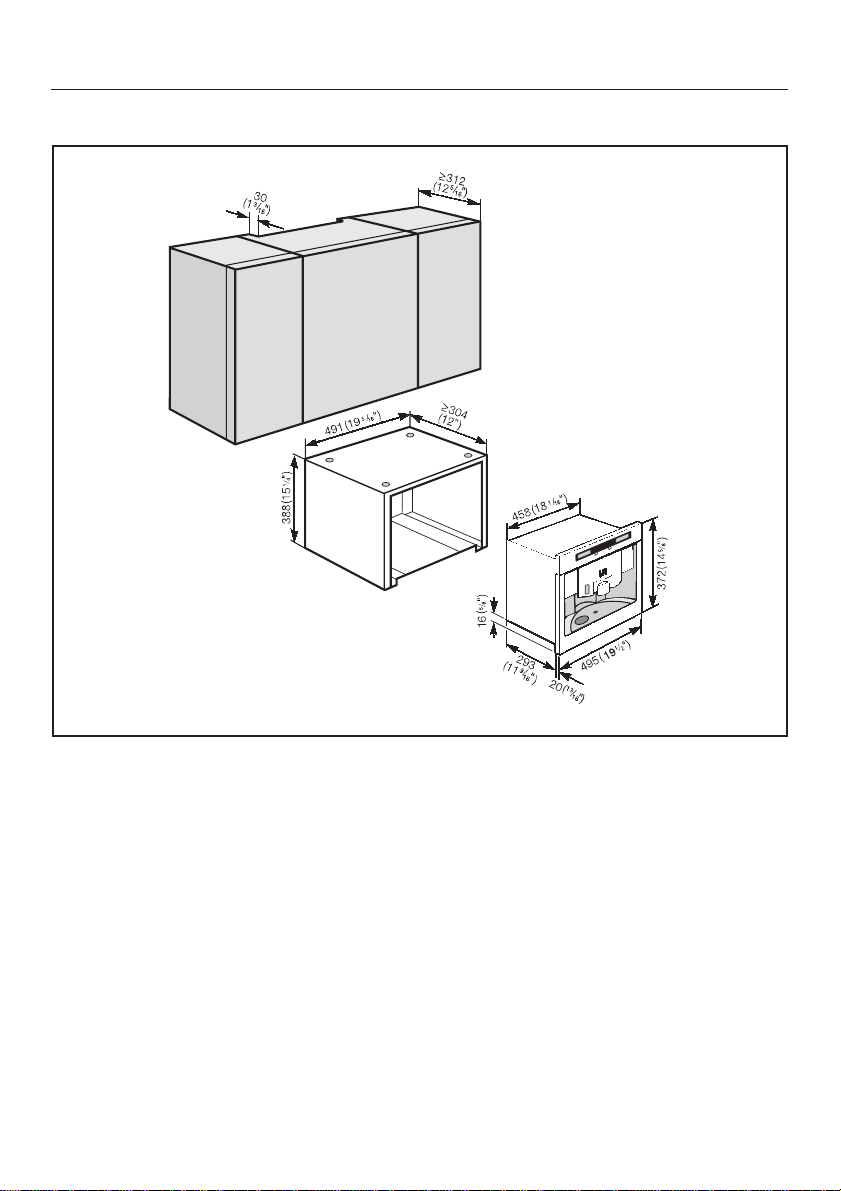

To install the CVA 2650 below a hanging cabinet a CVUG 50 casing (optional
accessory) is required.
Installation
60
www.dexpress.com Page 8 of 105 12/31/2010
www.dexpress.com Page 8 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst

Installation
Make sure power is not supplied to
the appliance while installation or
maintenance work is performed.
Disconnect the power supply to the
work area by unplugging the unit,
tripping the circuit breaker or
removing the fuse. The coffee
system must be properly installed
before being used.
^Plug the appliance into the electrical
outlet.
^If you have a cabinet with 3/4"
(19 mm) side panels, you will need to
drill four holes first.
– Center the machine in the
cabinet.
– Tighten the screws just so they
leave a mark in the panel.
– Remove the machine from the
cabinet and drill four holes 1/16"
(2 mm) with a diameter of 3/16"
(4.5 mm).
^Level the machine with the four
height adjustable feet.
The feet can be turned out up to 3/8"
(10 mm).
^Push the appliance all the way back
into the cabinet.
^Open the door and partially tighten
the screws by hand. Do not use an
electric screwdriver.
^Carefully turn the lower screws to
center the machine.
^To fix the machine in the cabinet,
tighten the upper screws.
Installation
61
www.dexpress.com Page 9 of 105 12/31/2010
www.dexpress.com Page 9 of 105 12/31/2010
CVA2650
CVA2650
Cond Inst
Cond Inst

Operating instructions
Coffee System
CVA 2650
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 221 360
www.dexpress.com Page 10 of 105 12/31/2010
www.dexpress.com Page 10 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

2
www.dexpress.com Page 11 of 105 12/31/2010
www.dexpress.com Page 11 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

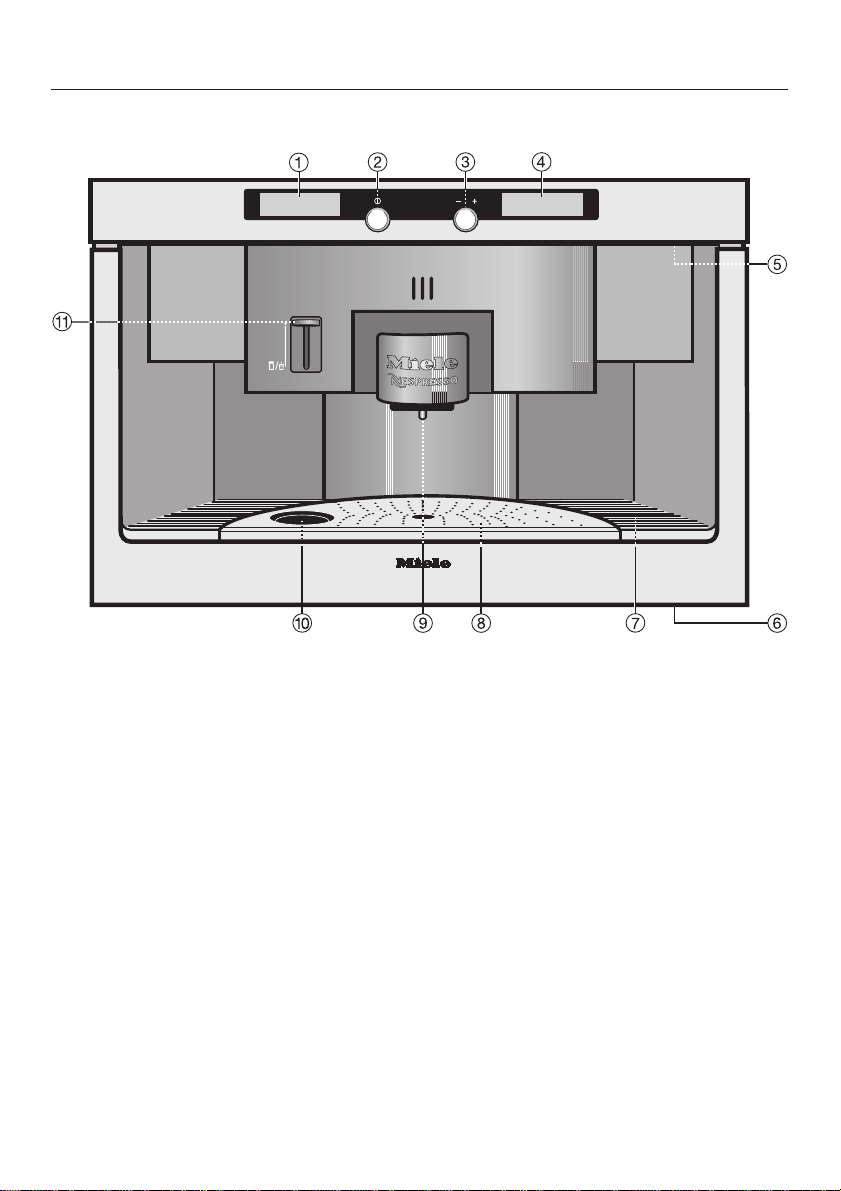

Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Di play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fir t tep to u e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the machine on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filling water and coffee cap ule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filling the coffee capsule carousel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Changing the coffee capsules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Allocating variou coffee type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Making coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Espresso and coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Interrupting the brewing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cappuccinatore (milk froth mug) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Di pen ing hot water. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting erving ize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting a default serving size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting u er profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Setting user profiles (serving sizes). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Making espresso / coffee with user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selecting a language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Setting the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Turning off after Standby time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Turning on at a preset time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Turning off at a preset time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Deleting the preset times. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting lighting, display contrast and brightness . . . . . . . . . . . . . . . . . . . . . . . . . 32
Automatic rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Total coffee counter (INFO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Factory setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Sy tem lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Daily coffee y tem care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Common coffee y tem care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
De caling the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Descaling prompts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Fault me age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Content
3
www.dexpress.com Page 12 of 105 12/31/2010
www.dexpress.com Page 12 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

Frequently a ked que tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Removing a jammed cap ule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
After ale ervice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
In tallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Installation options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Setting the language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Setting the water hardness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coffee glo ary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
The E pre o range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
The Lungo range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Content
4
www.dexpress.com Page 13 of 105 12/31/2010
www.dexpress.com Page 13 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

When u ing electrical appliance , ba ic afety precaution hould alway be
followed, including the following:
Read all in truction before in tallation or u e of the coffee y tem.
Please read these instructions
carefully to prevent accidents and
machine damage.
This appliance is for household use
only.
Do not use appliance for other than
intended use.
Any other use could be dangerous.
This appliance complies with current
safety requirements. Improper use of
the appliance can cause personal
injury and material damage.
The manufacturer cannot be held
responsible for damage caused by
improper use of the appliance.
Electrical afety
Before connecting the appliance to
the electrical supply make sure
that the voltage and frequency details
listed on the data plate correspond with
the household electrical supply. If in
doubt, consult a qualified technician.
The appliance must be properly
installed before operation to ensure
that no electrical components are
accessible. Ensure that power is not
supplied to the appliance while
installation work, repairs or
maintenance is performed.
Be certain your appliance is
properly installed and grounded by
a qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician. The manufacturer cannot be
held responsible for responsible for
damages caused by the lack or
inadequacy of an effective grounding
system.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance
(danger of overheating).
This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
Before service or maintenance
disconnect the power supply by
either removing the fuse, "tripping" the
circuit breaker or unplugging the unit.
IMPORTANT SAFETY INSTRUCTIONS
5
www.dexpress.com Page 14 of 105 12/31/2010
www.dexpress.com Page 14 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

Installation work and repairs should
only be performed by a trained
technician in accordance with national
and local safety regulations. Repairs
and other work by unauthorized
persons could be dangerous.
Never open the outer casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
dangerous and may cause machine
damage.
If the machine is installed in
combination with other appliances,
it should be installed with a protective
base between the appliance and the
unit.
To protect against fire, electric
shock and injury to persons do not
immerse cord or plugs in water or other
liquid.
Do not let cord hang over edge of
table or counter, or touch hot
surfaces.
Do not operate any appliance with
a damaged cord or plug or after
the appliance malfunctions, or has
been damaged in any manner. Return
appliance to the nearest authorized
Miele dealer for examination, repair or
adjustment.
Always attach plug to appliance
first, then plug cord into the wall
outlet. To disconnect, turn the machine
off by pressing the left jog shuttle, then
remove plug from wall outlet.
U e
Use only Nespresso-coffee
capsules with this machine.
The coffee system must be cleaned
daily to prevent the growth of
harmful bacteria and mold. Please
read the "Coffee system care"
section of this booklet.
Caution! There is a risk of burns
when dispensing hot beverages,
they are extremely hot.
Do not touch hot surfaces. Use jog
shuttles or steam lever.
Children should not use the
appliance unsupervised.
Danger of scalding!
This appliance must not be
installed or operated outdoors.
To avoid injuries allow the coffee
system to cool before cleaning or
before putting on or taking off parts.
Turn the machine off at the main switch
when not in use and before cleaning.
Only fill the water tank with cold,
fresh tap water. Warm or hot water
or any other liquids may damage the
machine. The water should be changed
daily to prevent bacteria or mold
growth.
IMPORTANT SAFETY INSTRUCTIONS
6
www.dexpress.com Page 15 of 105 12/31/2010
www.dexpress.com Page 15 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

The water lines must be rinsed and
the machine cleaned thoroughly
before the first coffee is prepared. See
"Daily coffee system care".
The use of accessories not
recommended by the appliance
manufacturer may result in fire, electric
shock or injury to persons.
Do not reach into the perforator.
Injuries may occur.
Do not use damaged, broken or
dented capsules! They may jam in
the machine and damage it.
The hot water and steam
dispensed could cause scalding!
Use these functions carefully. The
machine must never be used to clean
objects.
Never use a steam cleaner to clean
the appliance. Pressurized steam
could damage electrical components
and cause a short circuit.
The coffee system must be
descaled regularly with the
supplied descaling tablets. In areas
with very hard water the machine needs
to be descaled more often. The
manufacturer cannot be held
responsible for damages resulting from
insufficient descaling.
Only use the descaling tablets
provided by Miele and be sure to
use the correct mixture of water and
descaler. Otherwise appliance damage
may occur.
The capsule plate will soil more or
less depending on the coffee
capsule used. Clean the capsule plate
every 1 to 2 months with a cleaning
tablet, available from Miele.
Do not hang, lean, sit or place
heavy items on the door. The
machine may be damaged.
Do not place on or near a hot gas
or electric burner, or in a heated
oven.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7
www.dexpress.com Page 16 of 105 12/31/2010
www.dexpress.com Page 16 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

Front view
aLeft display
bLeft jog shuttle
Pre this jog shuttle to turn the
machine on and off.
Turning it selects a desired
program, option or setting.
cRight jog shuttle
Pre this jog shuttle:
– to start and stop the dispensing
of coffee or hot water.
– to select an option to alter or
customize a program.
– to save a setting into memory
when the machine is turned off.
Turning it selects a desired
program, option or a setting.
dRight display
eUpper door handle
(for installation at countertop height)
fLower door handle
(for installation at a higher level,
e.g. upper cabinets)
gPlastic drip grill
hMetal drip catch
iCoffee dispenser
jInset for Cappuccinatore
kValve / Lever for steam and hot water
Guide to the machine
8
www.dexpress.com Page 17 of 105 12/31/2010
www.dexpress.com Page 17 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

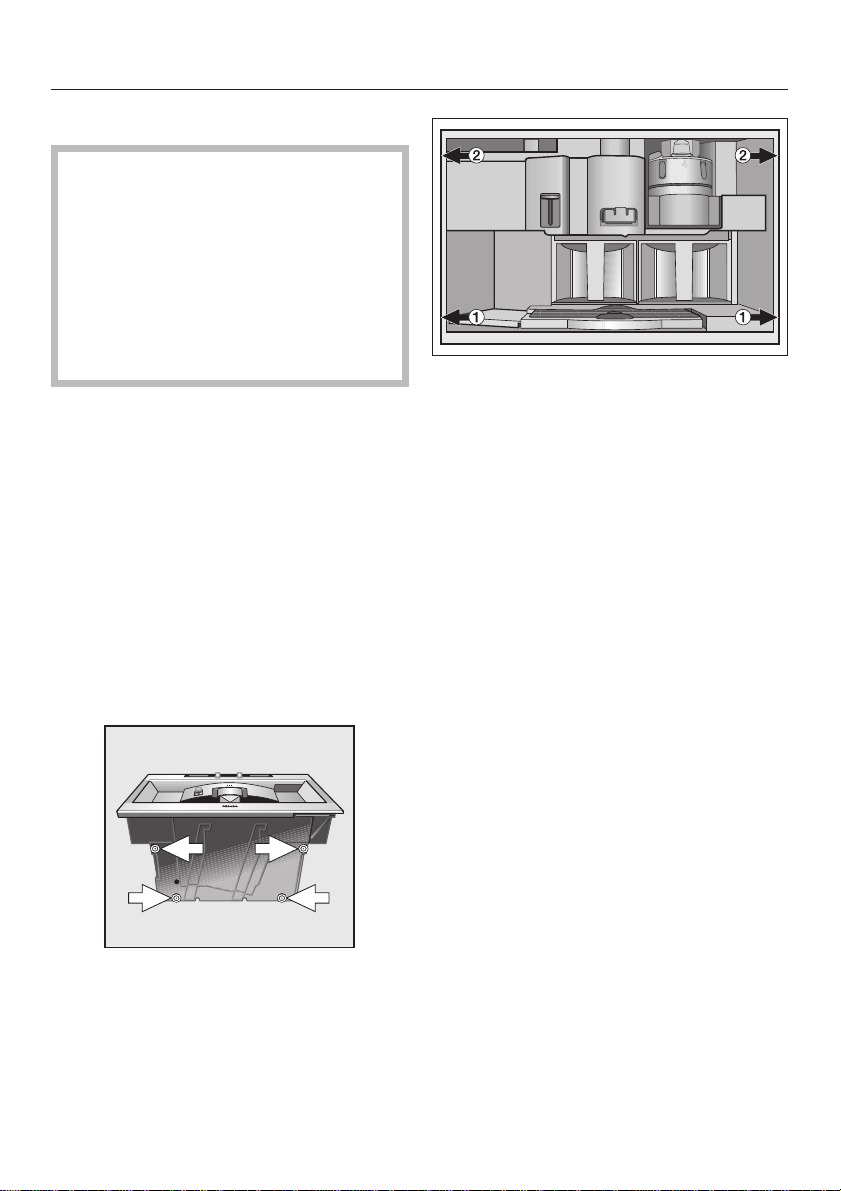

Interior view
lMain switch
mCapsule plate
(replaced with the descaling funnel
when descaling is performed)
nPerforator
(not visible, penetrates capsule to
assist in the brewing process)
oCapsule carousel
pCarousel tray
qWater tank
rDrip tray with grid
(grid avoids spilling during transport)
sWaste container
Guide to the machine
9
www.dexpress.com Page 18 of 105 12/31/2010
www.dexpress.com Page 18 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

Left di play
COSI
K12345 LonGkC
–Drink election
Up to 5 different coffee types K, as
well as, steam Land hot water o
–U er profile
Up to 4 different users n
–Important maintenance
Rinsing G, descaling k
–Selection of Setting C
Right di play
LANGUAGE
FYKnIIJZ
–selects coffee or espresso
–shows current actions, e.g. heating
–prompts an action, e.g. close the
door
Individual settings and information can
be selected in the right hand display.
FLanguage
mTime
KAllocation of coffee type
nUser name
IProgramming
ITotal number of cups of coffee
dispensed to date
JMaintenance
ZReset to default settings
The selected option will be
highlighted in the display.
Di play
10
www.dexpress.com Page 19 of 105 12/31/2010
www.dexpress.com Page 19 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup

Turning the machine on and off
The appliance must be correctly
installed and connected before the
first use.
Turning on
^Press the left jog shuttle.
Míele
Welcome!
When turned on for the first time, a
welcome screen as well as other
messages will appear in the right
display. The welcome screen will be
displayed each time the machine is
turned on until 5 drinks (including
steam) have been prepared.
COSI
K12345 LonGkC
The displays light.
Turning off
^Press the left jog shuttle until the
displays go dark.
If the automatic rinsing function is
activated, both displays will go dark
when turned off. If coffee was
dispensed, the machine will be
rinsed and "Machine Rinsing" will
appear in the right display. When
finished the machine will shut off
completely.
Fir t tep to u e
11
www.dexpress.com Page 20 of 105 12/31/2010
www.dexpress.com Page 20 of 105 12/31/2010
CVA2650
CVA2650
Mfr Sup
Mfr Sup
