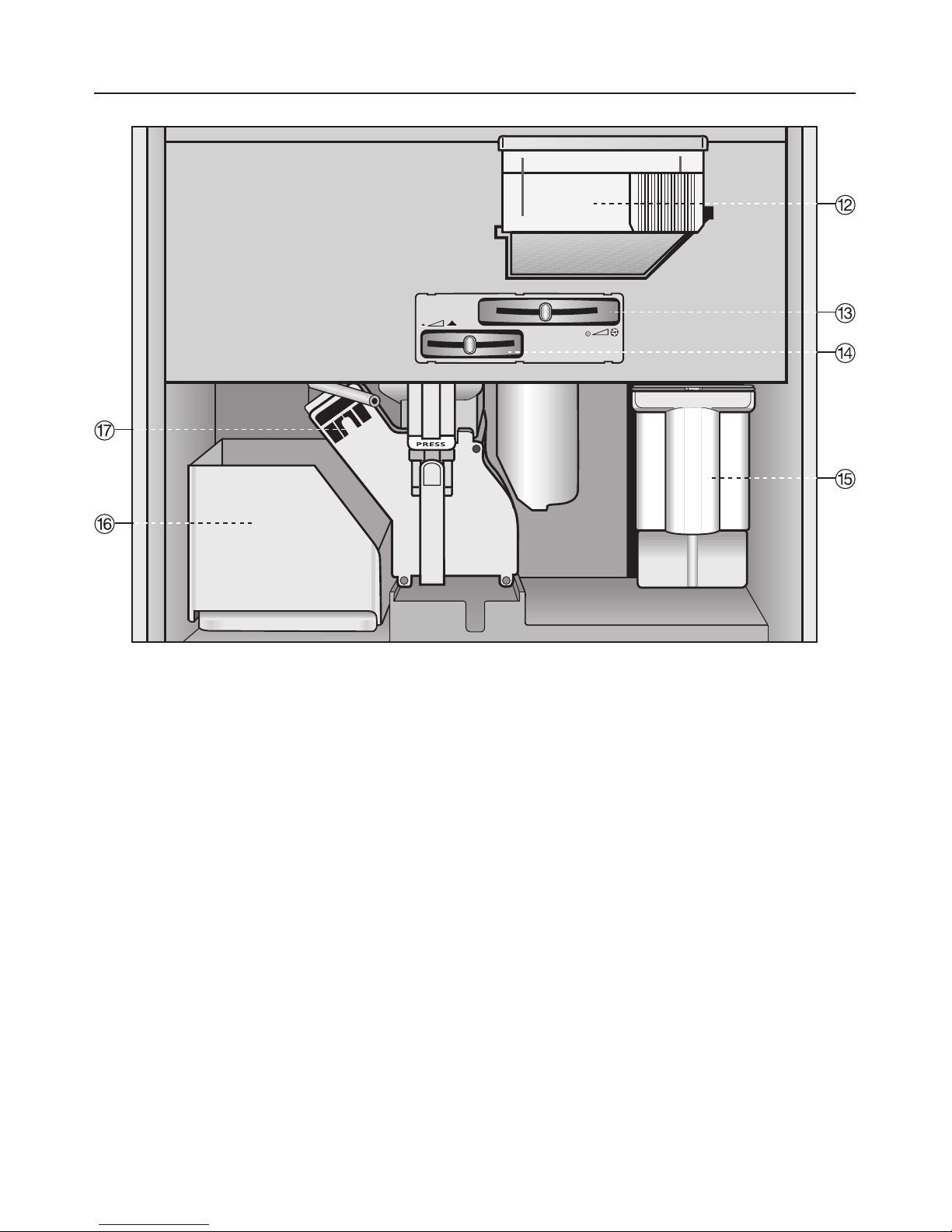

lCoffee bean container
mSlide control to select the fineness of the ground coffee
nSlide control to select the quantity of ground coffee
oWater tank
pWaste unit
qBrew unit
Guide to the coffee system
8

Progr m mode
The coffee system can be customized
to each household through the
"program mode."
To program the appliance:
^Turn the program selector to
"Program mode".
The appliance is now in program mode
and will respond according to the
symbols shown under the coffee
serving buttons.

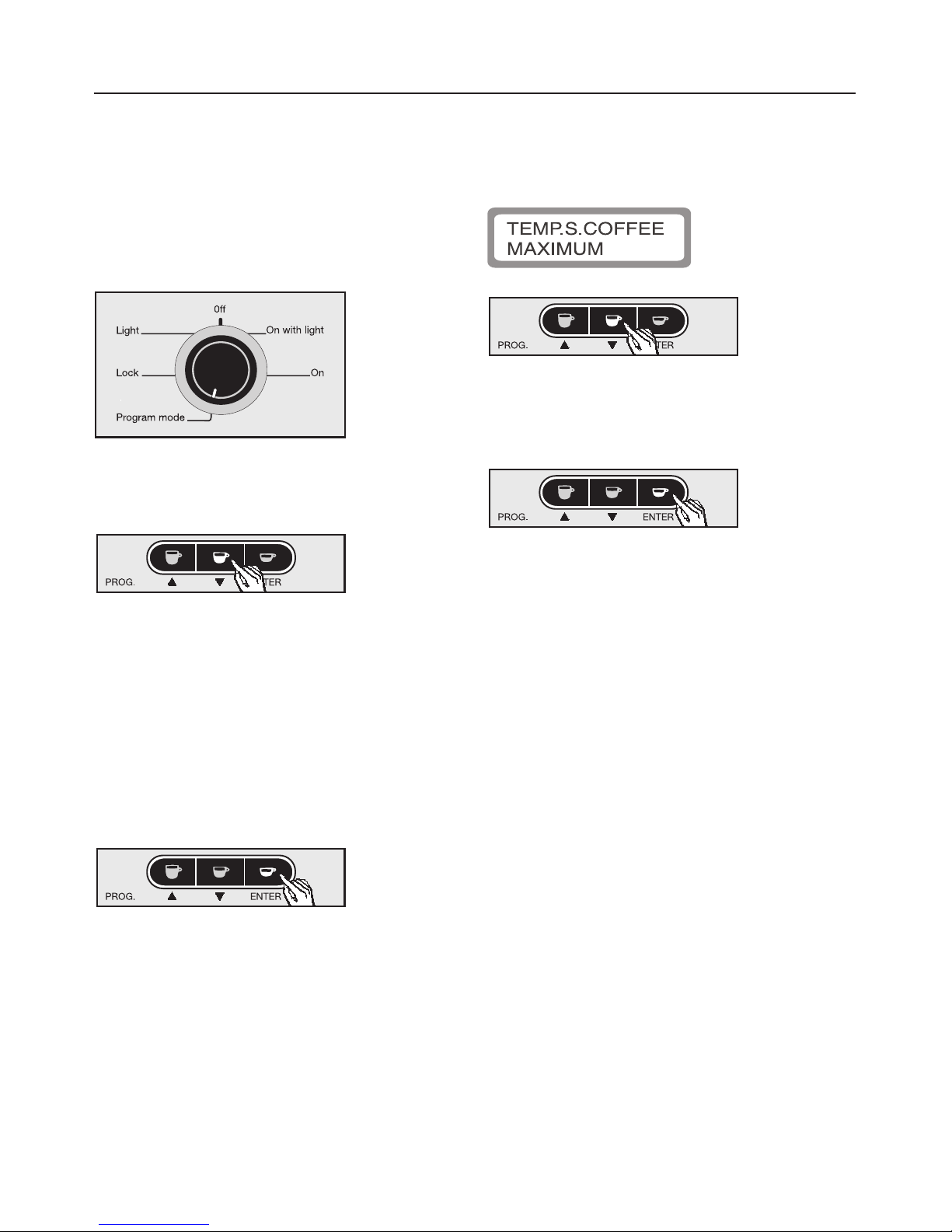

^By pressing the -or ebutton,
–a programming option in the
message window can be highlighted
with an asterisk.
–the settings of the various
programming options can be
adjusted.
^By pressing ENTER,
–a programming option highlighted
with an asterisk can be selected.
–a change to the programmed
settings is saved.
If a setting is accidentally changed,
turn the program selector to "0ff"
instead of confirming it with ENTER.
The changed setting will not be saved
and the original setting will be retained.
Progr mming
9

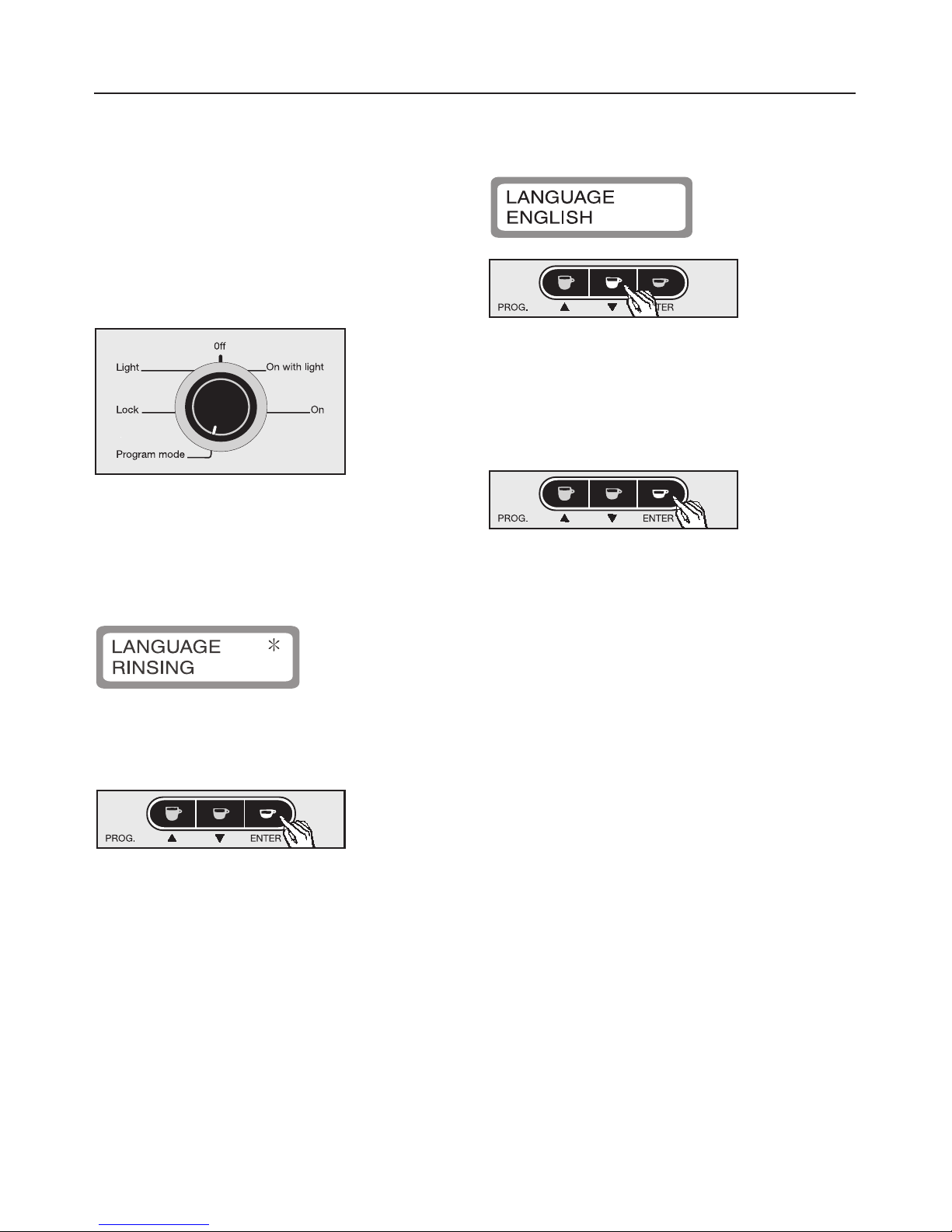

Choosing l ngu ge
The language for the commands in the
message window should be selected
before the machine is used.
The following languages are available:
English, Spanish, French, German,
Dutch, Portuguese and Italian.

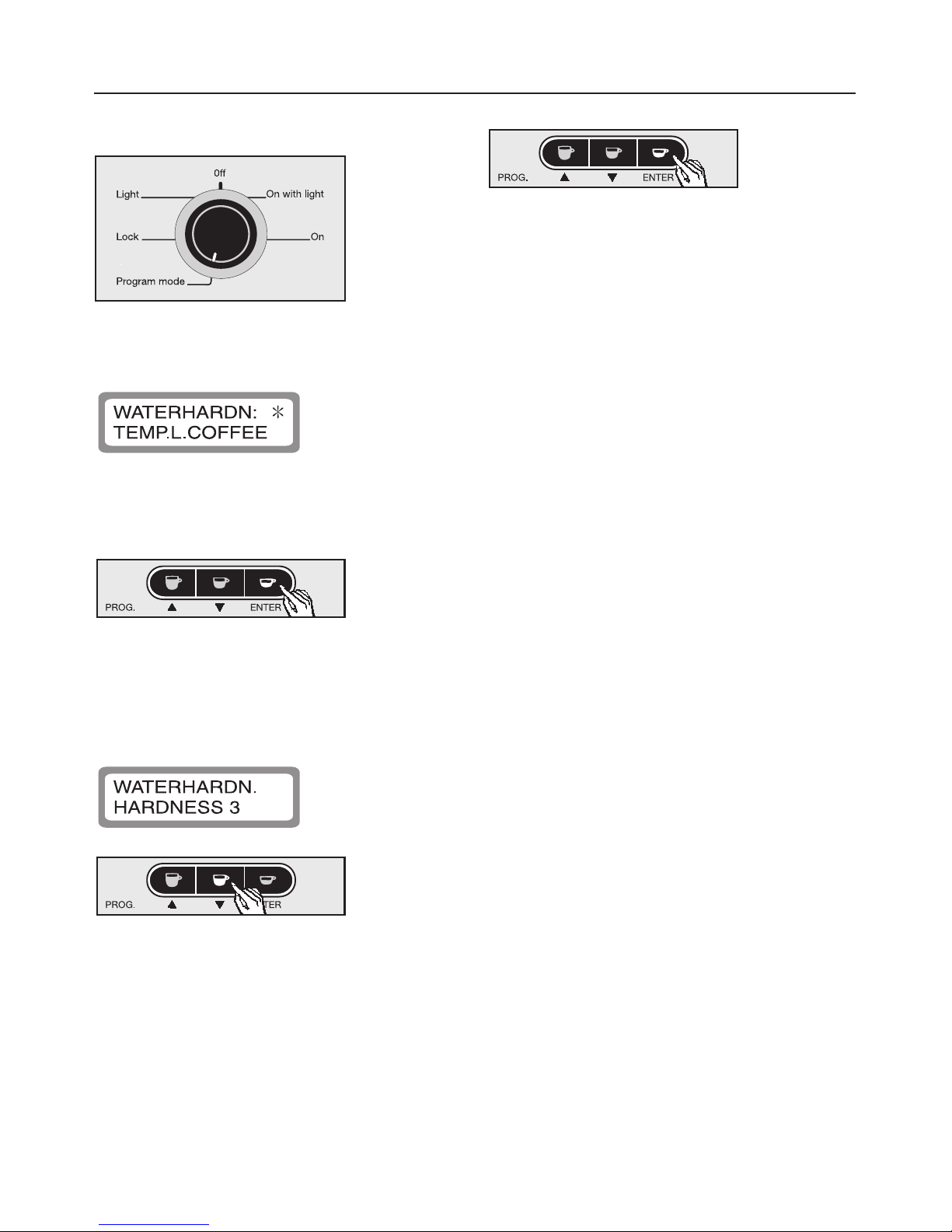

^Turn the program selector
counterclockwise to "Program mode."
The following will appear in the
message window:
Programming option "LANGUAGE" will
be highlighted with an asterisk.
^Press ENTER to select this
programming option.
The sub-menu will appear in the
message window.
^Press the ebutton until the desired
language appears (english, espanol,
francais, deutsch, nederlands,
portugues or italiano).

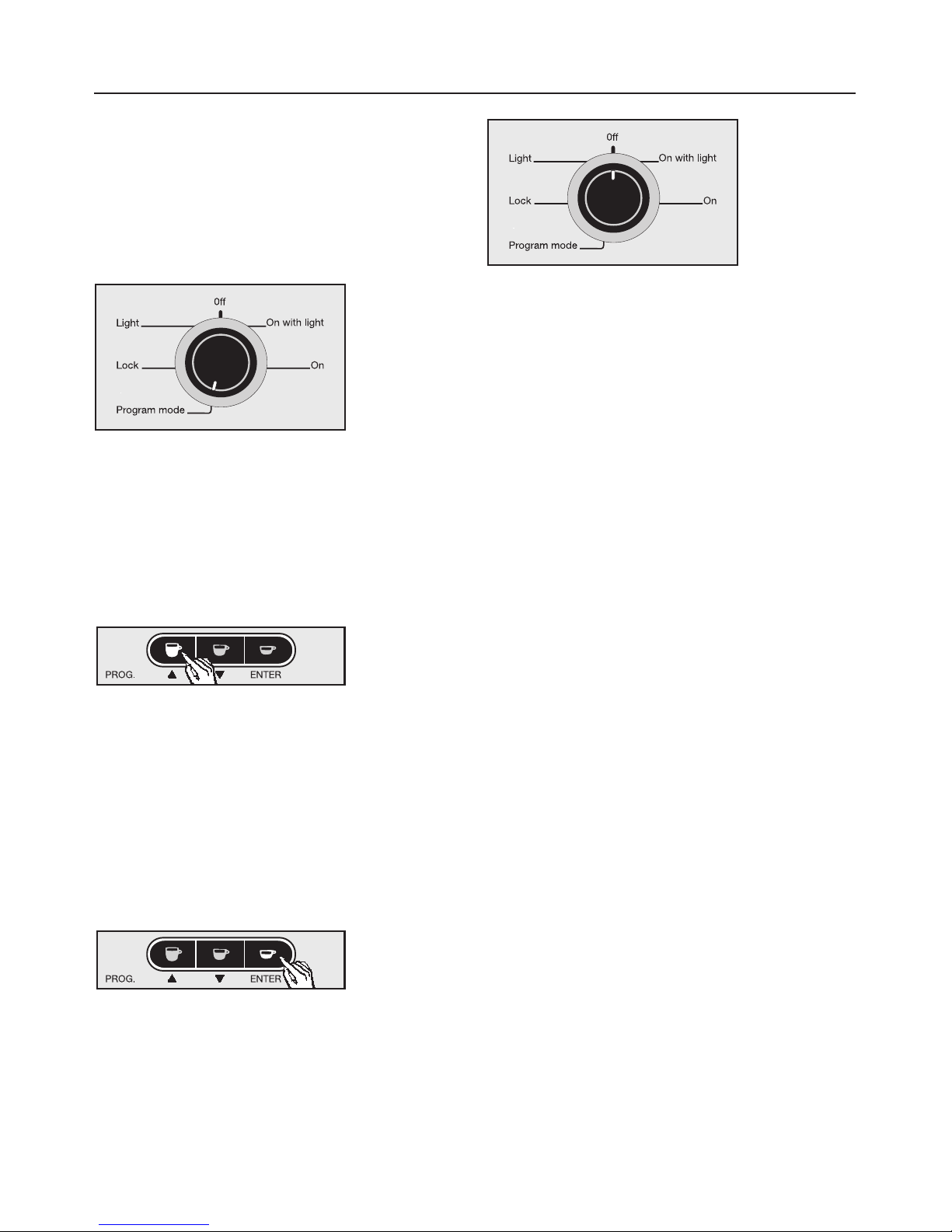

^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
All text in the message window will now
appear in the selected language.
Progr mming
10

Rinsing fe ture
The rinsing feature flushes out coffee
residue and pre-warms the coffee
system. When "Rinsing - On" is selected
the system will automatically be flushed
and pre-warmed when the appliance is
turned on. If this feature is set to
"Rinsing - Off" the system will only be
flushed and pre-warmed when the
rinse/pre-warm button is pressed.
^Turn the program selector
counterclockwise to "Program mode."
^Press the ebutton, to highlight
"RINSING" with an asterisk.
^Press ENTER to select this
programming option.
The sub-menu will appear in the
message window.
^Press button e, to turn the "Rinsing"
feature on or off.
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
Progr mming
11

Determining the w ter
h rdness
The hardness of the water (tap or
bottled) used in the coffee system must
be determined and programmed into
the appliance. The water hardness will
determine how frequently the unit must
be descaled to maintain the coffee
system properly. The machine monitors
the volume of water passing through it
in conjunction with the hardness of the
water and will indicate when descaling
is necessary. Your local water authority
can tell you the hardness of your tap
water or you can measure the hardness

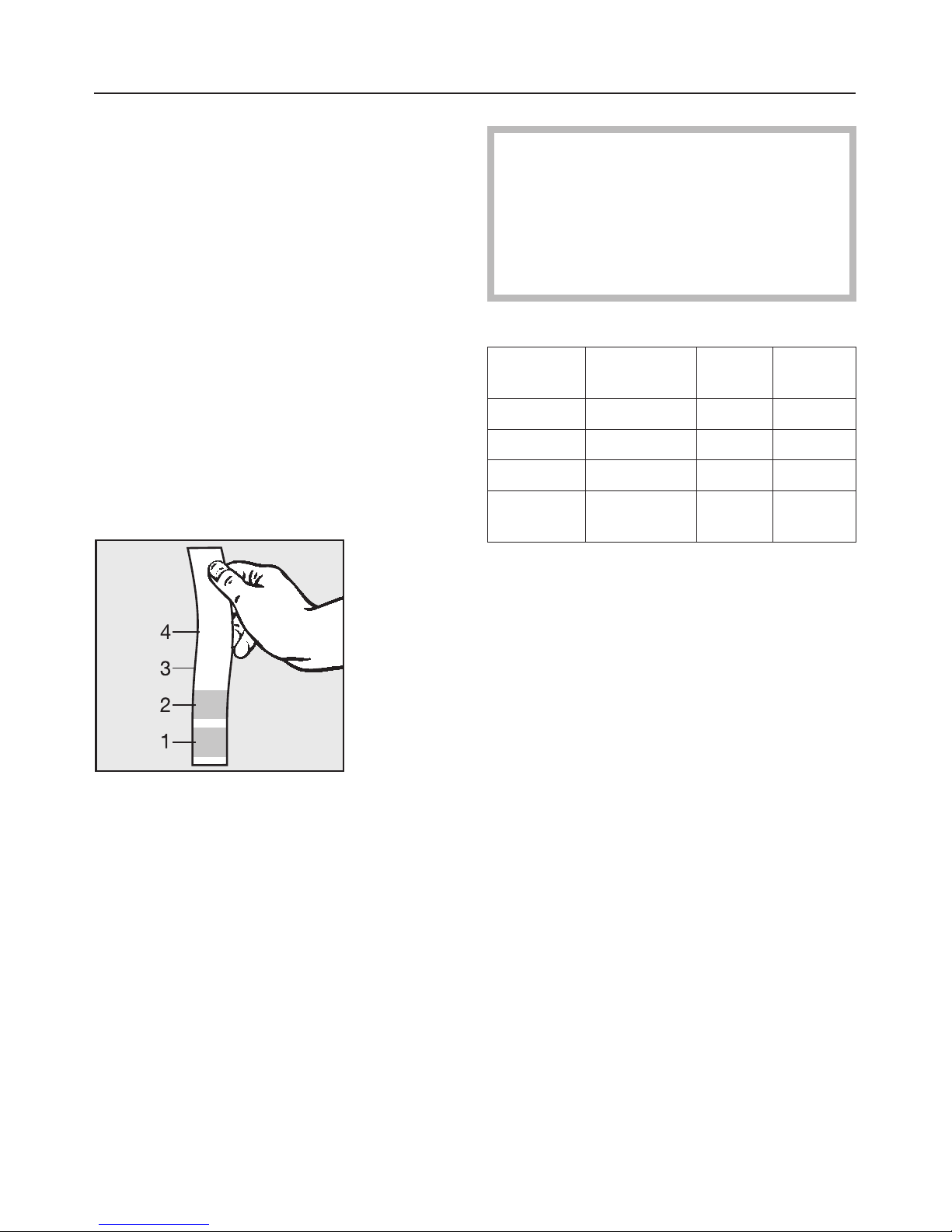

yourself using the enclosed test strip.
^Dip the strip in your drinking water for
one second, then shake off excess
water.
The result will be evident after a minute.
If the water hardness is greater than
40 gr/gal (700 ppm), the water must
be mixed in equal parts with
non-carbonated mineral water to
prevent excessive limescale
build-up. Never use distilled water.
Progr m
setting
W ter
H rdness
gr/g l ppm
Hardness 1 1 (soft) 0 - 3 0 - 130
Hardness 2 1 (soft) 4 - 7 130 - 250
Hardness 3 2 (medium) 7 - 14 250 - 380
Hardness 4 3 (hard)
4 (very hard)
14 - 21
over 21
over 380
Progr mming
12

Setting the w ter h rdness
^Turn the program selector
counterclockwise to "Program mode."
^Press the ebutton to highlight
"WATER HARDN." with an asterisk.
^Press ENTER to select this
programming option.
The sub-menu will appear in the
message window.
^Press the ebutton to set the water
hardness level (hardness 1 - 4).
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
Progr mming
13

Setting the drink temper tures
The appliance can be set at different
temperatures to suit varying coffee
drinking preferences.
Five temperature levels are available for
each drink option.
^Turn the program selector
counterclockwise to "Program mode."
^Press the ebutton to highlight a
drink option
"TEMP. L. COFFEE" (long),
"TEMP COFFEE" (regular) or
"TEMP. S. COFFEE" (espresso)
with an asterisk.
A different temperature can be
programmed for each drink.
^Press ENTER to select the option.
Depending on the programming option
selected, the sub-menu is shown in the
message window as follows:
^Press the ebutton to set the temp-
erature to minimum, low, medium,
high or maximum.
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
Progr mming
14

Pre-brewing fe ture
When the pre-brewing feature is on, the
freshly ground coffee is moistened with
a little hot water to allow the aroma and
crema of the coffee to fully develop.
When the pre-brewing feature is off, the
hot water is forced through the coffee
immediately.
^Turn the program selector
counterclockwise to "Program mode."
^Press the ebutton to highlight
"PREBREWING" with an asterisk.
^Press ENTER to select this option.
The sub-menu will appear in the
message window.
^Press the ebutton to set the
pre-brewing process on, off or to
"long" (an extra long pre-brew).
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
When making coffee with the
prebrewing feature on, "PREBREWING"
will appear in the message window
after the coffee has been ground.
Progr mming
15

Pre-grinding fe ture
The pre-grinding feature allows a new
portion of beans to be ground after
each coffee is dispensed, so there is
always ground coffee ready. This saves
time if coffee is dispensed frequently.
To preserve aroma, the pre-grinding
feature should be turned off when only
preparing coffee occasionally.
^Turn the program selector
counterclockwise to "Program mode".
^Press the ebutton to highlight
"PREGRINDING" with an asterisk.
^Press ENTER to select this option.
The sub-menu will appear in the
message window.
^Press the ebutton to turn the
pre-grinding feature on or off.
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
Progr mming
16

Hot w ter fe ture
When the feature "Programmed hot
water" is turned on, the machine will
dispense a precise, pre-programmed
quantity of hot water when the hot water
button dis pressed. When the feature
is turned off, the machine will dispense
hot water until the hot water button d
is pressed again.
^Turn the program selector
counterclockwise to "Program mode".
^Press the ebutton to highlight
"PROG. H. WATER" with an asterisk.
^Press ENTER to select this option.
The sub-menu will appear in the
message window.
^Press the ebutton to set the feature
on or off.
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
Progr mming
17

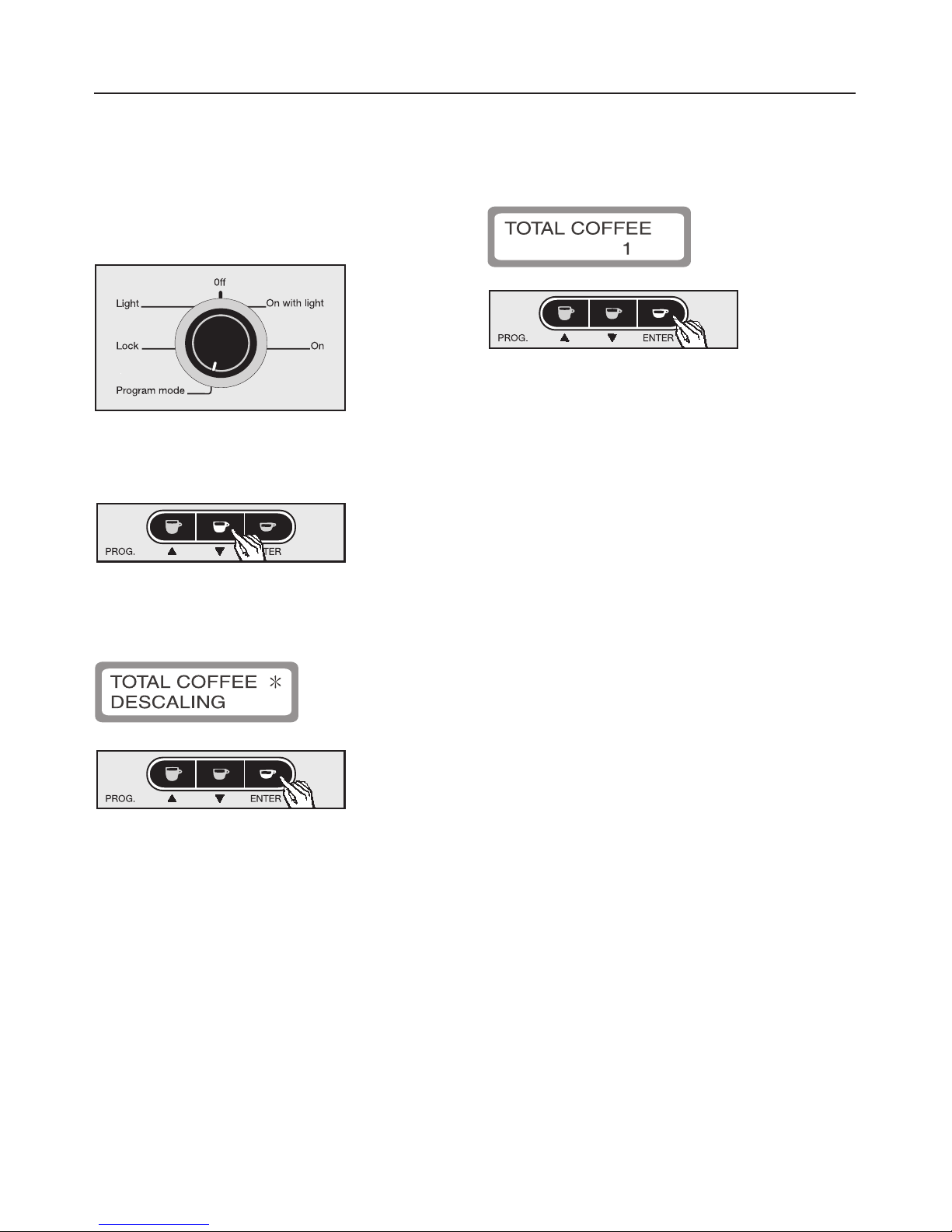

Tot l coffee counter
The feature "Total coffee" will display the
number of cups of coffee (espresso,
coffee and long coffee) that have been
dispensed to date.
^Turn the program selector
counterclockwise to "Program mode."
^Press the ebutton to highlight
"TOTAL COFFEE" with an asterisk.
^Press ENTER to select this option.
The number of coffees that have been
dispensed will be displayed in the
message window.
^Press ENTER to return to the main
menu.
Progr mming
18

Setting the st ndby timer
To help create a more energy efficient
coffee system the machine can be set
to power down after a programmed
time period.
The standby time can be set in
15 minute increments up to 3 hours.
The time is measured from the last time
a drink was dispensed.
^Turn the program selector
counterclockwise to "Program mode".
^Press the ebutton to highlight
"TIMER" with an asterisk.
^Press ENTER to select this option.
The sub-menu will appear in the
message window.
^Press the eor -button to select the
required length of time. The time can
be set in 15 minute increments.
^Press ENTER to s ve this setting, or
turn the program selector to "0ff" to
c ncel if a mistake has been made.
If the rinse feature is set to "On" and a
drink was already dispensed, the
system will be rinsed automatically
before going into standby.
Progr mming
19

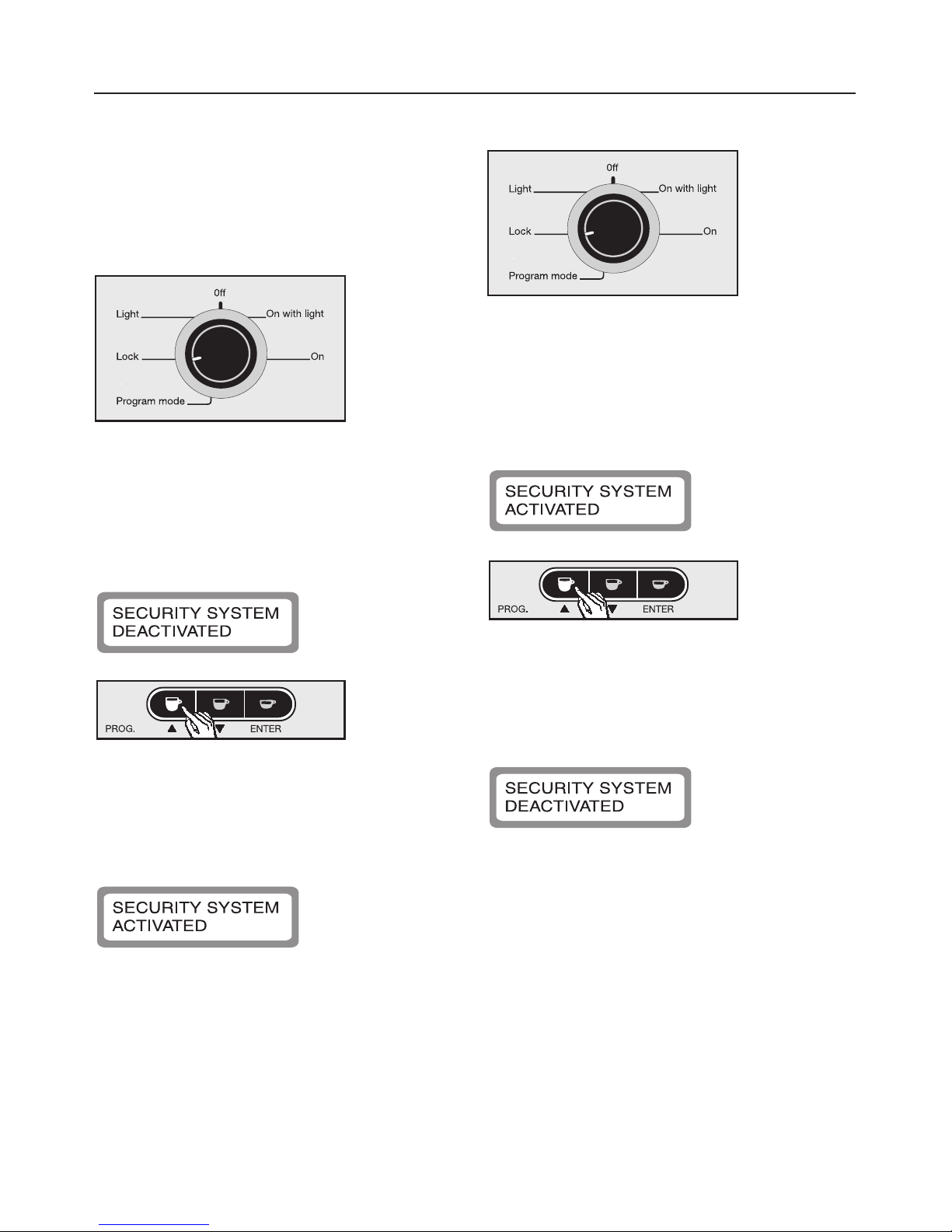

The coffee system can be locked so
that it cannot be used by children or
those not familiar with the operating
instructions.
Activ ting the system lock
^Turn the program selector
counterclockwise to the "Lock"
position.
The following will appear in the
message window:
^Press and hold the -button for
10 seconds.
The following appears in the message
window:
The appliance is now locked and will
not operate. The system will remain
locked and the lighting will remain
turned off even if the program selector
is turned.
De ctiv ting the system lock
^Turn the program selector
counterclockwise to the "Lock"
position.
The following will appear in the
message window:
^Press and hold the -button for
10 seconds.
The following appears in the message
window:
The machine is now unlocked and
ready for use.
System lock
20
