Installation
*INSTALLATION*
Electrical connection
Before connecting the appliance, make
sure that the connection data on the
data plate (voltage and frequency)
matches the mains electricity supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. If in any doubt, consult a
qualified electrician.
The necessary connection information
is given on the data plate inside your
appliance.
The fuse rating must be at least 10A.
The socket must be easily accessible. If
the socket is no longer accessible after
installation, an additional means of
disconnection must be provided for all
poles. Suitable means of disconnection
include switches with an all-pole
contact gap of at least 3mm. These
include isolator switches, circuit
breakers and relays.
Do not connect the machine to an
inverter. Inverters are used for
autonomous power supply, e.g. a solar
power system. When switched on, peak
loads in the system can cause the
safety switch-off mechanism to be
triggered. This may damage the
electronic unit.
The machine must not be used with so-
called energy saving plugs. These
reduce the amount of energy supplied
to the machine, causing it to overheat.

11201431-00
Installation
*INSTALLATION*
Installation dimensions
Installation in a tall unit
A minimum installation height of 850mm must be maintained.
All dimensions are indicated in mm.
Combination with other Miele built-in appliances is possible. If the coffee machine
is to be built in above another appliance, there must be a full-width, closed shelf
between them. When built in above a warming drawer, a closed shelf is not
needed.

11201431-00
Installation
*INSTALLATION*
Installation and connections
All dimensions are indicated in mm.
aMains connection cable
bDo not place electrical connection in this area

11201431-00
Installation
*INSTALLATION*
Building in the coffee machine
Danger of injury due to incorrect
installation.
Personal injury can result from an
incorrectly installed, and therefore
unsecured, appliance.
The coffee machine can only be
operated once it has been built in.
Risk of damage to property due
to incorrect operation.
If the ambient temperature range is
not complied with, the coffee
machine may not function correctly.
The coffee machine may only be
operated in an ambient temperature
range between +16°C and +38°C.
A minimum installation height of
850mm must be maintained.
Ensure that a door opening angle of
120° is present so that the bean
container on the left can be
removed.

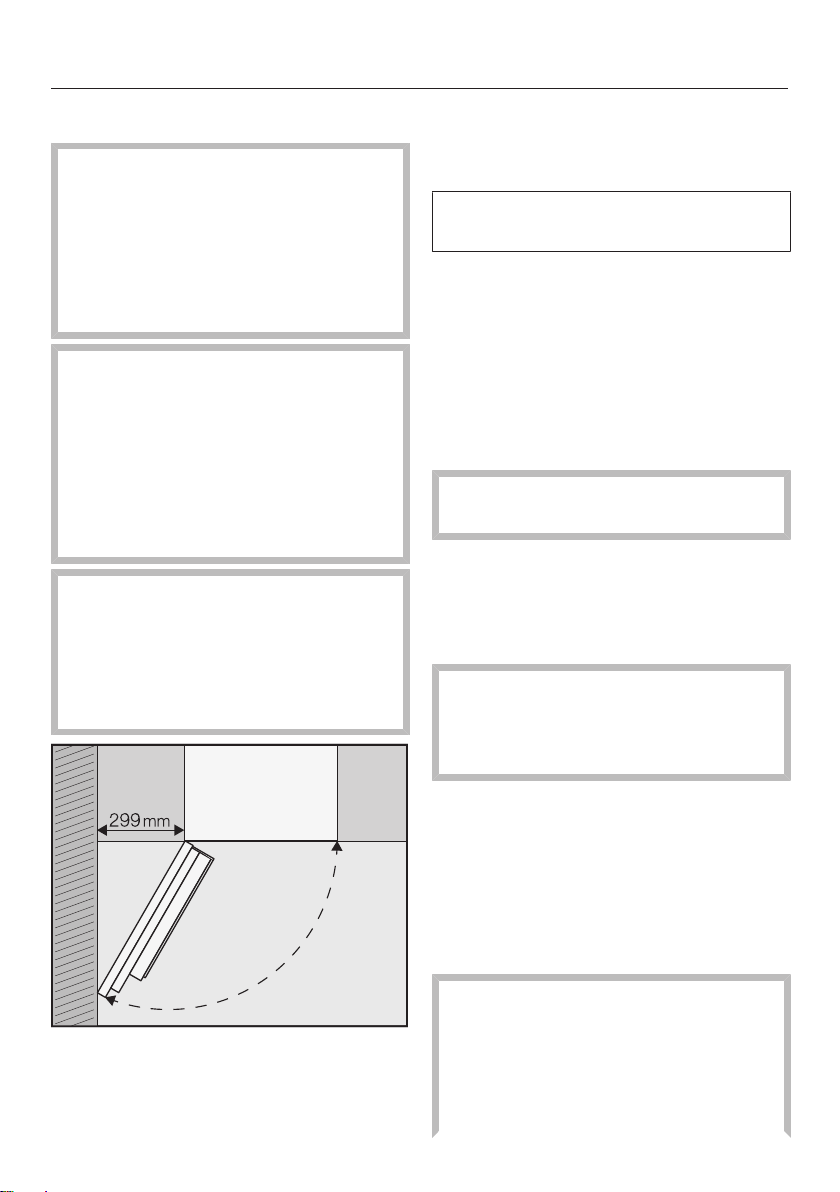

Check whether there is a gap of at least
299mm between the wall or similar and
the coffee machine so that the door can
be opened wide enough to remove the
bean container on the left (minimum
door opening angle of 120°).
A TX20 screwdriver is required for
installation.
Useful tip: We recommend providing a
place to sit the coffee machine which is
the same height as the building-in
niche. This will make it easier to
connect the machine to the electricity
supply.
Connecting to the mains electricity
supply
Observe the instructions in
“Electrical connection”.
Connect the coffee machine to the
mains electricity supply.
Pushing in and levelling the coffee
machine
Ensure the mains connection cable
does not get jammed or damaged
when pushing the appliance into the
niche.
Push the coffee machine all the way
into the building-in niche.
Check the height of the coffee
machine to make sure that it is sitting
centrally in the niche and that it is
level. Align the appliance if
necessary.
Do not adjust the door hinges to
align the coffee machine. This could
result in the milk flask not being able
to be fitted correctly and milk
preparation may not function
properly.

11201431-00
Installation
*INSTALLATION*
Now screw the coffee machine into the
furniture unit.
Open the appliance door.
2 TX20 screws (25mm) are supplied.
Secure the coffee machine to the side
walls of the housing unit using the
screws supplied. Tighten the screws
by hand.
Useful tip: You can remove the door
opening limiters and increase the door
opening angle to 170° so that the screw
on the left can be screwed in more
easily. (see "Door opening limiters").
Check whether there is enough room
and that the appliance door does not hit
an adjacent wall.
Check the operation of the coffee
machine.
Door opening limiters
The door hinges of the coffee machine
are equipped with door opening limiters
that limit the opening angle of the
appliance door to approx. 120°. These
prevent the appliance door from hitting
an adjacent wall when opened and
being damaged.
You can remove the door opening
limiters to increase the opening angle to
approx. 170°. This allows the bean
containers to be removed more easily,
for example.
Removing the door opening limiters
Check whether there is enough room
and that the appliance door does not
hit an adjacent wall when the door
opening angle is increased.
Remove the door opening limiters
from the hinges by levering them out
with a screwdriver, for example.
The door opening angle is now
increased to approx. 170°.
