Miele GAS COMBISET CS 1011 User manual

Operating and Installation
Instructions
Gas Combiset
CS 1011
To prevent accidents and
appliance damage,
read these instructions
before
installation or use. M.-Nr. 07 366 200
en-US
®®

2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
–Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance.
ßDo not touch any electrical switch.
ßDo not use any phone in your building.
ßImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ßIf you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gasfitter)
–Note to the installer:
Please leave this instruction book with the
consumer for the local electrical/gas inspector’s
use.

IMPORTANT SAFETY INSTRUCTIONS.................................4
Guide to the combiset ..............................................9
Burner ..........................................................10
Before using the combiset .........................................11
Use ............................................................12
Fast-Ignition System ...............................................12

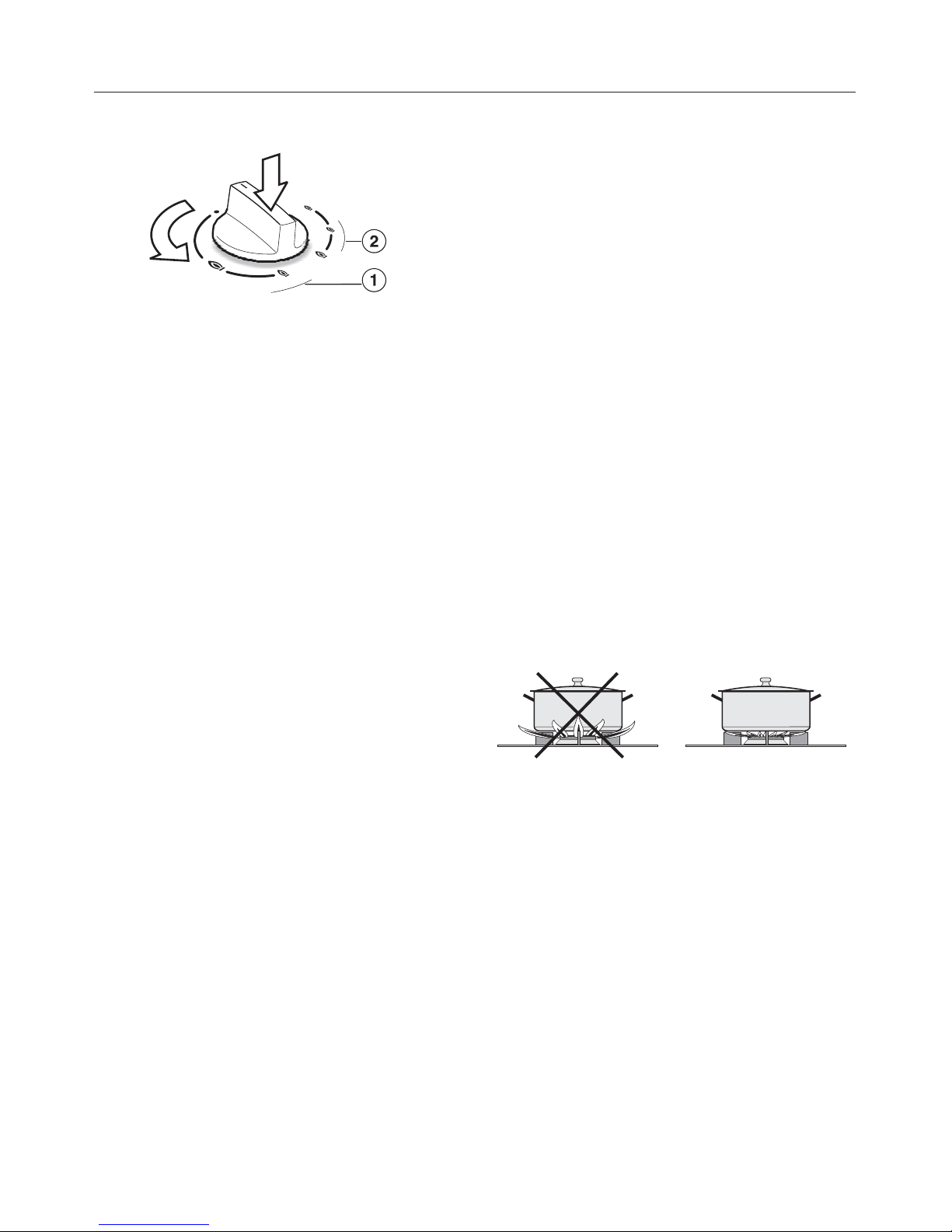

Turning On/Off and Regulating .......................................12
On/Off indicator and Residual heat indicator ............................14
Cookware .......................................................15
Energy saving tips ................................................16
Safety features ...................................................17
Ignition safety control...............................................17
Safety cut-off .....................................................17
Cleaning and care ................................................18
Frequently asked questions ........................................20
Technical Service.................................................23
IMPORTANT SAFETY INSTRUCTIONS................................26
Installation ......................................................29
Installation dimensions .............................................30
Cutout..........................................................31
Installation of multiple appliances .....................................32
Attach the spring clips and support bars ...............................35
Installing the appliance / appliances...................................37
Removing the appliance ............................................37
Sealing ..........................................................38
Tiled surfaces ....................................................38
Electrical connection..............................................39
Gas connection ..................................................41
Gas pressure regulator .............................................42
Nominal ratings ...................................................43
Converting to another type of gas ...................................44
Help protect our environment.......................................45
Contents
3

WARNING- When using your gas
appliance follow basic
precautions, including the
following:
This gas combiset conforms to all
uniform safety codes and
regulations.
Read all instructions before
installation or use to prevent
injury and appliance damage.
These instructions contain
important information on
installation, safety, use and
maintenance of this appliance.
They will help you avoid injury
and damage to the appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–shops, offices and similar work
environments,
–by customers in hotels, motels, Bed
& Breakfasts or similar residential
environments.
~This appliance is not intended for
outdoor use.
~Only use the gas combiset for
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Children should not be left
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
~The appliance is hot during use and
remains so for some time after being
switched off. Keep children away from
the appliance.
~Keep all pots and pans out of the
reach of children. Danger of burning or
scalding.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
IMPORTANT SAFETY INSTRUCTIONS
4

Technical safety
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
~Before installing the combiset,
check for externally visible damage.
Do not operate a damaged appliance.
A damaged gas combiset is a hazard.
~Before installation, make sure that
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
~Install the appliance so that the
power cord and gas piping do not
come into contact with any portion of
the combiset which may become hot
during use.
~The combiset is not designed for
use with an external timer or a remote
control system.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
~Do not operate the appliance until it
has been properly installed in the
countertop.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~Under no circumstance open the
outer casing of the appliance.
~While the appliance is under
warranty repairs should only be
performed by a Miele authorized ser-
vice technician. Otherwise the warranty
is void.
IMPORTANT SAFETY INSTRUCTIONS
5

~Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually"tripping" the circuit
breaker.
~This equipment has not been
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles. However, under
certain circumstances it may be
possible for installation in these
applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
~After connecting the appliance test
for leaks according to the installation
instructions.
~If there is any doubt concerning
installation contact Miele’s Technical
Service Department.
Safety
~The appliance is hot during use and
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
~Be sure drafts do not blow
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
~Be aware of loose fitting or hanging
garments when operating the combiset,
they may present a fire hazard.
~Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
,WARNING - NEVER use this
appliance as a space heater to heat
or warm the room. Doing so may
result in carbon monoxide poisoning
and overheating.
~Install the combiset in a room that
has sufficient ventilation.
~This appliance must not be
operated outdoors.
~Make sure all components of the
gas burner is assembled correctly
before using the combiset.
IMPORTANT SAFETY INSTRUCTIONS
6

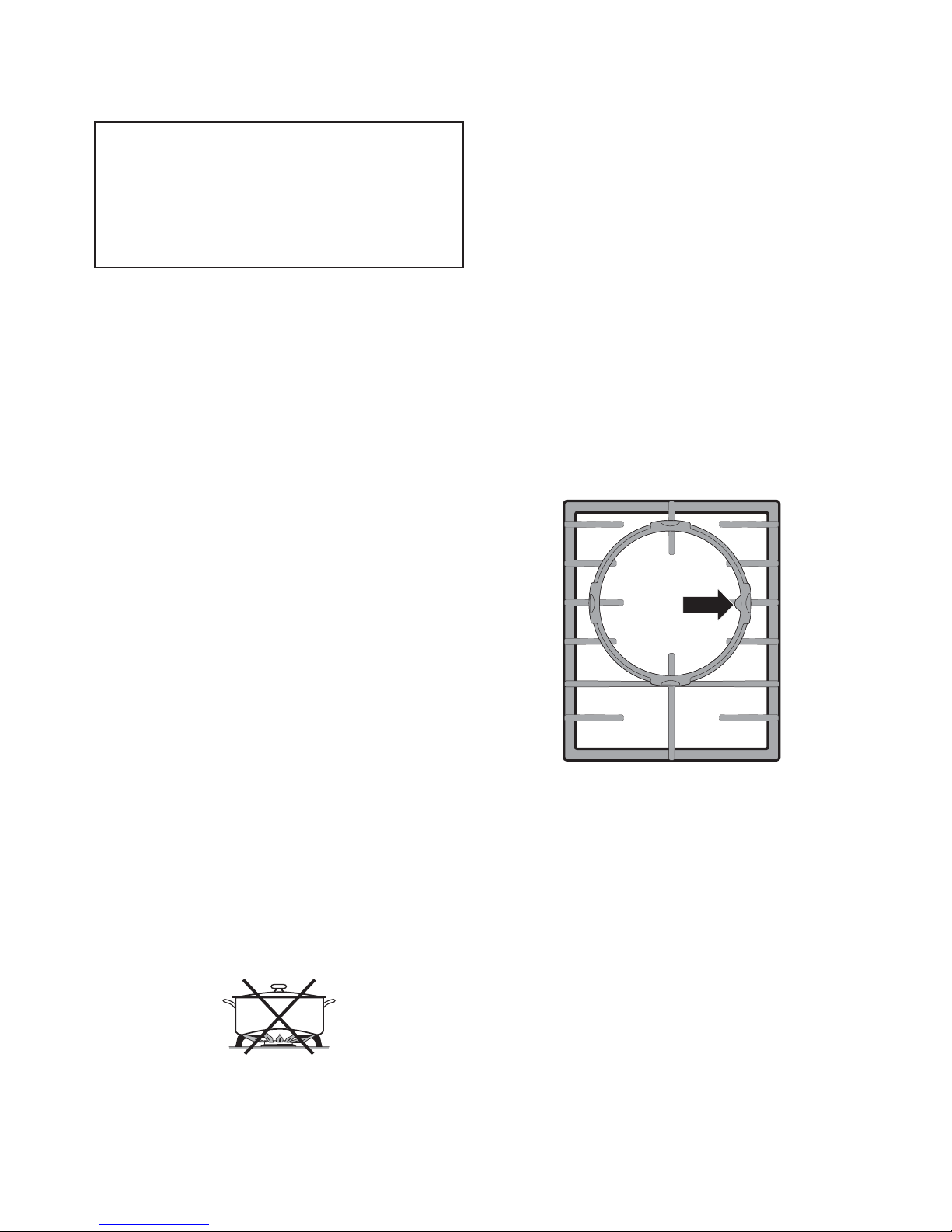

~Do not use pans that extend past
the burner grate. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
~For safety and stability, do not use
pans with a bottom diameter smaller
than the burner grate.
~Only certain types of glass, ceramic
or other glazed cookware are suitable
for use on a combiset without breaking
due to the sudden temperature change.
~Do not use containers made of
plastic or aluminum. They may melt at
high temperatures.
~The burner grates supplied with the
appliance must always be used. Never
place a pan on the burner by itself.
~Do not use aluminum foil to line any
part of the combiset.
~For proper lighting and performance
of the burner, keep the igniter clean
and dry.
~Do not heat empty pots or pans,
they may be damaged.
~For safety reasons the flame should
be adjusted to be the same size as the
bottom of the pan or smaller. Do not
use small pans with high flame settings
as the flames can climb the sides of the
pan.
~Ensure that the burner is always
covered with a pan.
~Only use cooking utensils suitable
for combiset use.
~When more than one combiset is
installed next to each other, be sure not
to place hot pots or pans on the center
line. This could damage the seal.
~Do not store items on the appliance
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
~Never cover the burner with a cloth
or protective oven foil. If inadvertently
turned on or if there is residual heat, a
fire could result.
~When more than one combiset is
installed next to each other, be sure not
to place hot pots or pans on the center
line. This could damage the seal.
~Do not let cooking grease or other
flammable materials accumulate on the
appliance.
~Do not use a steam cleaner to clean
the appliance. Steam could penetrate
electrical components and cause a
short circuit.
~Spills containing salt or sugar
should be removed immediately.
~Do not leave the combiset
unattended while in use. Boil-overs
cause smoking, and greasy spill-overs
may ignite.
~Do not use water on grease fires.
Smother any fire or flame, or use a dry
chemical or foam-type extinguisher.
~Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
IMPORTANT SAFETY INSTRUCTIONS
7

~If there is a drawer directly
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of a heat-resistant material.
~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
~In the event of damage or defect,
turn off the appliance immediately. Turn
off the gas shut off valve and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
~Before discarding an old appliance,
disconnect it from the gas and
electrical supply, and cut off the power
cord to prevent it from becoming a
hazard.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
8

aWok burner
bBurner grate
cControl knob
dDisplay
Indicators
eOn/Off indicator
f"Residual Heat" indicator
Guide to the combiset
9

Burner
gSmall burner cap
hLarge burner cap
iBurner ring
jBurner
kIgnition safety control
(Thermocouple)
lIgnitor
mBurner base
Positioning the burner parts
The proper function of the burner is only guaranteed if the burner parts are
positioned correctly:
The notch aon the burner cap must securely fit into the recess of the burner
b.
The notch con the burner must securely fit into the recess in the lower part of
the burner base d.
If the parts are positioned correctly the burner cannot be turned.
Guide to the combiset
10

Cleaning the combiset
Before using for the first time clean the
appliance as follows:
^Remove any protective foil.
^Wash the removable parts of the gas
burner in a mild solution of warm
water and liquid dish soap.
^Dry and reassemble the parts in the
correct order (see "Cleaning and
care").
^Wipe down the stainless steel
combiset with a suitable cleaner and
dry thoroughly.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated.
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect.
Before using the combiset
11

Fast-Ignition System
The gas combisets are equipped with a
Fast-Ignition-System which
incorporates the following features:
–The control knob does not need to
be pressed until the flame lights.
–If the flame goes out because of a
draft, for example, the burner is
automatically re-ignited.
If re-ignition is unsuccessful, the gas
supply is automatically interrupted
(see "Ignition safety control").
Turning On/Off and Regulating
The control knob is used to turn the
burner On/Off and to regulate the
strength of the flame.
Description of the settings
ßcombiset is turned off
&Highest flame
Outer and inner burners are both at
the highest settings.
&High flame
Outer burner is on the lowest setting;
Inner burner is on the highest setting.
&Low flame
Outer burner is off;
Inner burner is on the highest setting.
&Lowest flame
Inner burner is on the lowest setting.
The knob must only be turned left to
turn the appliance on and right to
turn it off.
If the knob is :
- turned on without pressing it
down first,
- turned clockwise to turn on,
- used to turn the outside ring on
or off without pressing the knob
down, or
- turned counterclockwise to turn
the combiset off,
parts of the combiset might get
damaged.
Use
12

Turning on
^To turn on the burner, press the
control knob down to pass the
resistance, then release the pressure
and turn it counterclockwise to the
largest flame symbol. The ignitor will
"click" and ignite the gas.
If the burner does not ignite or the
flame goes out, turn the control knob to
"ß". Try again after a few seconds.
If the burner still won't ignite after the
second attempt, turn the control knob
to "ß" and see "Frequently asked
questions".
^Adjust the knob to the desired
setting.
Regulating the burners
The inner and outer burners are both
controlled by one control knob. There is
a stop at the 6 o’clock position that
requires you to press the knob down
while turning it, in order to get from the
high flame zone to the low flame zone.
^To reduce the flames from a high to
low setting, turn the control knob
counterclockwise until resistance is
felt. Press the knob down to pass the
stop, then release the pressure and
set the combiset to the desired
setting.
^To increase the flames from a low to
high setting, turn the control knob
clockwise until resistance is felt.
Press the knob down to pass the
stop, then let go. Now set the
combiset to the desired setting.
Since the outer portion of the flame is
much hotter than the center, the flame
should be set so that its tips do not
spread beyond the sides of the pan.
Flames which extend beyond the sides
of the pan are hazardous.
Turning off
^Turn the knob clockwise to "ß".
This stops the gas flow and turns off the
combiset.
Use
13

On/Off indicator and Residual
heat indicator
When the combiset is turned on, the
On/Off indicator lights up. Once a
pre-set temperature has been reached,
the residual heat indicator will also light
up. The On/Off indicator goes out when
the combiset is turned off. The residual
heat indicator will remain on until the
combiset is cool enough to touch.
Do not touch or place any heat
sensitive objects on the combiset
while the residual heat indicator is
on. Danger of damage or injury.
If the display is flashing, a fault has
occurred. See "Frequently asked
questions".
Use
14

Min. base diameter
Pots / Pans - 5 7/8" (15 cm)
Max. top diameter
Pots / Pans - 11" (28 cm)
–Follow the dimensions given in the
table. If the bottom diameter is too
small the cookware is not safe. If the
top diameter is too large, may cause
the flames to spread out and
damage the surrounding countertop
or other countertop appliances.
– Remember when buying cookware
that the diameter given is usually the
upper diameter, not the base
diameter.
– Any heat resistant cookware can be
used on a gas cooktop.
– Cookware with a thick bases
distributes heat well. Thin cookware
can overheat easily, requiring you to
stir more frequently.
–The burner grates supplied with the
appliance must always be used.
Never place a pan on the burner by
itself.
–Be sure to place the cookware on the
grates in a way that it does not tip. A
slight "wobble" can never be ruled
out.
–Do not use pots or pans with
concave bottoms.
Wok ring
Use the supplied Wok ring to add
additional stability to the cookware, e.g.
round bottomed woks.
Be sure that the wok ring is in the
correct position and rests firmly (see
illustration).
Small pot ring
Use the supplied Small pot ring to help
prevent the small cookware from
wobbling.
Cookware
15

–Whenever possible, keep pots and
pans covered while cooking. This
helps keep in the most possible heat.
–Cook with a small amount of water.
–Using a pressure cooker will greatly
reduce cooking time.
–Lower the flame after browning or
parboiling.
– Generally, wide / shallow pans will
heat up quicker and cook more
evenly than narrow / tall ones.
Energy saving tips
16

Ignition safety control
This appliance is equipped with an
Ignition Safety Control. This control cuts
the gas supply if the flame goes out
and reignition is unsuccessful.
^To reignite the burner, turn the
control knob to"ß", then switch the
burner on as usual.
Safety cut-off
If a zone has been on for an unusually
long period of time (approx. 4 hours), it
will automatically shut off.
^To reignite the burner, turn the
control knob to"ß", then switch the
burner on as usual.
Safety features
17

Never use a steam cleaner to clean
this combiset. Pressurized steam
could cause permanent damage to
the surface and to components.
Do not use any sharp or pointed
objects which could damage the
seal between the frame and the
countertop.
Never use scouring agents, pads,
abrasive cleaning agents, or strong
cleaners, e.g. oven sprays, stain or
rust removers, these could damage
the surface of the appliance.
Keep the ignitor in the burner dry. If
it gets wet it will not spark.
Dry your combiset thoroughly after
cleaning it to prevent lime deposits.
Spills containing salt or sugar should
be cleaned immediately.
A variety of Miele cleaning a care
products are available from your
authorized Miele dealer or by visiting
the Mieleusa.com website.
Combiset
Let the appliance cool to a safe
temperature before removing the
grates.
^Clean the grates, combiset and
knobs with a sponge and a mild
solution of warm water and liquid
dish soap.
^Soak baked or hardened spills.
Dry the combiset and grates
thoroughly after cleaning.
The stainless steel surfaces can be
cleaned using a non-abrasive stainless
steel cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
These cleaning products are available
from Miele.
Do not use stainless steel cleaner on
or around the printing, it may rub
off. Use only a soft sponge with
some dish liquid and warm water to
clean this area.
Cleaning and care
18

Burner
The burner can be dismantled and
cleaned when cool.
^Remove the burner parts and wash
them in a solution of hot water and
liquid dish soap. Dry them
thoroughly. Make sure that the flame
holes are clean and completely dry.
^Wipe the burner base clean with a
damp cloth and then dry.
^Gently wipe the ignitor and ignition
safety control with a slightly damp
cloth, and then wipe dry.
Make sure that no liquid gets into
the appliance.
Reassembling the burner
After cleaning the burner reassemble in
the correct order:
^Place the burner head jonto the
burner base m, making sure that the
thermocouple kand ignitor lalign
through the holes in the burner head.
The notch aon the burner cap must
securely fit into the recess of the
burner b.
The notch con the burner must
securely fit into the recess in the
lower part of the burner base d.
^Fit the burner ring i.
^Seat the burner caps gand hinto
place.
^Put the grates in place.
Be careful not to mix up the parts.
Cleaning and care
19

,Repairs should only be carries out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
The burner does not ignite when the combiset is being used for the first
time or after an extended period of not being used.
Possible fault Solution
There could be air in the gas pipe. You may need to make several
attempts before the burner ignites
successfully.
The On/Off and residual heat indicators are flashing.
Possible fault Solution
There has been a power failure. Turn all the controls clockwise to "ß".
You can now operate the appliance as
normal.
The On/Off indicator is flashing.
Possible fault Solution
The gas supply has been cut-off. – Turn all the controls clockwise to
position "ß". You can now operate the
appliance as normal.
–If the problem persists, disconnect
the appliance from the electrical
supply for a few seconds.
Frequently asked questions
20
