Miele KM 404 User manual

Operating Instructions
Gas Cooktop
KM 404
To prevent accidents and
machine damage,
read the operating instructions
before
installation or use, M-Nr, 05 060 871

=WHAT TO DO iF YOU SMELL GAS
® Do not try to Jight any appliance.
® Do not touch any etectricaJ switch.
® Do not use any phone in your building.
®immediately call your gas supplier from a
neighbor's phone. Follow the gas supptier's
instructions.
®if you cannot reach your gas supplier, call the
fire department.
installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(in Massachusetts a ticensed plumber /gas fitter)
Note to the installer:
PJease leave this instruction book with the
consumer for the tocat electrical / gas inspector's
use,

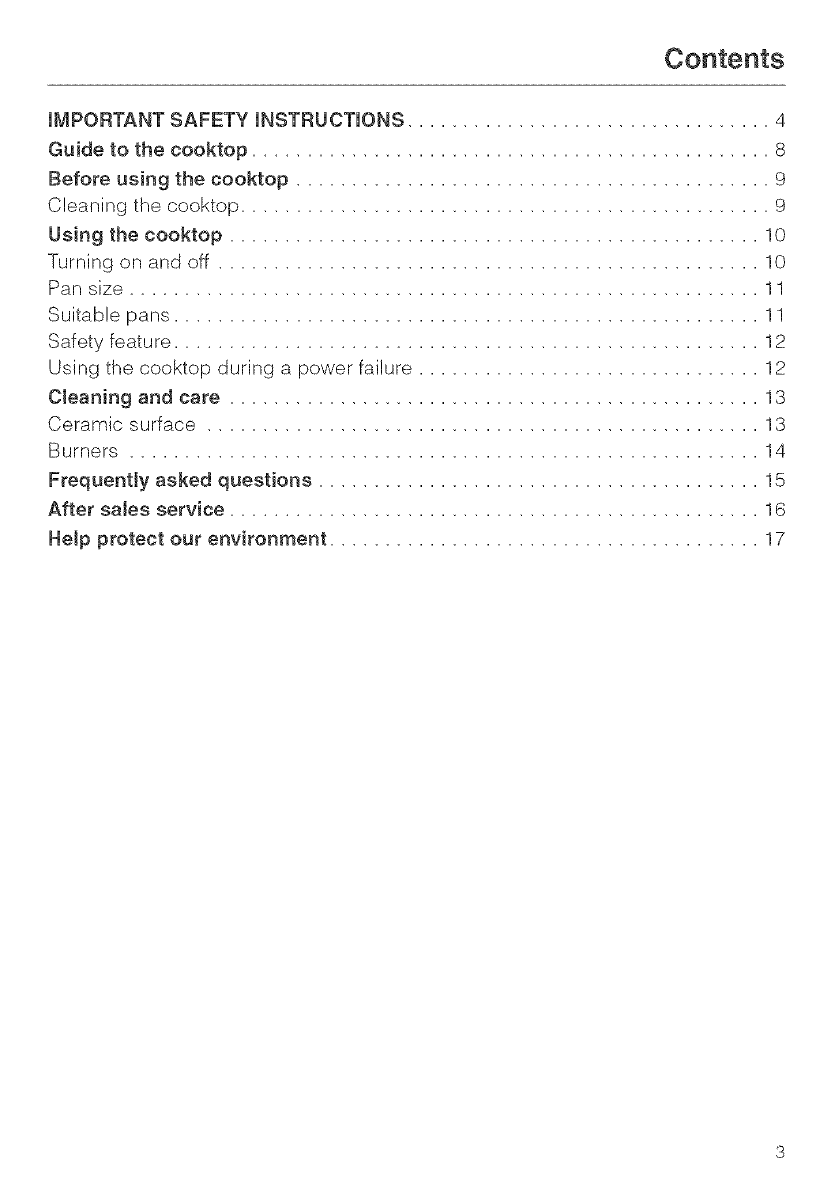

Contents

_iii}ii_i_i_i_iiiiiii_i_ii_i_i_i_ii_i_i`_`i_J_i_iii_iiiiiiiiiiiiiH_iiHiiiiii_i_i_i_`ii_i_iii_iii:_:_:_i_i_i!_ii_iii:iii_i_`_ii`iiiiii_i_iii_i_ii_i_i`i`i_i_iii_i_i_iii_HHiiiii_iii!_i_ii_i__i_i_iiil_iii__i_ii:ii_i_iiii_iiiiiiii!i!ii_i_`i_i_`Xi`iiiiiii_i_i_i_ii_ii`ii_i_ii_i_ii_ii_i_iii`i_i_iii_i_iii_i_iii_i_ii_i_i`ii_iiiiiiiii!i_i!i_ii!i_:_iii`iii_i_:_i_i_iii!_i_i!_i!_iii!_i_ii_ii_i_`_ii`ii_i_iiiHii_iiii!iiii_i_iii_iiiiiii!_i!_i_:i_ii_iii!`i:!:iiii_i_i_i_i_ii_i_i_ii_i_i_i_i_i_:iiii11i_i_i_i_i_ii_:_i_i_ii_
_MPORTANT SAFETY _NSTRUCT_ONS
_nstaHation and connection
follow basic safety precautions
Read all instructions before using
for the first time.
Becertainyourapp,ianceis
properly installed and grounded by
a qualified technician.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
Install the appliance so that the
power cord or gas piping does not
come in contact with any portion of the
cooktop which may become hot during
use,
Do not connect the appliance to
' themainelectricalsupplyusingan
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
Before servicing, turn off the gas
valveanddisconneetthepower
supply by either removing the fuse,
unplugging the unit or manually
"tripping" the circuit breaker.
This equipment has not been
designed for maritime use or for
use in mobile installations such as
aircraft or recreational vehicles.
However, under certain circumstances
it may be possible for installation in
these applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements_
After connecting the appliance test
for leaks according to the
installation instructions.
,fthereis_nydoubtconoern,ng
installation contact Miele's
Technical Service DepartmenL
1-800-999-1360
[email protected]
1-800-565-6435
[email protected]

Guide to the cooktop
'_ Grate
_ Burner cap
'_ Notch
_ Burner
_¢ Ignition safety control
(_ Ignitor
'_ Burner base
'_©Front burner control
'_ Burner indicators
@ Rear burner control
,t3 Power cord

Before using the cooktop
C_eaning the cooktop
Before using for the first time clean the
appliance as follows:
[] Wash the removable parts of the gas
burner in a mild solution of warm
water and liquid dish soap,
[] Dry and reassemble them in the
proper order (see the "Cleaning and
care" section),
[] The ceramic surface can be cleaned
using water or a ceramic cooktop
cleaner and then wiped dry with a
soft cloth,
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated,
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect,

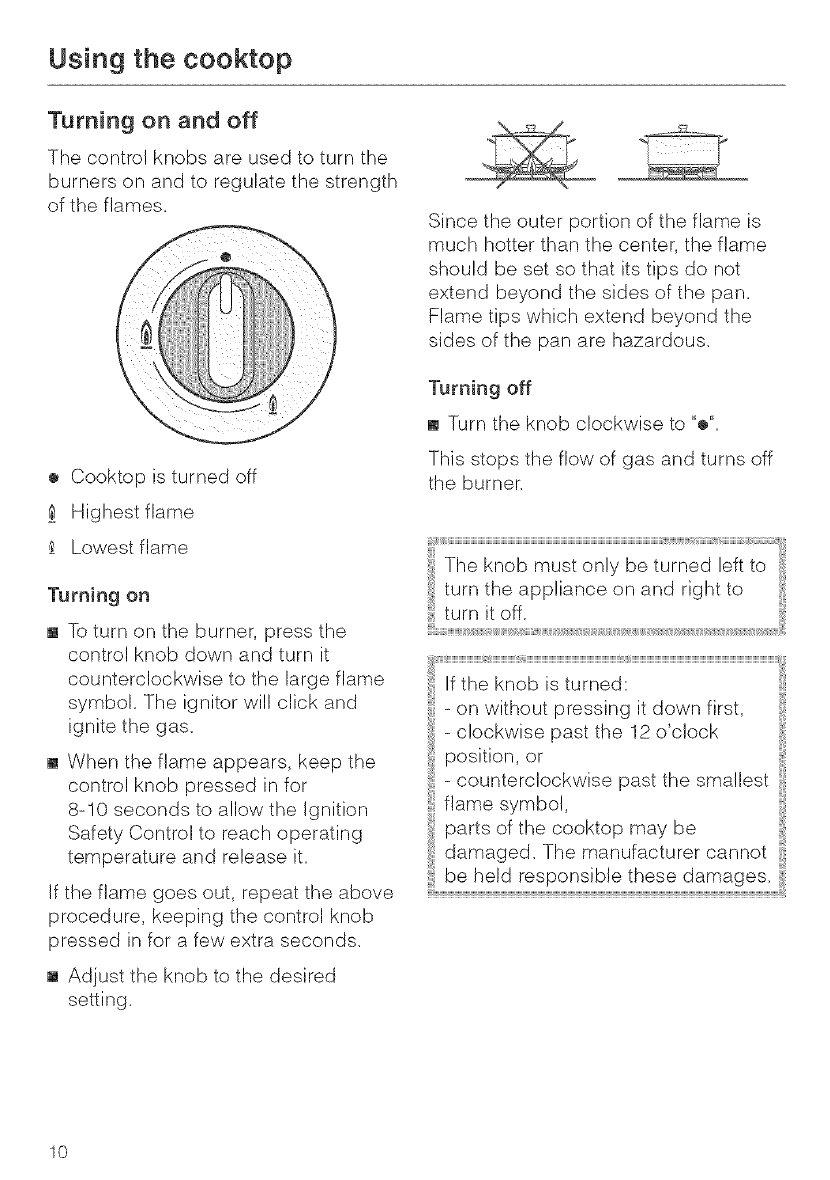

Using the cooktop
Turning on and off
The control knobs are used to turn the
burners on and to regulate the strength
of the flames.
® Cooktop is turned off
Highest flame
Lowest flame
Since the outer portion of the flame is
much hotter than the center, the flame
should be set so that its tips do not
extend beyond the sides of the pan.
Flame tips which extend beyond the
sides of the pan are hazardous.
Turning off
[] Turn the knob clockwise to "®".
This stops the flow of gas and turns off
the burnen
Turning on
[] To turn on the burner, press the
control knob down and turn it
counterclockwise to the large flame
symbol. The ignitor will click and
ignite the gas.
[] When the flame appears, keep the
control knob pressed in for
8-!0 seconds to allow the Ignition
Safety Control to reach operating
temperature and release it.
If the flame goes out, repeat the above
procedure, keeping the control knob
pressed in for a few extra seconds.
[] Adjust the knob to the desired
setting.
flame symbol,
10

Using the cooktop
Pan size
- Set the cooktop to a high flame when
using a large diameter pan and low
flame when using a small diameter
pan.
- Generally, wide /shallow pans will
heat up quicker and cook more
evenly than narrow /tall ones.
- Using oversized pans may cause the
flames to spread out and damage
the surrounding countertop or other
countertop appliances.
- Do not use small pans with high
flame settings, the flame may climb
the sides of the pan.
- Pots with a smaller diameter than the
grate and pots that do not sit
securely (without wobbling) are
hazardous and should not be used.
Suitable pans
Any heat resistant pan can be used on
a gas burnen
Unlike pans used on an electric
cooktop, the bases do not need to be
even for good results.
Thick pan bases will give more even
results, hot spots are reduced due to
better heat distribution.
Thin pan bases will conduct the heat
faster but not as evenly as thick pan
bases. Stir the food frequently to
prevent burning.
11

Using the cooktop

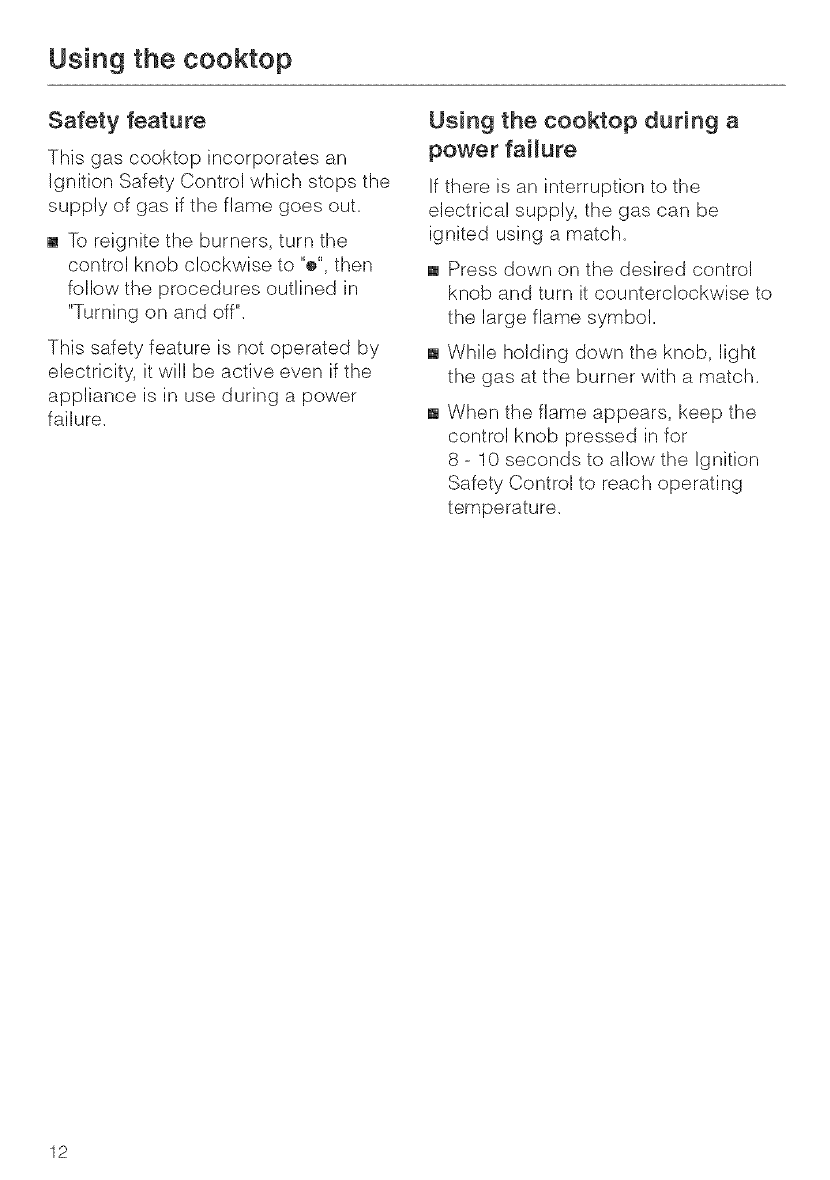

Safety feature
This gas cooktop incorporates an
Ignition Safety Control which stops the
supply of gas if the flame goes out,
[] To reignite the burners, turn the
control knob clockwise to "®",then
follow the procedures outlined in
"Turning on and off",
This safety feature is not operated by
electricity, it will be active even if the
appliance is in use during a power
failure,
Using the cooktop during a
power failure
If there is an interruption to the
electrical supply, the gas can be
ignited using a match,
[] Press down on the desired control
knob and turn it counterclockwise to
the large flame symbol,
[] While holding down the knob, light
the gas at the burner with a match,
[] When the flame appears, keep the
control knob pressed in for
8 - 10 seconds to allow the Ignition
Safety Control to reach operating
temperature,
12

Cteaning and care
iii_i_i/iii_,,,,,,_iiiiiii............................................................................................................................................................_jiIIIIIIIIIId_IIiIIiIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIWji_?_iii
i o not use a steam cleaner to clean
this cooktop. Pressurized steam
could cause permanent damage to
the surface and to components for
which the manufacturer cannot
accept responsibility.
The ceramic surface can be cleaned
using a cleaner for ceramic
surfaces. Follow the manufacturer's
instructions on the packaging.
Keep the ignitor in the burner dry. If
i it..... gets wet it will not spark.
After cleaning, the ceramic surface
must be thoroughly dried with a soft
cloth to prevent a build up of
limescale deposits.
Do not use any sharp pointed
obiects which could damage the
seal between the ceramic surface
and the surrounding frame or
between the frame and the
cou ntertop.
Under no circumstances use a
steam cleaner to clean this cooktop.
Pressurized steam could cause
permanent damage to the surface
and to components, for which the
manufacturer cannot accept
responsibility.
Ceramic surface
The ceramic surface should be cleaned
regularly, preferably after each use.
[] Let your appliance cool to a safe
temperature and remove the grate.
[] Wipe off spills using a damp cloth.
Stubborn spills are best removed
with a shielded scraper blade.
[] Sugar or syrup spills must be
cleaned before the cooktop cools
completely or the glass will dimple.
[] Apply a cleaner for ceramic surfaces
using a soft cloth or paper towel. This
will prevent any water marks caused
by water boiling over.
[] Clean the ceramic surface with a
damp cloth and dry with a soft cloth.
13

Cleaning and care
Burners
The burners can be dismantled and
cleaned when completely cool
Dismantling and cJeaning
[] Remove the burner parts and wash
them in a solution of hot water and
liquid dish soap.
[] Dry them thoroughly. Make sure that
the flame holes are clean and
completely dry.
The shiny surfaces of the burner caps
will dul! with time and usage. This is
normal and will not affect the operation
of the cooktop.
[] Clean the burner base, the ignitor
and Ignition Safety Control with a
damp cloth and then dry with a soft
cloth.
The ignitor must be thoroughly dry, or it
will not spark.
Reassembling the burner
Be careful not to mix up the parts. Make
sure that all the locating tabs and
notches align exactly.
[] Place the burner head, @, onto the
burner base, ,'_, so that the Ignition
Safety Control and ignitor extend
through their respective holes.
[] Return the burner cap, '_@.
[] Return the grate.
14

Frequently asked questions
_i_iiiiiiiiiiiiiiiiiiiiiiiiiii_
All repairs should be performed by a
trained technician in strict
accordance with national and local
codes. Any repairs or maintenance
performed by unqualified personnel
could be dangerous.
Some minor problems can be resolved
as follows:
What to do if ,,,
,,, the burners do not ignite after
severaJ attempts?
Check if:
[] the burners are assembled correctly.
[] the gas valve is open.
[] the burners are dry and clean.
[] the flame holes in the burners are
clean and unblocked.
[] the igniter are wet.
[] the cooktop is plugged in and that
the circuit breaker has not tripped. If
lack of power is the problem, the
cooktop can be lit with a match. See
"Using the cooktop during a power
failure".
,,, the flame goes out after being lit?
[] Check whether the burners are
assembled correctly.
[] Make sure the gas holes in the
burner ring are clean and open.
,,, the igniter no longer work?
[] Check if there is food residue
between the ignitor and the burner.
[] Make sure the ignitor is dry.
,,, the flame appears different than
usual?
[] Check whether the burners are
assembled correctly.
15

After saJes service
In the event of a fault which you cannot
correct, contact the Miele Technical
Service Department:
1-800-999- !360
techserv@mieleusa,com
1-800-565-6435
service@miele,ca
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance,
These are shown on the data plate,
Adhere data plate sticker here:
16

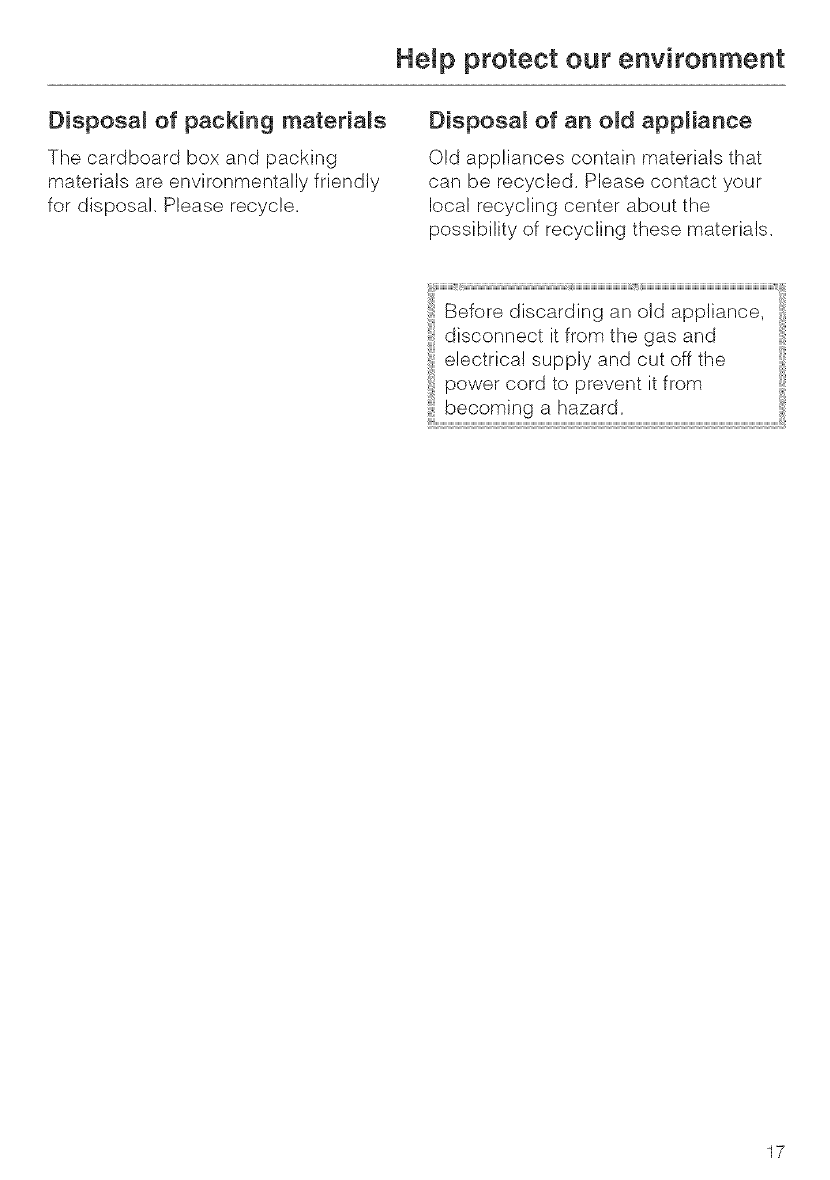

Help protect our environment
Disposam of packing materials
The cardboard box and packing
materials are environmentally friendly
for disposal, Please recycle,
Disposa_ of an o_d appliance
Old appliances contain materials that
can be recycled, Please contact your
local recycling center about the
possibility of recycling these materials,
i electrica! supply and cut off the
power cord to prevent it from
17

18

19

When contacting the Technical Service,
please quote the model and seria| number
of your appiianceo
MieJe, Jnc,
Nationam Headquarters
9 Independence Way
Princeton, NJ 08540
Phone: 800o843o7231
609=419m9898
Fax: 609m419=4298
www.mieUeusa.com
Technical Service & Support
Nationwide
Phone:800=999=1360
Fax: 888=586=8056
MieUe Limited
National Headquarters
55G East Beaver Creek Road
Richmond Hill, ON L4B 1E5
Phone: 800=643=5381
905=707=1t71
Fax: 905=707=0177
www.mieUe.ca
[email protected] (general enquiries)
[email protected](commercial
enquiries)
Mielecare Nationam Service
Phone: 800=565°6435
905=850=7456
Fax: 905=850=6651
[email protected](-[ech. Service)
Alterations rights reserved /0205 M,oNr, 05 060 871 /01
en - US
