Miele KM 320 User manual

Operating Instructions
Gas Cooktop
KM 320
To prevent accidents and
machine damage,
read the Operating Manual
before installation or use. M.-Nr. 05 403 541
en - US, CA
®®

2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
–Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance.
ßDo not touch any electrical switch.
ßDo not use any phone in your building.
ßImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ßIf you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gas fitter)
–Note to the installer:
Please leave this instruction book with the
consumer for the local electrical / gas inspector’s
use.

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning the cooktop................................................9
Using the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on and off .................................................10
Pan size .........................................................11
Suitable pans .....................................................11
Safety feature.....................................................12
Using the cooktop during a power failure ...............................12
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contents
3

Installation and connection
When using your gas appliance
follow basic safety precautions
including the following:
~Read all instructions before using for
the first time.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Install the appliance so that the
power cord or gas piping does not
come into contact with any portion of
the cooktop which may become hot
during use.
~Do not connect the appliance to the
main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
~Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually "tripping" the circuit
breaker.
~This equipment has not been
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles. However, under
certain circumstances it may be
possible for an installation in these
applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
~After connecting the appliance test
for leaks according to the installation
instructions.
~If there is any doubt concerning
installation contact Miele’s Technical
Service Department.
U1-800-999-1360
[email protected]
V1-800-565-6435
[email protected]
IMPORTANT SAFETY INSTRUCTIONS
4

Correct usage
~Do not operate the cooktop until it is
properly installed in the countertop.
~This appliance is intended for
residential cooking only.
~Use the appliance only for its
intended purpose. The manufacturer
cannot be held responsible for
damages caused by improper use of
the cooktop.
~Take care that drafts do not blow
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
~Never use the cooktop to warm the
room.
~Install the cooktop in a room that
has sufficient ventilation.
~This appliance must not be
operated outdoors.
~Do not use aluminum foil to line any
part of the cooktop.
~For proper lighting and performance
of the burners, keep the igniters clean
and dry.
~Make sure all components of the
gas burners are assembled correctly
before using the cooktop.
~Ensure that any burners in use are
always covered with a pan.
~Do not use pans with too large of a
bottom diameter. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
~For safety and stability, do not use
pans with a bottom diameter smaller
than the grate.
~Only certain types of glass / ceramic
or other glazed cookware are suitable
for use on a cooktop without breaking
due to a sudden temperature change.
~Do not store aerosols, combustibles
and / or any other easily flammable
materials underneath or adjacent to the
cooktop.
Protection from damage
~Do not use a steam cleaner to clean
the appliance. Steam could penetrate
electrical components and cause a
short circuit.
~Spills containing salt or sugar
should be removed immediately.
~Do not drop anything on the ceramic
surface of the appliance. Although the
ceramic glass is shock and scratch
resistant, it is not shock or scratch
proof.
IMPORTANT SAFETY INSTRUCTIONS
5

Personal safety
~The burners become very hot when
in use. Make sure that no one comes in
contact with them.
~Do not store toys or items of interest
to children in cabinets above or behind
the cooktop. Children climbing onto the
cooktop to reach these items may
become seriously injured.
~Do not leave children unattended in
an area where the appliance is in use.
~Do not allow children to operate or
play with the cooktop. Keep all pans
out of the reach of children.
~Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot burners. Do not use
towels or other bulky items near the
appliance.
~Be aware of loose fitting or hanging
clothing while operating the cooktop,
they present a fire hazard.
~Do not heat unopened food
containers. Built-up pressure may
cause the container to burst and result
in injury.
~Do not store items on the cooktop
when not in use.
~Do not let cooking grease or other
flammable materials accumulate on the
appliance.
~Do not leave the cooktop
unattended while in use. Overheated
food can ignite.
~Do not use water on grease fires.
Smother any fire or flame, or use a dry
chemical or foam-type extinguisher.
~Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
~For safety reasons the flame should
be adjusted to be the same size as the
bottom of the pan or smaller. Do not
use small pans with high flame settings
as the flames can climb the sides of the
pan.
~Only use cooking utensils suitable
for cooktop use.
~Always position pan handles and
utensils inward so they do not extend
over adjacent work areas, burners, or
the edge of the cooktop.
~If there is a drawer directly
underneath the appliance without any
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, these must be
made of heat-resistant material.
IMPORTANT SAFETY INSTRUCTIONS
6

Damage to the appliance
~In the event of damage or a defect,
turn off the appliance immediately. Turn
off the gas shut off valve, and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
~Any breakages or cracks in the
ceramic surface of the appliance are
defects and must be treated as such.
Do not use the appliance until it has
been repaired.
~Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Under no circumstance
should the outer casing of the
appliance be opened.
~While the appliance is under
warranty, repairs should only be
performed by a Miele authorized
service technician. Otherwise the
warranty is void.
Further safety notes
~When using a portable appliance
near the cooktop, make sure that the
power cord does not come in contact
with the cooktop.
~Do not use containers made of
plastic or aluminum. They melt at high
temperatures.
~Do not heat empty pots or pans, this
may cause damage.
~Before discarding an old appliance,
disconnect it from the gas and
electrical supply and cut off the power
cord to prevent it from becoming a
hazard.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7

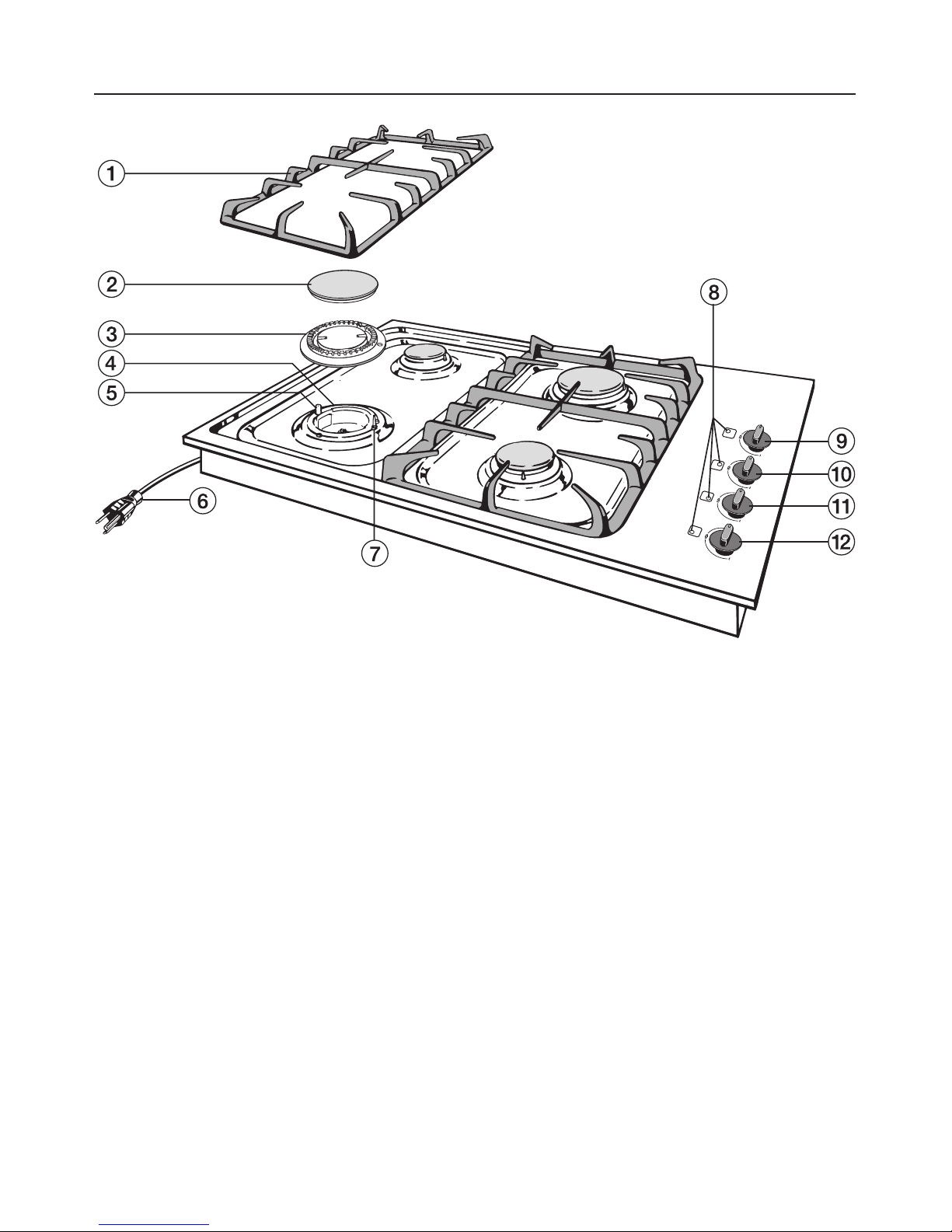

aGrate
bBurner cap
cBurner
dBurner base
eIgnitor
fPower cord
gIgnition safety control
hBurner indicators
Control Knobs:
ileft rear
jright rear
kright front
lleft front
Guide to the cooktop
8

Cleaning the cooktop
Before using for the first time clean the
appliance as follows:
^Wash the removable parts of the gas
burner in a mild solution of warm
water and liquid dish soap.
^Wipe dry and reassemble them in the
proper order (see the "Cleaning and
Care" section).
^Wipe the cooktop surface with a
damp cloth and dry thoroughly.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated.
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect.
Before using the cooktop
9

Turning on and off
The control knobs are used to turn the
burners on and to regulate the strength
of the flames.
ßCooktop is turned off
&Highest flame
/Lowest flame
Turning on
^To turn on the burner, press the
control knob down and turn it
counterclockwise to the large flame
symbol. The ignitor will click and
ignite the gas.
^When the flame appears, keep the
control knob pressed in for
8-10 seconds to allow the Ignition
Safety Control to reach operating
temperature and release it.
If the flame goes out, repeat the above
procedure, keeping the control knob
pressed in for a few extra seconds.
^Adjust the knob to the desired
setting.
Since the outer portion of the flame is
much hotter than the center, the flame
should be set so that its tips do not
extend beyond the sides of the pan.
Flame tips which extend beyond the
sides of the pan are hazardous.
Turning off
^Turn the knob clockwise to "ß".
This stops the flow of gas and turns off
the burner.
The knob must only be turned left to
turn the appliance on and right to
turn it off.
If the knob is turned:
- on without pressing it down first,
- clockwise past the 12 o’clock
position, or
- counterclockwise past the smallest
flame symbol,
parts of the cooktop may be
damaged. The manufacturer cannot
be held responsible for these
damages.
Using the cooktop
10

Pan size
–Set the cooktop to a high flame when
using a large diameter pan and low
flame when using a small diameter
pan.
–Generally, wide / shallow pans will
heat up quicker and cook more
evenly than narrow / tall ones.

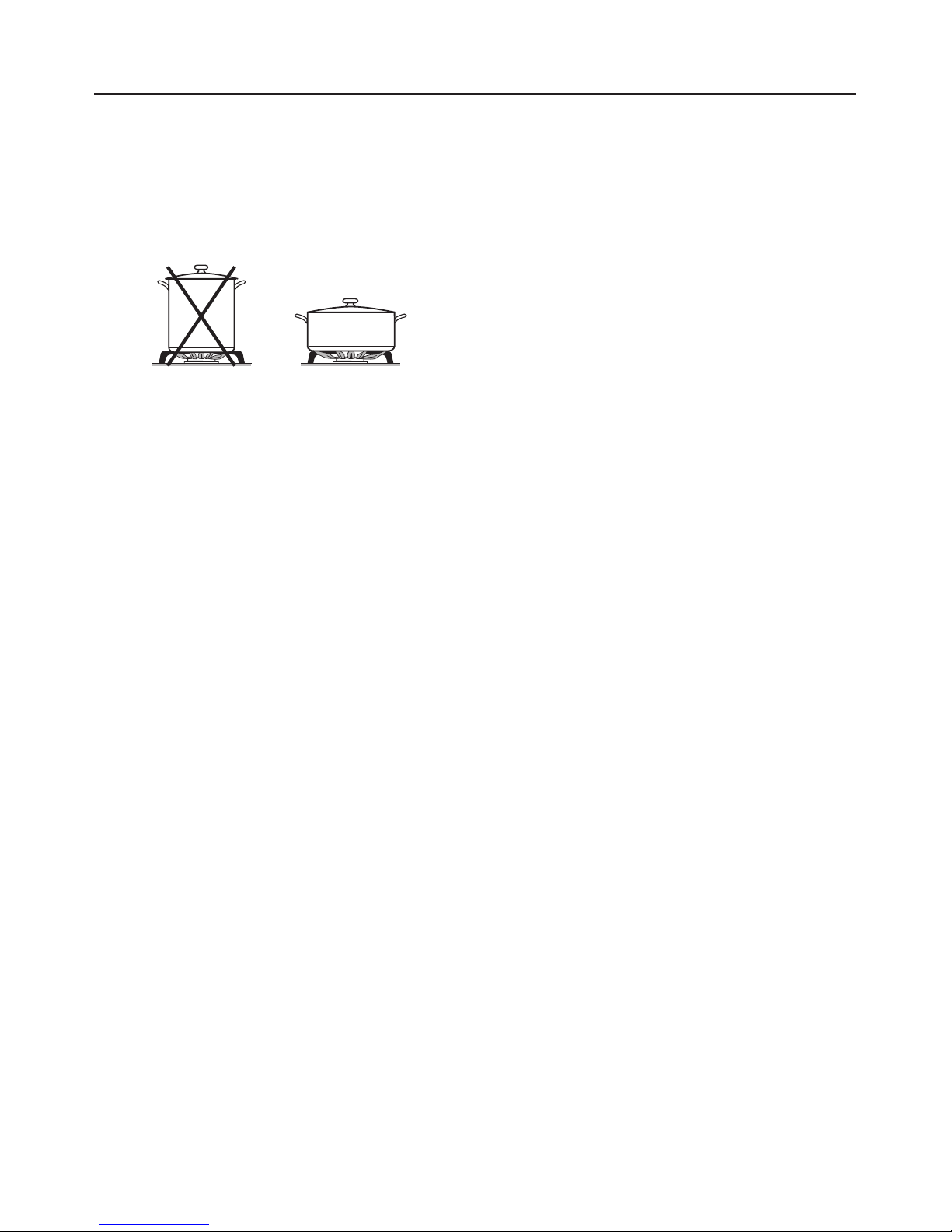

– Using oversized pans may cause the
flames to spread out and damage
the surrounding countertop or other
countertop appliances.
– Do not use small pans with high
flame settings, the flame may climb
the sides of the pan.
– Pots with a smaller diameter than the
grate and pots that do not sit
securely (without wobbling) are
hazardous and should not be used.
Suitable pans
Any heat resistant pan can be used on
a gas burner.
Unlike pans used on an electric
cooktop, the bases do not need to be
even for good results.
Thick pan bases will give more even
results, hot spots are reduced due to
better heat distribution.
Thin pan bases will conduct the heat
faster but not as evenly as thick pan
bases. Stir the food frequently to
prevent burning.
Using the cooktop
11

Safety feature
This gas cooktop incorporates an
Ignition Safety Control which stops the
supply of gas if the flame goes out.
^To reignite the burners, turn the
control knob clockwise to "ß", then
follow the procedures outlined in
"Turning on and off".
This safety feature is not operated by
electricity, it will be active even if the
appliance is in use during a power
failure.
Using the cooktop during a
power failure
If there is an interruption to the
electrical supply, the gas can be
ignited using a match.
^Press down on the desired control
knob and turn it counterclockwise to
the large flame symbol.
^While holding down the knob, light
the gas at the burner with a match.
^When the flame appears, keep the
control knob pressed in for
8 - 10 seconds to allow the Ignition
Safety Control to reach operating
temperature.
Using the cooktop
12

Do not use a steam cleaner to clean
this cooktop. Pressurized steam
could cause permanent damage to
the surface and to components for
which the manufacturer cannot
accept responsibility.
Do not use any sharp pointed
objects which could damage the
seal between the frame and the
countertop.
Never use scouring agents, pads,
abrasive cleaning agents, or strong
cleaners e.g. oven sprays, stain or
rust removers, as these could
damage the surface of the
appliance.
Keep the ignitor in the burner dry. If
it gets wet it will not spark.
Dry your cooktop thoroughly after
cleaning it to prevent lime deposits.
Spills of liquids or food containing
salt or sugar should be removed
immediately.
Cooktop
^Let your appliance cool down to a
safe temperature and remove the
grates.
^Clean the grates, cooktop and knobs
with a sponge and a mild solution of
warm water and liquid dish soap.
^Soak baked or hardened spills.
^Dry the cooktop and grates
thoroughly after cleaning.
^Use a non-abrasive cleaner for the
stainless steel surface of the cooktop.
Apply with an even pressure
following the direction of the "grain".
Cleaning and care
13

Burner
The burners can be dismantled and
cleaned when cool.
Dismantling and cleaning
^Remove the burner parts and wash
them in a solution of hot water and
liquid dish soap.
^Dry them thoroughly. Make sure that
the flame holes are clean and
completely dry.
The shiny surfaces of the burner caps
will dull with time and usage. This is
normal and will not affect the operation
of the cooktop.
^Clean the burner base, ignitor and
Ignition Safety Control with a damp
cloth and then dry with a soft cloth.
The ignitor must be thoroughly dry, or it
will not spark.

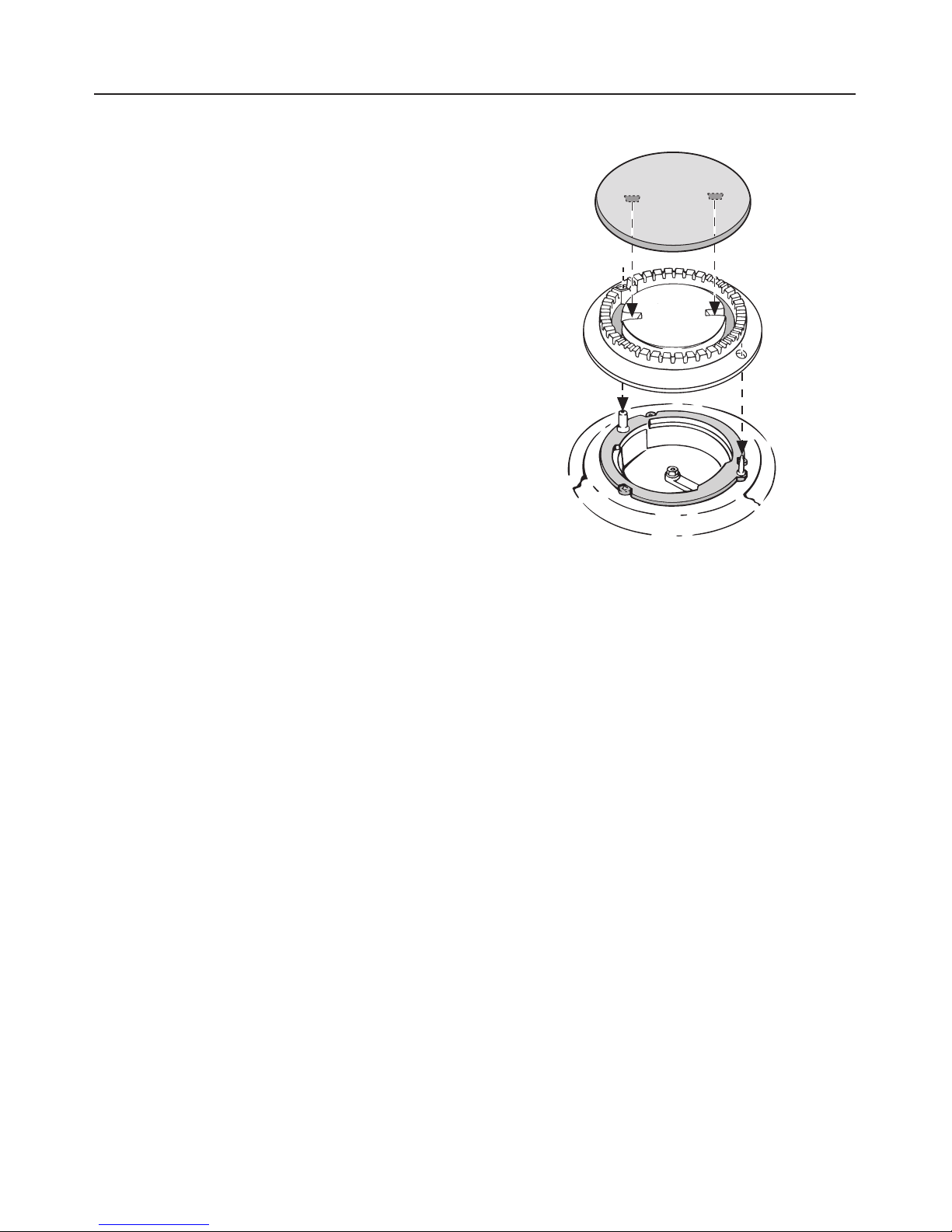

Reassembling the burner
Be careful not to mix up the parts. Make
sure that all the locating tabs and
notches align exactly.
^Place the burner head onto the
burner base so that the Ignition
Safety Control and ignitor extend
through their respective holes.
^Return the burner cap.
^Return the grate.
Cleaning and care
14

All repairs should be performed by a
trained technician in strict
accordance with national and local
codes. Any repairs or maintenance
performed by unqualified personnel
could be dangerous.
Some minor problems can be resolved
as follows:
What to do if ...
... the burners do not ignite after
several attempts?
Check if:
^the burners are assembled correctly.
^the gas valve is open.
^the burners are dry and clean.
^the flame holes in the burners are
clean and unblocked.
^the ignitors are wet.
^the cooktop is plugged in and that
the circuit breaker has not tripped. If
lack of power is the problem, the
cooktop can be lit with a match. See
"Using the cooktop during a power
failure".
... the flame goes out after being lit?
^Check whether the burners are
assembled correctly.
^Make sure the gas holes in the
burner ring are clean and open.
... the ignitor no longer works?
^Check if there is food residue
between the ignitor and the burner.
^Make sure the ignitor is dry.
... the flame appears different than
usual?
^Check whether the burners are
assembled correctly.
Frequently asked questions
15

In the event of a fault which you cannot
correct, contact the Miele Technical
Service Department:
U1-800-999-1360
[email protected]
l1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance.
These are shown on the data plate.
Adhere data plate sticker here:
After sales service
16

Disposal of packing materials
The cardboard box and packing
materials are environmentally friendly
for disposal. Please recycle.
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling center about the
possibility of recycling these materials.
Before discarding an old appliance,
disconnect it from the gas and
electrical supply and cut off the
power cord to prevent it from
becoming a hazard.
Help protect our environment
17

18

19

Alterations rights reserved / 0205
For the most updated manual see the Miele website.
M.-Nr. 05 403 541 / 01
