Miele KM 406 User manual

Operating Instructions
Gas Cooktop
KM 406
To prevent accidents and
machine damage,
read the operating instructions
before
installation or use.
UV
M.-Nr. 05 060 891
®®

2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death
–Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance
–WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance
ßDo not touch any electrical switch
ßDo not use any phone in your building
ßImmediately call your gas supplier from a
neighbor’s phone Follow the gas supplier’s
instructions
ßIf you cannot reach your gas supplier, call the
fire department
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier
(In Massachusetts a licensed plumber / gas fitter)
–Note to the installer:
Please leave this instruction book with the
consumer for the local electrical / gas inspector’s
use

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning the cooktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on and off / Regulating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Description of the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the cooktop during a power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ceramic surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Contents
3

Installation and connection
When using your gas appliance
follow basic safety precautions
including the following:
Read all instructions before using
for the first time.
Be certain your appliance is
properly installed and grounded by
a qualified technician.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
Install the appliance so that the
power cord or gas piping does not
come into contact with any portion of
the cooktop which may become hot
during use.
Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
Before servicing, turn off the gas
valve and disconnect the power
supply by either removing the fuse,
unplugging the unit or manually
"tripping" the circuit breaker.
This equipment has not been
designed for maritime use or for
use in mobile installations such as
aircraft or recreational vehicles.
However, under certain circumstances
it may be possible for installation in
these applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
After connecting the appliance test
for leaks according to the
installation instructions.
If there is any doubt concerning
installation contact Miele’s
Technical Service Department.

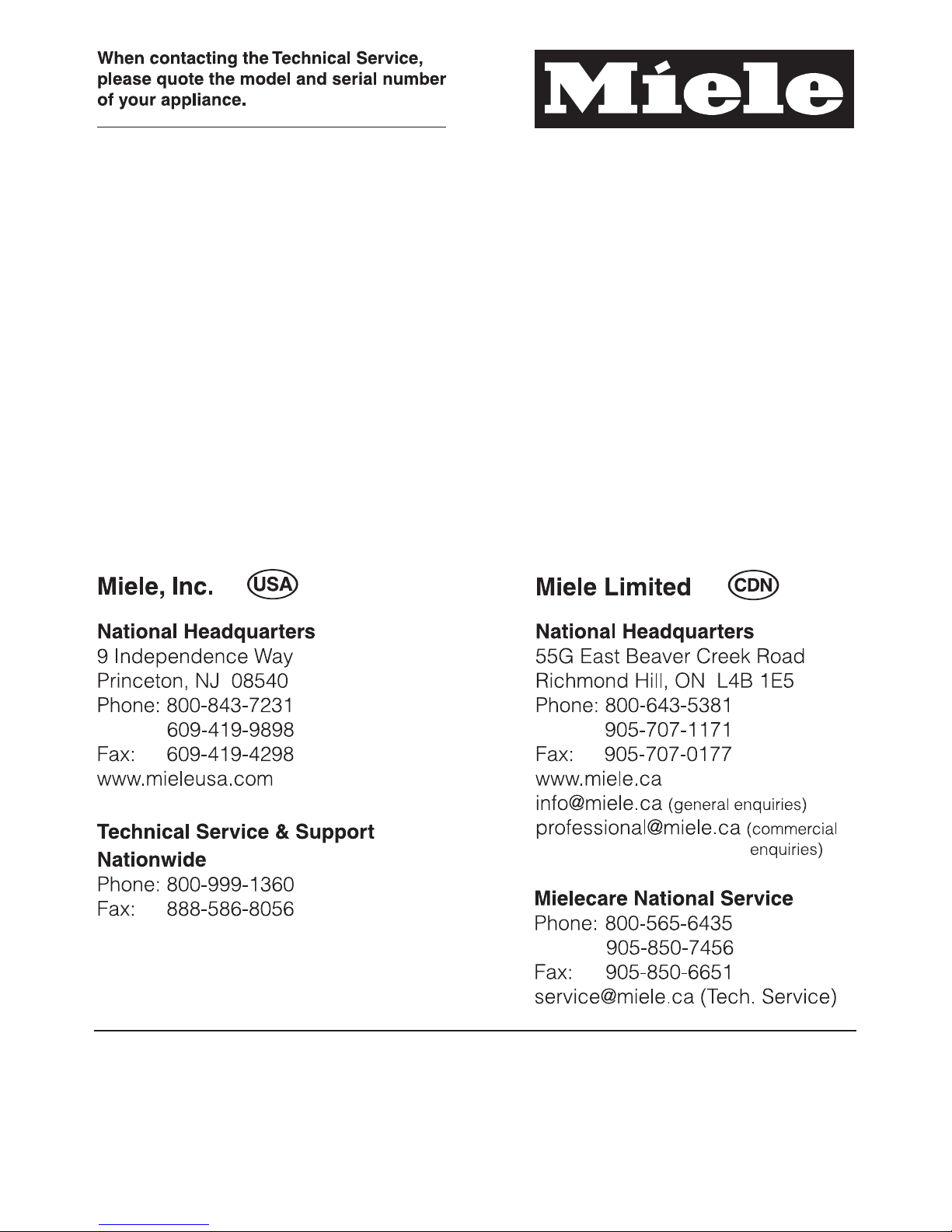

U1-800-999-1360
[email protected]
V1-800-565-6435
[email protected]
IMPORTANT SAFETY INSTRUCTIONS
4

Correct usage
Do not operate the cooktop until it
is properly installed in the
countertop.
This appliance is intended for
residential cooking only.
Use the appliance only for its
intended purpose. The
manufacturer cannot be held
responsible for damages caused by
improper use of the cooktop.
Take care that drafts do not blow
flammable material toward the
flames or push the flames so that they
extend beyond the edges of the pan.
Never use the cooktop to warm the
room.
Install the cooktop in a room that
has sufficient ventilation.
This appliance must not be
operated outdoors.
Do not use aluminum foil to line any
part of the cooktop.
For proper lighting and
performance of the burners, keep
the igniters clean and dry.
Make sure all components of the
gas burners are assembled
correctly before using the cooktop.
Ensure that any burners in use are
always covered with a pan.
Do not use pans with too large of a
bottom diameter. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
For safety and stability, use the
trivet for smaller pans.
Do not store aerosols,
combustibles and/or any other
easily flammable materials underneath
or adjacent to the cooktop.
Only certain types of glass/ceramic
or other glazed cookware are
suitable for use on a cooktop without
breaking due to a sudden temperature
change.
Protection from damage
Do not use a steam cleaner to
clean the appliance. Steam could
penetrate electrical components and
cause a short circuit.
Spills containing salt or sugar
should be removed immediately.
Do not drop anything on the
ceramic surface of the appliance.
Although the ceramic glass is shock
and scratch resistant, it is not shock or
scratch proof.
IMPORTANT SAFETY INSTRUCTIONS
5

Personal Safety
The burners become very hot
when in use. Make sure that no one
comes in contact with the burners.
Do not leave children unattended
in an area where the appliance is in
use.
Do not store toys or items of
interest to children in cabinets
above or behind the cooktop. Children
climbing onto the cooktop to reach
these items may become seriously
injured.
Do not allow children to operate or
play with the cooktop. Keep all
pans out of childrens reach.
Only use dry, heat resistant
potholders. Moist or damp
potholders used on hot surfaces can
result in steam burns. Do not let the
potholder touch the hot burners. Do not
use towels or other bulky items near the
appliance.
Be aware of loose fitting or hanging
clothing when operating the
cooktop, they may present a fire
hazard.
Do not heat unopened food
containers. Built-up pressure may
cause the container to burst and result
in injury.
Do not store items
on the cooktop.
Do not let cooking grease or other
flammable materials accumulate
on the appliance.
Do not leave the cooktop
unattended while in use.
Overheated food can ignite.
Do not use water on grease fires.
Smother any fire or flame, or use a
dry chemical or foam-type extinguisher.
Be careful when preparing a
flambé beneath the hood. Flames
could be drawn up into the hood by the
suction and ignite the grease filters.
The flame should be the same size
as the bottom of the pan. Do not
use small pans with high flame settings,
the flames may climb the sides of the
pan.
Only use cooking utensils suitable
for cooktop use.
Always position pan handles and
utensils inward so they do not
extend over adjacent work areas,
burners or the edge of the cooktop.
If there is a drawer directly
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer they must be
made of heat-resistant material.
IMPORTANT SAFETY INSTRUCTIONS
6

Damage to the appliance
In the event of damage or a defect,
turn off the appliance immediately.
Turn off the gas shut off valve, and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
Any breakages or cracks in the
ceramic surface of the appliance
are defects and must be treated as
such. Do not use the appliance until it
has been repaired.
Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Under no circumstances
should the outer casing of the
appliance be opened.
While the appliance is under
warranty repairs should only be
performed by a Miele authorized
service technician. Otherwise the
warranty is void.
Further safety notes
When using a portable appliance
near the cooktop, make sure that
its power cord does not come in
contact with the cooktop.
Do not use containers made of
plastic or aluminum. They melt at
high temperatures.
Do not heat empty pots or pans,
they may be damaged.
Do not use a wok pan with a
diameter of more than 16".
Before discarding an old
appliance, disconnect it from the
gas and electrical supply, cut off the
power cord and remove any doors to
prevent hazards.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7

aTrivet
bGrate
cSmall burner cap
dLarge burner cap
eBurner ring
fBurner
gIgnition safety control
hIgnitor
iBurner base
jAir intake and cover
kPower cord
lControl knob
Guide to the cooktop
8
b
c
d
e
f
gik
j
h
m
l

Cleaning the cooktop
Before using for the first time clean the
appliance as follows:
^Wash the removable parts of the gas
burner in a mild solution of warm
water and liquid dish soap.
^Dry and reassemble the parts in the
proper order (see the "Cleaning and
care" section).
^The ceramic surface can be cleaned
using water or a ceramic cooktop
cleaner and then wiped dry with a
soft cloth.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated.
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect.
Before using the cooktop
9

Turning on and off / Regulating
The control knob is used to turn on the
burner and to regulate the strength of
the flame.
Turning on
^To turn on the burner, press the
control knob down and turn it
counterclockwise to the largest flame
symbol. The ignitor will click and
ignite the gas.
^When the flame appears, keep the
control knob pressed in for
8-10 seconds to allow the Ignition
Safety Control to reach operating
temperature. Release the knob.
If the flame goes out, repeat the above
procedure, keeping the control knob
pressed in for a few extra seconds.
^Release the knob and adjust it to the
desired setting.
Regulating the burners
The inner and outer burners are both
controlled by one control knob. There is
a stop at the 6 o’clock position that
requires you to press the knob down
while turning it in order to get from the
high flame to the low flame zone.
^To reduce the flames from a high to
low setting, turn the control knob
counterclockwise until you feel
resistance. Press the knob down to
pass the stop, then release the
pressure and set the cooktop to the
desired setting.
^To increase the flames from a low to
high setting, turn the control knob
clockwise until you feel resistance.
Press the knob down to pass the
stop, then release the pressure and
set the cooktop to the desired
setting.
Using the cooktop
10

Turning off
^Turn the knob clockwise to "ß".
This stops the flow of gas and turns off
the cooktop.
The knob must only be turned left to
turn the appliance on and right to
turn it off.
If the knob is turned:
- on without pressing it down first,
- clockwise past the 12 o’clock
position, or
- turned counterclockwise past the
smallest flame symbol,
parts of the cooktop might get
damaged. The manufacturer cannot
be held responsible for these
damages.
Using the cooktop
11

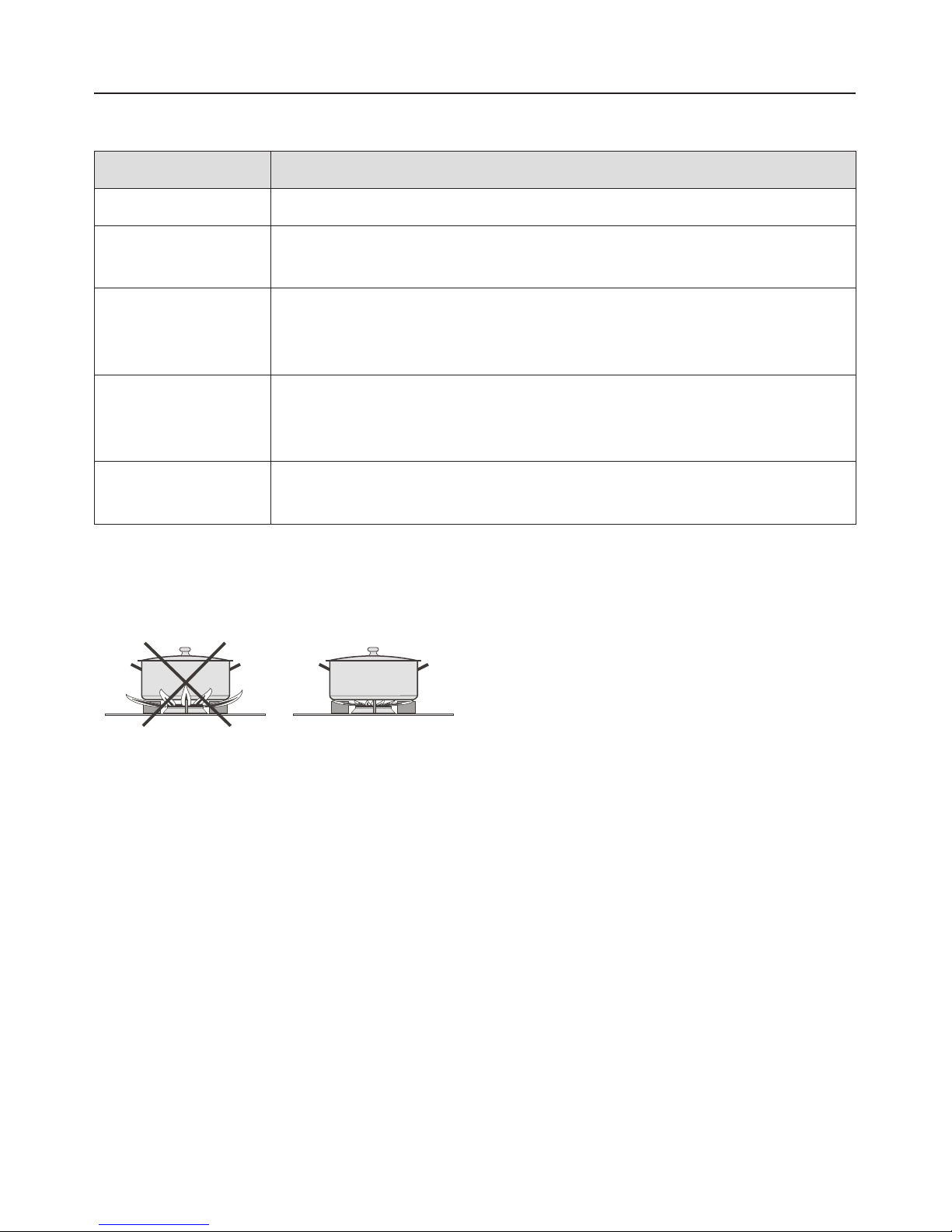

Description of the settings
Setting Description
ßCooktop is turned off
&Highest flame.
Outer and inner burners are both at highest settings.
&High flame.
Outer burner is on the lowest setting;
Inner burner is on the highest setting.
&Low flame.
Outer burner is off;
Inner burner is on the highest setting.
/Lowest flame.
Inner burner is on the lowest setting.
Since the outer portion of the flame is much hotter than the center, the flame
should be set so that its tips do not spread beyond the sides of the pan. Flame
tips which extend beyond the sides of the pan are hazardous.
Using the cooktop
12

Pan size
–Set the cooktop to a high flame when
using a large diameter pan and low
flame when using a small diameter
pan.
–Generally, wide / shallow pans will
heat faster and cook more evenly
than narrow / tall ones.
– When using a wok with the cooktop,
remove the trivet and position the
wok so that it is cradled and
supported by all six legs of the pan
support.
– Using oversized pans may cause the
flames to spread out and damage
the surrounding countertop or other
countertop appliances.
–Do not use small pans with high
flame settings, the flame can climb
the sides of the pan.
–For safety and stability, the trivet
should be used with small pans.
Make sure to set the flame
accordingly.
Suitable pans
Any heat resistant pans can be used on
a gas burner.
Unlike pans used on an electric
cooktop, the bases do not need to be
even for good results.
Thick pan bases will give more even
results, as hot spots are reduced due to
better heat distribution.
Thin pan bases will conduct the heat
faster but not as evenly as thick pan
bases. Stir the food frequently to
prevent burning.
Using the cooktop
13

Safety feature
This gas cooktop incorporates an
Ignition Safety Control which stops the
supply of gas if the flame goes out.
^To reignite the burners, turn the
control knob clockwise to "ß", then
follow the procedures outlined in
"Turning on and off".
This safety feature is not operated by
electricity, it will be active even if the
appliance is in use during a power
failure.
Using the cooktop during a
power failure
If there is an interruption to the
electrical supply, the gas can be
ignited using a match.
^Press down on the desired control
knob and turn it counterclockwise to
the large flame symbol.
^While holding down the knob, light
the gas at the burner with a match.
^When the flame appears, keep the
control knob pressed in for
8 - 10 seconds to allow the Ignition
Safety Control to reach operating
temperature.
Using the cooktop
14

Do not use a steam cleaner to clean
this cooktop. Pressurized steam
could cause permanent damage to
the surface and to components for
which the manufacturer cannot
accept responsibility.
Never use scouring agents, pads,
abrasive cleaning agents or strong
cleaners such as oven sprays, stain
or rust removers. These agents
could damage the surface of the
appliance.
The ceramic surface can be cleaned
using a cleaner for ceramic
surfaces. Follow the manufacturer’s
instructions.
Keep the ignitor in the burner dry. If
it gets wet it will not spark.
After cleaning, the ceramic surface
must be thoroughly dried with a soft
cloth to prevent water marks.
Do not use any sharp pointed
objects which could damage the
seal between the surrounding frame
and the cooktop.
Ceramic surface
The ceramic surface should be cleaned
regularly, preferably after each use.
^Let your appliance cool to a safe
temperature and remove the grate.
^Wipe spills using a damp cloth.
Stubborn spills are best removed
with a shielded scraper blade.
^Sugar and syrup spills must be
cleaned before the cooktop cools
completely or the glass will dimple.
^Apply a cleaner for ceramic surfaces
using a soft cloth or paper towel. This
will prevent any limescale deposits
caused by water boiling over.
^Wipe the ceramic surface with a
damp cloth and dry with a clean soft
cloth.
Cleaning and care
15

Burner
The burner can be dismantled and
cleaned when cool.
Dismantling and cleaning
^Remove the burner parts and wash
them in a solution of warm water and
liquid dish soap
^Dry thoroughly. Make sure that the
flame holes are clean and completely
dry.
The shiny surfaces of the burner caps
will dull with time and use. This is
normal and will not affect the operation
of the cooktop.
^Clean the burner base, ignitor and
Ignition Safety Control with a damp
cloth and then dry.
The ignitor must be thoroughly dry, or it
will not spark.

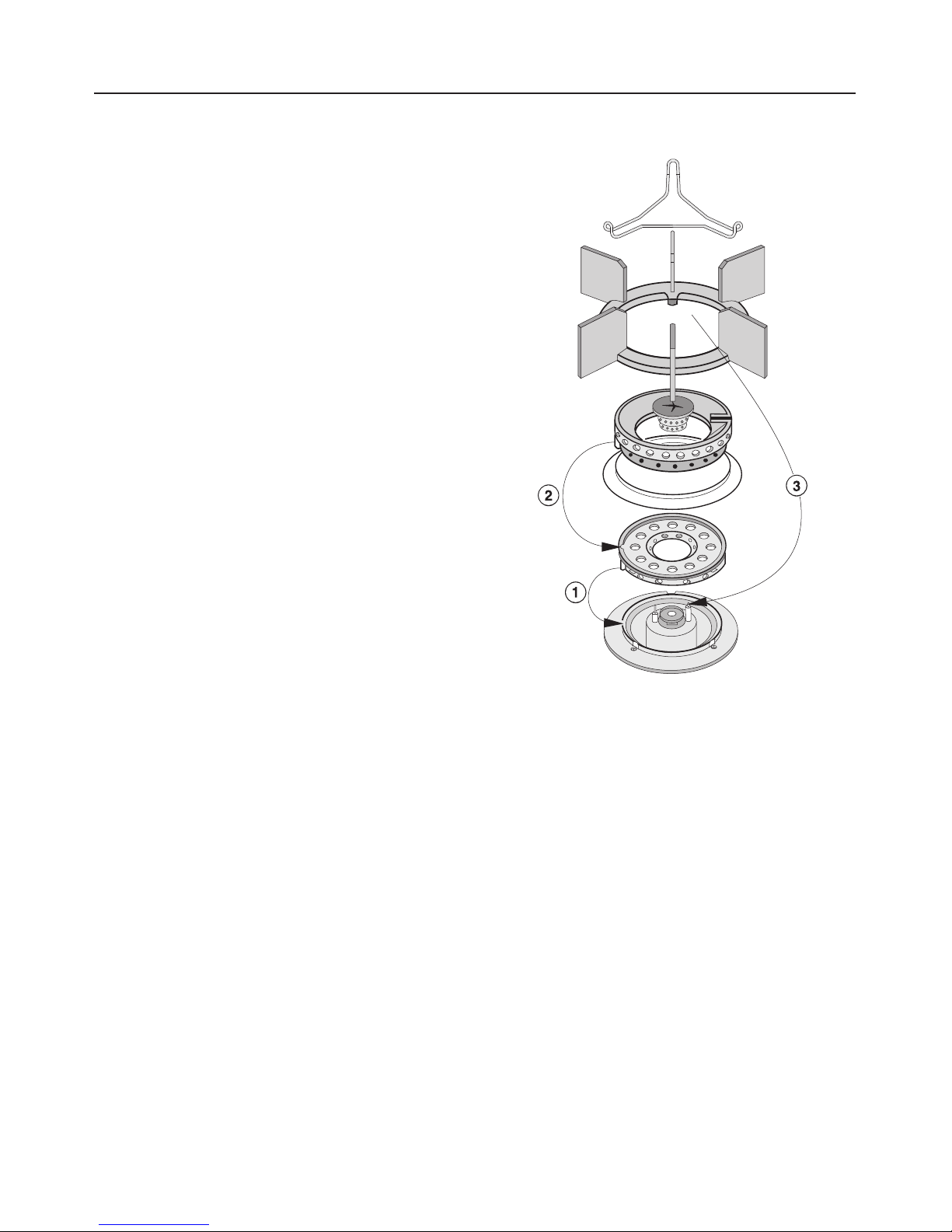

Reassembling the burner
^Fit the burner onto the burner base, a.
^Fit the burner ring.
^Put the large burner cap on the large
burner cap base, b.
^Fit the small burner cap.
^Put the grate in place, c.
^Put the trivet in place if needed.
Be careful not to mix up the parts.
Make sure that all the notches and
holes align exactly.
Cleaning and care
16

All repairs should be performed by a
trained technician in accordance
with national and local codes. Any
repairs or maintenance by
unqualified personnel could be
dangerous.
Some minor problems can be resolved
as follows:
What if
the burners do not ignite after
several attempts?
Check if:
^the burners are assembled correctly.
^the gas valve is open.
^the burners are dry and clean.
^the flame holes in the burners are
clean and unblocked.
^the igniters are wet.
^the cooktop is plugged in and that
the circuit breaker has not tripped. If
lack of power is the problem, the
cooktop can be lit with a match. See
"Using the cooktop during a power
failure".
the flame goes out after being lit?
^Check whether the burners are
assembled correctly.
^Make sure the gas holes in the
burner ring are clean and open
the igniters no longer work?
^Check if there is food residue
between the ignitor and the small
burner cap.
^Make sure the ignitor is dry.
the flame appears different than
usual?
^Check whether the burners are
assembled correctly.
Frequently asked questions
17

In the event of a fault which you cannot
correct, contact the Miele Technical
Service Department:
U1-800-999-1360
[email protected]
l1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance.
These are shown on the data plate.
Adhere data plate sticker here:
After sales service
18

Disposal of packing materials
The cardboard box and packing
materials are environmentally friendly
for disposal. Please recycle.
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling center about the
possibility of recycling these materials.
Before discarding an old appliance,
disconnect it from the gas and
electrical supply and cut off the
power cord to prevent it from
becoming a hazard.
Help protect our environment
19

Alterations rights reserved / 0905 M.-Nr. 05 060 891 / 02
en-US
