Miele CS 1011 G User manual

Operating and installation instructions
Gas cooktops
CS 1011 G
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 235 550
en - AU, NZ

WO
This appliance can be used in countries other than those specified on the
appliance. It is, however, set up for connection to the gas and electricity
supplies in the countries specified. For use in other countries please contact
Miele in your country.
2

Description of the appliance.........................................5
Warning and safety instructions .....................................8
Caring for the environment.........................................15
Before using for the first time.......................................16
Operation .......................................................17
Rapid ignition system ..............................................17
Switching on, adjusting the flame and switching off .......................17
In-operation indicator and Residual heat indicator ........................19
Pans ...........................................................20
Energy-saving tips................................................21
Safety features ...................................................22
Cleaning and care ................................................23
General notes ....................................................23
Stainless steel surfaces .............................................24
Pan support, control knob ...........................................24
Burner ..........................................................25
Problem solving guide ............................................26
Optional accessories..............................................28
Safety instructions for installation...................................29
Safety clearances.................................................30
Appliance and building-in dimensions ...............................32
Preparing the worktop.............................................33
Contents
3

Installation of several appliances....................................34
Fixing the spring clamps and spacer bars ............................37
Installing / removing the appliance(s) ................................39
General installation tips ...........................................40
Electrical connection..............................................41
Gas connection ..................................................42
Conversion to another type of gas...................................44
Jet table .........................................................44
Changing the jets..................................................45
To change the main jet ...........................................45
To change the small jets..........................................47
Checking operation ...............................................48
After sales service, data plate ......................................49
Contents
4

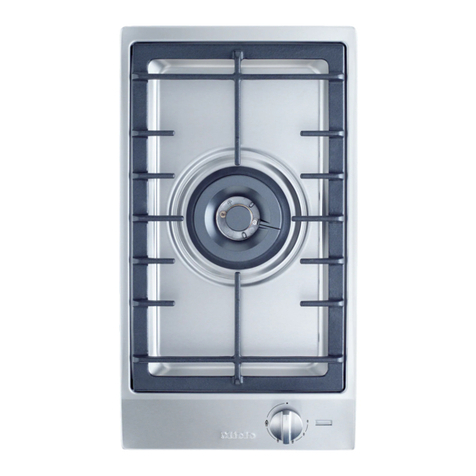

Cooktop
aWok burner
bPan support
cControl knob
dDisplay
Display
eIn-operation indicator
fResidual heat indicator
Description of the appliance
5

Burner
gInner burner cap
hOuter burner cap
iBurner ring
jBurner head
kIgnition safety device
lIgnitor
mBurner base
Position of the burner components
The proper functioning of the burner can only be guaranteed if the burner
components are positioned correctly:
The lobe aon the burner cap must fit into the recess bof the burner head.
The pin con the burner head must fit into the recess dof the burner base.
The burner components cannot be twisted if they are in the correct position.
Description of the appliance
6

Accessories supplied
The accessories supplied with your appliance, as well as a
range of optional ones, are available to order from Miele (see
"Optional accessories").
Wok ring
The Wok ring supplied with your appliance can be used in
instances where extra stability is required. It is particularly
suitable for Woks with a rounded base.
Description of the appliance
7

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important notes on
installation, safety, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the contents. Pass them
on to any future owner.
Correct application
~This appliance is designed for
domestic use and for use in similar
environments by guests in hotel or
motel rooms, bed & breakfasts and
other typical living quarters. This does
not include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~This appliance must only be used to
cook food and keep it warm.
Any other usage is at the owner's risk
and could be dangerous. Miele cannot
be held liable for damage resulting
from incorrect or improper use or
operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
~The appliance is not suitable for
outdoor use.
~This appliance must not be installed
and used in mobile installations such as
ships etc.
~Do not modify this appliance.
Warning and safety instructions
8

Safety with children
~Children should be supervised to
ensure that they do not play with the
appliance.
~Older children may use the gas
cooktop only when its operation has
been clearly explained to them and
they are able to use it safely. They must
be aware of the potential dangers
caused by incorrect operation.
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Do not store anything which might
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves. Danger of
burning.
~Keep all pans out of reach of
children. Turn pan handles inwards
away from the edge of the cooktop.
Danger of burning or scalding.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Warning and safety instructions
9

Technical safety
~Before installation, check the
appliance for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond to the on-site
electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The connection to the gas supply
must be carried out by a suitably
qualified and competent person in strict
accordance with current local and
national safety regulations, e. g. a
qualified gas fitter. If the appliance is
supplied without a plug, or if the plug is
removed, it must be connected to the
mains electricity supply by a suitably
qualified and competent electrician in
strict accordance with current local and
national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.
~For safety reasons, this appliance
may only be used when it has been
built in.
~Never open the outer casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. Miele
cannot be held liable for unauthorised
work.
Warning and safety instructions
10

~The gas cooktop must be
disconnected from the gas supply and
mains electricity before repairs and
maintenance work is carried out. It is
only completely isolated from the
electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
~While the appliance is under
warranty, repairs should only be
undertaken by a service technician
authorised by Miele. Otherwise the
warranty will be invalidated.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~If the connection cable is damaged,
it must be replaced by a suitably
qualified electrician with a special
connection cable of type H 05 VV-F
(pvc insulated), available from Miele.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
~Do not use the gas cooktop if it is
faulty. Switch it off immediately,
disconnect it from the mains electricity
and the gas supply, and call Miele.
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage caused by
cockroaches or other vermin will not be
covered by the warranty.
Warning and safety instructions
11

Correct use
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. Do not touch it
whilst it could still be hot.
~When using a rangehood over the
cooktop, ensure that the burner is
always covered with a pan when in use.
Otherwise flames could be drawn up by
the suction of the rangehood, parts of
which could then be damaged or even
set on fire.
~Do not leave the cooktop
unattended whilst it is being used.
Boiling fat or oil could ignite and cause
a fire.
~If oil or fat does catch fire, do not
attempt to put out the flames with water.
Use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the
flames.
~Do not use the cooktop to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance.
Ensure that they do not come into
contact with the flames. Do not use
large cloths, tea towels or similar as the
ends could touch the flames and catch
fire.
Take care not to let these items get
damp or wet as this causes heat to
transfer through the material more
quickly with the risk of scalding or
burning yourself.
~Do not flambé under a rangehood.
The flames could set the rangehood on
fire.
~Do not use the appliance as a
resting place for anything else. The
article could melt or catch fire if
residual heat is still present or if the
appliance is switched on by mistake.
~Installing several appliances
Do not place any hot pots or pans near
the spacer bar as they could damage
the sealing strip of the spacer bar.
~Do not cover the appliance, e.g.
with a covering plate, a cloth, kitchen
foil etc. If the appliance is switched on
by mistake, or if there is residual heat,
these materials may catch fire, shatter
or melt.
~Do not use plastic or aluminium foil
containers. These melt at high
temperatures, and could catch fire.
~Do not heat up unopened tins of
food on the cooktop as pressure will
build up in the tin, causing it to
explode. This could result in injury and
scalding or damage.
~Make sure all the components of the
gas burners have been correctly
assembled before switching on.
Warning and safety instructions
12

~Pans must be the correct size for the
burner they are used on (see "Pans"). A
pan which is too small will be unstable
on the pan support. If the pan diameter
is too large, flames can spread out to
the sides and damage or burn the
worktop, wall claddings or surrounding
units and also parts of the cooktop.
Miele will not accept liability for any
damage resulting from such incorrect
use.
~Ensure that the flames from the
burner do not spread out beyond the
base and up the sides of the pan.
~Unless the pan manufacturer states
that you can do so, do not use pans
with very thin bases on this cooktop,
and never heat up empty pans as they
could get damaged. This could also
damage the appliance.
~The pan support supplied with the
appliance must always be used. Never
place a pan on the burner itself.
~Do not spray aerosols in the vicinity
of this appliance while it is in operation.
~Remove splashes of fat and other
food debris from the surface as soon as
possible. These are a fire hazard.
~Replace the pan supports carefully
to avoid scratching the surface of the
cooktop.
~Using the gas cooktop will cause a
build-up of heat and moisture in the
room in which it is installed. Ensure that
the room has sufficient natural or
mechanical means of ventilation, e.g. a
rangehood.
~If the cooktop is used for very long
periods of time, additional ventilation of
the room may be necessary, e.g. by
opening windows or doors, or running
the rangehood on the highest setting.
~When using an electrical appliance,
e.g. a hand-held mixer, near the gas
cooktop, ensure that the connection
cable doesn't come into contact with
the hot cooktop. The insulation on the
cable could become damaged, giving
rise to an electric shock hazard.
~Do not use or store flammable
materials in the appliance storage
drawer or near this appliance. Cutlery
inserts must be heat-resistant.
Warning and safety instructions
13

~Avoid allowing liquids or foods
containing salt to spill onto the cooktop.
If salty foods or liquids do get on the
cooktop, they should be removed as
soon as possible to avoid the risk of
corrosion.
~If the cooktop is built-in behind a
furniture door, it must only be operated
when the door is open.
Close the furniture door only once the
appliance has been switched off and
the residual heat indicators have gone
out.
~If the appliance has not been used
for a long period of time it should be
thoroughly cleaned before it is used
again. It is also advisable to have the
appliance tested by a qualified person
for safety.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
Warning and safety instructions
14

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged from the mains
electricity supply and disconnected
from the gas supply by a competent
person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
15

Please place the extra data plate on a
surface near the cooktop, such as the
cupboard door, if the labels on the
base of the cooktop are not visible after
installation.
If the labels on the base of the cooktop
are visible after installation, the
additional data plate label can be
placed in the space provided in the
"After sales service" section of this
booklet.
Cleaning for the first time
^Remove any protective foil and
adhesive labels.
^Clean all removable parts of the
burner with a solution of warm water
and a small amount of washing-up
liquid applied with a soft sponge. Dry
all parts thoroughly after cleaning
and then reassemble the burner (see
"Cleaning and care - burner").
^Clean the stainless steel trough with
a damp cloth, and then wipe dry.
Metal components have a protective
coating which may give off a slight
smell when heated up for the first
time.
The smell and any vapours will
dissipate after a short time, and do
not indicate a faulty connection or
appliance.
Before using for the first time
16

Rapid ignition system
The appliance is supplied with a rapid
ignition system with the following
features:
–The control knob can be released as
soon as the flame has ignited.
–Should the flame be extinguished by
a gust of air, the burner will re-ignite
automatically.
If re-ignition is unsuccessful, the gas
supply will be cut off automatically
(see "Safety switch-off").
Switching on, adjusting the
flame and switching off
The control knob is used to ignite the
burner and regulate the strength of the
flame.
ßThe gas supply is turned off
&Strongest flame:
The inner and outer burners operate
at the highest setting
&Strong flame (7 o'clock position):
The outer burner operates at the
lowest setting,
the inner burner at the highest
setting
&Strong flame (5 o'clock position):
The outer burner is switched off,
the inner burner operates at the
highest setting
/Weakest flame:
The outer burner is switched off,
the inner burner operates at the
lowest setting
The burner can only be switched on
by pushing in the control and turning
it anti-clockwise. It is switched off by
turning the control clockwise. The
outer flame ring can only be
switched on and off by pushing
down on the control and turning it in
the appropriate direction.
The following will cause damage to
the appliance:
- Switching on the burner without
pushing the control down,
- Switching the burner on by
turning the control clockwise,
- Switching the outer flame ring
on or off without pushing the
control down,
- Switching the burner off by
turning the control
anti-clockwise.
The manufacturer will not accept
liability for any damage resulting
from incorrect operation.
Operation
17

Switching on
,Do not leave the appliance
unattended whilst it is being used.
^To ignite the burner, push the control
knob down and turn it anti-clockwise
to the large flame symbol. The ignitor
will make a clicking sound and ignite
the gas.
Operating a control will automatically
create a spark on every burner. This
is quite normal and does not indicate
a fault.
If the burner does not ignite, turn the
control to off "ß". Air the room or wait at
least 1 minute before trying again.
If the burner does not ignite the second
time, turn the control to "ß", and see
"Problem solving guide".
When switching on, re-ignition
sometimes occurs (1-2 clicks) if the
flame on the ignition safety device has
gone out briefly, or if the thermal
element is not hot enough, e.g.
following a gust of air.
Regulating the flame
Control the flame so that it does not
spread out beyond the sides of the
pan. As the outer part of the flame is
much hotter than the centre, the tips of
the flames should stay beneath the pan
base. Flame tips which extend beyond
the sides of the pan merely warm up
the air in the room and can also
damage pan handles and increase the
risk of injury.
^To move from the high to the low
setting, turn the control
anti-clockwise until it meets a
resistance a. Then press it down
and continue to turn it past the
resistance before releasing it. You
can now select the setting you
require.
^To move from the low to the high
setting, turn the control clockwise
until it meets a resistance b. Then
press it down and continue to turn it
past the resistance before releasing
it. You can now select the setting you
require.
Switching off
^Turn the control clockwise to position
"ß".
This stops the flow of gas and the flame
goes out.
Operation
18

In-operation indicator and
Residual heat indicator
When the gas cooktop is switched on,
the in-operation indicator lights up.
Once it has reached a certain
temperature, the residual heat indicator
also lights up. The in-operation
indicator goes out when the gas
cooktop is switched off. The residual
heat indicator remains on until the gas
cooktop is cool enough to touch.
Do not touch or place any heat
sensitive objects on the gas cooktop
while the residual heat indicator is
still on. Danger of burning and fire.
If the display is flashing, this shows
there is a fault. See section "Problem
solving guide".
Operation
19

Min. base diameter
Pots/pans=15cm
Max. rim diameter
Pots/pans=28cm
–Use the correct sized pans for your
appliance. A pan which is too small
will be unstable on the pan support.
If the pan diameter is too large,
flames can spread out to the sides
and damage or burn the worktop,
wall claddings or surrounding units
and also parts of the cooktop. Miele
will not accept liability for any
damage resulting from such
incorrect use.
– Remember when purchasing new
pans that manufacturers usually refer
to the diameter at the top of the pan
in their documentation.
– Any heat-resistant pans can be used
on a gas burner.
–Pans with thick bases are preferable
as these distribute heat more evenly.
With thin bases, there is a danger of
food overheating in places. Stir the
food frequently.
–The pan support supplied with the
appliance must always be used.
Never place a pan on the burner
itself.
–Position the pan centrally on the pan
support so that it sits securely and
cannot tip up. A little movement is
quite normal and not a cause for
concern.
–Do not use pots or pans with base
supports.
Wok ring
Use the wok ring supplied to give
additional stability, especially to woks
with a rounded base.
Make sure that the wok ring is located
securely in its correct position. See
illustration.
Woks: Woks have a small base
diameter and large top diameter,
generally between 35 - 40 cm.
Pans
20
