Installation
*INSTALLATION*
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Danger of electric shock!
Incorrect connection to the power supply may result in an electric shock.
The cooktop must be connected to the power supply by a qualified electrician.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
 The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
 The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
 After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
 The connection cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical
obstruction which could damage it.
 Carefully observe the safety clearances listed on the following
pages.

11373090-01
Installation
*INSTALLATION*
Safety distances
Safety distance above the cooktop
The safety distance specified by the
manufacturer of the rangehood must be
maintained between the cooktop and
the rangehood above it.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance 600 mm must
be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, observe the greatest
specified safety distance.
Minimum safety distance underneath
the cooktop
To ensure sufficient ventilation to the
cooktop, a minimum distance must be
left between the underside of the
cooktop and any oven, interim shelf or
drawer.
The minimum gap between the
underside of the cooktop and
- the top edge of an oven: 25mm
- the top edge of an interim shelf:
25mm
- the top edge of a drawer: 5mm
- the base of a drawer: 75mm

11373090-01
Installation
*INSTALLATION*
Interim shelf
It is not necessary to fit an interim shelf
underneath the cooktop but one may
be fitted if you wish.
Side view
500 +3 40
0
25
dc
e
fab
0
25
0
g
aInterim shelf
bCabinet rear wall
cMinimum distance between the rear
edge of the interim shelf and the rear
cabinet wall for ventilation of the
cooktop
dWorktop cut-out
eMinimum distance between the
underside of the cooktop and the
upper edge of the interim shelf for
ventilation of the cooktop.
fFront
gCut-out for feeding through the
mains connection cable
Minimum distance from rear edge of
worktop cut-out to edge of interim
shelf cut-out
View from above
ag
fd
b
25
0
916 +3
265
70
40
0
500
aInterim shelf
bCabinet rear wall
dWorktop cut-out
fFront
gCut-out for feeding through the
mains connection cable
Minimum distance from rear edge of
worktop cut-out to edge of interim
shelf cut-out

11373090-01
Installation
*INSTALLATION*
Safety distances to the sides and
back of the appliance
The minimum distance shown below
must be maintained between the back
edge of the cooktop and a tall unit or
wall.
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
unit or wall on one side (right or left),
taking into account the distances
below. On the other side, however, no
tall unit or wall should stand closer than
300mm to the edge of the cooktop.
Before installing the cooktop, check
that the below clearance requirements
are met.
Minimum horizontal distance from the
back edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
right edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
left edge of the cooktop to a
combustible surface:
50mm.
Installation notes –
surface-mounted

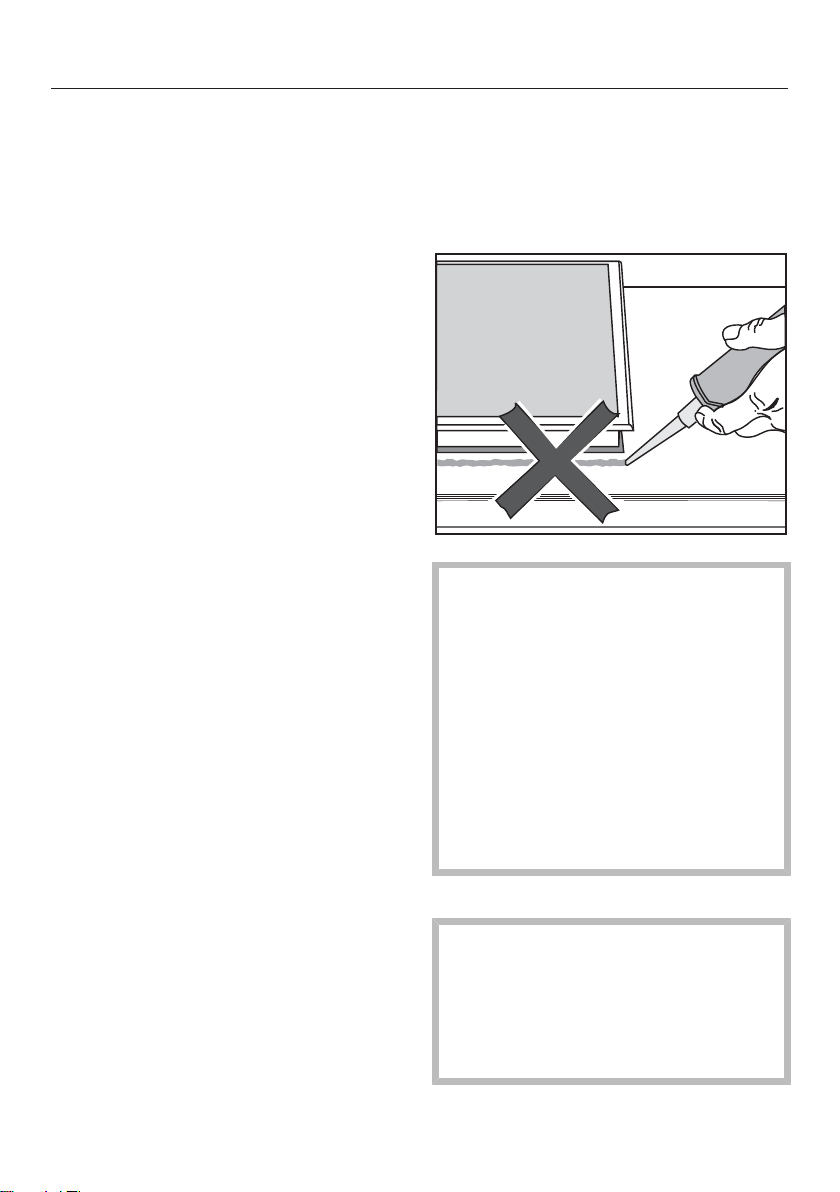

Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Sealing strip
Dismantling the cooktop for service
purposes may damage the sealing
strip underneath the edge of the
cooktop.
Always replace the sealing strip
before reinstalling the cooktop.

11373090-01
Installation
*INSTALLATION*
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.

11373090-01
Installation
*INSTALLATION*
Installation dimensions – Surface-mounted
All dimensions in this instruction booklet are given in mm.

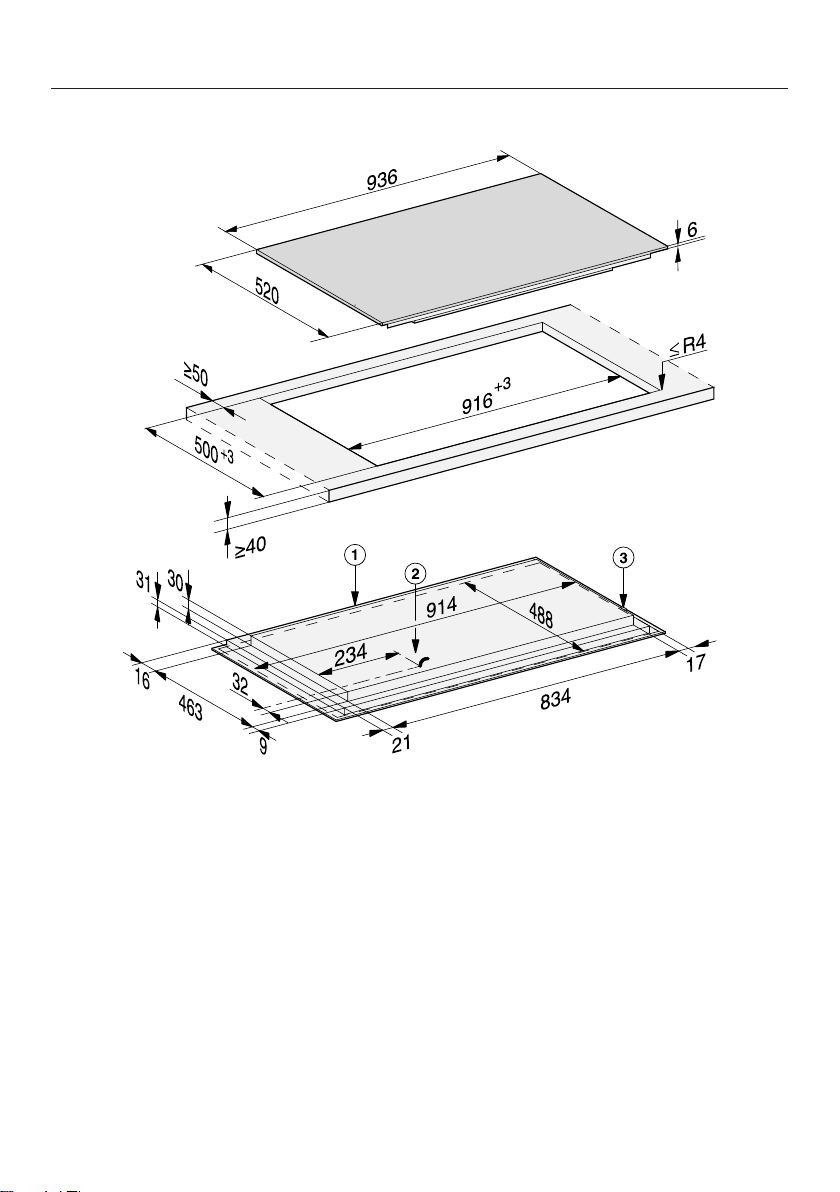

Installation dimensions – KM7999FR
aFront
bMains connection box with mains connection cable
Mains connection cable L=1280mm
cWi-Fi stick connection

11373090-01
Installation
*INSTALLATION*
Installation dimensions – KM7999FL
aFront
bMains connection box with mains connection cable
Mains connection cable L=1280mm
cWi-Fi stick connection

11373090-01
Installation
*INSTALLATION*
Surface-mounted installation
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see “Installation –
Safety distances”).
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
Attach the sealing strip provided
underneath the edge of the cooktop.
Do not apply the sealing strip under
tension.
Feed the mains connection cable
down through the worktop cut-out.
Place the cooktop centrally in the
cut-out. When doing this, make sure
that the seal of the appliance sits
flush with the worktop on all sides.
This is important to ensure an
effective seal with the worktop.
Do not use any additional sealant
(e.g. silicone).
If the seal does not meet the worktop
correctly on the corners, the corner
radius (≤ R4) can be carefully scribed
to suit.
Connect the cooktop to the mains
electricity supply.
Check that the cooktop works.

11373090-01
Installation
*INSTALLATION*
Installation notes –
flush-fit
A flush-fit cooktop is suitable only for
installation in natural stone (granite,
marble), solid wood and tiled
worktops. When using a worktop
made from any other material, please
check first with the worktop
manufacturer that it is suitable for
installing a flush-mounted cooktop.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Installation dimensions –
Flush”), so that the cooktop is easily
accessible from underneath after
installation and the bottom half of the
casing can be removed for
maintenance. If the underside of the
cooktop is not freely accessible after
installation, any sealant used to plug
the gaps around the appliance must
be removed to enable the cooktop to
be lifted out of the cut-out should this
be necessary.
Natural stone worktops
The cooktop is placed directly in the
cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The cooktop is placed on a wooden
frame inside the cut-out. The frame
must be provided on site and is not
supplied with the appliance.
Sealing strip
Dismantling the cooktop for service
purposes may damage the sealing
strip underneath the edge of the
cooktop.
Always replace the sealing strip
before reinstalling the cooktop.

11373090-01
Installation
*INSTALLATION*
Installation dimensions–Flush-fit
All dimensions in this instruction booklet are given in mm.
Installation dimensions – KM7999FL
aFront
bMains connection box with mains connection cable
Mains connection cable L=1280mm
cStepped cut-out, natural stone worktop
dWooden strip 12mm (not supplied)
eWi-Fi stick connection

11373090-01
Installation
*INSTALLATION*
Electrical connection
Risk of damage from incorrect
connection.
Incorrect installation, maintenance
and repairs can be dangerous to
users.
Miele cannot be held liable for
damage or injury caused by incorrect
or unauthorised installation,
maintenance or repair work, or by an
inadequate or faulty on-site earthing
system (e.g. electric shock).
All electrical work must be carried
out by a suitably qualified and
competent electrician, in strict
accordance with current national and
local safety regulations, and any
additional regulations of the local
electricity provider.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is quoted on the
data plate. Please ensure this
information matches the household
mains supply.
Please see the wiring diagrams for
connection.
Residual current device
For extra safety, it is advisable to
protect the appliance with a suitable
residual current device (RCD) with a trip
range of 30 mA.
Disconnecting devices
Connection must be made via a
suitable isolator switch which provides
disconnection on all poles and which
complies with national and local safety
regulations. When switched off there
must be an all-pole contact gap of at
least 3 mm in the isolator switch. The
isolator switch must be easily
accessible after the appliance has been
built in.
Disconnecting from the mains
The cooktop's mains electrical
connection must be accessible in case
there is a need for servicing or repairs.

11373090-01
Installation
*INSTALLATION*

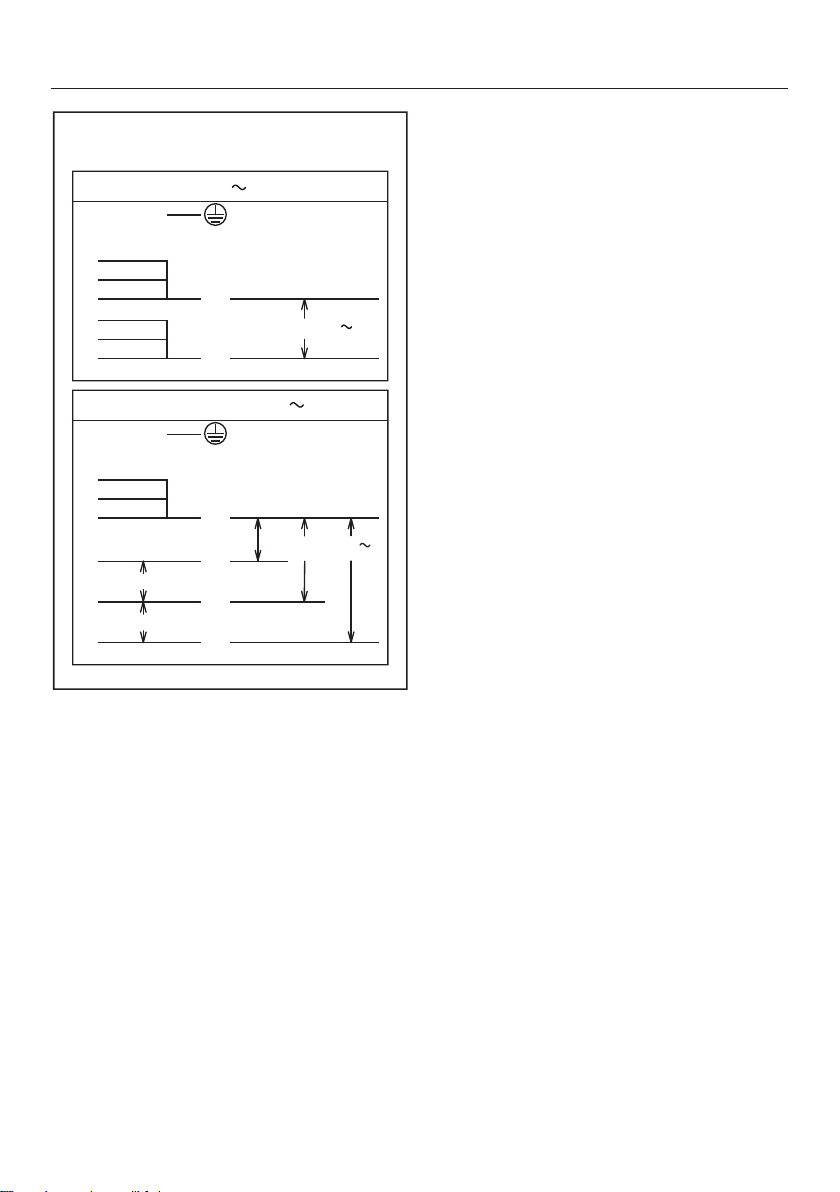

W i r i n g d i a g r a m
2 2 0 -2 4 0
V
3 8 0 -4 1 5
V 3 N
Yellow/Green
2
N
L1
L2
L3
2 2 0 - 2 4 0 V
3 8 0 -4 1 5
V
3 8 0 -4 1 5
V
N
L
4
6
2
4
6
1
3
5
1
3
5
2 2 0 - 2 4 0 V
Gelb/Grün, Jaune/Vert
Blue
Black
Yellow/Green
Gelb/Grün, Jaune/Vert
Blue
Black
Black
Black
Wiring diagram AC 220-240 V
Under adverse conditions of the power
supply network this device can cause
irritating voltage fluctuations in single
phase connection. If the network
impedance at the point of coupling to
the public supply network is higher than
0.31 Ω, additional measures may be
required to avoid these irritations. If
necessary, information about the
impedance can be inquired at the local
distribution network operator.
Mains connection cable
The cooktop must be connected to the
electrical supply with a special
connection cable with a suitable
diameter. Please see the wiring diagram
for connection. If converting to three
phase, the black active conductors
must be separated. Do not separate the
blue neutral conductors. The
connection cable comes supplied with
ferrite sleeves attached. If the
connection cable is being replaced, the
power cable must be fed through the
opening of the ferrite sleeves before
attaching them to the connection
terminals.
