Miele F 1801 SF User manual

Operating and Installation
Instructions
Freezer
with Ice Maker
F 1801 SF, F 1811 SF
F 1901 SF, F 1911 SF
To prevent accidents
and appliance damage
read these instructions
before
installation or use. M.-Nr. 09 169 350
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................4
Guide to the freezer ................................................8
Before use ......................................................10
Turning the appliance On/Off ........................................10
Settings.........................................................11
Using the settings .................................................11
Additional settings .................................................11
Turning the button sound On/Off ......................................12
Turning off for longer periods of time ..................................13
Temperature and door alarm .......................................14
Temperature alarm ................................................14
Door alarm .......................................................14
Setting the temperature............................................15
Using the freezer efficiently ........................................17
Freezing food.....................................................17
Defrosting .......................................................18
Cooling drinks quickly ..............................................18
SuperCool.......................................................20
Ice cube maker ...................................................21
Automatic defrost ................................................22
Adjusting the interior fittings .......................................23
Moving the shelves ................................................23
Freezer baskets ...................................................23
Ice cube container.................................................24
Cleaning and care ................................................25
Cleaning the interior and accessories ..................................26
Appliance door ...................................................26
Ventilation slits ....................................................27
Door seals .......................................................27
Changing the light bulb .............................................28
Water filter ......................................................30
Water filter change indicator .........................................30
Exchanging the water filter ..........................................31
Confirming the filter change .........................................32
Using an external water filter .........................................32
Lead free certificate ...............................................35
Contents

Frequently asked questions ........................................36
After sales service ................................................43
Caring for the environment.........................................46
Installation ......................................................47
Installation site ....................................................47
Stainless steel panels ..............................................49
Installation options .................................................49
Dimensions......................................................51
Niche dimensions .................................................52
Installing the appliance ............................................54
Before you begin ..................................................54
RemoteVision module installation .....................................56
Preparing the installation niche .......................................57
Sliding the appliance into the installation niche ..........................61
Aligning the appliance..............................................62
Attaching the appliance to the installation niche..........................63
Plumbing........................................................65
Electrical connection..............................................68
RemoteVision (optional accessory) ..................................69
Contents

When using the appliance, follow
basic safety precautions, including
the following:
Read all instructions before
installation and use to prevent
accidents and machine damage.
This appliance is intended for
residential use only. Use only as
described in this Operating manual.
Only use the appliance for its
intended purpose.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Electrical Safety
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
~Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance
(e.g., danger of overheating).
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~Only connect power to the
appliance when all installation and
plumbing work is complete.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
This appliance is top-heavy and
must be secured to prevent the
possibility of tipping forward.
Keep the door closed until the
appliance is completely installed
and secured per installation
instructions.
~This appliance must be installed
and connected in compliance with the
installation instructions.
~Installation and repair work should
be performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
~Installation must comply with local
plumbing regulations and state laws.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~Do not install the freezer in a room
with too low an ambient temperature,
e.g., a garage, as this may lead to the
appliance switching off for longer
periods so that it cannot maintain the
required temperature.
~In appliances with an automatic ice
maker, avoid contact with the moving
parts of the ejector mechanism, or with
the heating element located on the
bottom of the ice maker. Do not place
fingers or hands on the automatic ice
making mechanism while the freezer is
plugged in.
~The ice cube maker is not suitable
for connection to a hot water supply.
~Do not use water that is
microbiologically or chemically unsafe
or of unknown quality without adequate
disinfection or other treatment before or
after the filter is used; the filter alone is
not an adequate safeguard.
Use
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–shops, offices and similar work
environments
–by customers in hotels, motels, Bed
& Breakfasts or similar residential
environments.
~This appliance is not intended for
outdoor use.
~The appliance is only intended for
residential use to store frozen foods,
freeze fresh foods and prepare ice.
All other uses are prohibited and may
be dangerous.
IMPORTANT SAFETY INSTRUCTIONS
5

~Persons who lack physical, sensory
or mental abilities, or experience with
the machine should not use it without
supervision or instruction by a
responsible person.
~To reduce the risk of injury, do not
allow children to play in, on or near the
appliance, especially in the door hinge
area.
~After your freezer is in operation, do
not touch the cold surfaces in the
freezer compartment, particularly when
hands are damp or wet. Skin may
adhere to these extremely cold
surfaces.
~Do not refreeze frozen foods which
have thawed completely.
~Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
~Do not deactivate the water filter
display.
~Do not use sharp-edged objects to
remove frost and ice, or separate
frozen foods and remove ice trays.
They will damage the evaporator,
causing irreversible damage to the
appliance.
~Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
~Do not use any oils or grease on the
door seal, as these will cause the seal
to deteriorate and become porous with
time.
~Do not block the ventilation gaps in
the plinth or the top of the appliance
housing unit, as this can impair the
efficiency of the appliance, increase the
electricity consumption and cause
damage to the appliance.
~Never use a steam cleaner to clean
the appliance. Pressurized steam could
damage electrical components and
cause a short circuit.
IMPORTANT SAFETY INSTRUCTIONS
6

Disposal of your old appliance
~Before disposing of an old
appliance, first make the door latch or
lock unusable.
~Take off the door.
~Leave the shelves in place so that
children may not easily climb inside.
~Consult with your municipal policy
on recycling.
~Be careful not to damage any part of
the pipework while awaiting disposal
by:
- puncturing the refrigerant
channels in the evaporator.
- bending any pipework.
- scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
~Your old freezer may have a cooling
system that used CFCs
(chlorofluorocarbons). CFCs are believed
to harm stratospheric ozone.
If you intentionally release this CFC
refrigerant, you can be subject to fines
and imprisonment under provisions of
environmental legislation. Make sure the
CFC refrigerant is removed and disposed
of by a qualified technician.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7

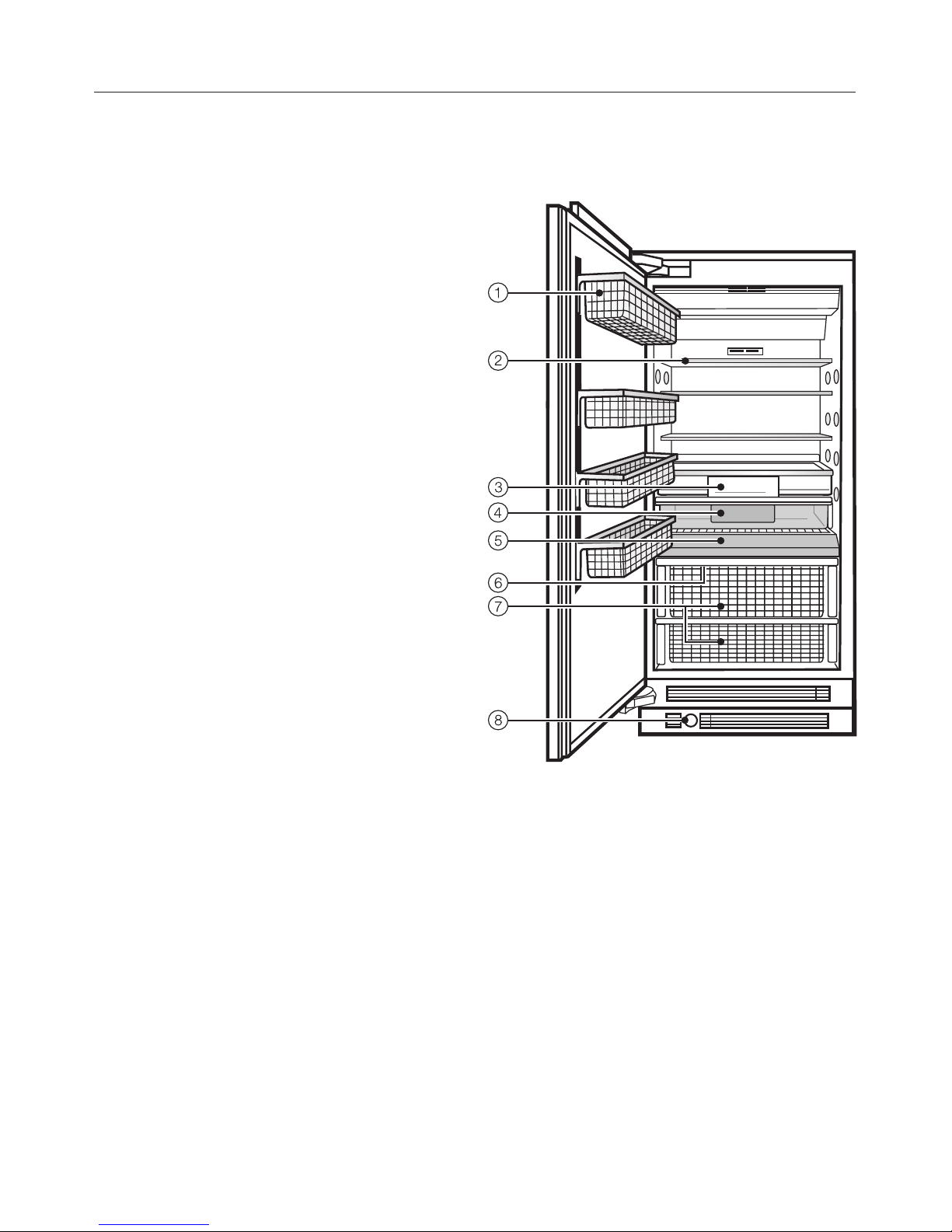

aDoor shelves (height adjustable)
bShelves (height adjustable)
cIce cube maker
dIce cube container
eControl panel
fMain switch to turn the whole
appliance On/Off
gFreezer baskets
hWater filter
Guide to the freezer
8

Control panel
aAccess button "p"
activates the control panel
bTemperature display
Xcolder; Ywarmer
Allows you to set the desired
temperature in the freezer
cOn/Off sensor button for the
SuperCool function
dOn/Off sensor button for the ice cube
maker
eSensor button for the temperature
and door alarm*
fWater filter change indicator*
* Only visible when the relevant
function is activated
Guide to the freezer
9

Before using for the first time
The stainless steel surface of the
appliance is protected with a plastic
film, which protects it during shipping.
Do not remove this protective film until
the appliance has been completely
installed.
After removing the protective film clean
the exterior surface with the supplied
stainless steel agent. This will aid in
preventing resoiling.
^Clean the inside of the appliance and
the accessories with a mild solution
of warm water and liquid dish soap.
Dry with a soft cloth.
If the appliance was transported to
the installation site horizontally,
leave the appliance standing
upright for approx. 8 hours before
connecting it to the electrical supply.
This is very important to ensure
correct functioning.

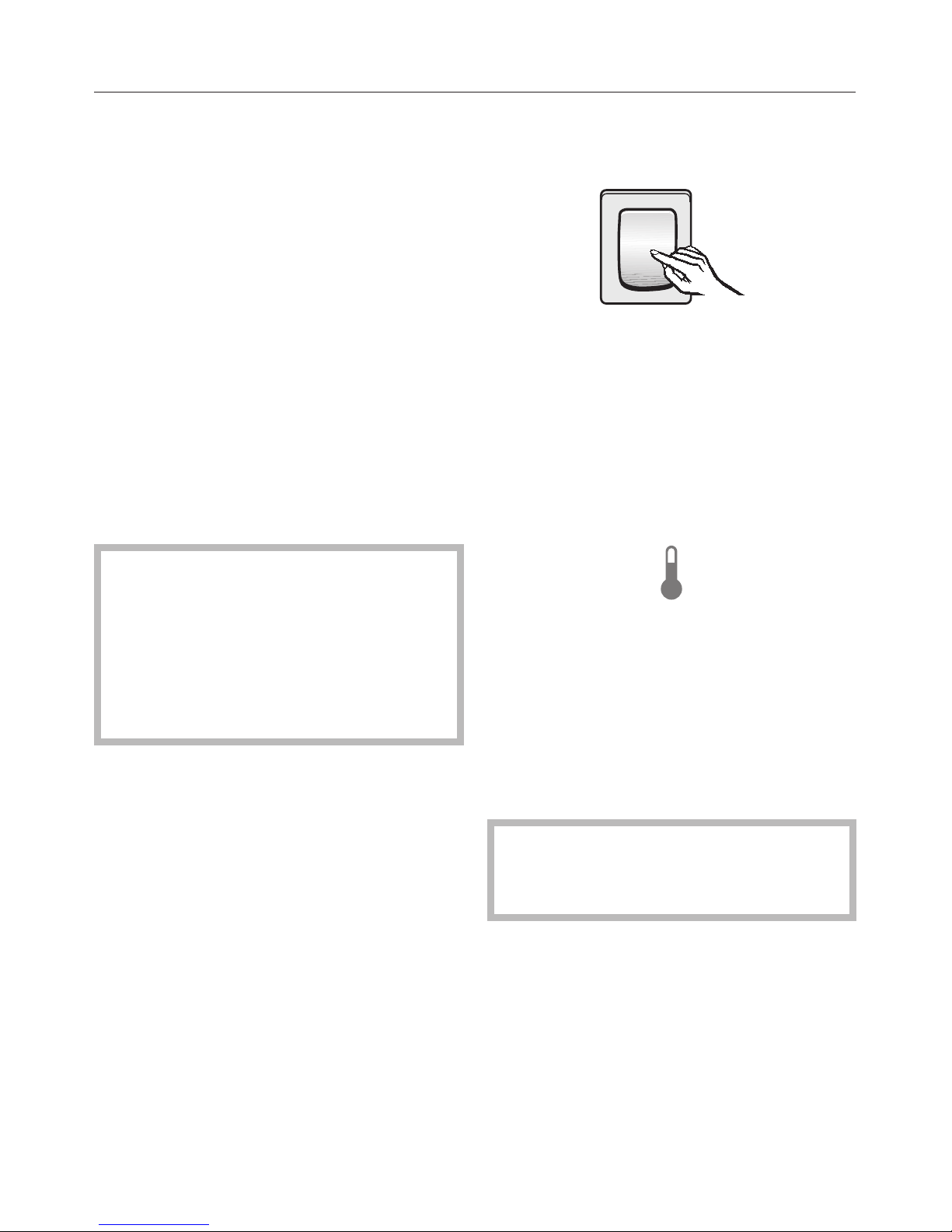

Turning the appliance On/Off
^Open the appliance door.
^Turn the appliance On/Off with the
main switch.
The main switch is located on the
right-side underneath the control panel.
Once on, the appliance begins cooling.
When the door is open, the interior
lights come on.
The access button will light in the
control panel.
The preset temperatures (factory
default settings) are reached after a few
hours. Do not put any food in the
appliance until the preset temperatures
are reached.
,Turning off the appliance with
the main switch does not safely
isolate it from the power supply.
Before use
10

Using the settings
This appliance is operated with the use
of touch keys activated by a finger.
–An available button will appear white.
–A selected button will appear yellow.

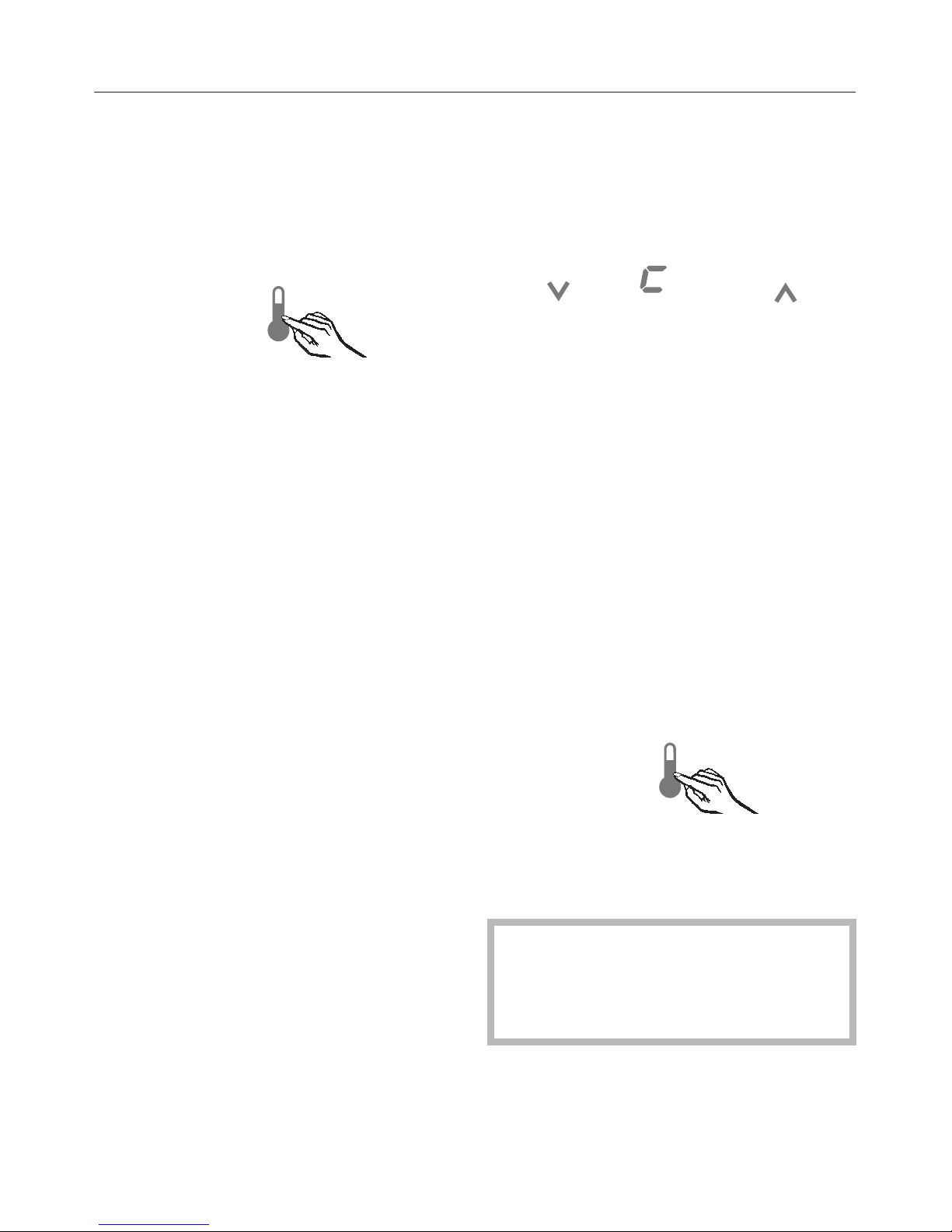

^Touch the access button "p"soit
turns yellow.
On the control panel you will see
additional sensor buttons to operate the
appliance.
These buttons allow you to:
– adjust the temperature,
– select the SuperCool function, or
– turn the ice maker On/Off.
For additional information, see the
corresponding sections in this manual.
^To leave the settings menu, touch the
access button "p" so it turns white.
The last settings entered are stored.
If the access button is not pressed
the display will go out after approx.
30 secs.
The other sensor buttons now
disappear from the control panel.
Additional settings
In the settings mode you can select
and change functions.
In settings mode, certain settings can
be changed. The function possibilities
are described in the respective
chapters of this manual.
Overview of the selectable function
settings:
Function Display text
To enter and exit the
Settings mode
c
Temperature unit
°C-°F
(see "Setting the
temperature")
†
RemoteVision
Module settings
(optional accessory)
;
Button sound on/off
(see "Settings")
=
No function ^
Settings
11

Turning the button sound
On/Off
If you prefer the buttons to be silent
when touched the button sound can be
turned off.
^Touch the access button "p"soit
turns yellow.
^Note the position of the Xbutton, but
do not touch.
^Touch the access button "p" again so
it turns white.
Only the access button "p" is visible.
^Place one finger on the position of
the Xbutton and hold (the Xbutton
will not be visible).
^While holding down the Xbutton,
press the access button "p" once.
Keep holding the Xbutton down until
the following appears in the display
(approx. 5 seconds).
^Tap the Xbutton until =appears in
the display.
^Touch the access button "p"to
confirm.
^By touching the Xbutton, you can
choose between:
=0: Button sound is off
=1: Button sound is on
=– : Return to menu.
^Touch the access button "p"to
confirm the setting.
^Tap the Xbutton until you see ;in
the display.
^Touch the access button "p".
You have now left the Custom settings
mode.
When you are in the Custom settings
mode the door alarm is turned off
automatically. Once the door is
closed it is reactivated.
Settings
12

Turning off for longer periods
of time
If the appliance is not going to be used
for an extended time (for example,
during a vacation) some precautions
need to be taken:
^Shut off the water supply line,
(several hours before switching off
the appliance)
^Take all food out of the appliance
^Turn the appliance off
^Unplug the appliance
^Empty the ice cube container
^Clean the interior
^Remove and discard the water filter
(secure the filter cap)
^Leave the door open to prevent
odors
Settings
13

The appliance is equipped with an
alarm system, to ensure that the
temperature does not rise unnoticed
because of energy loss or an open
door.
The alarm system is always
operational, it does not need to be
switched on.
Temperature alarm
If the temperature becomes too warm,
an alarm sounds and the "alarm"
indicator turns red and flashes and the
temperature flashes in the control
panel.
The temperature display shows the
highest temperature reached during the
alarm.
The alarm will sound and the display
will flash if:
– too much warm air flows into the
appliance, for example when food is
being loaded, re-arranged, or taken
out.
–large amounts of food are being
frozen at once.
–the power fails.
As soon as the alarm condition is
corrected the alarm with turn off and
the sensor button for alarm will go out.
Turning the temperature alarm Off
As soon as the alarm condition is
corrected, the alarm signal turns off
and the affected zone stops flashing in
the display. The "alarm" indicator goes
out.
^To turn the alarm off early, press
the "alarm" sensor button.
The alarm signal turns off. The "alarm"
indicator remains on until the alarm
condition is corrected.
If the temperature in the freezer
zone reaches 0°F (-18°C) or higher,
check that food has not defrosted.
Door alarm
If the appliance door is left open, an
alarm signal will sound and the "alarm"
indicator will turn red after five minutes.
Once the door is closed the alarm will
turn off and the "alarm" indicator will go
out.
Turning the door alarm Off
To turn the alarm off early:
^The "alarm" indicator and signal will
turn off.
The alarm will turn off and the "alarm"
indicator will go out.
Temperature and door alarm
14

Setting the temperature
^Touch the access button "p"soit
turns yellow.
^Use the Xand Ybuttons next to the
temperature display to set the
temperature warmer or colder.
Tap the Xand Ysensor buttons to
raise/lower the temperature 1°, or hold
it down to move through the
temperature range more quickly.
The temperature display on the
control panel always shows the
desired temperature.
Temperature range
The temperature can be set within the
following range:
7°F to -11°F (-14°C to -24°C).
To freeze fresh food and store frozen
food for an extended period of time, a
temperature of 0°F (-18°C) is
suggested.
The room temperature and the
installation location can affect the time it
takes for the appliance to drop to the
coldest temperature. If the room
temperature is too high, it may not be
possible for the appliance to reach the
lowest temperature.
Setting the temperature
15

Temperature unit
(Fahrenheit/Celsius)
The temperature can be displayed in
degrees Fahrenheit (°F) or Celsius (°C).
^Touch the access button "p"soit
turns yellow.
^Note the position of the Xbutton, but
do not touch.
^Touch the access button "p" again so
it turns white.
Only the access button "p" is visible.
^Place one finger on the position of
the Xbutton and hold (the Xbutton
will not be visible).
^While holding down the Xbutton,
press the access button "p" once.
Keep holding the Xbutton down until
the following appears in the display
(approx. 5 seconds).
^Tap the Xbutton until †appears in
the display.
^Touch the access button "p"to
confirm.
^By touching the Xbutton you can
select either Fahrenheit or Celsius for
the temperature display.
†0: Fahrenheit
†1: Celsius
†–: return to menu.
^Touch the access button "p"to
confirm the setting.
^Tap the Xbutton until a ;appears in
the display.
^Touch the access button "p".
You have left the Custom settings
mode.
When you are in the Custom settings
mode the door alarm is turned off
automatically. Once the door is
closed it is reactivated.
Setting the temperature
16

Freezing food
Fresh food should be frozen as quickly
as possible. This helps maintain the
nutritional value, vitamin content,
appearance and taste of the food.
Never refreeze partially or fully
defrosted food. Consume defrosted
food as soon as possible, it will lose its
nutritional value and spoil if left for too
long. Do not refreeze defrosted food
unless it has been cooked.
Before placing food in the freezer
^When you are planning to freeze
large amounts of food (more than
4 ½ lbs [2 kg]), switch on the
SuperCool function ahead of time
(see "SuperCool").
This will provide the food already in
the freezer with a protective boost of
cold air.
Placing food in the freezer
Food to be frozen can be placed
anywhere in the freezer.
Load bearing capacity of the baskets:
Small
basket
Large
basket
F 18X1Vi/SF 72 lbs
(33 kg)
72 lbs
(33 kg)
F 19X1Vi/SF 94 lbs
(43 kg)
94 lbs
(43 kg)
^Spread the food to be frozen across
the bottom of the freezer basket or
across the shelves, so that it will
freeze through to the core as quickly
as possible.
^When placing items in the freezer,
make sure the packaging and
containers are dry, to keep them from
sticking together when frozen.
When freezing, try not to let frozen
food come into contact with
unfrozen food, this could cause the
frozen food to defrost.
Using the freezer efficiently
17

Defrosting
Frozen food can be defrosted in
different ways:
–in a microwave oven,
–at room temperature,
–in the refrigerator (the cold given off
by the frozen food helps to keep the
other food cold),
–in a steam oven.
Poultry It is especially important to
observe proper hygiene when
defrosting poultry. Never save the liquid
from defrosted poultry. Drain it away
and promptly wash the container, the
sink and your hands. Danger of
salmonella poisoning.
Fruit should be defrosted at room
temperature in its packaging, or in a
covered bowl.
Most vegetables can be cooked while
still frozen. Simply place directly into
boiling water or hot oil.
Cooling drinks quickly
To cool drinks quickly, switch on the
SuperCool function, see "SuperCool" for
more information.
Do not leave bottles in the freezer for
more than 1 hour, closed containers
could burst.
Using the freezer efficiently
18

Freezing tips
–The following are examples of foods
suitable for freezing:
Fresh meat, poultry, game, fish,
vegetables, herbs, fresh fruit,
pastry/dough, leftovers, and a range
of pre-cooked meals.
–The following examples of foods not
suitable for freezing:
Lettuce, radishes, sour cream,
mayonnaise, eggs in their shells,
onions, whole raw apples and pears.
–To retain color, taste and vitamin C,
vegetables should be trimmed,
washed, and blanched.
To blanch: bring a large saucepan of
water to a boil, then submerge the
vegetables in rapidly boiling water
for 2-3 minutes, depending on type.
Remove, and plunge into ice-cold
water to cool quickly. Drain and pack
for freezing.
– Lean meat freezes better than fatty
meat, and can be stored for
considerably longer.
–To prevent chops, steaks, cutlets or
rolled meats from freezing together in
solid blocks when packed, separate
with a sheet of plastic freezer wrap.
–Do not season fresh foods or
blanched vegetables before
freezing. Cooked food can be lightly
seasoned before freezing, but care
should be taken as the taste of some
spices alters when frozen.
–Do not place hot foods or drinks in
the freezer. This causes already
frozen food to thaw, and increases
the energy consumption
considerably. Allow hot foods and
drinks to cool down before placing
them in the freezer.
Packing tips
^Unsuitable packing material
- wrapping paper
- greaseproof paper
- cellophane
- garbage bags
- plastic shopping bags
Suitable packing material
- plastic freezer bags/wrap
- aluminum foil
- freezer containers
^To help prevent freezer burn, expel
as much air as possible from
bags, etc., before sealing them.
^Close the packaging tightly with
- plastic clips
- twist ties
- rubber bands
^Mark the package to indicate the
contents and the date of freezing.
Using the freezer efficiently
19

When the SuperCool function is
activated, the appliance is cooled as
cold as possible (to a factory-preset
temperature).
SuperCool
The SuperCool function is ideal for
freezing large quantities of unfrozen
food. Ideally the function should be
switched on4-6hours before the food
is placed in the freezer.
If the max. freezing capacity is used,
24 hours are recommended.
This helps food to freeze quickly and
retain its nutrients, vitamins, flavor and
appearance.
Switching on SuperCool

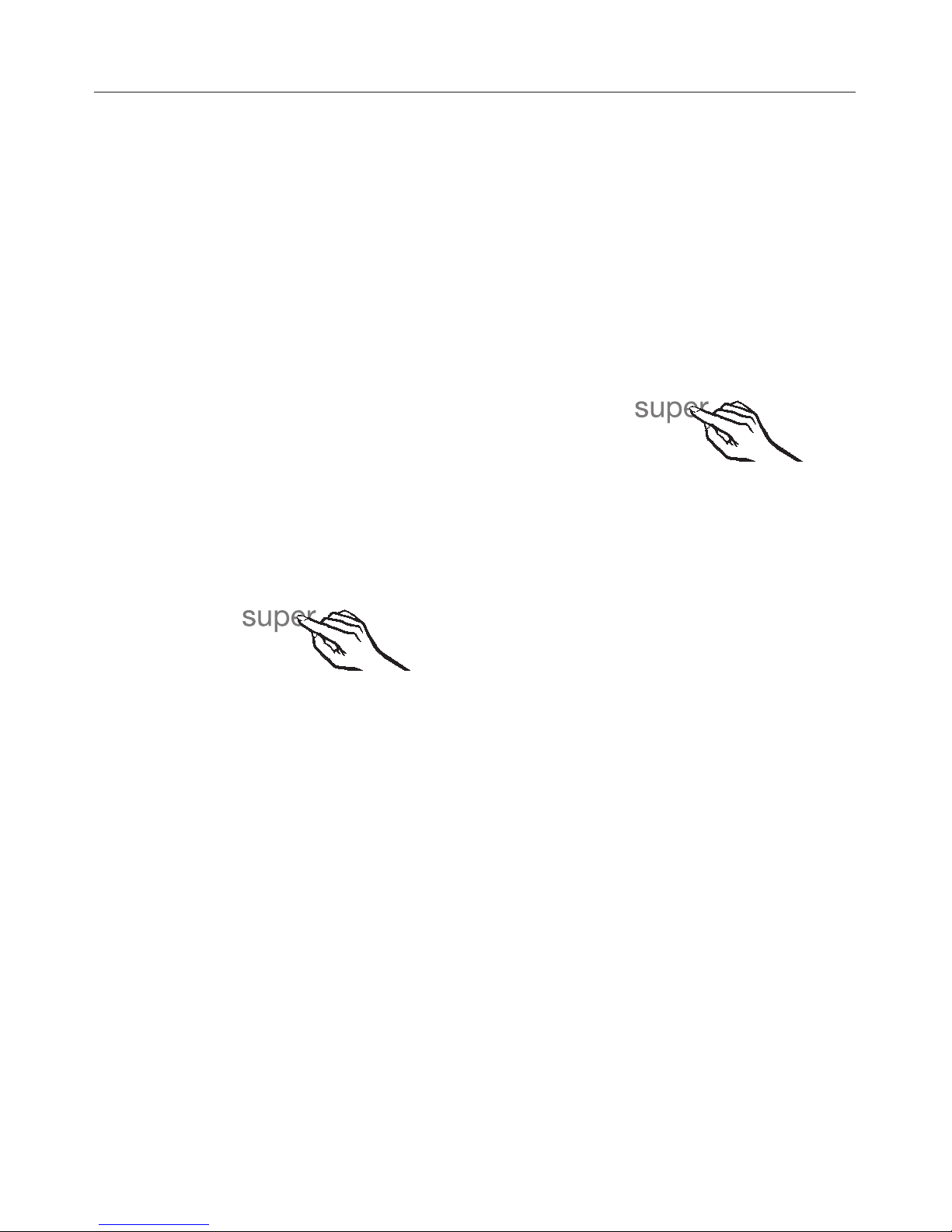

^Touch the SuperCool sensor so that
it turns yellow.
The temperature now begins to fall, with
maximum cooling performance.
The new temperature setting appears in
the display -22°F (-30°C).
Switching off SuperCool
The SuperCool function automatically
switches off after approx. 52 hours. The
sensor button turns white, and the
appliance continues running at normal
power.
To save energy, you can switch off the
SuperCool function once the food is
sufficiently chilled.
^Touch the SuperCool sensor so that it
turns white.
The temperature display returns to the
original temperature setting.
The appliance now continues running
at normal power.
SuperCool
20
