TECHNICAL INFORMATION
H350, H373 &H387 Ovens
© 2004 Miele
CLICK ANYWHERE on THIS PAGE to RETURN to ELECTRIC COOKING APPLIANCE REPAIR GUIDES at
InspectApedia.com

Novotronic Models
Technical Information
2
Table of Contents – H350, H373 & H387 Ovens
010 – Construction and Design
1 Unit Overview H350 5
2 Unit overview H373/H387 6
3 Data Tag Information 7
020 – Installation Information
1 Electrical Information 10
030 – Commissioning and Operation
1 Before Using For the First Time 11
2 Controls – Basic Overview 12
3 Cooking Using Default Temperatures 14
4 Rapid Heat 15
5 Turning Off Rapid Heat 15
6 Selector Switch 16
040 – Function and Description
1 Cooling Fan Run-On 18
2 Catalyser System 19
3 Pyrolitic/ Self- Cleaning 20
4 Catalyser 22
5 Door Lock Mechanism 24
6 Safety Cut-Out 25
7 Rapid Heat 25
8 Door Switch 26
9 Temperature Sensor 26
10 Automatic Door Lock 26
11 Door Contact Switch 26
12 Control and Power Electronic 27

Novotronic Models
Technical Information
3
Table of Contents – Continued
050 – Service and Maintenance
1 Layout of Electrical Components 29
2 Service 34
5.2 Door Removal 34
5.3 Oven Removal 35
5.4 Front Cover Removal 35
5.5 Fascia Panel Removal 35
5.6 Control Module Removal 36
5.7 Control and Power Module Removal 36
5.8 Rear Cover Removal 37
5.9 Rear Panel Removal 37
5.10 Left or Right Side Panel Removal 37
5.11 Left or Right Deflector Strip Removal 37
5.12 Left or Right Hinge Bearing Removal 39
5.13 Cleanglass Door Panel Removal 40
5.14 Middle Door Glass Removal 41
5.15 Door Installation 41
5.16 Halogen Lamp Removal 41
5.17 Shelf Runner Removal 41
5.18 Reflector and Glass Cover Removal 42
5.19 Cavity Rear Panel Removal 43
5.20 Upper Heating Element Removal 43
5.21 Lower Heating Element Removal 45
5.22 Oven Temperature Sensor Removal 45
5.23 Temperature Regulator Removal 46
5.24 Convection Heating Element Removal 47
5.25 Convection Heating Fan Removal 48
5.26 Fumes Extractor Removal 48
5.27 Cooling Fan Removal 48
5.28 Catalyser Removal 49
5.29 Catalyser Temperature Sensor Removal 49
5.30 Door Latch Release 50
5.31 Door Lock Cable Removal 50
5.32 Door Switch Removal 51
5.33 Door Locking Device Removal 51
5.34 Pyrolitic Temperature Regulator Removal 52
5.35 Door Lock Manual Override 53

Novotronic Models
Technical Information
4
Table of Contents – Continued
060 – Fault Diagnosis
1 Service Modes 55
2 Fault Codes 57
6.2.1 Fault Code F3 57
6.2.2 Fault Code F4 57
6.2.3 Fault Code F5 58
6.2.4 Fault Code F6 58
6.2.5 Fault Code F9 58
6.2.6 Fault Code F13 59
6.2.7 Fault Code F14 59
6.2.8 Fault Code F15 60
6.2.9 Fault Code F16 61
6.2.10 Fault Code F17 61
3 Fault Repair 62
6.3.1 Excessive Noise During Fan Operation 62
6.3.2 Selected Temperature Exceeded 63
6.3.3 Excessive Noise During Cooling Fan Operation 64
6.3.4 Misting of Interior Door Panel 64
6.3.5 Misting Behind Display 65
6.3.6 Unit Does Not Heat 66
6.3.7 Self Cleaning (Pyrolitic Mode) Cannot be Switched Off 67
6.3.8 Programming Operating Parameter, Voltage and Frequency 68
6.3.9 Programming Model Variant Display 70
6.3.10 Electronic Version Display 71
6.3.11 Cooling Fan Activation Hi 72
6.3.12 Cooling Fan Activation Low 73
6.3.13 Convection Fan Activation Max 74
6.3.14 Convection Fan Activation Min 75
6.3.15 Oven Lights Activation 76
6.3.16 Display Check 77
6.3.17 Buzzer Activation 78
6.3.18 Roast Probe Temperature 79
6.3.19 Cooling Fan Activation at Pyrolitic Cleaning Speed 80
6.3.20 Door Lock Activation 81
6.3.21 Demonstration Mode Activation 82
6.3.22 Demonstration Mode Deactivation 83
6.3.23 Fault Codes Retrieval and Deletion 84
6.3.24 Operating Hours (Fan Heat and Auto Roast) 85
6.3.25 Operating Hours (Convection Heating) 86
6.3.26 Operating Hours (Heating Elements) 87
6.3.27 Regulator Parameter 88
6.3.28 Supply Power frequency Setting 89
4 Programming Mode 91
6.4.1 Programming mode Summary 91
6.4.2 Locking Function Off 93
6.4.3 Locking Function On 94
6.4.4 Oven Light Activated When Operating Mode is Selected 95
6.4.5 Oven Light Activated When Door is Open in All Settings 96
6.4.6 Temperature Display – Time (12 or 24 Hour Clock) 97
6.4.7 Oven Light Settings 98
6.4.8 Rapid Heat Settings 99
6.4.9 Clock Display Settings 100
6.4.10 Buzzer Settings 101
6.4.11 Buzzer Off 102

Novotronic Models
Technical Information
5
1.0 Construction and Design
1.1 Unit Overview – H 350
1. Program Selector 7. Roast Probe Socket
2. Oven Display 8. Runners
3. Oven Push Buttons 9. Hinge
4. +/- Adjust Buttons 10. Oven Door
5. Upper Heating Element
6. Convection Fan
Figure 1-1: Unit Overview

Novotronic Models
Technical Information
6
1.2 Unit Overview – H 373, H387
1. Program Selector
2. Oven Display and Push Buttons 8. Roast Probe Socket
3. Clock/Timer Display and Push Buttons 9. Convection Fan
4. +/- Adjust Buttons 10. Runners
5. Door Contact Switch** 11. Oven Door
6. Upper Heating Element & Safety Guard
7. Rotisserie Motors
Figure 1-2: Unit Overview

Novotronic Models
Technical Information
7
1.3 Data Tag
Location
The Data Tag is located on the bottom right edge of the front of the oven.
To view the Data Tag you must open the oven door.
Electrical Data
Model Serial Number
Certification
Figure 1-3: Data Tag Information Applicable To H 350, H 373 & H387 Models

Novotronic Models
Technical Information
8
This page intentionally left blank

Novotronic Models
Technical Information
9
2.0 Installation
Refer to the Installation Manual
Figure 2-1: Installation Manual (Cover)

Novotronic Models
Technical Information
10
2.1 Electrical Information
Power Requirements:
120/208-240 VAC, 60 Hz, 30 Amp breaker**
Oven is equipped with a 6-foot flexible shielded power cord.
** See Special Information section below regarding
input voltage to the oven
Electrical connections:
Black Wire: Connect to L1
Red Wire: Connect to L2
White Wire: Connect to N (Neutral)
Green Wire: Connect to GND (Ground)
A dedicated circuit consisting of a dedicated breaker, supply line and
junction box must be used on all oven installations.
Connection details are given on the diagram located on the top of the
oven. The electrical supply should be checked against the diagram to
ensure all electrical and safety requirements are met prior to electrical
connection
Special Information:
Ovens can be special ordered or converted to 120/208 VAC 60 Hz supply
voltage. The 208 VAC ovens are equipped with an additional label
indicating the oven has been converted. Special care should be taken to
ensure ovens converted to 208 VAC are not connected to higher
voltages. Always check wall voltage before installation.

Novotronic Models
Technical Information
11
3.0 Commissioning and Operation
3.1 Before using for the first time
New ovens may have a slight odor during the first few uses. To eliminate
the odor quickly, operate the oven at a high temperature for 2 hours.
Make sure the room is well ventilated during this process
Before heating the oven remove all accessories from the oven.
Use a soft cloth or sponge to wipe out the interior using a solution of
warm water and non-abrasive detergent. Dry the interior with a soft cloth
Turn the program to “convection”
Set the temperature to 480 °F / 250 °C using the “+” button while the
indicator light between the “+” and “-“ buttons is lit.
Set the timer by pressing the “Cook” button on H350 models, the “Timer”
button on H373 & H387 models.
“0:00” will appear in the display and the “+/-“ indicator will illuminate.
While the light between the “+/-“ is lit enter 2 hours using the “+” button.
The oven will begin to heat as soon as the indicator light between the “+/-“
goes out.

Novotronic Models
Technical Information
12
3.2 Controls-Basic Overview
The oven controls consist of the program selector and push buttons. The
program selector can be turned either way.
Each push button has a matching symbol in the oven display.

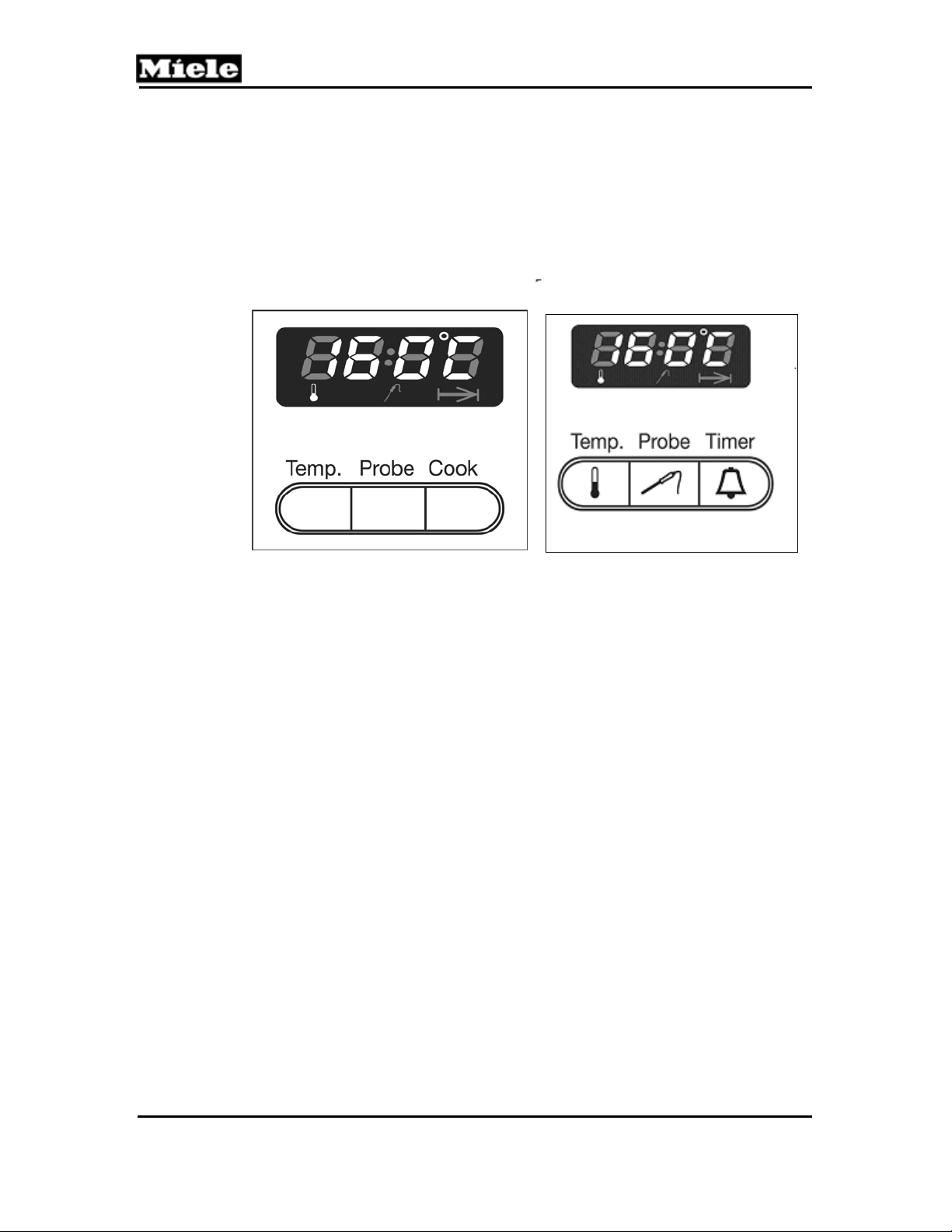

H350 Models H 373 & H3837 Models
Table 3-1: Explanation of Oven Symbols
Continued on next page.
Button Controls Symbol
Temp Oven temperature
Settings z
Probe Core temperature
Settings G
Cook (H350) Cooking Timer x
Timer (H373 & H387) Cooking Timer w

Novotronic Models
Technical Information
13
Controls-Basic Overview (Continued)
Time/Temperature button
All time and temperature selections are made using the “+” or “-". To
make changes press one button at a time. For rapid advancement hold in
the button.
- Oven temperatures are 10 °F / 5 °C increments
- Core temperatures are in 2 °F / 1 °C increments
When the light between “+” and “-“ buttons is illuminated, time and
temperatures can be entered or changed.
When the light goes out your entry is accepted.

Novotronic Models
Technical Information
14
3.3 Using The Oven
3.3.1 Cooking Using Default Temperatures
Turn the program selector knob to the desired program
H350 H373/H387
The default oven temperature will appear in the display. The indicator
between the “+/-“ buttons will illuminate
The oven will start to heat as soon as the indicator between the “+/-“
buttons goes out.
• Adjust the default temperature if needed
• Allow the oven to preheat if necessary. The oven
temperature can be monitored in the display
• Place food in the oven
• Enter the cooking time
At the end of the cooking time:
A tone will sound for 5 seconds and the →symbol flashes
To turn off the tone and the flashing symbol:
• Press the “Cook” button (H350) “Timer” (H373. H387)
• Turn the program selector to “O”

Novotronic Models
Technical Information
15
3.4 Rapid Heat
The rapid heat feature activates the heating elements at maximum
power to heat the oven rapidly. With the “Convection”, “Auto Roast”,
or “Surround” programs the “Rapid heat” feature activates
automatically if the selected temperature is:
• At least 280°F / 140°C in “Auto Roast”
• At least 300°F / 150°C in “Surround”
• A flashing “F” or “C” besides the temperature indicates “Rapid
heat” is on
3.4.1 Turning Off “Rapid Heat”
For some dishes it may be desirable to turn off “Rapid heat” (cookies,
small cakes)
• Select the oven program and temperature
• As soon as the actual temperature appears in the display, “Rapid
heat” can be turned off
• Press the “-“ button and hold until the “F” / “C” in the display stops
flashing
• Once the program selector has been turned to “0”, “Rapid heat”
will be available for the next use

Novotronic Models
Technical Information
16
3.4.2 Selector Switch
Convection:
Convection heating element and convection fan are activated
Intensive:
Lower heating element and convection fan are activated
Surround:
The oven automatically starts Rapid heat mode (see 3.4.5). The upper
and lower heating elements are activated
Top Heat:
The outer top-heating element is activated
Bottom Heat:
The bottom-heating element is activated
Auto Roast:
The oven automatically starts Rapid heat mode. The convection fan and
heating element are then activated
Broil:
The inner top element is activated
Maxi Broil:
Both Top Elements Are Activated
Fan Broil:
The inner top element and convection fan are activated
Defrost:
The convection fan and heating element are activated

Novotronic Models
Technical Information
17
4.0 Function and Description
Figure 4-1: Cooling and Venting Air Paths – Novatronic Ovens H350/H373
1. Air Outlet
2. Air Duct
3. Air Intake At Deflector Strips
4. Air Intake
5. Air Openings At Rear
6. Oven Fan
7. Vapor Outlet Connection
8. Cooling Fan
9. Air Guide Duct
Continued on next page.

Novotronic Models
Technical Information
18
Cooling Air Intake Path
1. Refer to Figure 4-1
2. Via the deflector strips (3)
3. Via the air intake under the door (4)
4. Via the air openings at the rear of the unit (5)
5. Function: To cool the appliance and it’s electrical components
Cooling Air Path
1. Refer to Figure 4-1
2. Via the cooling fan (8)
3. Via the air duct (9)
4. Function: Cool air is mixed across the cooling duct with vapors
removed from the oven via the vapor outlet connection
Cooling Air Discharge
1. Refer to Figure 4-1
2. The cool air and vapor mixture is discharged at the air outlet between
the door handle and fascia panel
4.0.1 Cooling Fan Run-On
The cooling will run during the cooling down cycle until a temperature of
approximately 160 °F is reached. This will prevent damage caused by
condensation collecting in the appliance. During this cycle the cooling fan
operates at the lowest speed. The length of the run on time is determined
by the temperature inside the oven cavity and may be more then one
hour. Opening the door can terminate the run-on.

Novotronic Models
Technical Information
19
4.1 Catalyser System (H387 Models)
Figure 4-2: Cooling and Venting Air Paths – Novatronic Ovens With Self-Clean (H387)
1. Refer to figure 4-2
2. The catalyser (3) removes grease particles from expelled air to
reduce odors
3. Grease particles and substances producing odors are converted
to water and carbon dioxide.
4. The water and carbon dioxide are removed by the cooling fan (2)
and expelled via the vent duct (1)

Novotronic Models
Technical Information
20
4.1.2 Pyrolitic or Self-Cleaning (H387 Models)
The Miele pyrolitic or self-cleaning system is a thermal process for
cleaning the oven (self-cleaning). At a temperature of approximately 900°
F solid residues are converted to a gaseous state. The catalyser
minimizes smoke and odor development.
Heating: During pyrolitic or self- cleaning, the pyrolitic or self-cleaning
heater element (outer element) is constantly activated. The grill (inner
heater element) and convection fan elements are activated alternately.
Door Lock: The oven door is locked immediately after the start of the
function and only releases after the cycle is complete and the
temperature has dropped below approximately 390°F
Pyrolitic or Self-Cleaning Duration: The duration of the pyrolitic or self-
cleaning cycle ranges based upon the cleanliness of the oven. The
cleaner the oven the shorter the time required to clean and vice versa.
Refer to Figures 4-3 and Figure 4-4.
Figure 4-3: Minimum Duration With Light Oven Soiling
A Oven temperature
BTime
