Miele H6090B User manual

Operating and installation instructions
Oven
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for the
first time.
M.-Nr. 09 608 510en - AU, NZ

Warning and Safety instructions .....................................4
Caring for the environment.........................................15

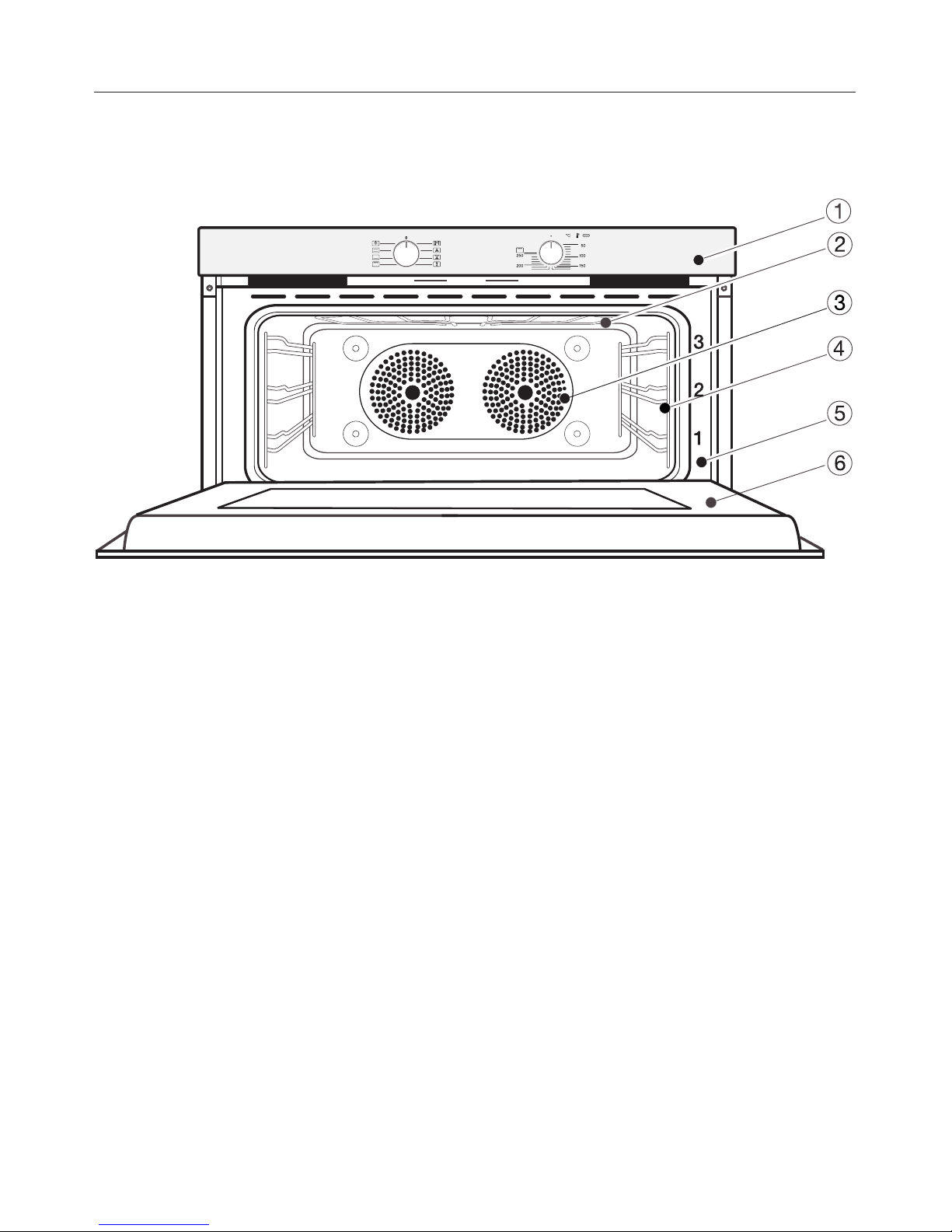

Oven overview ...................................................16
Oven controls....................................................17
Function selector ..................................................17
Temperature selector ..............................................17
Temperature indicator light 6......................................17
Features ........................................................18
Model numbers ...................................................18
Data plate .......................................................18
Items supplied with delivery .........................................18
Standard and optional accessories....................................18
Shelf runners...................................................19
Universal tray and rack with non-tip safety notches.....................19
FlexiClip telescopic runners .......................................20
Fitting and removing the FlexiClip telescopic runners ...................20
Oven controls.....................................................23
Safety features ....................................................23
Cooling fans ...................................................23
Vented oven door ...............................................23
PerfectClean treated surfaces ........................................23
Catalytic enamelled back wall ........................................23
Using for the first time.............................................24
Before using for the first time.........................................24
Heating up the oven for the first time...................................24
Overview of functions .............................................25
Operation .......................................................26
Tips on saving energy ..............................................26
Residual heat use ...............................................26
Using the oven....................................................26
Cooling fan.......................................................26
Pre-heating ......................................................27
Baking ..........................................................28
Notes on the baking chart ...........................................29
Baking chart .....................................................30
Fan Plus U......................................................30
Conventional Heat V..............................................31
Contents
2

Roasting ........................................................32
Notes on the roasting chart ..........................................32
Roasting chart ...................................................34
Low temperature cooking ..........................................35
Grilling .........................................................37
Notes on the grilling chart ...........................................38
Fan Grilling guide (Fan Grill \)......................................40
Grilling guide (Full Grill Y)..........................................41
Defrost .........................................................42
Bottling .........................................................43
Drying food......................................................44
Frozen food/Ready meals ..........................................45
Cleaning and care ................................................46
Useful tips .......................................................47
Normal soiling ....................................................47
Cleaning the seal ...............................................47
Stubborn soiling (does not apply to the FlexiClip telescopic runners) .........48
Stubborn soiling on the FlexiClip telescopic runners ......................49
Cleaning the catalytic enamelled back panel ............................49
Removing soiling caused by spices, sugar and similar deposits ..........49
Removing oil and grease soiling from the catalytic enamelled panel .......50
Removing the door ................................................51
Dismantling the door.............................................52
Fitting the door....................................................55
Removing the shelf runners with FlexiClip telescopic runners ...............56
Removing the back panel ...........................................57
Lowering the top heat/grill element ....................................57
Problem solving guide ............................................58
After sales service and warranty ....................................61
Electrical connection..............................................62
Building-in diagrams ..............................................64
Front dimensions ..................................................66
Installing the oven ................................................67
Contact details ...................................................71
Contents
3

This appliance conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time.
They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these
instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
Warning and Safety instructions
4

Correct application
~This oven is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
~The oven is not suitable for outdoor use.
~The oven is intended only to cook, bake, roast, grill, defrost,
bottle, dry fruit etc.
Any other usage is at the owner's risk.
~This oven is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are supervised whilst using
it or have been given instruction concerning its use by a person
responsible for their safety.
They must be able to recognise the dangers of misuse.
Warning and Safety instructions
5

Safety with children
~Young children must not be allowed to use this appliance.
~Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
~Cleaning work may only be carried out by older children under
the supervision of an adult.
~Children should be supervised near the appliance. Ensure that
they do not play with the appliance.
~Children may be able to wrap themselves in packing material or
pull it over their heads with the risk of suffocation. Keep children
away from any packing material.
Warning and Safety instructions
6

~Danger of burning!
Children's skin is far more sensitive to high temperatures than that of
adults. Great care should be taken to ensure that children do not
touch the appliance when it is being used. External parts of the oven
such as the door glass, control panel and the vents become quite
hot.
~Danger of injury!
The maximum load capacity for the door is 15 kg. Children can hurt
themselves on an open door.
Ensure that children do not sit on or swing on the door.
Warning and Safety instructions
7

Technical safety
~Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
~A damaged appliance is dangerous. Check it for any visible
damage. Never install or attempt to use a damaged appliance.
~The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
~Before connecting the appliance to the mains supply, make sure
that the rating on the data plate (voltage and frequency)
corresponds to that of the household supply. This data must
correspond in order to avoid risk of damage to the appliance.
Consult a qualified electrician if in any doubt.
~Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
~For safety reasons, this appliance may only be used when it has
been built in.
~This oven must not be installed and operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
8

~Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Do not open the outer casing of the appliance.
~The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
~Faulty components must only be replaced by genuine Miele
spare parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
~If the oven is delivered without a connection cable, or if the
connection cable supplied is damaged, a special connection cable
must installed by a Miele approved service technician (see
"Electrical connection").
~During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply, e.g. if the
oven lighting is faulty (see "Problem solving guide").
It is only completely isolated from the electricity supply when:
– the mains fuse has been disconnected, or
–the screw-out fuse is removed (in countries where this is
applicable), or
–it is switched off at the wall socket and the plug is withdrawn from
the socket.
Do not pull the mains connection cable but the mains plug to
disconnect your appliance from the mains electricity supply.
Warning and Safety instructions
9

~For the oven to function correctly, it requires a sufficient intake of
cool air. Ensure the intake of cool air to the oven is not impaired
(e.g. due to the installation of insulation material inside the housing
unit). Furthermore, the incoming cool air must not be excessively
heated by other heat sources (e.g. fuel furnaces).
~If the oven is installed behind a furniture door, do not close the
door while the oven is in operation. Heat and moisture would build
up behind a closed furniture door, potentially causing damage to the
oven, the furniture unit and the flooring. Wait until the oven has
cooled down completely before closing the furniture door.
Warning and Safety instructions
10

Correct use
,Danger of burning!
The oven becomes hot when in use.
Exercise care when handling food and trays so as not to burn
yourself on heating elements, the walls of the oven, shelf runners,
trays and hot food itself.
Use oven gloves when placing food in the oven, turning or
removing it and when adjusting oven shelves etc. in a hot oven.
~Do not use the oven to heat up the room.
Due to the high temperatures radiated, objects left near the
appliance could catch fire.
~Never leave the appliance unattended when cooking with oil or
fats as these are a fire hazard if allowed to overheat.
Do not attempt to extinguish oil or fat fires with water.
Switch off the oven and smother the flames by keeping the oven
door closed.
~Make sure that you keep to the recommended grilling times when
using grilling functions.
Excessively long grilling times can lead to food drying out and
burning or could even cause the food to catch fire.
Warning and Safety instructions
11

~Some foods dry out very quickly and can be ignited by high
grilling temperatures. Do not use grilling functions for crisping rolls
or bread or to dry flowers or herbs. Instead use Fan Plus Uor
Conventional Heat V.
~If using alcohol in your recipes, please be aware that high
temperatures can cause the alcohol to vaporise and even to ignite
on the hot heating elements.
~When residual heat is used to keep food warm, the high level of
humidity and condensation can cause corrosion in the oven. The
control panel, worktop or furniture unit may also be damaged.
Do not switch the oven off completely while food is inside it, but
select the lowest possible temperature for the oven function you are
using. This will ensure the fan will automatically continue to run.
~Cover any food which is left in the oven to be kept hot, as
moisture in the food could lead to corrosion damage in the oven.
This also prevents the food from drying out.
~Never cover the floor of the oven with aluminium foil, or place
oven dishes, pans, saucepans or trays directly onto the floor of the
oven.
This would cause concentrations of heat which could cause damage
to the floor of the oven.
~When storing pots or pans in the oven, do not slide them across
the floor of the oven as this will damage the enamel coating.
Warning and Safety instructions
12

~Never pour cold water onto hot surfaces in a hot oven.
The steam created could cause serious burns or scalding and the
sudden change in temperature can damage the enamel in the oven.
~It is important that the heat is allowed to spread evenly
throughout the food being cooked. This can be achieved by stirring
and/or turning the food.
~Plastic containers, which are not heat-resistant, melt and may
ignite at high temperatures and can damage the oven.
Use only plastic containers that are indicated by the manufacturer
as being suitable for use in ovens.
~Do not use the appliance to heat up or bottle food in sealed jars
and tins.
Pressure will build up inside them and they can explode causing
damage to the appliance, as well as the risk of injury and scalding.
~Do not leave the oven door open unnecessarily as someone may
trip over it or be injured by it.
~The oven door can support a maximum load of 15 kg.
Do not lean or sit on an open oven door, or place heavy items on it.
Also make sure that nothing can get trapped between the door and
the oven cavity. This could damage the oven.
Warning and Safety instructions
13

Cleaning and care
~Do not use a steam cleaning appliance to clean this oven.
Pressurised steam could reach the electrical components and
cause a short circuit.
~Scratches on the door glass can result in the glass breaking.
Do not use abrasive cleaners, hard sponges, brushes or sharp
metal tools to clean the door glass.
~The shelf runners can be removed for cleaning purposes (see
"Cleaning and care").
Ensure they are correctly fitted after cleaning and never operate the
oven without the shelf runners fitted.
~The catalytic enamelled back panel can be removed for cleaning
purposes (see "Cleaning and care").
Ensure it is correctly fitted after cleaning and never operate the
oven without the back panel fitted.
Warning and Safety instructions
14
Accessories
~Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Therefore, please do not dispose of
your old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre.
Ensure that your old appliance presents
no danger to children while being
stored for disposal.
Caring for the environment
15

aOven controls
bTop heat/grill element
cCatalytic coated back panel with air inlets for the fans
dShelf runners with 3 shelf levels
eFront frame with data plate
fDoor
Oven overview
16

aFunction selector
bTemperature selector
cTemperature indicator light
Function selector
The function selector is used to select
oven functions and to switch on the
oven lighting separately.
The function selector can be turned
clockwise or anti-clockwise.
When the function selector is in the 0
position, it can be retracted by pushing
it in.
TLighting
VConventional Heat
XBottom Heat
YGrill
SRapid Heat-up
UFan Plus
\Fan Grill
PDefrost
Temperature selector
The temperature selector is used to
select the temperatures for cooking
programmes.
The temperature selector can be turned
clockwise as far as it will go, and then
back again.
When the temperature selector is in the
ßposition, it can be retracted by
pushing it in.
Temperatures are printed on the
temperature selector and on the control
panel.
Temperature indicator light 6
The temperature indicator light 6lights
up whenever the oven is heating.
When the set temperature is reached,
–the oven heating switches off,
–the temperature indicator light goes
out.
The temperature regulator ensures that
the oven heating and temperature
indicator light switch back on again
when the oven temperature falls below
the level set.
Oven controls
17

Model numbers
A list of the ovens described in these
operating and installation instructions
can be found on the back page of this
booklet.
Data plate
The data plate located on the front
frame of the oven is visible when the
door is open.
On the data plate are printed the model
number, serial number and the
connection data (voltage/frequency/
maximum rated load).
Have this information available if you
need to contact Miele so that any
issues can be rectified as quickly as
possible.
Items supplied with delivery
Included in delivery are:
– the operating and installation
instructions for using the oven
functions,
–screws for fixing the oven to the
housing unit,
–various accessories.
Standard and optional
accessories
Depending on model!
All ovens are supplied with shelf
runners, a universal tray and
baking and roasting rack (rack for
short).
Depending on the model, Miele
ovens may be supplied with the
accessories listed below.
All accessories and cleaning and care
products in these instructions are
designed to be used with Miele
appliances.
They can be ordered at www.miele-
shop.com (depending on country) or
from Miele.
Please state the model number of your
oven and that of any accessories you
wish to purchase.
Features
18

Shelf runners
Shelf runners for accessories (trays,
racks, FlexiClip telescopic runners etc.)
are fitted on either side of the oven
cavity for shelf levels ³.
The shelf level numbers are indicated
on the front of the oven frame.
Each shelf runner has two rails:
–Accessories are inserted between
the two shelf runners.
–FlexiClip telescopic runners (if
available) are fitted to the bottom rail
of each shelf runner.
The shelf runners can be removed for
cleaning purposes (See "Cleaning and
care").
Universal tray and rack with non-tip
safety notches
Universal tray:
Rack:
The universal tray and rack are inserted
into the oven between the two rails of a
shelf runner.
Always position the rack as illustrated
above.
The universal tray and rack have non-
tip safety notches which prevent them
being pulled right out when they only
need to be partially pulled out.
When pushing the rack back in,
always ensure that the safety
notches are at the rear of the oven
(see illustration).
They can then only be taken out of the
oven by raising them upwards and then
pulling them out.
If you are using a tray with the rack on
top, insert the tray between the rails of
a shelf runner and the rack will sit on
top of it.
Features
19

FlexiClip telescopic runners
The FlexiClip telescopic runners can be
attached to any shelf level.
Push the FlexiClip telescopic
runners right into the oven before
placing accessories on them. The
accessories will then automatically
sit securely in between the stoppers
at either end of each runner and be
prevented from sliding off.
The maximum load for the FlexiClip
telescopic runners is 15 kg.
Fitting and removing the FlexiClip
telescopic runners
,Danger of burning!
Make sure the oven heating
elements are switched off and the
oven interior is cool.
The FlexiClip telescopic runners are
fitted in between the two rails that make
up a shelf level.
The telescopic runner with the Miele
logo must be fitted on the right.
When fitting or removing the
telescopic runners, do not extend
them.
^Hook the FlexiClip telescopic runner
onto the bottom rail of a shelf level at
the front (1) and push it along the rail
into the oven interior (2).
Features
20
