Miele S 700 series User manual

Operating Instructions
Vacuum Cleaner
S 700 - S 768
To prevent accidents
and appliance damage,
read these instructions
before
installation or use. M.-Nr. 07 703 000
en - US, CA

2

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Included accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the included accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Crevice nozzle ....................................................16
Dusting brush ....................................................16
Upholstery nozzle .................................................16
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power cord.......................................................17
Turning the vacuum on and off .......................................18
Adjusting the suction ...............................................19
Blower connection socket ...........................................20
Transportation and storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Purchasing new dustbags and filters ..................................22
Which dustbags and filters are the right ones? ...........................22
When to change the dustbag ........................................23
Replacing the dustbag .............................................24
Replacing the exhaust filter ..........................................25
Replacing the "Air Clean" filter ........................................26
Replacing the "Active Air Clean" filter and the "Active HEPA" filter ............27
Replacing one type of filter with another ................................28
When to change the dust compartment filter (motor protection)..............29
Replacing the dust compartment filter (motor protection)...................29
When to change the thread catcher pads on the standard floor brush ........30
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Contents
3

When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
Keep these operating instructions in a safe place and pass them on to any
future user.
WARNING-
To reduce the risk of fire, electric
shock or injury:
Before using
~Check the voltage rating of the
vacuum cleaner before connecting the
power cord to an electrical outlet. Your
power source should correspond with
the voltage rating plate located on the
underside of the vacuum. Use only
household AC outlets. Never use DC
power sources. If you are not sure of
your home’s voltage supply, consult a
qualified electrician. Connecting the
vacuum cleaner to a higher voltage
than indicated in these instructions may
result in damage to the vacuum cleaner
or injury.
~To reduce the risk of electric shock,
this appliance has a polarized plug
(one blade is wider than the other.) This
plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to
install the proper outlet. Do not alter the
plug in any way.
~A damaged vacuum cleaner can be
dangerous. Check the packaging,
vacuum cleaner and accessories for
any signs of damage. Do not use a
damaged appliance.
~Do not use with a damaged cord or
plug. If the appliance is not working as
it should, has been dropped, damaged,
left outdoors or submerged in water,
bring it to a service center.
~The electrical outlet must be fitted
with a 15 A fuse.
IMPORTANT SAFETY INSTRUCTIONS
4

Use
~Do not use on people or animals.
~Do not use outdoors or on wet
surfaces. Only dry surfaces should be
vacuumed.
~Use only as described in this
manual. Use only Miele recommended
accessories.
~Do not alter or modify the vacuum
cleaner.
~This appliance is intended for
household use only.
~Do not allow the vacuum cleaner to
be used as a toy. Close attention is
necessary when used near children.
~Never use the vacuum cleaner
without the dustbag or filters in place.
Otherwise it could be damaged.
~If a dustbag is not inserted, the dust
compartment lid will not close. Do not
force it shut.
~Do not leave the vacuum plugged
in. Unplug it from the outlet when not in
use and before servicing.
~On the underside of the vacuum
handpiece is a metal insert designed to
absorb static electricity. Please make
certain that your hand remains around
this metal insert when vacuuming.
~Persons which lack physical,
sensory or mental abilities or
experience with the machine should not
use it without supervision or instruction
by a responsible person.
~Unwind the cord completely to aid
the vacuum cleaner in dissipating heat.
~This vacuum should not be used to
entrap or retain any hazardous
materials.
~Do not use the vacuum cleaner to
pick up liquids or damp dirt. This could
impair the electrical safety of the
vacuum cleaner. Wait for freshly
shampooed carpets to dry.
~Do not vacuum anything that is
burning or smoking such as cigarettes,
matches or hot ashes. The vacuum
cleaner could catch fire.
~Do not vacuum toner dust. Toner,
such as that used in printers and
photocopiers can conduct electricity.
~Do not use to pick up any flammable
or combustible liquids, such as
gasoline, or use in areas where they
may be present. The vacuum cleaner
could explode.
~Do not vacuum up items which are
heavy, hard or have sharp edges. They
could cause a blockage and damage
the appliance.
~Do not pull or carry by the cord, use
the cord as a handle, close a door on
the cord, or pull the cord around sharp
edges or corners. Do not run the
appliance over the cord. Keep the cord
away from heated surfaces.
IMPORTANT SAFETY INSTRUCTIONS
5

~Do not unplug by pulling on the
cord. To unplug, grasp the plug, not the
cord.
~Do not handle the plug or vacuum
with wet hands.
~Keep the power cord, hair, loose
clothing, fingers and all parts of the
body away from openings and moving
parts.
~Do not place anything into the
openings of the vacuum cleaner. Do
not use if any openings are blocked;
keep them free of dust, lint, hair, or
anything that may reduce air flow.
~This appliance is equipped with a
power cord reel. Hold plug when
rewinding onto cord reel. Do not allow
plug to whip when rewinding.
~Turn off all controls before
unplugging.
~Use extra care when cleaning on
stairs.
~Floor attachments, accessories and
wands must not be used at head level
to avoid injury to eyes and ears.
~Monitor the dustbag change
indicator and inspect all filters regularly.
For best performance, the dustbag
and filters should be replaced when
necessary. A full bag or blocked filter
will reduce the vacuum cleaner’s
suction power. A temperature limiter
automatically switches the vacuum
cleaner off if it gets too hot, see
"Frequently asked questions".
Using accessories
~The hose and the telescopic wand
contain electrical wires. Do not use the
vacuum cleaner if these parts are
damaged, cut or punctured. Avoid
picking up sharp objects. Danger of
electric shock!
~Unplug the vacuum when changing
accessories, especially the Hose,
Telescopic wand, Turbobrush and
Powerbrush.
~To avoid the risk of injury when
vacuuming with a Miele Power or
Turbobrush do not touch the rotating
roller brush. Danger of injury.
~The socket on the vacuum cleaner
(depending on model) must only be
used for the Miele Powerbrush
specified for use with this appliance.
~Danger of injury. The Miele
Powerbrush is a motor driven
accessory for use only with Miele
vacuum cleaners. The vacuum cleaner
must not be used with another
manufacturer’s powerbrush.
~Do not use the vacuum cleaner
without an accessory attached. The rim
could be damaged and injuries could
result from sharp edges.
~Miele dustbags are disposable and
intended to be used only once. Do not
attempt to reuse. An over stuffed
dustbag will reduce the efficiency of the
vacuum cleaner.
~Only use genuine Miele dustbags
with the Miele quality signet and
original Miele filters and accessories.
Only then will the manufacturer
guarantee its safety.
IMPORTANT SAFETY INSTRUCTIONS
6

Cleaning, maintenance and
repairs
~Turn the vacuum cleaner off after
each use and before every cleaning /
maintenance. Pull the plug from the
outlet.
~Never submerge the vacuum
cleaner in water. Clean only with a dry
cloth or slightly damp cloth when
disconnected from the mains supply. If
moisture gets into the appliance there
is a risk of electric shock.
~The electro-suction hose and the
telescopic wand contain electrical
wires. The plug connectors must not
come in contact with water. These
items may only be cleaned with a dry
cloth, no moisture can touch them.
Danger of electric shock.
~Repairs must only be performed by
an authorized service agent in
accordance with national and local
safety regulations. Unauthorized repairs
could cause injury or machine damage.
~If the power cord is damaged it
should be replaced along with a new
cable reel by Miele Technical Service.
Disposing of an old appliance
~Before discarding an old vacuum
cleaner, please cut off the power cord
and render the plug useless. Ensure
the appliance presents no danger to
children while being stored for
disposal.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7

Guide to the vacuum cleaner
8

1 Handpiece *
2 Air inlet valve *
3 Locking button
4 Telescopic wand *
5 Telescopic wand release button *
6 Electrobrush socket*
7 Dust compartment lid release
8 Dust compartment filter
(motor protection)
9 Dustbag
10 Floor brush*
11 Carrying handle
12 Park-system
13 Exhaust filter*
14 Power cord
15 Cord rewind switch
16 Suction power selector
17 Park-System
18 On / Off switch
19 Accessory compartment
20 Airflow indicator
21 Accessory compartment
lid release
22 Elbow *
23 Suction hose *
The illustration shows the maximum
number of features available in this
series of Miele vacuum cleaners.
Those features marked *depend on the
model and may vary or not be available
on your model.
Some models are supplied with a Miele
Electrobrush or Turbobrush as
standard (not illustrated). Separate
operating and maintenance instructions
are supplied with these brushes.
Guide to the vacuum cleaner
9

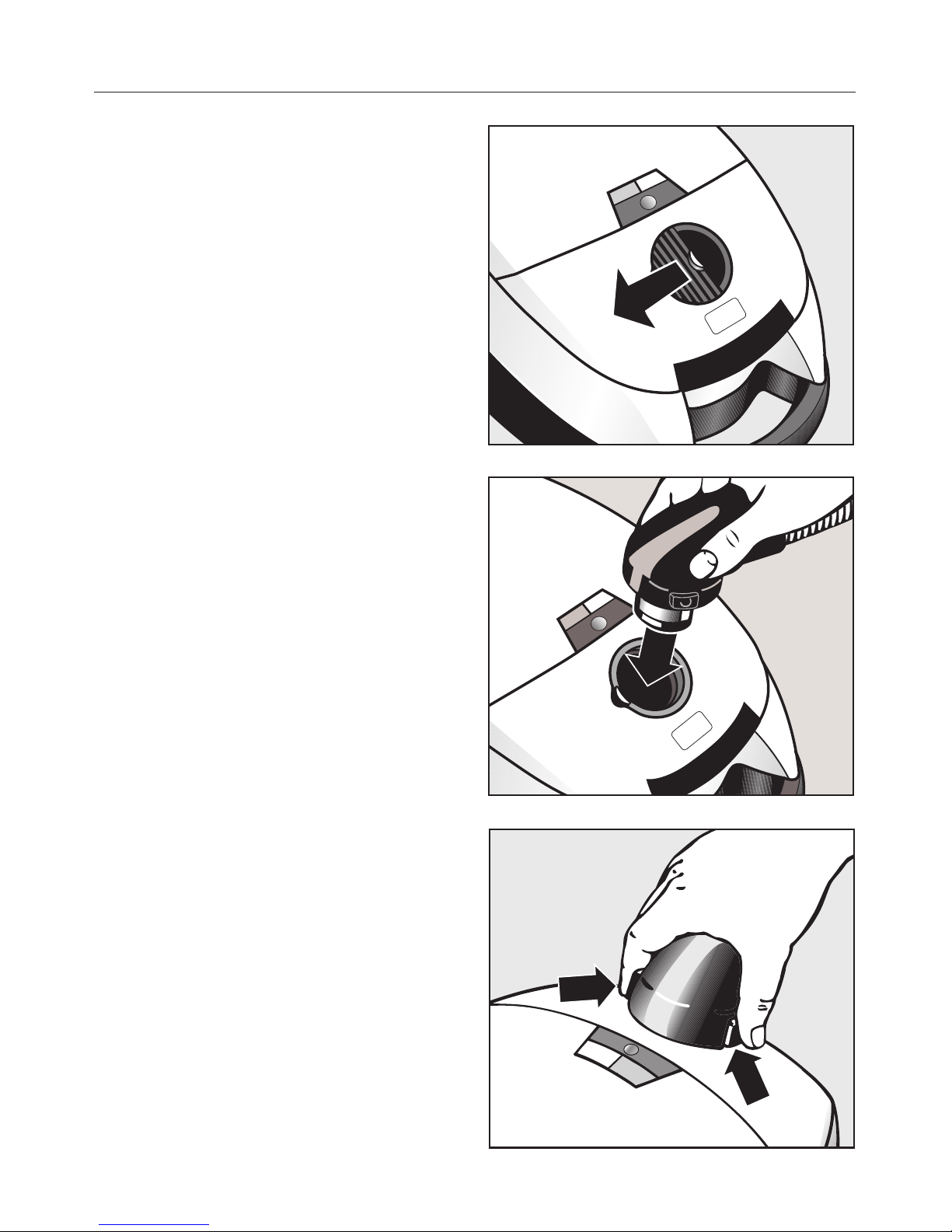

Attaching the suction hose
^Slide open the dust compartment
shutter.
The dust compartment shutter is
designed for hygienic handling and
prevents dust and odors from
escaping. If you remove the suction
hose from the vacuum cleaner for
storage purposes, close the dust
compartment shutter before storing.
^Insert the elbow into the suction
socket.
Removing the suction hose
^Press the release buttons on the
sides of the elbow and lift the hose
from the socket.
Before using for the first time
10

Connecting the suction hose
and the telescopic wand
^Using the inlet guides, fit the
handpiece of the suction hose firmly
into the wand until they lock with a
click.
^To release the handpiece from the
telescopic wand, press the locking
button (see arrow) and pull apart.
Adjusting the telescopic wand
One section of the telescopic wand is
located inside the other and can be
adjusted to your height for comfortable
vacuum cleaning.
^Press the telescopic wand release
button (see arrow) to release the
tubes and adjust to the required
height.
Before using for the first time
11

Attaching the standard floor
brush
(select models)
The floor brush is suitable for cleaning
carpets, rugs and hard surfaces. For
flooring susceptible to scratches, use
one of Miele’s specially designed floor
brushes (see "Optional accessories").
^Insert the telescopic wand into the
floor brush and turn in either direction
until it locks with a click.
^To release the floor brush from the
telescopic wand, press the locking
button (see arrow) and pull the wand
out of the floor brush.
Observe the cleaning instructions of
the floor manufacturer.
To clean carpets and area rugs:
^Press the foot switch marked ö.
This will retract the brush.
To clean hard flooring:
^Press the foot switch marked ä.
This will extend the brush.
Electrobrush / Turbobrush
Some models may be supplied with an
Electrobrush or a Turbobrush as a
standard accessory (see "Optional
accessories"). Please refer to the
separate operating instructions
supplied with these brushes for
instructions on use and maintenance.
Before using for the first time
12

Accessory tools for cleaning difficult to
reach areas are located in the
accessory compartment.
aCrevice nozzle
bDust brush
cUpholstery nozzle
dBlower connection socket (not
illustrated; see "Operation - Blower
connection socket")
Included accessories
13

Taking the accessories out
^Press the release button to open the
accessory compartment lid.
^Take out the accessory needed.
^Close the lid securely.
Included accessories
14

The accessory tools can either be fitted
to the handpiece or to the suction
wand.
Standard floor brush
(select models)
The floor brush can be used for normal
cleaning of carpets, rugs, stairs and
hard surfaces.
For safety when vacuuming stairs it
is best to start at the bottom of the
stairs and move upwards.
Floor brush - Parquet-3
(select models)
Special brush with natural bristles
intended for cleaning parquet and
laminate floors, especially those
susceptible to scratching.
The parquet floor brush can be cleaned
with the vacuum cleaner using the
crevice nozzle if necessary.
Using the included accessories
15

Crevice nozzle
For cleaning in folds, crevices and
corners.
Dusting brush
For cleaning moldings, ornate or
carved articles, etc.
The head of the dusting brush can be
turned to attain the best cleaning
position.
Upholstery nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers, etc.
Using the included accessories
16

Power cord
,Unwind the cable completely to
aid the vacuum in dissipating heat.
Unwinding
^Hold the plug and pull out the power
cord to its full length.
,To reduce the risk of electric
shock, the vacuum has a polarized
plug (one blade is wider than the
other). This plug will fit in a polarized
outlet only one way. If the plug does
not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a
qualified electrician. Do not alter the
plug in any way.
Danger of overheating and damage.
Rewinding
^Unplug the vacuum from the outlet.
^Press the rewind button. The power
cord will rewind automatically.
Operation
17

Turning the vacuum on and off
^Press the On/Off switch.
While vacuuming
The vacuum cleaner can also stand on
its end for vacuuming stairs, drapes
etc.
,To prevent static discharge your
hand must touch the metal inlay on
the underside of the vacuum
handpiece. Be certain to
continuously touch this inlay when
vacuuming fine dust, flour or
sawdust as these materials are more
likely to create static discharge. To
further prevent static discharge
while vacuuming, pull the vacuum
along by the hose with one hand
while continuing to hold the
handpiece in the other hand.
Operation
18

Adjusting the suction
The suction power can be adjusted
depending on the type of flooring. By
reducing the suction power the floor
brush can be pushed easier. The
symbols on the controls indicate the
type of use the settings are suitable for:
#curtains, lightweight fabrics
$upholstery, cushions
%thick pile carpets, rugs and
runners
*energy-saving daily use with low
noise lever
(low pile carpets
)hard flooring and intensive
cleaning of carpets
Rotary selector
^Turn the selector knob to the desired
suction power setting.
Opening the air inlet valve
The air inlet valve is designed to
provide a quick, convenient reduction
of suction power, e.g. when moving
from a carpet to an area rug.
^Open the air inlet valve far enough to
reduce the power.
Opening the air inlet valve reduced the
power to the tool being used.
Operation
19

Blower connection socket
The blower connection socket can be
used to connect the suction hose to the
blower outlet of the vacuum cleaner.
This is useful for dusting off radiators
and blowing dust out of inaccessible
corners so that it can be vacuumed up.
It can also be used to clean the suction
hose if it should ever become blocked.
^Ensure that the vacuum cleaner is
turned off.
^Press the release button for the dust
compartment lid and raise the lid so
that it clicks into place.
^Take out the exhaust filter or the filter
frame if present and replace with the
blower connection socket.
^Close the dust compartment lid.
^Open the accessory compartment
and insert the elbow of the suction
tube into the blower connection
socket.
^Turn the vacuum cleaner on.
Operation
20
