Miele S 7000 series User manual

Operating instructions
S 7000 series vacuum cleaners
To avoid the risk of accidents or damage
to the appliance, it is essential to read these
instructions before using it for the first time.
These operating instructions apply to the
standard S 7000 vacuum cleaners as well as
to other models which are distinguished
by names rather than numbers. M.-Nr. 09 753 050
en-GB
HS08

Caring for our environment .........................................3
Guide to the appliance .............................................4
Warning and Safety instructions .....................................7
Preparing for use .................................................11
Activating the exhaust filter change indicator ............................12
Using the cleaner .................................................14
Unwind the mains cable ............................................14
Switching on .....................................................14
Releasing the vacuum cleaner .......................................15
Switching on and off ...............................................15
Adjusting the suction power .........................................15
Vacuuming using the suction hose ....................................18
Vacuuming using the telescopic tube ..................................19
Using the Electrobrush ............................................20
Recommended use ................................................20
Switching the Electrobrush on and off..................................21
How to use the Electrobrush .........................................21
Using the accessories supplied .....................................22
Maintenance .....................................................23
Purchasing new dustbags and filters ..................................23
When to change the dustbag ........................................24
Replacing the dustbag .............................................25
When to change the dust compartment filter ............................26
How to change the dust compartment filter .............................26
When to change the exhaust filter .....................................27
Replacing the Air Clean filter .........................................28
Replacing an ActiveAirClean 30 filter or an HEPA AirClean 30 filter ............29
Replacing one type of exhaust filter with another .........................30
Maintenance indicator with reset button ................................31
Removing threads and hair from the Electrobrush ........................32
Cleaning and care ................................................34
Problem solving guide / After sales service ...........................35
Optional accessories..............................................36
Electrical connection for the UK ....................................38
Contents
2

Disposal of packing material
The packaging is designed to protect
the vacuum cleaner from damage
during transportation. The packaging
materials used are selected from
materials which are environmentally
friendly for disposal and should be
recycled. Recycling the packaging
reduces the use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposing of the dustbag and
filters
These are made from environmentally
friendly materials. The filters can be
disposed of with the normal household
waste. The dustbag can also be
disposed of in this way if it has been
used exclusively for general household
dust.
Disposing of your old
appliance
Before disposing of your old appliance
remove the dustbag and all the filters
and dispose of them with your normal
household waste.
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection/recycling
centre, or contact your dealer for
advice.
Ensure that it presents no danger to
children while being stored for
disposal.
Caring for our environment
3

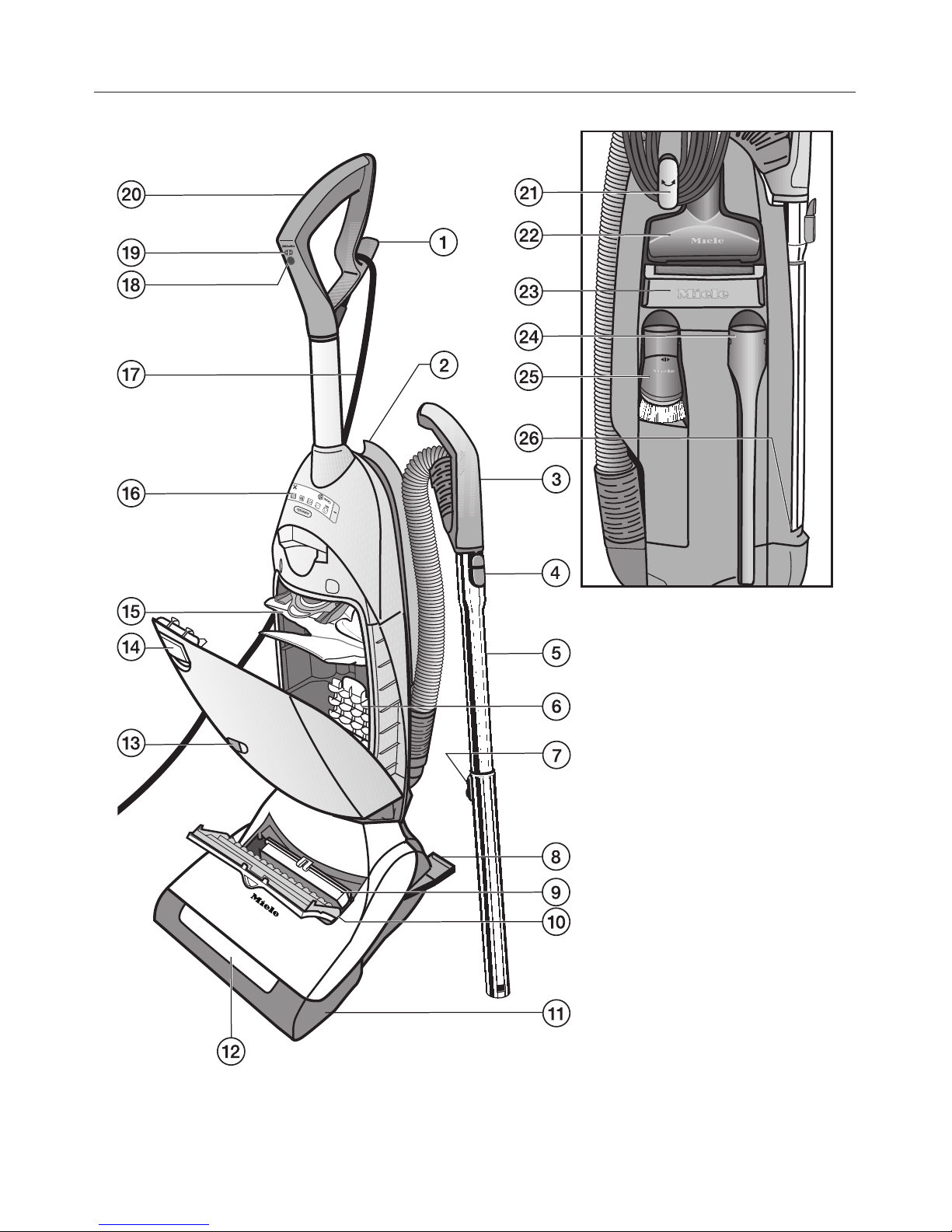

The illustration shows the maximum number of features available on these Miele
vacuum cleaners.
Guide to the appliance
4

aUpper cable hook for mains cable
bSuction hose holder
cSuction hose with handle
dRelease button
eTelescopic tube
fDust compartment filter (for motor protection)
gTelescopic tube release button
hVacuum cleaner foot release
iExhaust filter *
jExhaust filter compartment
kElectrobrush
lLight *
mDustbag change indicator
nDust compartment release button
oDustbag
pControl unit (see next page)
qMains cable
rButton to switch Electrobrush from carpet to hard flooring
sOn / Off button
tHandle
Those features marked *depend on the model, and may vary or not be available
on your model.
At the rear
uLower swivel hook for mains cable
vUpholstery nozzle
wCarrying handle
xCrevice nozzle
yDusting brush with natural bristles
zTelescopic tube holder
Guide to the appliance
5

Depending on model, your vacuum
cleaner will be fitted as standard with
one of the following control units:
Vacuum cleaners with a rotary
selector dial
aVacuum cleaner in-operation
indicator light
bElectrobrush in-operation indicator
light
cRotary suction power selector
Vacuum cleaners with + / - buttons
aAutomatic button
bSuction power selector buttons
(+/-buttons)
cThermal cut-out indicator light
dElectrobrush indicator light
eMaintenance indicator (Reset button)
fElectrobrush in-operation indicator
light
Guide to the appliance
6

This vacuum cleaner complies with statutory safety requirements.
Improper use can, however, lead to personal injury and damage
to property.
To avoid the risk of accidents and damage to the vacuum
cleaner, please read these instructions carefully before using it
for the first time. They contain important information on its safety,
operation and maintenance.
Keep these instructions in a safe place and ensure new users are
familiar with the content. Pass them on to any future owner.
Correct application
~This vacuum cleaner is not designed for commercial use. It is
intended for use in domestic households and similar working and
residential environments.
~The vacuum cleaner is not intended for outdoor use.
~The vacuum cleaner must only be used for domestic household
purposes to vacuum dry floor surfaces. It must not be used on
people or animals.
Any other use, modification or alteration is not supported by the
manufacturer and could be dangerous.
~This appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
Warning and Safety instructions
7

~Children 8 years and older may only use the vacuum cleaner
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the appliance
unsupervised.
~Please supervise children in the vicinity of the vacuum cleaner
and do not let them play with it.
Technical safety
~Ensure that the connection data on the data plate (voltage and
frequency) match the mains electricity supply exactly.
~The plug must be fitted with a 13 A fuse (UK).
~Before using the vacuum cleaner, check for any visible signs of
damage. Do not use a damaged appliance.
~While the vacuum cleaner is under guarantee, repairs should only
be undertaken by a Miele authorised service technician. Otherwise
the guarantee will be invalidated.
~Repairs should only be carried out by a Miele authorised service
technician. Repairs and other work by unqualified persons can
cause considerable danger to users.
~Do not pull or carry the appliance by the cable, and be careful
not to damage the cable when withdrawing the plug from the socket.
Keep the cable away from sharp edges and do not let it be
squashed, for example, under a door.
Avoid running the vacuum cleaner over the cable. This could
damage the cable, plug or socket. The vacuum cleaner must not be
used if any of these have sustained damage. A damaged cable,
plug or socket is a safety hazard.
Warning and Safety instructions
8

~Do not use the vacuum cleaner if the cable is damaged. If the
cable is damaged the complete cable unit must be replaced. For
safety reasons this work must be done by the Miele Service
Department or a Miele authorised service technician.
~Always disconnect the vacuum cleaner from the mains supply
when you have finished using it, before changing over accessories,
as well as for maintenance work and cleaning. Switch the vacuum
cleaner off at the wall socket and unplug it.
~Do not let the vacuum cleaner get wet. Clean only with a dry cloth
or slightly damp cloth when disconnected from the mains supply.
Correct use
~Never touch the roller brush while it is rotating.
~Do not use the Electrobrush at head level.
~Do not use the suction hose or telescopic tube at head level to
avoid the risk of injury, e.g. to eyes and ears.
~To avoid the risk of damage, do not use the vacuum cleaner
without the dustbag, dust compartment filter and exhaust filter in
place.
~If the dustbag is not fitted correctly, the dust compartment cover
does not normally close. Do not force it.
~Do not vacuum up any water, liquid or damp dirt. Wait until any
freshly cleaned or shampooed carpets or floor coverings are
completely dry before attempting to vacuum.
~Do not vacuum toner dust. Toner, such as that used in printers
and photocopiers, can conduct electricity.
~Do not vacuum up any inflammable or combustible matter or
gases and do not vacuum in areas where such substances are
stored.
Warning and Safety instructions
9

~Do not vacuum up anything which has been burning or is still
glowing e.g. cigarettes, ashes or coal, whether glowing or
apparently extinguished.
Accessories
~It is not advisable to vacuum directly with the handle, i.e. without
an accessory attached, as the rim could get damaged and you
could hurt yourself on sharp edges.
~Only use genuine dustbags, filters, accessories and optional
accessories with the "Original Miele" logo on them. This will ensure
optimum performance of the appliance throughout its life.
Miele cannot be held liable for damage caused by incorrect use
or operation or by non-compliance with these Warning and Safety
instructions.
Warning and Safety instructions
10

Assembling the cleaner
^Raise the vacuum cleaner into the
vertical position.
^Insert the handle into the vacuum
cleaner until it clicks into position.
Preparing for use
11

Activating the exhaust filter
change indicator
Depending on model, your vacuum
cleaner will be fitted as standard with
one of the following exhaust filters:
aAir Clean
bActiveAirClean 30 (black)
cHEPA AirClean 30 (white)
If your vacuum cleaner is fitted with
filter bor c, the exhaust filter change
indicator needs to be activated.
^Open the lid of the exhaust filter
compartment and pull the exhaust
filter a little way out of the holder.
^Remove the label, then put the
exhaust filter back in again.
Preparing for use
12

^Press the exhaust filter change
indicator ~.
^After approx. 10 - 15 seconds a thin
red stripe will appear in the left hand
side of the display.
^Close the exhaust filter compartment
lid.
The exhaust filter change indicator
The exhaust filter change indicator
shows the remaining functional life of
the exhaust filter.
After approx. 50 operating hours, or
approx. one year of average use, the
strip will be completely red.
Preparing for use
13

Unwind the mains cable
The lower cable hook can be turned in
either direction.
^Turn it upwards to release the cable.
Winding up the mains cable
When the cleaner is not in use, the
cable can be wound around the two
cable hooks.
Secure the mains cable by clamping
the plug to the cable (see detail).
Switching on
^Whilst vacuuming the mains cable
can be fed through the guide at the
side of the upper cable hook (see
detail).
This way the mains cable will not get in
the way during vacuuming. This also
protects the cable from becoming
kinked.
Using the cleaner
14

Releasing the vacuum cleaner
^Step on the foot switch and tilt the
cleaner to a comfortable position for
vacuuming.
Switching on and off
Important: please observe the
flooring manufacturer's cleaning and
care instructions.
^Press the On / Off button on the
handle.
The vacuum cleaner will switch on.
Vacuum cleaners with a rotary
selector dial
The vacuum cleaner in-operation
indicator light in the control unit will light
up yellow.
Vacuum cleaners with + / - buttons
The vacuum cleaner suction power
settings in the control unit will light up
yellow.
For good visibility of the working area
the light on the floorhead will come on.
Adjusting the suction power
The suction power can be regulated to
suit the type of flooring being cleaned.
The controls vary from model to model.
The different options are described on
the following pages.
Rotary selector
^Turn the suction power selector
manually to the setting you require.
Using the cleaner
15
C
u
r
t
a
i
n
s
D
e
e
p
P
i
l
e
L
o
w
P
i
l
e
S
m
o
o
t
h

-/+ buttons
Some models also have symbols on the
control unit which indicate the type of
use the settings are suitable for:
a- curtains, lightweight fabrics
b- upholstery, cushions
c- carpets, rugs and runners
(- for daily energy-saving
vacuuming. This setting is also
very quiet.
e- lightly soiled rugs and fitted
carpets
f- heavily soiled hard flooring, and
for intensive cleaning of carpets
^Press the +button to select a higher
suction power level.
^Press the -button to select a lower
suction power level.
The setting selected will light up yellow.
Using the cleaner
16

Automatic suction power regulation
(on vacuum cleaners with +/-buttons)
The suction power automatically
adjusts itself to suit the type of flooring
or carpet being vacuumed.
^Press the Automatic button.
The button lights up yellow.
To stop using the automatic setting
simply press the Automatic button again.
Warning: Do not use the Automatic
setting to vacuum lightweight
materials or curtains. These could be
sucked in and possibly damaged.
Tip
Obstacles and variations in floor height,
for instance when vacuuming over
thresholds and the edges of rugs, are
easy to cope with.
^Briefly press the footswitch and lift
the front of the floorhead over the
obstacle.
Using the cleaner
17

Vacuuming using the suction
hose
Warning: Do not use the suction
hose at head level to avoid the risk
of injury, e.g. to eyes and ears.
Warning: It is not advisable to
vacuum directly with the suction
hose, i.e. without an accessory
attached, as the handle end of the
hose could get damaged and you
could hurt yourself on sharp edges.
Warning: To prevent the risk of injury
when vacuuming the stairs ensure
the cleaner is placed in a stable
position at the bottom of the stairs,
or on one of the lower steps.
^Raise the vacuum cleaner into the
vertical position.
^To access the suction tube handle
press the release button on the
telescopic tube.
^To increase stability turn the elbow
joint at the bottom of the hose
downwards as illustrated until it clicks
into position above the retainer.
During normal vacuuming with the
cleaner the suction tube handle
should be stowed away on the
telescopic tube. Make sure the
handle is also correctly hooked into
its holder on the cleaner (see detail
in the top illustration).
Using the cleaner
18

Vacuuming using the
telescopic tube
Warning: Do not use the telescopic
tube at head level to avoid the risk
of injury, e.g. to eyes and ears.
Warning: To prevent the risk of injury
when vacuuming the stairs ensure
the cleaner is placed in a stable
position at the bottom of the stairs,
or on one of the lower steps.
^Raise the vacuum cleaner into the
vertical position.
^Lift the handle out of its holder to
access the telescopic tube.
^To increase stability turn the elbow
joint at the bottom of the hose
downwards as illustrated until it clicks
into position above the retainer.
One part of the telescopic tube is
packed inside the other, and it can be
adjusted to suit your height for
comfortable vacuuming.
^Press the telescopic tube release
button (see arrow), and adjust it to
the required height.
For normal vacuum cleaning the
telescopic tubes must be pushed
back together. Make sure the handle
is also correctly hooked into its holder
on the cleaner (see detail in the top
illustration).
Using the cleaner
19

Recommended use
Important: please observe the
flooring manufacturer's cleaning and
care instructions.
The Electrobrush is particularly suitable
for intensive vacuuming of carpets
which are subject to hard wear. It is
very effective at removing deep seated
dirt and preventing areas of frequent
use being trodden into a path.
Warning: Please note that the
Electrobrush should not be used for
vacuuming deep-pile rugs and
carpets or valuable hand-knotted
rugs and carpets, e.g. Persian and
oriental rugs etc. There is a danger
of the threads being pulled out. If in
doubt, contact the carpet
manufacturer/retailer.
Warning: Do not use the
Electrobrush to clean highly variable
or uneven floors. The brush might
come into contact with the floor and
cause damage.
Using the Electrobrush
20
