Miele DA 219 User manual

Operating instructions
for Cooker Hoods
DA 206, DA 209,
DA 216, DA 216 EXT,
DA 217, DA 217 EXT,
DA 219, DA 219 EXT
It is essential to read these
operating instructions before Q@ä
installing or using the machine
to avoid the risk of accident
or damage to the machine. M.-Nr. 04 805 301

Contents
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Descripton of the functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Guide to the appliance
DA 206, DA 209 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DA 216, DA 217, DA 219, DA 216 EXT, DA 217 EXT, DA 219 EXT . . . . . . . . . . . . 11
Operation
Switching on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the lighting on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Run-on option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Reading the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Altering the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and Care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Active charcoal filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing a light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Electrical connection and Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Contents

Installation
Retaining plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Vapour guide/canopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Motor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Extraction connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Recirculation connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Extension piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fitting the tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Connection to an external fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contents
3

Caring for the environment
Disposal of packing material
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old machine /
appliance
Old machines / appliances contain ma-
terials which can be reclaimed or re-
cycled. Please contact your dealer,
your waste collection centre or scrap
merchant about potential recycling
schemes.
Ensure that the machine / appliance
presents no danger to children while
being stored for disposal.
See the appropriate section in the
Warning and Safety instructions.
Caring for the environment
4

Warning and Safety instructions
This appliance meets statutory
safety requirements. Inappropriate
use could however lead to risk of ac-
cidents to the user and damage to
the appliance.
Read the operating instructions be-
fore using this machine for the first
time. They contain important infor-
mation about the safety, use and
maintenance of the machine. This
will avoid the risk of accidents and
damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Appropriate use of the cooker
hood
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held re-
sponsible for any damage caused by
improper use or by non-observance of
these instructions.
Technical safety
Before connecting the cooker
hood to the mains supply make
sure that the voltage and frequency de-
tails given on the data plate corre-
spond with the on-site electricity sup-
ply. If in doubt consult a qualified
electrician.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system. (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety.
Repairs and other work by unqualified
persons could be dangerous.
Warning and Safety instructions
5

The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket
and the plug removed, (do not pull on
the cable, only on the plug)
– the mains fuse is withdrawn;
– or the screw-out fuse is removed, (in
countries where this is applicable). En-
sure current is not restored to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance.(e.g.
danger of overheating)
Use of the appliance
The appliance is not intended for
use by young children or infirm per-
sons without supervision.
Young children should be supervised
to ensure that they do not play with the
appliance.
Never use an open flame beneath
the cooker hood - to avoid the
danger of fire do not flambé or grill
dishes. When switched on the cooker
hood could draw flames into the filter.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood with-
out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the ap-
pliance and hindering its smooth oper-
ation.
Warning and Safety instructions
6

The filters should be regularly
cleaned, or changed, as appropri-
ate.
Saturated filters are a fire hazard.
Some washing-up liquids or dish-
washer detergents may cause the
metal filter to discolour. This discolour-
ation will in no way affect the function
or fitness for use.
Under no circumstances use a
steam cleaner to clean this ap-
pliance.
Pressurised steam could give rise to a
short circuit, or cause permanent dam-
age to the surface and to components,
for which the manufacturer of the
cooker hood cannot accept any respon-
sibility.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surround-
ings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guarantee.
Installation
The distance between the top of
the hob and the bottom of the
cooker hood (when the vapour guide is
completely retracted) must measure at
least:
–45 cm above electric hobs
–65 cm above gas hobs.
(Australia: 60 cm for electric and gas
hobs)
Only for U.K.: The distance of
65 cm between the cooker hood
and a gas hob is a minimum, which is
only permissible if the nominal heat
ratings given in the table below are not
exceeded:
Gas cooker maximum
nominal rating
one burner 2.7 kW
all burners 7.5 kW
oven 3.5 kW
Gas hob maximum
nominal rating
one burner 3.5 kW
all burners 10.3 kW
Gas hob with ceramic cover plate
The data given for maximum nominal (heat)
ratings do not aply to a gas hob with a ceramic
cover plate. In this case it is essential to refer to
the hob manufacturer’s data.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable ma-
terial. These can be obtained from the
Miele Spare Parts department or from
builders’merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, take
professional advice.
Warning and Safety instructions
7

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other techical measures, such as en-
suring that the extractor can only be
switched on when the heating ap-
pliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into ac-
count.
If in any doubt, the advice of a compe-
tent builder or, for gas, a “Corgi”instal-
ler must be sought.
If the cooker hood is operated in recir-
culation mode (with active charcoal fil-
ter) then this is not a factor.
only for appliances with external fans
For appliances with an external fan
motor fitted (EXT models) the con-
nection of the two units must be made
using the connection cable and the
plug connectors. Make sure the correct
combination of the two appliances has
been selected.
Disposal of an old machine /
appliance
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the ap-
pliance to prevent misuse.
The manufacturer cannot be held re-
sponsible for any damage caused
by non-observance of these instruc-
tions.
Warning and Safety instructions
8

Descripton of the functions
The cooker hood works with
. . . Air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
The cooker hood is fitted with a non-re-
turn flap.
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown di-
rectly outside.
. . . Recirculation:
The air is drawn in and cleaned first by
the grease filters. In addition it is then
cleaned by the active charcoal filter.
The cleaned air is then recirculated
back into the kitchen through a vent in
the top of the cooker hood.
Before using the cooker hood for
the first time, ensure that the active
charcoal filter is in place, see sec-
tion on "Cleaning and care".
. . . an external fan
The ...EXT models of cooker hoods are
designed to be connected with an ex-
ternal fan.
The external fan is connected to the
cooker hood by means of a control
cable and is operated by the control
panel on the cooker hood.
Descripton of the functions
9

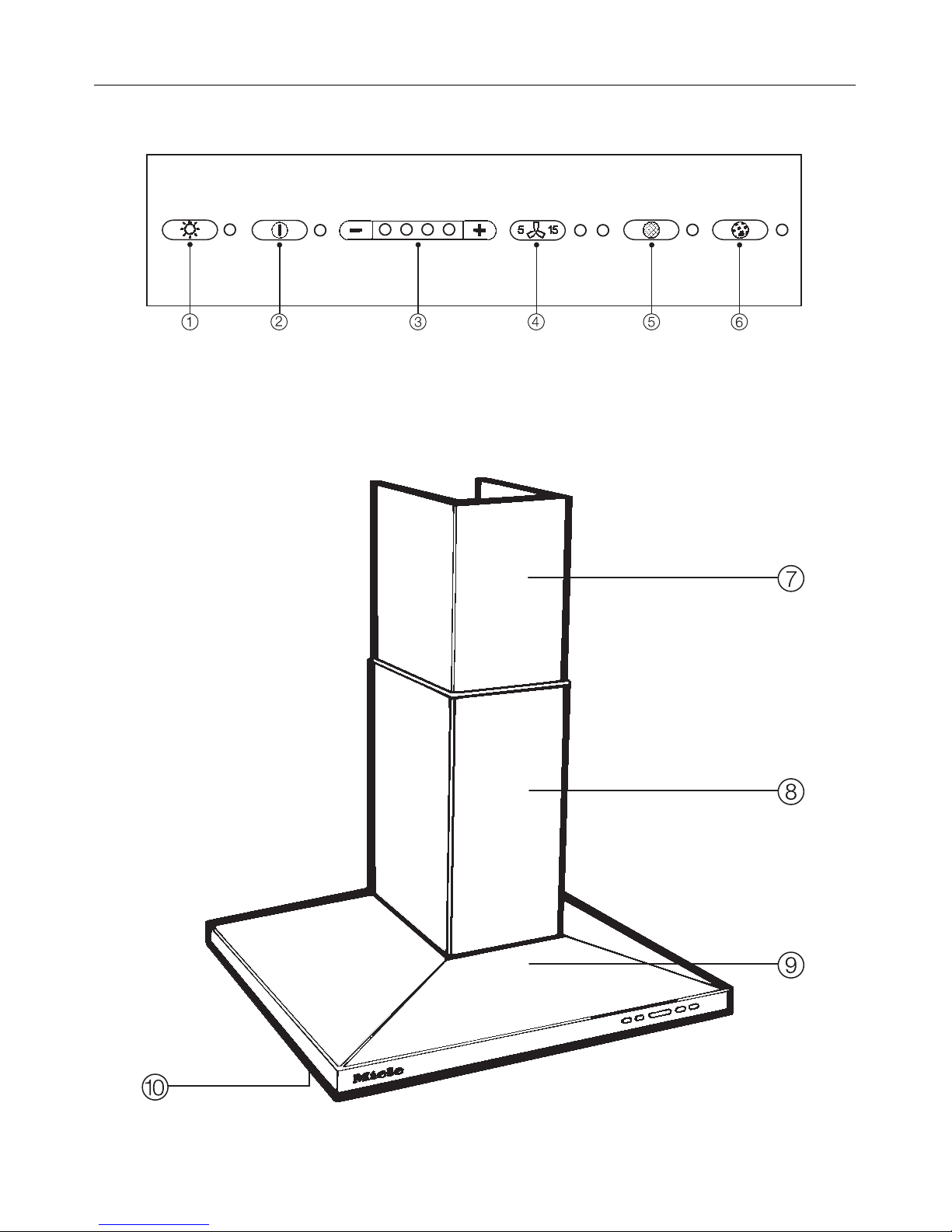

Guide to the appliance
DA 206, DA 209
bTouch control for the hob lighting
cOn/Off touch control
dTouch control- power level
hExtension piece
iTower
eTouch control for the run-on option
fTouch control for the grease filter
gTouch control- active charcoal filter
jVapour guide
kMain switch
Guide to the appliance
10

DA 216, DA 217, DA 219,
DA 216 EXT, DA 217 EXT,
DA 219 EXT
bTouch control for the hob lighting
cOn/Off touch control
dTouch control - power level
hExtension piece
iTower
eTouch control for the run-on option
fTouch control for the grease filter
gTouch control - active charcoal filter
jVapour guide
kMain switch
Guide to the appliance
11

Operation
To select the functions, press the
touch controls gently with your finger.
Switching on
Set the main switch to "I".
Press the On/Off touch control.
The relevant indicator lamp glows.
Switching the lighting on and
off
The hob lighting can be switched on
and off independently of the fan.
Press the touch control for the hob
lighting.
When it is switched on the lighting indi-
cator lamp glows.
Selecting the power level
Depending on how much the air needs
to be filtered, there are four power le-
vels available. For normal cooking a
low to medium level is usually enough.
For frying or cooking food with a strong
aroma the highest level is recom-
mended.
The cooker hood is set to run on a me-
dium level when it is switched on using
the On/Off touch control.
However, when the main switch is used
or after an interruption to the power
supply, the cooker hood will operate on
the power level last selected.
Use the _touch control to select
the power level required.
$control = lower setting
>control = higher setting
The indicator lamps show which power
level has been chosen.
Operation
12

Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
It will then switch off the fan motor auto-
matically after a further 5 or 15 minutes.
Press the run-on option touch control.
Press once = 5 minutes run-on time
Press twice = 15 minutes run-on time
The relevant indicator lamp glows to
confirm the time selected.
To switch the run-on option off, press
the run-on option touch control again.
Switching off
Use the On/Off touch control to
switch the fan off.
Only use the main switch if the cooker
hood is not going to be used for a
longer period of time (e.g. overnight,
holidays).
Safety switch-off feature
Should the cooker hood have been left
switched on, the fan will switch off auto-
matically after 10 hours. The lighting re-
mains on.
Pressing the On/Off touch control will
switch the fan back on again.
Operation
13

Filter operating hours counter
An indicator lamp shows when the
grease filter needs to be changed. The
operating hours counter for the grease
filters is set at the factory for a certain
number of hours but these can be
changed.
The operating hours counter for the ac-
tive charcoal filter is set at "unlimited",
as this is only relevant if using your
cooker hood in recirculation mode with
an active charcoal filter fitted. If you are
choosing to use recirculation mode the
hours counter for the active charcoal fil-
ter must be set for a specific time.
At the end of the set period the indica-
tor lamp for the grease filter touch con-
trol or the lamp for the active charcoal
filter touch control glows. The grease fil-
ter must then be cleaned. The active
charcoal filter needs to be replaced.
The filter operating hours counter must
then be re-set for the same period as
before.
Press the grease filter touch control
or the charcoal filter touch control for
about 4 seconds.
The indicator lamp will go out.
Reading the filter operating
hours counter
Before reaching the end of the period
set, you can check the percentage of
the time set which has already been
used up.
Use the On/Off touch control to
switch the fan on.
Press the grease filter touch control
or the active charcoal filter touch
control.
One or several of the indicator lamps
for the _touch control will glow.
The number of flashing lamps show the
percentage of the operating time set
which has already been used up:
1 lamp = less than 25 %
2 lamps = less than 50 %
3 lamps = less than 75 %
4 lamps = less than 100 %
The operating hours completed remain
in memory, even when the machine is
switched off or there is a power cut.
Operation
14

Altering the filter operating
hours counter
You can match the maximum time for
the operating hours counter to the type
of cooking you do.
Select a short time if you roast or fry a
lot.
Grease filters
The operating hours counter for the
grease filters is set at 30 hours. This
time can be lengthened or shortened.
You can choose from 20, 30, 40 or 50
hours.
Use the On/Off touch control to
switch the fan off.
Press the run-on option touch control
and the grease filter touch control at
the same time.
The indicator lamps for the grease filter
touch control and the _touch con-
trol will flash.
Use the _to select the required
time.
The _touch control indicator lamps
show the time which has been set:
1st lamp from left = 20 hours
2nd lamp from left = 30 hours
3rd lamp from left = 40 hours
4th lamp from left = 50 hours
Confirm the procedure by pressing
the grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming
the steps, the cooker hood will auto-
matically revert to the "old" data.
Active charcoal filter
The active charcoal filter is used when
the cooker hood is operated in recircu-
lation mode. It is not required for the air
extraction mode.
The cooker hood is set at the factory
for extraction mode, on delivery the
operating hours counter for the active
charcoal filter is set to "unlimited".
Resetting the charcoal filter operating
hours counter is only necessary if the
cooker hood is to be used in recircula-
tion mode:
Use the On/Off touch control to
switch the fan off.
Press the run-on option touch control
and the charcoal filter touch control
at the same time.
The control lamps for the charcoal filter
touch control and the _touch con-
trol will flash.
Use the _to select the required
time.
The _touch control indicator lamps
show the time which has been set:
1st lamp from left = 120 hours
2nd lamp from left = 180 hours
3rd lamp from left = 240 hours
4th lamp from left = unlimited
(only for air extraction mode)
Confirm the procedure by pressing
the grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming
the steps, the cooker hood will auto-
matically revert to the "old" data.
Operation
15

Cleaning and Care
Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply
by
–switching it off at the wall socket
and removing the plug (do not pull
on the cable, only on the plug), or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed, (in
countries where this is applicable).
Housing
The cooker hood housing may be
cleaned using hot water to which a little
mild detergent has been added. Dry
with a soft cloth.
Never use a cleaner which scours
or contains chlorine, acids or soda.
These would damage the surface of
the cooker hood.
A mild, non-abrasive proprietary stain-
less steel cleaner is suitable.
Grease filters
Re-usable metal grease filters are fitted
which remove solid particles (oil, dust,
etc.) from the kitchen vapours, prevent-
ing soiling of the cooker hood.
The grease filters should be cleaned
regularly, but always clean immediately
the grease filter touch control lamp
comes on.
An over-greasy filter is a fire hazard.
Some washing-up liquids or dish-
washer detergents may cause the
metal filter to discolour. This discol-
ouration will in no way affect the
function or fitness for use.

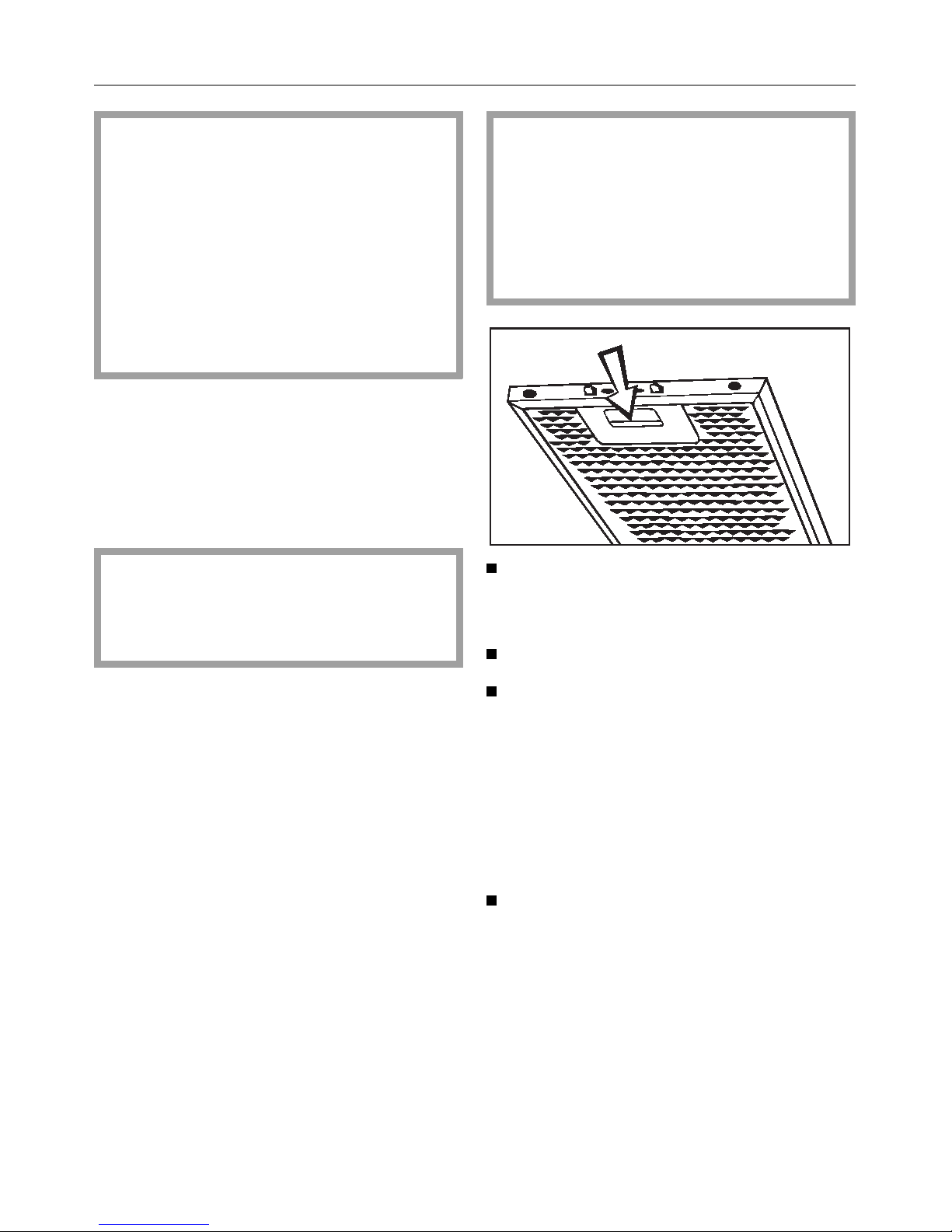

To remove a grease filter press the
hand hold catch towards the middle
of the filter.
Remove the filter.
Clean the filters
–by hand: with a scrubbing brush in
hot water with detergent.
–in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray
arm is not obstructed.
After cleaning leave the filters to dry
for a while on an absorbent surface
before putting them back in place.
Cleaning and Care
16

When removing the filters for clean-
ing also clean off any residues of oil
or fat from the now accessible hous-
ing to prevent the risk of these catch-
ing fire.
When putting the grease filters back
ensure that the handhold catches
face towards the hob.
Should the grease filters be put back
upside down,insert a small screw-
driver into the slits to disengage
them. Do not let them drop on to the
hob below.
Active charcoal filter
If the cooker hood is connected for re-
circulation, an active charcoal filter
must be inserted in addition to the
grease filters. Charcoal filters absorb
normal kitchen odours.
Remove the grease filters.
Insert the active charcoal filter so
that the catch faces towards the hob.
Always change the active charcoal fil-
ter when the indicator lamp for the
charcoal filter touch control comes on.
Otherwise the cooker hood will cease
to absorb the kitchen odours suffi-
ciently. Replace the filter at least every
3-4 months.
Cleaning and Care
17

Changing a light bulb
Disconnect the cooker hood from
the mains supply by
–switching it off at the wall socket
and removing the plug (do not pull
on the cable, only on the plug), or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed, (in
countries where this is applicable).
Unscrew the fixing screw on the
glass holder by turning to the right or
left.
When doing this, push the glass
cover upwards so that it does not fall
on the hob surface.
Take off the glass holder.
Then take out the glass cover, guid-
ing it downwards at an angle.
Carefully swivel the light tubes down-
wards and pull out to the front.
Change the light tubes and push
back upwards into place.
Put the glass cover back in place
and secure with the glass holder.
Cleaning and Care
18

After sales service In the event of any faults which you can-
not easily remedy, please contact:
–Your Miele Dealer
or
–Your nearest Miele Service Dept,
(see address on the back page).
When contacting the Service Depart-
ment, please quote the Model and Ser-
ial number of your machine / appliance,
both of which are given on the data
plate which is visible on removing the
grease filter(s).
After sales service
19

Electrical connection and Technical data
Electrical connection
General notes
All electrical work should only be under-
taken by a suitably competent person
in strict accordance with national and
local safety regulations.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
The Technical data table (next page)
gives details for each appliance.
The data plate gives the necessary
data for connection. This is visible
when the grease filter has been
removed.
Only for U.K.: Connection should be
made either by a fused connection
unit, or a fused plug and switched
socket. The On-Off switch should be
easily accessible after the appliance
has been built in.
Electrical connection U.K., AUS, NZ
The cooker hood is supplied for con-
nection to an a.c. single phase 230 -
240 V, 50 Hz supply.
Important
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.
If the appliance is to be connected via
a plug and socket, please note the fol-
lowing:
As the colours of the wires in the mains
lead of this appliance may not corre-
spond with the coloured markings ident-
ifying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured green and
yellow must be connected to the termi-
nal in the plug which is marked with the
letter E or by the earth symbol zor col-
oured green or green and yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
For U.K.: The wire which is coloured
brown must be connected to the termi-
nal which is marked with the letter L or
coloured red.
For Australia / New Zealand: The wire
which is coloured brown must be con-
nected to the terminal which is marked
with the letter A or coloured red.
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Electrical connection and Technical data
20
