Miele DA 430-4 Assembly instructions

Operating and installation instructions
Cooker hood
DA 430-4
DA 430-4 EXT
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 06 748 870
en - GB, AU, NZ

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Brief description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

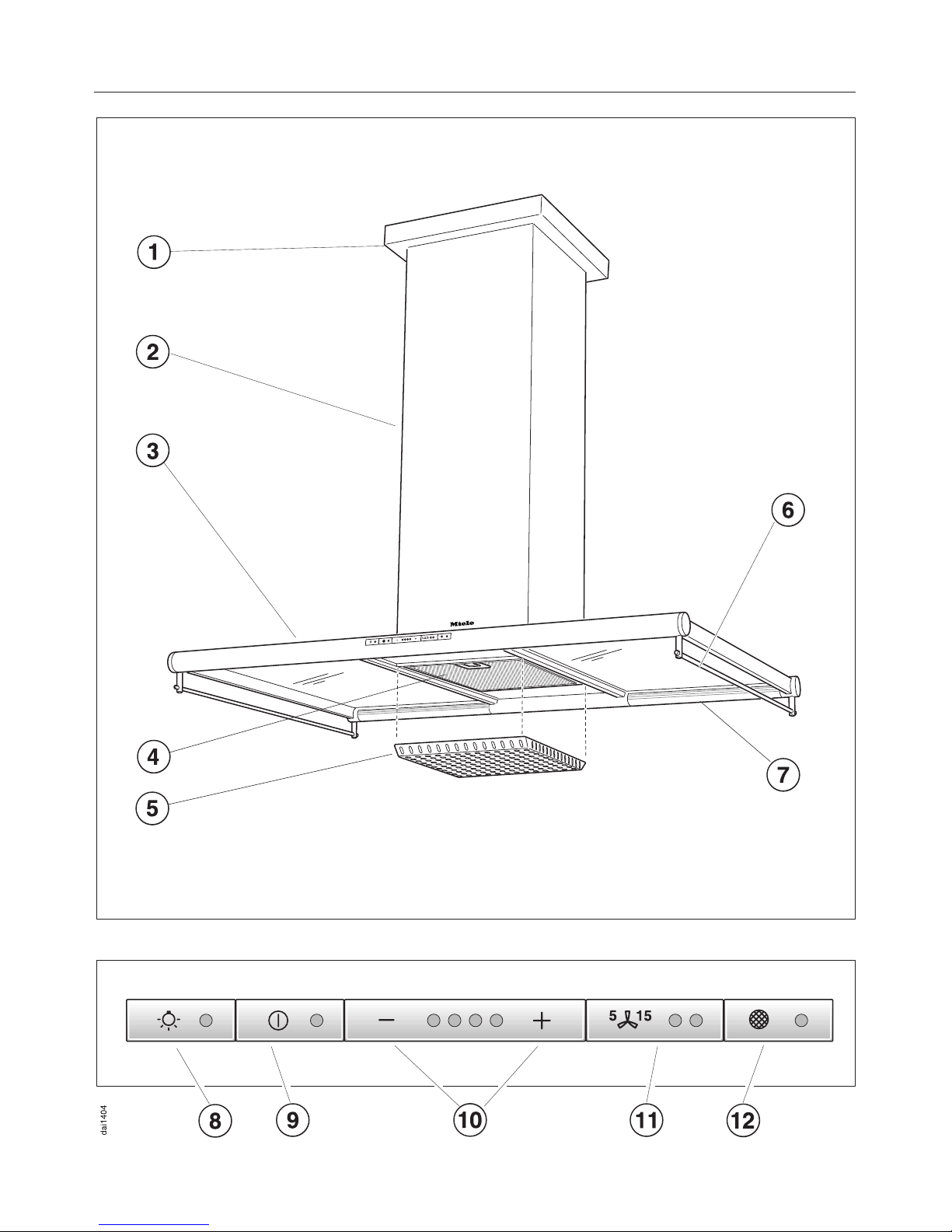

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Miele|home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Con|ctivity ......................................................14
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
To switch the fan on................................................15
To select a power level .............................................15
Run-on option ....................................................16
To switch the fan off................................................16
To switch the hob lighting on.........................................17
To switch the hob lighting off.........................................17
Filter operating hours counter ........................................18
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Housing .........................................................20
General notes ..................................................20
Important for appliances with stainless steel housing ...................20
Dismantling the decor inserts ......................................21
Installing the decor inserts ........................................21
Glass surfaces .................................................22
Outer filter and grease filter ..........................................22
Changing the lamp ................................................25
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Safety distance between hob and cooker hood........................27
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation instructions .............................................28
Assembly parts ...................................................28
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Condensate trap ..................................................30
Silencer .........................................................30
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Contents
2

Operation with DSM 400 control module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connection to a window contact switch ..............................32
Potential free connection .........................................32
Connection to a light switch .......................................33
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contents
3

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
Caring for the environment
4

This appliance complies with all
relevant legal safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is intended for
domestic use only.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been given instruction concerning its
use by a person responsible for their
safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the cooker
hood only when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
Warning and Safety instructions
5

~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the isolator, or
– the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or it
is switched off at the wall wocket and
the plug withdrawn, or
–the fuse to the fused spur connection
is withdrawn.
Warning and Safety instructions
6

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.
Using at the same time as other
heating appliances that depend on
the air from the room

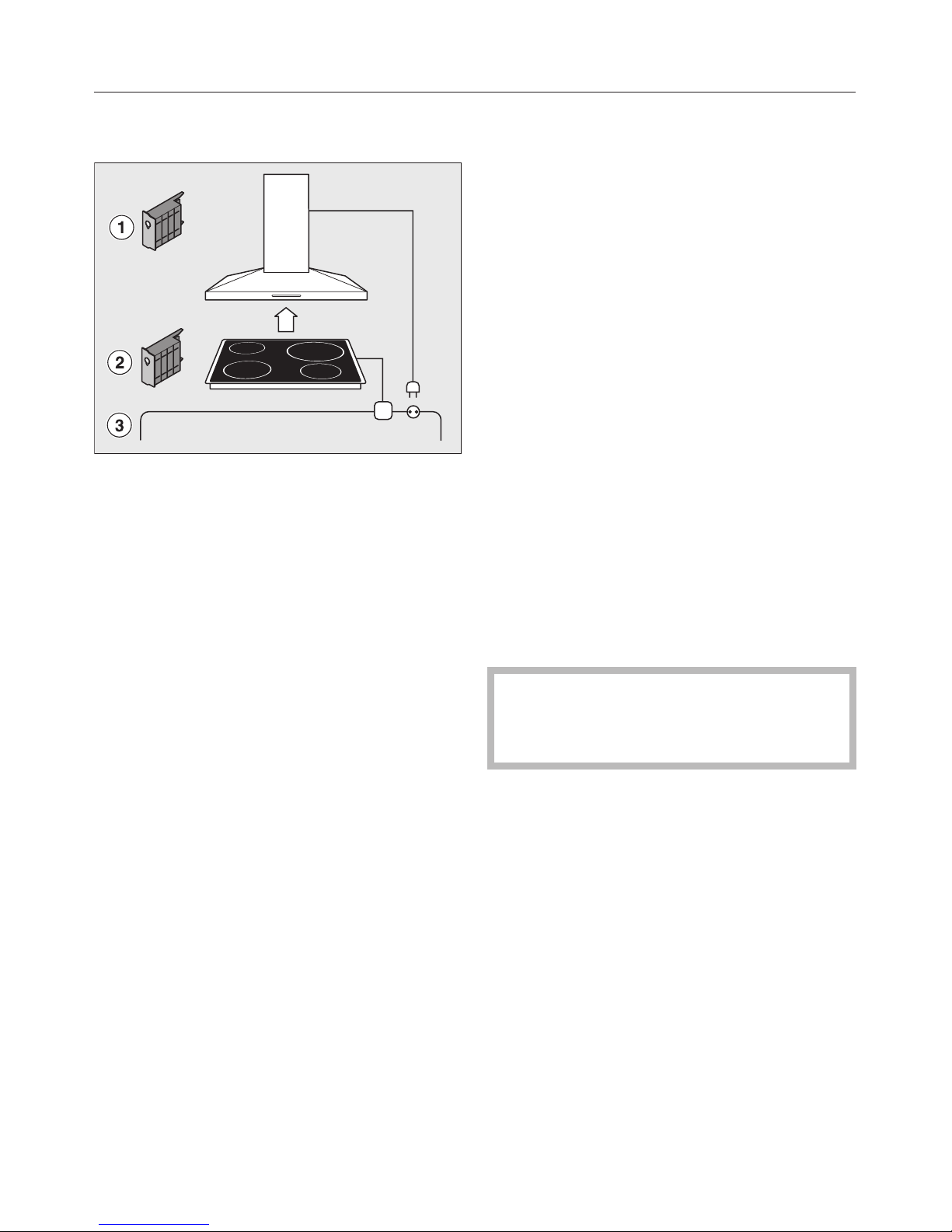

Warning - danger of toxic fumes
~Great care should be taken when
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
7

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure of
0.04 mbar (4 pa) is the maximum
permissible in the room.
Ventilation can be maintained by air
inlets which must not be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter (Corgi registered
in the UK) must be sought.
One of the following technical
measures may be necessary to ensure
safe operation.
–If the only way of ensuring adequate
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders' merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The Miele DSM 400 control module
offers the possibility of combining other
components with the cooker hood (see
"Operation with Control module DSM
400").
It is available to purchase as an
optional extra.
If in any doubt, the advice of a
qualified builder, gas fitter (Corgi
registered in the UK) or electrician
must be sought.
Warning and Safety instructions
8

Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one cooking appliance is
fitted beneath the cooker hood, and
they have different minimum safety
distances to the cooker hood, select
the greater distance.
Warning and Safety instructions
9

~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
stainless steel outer filter and the
grease filter, and then directed outside.
The cooker hood is fitted with a
non-return flap, which is closed when
the cooker hood is switched off. No
exchange of room air and outside air
can take place. When the cooker hood
is switched on, the non-return flap
opens for the cooking smells to be
blown directly outside.
...anexternal fan:
( ...EXT models only)
The EXT models are designed to be
connected to an external fan located
outside the room.
The external fan is connected to the
cooker hood by means of a control
cable, and is operated by the controls
on the cooker hood.
Brief description
11

Guide to the appliance
12

aCover plate
bTower
cCanopy
with decor inserts available as optional
extras.
Maximum load bearing capacity is 8 kg
when used as shelf. Each individual
decor insert can take a maximum load
of 4 kg.
dGrease filter
eOuter filter
fSide rails
each with maximum carrying capacity
of3kg
gHob lighting
hOn/Off touch control for hob
lighting
iOn/Off touch control for the fan
jTouch controls to select the fan
power level
kTouch control for the run-on
option
The fan can be set to continue running,
and to switch off automatically after
either 5 or 15 minutes.
lTouch control for the grease filter
The indicator lamp for the grease filter
touch control lights up when the grease
filter and the outer filter need to be
cleaned.
The touch control is used to reset the
operating hours counter every time the
grease filter and the outer filter are
cleaned (see "Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Guide to the appliance
13

Con|ctivity
This cooker hood is communication
enabled.
Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the cooker
hood to be automatically controlled by
the operating status of a Miele electric
hob with onset controls.
For communication to take place, the
hob must be fitted with communication
module XKM 2000 KM b.
The hob transmits information about its
operating status to the cooker hood via
the household power supply
(Powerline) c.
–When the hob is switched on the
cooker hood lights and the fan also
comes on.
–During cooking the cooker hood
automatically sets its power level
according to the number of cooking
zones in operation and their power
levels.
–After switching the hob off the fan
and the lighting on the cooker hood
will switch off automatically after a
period of time.
For detailed information about this
function please read the separate
instruction booklet supplied with the
XKM 2000 DA communication module.
The communication module is fitted to
the cooker hood in the area of the
motor and is connected to the controls
of the cooker hood.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
Miele|home
14
+
+
dai2385

To switch the fan on
^Press the On/Off control.
The fan will come on at power level "II".
The indicator lamp will come on.
If the cooker hood has been
connected to a window contact
switch via the Miele DSM 400 control
module, then the fan cannot be
switched on if the window is shut.
The indicator lamp will flash.
To select a power level
^Use the –/+controls to select the
power level required.
+control = higher setting
–control = lower setting
Depending on the intensity of cooking
vapours, levels "I" to "III" (green
indicator lamps) are usually sufficient
for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting, level IV (yellow
indicator lamp) for a short period.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off.
^Press the run-on option control for
approximately 10 seconds. The first
fan setting indicator will light up.
^Then press in turn,
– the hob lighting control,
–the –control, and
–the hob lighting control again.
Operation
15

The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^Press the +control to activate auto-
matic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –control to deactivate the
automatic switch-off function.
^Press the run-on option control to
confirm your selection.
If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the original
setting.
Run-on option
It is advisable to leave the fan running
for a few minutes after cooking has
finished to neutralise any lingering
odours in the air.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
^After cooking has finished, press the
run-on option control whilst the fan is
still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
To deactivate the run-on option, press
the run-on option control again. The
appliance will then not switch off
automatically.
To switch the fan off
^Press the On/Off control to switch the
fan off.
The indicator lamp will go out.
Operation
16

To switch the hob lighting on
The hob lighting can be switched on
and off independently of the fan.
^Press the lighting touch control to
switch on the hob lighting.
The indicator lamp will come on.
To switch the hob lighting off
^Press the hob lighting control to
switch the lighting off.
The indicator lamp will go out.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will
switch the fan back on again.
Operation
17

Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counter tells you
when the grease filter and the outer
filter need to be cleaned.
Resetting the filter operating hours
counter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), the grease filter indicator
lamp will light up. The grease filter and
the outer filter must then be cleaned.
Afterwards, the filter operating hours
counter must be reset.
^To do this, press and hold the grease
filter control for approximately
3 seconds while the fan is switched
on.
The indicator lamp for the control will
go out.
Reading the filter operating hours
counter
To check the percentage of time set
already used:
^Press the On/Off control to switch the
fan on.
^Press and hold the grease filter
control.
One or more of the indicator lamps for
the –/+controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
18

Altering the filter operating hours
counter
The operating hours counter for the
grease filter is set at the factory for 30
hours. The time set can be lengthened
or shortened to suit the type of cooking
you do. You can choose 20, 30, 40 or
50 hours.
–Select a short time if you roast or fry
a lot.
– If you use very little fat for cooking,
select a longer time.
– If you only cook occasionally we
recommend that you still select a
short time, because grease which
has built up gradually over a long
period of time will harden on the
grease filters and make cleaning
more difficult.
^Press the On/Off control to switch the
fan off.
^Press the run-on option control and
the grease filter control at the same
time.
The indicator lamp for the grease filter
control and one of the –/+indicator
lamps will flash.
The –/+indicator lamps show the time
which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+controls to select the
desired time.
^Confirm the selection by pressing the
grease filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the original
setting.
Operation
19

Before any cleaning or maintenance
work is carried out, disconnect the
cooker hood from the mains supply.
Ensure that:
– it is switched off at the isolator,
or
– the fuse is withdrawn from the
fused spur connection unit,
or
– the mains fuse is disconnected,
or
– the screw-out fuse is removed
(in countries where this is
applicable).
A range of Miele branded cleaning and
conditioning agents are available to
order through your Miele Dealer /
Chartered Agent, the Miele Spare Parts
Department, or via the internet on
www.miele-shop.com.
Housing
General notes
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using a Miele E-Cloth, or
with warm water and a small amount
of washing-up liquid applied with a
well wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Please observe the instructions below
for cleaning stainless steel, aluminium
and glass surfaces and the controls.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
using the Miele E-Cloth, or with a
proprietary non-abrasive cleaning
agent designed specifically for use on
stainless steel.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
These will damage the surface
material.
To help prevent re-soiling, a condition-
ing agent for stainless steel can also be
used.
Follow the manufacturer's instructions
on the packaging.
Cleaning and care
20
