Miele DA 230-2 Specification sheet

Operating and installation instructions
Cooker hoods
DA 230-2, DA 230-2 EXT
It is essential to read these
operating instructions before
installing or using the machine
to avoid the risk of accidents
or damage to the machine.
Gi
05 814 920
M.-Nr.

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DA 230-2, DA 230-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Brief description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

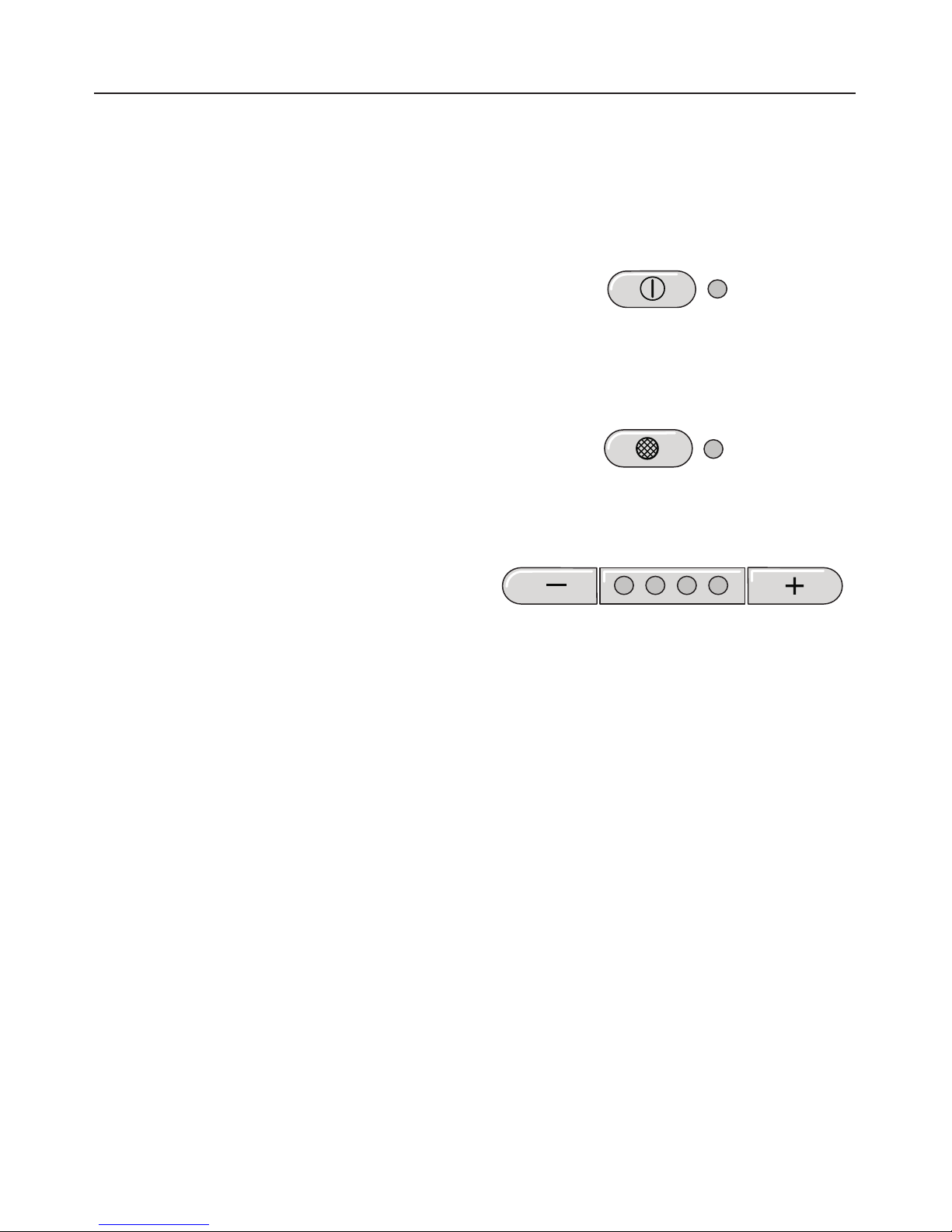

Operation
Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To switch the fan on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Run-on option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To switch the fan off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the lighting on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To dim the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To switch the lighting off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reading the filter operating hours counter. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Altering the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Changing a halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Condensate trap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Disposal of the pac ing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed safely and kept
out of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these materi-
als away, please ensure that they are
recycled.
Disposal of your old appliance
Old appliances may contain materials
which can be reclaimed or recycled.
Please contact your dealer, your local
waste collection centre or scrap mer-
chant about potential recycling
schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and safety instructions.
Caring for the environment
3

This appliance conforms to current
safety requirements. Incorrect use
can however lead to personal injury
and damage to the appliance.
Before installation and before using
for the fist time, read the operating
instructions carefully. They contain
important information on safety, in-
stallation, use and maintenance of
the appliance. This way you will
avoid the risk of accidents and dam-
age to the appliance.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct usage
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held liable
for damage caused by improper or in-
correct use of the appliance.
Technical safety
Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency details given
on the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in doubt.
The electrical safety of this appli-
ance can only be guaranteed when
continuity is complete between the ap-
pliance and an effective earthing sys-
tem which complies with local and na-
tional regulations. It is most important
that this basic safety requirement is
tested by a qualified electrician. The
manufacturer cannot be held liable for
the consequences of an inadequate
earthing system (e.g. electric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety. Repairs and other work by
unqualified persons could be danger-
ous and the manufacturer will not be
held liable.
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk assess-
ment of the installation being carried
out by a suitably qualified engineer.
Warning and Safety instructions
4

The appliance is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug removed (do not pull on
the cable, only on the plug), or
–the fuse from the fused spur connec-
tion unit is withdrawn, or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed in
countries where this is applicable.
Ensure power is not supplied to the
appliance while maintenance or re-
pair work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use
Do not let small children play with
the appliance or its controls or op-
erate it. Supervise its use by the elderly
or infirm.
Never use an open flame beneath
the cooker hood. To avoid the dan-
ger of fire, do not flambé or grill under
the cooker hood. When switched on,
the cooker hood could draw flames into
the filter. Fat particles drawn into the
cooker hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan,
otherwise flames could be drawn up by
the suction of the cooker hood, parts of
which could then be damaged.
Always switch the cooker hood on
when using the hob, otherwise
condensation may collect in the hood,
which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood without
the grease filters in place. This way
you will avoid the risk of grease and dirt
getting into the appliance and hinder-
ing its smooth operation.
The filters should be regularly
cleaned, or changed, as appropri-
ate.
Saturated filters are a fire hazard (see
"Cleaning and care").
Under no circumstances use a
steam-cleaning appliance to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
In countries where there are areas
which may be subject to infestation
by cockroaches and other vermin, pay
particular attention to keeping the appli-
ance and its surroundings in a clean
condition at all times. Any damage
which may be caused by cockroaches
or other vermin will not be covered by
the appliance guarantee.
Warning and Safety instructions
5

Installation
The minimum safety distance be-
tween the top of the cooker / hob
and the bottom of the cooker hood
should be at least:
–550 mm above electric hobs and
cookers,
–650 mm above gas hobs and cookers,
–650 mm above an open grill from our
range
For non-Miele cooking appliances
maintain the safety distance as recom-
mended by the manufacturer in their In-
stallation and Operating instructions. If
more than one appliance is fitted be-
neath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the greater dis-
tance.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from build-
ers’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
Warning and Safety instructions
6

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room (e.g. gas, oil or coal fired heaters,
continuous flow or other water heaters,
gas cooker, gas hob or gas oven), spe-
cial care must be taken as the action of
the cooker hood extracts air from the
room, which these type of heaters need
for combustion.
They could also draw exhaust air back
in from chimneys or ducting in contra-
vention of fire safety regulations.
In order to ensure safe operation, and
to prevent gases given off by the heat-
ing appliances from being drawn back
into the room when the extractor and
the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating appli-
ance is switched off or vice-versa.
N.B: The overall ventilation condition of
the dwelling must be taken into ac-
count. If in any doubt, the advice of a
competent builder or, for gas, a "Corgi"
installer must be sought.
Appliances with external fans
For appliances with an external fan
motor fitted (EXT models) the con-
nection of the two units must be made
using the connection cable and the
plug connectors.
Make sure the correct combination of
the two appliances has been selected.
Separate instructions are supplied with
the external fan.
Disposal of your old appliance
Before throwing an old appliance
away it must first be made unus-
able. Ensure that disconnection from
the mains supply is carried out by a
competent person and that the cable is
also removed from the appliance to
prevent misuse.
The manufacturer cannot be held lia-
ble for damage caused by non-com-
pliance with these Warning and
Safety instructions.
Warning and Safety instructions
7

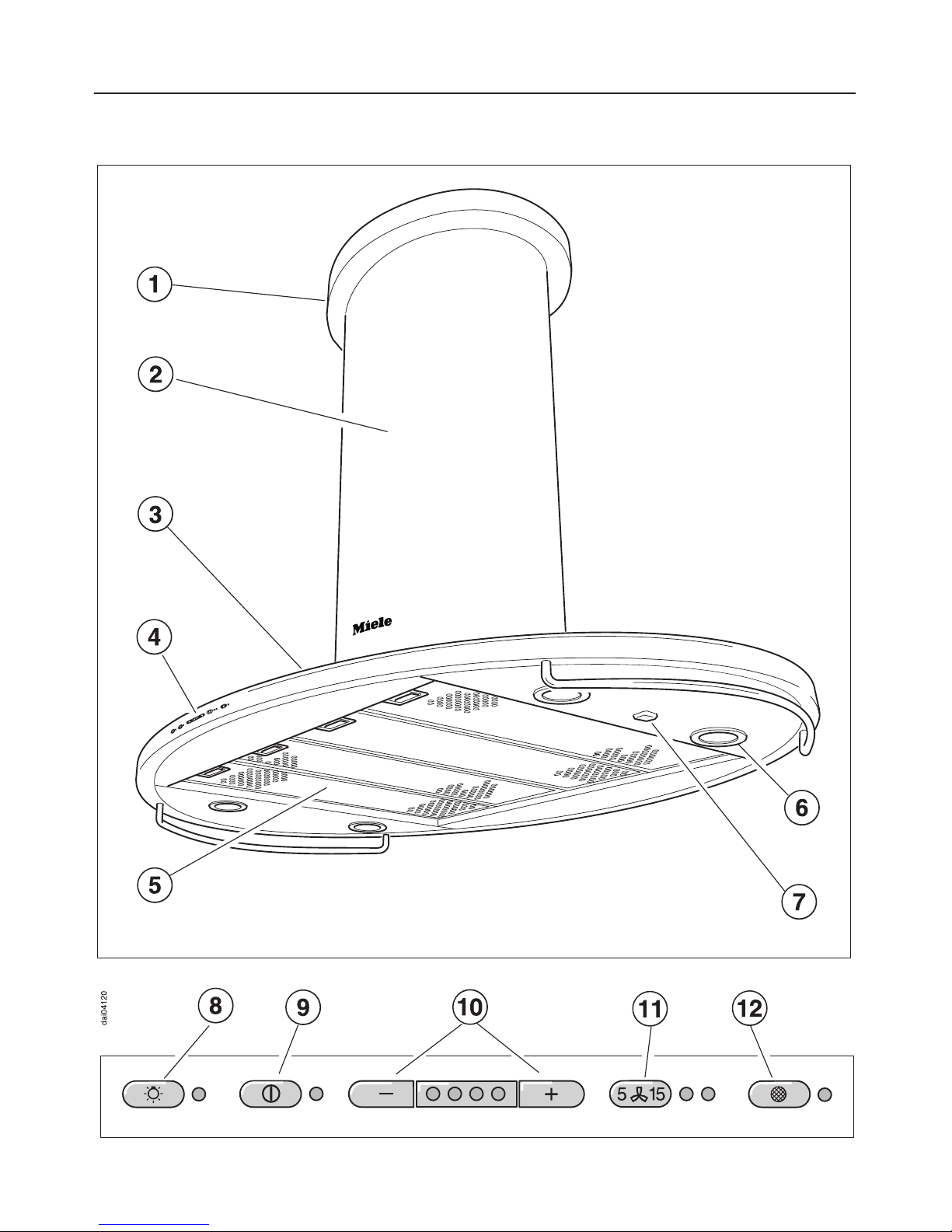

DA 230-2, DA 230-2 EXT
Description of the appliance
8

aCover plate
bTower
cCanopy
dControl panel
eGrease filters
fHob illumination
gMain switch
hTouch control for the
hob lighting
This control can be used to switch the
lighting on and off and is also a dimmer
switch.
iOn/Off touch control
for the fan
jControls to set the
fan power level
kTouch control for the
run-on option
This control activates the run-on option.
The fan is switched off automatically af-
ter either 5 or 15 minutes.
lTouch control for the
grease filters
The indicator lamp for the grease filter
touch control lights up when the grease
filters need to be cleaned.
The touch control is used:
–to reset the operating hours counter
after cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filter
has been in use (see section on "Op-
eration / Filter operating hours coun-
ter").
–to alter the number of hours counted
by the filter operating hours counter
(see section "Operation / Altering the
filter operating hours counter").
Description of the appliance
9

The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
The cooker hood is fitted with a non-re-
turn flap. This flap is closed when the
cooker hood is switched off. No ex-
change of room air and outside air can
take place. When the cooker hood is
switched on, the non-return flap opens
for the cooking vapours to be blown di-
rectly outside.
. . . an external fan:
The EXT models are designed to be
connected to an external fan located
outside the room.
The external fan is connected to the
cooker hood by means of a control ca-
ble and is operated by the controls on
the cooker hood.
Brief description
10

Main switch
Switch the main switch to "I". The fan
and the lighting can now be operated.
If the appliance is not going to be used
for a longer period of time (e.g. whilst
on holiday) switch the appliance off by
turning the main switch to "0".
The next time it is switched on the
cooker hood will operate at the level
previously used.
To switch the fan on
^Press the On/Off touch control.
The fan runs at power level "lI".
The indicator lamp for the touch control
lights up.
Selecting the power level
^Use the –/+controls to select the
power level required.
Touch control += higher setting
Touch control –= lower setting
Depending on the intensity of cooking
vapours, levels "I" to "III" (green indica-
tor lamps) are usually sufficient for nor-
mal cooking.
Intensive setting
When frying or cooking food with a
strong aroma you may wish to select
the Intensive setting (yellow indicator
lamp) for a short period.
Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
The fan is switched off automatically af-
ter either 5 or 15 minutes.
^Press the run-on option touch control
whilst the fan is still running.
Press once =The fan switches off
after 5 minutes.
(left hand indicator lamp)
Press twice = The fan switches off
after 15 minutes.
(right hand indicator lamp)
To switch the run-on option off, press
the run-on option touch control again.
Operation
11

To switch the fan off
^Use the On/Off touch control to
switch the fan off.
The indicator lamp for the control goes
out.
Switching the lighting on
The hob lighting can be switched on
and off independently of the fan.
^Briefly press the lighting touch con-
trol to switch on the hob illumination.
The indicator lamp for the touch control
lights up.
The lighting will come on at maximum
brightness.
To dim the lighting
The brightness of the lighting can be
dimmed.
^With the lighting switched on press
and hold the hob illumination control
in.
The brightness will gradually dim until
you release the control.
^Press the control in again to increase
the brightness to the level required
and then release it.
If you keep the control pressed in the
brightness will continually go brighter
and then dimmer.
To switch the lighting off
^Briefly press the hob illumination
control to switch the lighting off.
The indicator lamp for the control goes
out.
Safety cut-out
Should the cooker hood have been left
switched on, the fan will switch off auto-
matically after 10 hours. The lighting re-
mains on.
^Pressing the On/Off touch control will
switch the fan back on again.
Operation
12

Filter operating hours counter
The number of hours the appliance has
been in operation for is stored in mem-
ory.
The indicator lamp for the grease filter
control will light up after 30 hours of op-
eration. The grease filters must then be
cleaned.
After the grease filters have
beencleaned and put in place, the filter
operating hours counter must be re-set.
^To do this, press the grease filter
touch control for about 3 seconds.
The indicator lamp will go out.
Reading the filter operating hours
counter
To check the percentage of time set al-
ready used:
^Use the On/Off touch control to
switch the fan on.
^Press the grease filter touch control.
One or several of the indicator lamps
for the –/+touch controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The operating hours completed remain
in memory, even when the machine is
switched off or there is a power cut.
Operation
13

Altering the filter operating hours
counter
The operating hours counter for the
grease filters is set to 30 hours. This
time can be lengthened or shortened.
You can choose from 20, 30, 40 or 50
hours.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If, however, you only cook occasion-
ally we recommend that you select a
short time because grease which has
built up gradually over a long period
of time will harden on the grease fil-
ters and make cleaning more diffi-
cult.
^Use the On/Off touch control to
switch the fan off.
^Press the run-on option touch control
and the grease filter touch control at
the same time.
The indicator lamp for the grease filter
touch control and one of the –/+touch
control lamps will flash.
The –/+touch control lamps show the
time which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+touch controls to select
the desired time.
^Confirm the selection by pressing the
grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming the
steps, the cooker hood will automati-
cally revert to the "old" data.
Operation
14

Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply.
Ensure that:
– it is switched off at the fused spur
connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed, (in
countries where this is applicable).
Housing
Warning: The surfaces and controls
are susceptible to scratches and
abrasion. Please observe the follow-
ing cleaning instructions:
^All external surfaces and controls can
be cleaned using warm water with a
little washing up liquid applied with a
soft sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Avoid:
–cleaning agents containing soda, ac-
ids or chlorides,
–abrasive cleaning agents, e.g. pow-
der cleaners or cream cleaners,
–abrasive sponges, e.g. pot scourers
or sponges which have been previ-
ously used with abrasive cleaning
agents.
These will damage the surface material.
Stainless steel
Stainless steel surfaces can be cleaned
using a proprietary non-abrasive clean-
ing agent designed specifically for use
on stainless steel.
To help prevent re-soiling, proprietary
conditioning agents for stainless steel
can also be used.
Apply sparingly with an even pressure.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part Number 98013530, which is suit-
able for cleaning surfaces such as
stainless steel, glass, plastic and
chrome.
Stainless steel coloured controls
These controls may suffer discolour-
ation or damage if soiling is left on
them for too long.
Remove any soiling straight away.
Do not use stainless steel cleaning
agents on these types of controls.
Cleaning and care
15

Grease filters
Re-usable metal filters are fitted which
remove solid particles (oil, dust, etc.)
from the kitchen vapours, preventing
soiling of the cooker hood.
The filters should be cleaned regularly
(at least every 3-4 weeks) to avoid a
build-up of fat, but always clean imme-
diately the grease filter touch control
lamp comes on.
An over saturated filter is a fire
hazard.
^To take out the grease filters press
the locking clips in towards the mid-
dle of the filter. Holding carefully,
lower and remove the filter.
^Clean the filters
–by hand: with a scrubbing brush in
warm water with a little washing up
liquid.
–in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray arm
is not obstructed.
Depending on the cleaning agent
used, cleaning the grease filters in a
dishwasher can cause permanent
discolouration to the surface of the
filters.
However, this will not affect the func-
tioning of the grease filters in any way.
^After cleaning, leave the filters to dry
on an absorbent surface before putt-
ing them back in place.
^When removing the filters for clean-
ing also clean off any residues of oil
or fat from the now accessible hous-
ing to prevent the risk of these catch-
ing fire.
Cleaning and care
16

When replacing the grease filters make
sure the locking clips are visible facing
down towards the hob.
Should the grease filters be put back
upside down:
insert a small screwdriver into the slits
to disengage them. Do not let them
drop on to the hob below.
^After replacing the grease filters,
press the grease filter touch control
for approx. 3 seconds to re-set the
operating hours counter.
The indicator lamp will go out.
^If the grease filters are cleaned be-
fore the operating hours counter has
reached its maximum, the grease fil-
ter touch control should be pressed
for approx. 6 seconds to reset the
counter to zero.
Cleaning and care
17

Changing a halogen lamp
Disconnect the cooker hood from
the mains supply. Ensure that:
- it is switched off at the fused spur
connection unit, or
- the mains fuse is withdrawn, or
- the screw-out fuse is removed (in
countries where this is applicable).
Exercise caution when changing
halogen lamps. They get very hot
during use and remain hot for some
time after being switched off.
Do not touch the surface directly
when changing a lamp as grease
particles from your fingers will ad-
here to the surface and damage it.
Please follow manufacturer's instruc-
tions.
^To change the halogen lamp first re-
move the outer ring a.
^Then detach the circlip btaking care
that the glass cdoes not fall out.
^The halogen lamp dis fitted to a
push-in connection socket. To re-
place, pull out the old lamp and fit a
new one.
^Replace the cover cand press the
circlip bcarefully into the holder.
^Now replace the outer ring a.
Never use the lighting without the
lamp cover cin place as it has a fil-
ter designed to cut out harmful rays.
Cleaning and care
18

In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee please contact:
–Your Miele Dealer
or
–The Miele Service Department (see
back cover for address).
When contacting the Service Depart-
ment, please quote the model and se-
rial number of your appliance. These
are shown on the data plate which is
visible when the grease filters are re-
moved.
Please note that telephone calls may
be monitored and recorded to im-
prove our service.
After sales service
19

aDrill holes for fixing to the ceiling with ø 8 mm screws
bAlternative positions for feeding through the mains cable supply
cCut-out for feeding connection cable through to an external fan, min. 65 x 30 mm
dExhaust connection ø 150 mm
Appliance dimensions
20
