Miele DA 439 Specification sheet

Operating and installation instructions
Cooker hood
DA 439
DA 439 EXT
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 285 920
en-gb

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

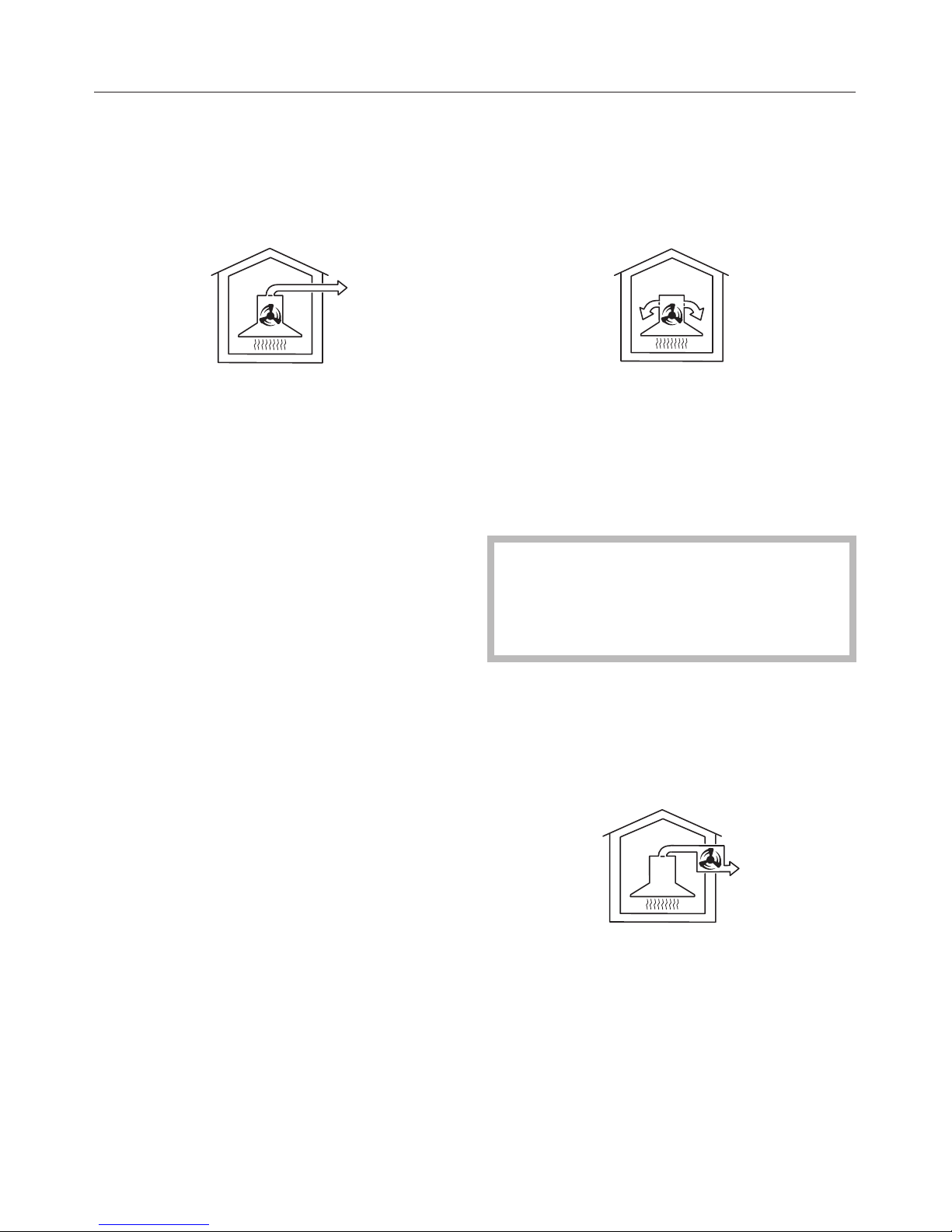

Modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

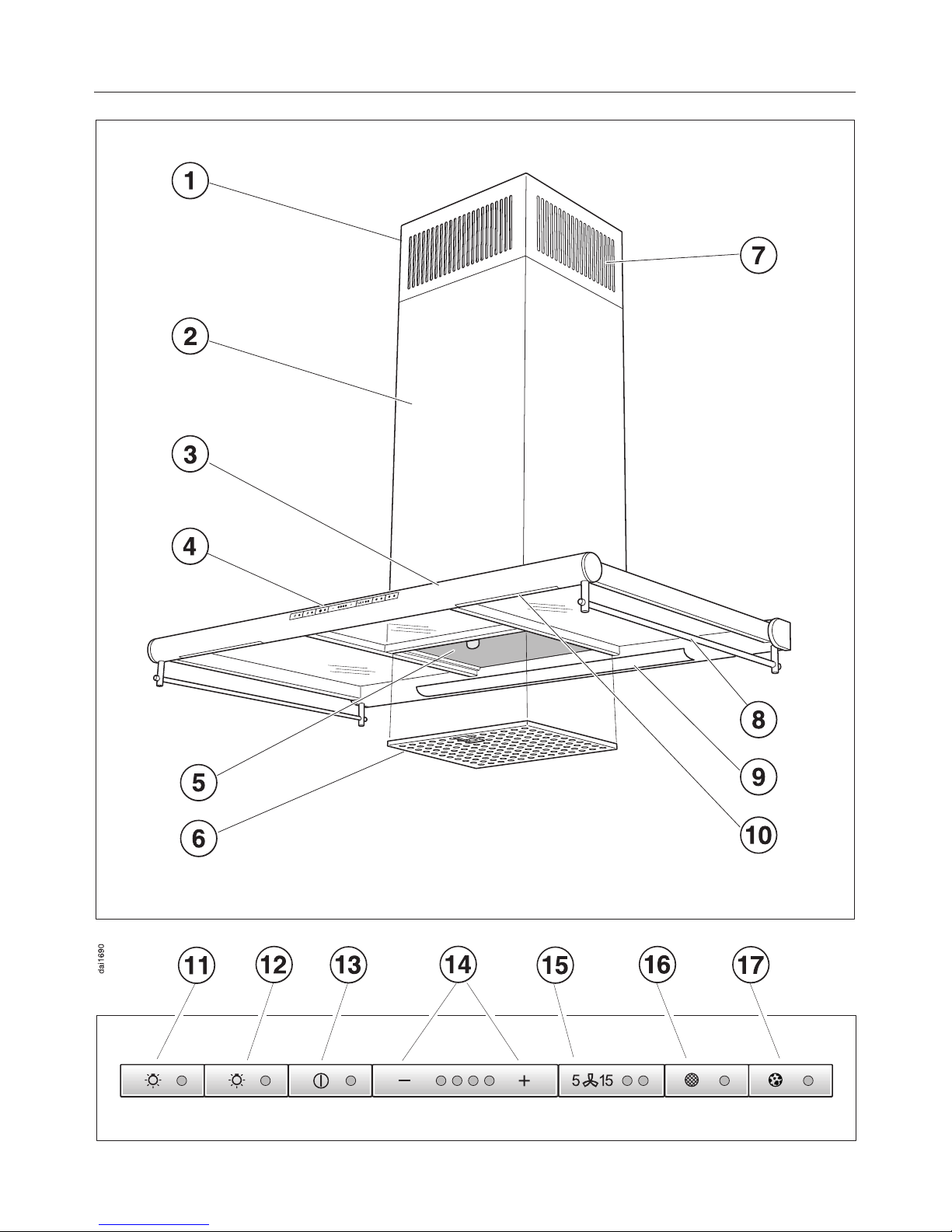

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

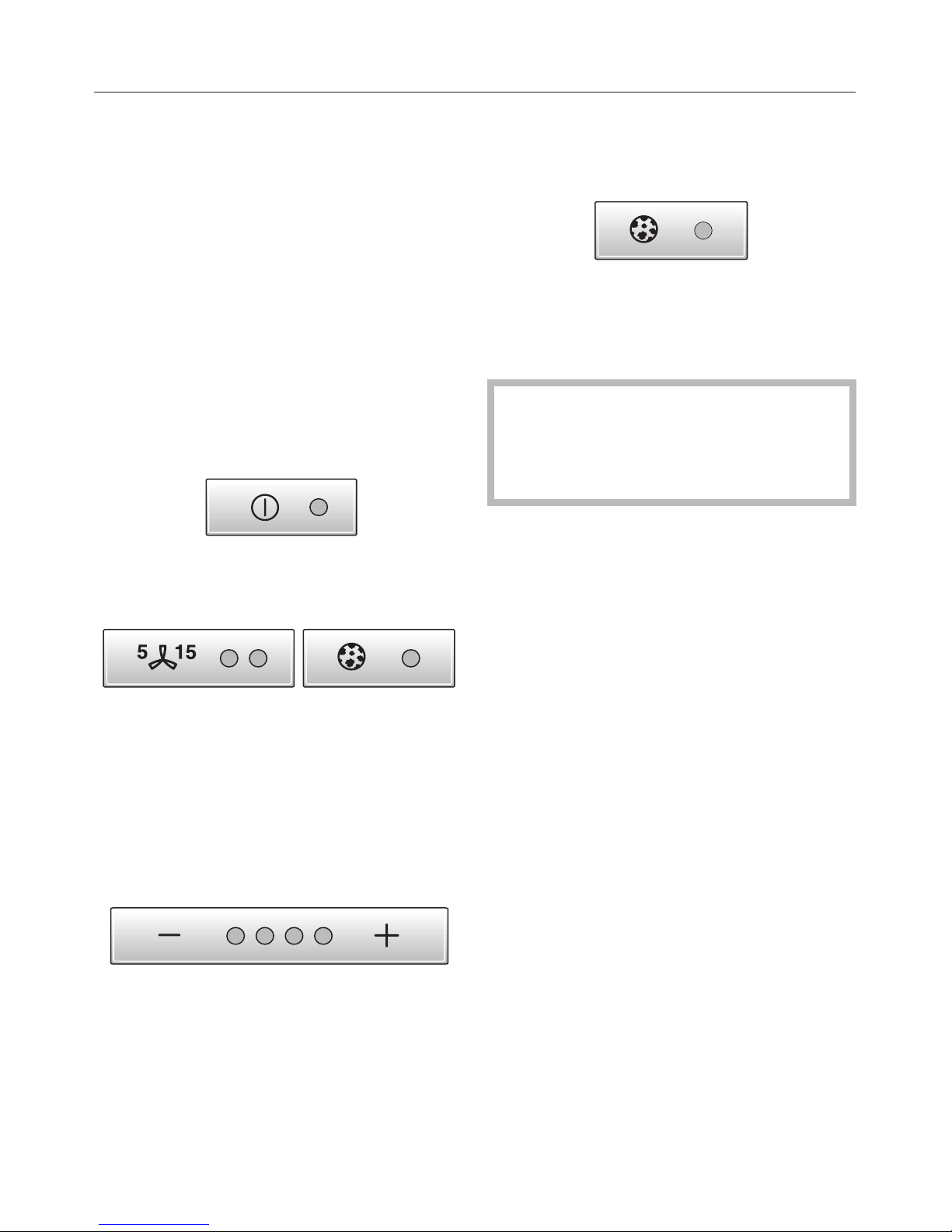

Operation
To switch the fan on................................................12

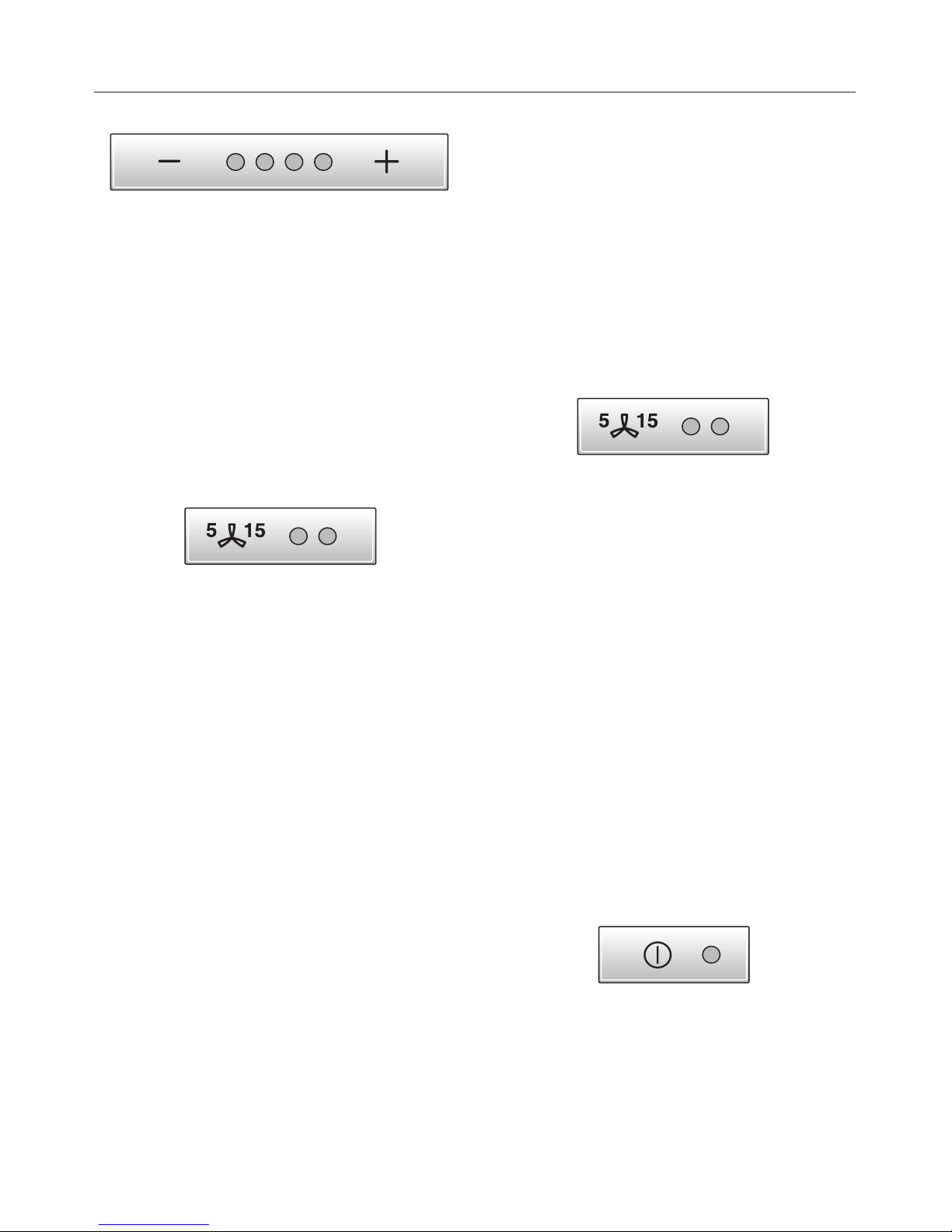

Selecting a power level .............................................12
Intensive Setting ................................................12
Run-on option ....................................................13
Switching the fan off ...............................................13

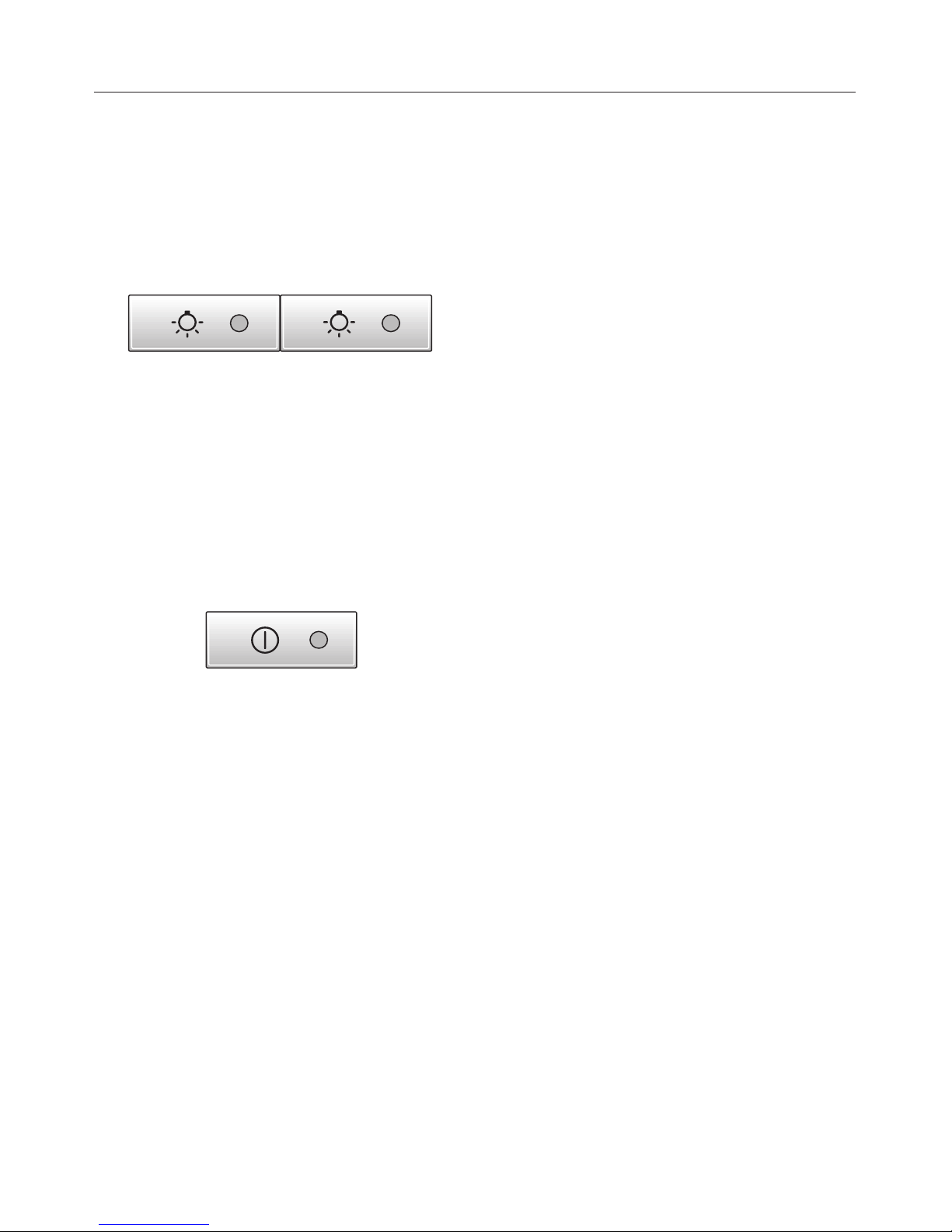

Hob lighting ......................................................14
Filter operating hours counter ........................................15
Reading the filter operating hours counter ............................15
Filter operating hours counter......................................16
Cleaning and care
Housing .........................................................18

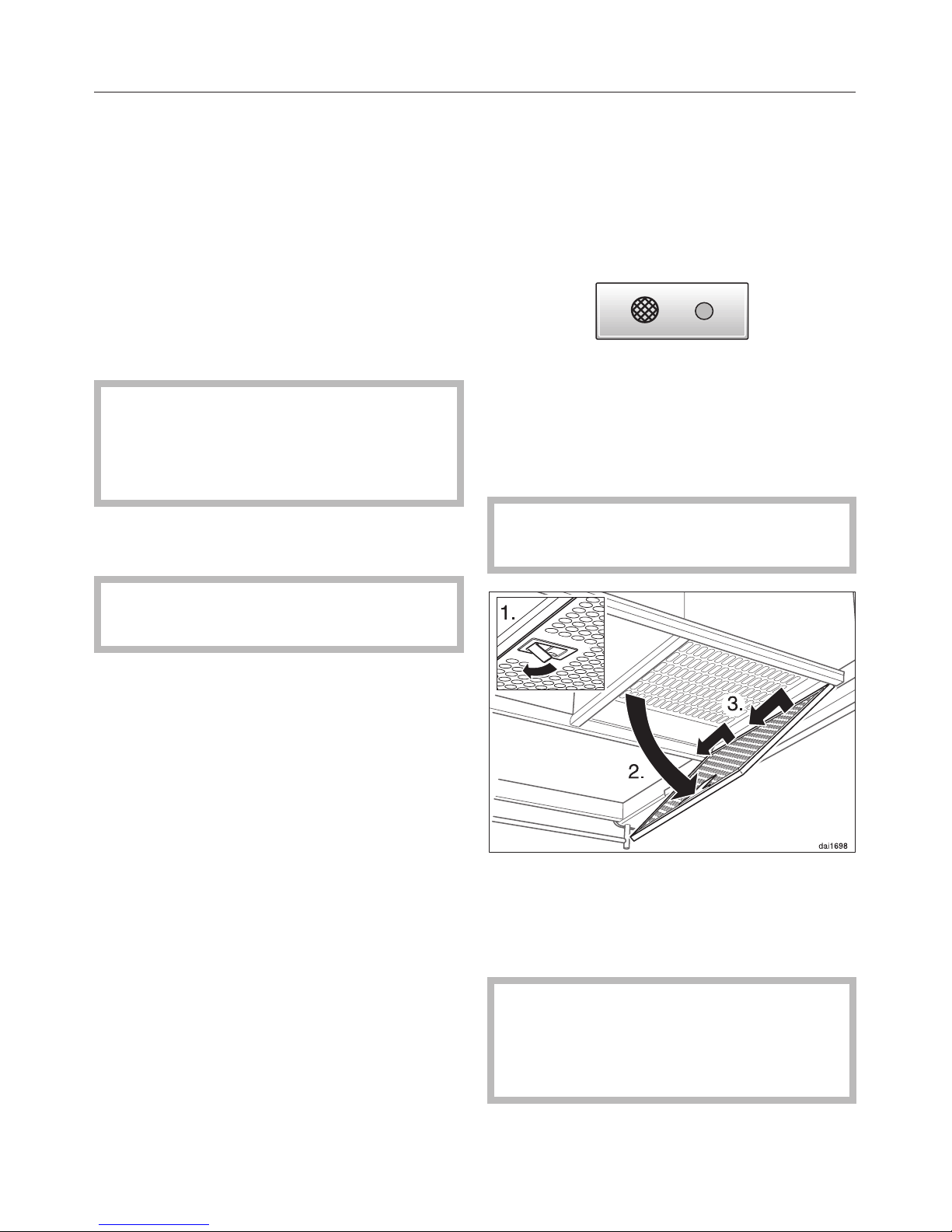

Grease filter ......................................................19
Fitting and replacing the charcoal filter .................................21
Changing the lamps ...............................................22
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Safety distance between hob and cooker hood (S) .....................25
Installation
Assembly parts ...................................................26
Installation instructions .............................................28
Protective foil .....................................................28
Dismantling ......................................................28
Decor inserts...................................................29
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation with Control module DSM 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connection to a window contact switch ..............................31
Potential free connection .........................................31
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Condensate trap ..................................................34
Silencer .........................................................34
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is intended for
domestic use only.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been given instruction concerning its
use by a person responsible for their
safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To avoid
the risk of injury, keep children well
away and do not allow them to play with
it or to use the controls. They will not
understand the potential dangers posed
by it. They should be supervised
whenever you are working in the kitchen.
~Older children may use the cooker
hood only when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
Warning and Safety instructions
4

~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the isolator, or
– the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or
–it is switched off at the wall socket
and the plug withdrawn, or
–the fuse from the fused spur
connection unit is withdrawn.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.

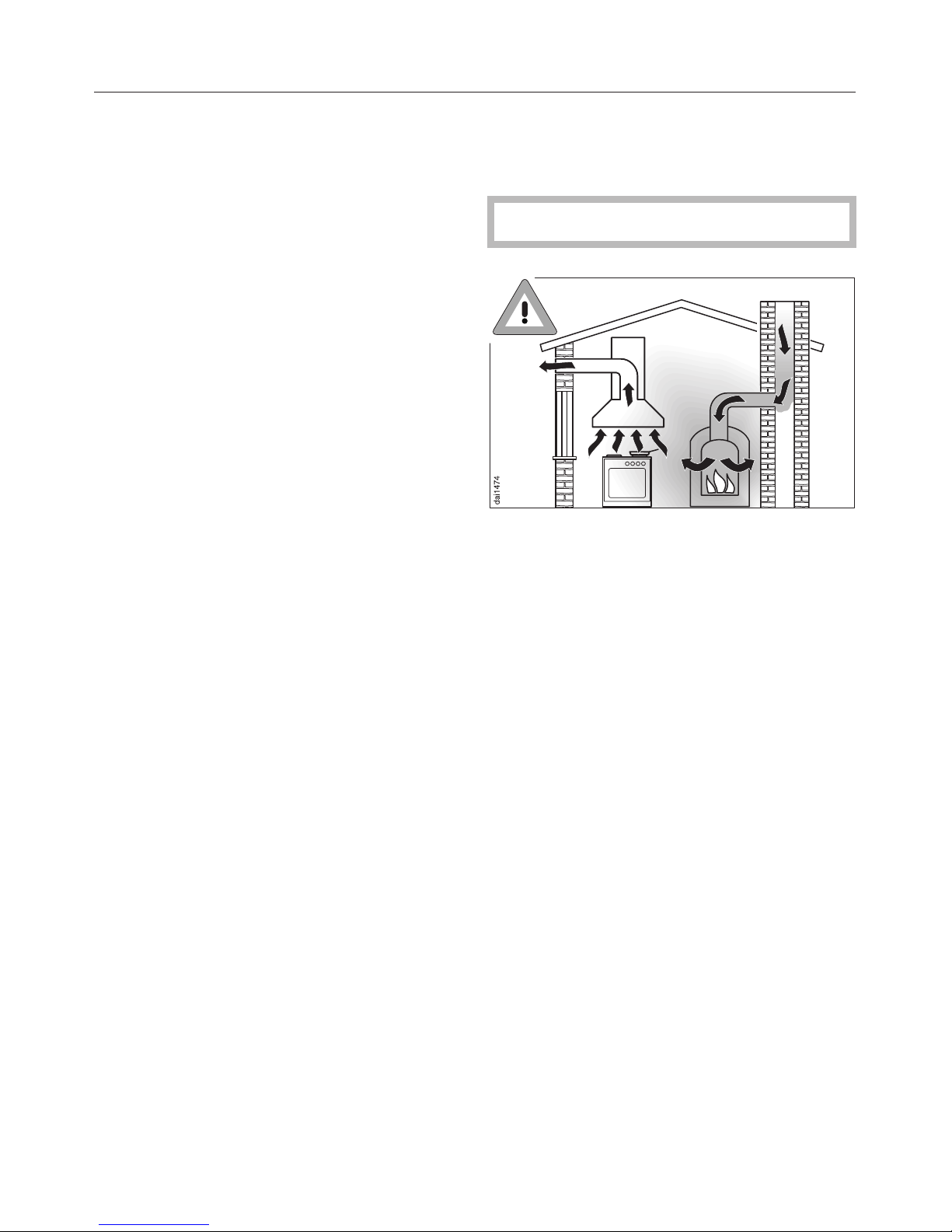

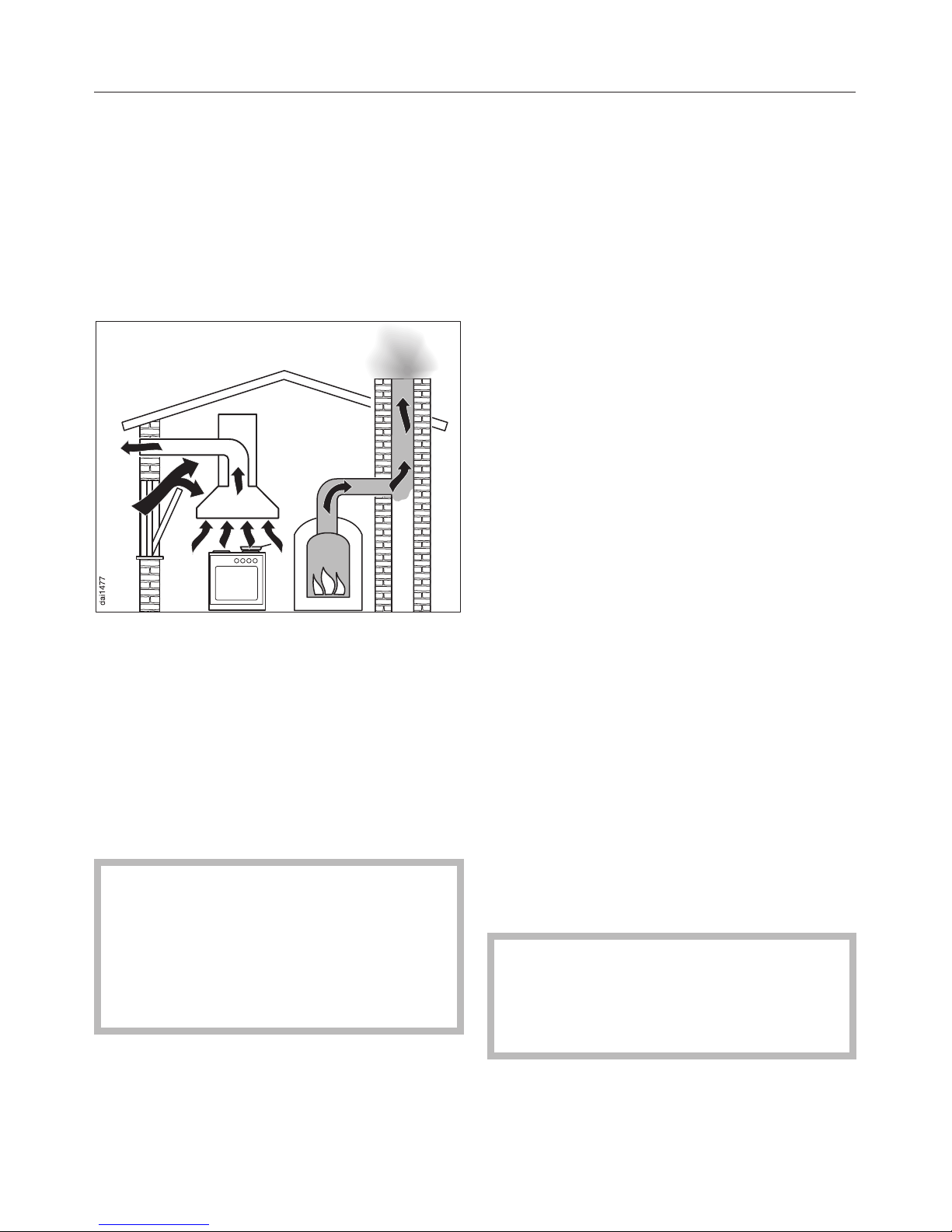

Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter (Corgi registered
in the UK) must be sought.
One of the following technical
measures may be necessary to ensure
safe operation.
–If the only way of ensuring adequate
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders' merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The Miele DSM 400 control module
offers the possibility of combining other
components with the cooker hood (see
"Operation with Control module DSM
400").
It is available to purchase as an
optional extra.
If in any doubt, the advice of a
qualified builder, gas fitter (Corgi
registered in the UK) or electrician
must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one cooking appliance is
fitted beneath the cooker hood, and
they have different minimum safety
distances to the cooker hood, select
the greater distance.
Warning and Safety instructions
8

~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

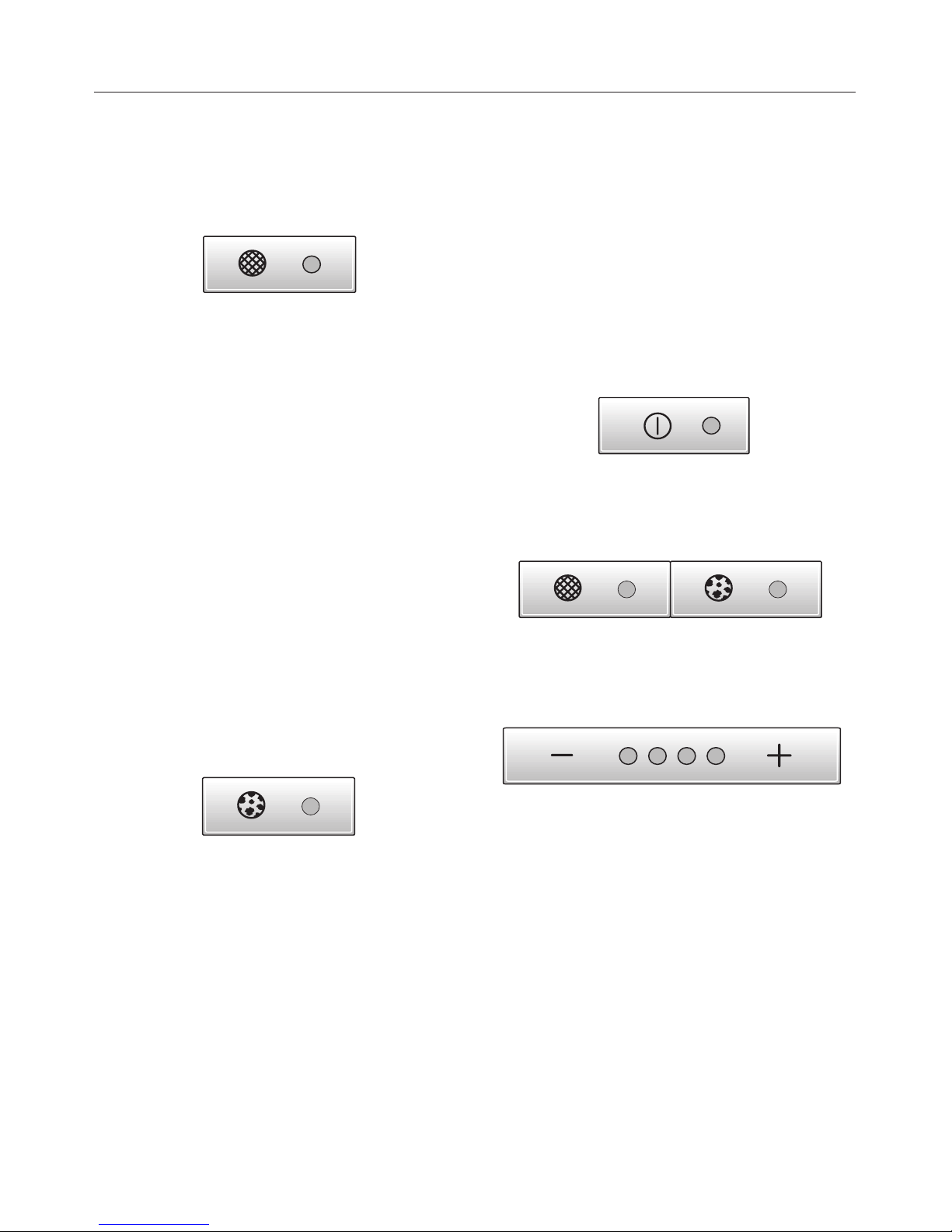

Guide to the appliance
10

aExtension piece
bTower
cCanopy
with decor inserts available as an
optional extra.
Maximum load bearing capacity is 8 kg
when used as a shelf. Each individual
decor insert can take a maximum load
of 4 kg.
dControl panel
eCharcoal filter
(special accessory for recirculation
mode)
fGrease filter
gRecirculation grille
(only for recirculation mode)
hSide rails
each with maximum load-bearing
capacity of 3 kg
iRear hob lighting
jFront hob lighting
kControl for front hob lighting
lTouch control for rear hob lighting
mOn/Off touch control for the fan
nControls to select the fan power
level
oTouch control for the run-on
option
The fan can be set to switch off
automatically after either 5 or 15
minutes.
pTouch control for the grease filter
The indicator lamp for the grease filter
touch control lights up when the grease
filter needs to be cleaned.
The touch control is used:
–to reset the operating hours counter
after cleaning the grease filter (see
"Cleaning and Care").
–to show how long the filter has been
in use (see "Operation: Filter
operating hours counter").
–to alter the number of hours counted
by the filter operating hours counter
(see "Operation - Altering the grease
filter operating hours counter").
qTouch control for the charcoal
filter
The indicator lamp for the charcoal filter
touch control lights up when the
charcoal filter used in recirculation
mode needs to be replaced.
The touch control is used:
–to reset the operating hours counter
after replacing the charcoal filter (see
"Cleaning and Care").
–to show how long the filter has been
in use (see "Operation: Filter
operating hours counter").
–to alter the number of hours counted
by the filter operating hours counter
(see "Operation - Setting and altering
the charcoal filter operating hours
counter").
Guide to the appliance
11

The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filter and then directed outside.
If the on-site ventilation system does
not have a non-return flap, the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be ducted away.
. . . air recirculation:
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the cooker
hood extension piece.
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
...anexternal fan:
(EXT models only)
The EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
cooker hood by means of a control
cable, and is operated by the controls
on the cooker hood.
Modes of operation
12

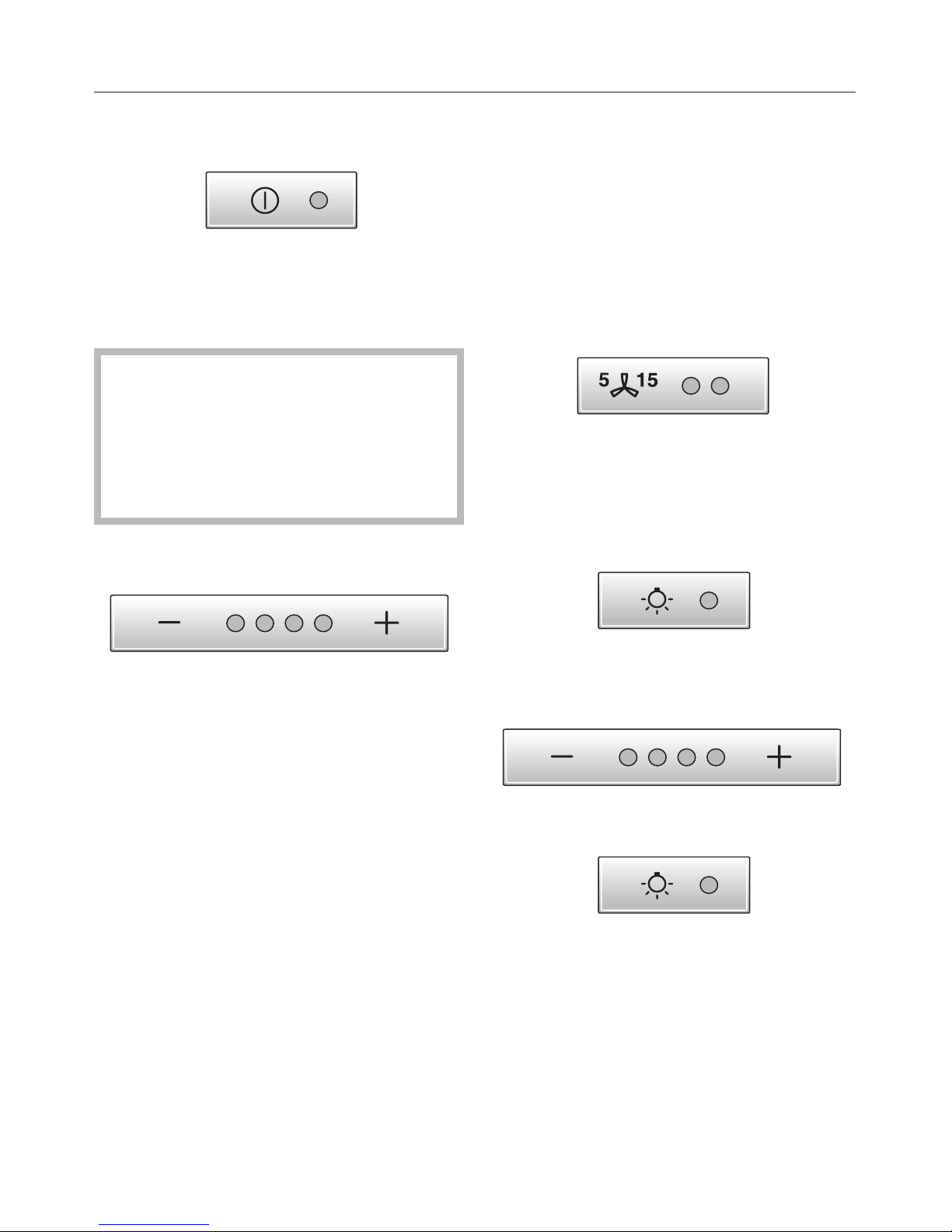

To switch the fan on
^Press the On/Off touch control.
The fan will come on at power level lI.
The indicator light comes on.
If the cooker hood has been
connected to a window contact
switch via the Miele Control module
DSM 400, then the fan cannot be
switched on if the window is shut.
The indicator lamp will flash.
Selecting a power level
^Use the –/+controls to select the
power level required.
Touch control += higher setting
Touch control –= lower setting
Depending on the intensity of the
cooking vapours, levels I to III (green
indicator lamps) are usually sufficient
for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting (yellow indicator
lamp) for a short period.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off.
^Press the run-on option touch control
for approx. 10 seconds. The first fan
setting indicator will light up.
^Press in turn
- the right-hand touch control for the
lighting,
- the –touch control, and
- finally the right-hand touch control for
the lighting again.
Operation
13

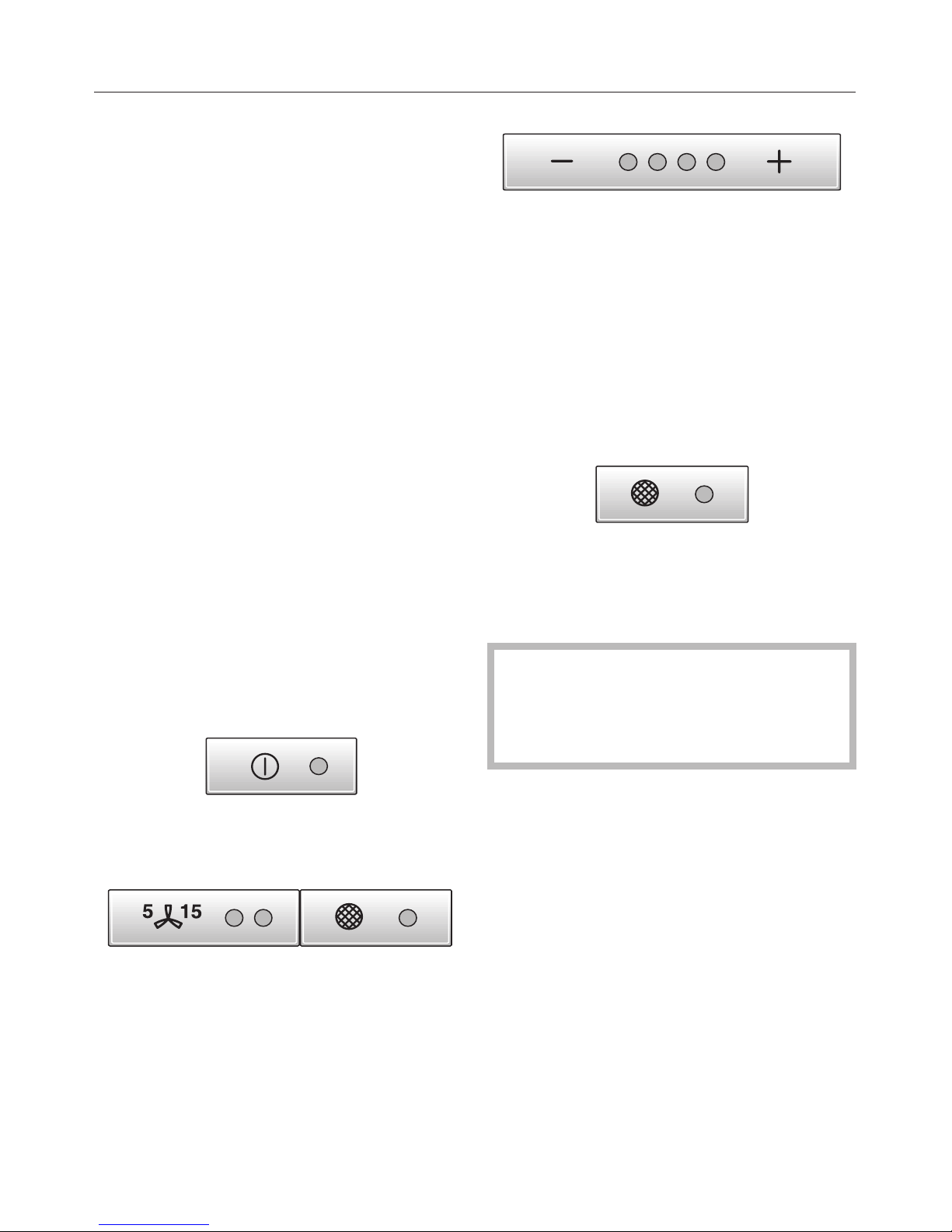

The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off of the Intensive setting is not
activated.
^Press the +touch control to activate
automatic switch-off.
The indicator lamps for fan power
levels I and IV will come on.
Press the –touch control to
deactivate automatic switch-off.
^Press the run-on option touch control
to confirm your selection.
^If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the "old"
setting.
Run-on option
It is advisable to run the fan for a few
minutes after cooking is finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes:
^After cooking is finished, press the
run-on option touch control whilst the
fan is still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
To switch off the run-on option, press
the run-on option touch control again.
The appliance will then not switch off
automatically.
Switching the fan off
^Press the On/Off touch control to
switch the fan off.
The indicator lamp will go out.
Operation
14

Hob lighting
The lighting can be switched on and off
independently of the fan.
The front and rear lighting can be
operated separately.
^Press the right-hand control for the
rear hob lighting, and the left-hand
control for the front hob lighting.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off touch control will
switch the fan back on again.
Operation
15

Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The indicator lamp for the grease filter
touch control will come on after 30
hours of operation. The grease filter
must then be cleaned.
Afterwards, the filter operating hours
counter must be reset.
^To do this, press and hold the grease
filter touch control for about 3
seconds.
The indicator lamp for the touch control
will go out.
For recirculation mode, the operating
hours counter for the charcoal filter
needs to be set to the required time
(see "Setting and altering the charcoal
filter operating hours counter").
The indicator lamp for the charcoal filter
touch control will light up after the
cooker hood has operated for the
number of hours set. The charcoal
filter must then be replaced with a new
one.
Afterwards, the filter operating hours
counter must be reset.
^Press the charcoal filter touch control
for about 3 seconds.
The indicator lamp for the touch control
will go out.
Reading the filter operating hours
counter
To check the percentage of time set
already used:
^Press the On/Off touch control to
switch the fan on.
^Press and hold the grease filter or the
charcoal filter touch control.
One or more of the indicator lamps for
the –/+touch controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
16

Filter operating hours counter
You can set the operating hours
counter to suit the type of cooking you
do.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If you only cook occasionally we
recommend that you still select a
short time, because grease which
has built up gradually over a long
period of time will harden on the
grease filter and make cleaning more
difficult.
Altering the grease filter operating
hours counter
The operating hours counter for the
grease filter is set at 30 hours. The time
set can be lengthened or shortened:
you can choose 20, 30, 40 or 50 hours.
^Press the On/Off touch control to
switch the fan off.
^Press the run-on option touch control
and the grease filter touch control at
the same time.
The indicator lamp for the grease filter
touch control and one of the –/+touch
control lamps will flash.
The –/+control lamps show the time
which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+touch controls to select
the desired time.
^Confirm the selection by pressing the
grease filter touch control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood
will automatically revert to the "old"
data.
Operation
17

Setting and altering the charcoal
filter operating hours counter
(with recirculation mode)
The charcoal filter is needed for
recirculation mode.
The cooker hood is set at the factory for
extraction mode. On delivery, the
operating hours counter for the
charcoal filter is set to unlimited.
For recirculation mode, the operating
hours counter needs to be set to the
required time:
^Press the On/Off touch control to
switch the fan off.
^Press the run-on option touch control
and the charcoal filter touch control
at the same time.
The indicator lamp for the charcoal filter
touch control and one of the lamps
above the –/+touch controls will flash.
The –/+control lamps show the time
which has been set:
1st lamp from the left = 120 hours
2nd lamp from the left = 180 hours
3rd lamp from the left = 240 hours
4th lamp from the left = unlimited
^Use the –/+touch controls to select
the desired time.
^Confirm the selection by pressing the
charcoal filter touch control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood
will automatically revert to the "old"
data.
Operation
18

Before carrying out any cleaning or
maintenance work, disconnect the
cooker hood from the mains supply.
Ensure that:
- it is switched off at the wall socket
and the plug removed, or
- the fuse is withdrawn from the
fused spur connection unit, or
- the mains fuse is withdrawn, or
- the screw-out fuse is removed (in
countries where this is applicable).
Housing
General notes
Warning: The surfaces and controls
are susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
little washing-up liquid applied with a
well wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Avoid:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
These will damage the surface
material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
with a proprietary non-abrasive
cleaning agent designed specifically
for use on stainless steel.
To help prevent re-soiling, a proprietary
conditioning agent for stainless steel
can also be used. Apply sparingly with
an even pressure in the direction of the
"grain".
Important for appliances with
lacquered housing
(special finish)
Be very careful, as it is very difficult to
clean this type of surface without
causing minor marks to the surface
material. This can become particularly
noticeable with darker colours and if
there is halogen lighting in the kitchen.
Cleaning and care
19

E-Cloth
^A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department, which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals. It can
be washed 300 times.
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Glass surfaces
^Glass surfaces can be cleaned using
a proprietary non-abrasive cleaning
agent designed specifically for use
on glass.
Avoid:
–abrasive cleaning agents, e.g.
powder cleaners and cream
cleaners,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
–oven sprays.
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc),
preventing soiling of the cooker hood.
The grease filter should be cleaned
regularly (at least every 3-4 weeks) to
avoid a built-up of fat, but always clean
immediately if the grease filter touch
control lamp comes on.
An oversaturated filter is a fire
hazard.
^To take out the grease filter, release
the locking clip on the filter, lower the
filter 45°, unhook it at the back and
remove it.
To avoid damaging the filter or the
hob below, make sure you hold the
filter securely at all times when
handling it.
Cleaning and care
20
