Miele DA 3160 EXT User manual

Operating and installation instructions
Cooker hoods
DA 3160
DA 3180
DA 3190
DA 3160 EXT
DA 3190 EXT
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time.
GiOZHr
M.-Nr. 06 681 580

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fitting and replacing the charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing a halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Positioning the appliance in the wall housing unit. . . . . . . . . . . . . . . . . . . . . . . . . 25
Set up for extraction mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Set up for recirculation mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Silencer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation with DS 400 control module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connection to a window contact switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Potential free connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connection to a light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. If connected by a
plug, the plug must be rendered
useless and the cable cut off directly
behind the appliance to prevent
misuse. See the "Warning and Safety"
section of this booklet for further details.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance.
Keep these operating instructions in
a safe place and ensure that all
users are familiar with the contents.
Pass them on to any future owner of
the appliance.
Correct usage
This appliance is intended for
domestic use only.
The manufacturer cannot be held liable
for damage caused by improper or
incorrect use of the appliance.
Technical safety
Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency details given
on the data plate correspond with the
on-site electricity supply; otherwise the
appliance could get damaged. Consult
a qualified electrician if in any doubt.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested, and where there is in any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Installation, maintenance and
repair work may only be carried out
by a suitably qualified and competent
person in accordance with national and
local safety regulations. Repairs and
other work by unqualified persons
could be dangerous. The manufacturer
cannot be held liable for unauthorised
work.
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Warning and Safety instructions
4

The appliance is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug withdrawn,
–the fuse from the fused spur
connection unit is withdrawn, or
–the mains fuse is withdrawn.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
For appliances with an external
motor fitted (EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Use
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire, do not flambé or grill
over an open flame under the cooker
hood. When switched on, the cooker
hood could draw flames into the filter.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob, ensure that any burners
in use are always covered by a pan;
otherwise flames could be drawn up by
the suction of the cooker hood, parts of
which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can
ignite and could set the cooker hood on
fire.
Do not use the cooker hood without
the grease filter in place. This way
you will avoid the risk of grease and dirt
getting into the appliance and
hindering its smooth operation.
Warning and Safety instructions
5

The filter should be regularly
cleaned or changed as
appropriate. A saturated filter is a fire
hazard. See "Cleaning and care".
Do not use a steam-cleaner to
clean this appliance. Pressurised
steam could reach the electrical
components and cause a short circuit.
Safety with children
The appliance is only intended for
use by adults who have read these
instructions. Keep children well away
from the appliance at all times and
supervise them when you are using it.
Older children may use the
appliance only when its operation
has been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
Please be aware that on
appliances with halogen lighting,
the lamps will get very hot during use
and remain hot for some time after
switching off. To safeguard against
burning, keep children well away from
the lamps at all times.
Packaging (e.g. cling film,
polystyrene) and plastic wrappings
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Warning and Safety instructions
6

Installation
Follow the manufacturer’s
instructions for your cooking
appliance concerning the use of a
cooker hood over the particular
appliance.
Safety regulations prohibit the
fitting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders’ merchants.
The appliance must not be
connected to a chimney or vent
flue which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
Safety distance between cooking
appliance and cooker hood
The minimum safety distances
between the top of a cooker or hob
and the bottom of the cooker hood are
as follows, unless a greater distance is
specified by the manufacturer of your
cooking appliance:
- 450 mm above electric hobs and
cookers,
- 650 mm above gas hobs and cookers,
- 650 mm above an open grill or deep
fat fryer.
If more than one appliance is fitted
beneath the cooker hood, and they
have different minimum safety
distances to the cooker hood, select
the greater distance.
Follow the cooker or hob
manufacturer’s instructions on the use
of flammable materials over the
cooker/hob when installing a wood or
laminate lightshield onto the cooker
hood.
Warning and Safety instructions
7

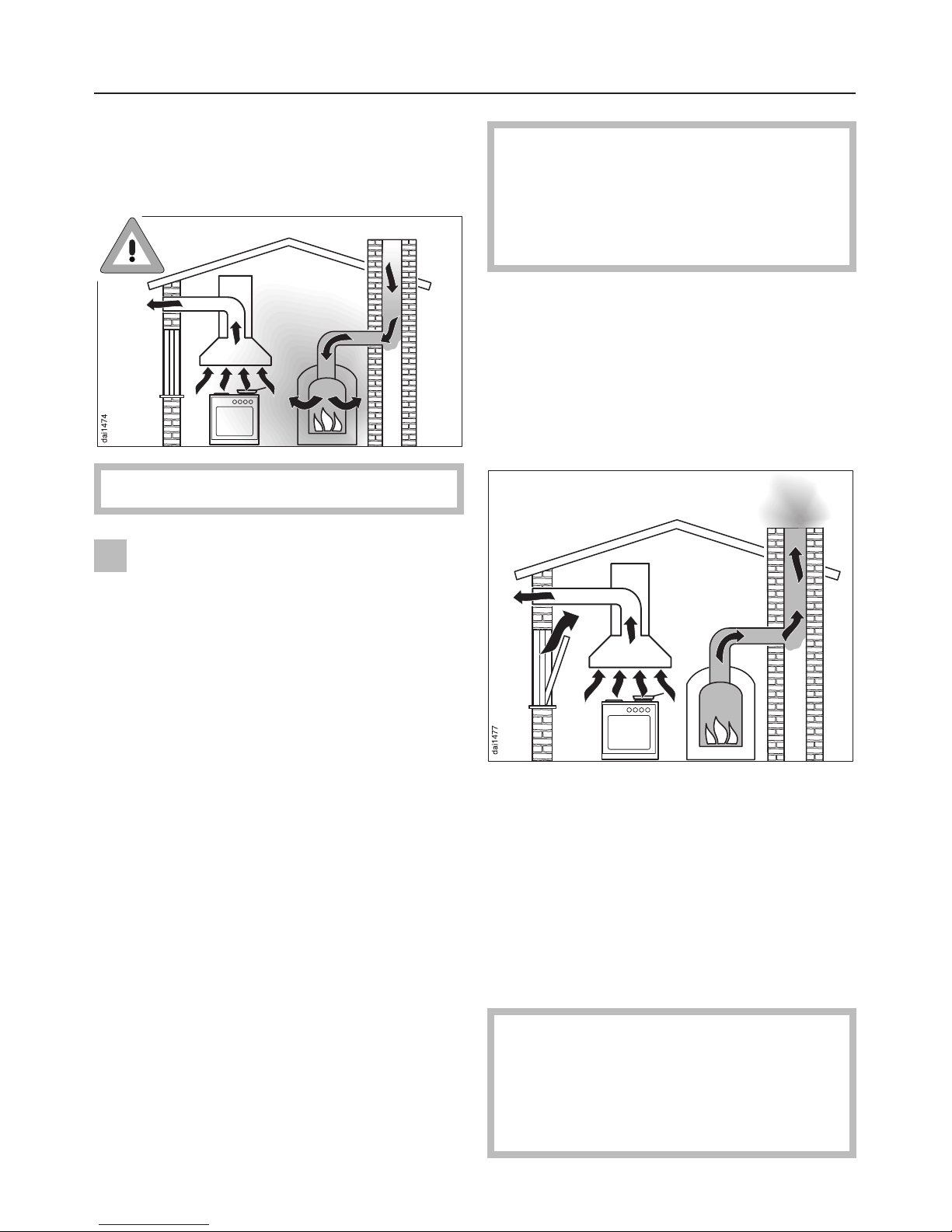

Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
Great care should be taken when
using the cooker hood at the same
time and in the same room or area of
the house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases such as carbon
monoxide could be drawn out of the
chimney or extraction ducting back
into the room, with potentially fatal
consequences.
In order to ensure safe operation, and to
prevent gases given off by the heating
appliances from being drawn back into
the room when the extractor and the
heater are in operation simultaneously, an
underpressure in the room of 0.04 mbar
(4 pa) is the maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the extractor can only
be switched on when the heating
appliance is switched off or vice-versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
The overall ventilation condition of
the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
"Corgi" installer, must be sought.
Warning and Safety instructions
8

One of the following technical
measures may be necessary to ensure
safe operation.
–If the only way of ensuring adequate
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders’ merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The Miele DSM 400 offers the
possibility of combining other
components with the cooker hood (see
"Operation with a DSM 400 control
module").
It is available to purchase as an
optional extra.
If in any doubt, the advice of a
competent builder or, for gas, a
"Corgi" installer, must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Disposal of your old appliance
Before discarding an old
appliance, switch off and
disconnect it from the power supply.
Cut off and render any plug useless.
Cut off the cable directly behind the
appliance to prevent misuse.
This should be done by a competent
person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

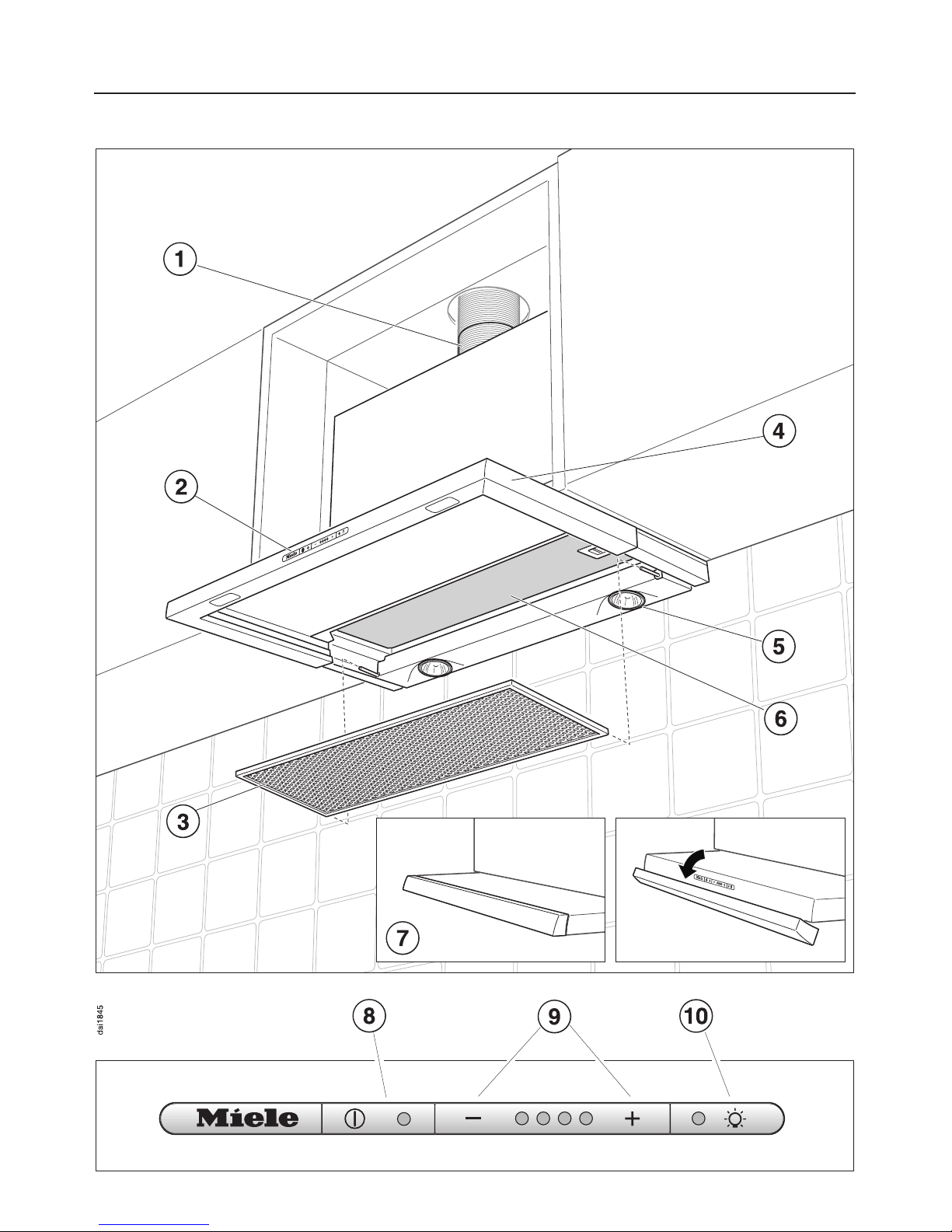

Guide to the appliance
10

aExhaust socket ø 150 mm
bControl panel
cGrease filter
dPull-out deflector plate
eHob lighting
fCharcoal filter
(extra accessory available to order
for recirculation mode)
gDrop-down lightshield to conceal
control panel
The front of the deflector plate can
be fitted with a lightshield to match
your kitchen furniture.
The DA 3160 and DA 3190 can be
fitted with a DFB 61 or DFB 91
lightshield, available as an optional
accessory.
hOn/Off touch control for the fan
iControls to select fan power level
jLighting touch control
Guide to the appliance
11

The cooker hood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filter and then directed outside.
If the on-site ventilation system does
not have a non-return flap, then the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted to
the outside, cannot get back into the
room again.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
. . . air recirculation:
(air recirculation conversion kit
required)
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen.
Charcoal filters are available to order
through your Dealer or the Miele Spare
Parts Department. (See back cover for
contact details and "Technical Data" for
model number).
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place; see
"Cleaning and care".
. . . an external motor:
(EXT models only)
The EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
cooker hood by means of a control
cable, and is operated by the controls
on the cooker hood.
Description of the functions
12

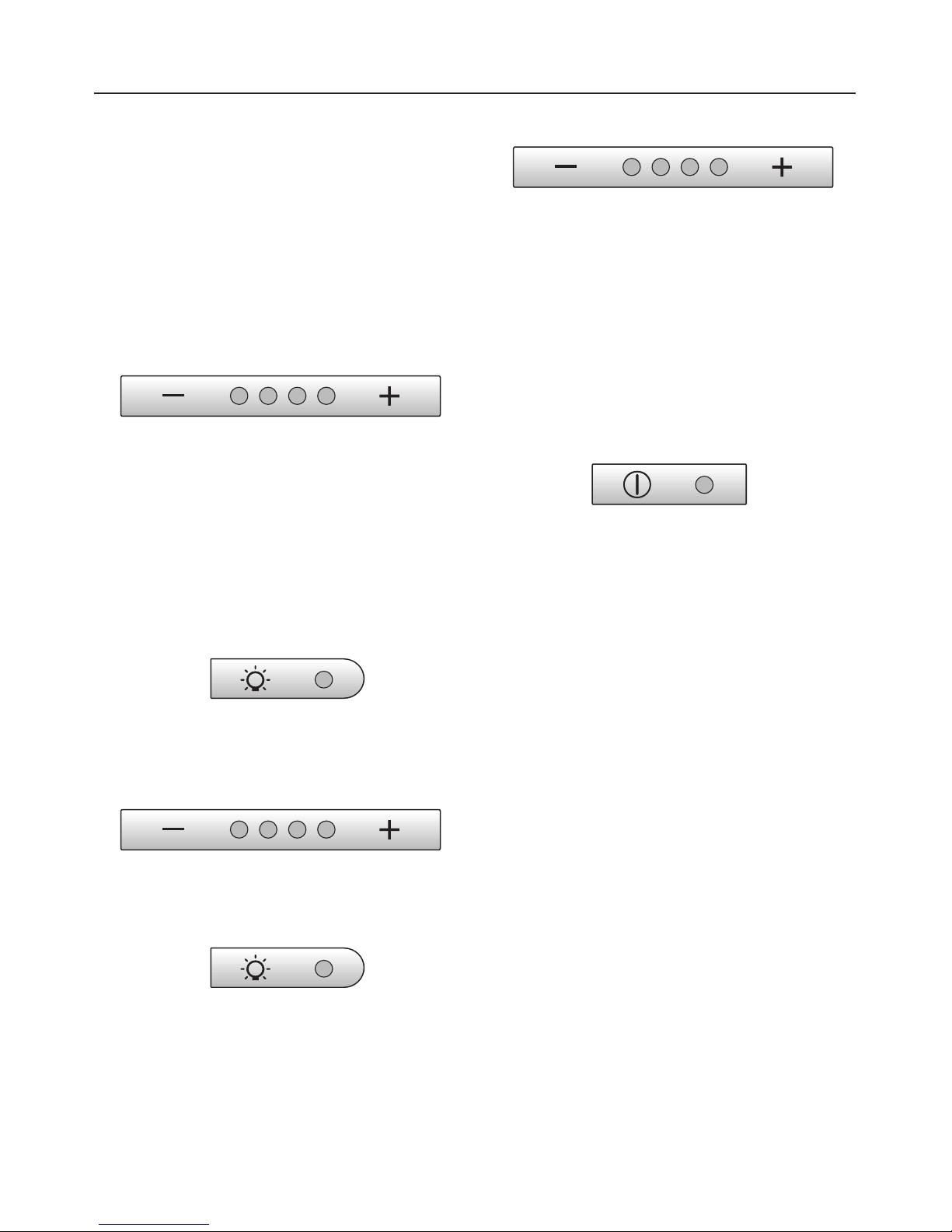

The cooker hood is operated by pulling
out and pushing in the deflector plate.
To switch the fan on
^Pull out the deflector plate.
The fan will begin to operate at setting II.
The On/Off indicator lamp and the 2nd
–/+power level indicator lamp will
light up.
If the cooker hood has been
connected to a window contact
switch via the Miele DSM 400 control
module, then the fan cannot be
switched on if the window is shut.
The indicator lamp will flash.
To select a power level
^Use the –/+controls to select the
power level required.
The indicator lamps show which power
level has been chosen.
Depending on the intensity of the
cooking vapours, levels I to III (green
indicator lamps) are usually sufficient
for normal cooking.
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting (yellow indicator
lamp) for a short period.
To switch the fan off
^Push the deflector plate back in. The
next time the deflector plate is pulled
out, the cooker hood will operate at
power level II again.
or
^Press the On/Off touch control for the
fan
All the indicator lamps will go out.
To switch the lighting on
^Pull out the deflector plate.
or
^Press the touch control for the
lighting again.
When the lighting is switched on, the
indicator lamp lights up.
To switch the lighting off
^Push the deflector plate back in.
or
^Press the touch control for the
lighting.
The indicator lamp will go out.
Operation
13

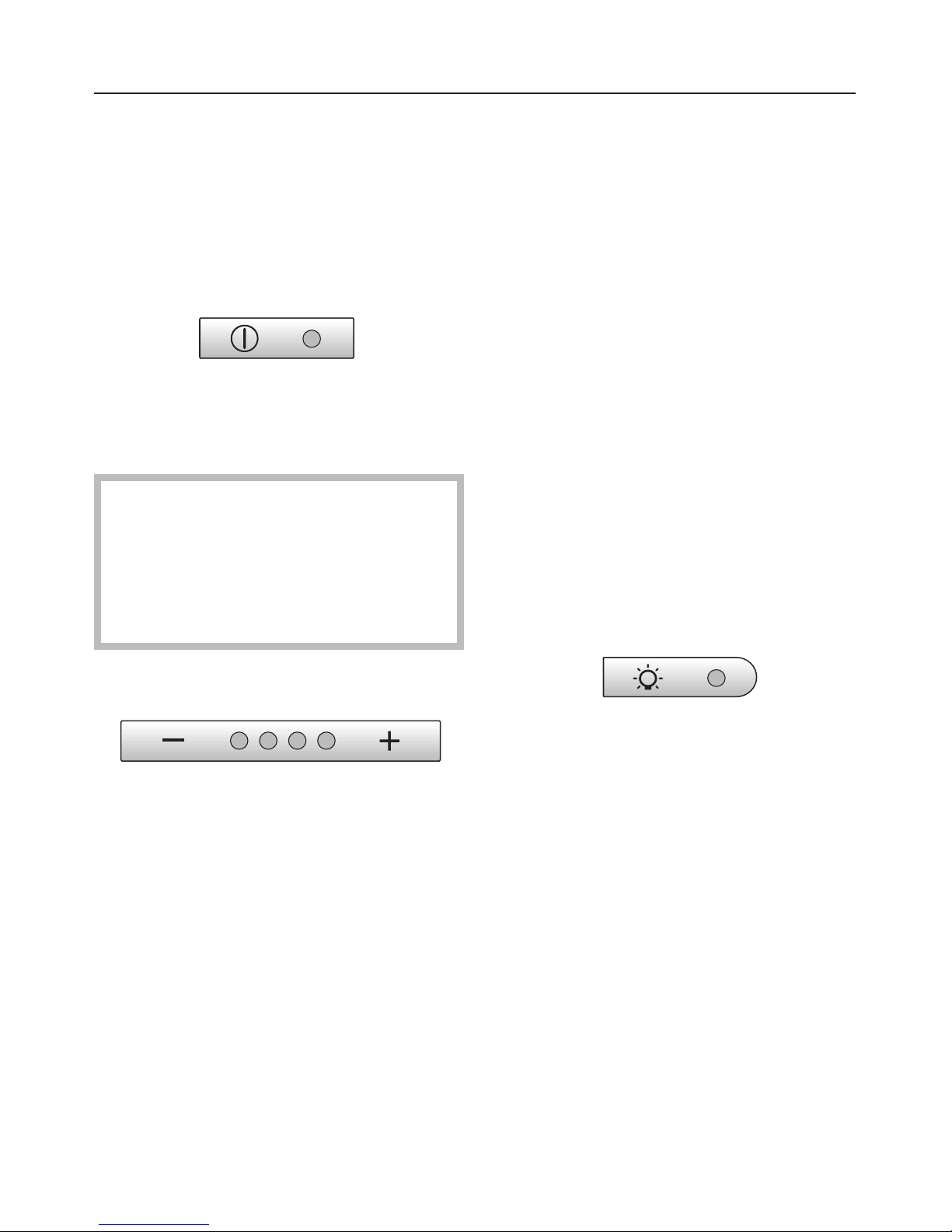

Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off
and the deflector plate pushed in.
^Press the –and +touch controls at
the same time for approx. 10
seconds until the first power level
indicator lamp lights up in the
display.
^Then press, one after the other,
–the hob lighting touch control,
–then the –touch control, and
–the hob lighting touch control again.
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off of the Intensive setting is not
activated.
^Press the +touch control to activate
automatic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –touch control to
deactivate the automatic switch-off
function.
^Press the On/Off touch control to
confirm.
Operation
14

Before any cleaning or maintenance
work is carried out, disconnect the
cooker hood from the mains supply.
Ensure that:
– it is switched off at the wall socket
and the plug is withdrawn, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is withdrawn,or
– the screw-out fuse is removed
(in countries where this is
applicable).
A microfibre “E-Cloth” is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals. It can be washed 300 times.
Housing
General notes
Warning: The surfaces and controls
are susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
little washing-up liquid applied with a
well wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
with a proprietary non-abrasive
cleaning agent designed specifically
for use on stainless steel.
To help prevent re-soiling, a proprietary
cleaning agent for stainless steel such
as Neoblank (available from the Miele
UK Spare Parts Department) can also
be used. Follow the manufacturer’s
instructions, and apply sparingly with
an even pressure in the direction of the
"grain".
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long. Remove
soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Cleaning and care
15

Important for DFB aluminium
lightshields
(optional accessory)
Aluminium is affected by the way that
light falls on it, by the surrounding
environment and by the angle you
observe it from.
Aluminium surfaces may suffer
discolouration or damage if soiling is
left on them for too long. Remove
any soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use:
– stainless steel cleaners,
– cleaning agents containing
descaling agents,
– dishwasher detergent,
– oven sprays.
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc)
preventing soiling of the cooker hood.
To avoid a build-up of fat, it should be
cleaned every 3-4 weeks on average,
but sooner if necessary.
An oversaturated filter is a fire
hazard.
^Grip the front of the deflector plate
together with the grease filter, and
pull outwards as shown.
^Then pull the filter downwards to
remove.
To avoid damaging the filter or the
hob below, make sure you hold the
filter securely at all times when
handling it.
^Press the On/Off touch control to
switch the fan off.
^Clean the filter
–by hand: with a soft nylon brush,
warm water and a little washing up
liquid.
–in a dishwasher: place filter
upright in the lower basket, and wash
on a 65°C programme, ensuring that
the spray arm is not obstructed.
Cleaning and care
16

Depending on the cleaning agent
used, cleaning the grease filter in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filter in any way.
^After cleaning, leave the filter to dry
for a while on an absorbent surface
before putting it back in place.
^When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible housing to
prevent the risk of these catching fire.
^When putting it back, make sure that
the red plastic guides are at the
front and facing upwards.
^Replace the grease filter in the front
of the deflector plate, press it
upwards and push it in together with
the deflector plate. It will slide onto
the fixing pins at the back. Finally,
push the grease filter back a little
more.
Fitting and replacing the
charcoal filter
If the cooker hood is connected for
recirculation, a charcoal filter (optional
accessory) must be inserted in addition
to the grease filter.
This is designed to absorb cooking
smells.
It is fitted in the canopy above the
grease filter.
Replacement charcoal filters can be
obtained from your dealer or the
Miele Spare Parts department.
See back cover for contact details,
and "Technical data" for type and
reference number.
Follow the instructions supplied with the
charcoal filter when fitting it.
Replace the charcoal filter at least
every six months or more frequently if
necessary.
Used charcoal filters can be disposed
of with the normal household waste.
Cleaning and care
17

Changing a halogen lamp
^Pull out the deflector plate, and
remove the grease filter as described
earlier.
^Switch off the fan and the lighting.
Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease
particles from your fingers will
adhere to the surface and damage
it. Please follow the manufacturer’s
instructions.
^Remove the charcoal filter if the
cooker hood is being used in
recirculation mode.
Before any cleaning or maintenance
work, disconnect the cooker hood
from the mains supply. Ensure that
– it is switched off at the wall socket
and the plug is withdrawn, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is withdrawn,or
– the screw-out fuse is removed
(in countries where this is
applicable).
^Push down the lighting unit slightly
via the opening in the safety panel.
^The halogen lamp is now accessible
to be unscrewed anti-clockwise.
Replace with a halogen lamp of the
same specification:
PHILIPS GZ 10, 230 V, 50 W, 50°.
^Screw the new lamp into the socket,
and push it upwards.
^Replace the grease filter and, if being
used in recirculation mode, the
charcoal filter.
Cleaning and care
18

In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee, please contact:
–Your Miele Dealer
or
–The Miele Service Department (see
back cover for address).
When contacting your Dealer or the
Service Department, please quote the
model and serial number of your
appliance. These are shown on the
data plate which is visible when the
grease filter is removed.
Please note that telephone calls may
be monitored and recorded for
training purposes.
After Sales Service
19

DA 3160
DA 3180*
DA 3190*
– The front section of the wall housing
unit must be fitted with a shelf to the
depth of the partition wall.
–The partition wall in the wall unit must
be removable.
* Installation is also possible in a
600 mm wide unit.
Appliance dimensions
20
