Miele DA 239 User manual

Operating instructions
Cooker hoods
DA 237, DA 237 EXT
DA 239, DA 239 EXT
It is essential to read these
Operating Instructions before Q\@ä
installing or using the machine,
to avoid the risk of accident,
or damage to the machine M.-Nr. 05 114 600

Contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Descripton of the functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation
Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

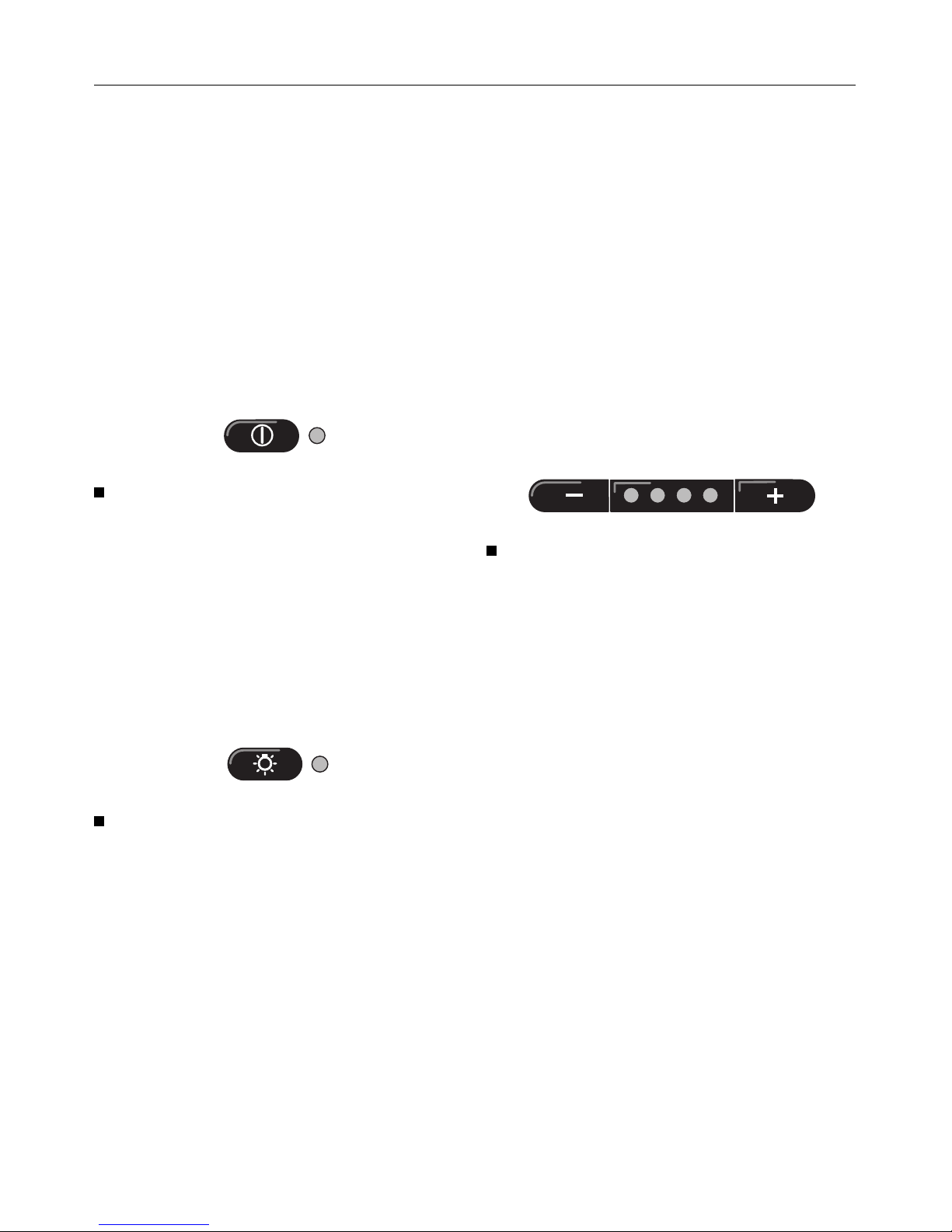

Switching on the cooker hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the hob illumination on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting a power setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

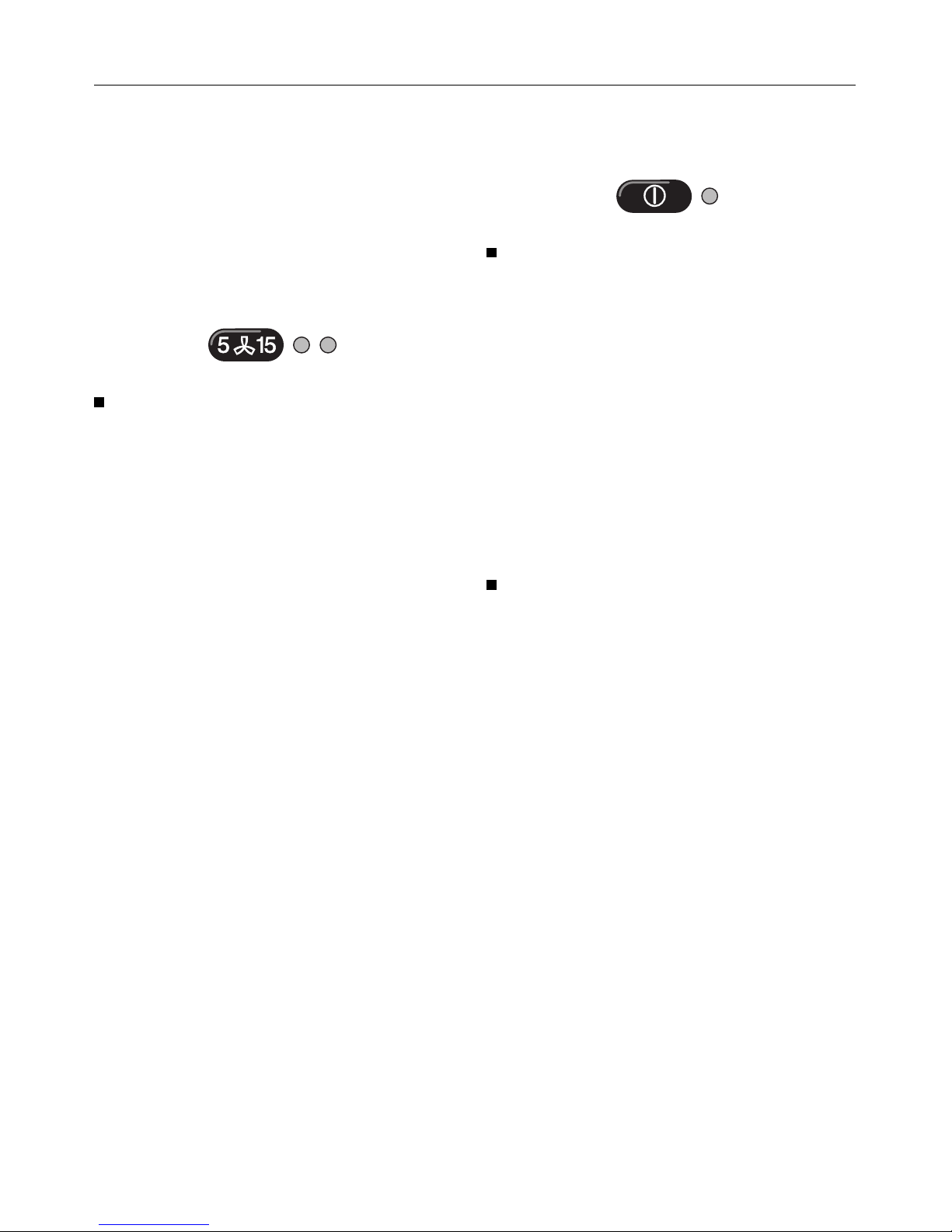

Activating the delay switch-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching off the cooker hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

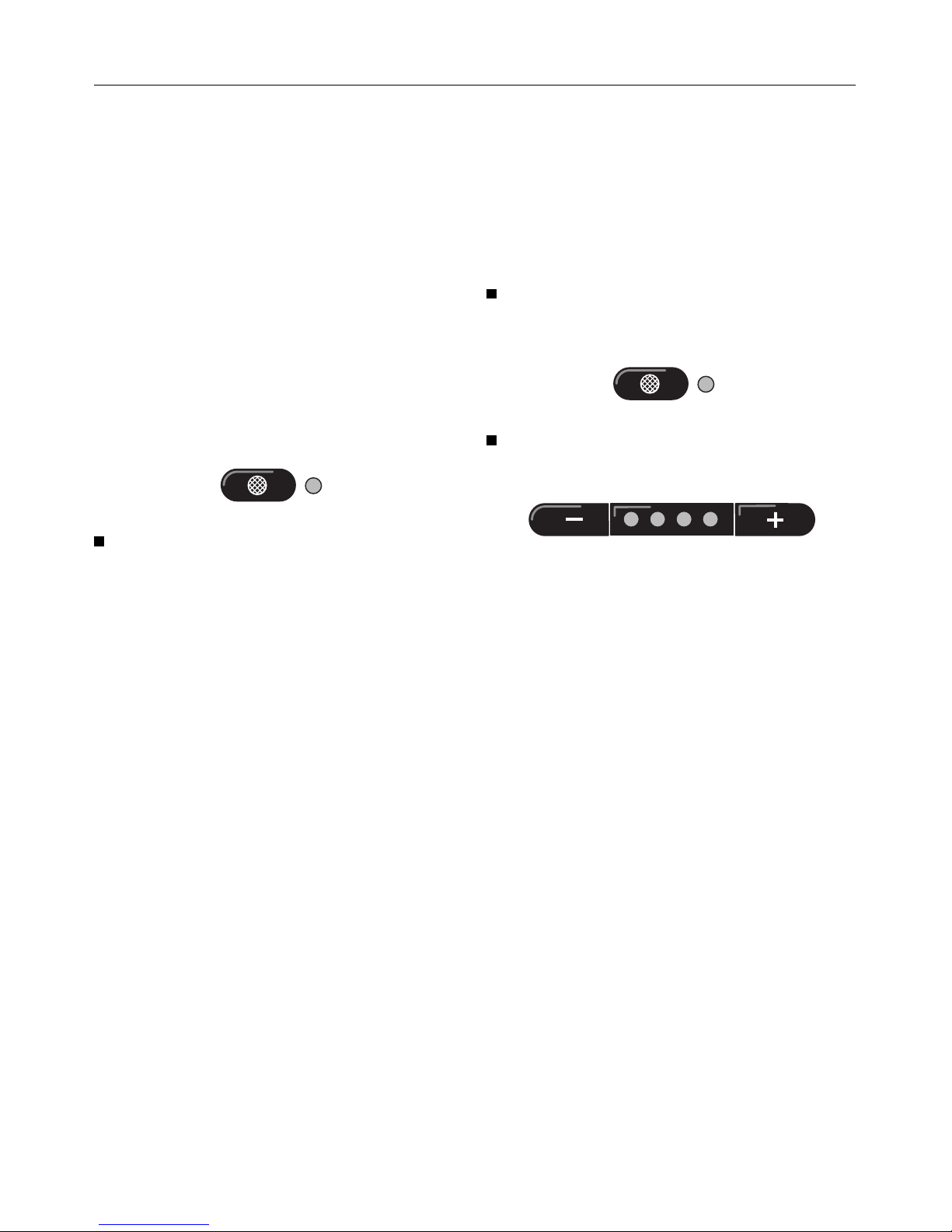

Filter operating hour counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Checking the operating hour counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Altering the operating hour counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

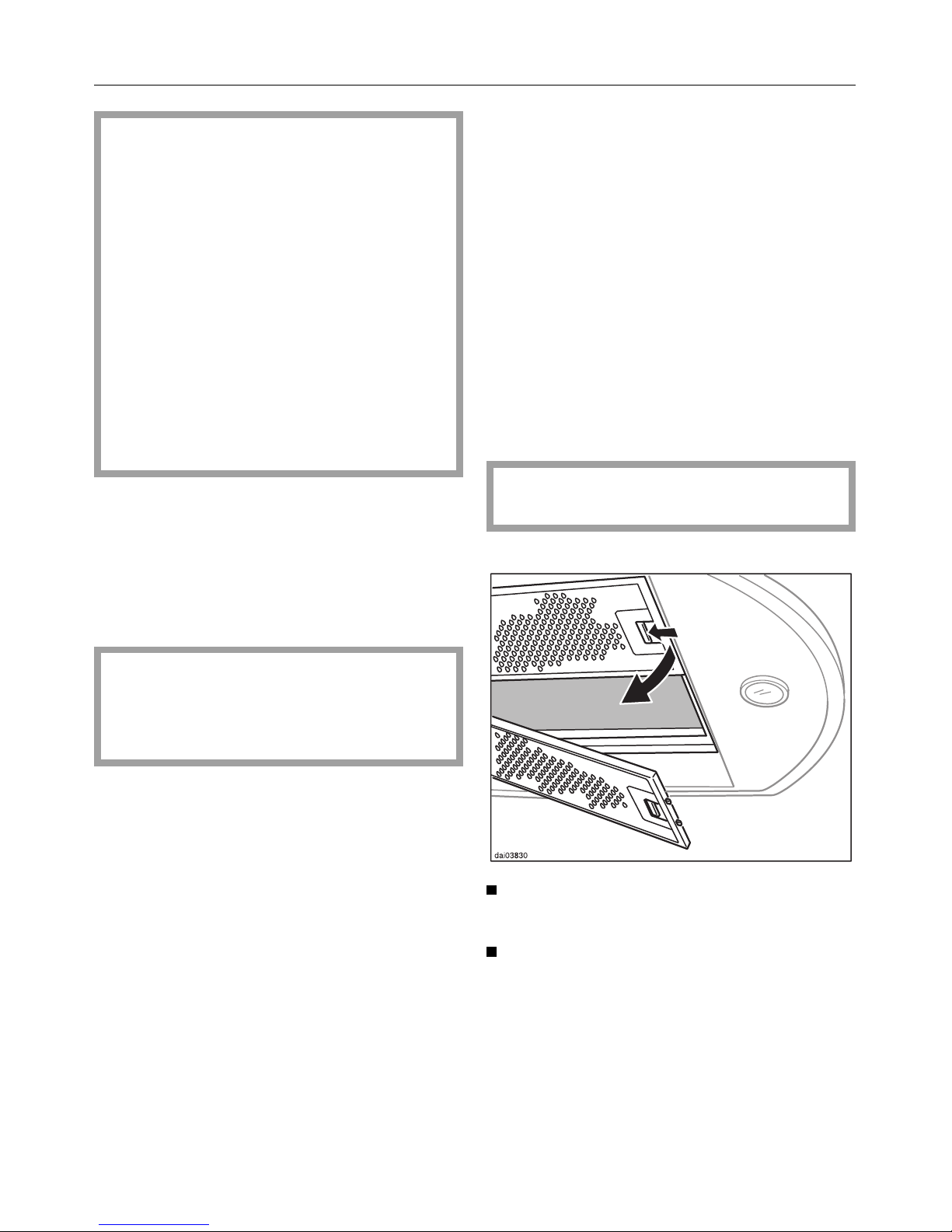

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

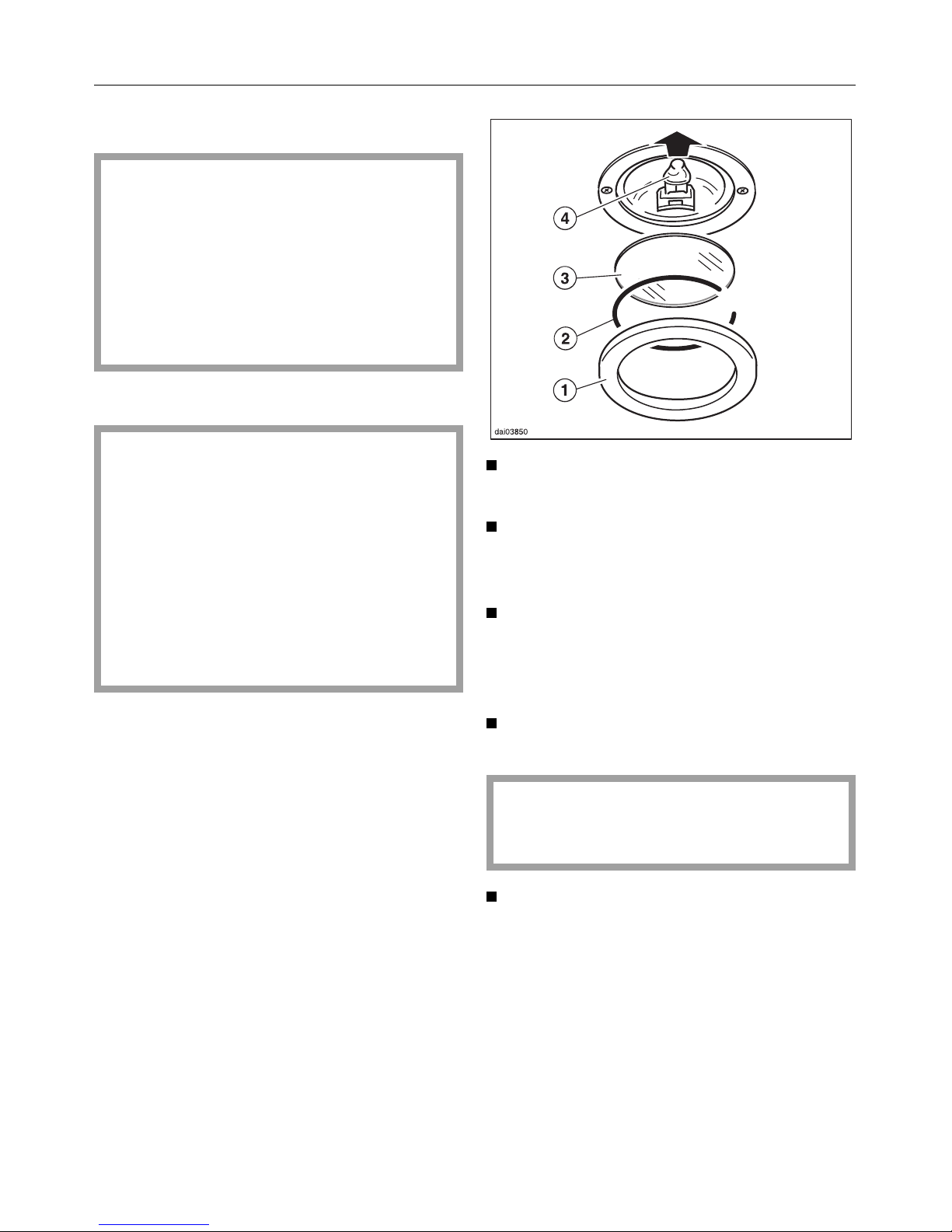

Changing a light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical connection and Technical data
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation
Retaining plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Non-return flap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Motor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Extension piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Chimney piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Connection to an external fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents
2

Caring for the environment
Disposal of packing material
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your waste collec-
tion centre or scrap merchant about
potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate sec-
tion in the Warning and Safety instruc-
tions.
Caring for the environment
3

Warning and Safety instructions
This appliance meets statutory
safety requirements. Inappropriate
use could however lead to risk of ac-
cidents to the user and damage to
the appliance.
Read the operating instructions be-
fore using this machine for the first
time. They contain important infor-
mation about the safety, use and
maintenance of the machine. This
will avoid the risk of accidents and
damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Appropriate use of the cooker
hood
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held re-
sponsible for any damage caused by
improper use or by non-observance of
these instructions.
Technical safety
Before connecting the cooker
hood to the mains supply make
sure that the voltage and frequency de-
tails given on the data plate corre-
spond with the on-site electricity sup-
ply. If in doubt consult a qualified
electrician.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system. (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety.
Repairs and other work by unqualified
persons could be dangerous.
Warning and Safety instructions
4

The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket
and the plug removed, (do not pull on
the cable, only on the plug)
– the mains fuse is withdrawn;
– or the screw-out fuse is removed, (in
countries where this is applicable). En-
sure current is not restored to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance.(e.g.
danger of overheating)
The appliance is not intended for
use by young children or infirm per-
sons without supervision.
Young children should be super-
vised to ensure that they do not
play with the appliance.
Use of the appliance
Never use an open flame beneath
the cooker hood - to avoid the
danger of fire do not flambé or grill
dishes. When switched on the cooker
hood could draw flames into the filter.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood with-
out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the ap-
pliance and hindering its smooth oper-
ation.
Warning and Safety instructions
5

The filters should be regularly
cleaned, or changed, as appropri-
ate.
Saturated filters are a fire hazard.
Some washing-up liquids or dish-
washer detergents may cause the
metal filter to discolour. This discolour-
ation will in no way affect the function
or fitness for use.
Under no circumstances use a
steam cleaner to clean this ap-
pliance.
Pressurised steam could give rise to a
short circuit, or cause permanent dam-
age to the surface and to components,
for which the manufacturer of the
cooker hood cannot accept any respon-
sibility.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surround-
ings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guarantee.
Installation
The distance between the top of
the hob and the bottom of the
cooker hood (when the vapour guide is
completely retracted) must measure at
least:
–45 cm above electric hobs
–65 cm above gas hobs.
Australia / New Zealand:
60 cm for electric and gas hobs.
Only for U.K.: The distance of
65 cm between the cooker hood
and a gas hob is a minimum, which is
only permissible if the nominal heat
ratings given in the table below are not
exceeded:
Gas cooker maximum
nominal rating
one burner 2.7 kW
all burners 7.5 kW
oven 3.5 kW
Gas hob maximum
nominal rating
one burner 3.5 kW
all burners 10.3 kW
Gas hob with ceramic cover plate
The data given for maximum nominal (heat)
ratings do not aply to a gas hob with a ceramic
cover plate. In this case it is essential to refer to
the hob manufacturer’s data.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, take
professional advice.
Warning and Safety instructions
6

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating ap-
pliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into ac-
count.
If in any doubt, the advice of a compe-
tent builder or, for gas, a “Corgi”instal-
ler (gas fitter) must be sought.
only for appliances with external fans
For appliances with an external fan
motor fitted (EXT models) the con-
nection of the two units must be made
using the connection cable and the
plug connectors. Make sure the correct
combination of the two appliances has
been selected.
Disposal of an old machine /
appliance
Before discarding an old machine
or appliance render it useless.
Ensure that disconnection from the
mains supply is carried out by a com-
petent person and that the cable is
also removed from the appliance to
prevent misuse.
The manufacturer cannot be held re-
sponsible for any damage caused
by non-observance of these instruc-
tions.
Warning and Safety instructions
7

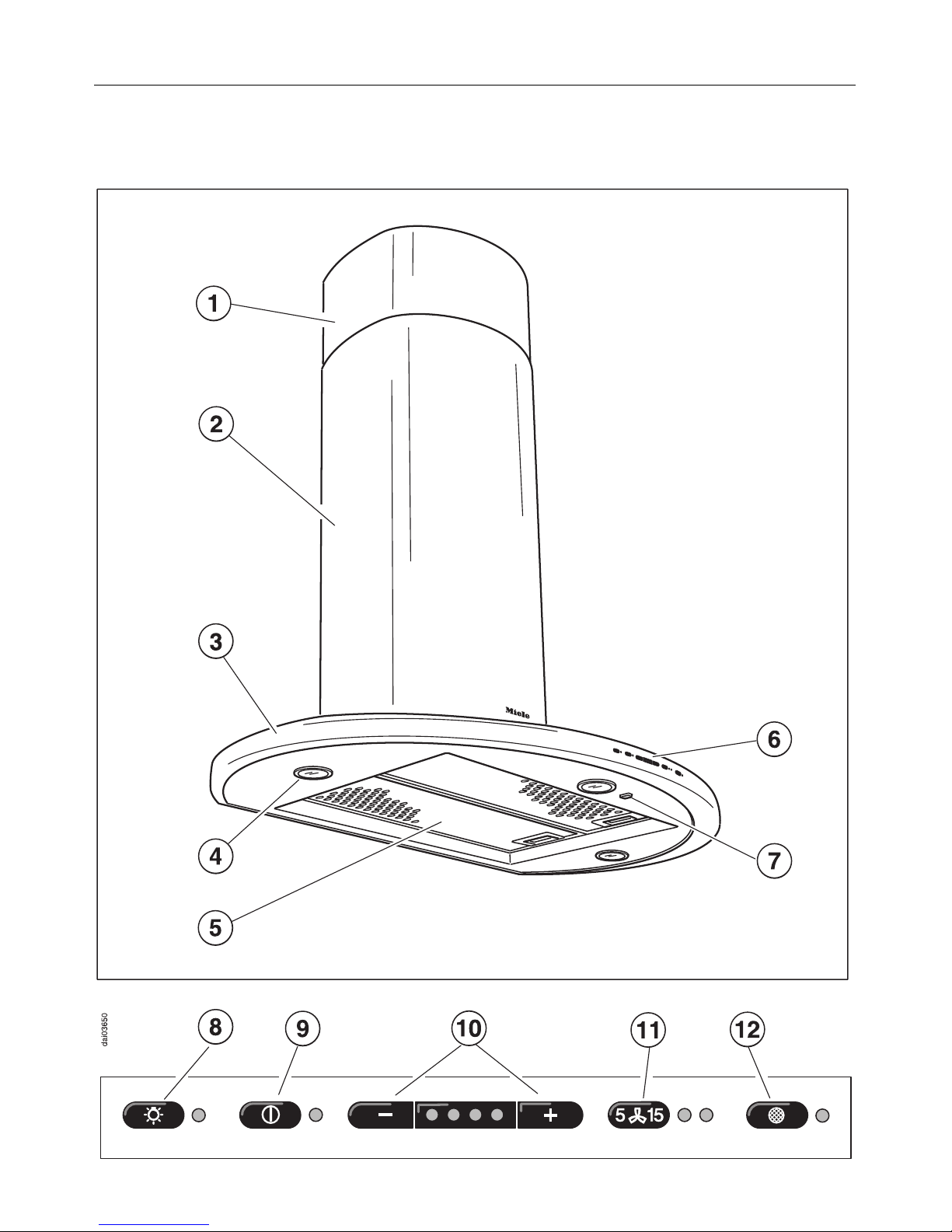

Guide to the appliance
DA 237, DA 237 EXT
DA 239, DA 239 EXT
Guide to the appliance
8

bExtension piece
cChimney piece
dDeflector plate
eHob illumination
DA 237: 2 Halogen lamps
DA 239: 3 Halogen lamps
fGrease filter
gHood controls
hMain switch
If the cooker hood is not in operation
for any length of time (e.gB. at night,
during holidays), switch the appliance
off by pressing the main switch.
iSwitching the
hob illumination on and off
The hob illumination can be switched -
on and off independently of the fan.
jOn/Off -switch
Press this switch to switch the fan onor
off.
k– / + switch
Three fan throughput settings and a
booster setting are available to suit the
intensity of the kitchen vapours.
lDelay switch-off
Press this switch to activate the delay
switch-off. The cooker hood is then
automatically switched off after 5 or 15
minutes.
mGrease filter
The control lamp on the grease filter
switch comes on when the grease fil-
ters need to be cleaned.
This switch can be used
–to display the percentage of opera-
ting hours in which the filter has al-
ready been used in relation to the
time set in the operating hour
counter (see chapter on ,,Operation /
Operating hour counter").
–in conjunction with the delay switch-
off switch to alter the maximum time
for the operating hour counter (see
chapter on ,,Operation / Altering the
operating hour counter").
Guide to the appliance
9

Descripton of the functions
The cooker hood works with
. . . Air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
The cooker hood is fitted with a non-re-
turn flap.
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown di-
rectly outside.
. . . an external fan
The ...EXT models of cooker hoods are
designed to be connected with an ex-
ternal fan.
The external fan is connected to the
cooker hood by means of a control
cable and is operated by the control
panel on the cooker hood.
Descripton of the functions
10

Operation
Main switch
The cooker hood is ready for operation
when the main switch is set to ,,I”. If the
appliance is switched off via the main
switch, when switched on again it auto-
matically operates at the setting se-
lected when the cooker hood was last
used.
Switching on the cooker hood
Press the On/Off switch.
The appropriate control lamp comes
on. The fan operates at setting ,,II".
Switching the hob illumination
on and off
The hob illumination can be switched
on and off independently of the fan.
Press the hob illumination switch.
The control lamp above the switch
comes on when the hob illumination is
on.
Selecting a power setting.
Four fan throughput settings are avail-
able to suit the intensity of the kitchen
vapours.
A low or medium power setting is suffi-
cient for normal use. The booster set-
ting is recommended for strong kitchen
odours.
Wen the main switch is used or after a
power failure, the cooker hood will oper-
ate at the setting selected when the
cooker hood was last used.
Select the required setting by press-
ing the –/+ switches.
–switch = lower setting
+ switch = higher setting
Control lamps indicate which setting
has been selected.
Operation
11

Activating the delay switch-off
If, after cooking, there are still vapours
in the kitchen, the delay switch-off
should be activated.
The cooker hood is then automatically
switched off after 5 or 15 minutes.
Press the delay switch-off switch as
follows:
Press once = 5 minutes
(left-hand control lamp)
Press twice = 15 minutes
(right-hand control lamp)
The respective control lamp comes on
to confirm the selected time.
This function can be deactivated by
pressing the delay switch-off switch
once more.
Switching off the cooker hood
Switch the fan off by pressing the
On/Off switch.
The cooker hood should only be turned
off at the main switch if not in use for a
longer period of time (e.g. at night, dur-
ing holidays).
Safety switch-off
The fan is automatically switched off if
the cooker hood has not been oper-
ated for 10 hours. The hob illumination
stays on.
Press the On/Off switch to reactivate
the fan.
Operation
12

Filter operating hour counter
The operating hour counter of the
grease filter is set at the factory to a
certain number of operating hours. This
time can be altered as required.
When the pre-set time has elapsed, the
control lamp above the grease filter
switch comes on. The grease filter
should then be cleaned.
The operating hour counter must then
be re-set to the time previously se-
lected when the filter was last used.
Press the grease filter switch for ap-
prox. 4 seconds.
The control lamp will go off.
Checking the operating hour counter
The percentage of operating hours in
which the filter has already been used
in relation to the time set in the opera-
ting hour counter can be displayed as
follows:
Switch the fan on using the On/Off
switch.
Press the grease filter switch.
The number of control lamps flashing
on the –/+ switch indicates the percent-
age of operating hours in which the fil-
ter has already been used in relation to
the number set in the operating hour
counter:
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours for
which the filter has already been used
is stored in the event of mains failure.
Operation
13

Altering the operating hour counter
The maximum time for the grease filter
operating hour counter can be altered
to suit individual cooking habits. Set-
tings of 20, 30, 40 or 50 hours are
possible.
Select a short time if your cooking con-
sists of a great deal of frying and deep-
fat frying.
Switch the fan off using the On/Off
switch.
Press the delay switch-off switch and
the grease filter switch simulta-
neously.
The control lamps on the grease filter
and one of the –/+ switches will start
flashing.
Select the required time by pressing
the –/+ switch.
The control lamps on the –/+ switch in-
dicate the time selected:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
Confirm by pressing the grease filter
switch.
If confirmation is not given within
4 minutes after programming, the
appliance automatically adopts the
,,old“data.
Operation
14

Cleaning and care
Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply.
Depending on type of installation
either:
–switch it off at the wall socket and
remove the plug (do not pull on the
cable, only on the plug), or
–withdraw the fuse from the fused
spur connection unit (if accessible),
or
–withdraw the mains fuse, or
–remove the screw out fuse (in
countries where this is applicable).
Casing
The cooker hood casing may be
cleaned using hot water to which a little
mild detergent has been added.
Dry with a soft cloth.
Never use a cleaner which scours
or contains grit, soda, acid or
chloride. This would damage the
surface of the cooker hood.
A mild, non-abrasive stainless-steel
cleaner is suitable for cleaning the ap-
pliance.
Grease filters
The re-usable metal grease filters in the
appliance absorb solid particles
(grease, dust, etc.) from the kitchen va-
pours, thus preventing soiling of the
cooker hood.
At the latest, the grease filters should
be cleaned when the control lamp on
the grease filter switch comes on.
It is recommended that the grease fil-
ters are cleaned every 3 –4 weeks to
prevent grease clogging the filter.
An oversaturated grease filter is a
fire risk.
To release the filters, press the cat-
ches towards the middle of the filter.
Remove the filters.
Cleaning and care
15

Clean the grease filters
–by hand: with a scrubbing brush
in hot water with a mild detergent.
– in a dishwasher: place the
grease filters with the short side up-
right in the lower basket.
Depending on the detergent used,
cleaning the grease filters in a dish-
washer may cause discolouration of
the filter surface.
This has no detrimental effect on fil-
ter performance.
After cleaning, leave the filters to dry
for a while on an absorbent surface.
When removing the filters for clean-
ing, also clean off any residues of
grease or fat from the filter casing to
prevent the risk of these catching fire.
When putting the grease filters back
in position, ensure that the catches
face towards the hob.
Should the grease be put back up-
side down:
Insert a small screwdriver into the
slits to disengage the filters.
Having reinserted the grease filters,
press the grease filter switch for ap-
prox. 4 seconds to re-set the opera-
ting hour counter to the time pre-
viously selected when the filter was
last used.
Cleaning and care
16

Changing a light bulb
Disconnect the cooker hood from
the mains supply by
–withdrawing the fuse from the
fused spur connection unit (if
accessible), or
–withdrawing the mains fuse, or
–removing the screw-out fuse, (in
countries where this is applicable).
When in use the halogen bulbs
become very hot. Do not touch im-
mediately as it remains hot for some
time after being switched off.
Do not touch the bulb surface di-
rectly when changing the bulb as
this will damage it (fat particles ad-
here to the surface). Please follow
the manufacturer’s instructions.
To change the halogen bulb first
remove the outer ring b.
Then detach the circlip ctaking
care that the glass ddoes not fall
out.
The halogen bulb eis fitted to a
push-in connection socket. To re-
place pull out the old bulb and fit a
new one.
Replace the glass dand press the
circlip ccarefully into the holder.
Never use the lighting without the
lamp cover as it has a filter de-
signed to cut out hamful rays.
Now replace the outer ring b.
Cleaning and care
17

After Sales Service
If a problem arises that you cannot
remedy yourself, please contact the
nearest Miele Service Department.
Phone numbers and addresses are
listed on the back cover.
When contacting the Service Depart-
ment, please have the Model and Ser-
ial No. of the appliance available. They
can be found on the data label which is
visible upon removal of the grease fil-
ters.
After Sales Service
18

Electrical connection and Technical data
Electrical connection
General notes
All electrical work should only be under-
taken by a suitably competent person
in strict accordance with national and
local safety regulations.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
The Technical data table (next page)
gives details for each appliance.
The data plate gives the necessary
data for connection. This is visible
when the grease filter has been
removed.
Check that these data correspond with
the voltage and frequency of the on-
site electricity supply.
Only for U.K.: Connection should be
made either by a double pole fused
spur connection unit or a fused plug
and switched socket. The On-Off
switch should be easily accessible
after the appliance has been built in.
Electrical connection U.K., AUS, NZ
The cooker hood is supplied for con-
nection to an a.c. single phase 230 -
240 V, 50 Hz supply.
Important
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.
If the appliance is to be connected via
a plug and socket, please note the fol-
lowing:
As the colours of the wires in the mains
lead of this appliance may not corre-
spond with the coloured markings ident-
ifying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured green and
yellow must be connected to the termi-
nal in the plug which is marked with the
letter E or by the earth symbol zor col-
oured green or green and yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
For U.K.: The wire which is coloured
brown must be connected to the termi-
nal which is marked with the letter L or
coloured red.
For Australia / New Zealand: The wire
which is coloured brown must be con-
nected to the terminal which is marked
with the letter A or coloured red.
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Electrical connection and Technical data
19

Non-rewireable plugs BS 1363
(Only for U.K.)
If this machine or appliance is fitted
with a non-rewireable plug, the follow-
ing information applies:
If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted. The plug cut from the flex-
ible cord should be disposed of, and
on no account be inserted into any
socket elsewhere in the house (electric
shock hazard).
The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.
The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug (as applicable to
the design of plug fitted).
The correct fuse rating of the replace-
ment fuses that are ASTA approved to
BS 1362 should be fitted.
Replacement fuse covers may be pur-
chased from your local electrical sup-
pliers or Service agent.
Technical Data
Rated load
–DA 237 . . . . . . . . . . . . . . . . . . . 225 W
–DA 239 . . . . . . . . . . . . . . . . . . . 245 W
Lighting
–DA 237, DA 237 EXT . . . . . . 2 x 20 W
–DA 239, DA 239 EXT . . . . . . 3 x 20 W
Voltage . . . . . . . . . . . . . . . . 230 - 240 V
Frequency . . . . . . . . . . . . . . . . ~ 50 Hz
Fuse rating (UK) . . . . . . . . . . . . . . 13 A
Fuse rating (IRL) . . . . . . . . . . . . . . 10 A
AUS, NZ:
Plug rating . . . . . . . . . . . . . . . . . . . 10 A
Test marks . . . . . . . . . . Electrical safety
. . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to . . . . . AS/NZS 1044: 1995
Fan power
–Extraction system ø125 mm:
Extraction power according to
DIN 44971
Level 1 –3. . . . . . . . . . . 200 –410 m3/h
IS level. . . . . . . . . . . . . . . . . . 585 m3/h
unrestricted . . . . . . . . . . . . . . . 705 m3/h
DA 237 EXT, DA 239 EXT:
Extraction power depends on the type
of fan connected.
Electrical connection and Technical data
20
