Miele DA 210-3 User manual

Operating and installation instructions
Ventilation System
DA 210-3
DA 220-3
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
05 853 490
M.-Nr.

IMPORTANT SAFETY INSTRUCTIONS
Guide to the appliance
DA 210-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DA 220-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Functional de cription
Operation
Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Automatic Safety Shut Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grease filter timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Checking the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reprogramming the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

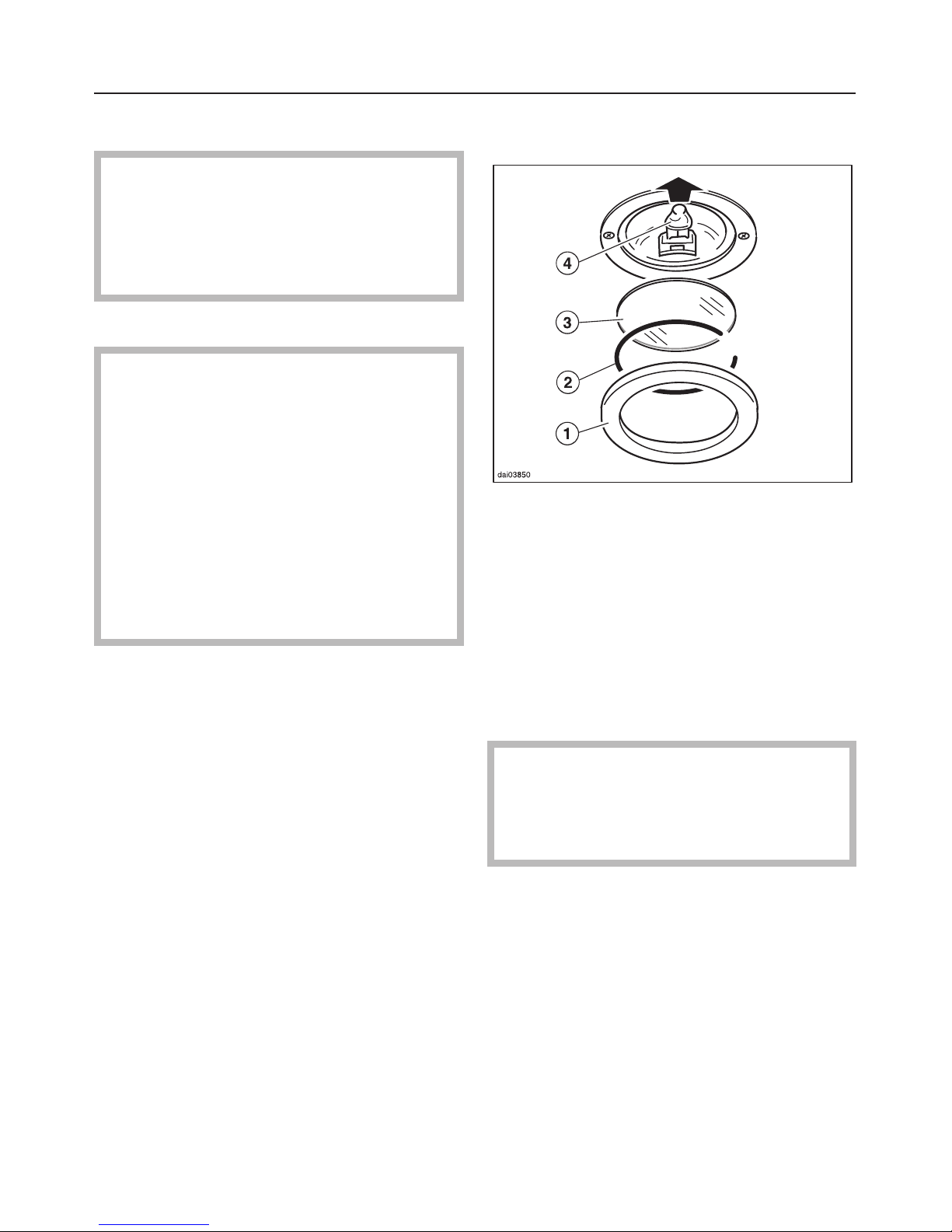

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After Sale Service
In tallation in truction
Table of Content
2

Read the e Operating In truction carefully before in talling or
u ing the Ventilation Sy tem.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
READ AND SAVE THESE
INSTRUCTIONS
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
This appliance is designed to vent
cooking smoke and odors only.
Be certain your appliance is prop-
erly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
can not be held responsible for
damages caused by the lack, or
inadequacy of, an effective grounding
system.
Before connecting the appliance to
the power supply make sure that
the voltage and frequency listed on the
data plate correspond with the house-
hold electrical supply. This data must
correspond to prevent machine
damage. Consult a qualified electrician
if in doubt.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
3

This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or air-
craft. However, under certain conditions
it may be possible for an installation in
these applications. Please contact the
nearest Miele dealer or the Miele Tech-
nical Service Department with specific
requirements.
Before servicing or cleaning the
unit, switch power off at the service
panel and lock the service disconnect-
ing means to prevent power from being
switched on accidentally. When the
service disconnecting means can not
be locked, securely fasten a prominent
warning device, such as a tag, to the
service panel.
Before discarding an old
appliance, unplug it from the
power supply and remove the power
cord and any doors to prevent hazards.
U e
Do not allow children to play with
or operate the appliance or its
controls. Supervise its use by the
elderly or infirm.
Be careful when preparing a
flambé beneath the hood.
Flames may be drawn up into the hood
by the suction or grease filters may
catch fire.
Never operate gas burners without
pots.
Do not leave cooking surfaces
unattended while in use. Over-
heated food, oil and grease can catch
fire.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could
penetrate electrical components and
cause a short circuit.
In areas subject to infestation by
cockroaches or other pest, keep
the appliance and its surroundings
clean at all times. Any damage caused
by cockroaches or other pest will not
be covered under warranty.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING - TO REDUCE
THE RISK OF A RANGE TOP
GREASE FIRE:
Never leave surface units unat-
tended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
Always turn hood "ON" when cook-
ing at high heat or when cooking
flaming foods.
Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on fan or filter.
Use proper pan size. Always use
cookware appropriate for the size
of the surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal
tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING
PAN - You may be burned.
DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
Use an extinguisher
ONLY IF:
– You know you have a Class ABC
extinguisher, and you already know
how to operate it.
–The fire is small and contained in the
area where it started.
–The fire department is being called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
5

In tallation
,WARNING
To reduce the ri k of fire, only
u e metal ductwork.
When installing the hood, follow the
recommended minimum safety dis-
tances between a Miele cooktop and
the hood:
–22" (55 cm) above electric cooktops,
–26" (65 cm) above gas cooktops,
–26" (65 cm) above an open grill.
If local building codes require a greater
safety distance, follow their require-
ment.
For non-Miele cooking appliances
maintain the safety distances recom-
mended by the appliance manufacturer
in their installation and operating
instructions.
If there is more than one appliance
beneath the hood and they have differ-
ent minimum safety distances always
select the greater distance.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Do not install this hood over
cooktops burning solid fuel.
Any fittings, sealant, or materials
used to install the ductwork must
be made of approved non-flammable
materials.
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
Ducted fans must always be
vented outdoors.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric heat-
ing appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the heat-
ing manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
6

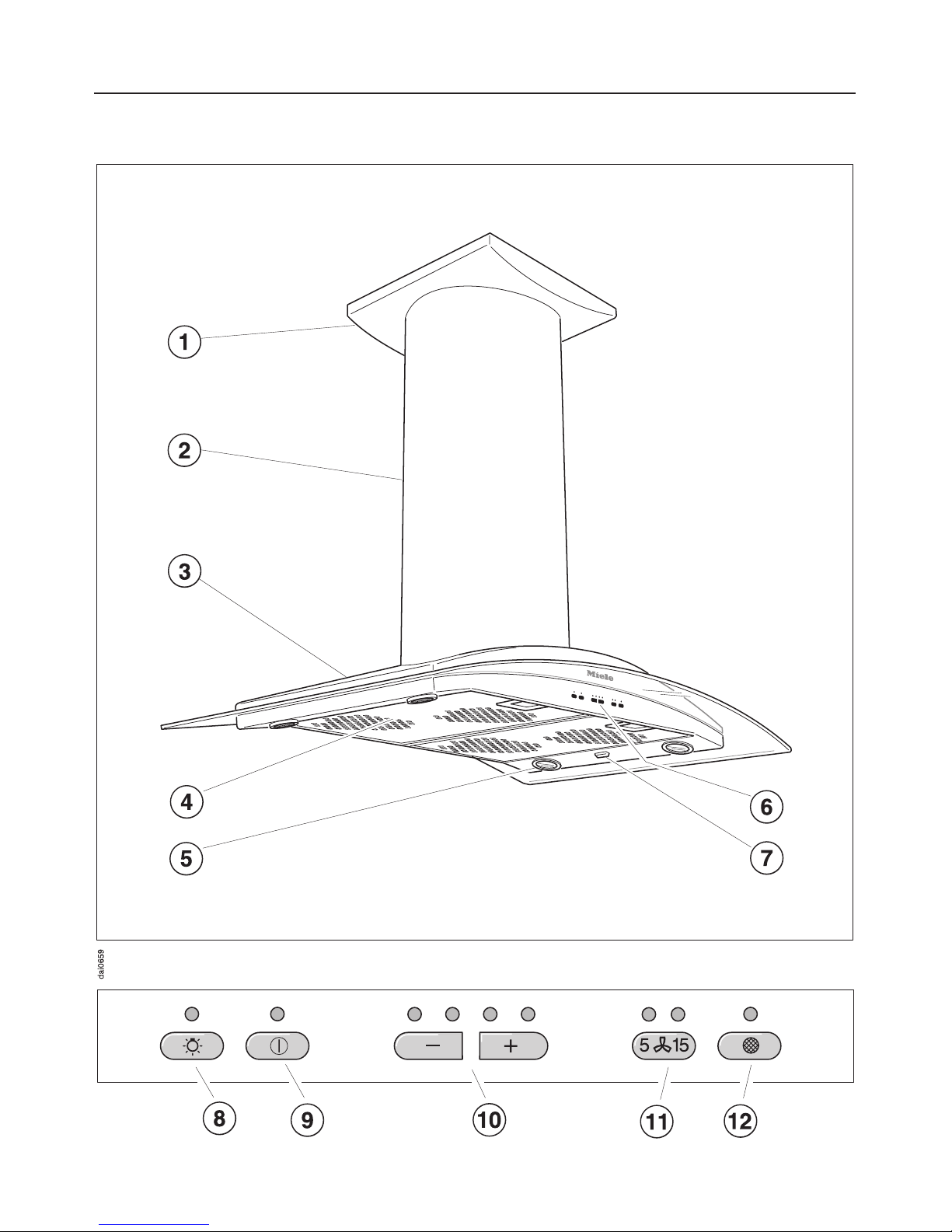

DA 210-2
Guide to the appliance
7

DA 220-2
Guide to the appliance
8

aCover plate
bChimney
cCanopy
dGrea e filter
eOverhead lighting
fControl panel
gMain power witch
hLight button
This button turns the light on and off
and also dims the light.
The lighting can be used independently
of the fan.
iOn/Off button
jFan power level button
Four fan speed selection.
kDelayed Shut Down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
lGrea e filter button
The indicator above to the grease filter
button lights when the grease filters
need to be cleaned.
This button is also used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filter
has been in use (see "Operation /
Grease filter timer").
–to change the number of hours
counted by the grease filter timer
(see "Operation / Reprogramming the
grease filter timer").
Guide to the appliance
9

The ventilation hood works by air ex-
traction. The air is drawn in and
cleaned by the grease filters and di-
rected outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the ex-
haust fan automatically opens the flap
blowing the inside air and cooking
odors outside.
Functional de cription
10

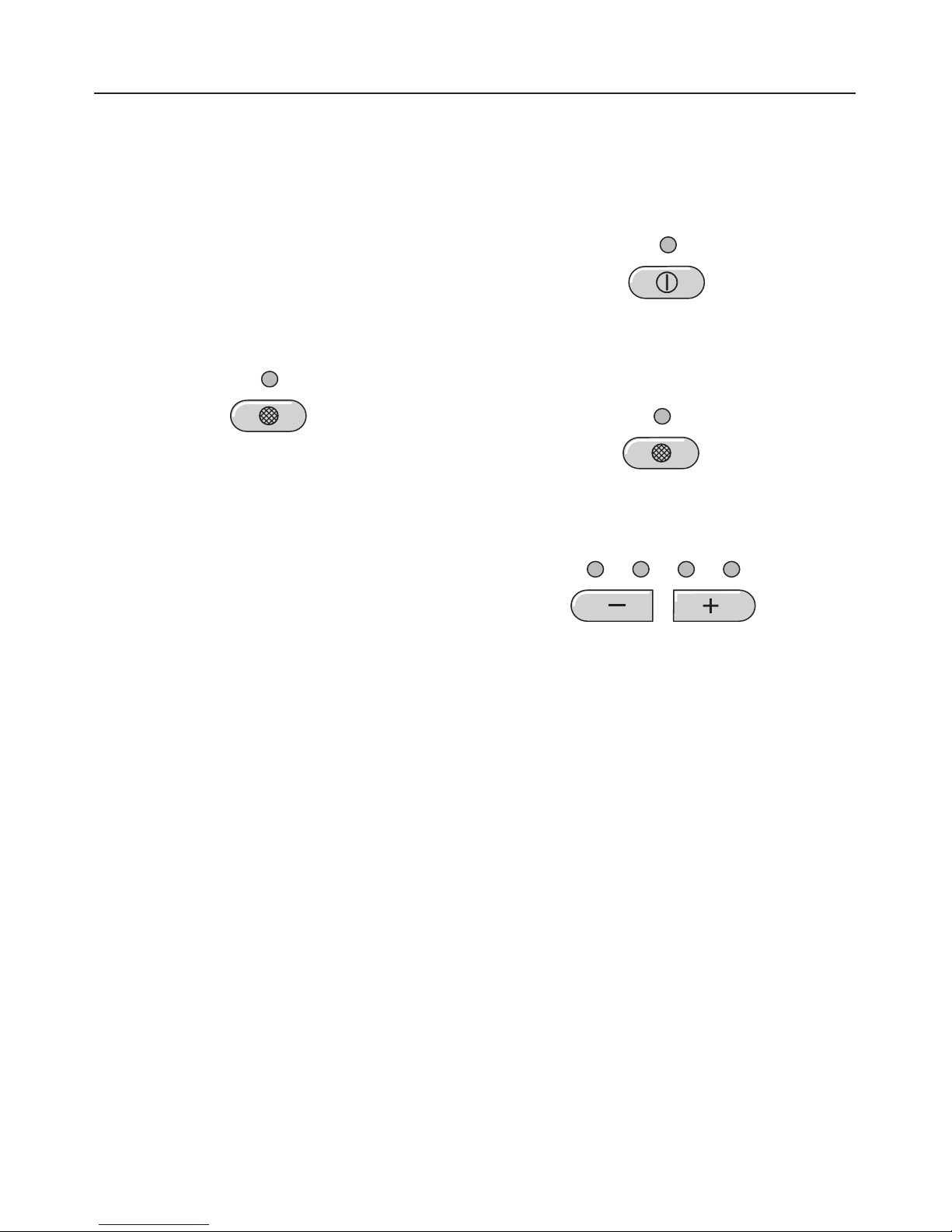

Main power witch
Press the main power switch to "I". The
fan and the lighting can now be oper-
ated.
If the appliance is not going to be used
for a long period of time (e.g. while va-
cationing) turn the appliance off by
pressing the main power switch to "0".
The next time it is turned on, the hood
will operate at the level previously used.
Turning on the fan
^Press the On/Off button.
The fan runs at power level "2".
The On/Off indicator lights.
Selecting the power level
^Use the _buttons to select the
desired power level.
&=increases the fan speed
$=decreases the fan speed
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Inten ive etting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be se-
lected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the Delayed Shut Down fea-
ture press the button again.
Operation
11

Turning off the fan
^Press the On/Off button to turn the
fan off.
The indicator goes out.
Automatic Safety Shut Off
The fan will turn off automatically
10 hours after the last button was acti-
vated. The lighting however will remain
on.
^Press the On/Off button to turn the
fan back on again.
Turning the lighting on/off
The overhead lighting can be turned on
and off independently of the fan.
^Press the light button briefly to turn
on the lighting.
The light button indicator illuminates.
^Press the light button briefly again to
turn off the lighting.
The light button indicator will go out.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
the light button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
^Press the light button again to turn off
the lighting.
Operation
12

Grea e filter timer
A timer monitors the hours of fan opera-
tion. The indicator for the grease filter
will light after 30 hours of operation. The
grease filters must then be cleaned.
After the grease filters have been
cleaned and put in place, the grease fil-
ter timer must be reset.
^To do this, press the grease filter but-
ton for about 3 seconds.
The indicator will go out.
Checking the grea e filter timer
To check the percentage of time al-
ready used:
^Press the On/Off button to turn the
fan on.
^Press the grease filter button.
The number of flashing _indicators
show the percentage of programmed
hours that have been used.
1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
13

Reprogramming the grea e filter
timer
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40 or 50 hours.
–A time of 20 hours should be pro-
grammed in kitchens with frequent
pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally. Otherwise grease
which has accumulated over a long
period of time will harden on the fil-
ters making cleaning more difficult.
^Press the On/Off button to turn off the
fan.
^Press the Delayed Shut Down and
grease filter buttons at the same time.
The indicator for the grease filter and
one of the _indicators will flash.
The lit _indicator shows the pro-
grammed time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours.
^Use the $or &button to select the
desired time.
^Store the selection by pressing the
grease filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
14

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet or man-
ually "tripping" the circuit breaker.
Cleaning the ca ing
,Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with warm water and liq-
uid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
^Glass surfaces can be cleaned using
glass cleaner.
Avoid:
–cleaning agents containing soda, ac-
ids or chlorides,
–abrasive cleaning agents e.g. pow-
der or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been previ-
ously used with abrasive cleaning
agents.
These will damage the surface.
Stainle teel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Stainle teel colored control
These controls may become discol-
ored or damaged if not cleaned reg-
ularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and care
15

Grea e filter
The reusable metal grease filters re-
move solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every 3-4 weeks or whenever the
grease filter timer indicator lights.
A dirty filter is a fire hazard.
^To remove the grease filters press the
locking clips in towards the middle of
the filter. Holding carefully, lower and
remove the filter.
^Clean the filters
-by hand: use a scrub brush in
warm water with a mild detergent.
-in a di hwa her: place the filters in
the lower basket, making sure that
the spray arm is not blocked.
Depending on the detergent, clean-
ing the grease filters in a dishwasher
may cause permanent discoloration
of the filter surface. Performance of
the filter will not be affected by this
discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter cas-
ing to prevent the risk of fire.
When putting the grease filters back
make sure that the locking clips are vis-
ible facing down towards the cooking
surface.
If the filters are incorrectly installed, in-
sert a small screwdriver into the slit
along its edge to disengage it from the
casing.
^After returning the grease filters,
press the grease filter button for
3 seconds to reset the timer. The indi-
cator light will go out.
^If the grease filters are cleaned be-
fore the timer has reached its maxi-
mum, the grease filter button should
be pressed for 6 seconds to reset the
counter to zero.
Cleaning and care
16

Changing the light bulb
Before changing the light bulbs, dis-
connect the hood from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
When in use halogen bulbs become
extremely hot, and they can burn
your hands. Do not attempt to
change the bulbs until they have
had sufficient time to cool down.
Do not touch the bulb surface. Fin-
gerprints or body oils deposited on
the bulb will decrease the life of the
bulb. Please follow the bulb manu-
facturer’s instructions.
To change a bulb:
^Remove the outer ring, a.
^Support the glass, c, while detach-
ing the circlip, b. Be careful not to let
the glass fall out.
^Pull the old bulb, d, out of its socket
and replace it with a new one.
^Reinstall the glass, circlip and outer
ring.
Never use the lights without the
glass, c, installed. The glass is spe-
cially made to filter harmful light
rays.
Cleaning and care
17

In the event of a fault which you cannot
correct yourself please contact:
–Your Miele Dealer
or
–The Miele Technical Service
Department
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance.
These are shown on the data plate
which is visible when the grease filter is
removed.
After Sale Service
18

Installation instructions

Caring for the environment
Structural upport
Electrical data
Appliance dimen ion
DA 210-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DA 220-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
In tallation
Air extraction
20
Table of Content
