Miele DA 390-6 User manual

Operating and Installation Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 09 968 400

Contents
2
IMPORTANT SAFETY INSTRUCTIONS................................................................. 3
Caring for the environment ................................................................................. 12

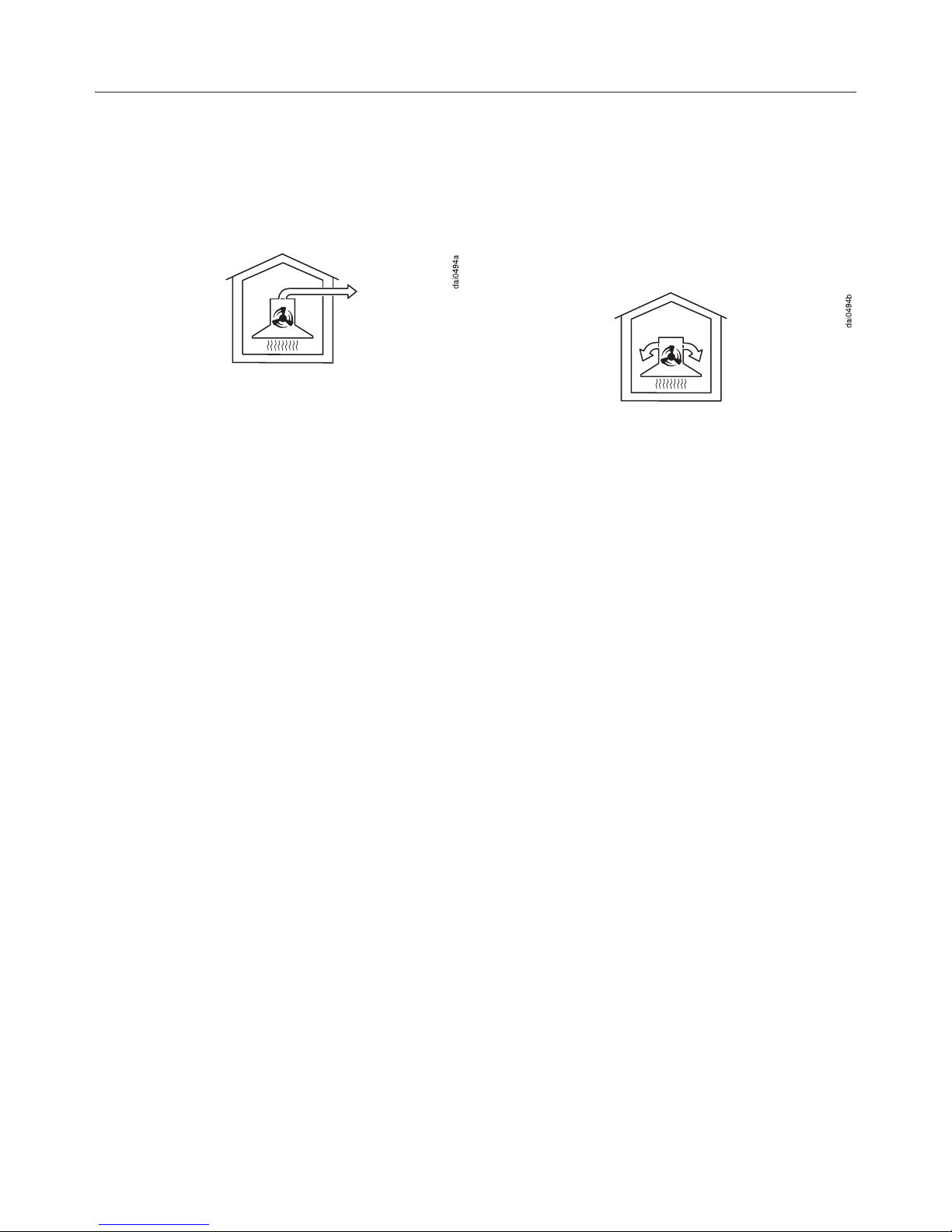

Description of functions...................................................................................... 13

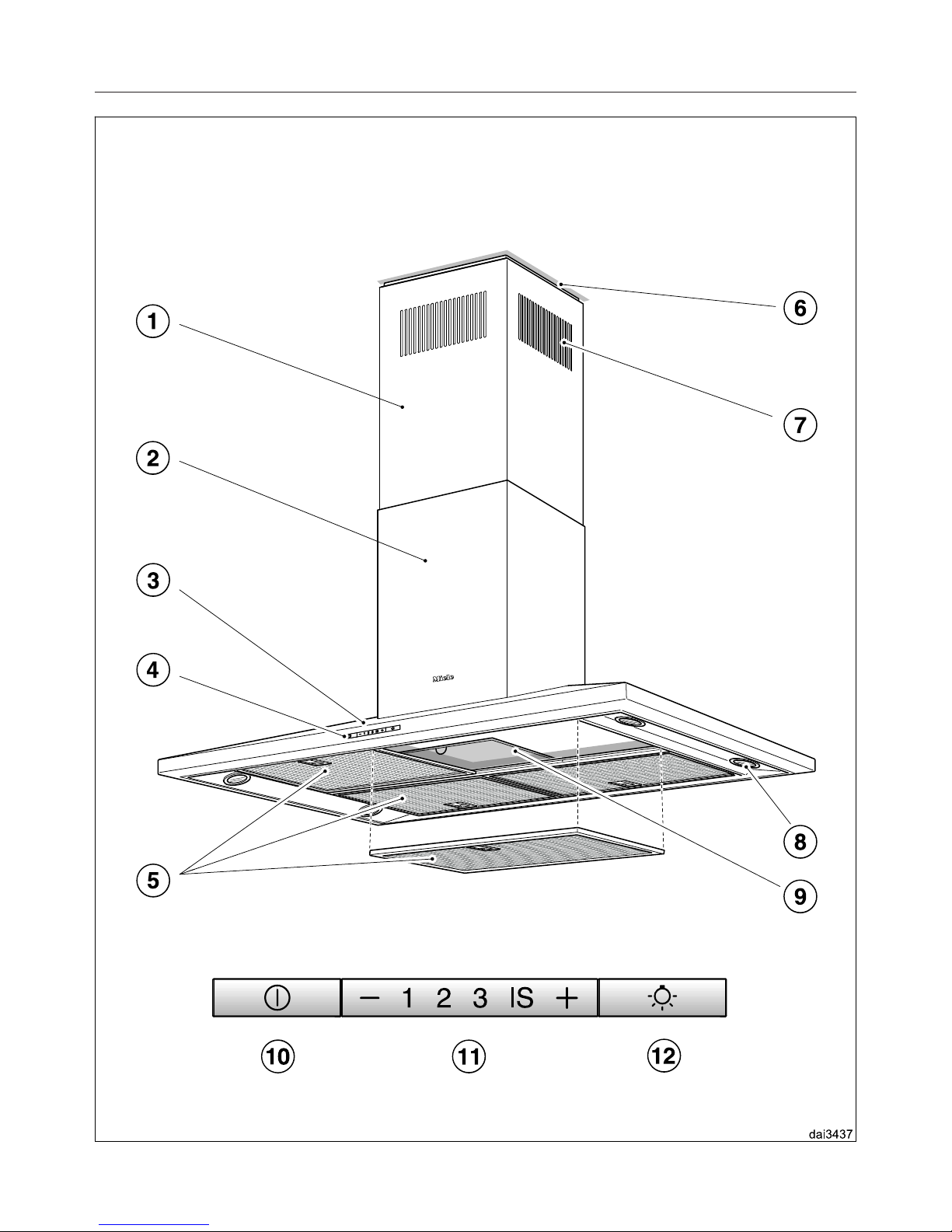

Guide to the appliance......................................................................................... 14
Operation .............................................................................................................. 16
Turning on the fan .................................................................................................. 16
Selecting the power level....................................................................................... 16
Turning off the fan.................................................................................................. 17
Turning cooktop lighting On/Off............................................................................. 17
Automatic safety shut-down.................................................................................. 17
Cleaning and care................................................................................................ 18
Stainless steel housing .......................................................................................... 18
Grease filters.......................................................................................................... 19
OdorFree Charcoal Filter........................................................................................ 21
Disposing of the OdorFree Charcoal Filter........................................................ 21
Changing a halogen lamp...................................................................................... 22
Installation ............................................................................................................ 23
Before installation .................................................................................................. 23
Installation parts..................................................................................................... 23
Appliance dimensions............................................................................................ 24
Distance between cooktop and ventilation hood (S) ............................................. 25
Installation recommendations................................................................................ 26
Structural support .................................................................................................. 26
Removing the protective film ................................................................................. 26
Exhaust duct......................................................................................................... 38
Condensate trap .................................................................................................... 39
Electrical connection........................................................................................... 40
Grounding Instructions .......................................................................................... 40
Service and warranty........................................................................................... 41
Location of the data plate ...................................................................................... 41
Technical data ..................................................................................................... 42

IMPORTANT SAFETY INSTRUCTIONS
3
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for
the first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Use
 CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
 This appliance is intended for residential use only. Use only as
described in these operating instructions.
 This ventilation hood is designed for domestic use and for use in
similar residential environments.
 This ventilation hood is not intended for outdoor use.
 It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
 This appliance is suitable for installation above gas or electric
cooking surfaces.
 Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.

IMPORTANT SAFETY INSTRUCTIONS
4
Children
 As with any appliance, close supervision is necessary when used
by children.
 Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Technical safety
 WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at
the service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
 Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
 A damaged ventilation hood oven can be dangerous. Always
check for visible signs of damage. Never use a damaged ventilation
hood.
 Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.

IMPORTANT SAFETY INSTRUCTIONS
5
 To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance. When in doubt, consult a qualified electrician.
 Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
 To ensure safe operation, only use the ventilation hood after it has
been properly installed.
 This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
 Only open the housing as described in the enclosed "Installation
diagram" and in the "Cleaning and care" section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
 Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
 During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
removed.
– The power cable (if present) has been unplugged from the socket
(pull the plug not the cord).

IMPORTANT SAFETY INSTRUCTIONS
6
Proper use
 WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers may ignite. Heat
oils slowly on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
 Never use an open flame beneath the ventilation hood.
To avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.

IMPORTANT SAFETY INSTRUCTIONS
7
 WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
 The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
cookware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
 Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.

IMPORTANT SAFETY INSTRUCTIONS
8
 Overheated oils and fats can ignite and set the ventilation hood
on fire.
When cooking with oils or fats, do not leave pots, pans or fryers
unattended. Never leave an electric grill unattended when grilling.
 Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
 A filter containing too much grease is a fire hazard!
The filters should be cleaned or replaced at regular intervals.
 Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.

IMPORTANT SAFETY INSTRUCTIONS
9
Proper installation
 WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of
gases through the flue (chimney of fuel burning equipment to
prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA) and
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
 To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
 Safety regulations prohibit the installation of a ventilation hood
above solid fuel stoves.
 Insufficient distance between the cooking appliance and the
ventilation hood can result in damage to the hood.
The minimum safety distances between the appliance and the
bottom of the ventilation hood specified in the "Installation" section
must be maintained, unless the appliance's manufacturer has
indicated that a greater distance is required.
If more than one cooking appliance is used beneath the ventilation
hood, and if different minimum safety distances apply for these
appliances, you should use the greater distance.

IMPORTANT SAFETY INSTRUCTIONS
10
 Be sure to observe the information contained in the "Installation"
section when mounting the ventilation hood.
 Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
 When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
 Exhaust air should not be vented into a chimney or vent flue
which is otherwise in use and should not be channeled into ducting
which ventilates rooms with fuel-burning installations.
 If exhaust air is to be extracted into a chimney or vent flue no
longer used for other purposes, be sure to comply with all applicable
regulations.
 WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.

IMPORTANT SAFETY INSTRUCTIONS
11
Cleaning and care
 Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
 Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.

Caring for the environment
12
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.

Description of functions
13
The following functions are available on
your ventilation hood, depending on the
model:
Vented mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Non-return flap
A non-return flap in the ducting
prevents the exchange of inside and
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
A non-return flap has been provided
with the hood in case your ducting
does not have one. It is inserted into
the outlet duct collar of the fan.
Recirculation mode
The recirculation mode requires a
recirculation kit and OdorFree Charcoal
Filter (available as optional accessories,
see "Technical Data" for more
information)
The air is drawn in and first cleaned by
the grease filters and then by an
OdorFree Charcoal Filter. The cleaned
air is then recirculated back into the
kitchen.

Guide to the appliance
14

Guide to the appliance
15
aTelescopic chimney
bChimney
cCanopy
dControl panel
eGrease filter
fSpacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The ventilation hood can be installed with or without the spacer frame.
gRecirculation vent
(only for recirculation mode)
hCooktop lighting
iOdorFree Charcoal Filter
Optional accessory for recirculation mode
jOn/Off button for fan
kButtons for setting the fan power
lButton for cooktop lighting

Operation
16
Turning on the fan
Press the On/Off button .
The fan turns on at level 2. The 
symbol and 2will light up in the fan
level display.
Selecting the power level
Power levels 1to 3can be used for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g. during searing, select the IS level
as an intensive setting.
Press the "" button for a lower
power level or the "" button to
select a higher level.
Automatically switching back
from the intensive level (IS)
The intensive level can be programmed
to switch back to level 3automatically
after 10 minutes.
To do so, turn off the fan and the
cooktop lighting.
Press the and buttons at the
same time for approx. 10 seconds,
until 1lights up.
Then, press the following buttons in
order:
– The lighting button ,
– Followed by the button and then
– The lighting button again.
If automatic switch-off is not activated,
the 1and IS displays will flash.
To activate it, press the button.
If 1and IS are lit up, automatic switch-
off is activated.
To deactivate it, press the button.
Use the On/Off control to confirm
your choice of setting.
If you do not confirm within 4
minutes, the hood will revert to the
old setting.

Operation
17
Turning off the fan
Press the On/Off button to turn the
fan off.
The symbol will go out.
Turning cooktop lighting
On/Off
The cooktop lighting can be turned on
and off separately from the fan.
To do so, press the button.
The symbol is lit when the cooktop
lighting is turned on.
Automatic safety shut-down
Should the hood be left on, the fan will
switch off automatically after 10 hours.
The lighting will remain on.
Pressing the On/Off button will
switch the fan back on again.

Cleaning and care
18
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "IMPORTANT SAFETY
INSTRUCTIONS".
Stainless steel housing
General
The surfaces and control buttons are
susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control
buttons using warm water and liquid
dish soap only, applying the mixture
with a sponge cloth.
Make sure that no water gets into
the interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive cleaners such as scouring
powder, scouring liquid, abrasive
sponges such as pot scourers, or
used sponges that still contain
residues from abrasive cleaners
Special instructions for stainless
steel surfaces
(does not apply to control buttons)
Stainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner, available from
Miele.
To prevent the surfaces from quickly
becoming dirty again, we
recommend treating them with a
stainless steel care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Special instructions for RAL color
finish housing
(special order)
Observe the general cleaning
instructions contained in this chapter.
Minor scratches on the surface are
inevitable when cleaning the housing.
Depending on the lighting in the
kitchen, this may negatively affect the
appliance's appearance.

Cleaning and care
19
Special instructions for control
buttons
Do not leave dirt and debris on the
buttons for any length of time.
Otherwise they may become
discolored or damaged.
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
to clean the control buttons.
Grease filters
The reusable metal grease filters in the
appliance remove the solid particles
contained in kitchen vapors (fat, dust,
etc.), thereby preventing the ventilation
hood from becoming dirty.
A dirty filter is a fire hazard!
Cleaning intervals
Over longer periods of time, fat buildup
on the grease filter hardens and makes
cleaning more difficult. Therefore, we
recommend cleaning the grease filters
once every 3-4 weeks.
Removing the grease filters
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and to the cooktop.
Make sure you hold the filter
securely at all times when handling
it.
To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.

Cleaning and care
20
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degreaser sprays
– Oven sprays
Cleaning the grease filters in the
dishwasher
Place the filters as upright or inclined
as possible in the lower basket.
Ensure that the spray arm is not
obstructed.
Use a common household
dishwasher detergent.
Select a program with a wash
temperature between 122°F (50°C)
and 149°F (65°C). In a Miele
dishwasher use the "Normal"
program.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the filters
in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Reinstall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.
If the filters have been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
