Miele DA 5330 D User manual

Operating and installation instructions
Cooker hood
DA 5330 D
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time.
GiWOZ
M.-Nr. 07 054 700

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mode of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To switch a fan on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To select a power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Run-on option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To switch the fan off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To switch the hob lighting on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
To dim the hob lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
To switch the hob lighting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing a halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety distance between hob and cooker hood. . . . . . . . . . . . . . . . . . . . . . . . 22
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Operation with Control module SM 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connection to a window contact switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Potential free connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connection to a light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents
2

isposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
isposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. If connected by a
plug, the plug must be rendered
useless and the cable cut off directly
behind the appliance to prevent
misuse.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct usage
This appliance is intended for
domestic use only.
The manufacturer cannot be held liable
for damage caused by improper or
incorrect use of the appliance.
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
This appliance is only intended for
use by adults who have read these
instructions.
This appliance is not a toy! To
avoid the risk of injury, keep
children well away, and do not allow
them to play with it or to use the
controls. They will not understand the
potential dangers posed by it. They
should be supervised whenever you
are working in the kitchen.
Older children may use the
appliance only when its operation
has been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
Please be aware that on
appliances with halogen lighting,
the lamps will get very hot during use
and remain hot for some time after
switching off. To safeguard against
burning, keep children well away from
the lamps at all times.
Technical safety
Before installation, check the
cooker hood for visible signs of
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance is dangerous.
Warning and Safety instructions
4

Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency details given
on the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
For safety reasons, this appliance
may only be used when it has been
fully installed.
Only open the housing as
described in the instructions given
in the installation sheet. Under no
circumstances should any other parts
of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Installation, maintenance and
repairs may only be carried out by
a Miele authorised person in
accordance with current national and
local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
During installation, maintenance
and repair work, the appliance
must be disconnected from the mains
electricity supply. It is only completely
isolated from the electricity supply
when:
–it is switched off at the isolator,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug withdrawn,
–the fuse from the fused spur
connection unit is withdrawn, or
–the mains fuse is withdrawn.
–Please note that this appliance has
two electrical connections and both
have to be disconnected for cleaning
and maintenance work.
Warning and Safety instructions
5

Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
Great care should be taken when
using the cooker hood at the same
time and in the same room or area of
the house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the extractor can only
be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
"Corgi" installer, must be sought.
One of the following technical
measures may be necessary to ensure
safe operation.
–If the only way of ensuring adequate
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders' merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The Miele DSM 400 control module
offers the possibility of combining other
components with the cooker hood (see
"Operation with Control module DSM
400").
It is available to purchase as an
optional extra.
If in any doubt, the advice of a
competent builder or, for gas, a "Corgi"
installer, must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire, do not flambé or grill
over an open flame under the cooker
hood. When switched on, the cooker
hood could draw flames into the filter.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob, ensure that any burners
in use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can
ignite and could set the cooker hood on
fire.
Do not use the cooker hood without
the filters in place. This way you
will avoid the risk of grease and dirt
getting into the appliance and
hindering its smooth operation.
The filters should be regularly
cleaned or changed as
appropriate. Saturated filters are a fire
hazard. See "Cleaning and care".
Do not use a steam-cleaner to
clean this appliance. Pressurised
steam could reach the electrical
components and cause a short circuit.
Correct installation
The minimum safety distances
between the top of a cooker or hob
and the bottom of the cooker hood are
as follows, unless a greater distance is
specified by the manufacturer of your
cooking appliance:
– 550 mm above electric hobs
and cookers,
–650 mm above gas hobs and
cookers,
–650 mm above an open grill or deep
fat fryer.
If more than one appliance is fitted
beneath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the greater
distance.
Warning and Safety instructions
8

Safety regulations prohibit the
fitting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
The appliance must not be
connected to a chimney or vent
flue which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
Accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims may be invalidated.
isposal of your old appliance
Before disposing of an old
appliance, first make it unusable.
This should be done by a competent
person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

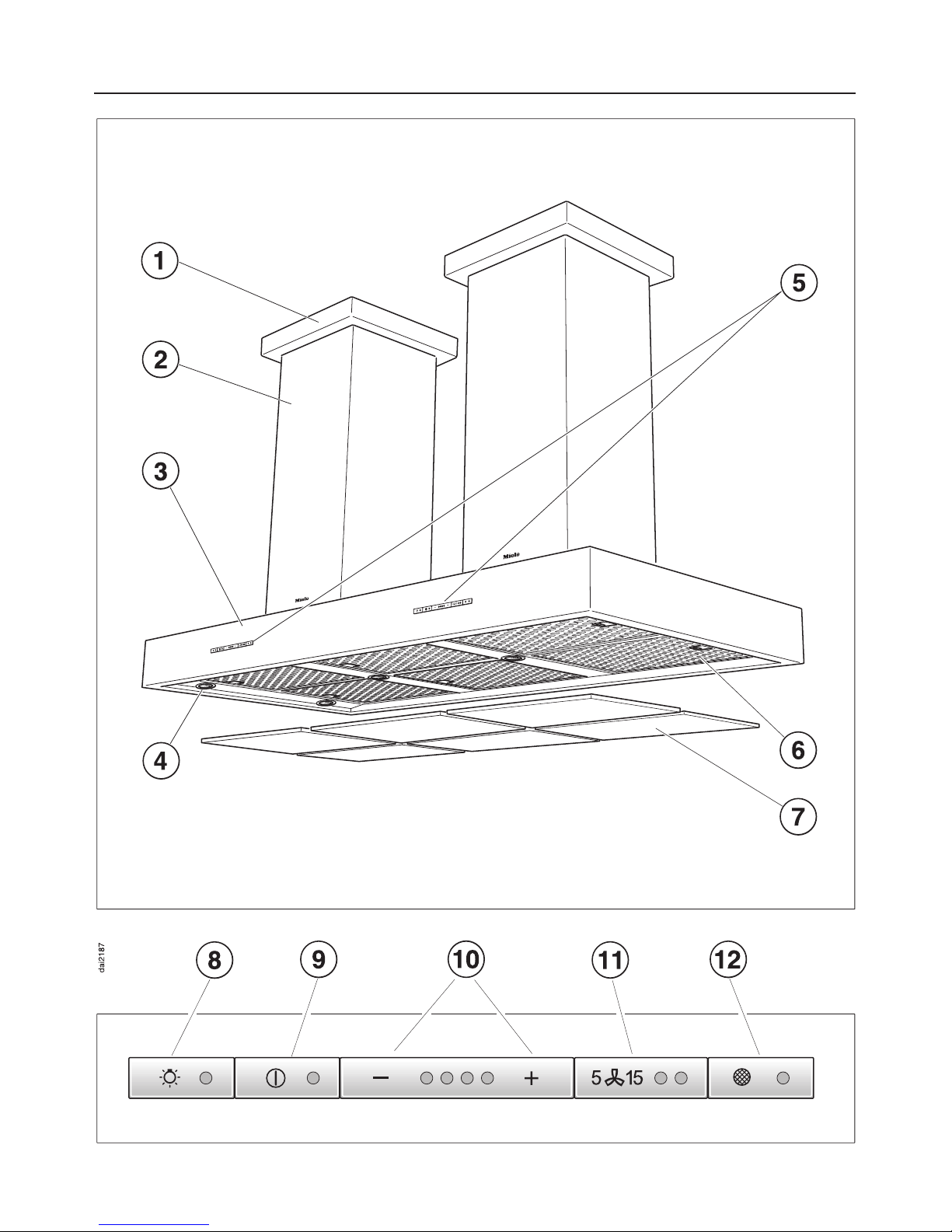

Guide to the appliance
10

aCover plate
bTower
cCanopy
dHob lighting
eControls
The two sides of the cooker hood can
be operated independently of one
another.
fGrease filters
gCover panels Miele DDI 5330
(optional accessory)
One set contains 6 cover panels
hTouch control for the
hob lighting
This control switches the lighting on
and off, and is also a dimmer switch.
iOn/Off touch control for the fan
jTouch controls to select fan
power level
kTouch control for the run-on option
To activate the run-on option. The fan
can be set to continue running, and to
switch off automatically after either 5 or
15 minutes.
lTouch control for the
grease filters
The indicator lamp for the grease filters
lights up when the grease filters need
to be cleaned.
The touch control is used to reset the
operating hours counter every time the
grease filters are cleaned (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Guide to the appliance
11

The cooker hood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filters and directed outside.
The cooker hood is fitted with a
non-return flap in each of the towers.
These close closed when the cooker
hood is switched off. No exchange of
room air and outside air can take place.
When the cooker hood is switched on,
the non-return flaps open for the cooking
vapours to be blown directly outside.
Mode of operation
12

The two sides of the cooker hood can
be operated independently of one
another.
To switch a fan on
^Press the On/Off control.
The fan runs at power level "II".
The indicator lamp will come on.
If the cooker hood has been
connected to a window contact
switch via two Miele DSM 400
control modules, then the fans
cannot be switched on if the window
is shut. The indicator lamps will
flash.
To select a power level
^Use the –/+controls to select the
power level required.
+control = higher setting
–control = lower setting
Depending on the intensity of cooking
vapours, levels "I" to "III" (green
indicator lamps) are usually sufficient
for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting, level IV (yellow
indicator lamp), for a short period.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and the
hob lighting must be switched off.
^Press the run-on option control for
approx. 10 seconds. The first fan
power setting indicator will light up.
^Then press in turn,
–the hob lighting control,
–the –control, and
–the hob lighting control again.
Operation
13

The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^Press the +control to activate auto-
matic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –control to deactivate the
automatic switch-off function.
^Press the run-on option control to
confirm your selection.
If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the "old" setting.
Run-on option
It is advisable to leave the fan running
for a few minutes after cooking has
finished to neutralise any lingering
odours in the air.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
^After cooking has finished, press the
run-on option control whilst the fan is
still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
To switch off the run-on option, press
the run-on option control again. The
appliance will then not switch off
automatically.
To switch the fan off
^Press the On/Off control to switch the
fan off.
The indicator lamp will go out.
Operation
14

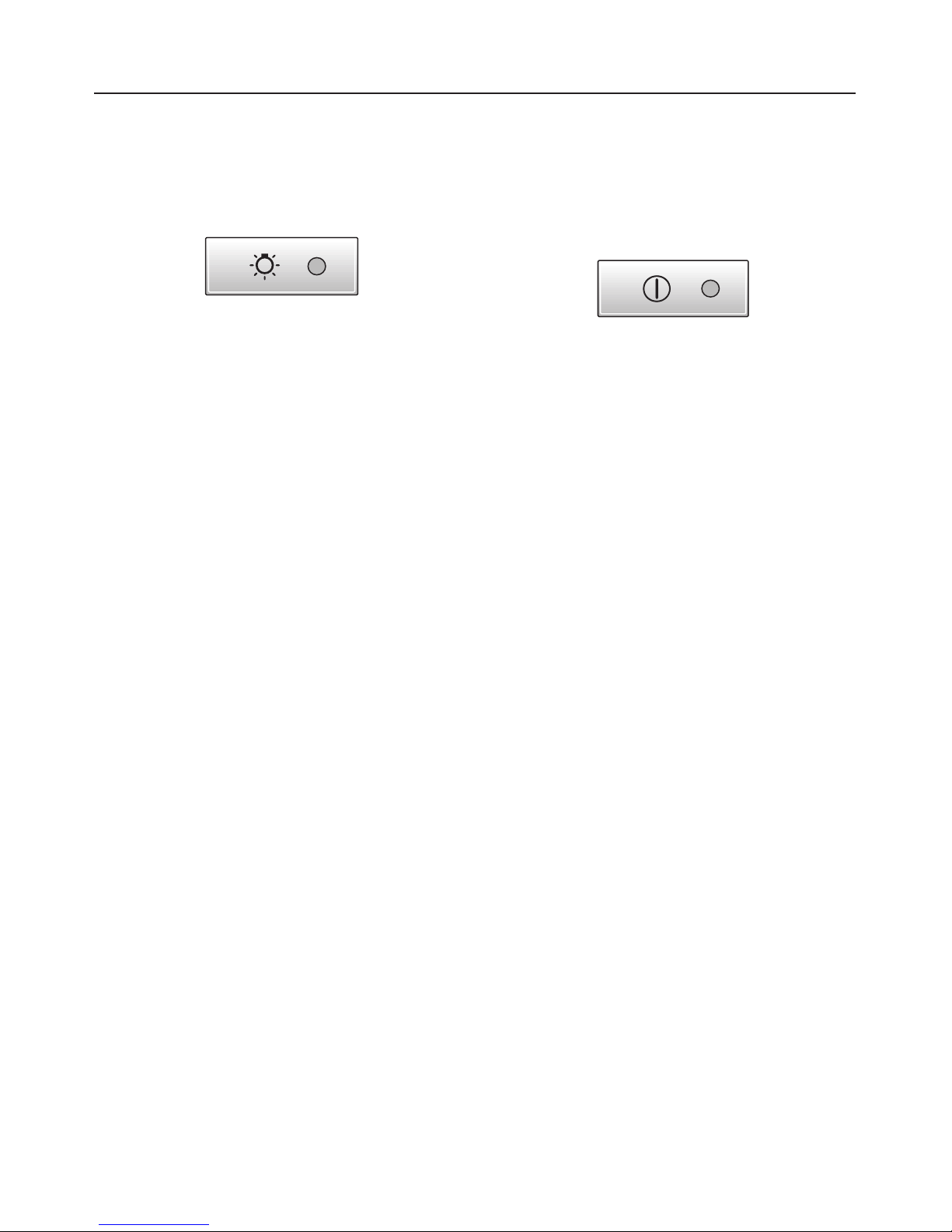

To switch the hob lighting on
The hob lighting can be switched on
and off independently of the fan.
^Briefly press the hob lighting control
to switch on the hob lighting.
The indicator lamp will come on.
The lighting will switch on at maximum
brightness.
To dim the hob lighting
The brightness of the lighting can be
adjusted.
^With the lighting switched on, press
and hold the hob lighting control in.
The brightness will gradually dim until
you release the control.
^Press the control in again to increase
the brightness to the level required,
and then release it.
If you keep the control pressed in, the
light will continually change between
bright and dim.
To switch the hob lighting off
^Briefly press the hob lighting control
to switch the lighting off.
The indicator lamp will go out.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will switch
the fan back on again.
Operation
15

Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counter tells you
when the grease filters need to be
cleaned.
Resetting the grease filter operating
hours counter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), one of the two grease
filter indicator lamps will light up.
All the grease filters must then be
cleaned.
After cleaning and replacing the grease
filters, the grease filter operating
counter must be reset.
^To do this, while the fan is switched
on, press and hold the grease filter
control until only the first of the –/+
indicator lamps is flashing.
^The grease filter counter on the other
set of controls must also be reset in
the same way, even if this operating
hours counter has not yet reached its
maximum.
Reading the grease filter operating
hours counter
To check the percentage of time set
already used:
^Press the On/Off control to switch the
fan on.
^Press and hold the grease filter
control.
One or more of the indicator lamps for
the –/+controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
16

Altering the grease filter operating
hours counter
The grease filter operating hours
counter is set at the factory for 30
hours. This can be lengthened or
shortened to suit the type of cooking
you do. You can choose 20, 30, 40 or
50 hours.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If you only cook occasionally we
recommend that you still select a
short time because grease which has
built up gradually over a long period
of time will harden on the filter and
make cleaning more difficult.
^Press the On/Off control to switch the
fan off.
^Press the run-on option control and
the grease filter control at the same
time.
The indicator lamp for the grease filter
control and one of the –/+indicator
lamps will flash.
The –/+indicator lamps show the
time which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+controls to select the
desired time.
^Confirm the selection by pressing the
grease filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the "old" data.
Operation
17

,Before any cleaning or
maintenance work is carried out,
disconnect the cooker hood from the
mains supply.
Ensure that:
– it is switched off at the isolator, or
– it is switched off at the wall socket
and the plug removed, or
– the fuse from the fused spur
connection unit is withdrawn, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Please note that this appliance has
two electrical connections, and both
have to be disconnected for
cleaning and maintenance work.
E-Cloth
^A microfibre “E-Cloth” is available
from the Miele UK Spare Parts
Department or via the internet on
www.miele.co.uk which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals. It can
be washed 300 times.
Housing
General
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using an E-Cloth, or with
warm water and a little washing-up
liquid applied with a well wrung-out
soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents e.g.
powder cleaners or cream cleaners,
and abrasive sponges, e.g. pot
scourers or sponges which have
been previously used with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
using the Miele E-Cloth or with a
suitable, non-abrasive, proprietary
cleaning agent, following the
manufacturer's instructions on the
packaging.
To help prevent re-soiling, a proprietary
conditioning agent for stainless steel
(available from the Miele Spare Parts
Department or via the internet on
www.miele.co.uk) can also be used.
Cleaning and care
18

Important for appliances with
lacquered housing
(special order finish)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colours and if there is halogen lighting
in the kitchen.
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a build-up of fat but always clean
them as soon as one of the grease filter
touch control lamps comes on.
All the grease filters must then be
cleaned.
An oversaturated filter is a fire
hazard.
If cover panels are fitted as an optional
extra, these need to be removed first.
^To do this, disengage them from their
catches.
^See the notes under "Housing" for
how to clean the cover panels. Like
the grease filters, they can be
cleaned in the dishwasher.
^To take out the grease filters, release
the locking clip on the filters, lower
the filters 45°, unhook them at the
back and remove them.
To avoid damaging the filters or the
hob below, make sure you hold the
filters securely at all times when
handling them.
Cleaning and care
19

Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing up liquid.
Do not use:
–cleaning agents containing
descaling agents,
–alkaline cleaning agents (with a pH
value higher than 7), such as powder
cleaners, cream cleaners or abrasive
all-purpose cleaning agents,
– oven sprays.
Cleaning the grease filters in the
dishwasher
^Place the filters with the short side
upright in the lower basket, and wash
on a 65°C programme using a mild
dishwasher detergent, ensuring the
spray arm is not obstructed.
Avoid alkaline dishwasher detergents
(with a pH value higher than 7).
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
^After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
When removing the filters for cleaning,
also clean off any residues of oil or fat
from the now accessible housing to
prevent the risk of these catching fire.
When putting the grease filters back in
position, ensure that the locking clips
are facing down towards the hob.
Should the grease filters be put back
upside down:
^Insert a small screwdriver into the
slots as shown to disengage them.
Do not let them drop onto the hob
below.
After cleaning and replacing the grease
filters, the grease filter operating
counters must be reset.
^To do this, while the fan is switched
on, press and hold the grease filter
control until only the first of the –/+
indicator lamps is flashing.
^The grease filter counter on the other
set of controls must also be reset in
the same way, even if this operating
hours counter has not yet reached its
maximum.
Cleaning and care
20
