Miele DA 249-4 EXT User manual

Operating and Installation instructions
Rangehood
DA 249-4,
DA 249-4 EXT,
DA 249-4 Alu,
DA 249-4 Alu EXT
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 729 510
en - AU, NZ

Caring for the environment..........................................4
Warning and Safety instructions .....................................5
Modes of operation ...............................................11

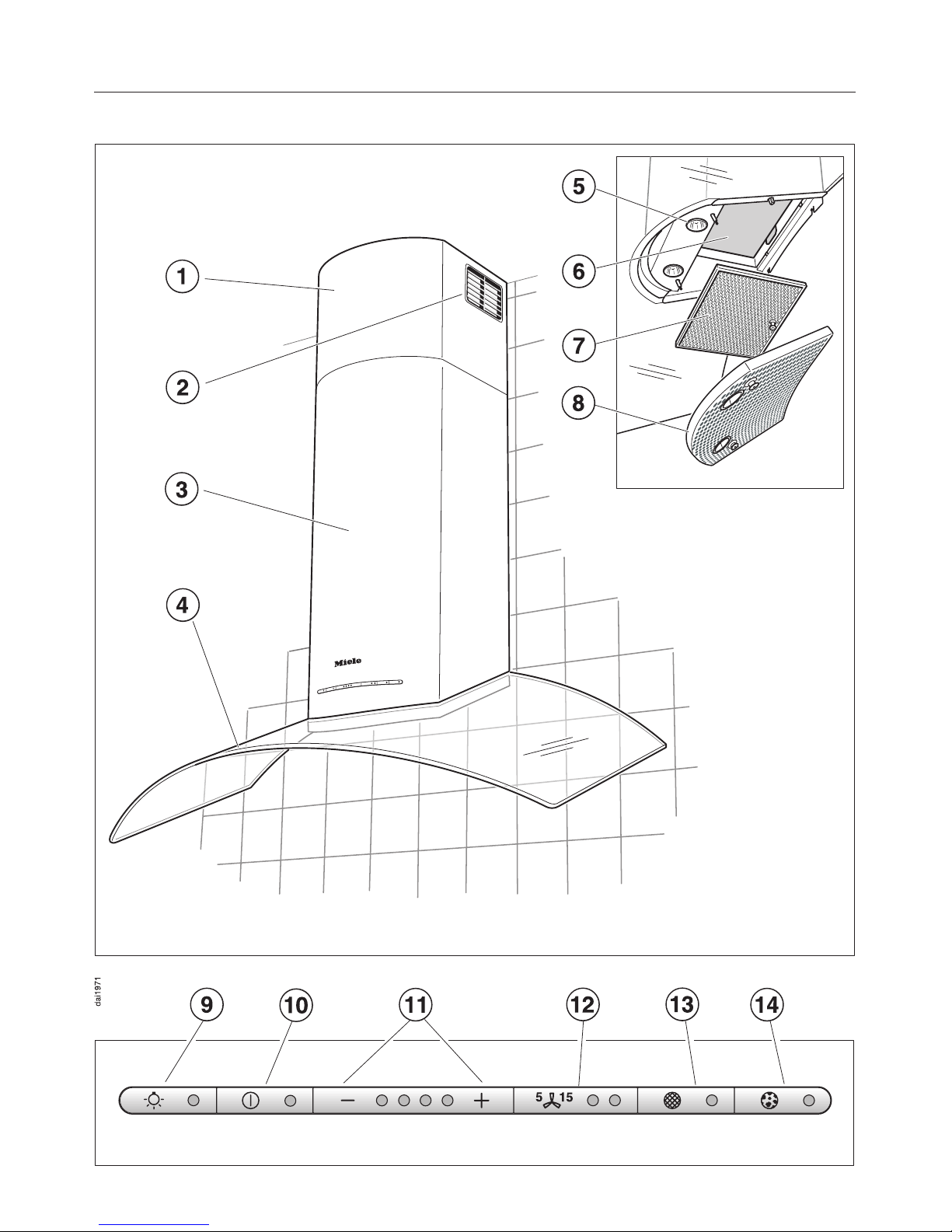

Guide to the appliance ............................................12
Miele|home .....................................................14
Con|ctivity ......................................................14
Operation .......................................................15
To switch the fan on................................................15
To select a power level .............................................15
Intensive setting ................................................15
Run-on option ....................................................16
To switch the fan off................................................16
To switch the cooktop lighting on .....................................17
To dim the cooktop lighting ..........................................17
To switch the cooktop lighting off .....................................17
Filter operating hours counter ........................................17
Cleaning and care ................................................21
Housing .........................................................21
Stainless steel outer filter and grease filter ..............................22
Fitting and replacing the charcoal filter .................................25
Changing a halogen lamp ...........................................27
Appliance dimensions.............................................28
Safety distance between cooktop and rangehood (S) ...................29
Installation ......................................................30
Assembly parts ...................................................30
Installation instructions .............................................32
Protective foil .....................................................32
Dismantling ......................................................32
Connection for air extraction .......................................33
Condensate trap ..................................................34
Silencer .........................................................35
Electrical connection..............................................36
Contents
2

Operation with control module DSM 400..............................37
Potential free connection .........................................37
Connection to a light switch .......................................37
After sales service ................................................38
Technical data ...................................................39
Contents
3

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
4

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or motel
rooms, bed & breakfasts and other
typical living quarters. This does not
include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used to extract
vapours and remove odours from
cooking.
~This appliance is not suitable for
outdoor use.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To avoid
the risk of injury, keep children well
away and do not allow them to play with
it or to use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
5

Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~A damaged connection cable must
only be replaced by an approved and
suitably qualified technician.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–it is switched off at the isolator, or
–the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or
–it is switched off at the wall socket
and the plug withdrawn.
Warning and Safety instructions
6

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.

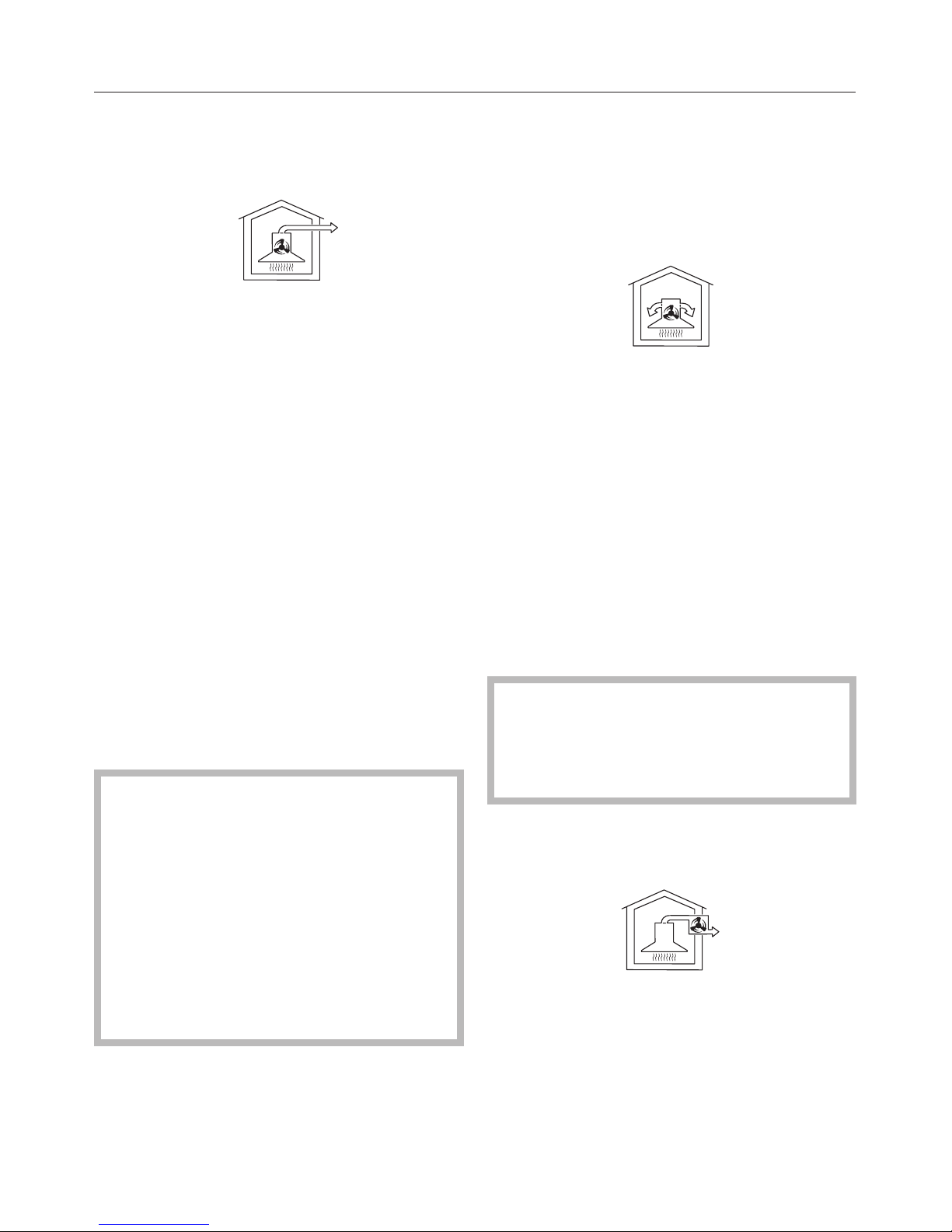

Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the rangehood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas cooktops, or ovens which draw air
in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
7

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the rangehood
and the heater are in operation
simultaneously, an underpressure of
0.04 mbar (4 pa) is the maximum
permissible in the room.
Ventilation can be maintained by air
inlets which must not be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the rangehood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter must be sought.
If the rangehood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
8

Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the rangehood on fire.
~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Correct installation
~Refer to the cooktop manufacturer's
instructions as to whether a rangehood
may be operated above the cooktop.
~The minimum safety distances
between the top of the cooktop or
cooktop and the bottom of the
rangehood given in the "Appliance
dimensions" section of this booklet must
be maintained, unless the cooktop
manufacturer states that a greater
safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
Warning and Safety instructions
9

~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from Miele or
from builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

The rangehood works with
. . . air extraction:
The air is drawn in and cleaned by the
stainless steel outer filter and the
grease filter, and then directed outside.
If the on-site ventilation system does
not have a non-return flap, then the
non-return flap supplied with the
appliance must be fitted
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the rangehood
is switched off.
When the rangehood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
Please note, the performance of
this rangehood hinges greatly on
the installed ducting to vent the
vapours. Poor choice of ducting
results in poor rangehood
performance. For ducting
recommendations, please refer to
the relevant section in these
operating instructions or contact
a specialised installer.
. . . air recirculation:
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the stainless steel outer filter and the
grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the
rangehood extension piece.
Charcoal filters are available to order
through your Chartered Agent or from
Miele. (See back cover for contact
details and "Technical Data" for model
number).
Before using the rangehood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
...anexternal motor:
(EXT models only)
EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
rangehood by means of a control
cable, and is operated by the controls
on the rangehood.
Modes of operation
11

Guide to the appliance
12

aTelescopic extension piece
bRecirculation grille
(optional accessory for recirculation
mode only)
cTower
dCanopy
eCooktop lighting
fCharcoal filter
(special accessory for recirculation
mode)
gGrease filter
hStainless steel outer filter
iTouch control for the
cooktop lighting
This control switches the lighting on
and off, and is also a dimmer switch.
jOn/Off touch control for the fan
kControls to select the fan power
level
lTouch control for the run-on
option

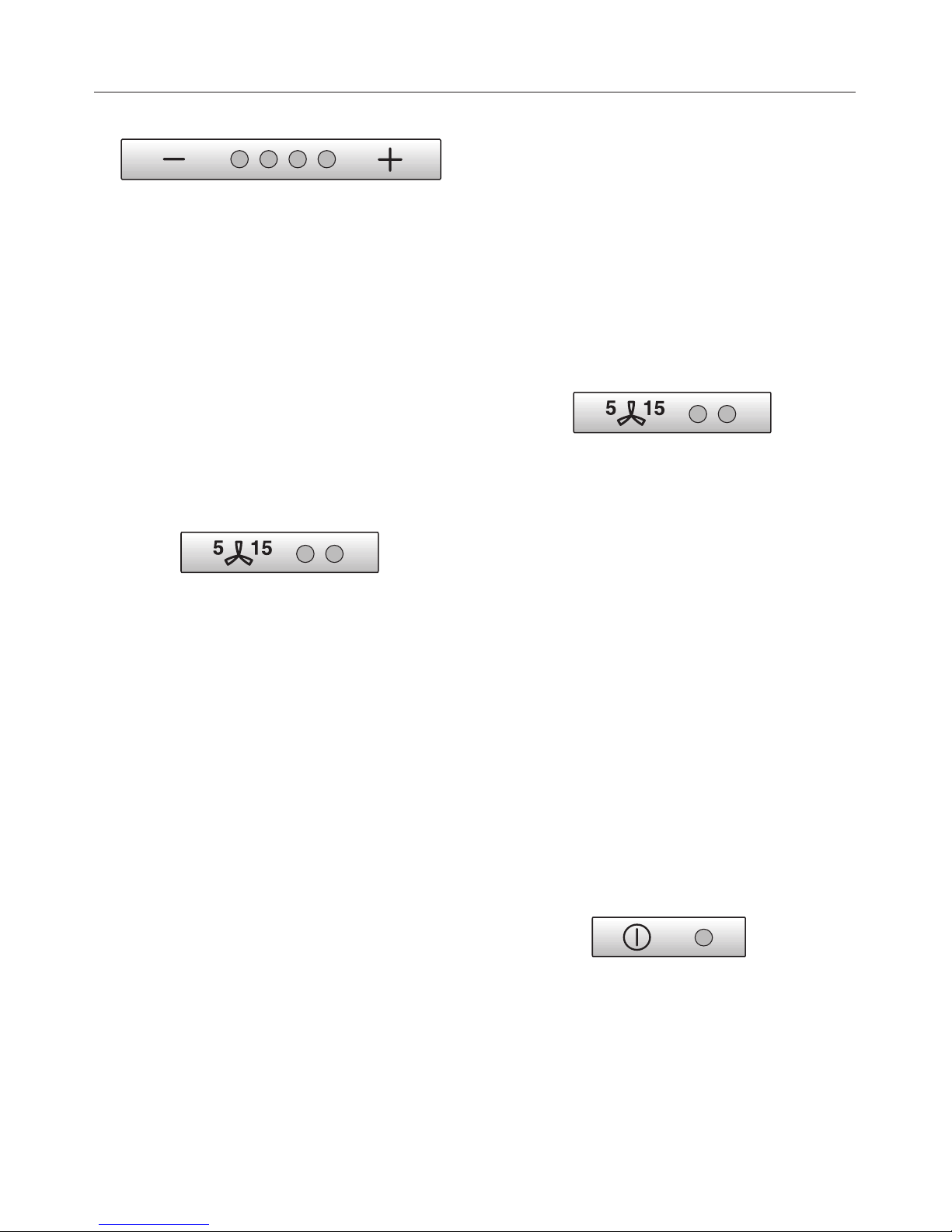

The fan can be set to switch off
automatically after either 5 or 15
minutes.
mTouch control for the grease filter
The indicator lamp for the grease filter
touch control lights up when the grease
filter and the outer filter need to be
cleaned.
The touch control is used to reset the
operating hours counter every time the
grease filter and the outer filter are
cleaned (see "Cleaning and care").
It can also be used to check and alter
the operating hours counter.
nTouch control for the charcoal
filter
The indicator lamp for the charcoal filter
lights up when the charcoal filter used
in recirculation mode needs to be
replaced. For this to happen, the
operating hours counter needs to be
activated before the appliance is used
for the first time.
The touch control is used to reset the
operating hours counter every time the
charcoal filter is replaced (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Guide to the appliance
13

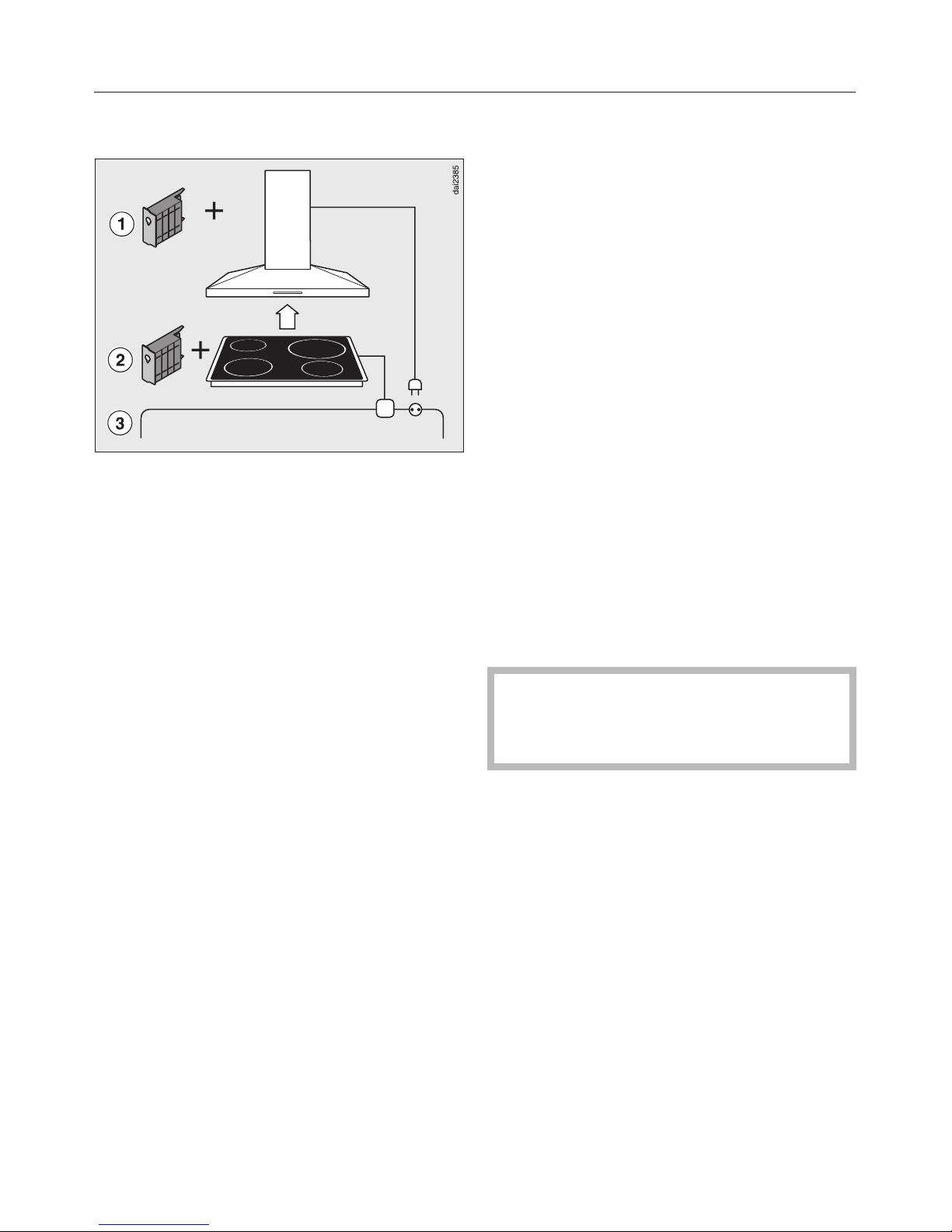

Con|ctivity
This rangehood is communication
enabled.
Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the rangehood
to be automatically controlled by the
operating status of a Miele electric
cooktop with onset controls.
For communication to take place, the
cooktop must be fitted with
communication module b.
The cooktop transmits information
about its operating status to the
rangehood via the household power
supply (Powerline) c.
–When the cooktop is switched on,
the cooktop lighting and the
rangehood fan also switch on.
–During cooking the rangehood
automatically sets the fan's power
level according to the number of
cooking zones in operation and their
power levels.
–After switching the cooktop off, the
fan and the cooktop lighting will
switch off automatically after a period
of time.
For detailed information about this
function, please read the separate
instruction booklet supplied with the
XKM 2000 DA communication module.
The communication module is fitted to
the rangehood in the area of the fan
and is connected to the controls of the
rangehood.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
Miele|home
14

To switch the fan on
^Press the On/Off control.
The fan will come on at power level "II".
The indicator lamp will come on.
To select a power level
^Use the –/+controls to select the
power level required.
+control = higher setting
–control = lower setting
Depending on the intensity of the
cooking vapours, levels I to III are
usually sufficient for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting, level IV for a short
period.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the cooktop lighting must be
switched off.

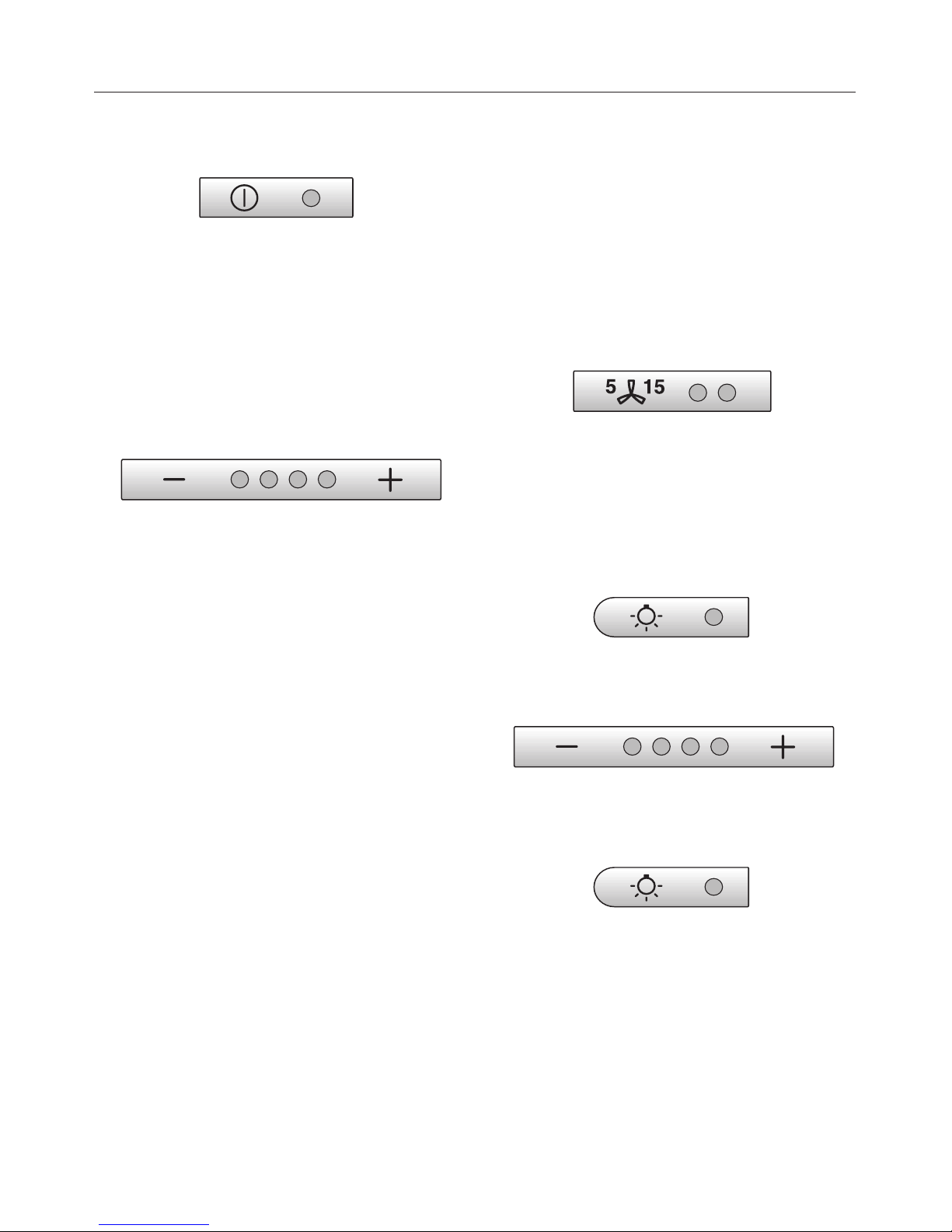

^Press the run-on option control for
approximately 10 seconds. The first
fan setting indicator will light up.
^Then press in turn,
– the cooktop lighting control,
–the –control, and
–finally the cooktop lighting control
again.
Operation
15

The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^Press the +control to activate auto-
matic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –control to deactivate the
automatic switch-off function.
^Press the run-on option control to
confirm.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Run-on option
It is advisable to run the fan for a few
minutes after cooking is finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes:
^After cooking is finished, press the
run-on option control whilst the fan is
still running.
– Press once = The fan will switch off
after 5 minutes
(left-hand indicator lamp).
– Press twice = The fan will switch off
after 15 minutes
(right-hand indicator lamp).
To switch off the run-on option, press
the run-on option control again. The
appliance will then not switch off
automatically.
To switch the fan off

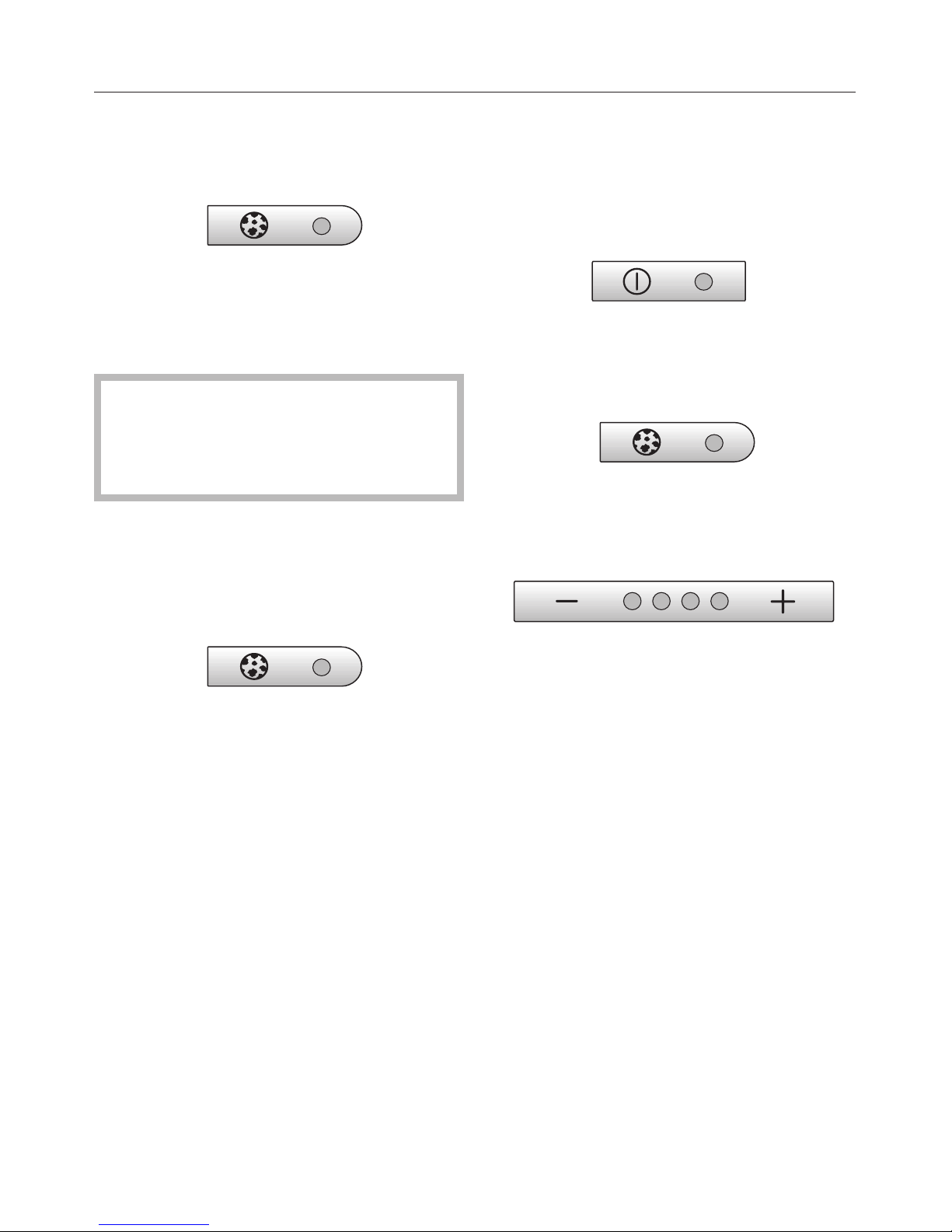

^Press the On/Off control to switch the
fan off.
The indicator lamp will go out.
Operation
16

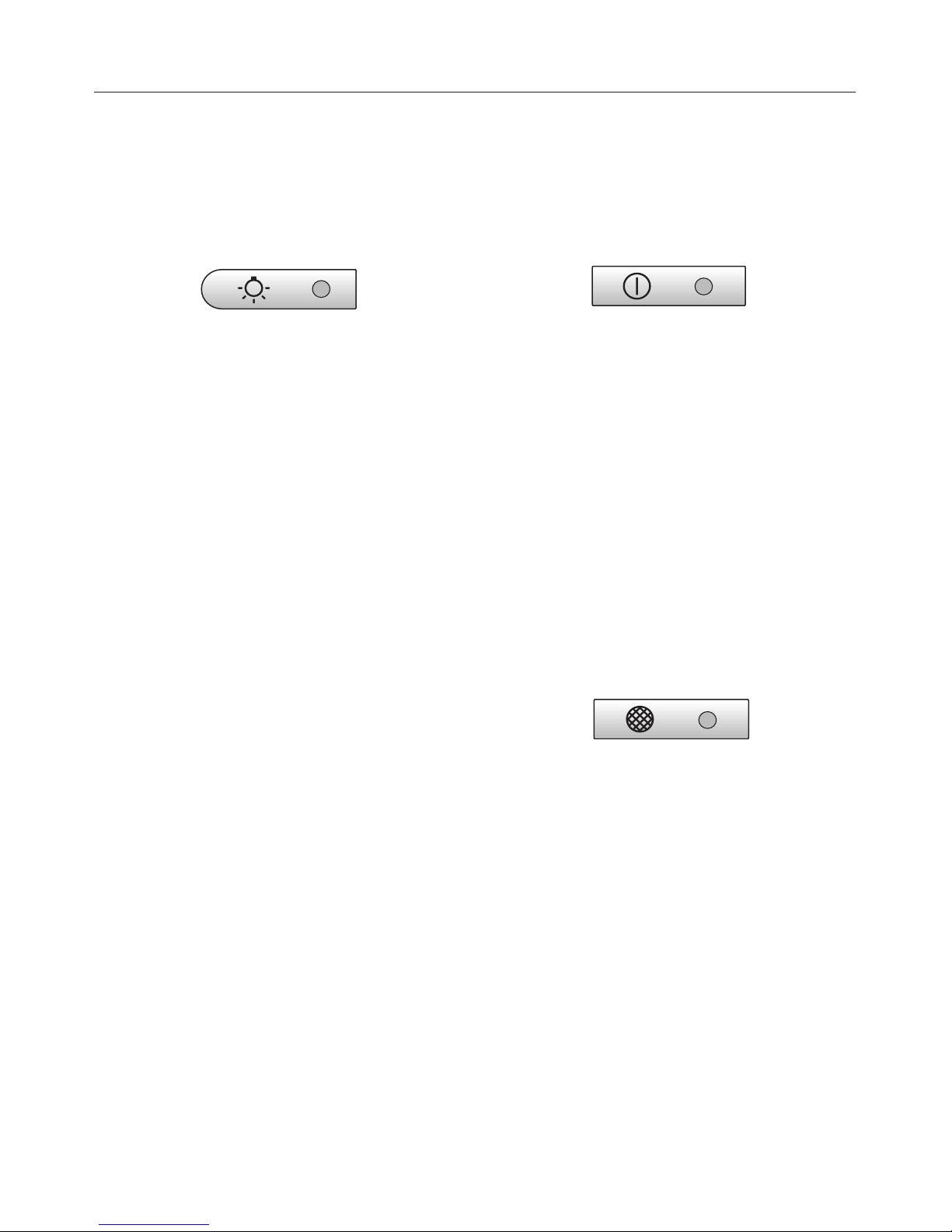

To switch the cooktop lighting
on
The cooktop lighting can be switched
on and off independently of the fan.
^Briefly press the lighting control to
switch on the cooktop lighting.
The indicator lamp will come on.
The cooktop lighting will switch on at
maximum brightness.
To dim the cooktop lighting
The brightness of the lighting can be
adjusted.
^With the lighting switched on, press
and hold the cooktop lighting control
in.
The brightness will gradually dim until
you release the control.
^Press the control in again to increase
the brightness to the level required,
and then release it.
If you keep the control pressed in, the
light will continually change between
bright and dim.
To switch the cooktop lighting
off
^Press the cooktop lighting control
briefly to switch the lighting off.
The indicator lamp will go out.
Safety cut-out
Should the rangehood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will
switch the fan back on again.
Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counter tells you
when the grease filters or charcoal filter
need to be cleaned or replaced.
Resetting the operating hours
counter for the grease filter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), the grease filter indicator
lamp will light up. The grease filter and
the stainless steel outer filter must then
be cleaned.
Afterwards, the filter operating hours
counter must be reset.

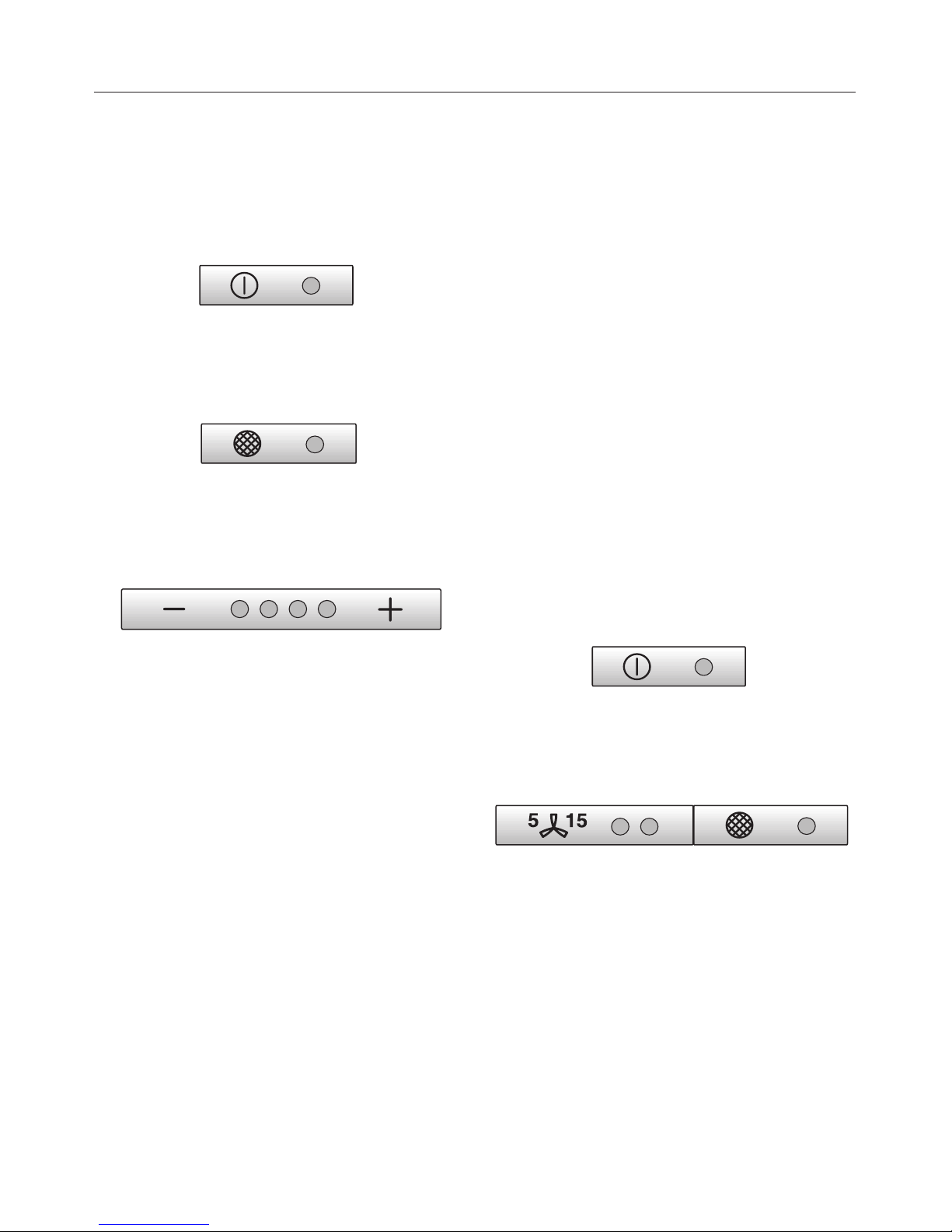

^To do this, press and hold the grease
filter control in for approximately
3 seconds while the fan is switched
on.
The indicator lamp for the control will
go out.
Operation
17

Reading the filter operating hours
counter
To check the percentage of time set
already used:
^Press the On/Off control to switch the
fan on.
^Press and hold the grease filter
control.
One or more of the indicator lamps for
the –/+controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Altering the filter operating hours
counter
The filter operating hours counter is set
at 30 hours. This can be lengthened or
shortened to suit the type of cooking
you do. You can choose 20, 30, 40 or
50 hours.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If you only cook occasionally, we
recommend that you still select a
short time, because grease which
has built up gradually over a long
period of time will harden on the
grease filters and make cleaning
more difficult.
^Press the On/Off control to switch the
fan off.
^Press the run-on option control and
the grease filter control at the same
time.
The indicator lamp for the grease filter
control and one of the –/+indicator
lamps will flash.
Operation
18

The –/+indicator lamps show the time
which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+controls to select the
desired time.
^Confirm the selection by pressing the
grease filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Activating and altering the operating
hours counter for the charcoal filter
(in recirculation mode)
The charcoal filter is needed for
recirculation mode.
On delivery, the operating hours counter
for the charcoal filter is switched off.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do:
^Press the On/Off control to switch the
fan off.
^Press the run-on option and the
charcoal filter controls at the same
time.
The indicator lamp for the charcoal filter
control and one of the lamps above the
–/+controls will flash.
The –/+control lamps show the time
which has been set:
1st lamp from the left = 120 hours
2nd lamp from the left = 180 hours
3rd lamp from the left = 240 hours
4th lamp from the left = deactivated
Operation
19

^Use the –/+controls to select the
desired time.
^Confirm the selection by pressing the
charcoal filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Resetting the operating hours
counter for the charcoal filter
The indicator lamp for the charcoal filter
control will light up after the rangehood
has operated for the number of hours
set. The charcoal filter must then be
replaced with a new one.
Afterwards, the filter operating hours
counter must be reset.
^Press and hold the charcoal filter
control for about 3 seconds while the
fan is switched on.
The indicator lamp for the charcoal filter
touch control will go out.
Reading the operating hours counter
for the charcoal filter
To check the percentage of time set
already used:
^Press the On/Off control to switch the
fan on.
^Press and hold the charcoal filter
control.
One or more of the indicator lamps for
the –/+controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
20
