Miele DA 5196 W EXT User manual

Installation Instructions
en - CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.
DA5196 W

Installation
31
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
"IMPORTANT SAFETY
INSTRUCTIONS" section.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from becoming damaged during
transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation Instructions
Please refer to the accompanying
installation sheet for instructions on
how to install the appliance.
Disassembly
If the device ever needs to be
disassembled, follow the installation
sheet instructions in reverse order. A
lever is provided to assist with the
removal of the chimney.
Unscrew the two mounting screws on
the chimney.

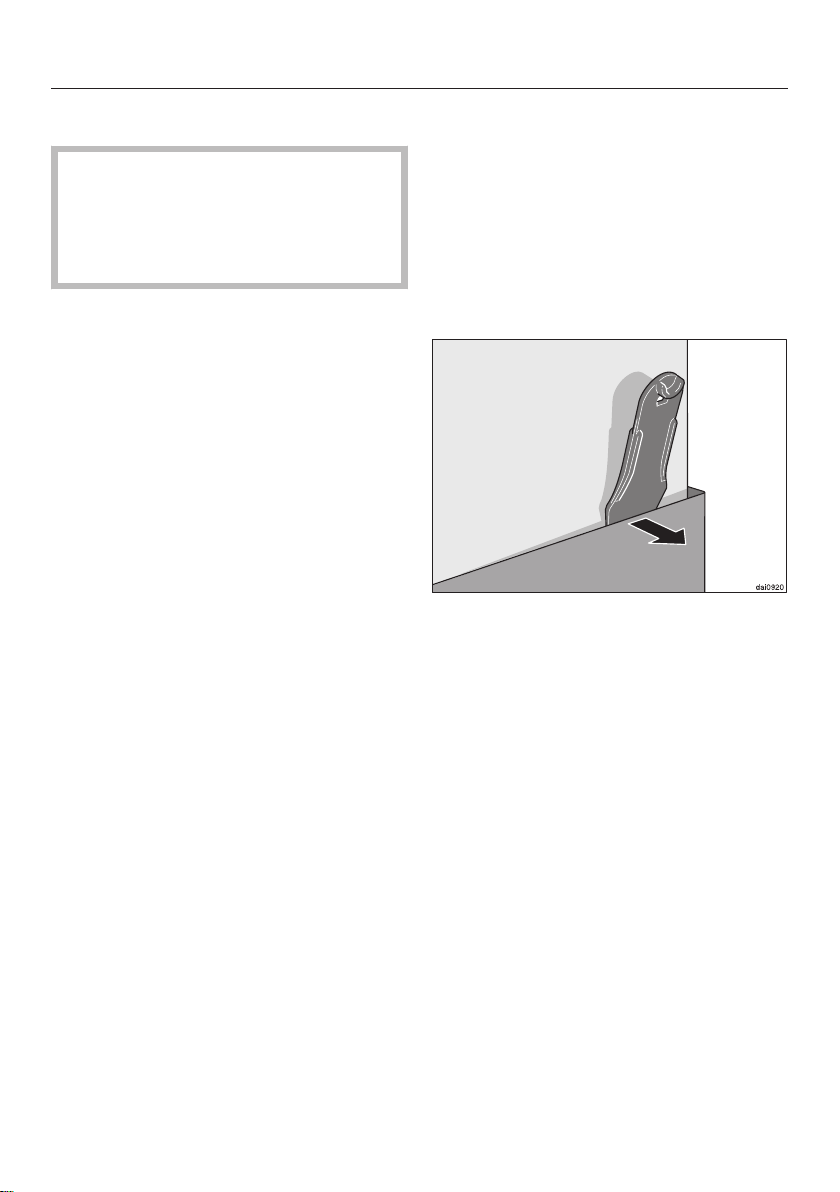

Slide the supplied lever between the
chimney and the extension piece.
Pry the chimney out of its
attachment.

Installation
32
Installation parts

Installation
33
a3 protective installation sheets
for use when installing the chimney
b1 exhaust connector
for an exhaust duct 6" (150 mm).
c1 reducer
for an exhaust duct 5" (125 mm).
d1 non-return flap
for installation in the outlet duct
collar of the motor unit (not for
recirculation mode). Depending on
the device version, the non-return
flap is already mounted.
eTelescopic wall bracket
for securing the hood on the wall.
fRecirculation kit for recirculation
mode
contains diverter, aluminum hose
and hose clamps (not contained in
scope of delivery, available as
optional accessory – see "Technical
Data").
6 screws ³/₁₆" x 2 ³/₈" (5 x 60 mm)
and
6 plugs ⁵/₁₆" x 2" (8 x 50 mm)
for attaching to the wall. Plugs not for
use in USA / CDN.
The screws and plugs are designed
for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
2 x M 6 lock nuts
for mounting the appliance unit.
2 screws ¹/₈" x ⁵/₁₆" (3.9 x 7.5 mm)
for attaching the chimney.
1 lever
for disassembling the chimney.
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation sheet

Installation
34

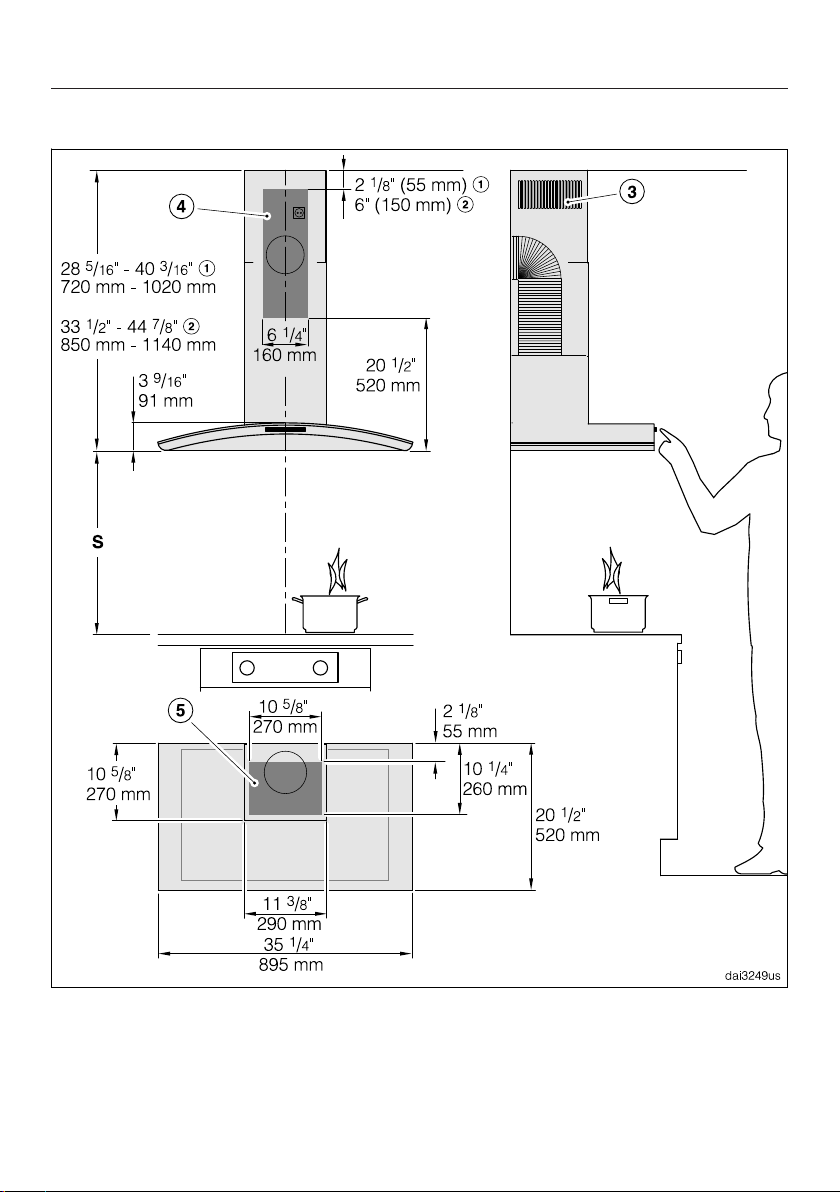

Appliance dimensions
The drawing is not to scale.
aExtraction
bRecirculation
cAir vent positioned at top for recirculation

Installation
35
de Mounting area (only dis required for recirculation hoods). Wall and ceiling
area for exhaust duct opening and for wall socket installation. Only the wall
socket installation is required for recirculation hoods.
Vent collar 6" (150 mm), with adapter 5" (125 mm).
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the "IMPORTANT SAFETY
INSTRUCTIONS" section.
Minimum distance S
Cooking appliance Miele
appliance Non-Miele appliance
Electric/Induction cooktop 24" (610 mm)
Electric grill, deep fat fryer (electric) 26" (660 mm)
Multi-burner gas cooktop
≤43,000 BTU/hr (12.6 W),
no burner >15,000 BTU/hr (4.5 kW).
26" (660 mm) 30" (760 mm)
Multi-burner gas cooktop
≤73,800 BTU/hr (21.6 W),
no burner >16,500 BTU/hr (4.8 kW)
30" (760 mm)
Multi-burner gas cooktop
>73,800 BTU/hr (21.6 W),
or one of the burners >16,500 BTU/hr (4.8 kW)
Not possible
Single-burner gas cooktop
≤20,500 BTU/hr (6 kW) 26" (660 mm) 30" (760 mm)
Single-burner gas cooktop
>20,500 BTU/hr (6 kW)
≤27,600 BTU/hr (8.1 kW)
30" (760 mm)
Single-burner gas cooktop
>27,600 BTU/hr (8.1 kW) Not possible

Installation
36
Installation recommendations
– We also recommend a distance of at
least 25 ¹/₂" (650 mm) above electric
cooktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
make sure that the hood covers the
cooktop. The hood should be
positioned centrally over the
cooktop, not to the side or rear.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.

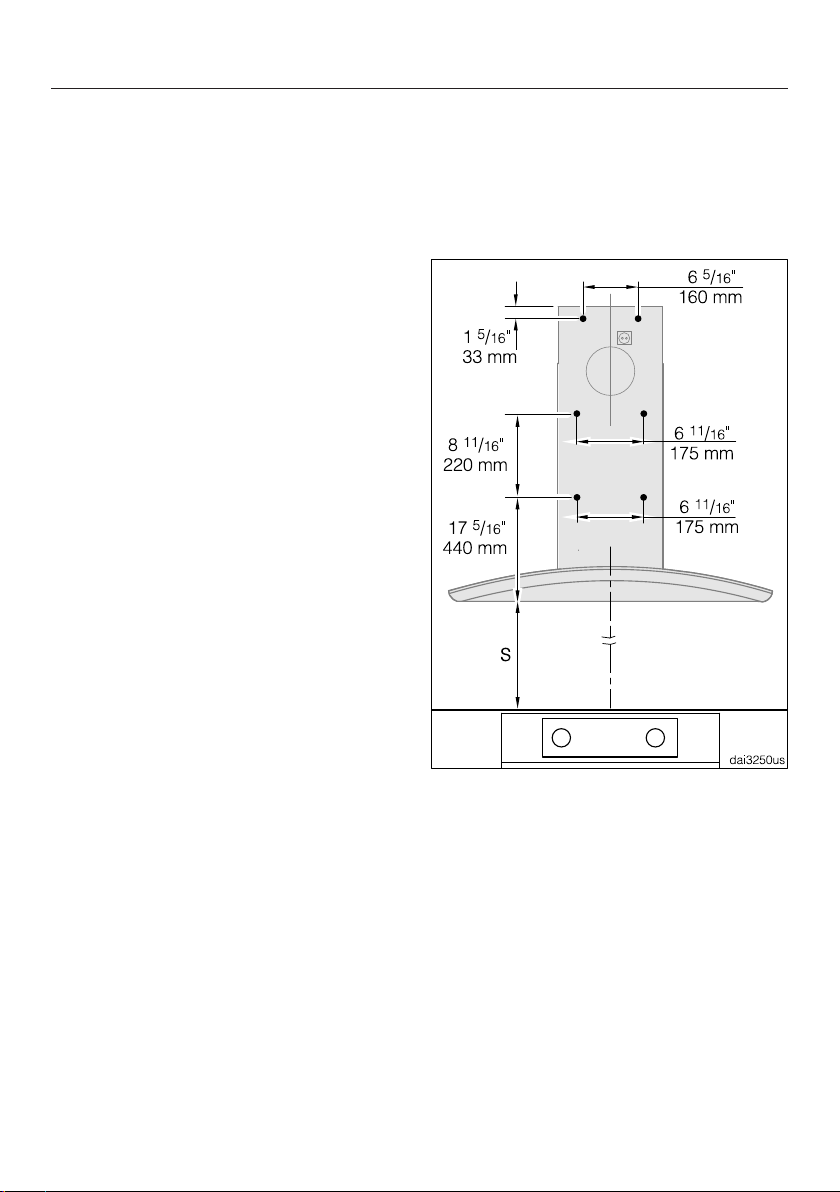

Drilling diagram for wall
mounting
When drilling, please follow the
directions contained on the
accompanying installation sheet.
When installing a custom back wall
with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws ³/₁₆" (5 mm)).

Installation
37

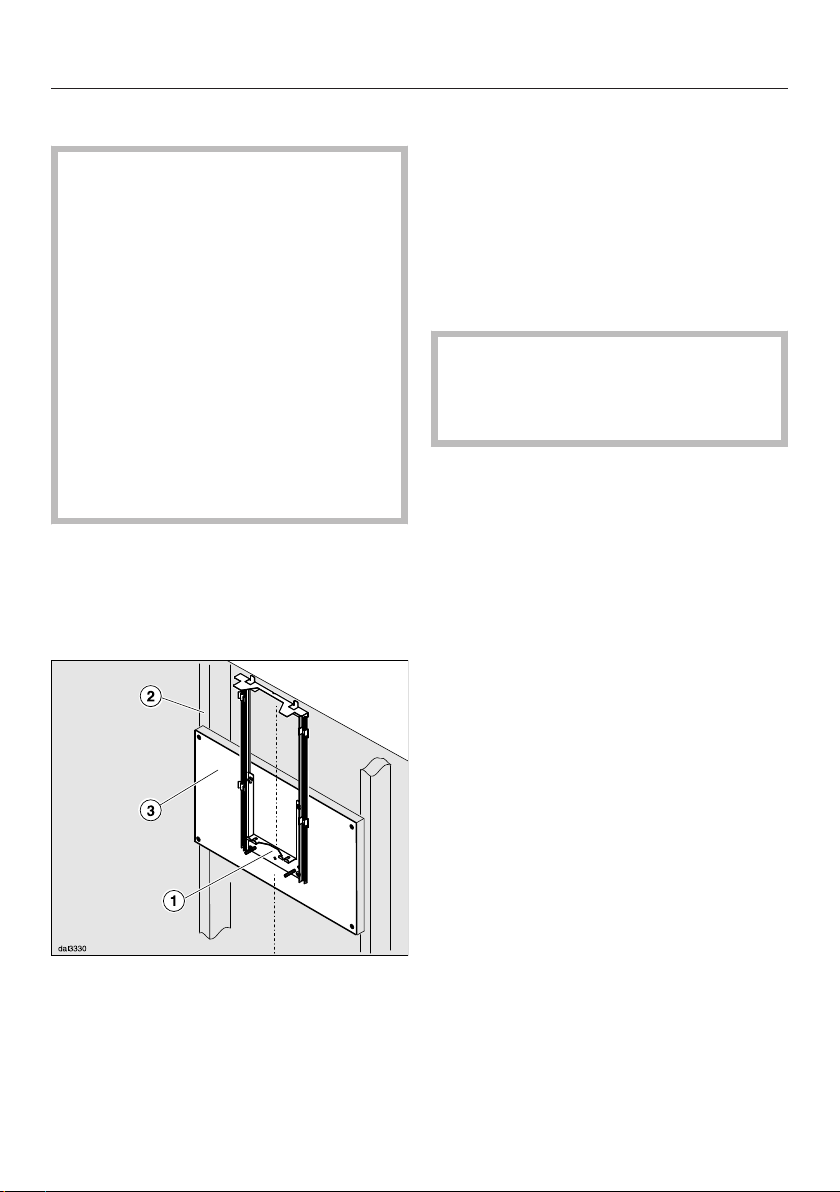

Plywood backing
The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13 mm) thick)
spanning at least two studs must be
installed.
Failure to adequately support the
weight as stated may result in the
ventilation system falling off the wall,
causing personal injury and property
damage.
If plywood backing is not needed,
proceed to the included "Installation
diagram".
To install a plywood backing
Determine and mark the location of
the retaining plate for the canopy
as outlined on the "Installation
diagram".
Make a cutting line 3" (76 mm) above
and 3" (76 mm) below the outline of
the retaining plate.
Find the studs to the left and right
of the mounting location by tapping
the wall or using a stud finder.
Mark a vertical cutting line along the
center of each stud.
CAUTION: When cutting or drilling
into the wall or ceiling, do not
damage electrical wiring and other
hidden utilities.
Remove the drywall between the
cutting lines and replace it with
plywood of a matching thickness
(min. ½" (13 mm) thick). Tape the
joints and refinish the wall.
Proceed to the enclosed "Installation
diagram" to complete the installation.

Exhaust duct
38
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
duct hoses made from non-
flammable materials for exhaust
ductwork.
To achieve the greatest possible air
extraction with the lowest noise
levels, please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150 mm).
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct itself must not be
kinked or compressed.
– Make sure that all connections are
secure and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent (available
as an optional accessory).

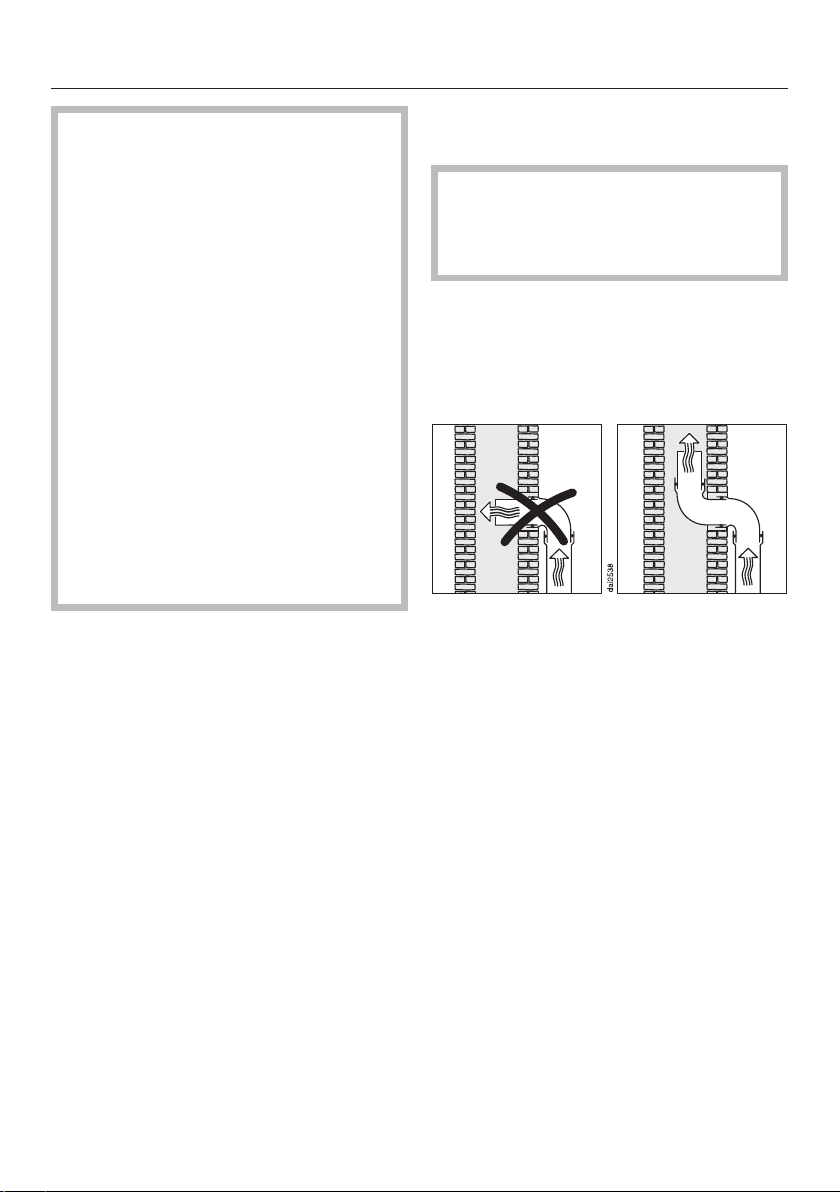

If the exhaust air is to be conducted
into a vent flue, the intake piece must
be aligned with the flow direction of
the flue.
When installing the exhaust duct
horizontally, you must slope it away
from the source by at least 1 cm per
meter (³/₈" per 3 ¹/₄"). This ensures
that condensate cannot drain back
into the ventilation hood.
If the exhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.

Exhaust duct
39

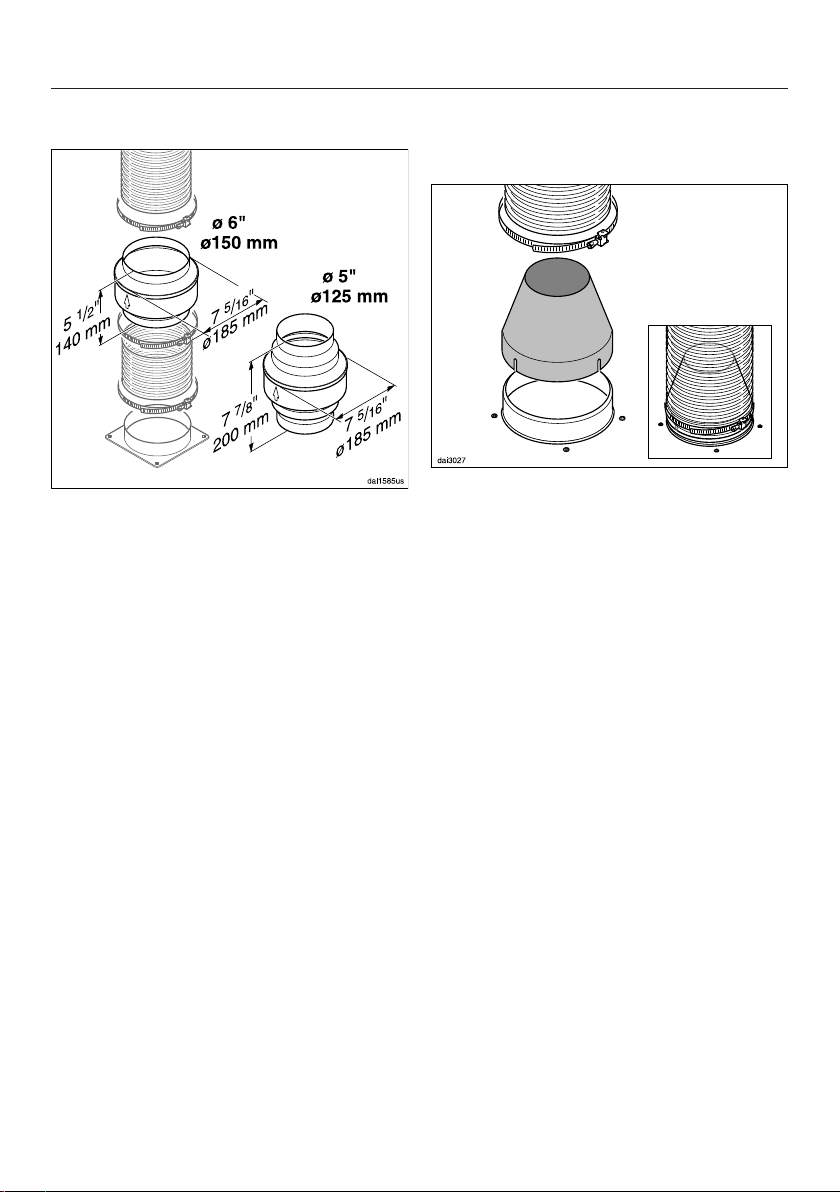

Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of 5"
(125 mm) or 6" (150 mm).
When installing a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400 CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the fan.
Push the exhaust hose over it.
Fix both with a hose clamp.

Electrical connection
40
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
The hood comes equipped with a
power cord with a NEMA 5-15 molded
plug for connection to a 120 VAC,
60 Hz, 15 A power outlet.
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet
near the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.

Activating Con@ctivity 2.0
41
Installation of the Con@ctivity
2.0 stick
In order for you to be able to use the
Con@ctivity 2.0 function, the cooktop
must be equipped with a Con@ctivity
2.0 stick.
See the relevant installation
instructions of the Con@ctivity 2.0
stick.
Activating Con@ctivity 2.0
To use the Con@ctivity 2.0 function, the
radio link between the cooktop and the
hood must be activated.
Both appliances must be installed and
operational.
You only need to carry out the
activation procedure once. If the
appliances are disconnected from the
electricity supply, for example during a
loss of power, they will still remain
activated.
To establish radio connection, the
ventilation hood and cooktop must be
activated at the same time.
Start activation on the ventilation hood
first, and then begin activation on the
cooktop.
Activating the ventilation hood
Turn off the fan, cooktop lighting and
cooktop.
Press the Delayed shut down button
515 for approx. 10 seconds until
the 1indicator appears in the fan
level display.
Then, press the following buttons in
order:
– The "" button
– Followed by the "" button
– And then the lighting button .
If Con@ctivity 2.0 has not been
activated, the indicators for levels 2and
3will flash at the same time.
To activate Con@ctivity 2.0, press the
"" button.
The hood begins searching for a radio
connection. Indicator 2is continuously
lit, and the indicator 3flashes.
As this is happening, begin activation
on the cooktop.
Activating the cooktop
While the ventilation hood is
searching for a signal, start activation
on the cooktop.
More information can be found in the
operating instructions for the
cooktop.
Once the radio connection has been
established, the indicators 2and 3on
the hood are continuously lit.
Confirm activation of the ventilation
Confirm activation on the cooktop.
The Con@ctivity 2.0 function is now
ready for use.
If you do not confirm within 4 minutes,
activation will be canceled.
Checking activation
To check whether Con@ctivity 2.0 has
been activated for the hood:
Turn off the fan and cooktop lighting.

Activating Con@ctivity 2.0
42
Press the Delayed shut down button
515 for approx. 10 seconds until
the 1indicator appears in the fan
level display.
Then, press the following buttons in
order:
– The "" button
– Followed by the "" button
– And then the lighting button .
If Con@ctivity 2.0 has been activated,
the indicators for levels 2and 3will be
constantly lit.
If Con@ctivity 2.0 has not been
activated, the indicators for levels 2and
3will flash simultaneously.
To exit the check, press the Delayed
shut down button 515. All
indicators will go out.
To check whether activation has
taken place on the cooktop, please
refer to corresponding operating
instructions.
If a connection cannot be established
despite activation of the Con@ctivity
function on the hood and the
cooktop, the function must first be
deactivated and then reactivated on
both appliances.
Deactivating Con@ctivity 2.0
Deactivation on the hood is similar to
the activation procedure. Select the
"" button instead of the "" button.
To deactivate the cooktop, please
refer to the corresponding operating
instructions.
Please keep in mind that disabling the
connection will also disable any
remote control function being used.
The remote control must then be
reactivated.

Technical data
43
Fan motor 350 W
Cooktop lighting 4 x 3 W
Total connected load 362 W
Voltage, Frequency 120 V AC, 60 Hz
Fuse rating 15 A
Power cord length 2.5 ft (0.75 m)
Weight 57.2 lbs (26 kg)
Optional accessories for recirculation mode:
Recirculation kit DUW 20 and OdorFree Charcoal Filter DKF 12
Contains
FCC ID: 2ACUWEI8800
IC: 5669C-EI8800
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.

9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
[email protected]
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
[email protected]
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
44

M.-Nr. 09 968 410 / 02en-US
DA 5196 W

