Miele DA2280 Assembly instructions

Operating and Installation
Instructions
Ventilation System
DA 2280
DA 2210
To prevent accidents
and appliance damage,
read these instructions
before
installation or use. M.-Nr. 07 773 240
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the Ventilation System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

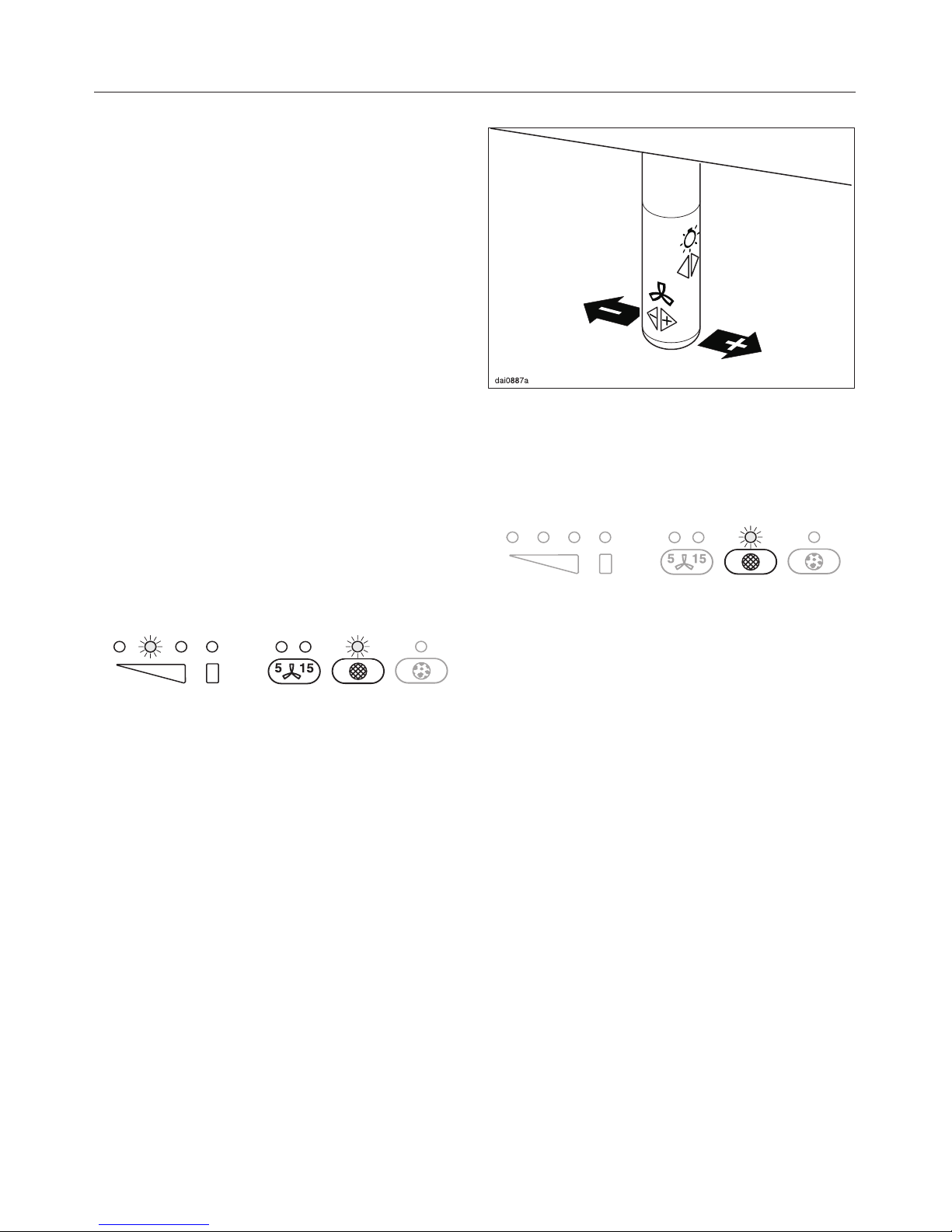

Joystick .........................................................10
Turning on the fan .................................................10
Selecting the power level............................................10
Delayed Shut Down ................................................11
Turning off the fan .................................................11
Overhead lighting .................................................12
Filter timers ......................................................13
Checking the filter timers ............................................13
Reprogramming the timers ..........................................14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning the casing................................................16
Grease filters .....................................................17

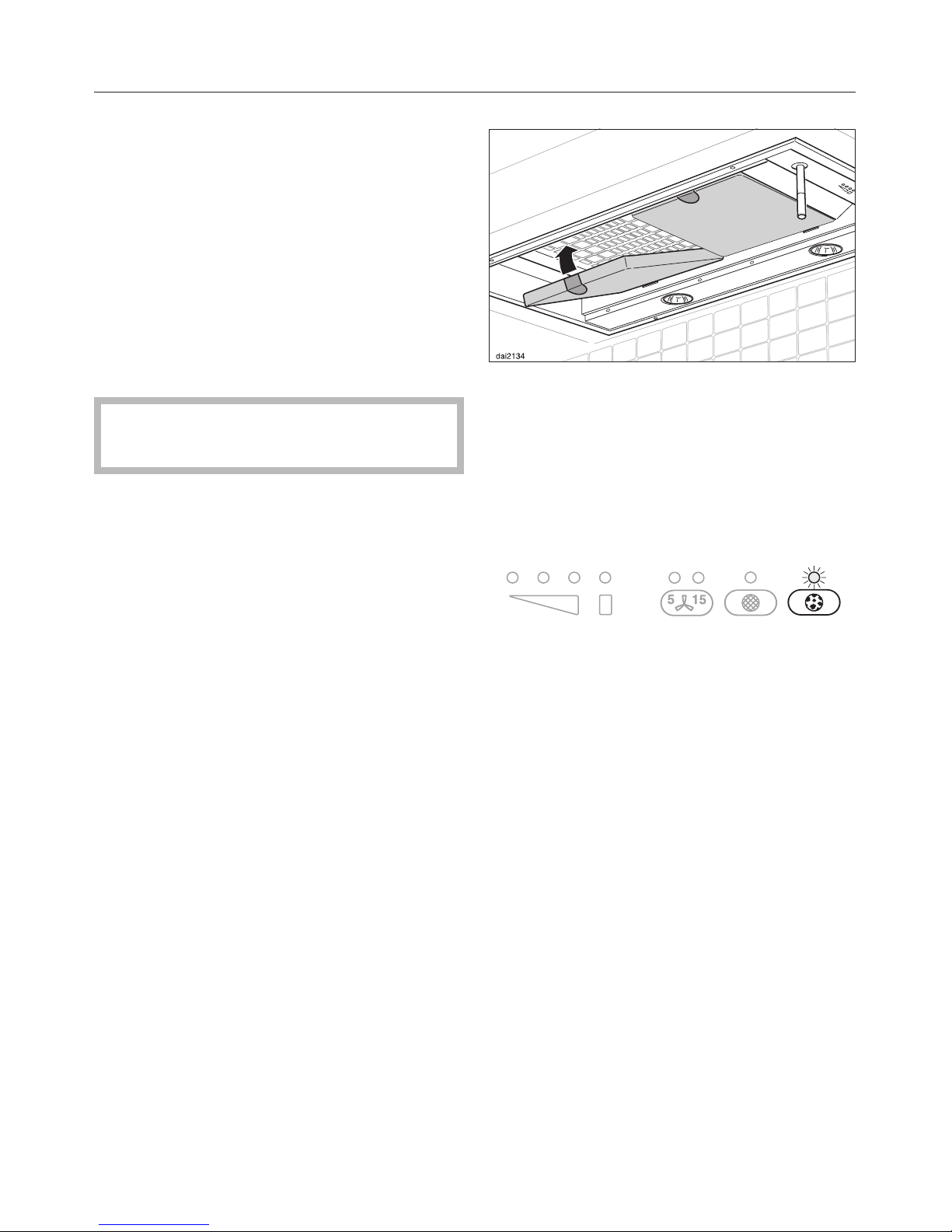

Active charcoal filter ...............................................19

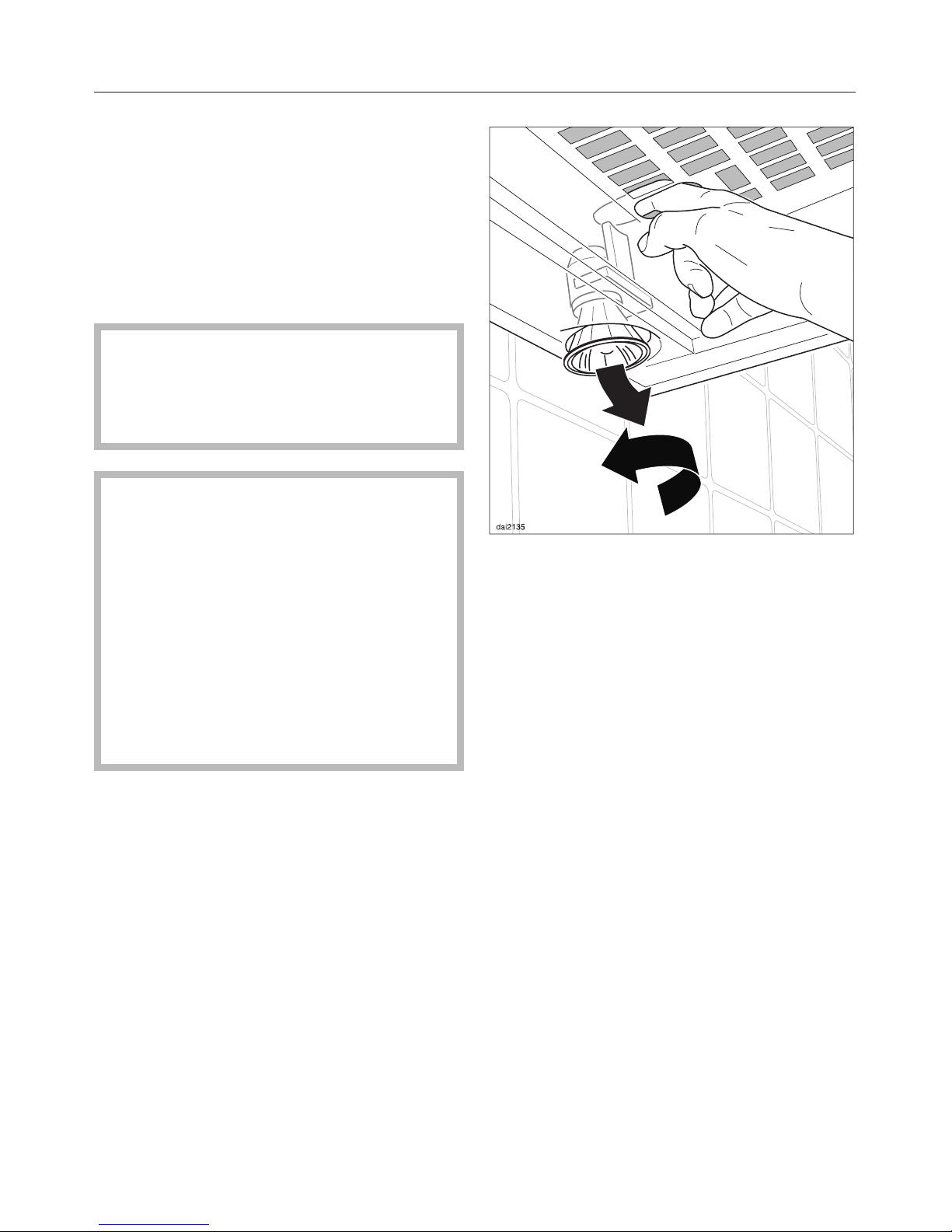

Changing the light bulb .............................................20
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Distance between cooktop and hood (S) ...............................27
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing the joystick ...............................................31
Joystick extension .................................................31
Electrical connection ...............................................32
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Contents
2

READ AND SAVE THESE
INSTRUCTIONS
Keep these instructions in a safe
place and pass them on to any future
user.
Read these instructions carefully
before installing or using the
Ventilation System.
~This appliance is intended for
residential use only. Use the appliance
only for its intended purpose.
~This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
,CAUTION
For General Ventilating Use
Only. Do Not Use To Exhaust
Hazardous Or Explosive
Materials And Vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~This appliance is suitable for
installation above gas or electric
cooking surfaces.
~This appliance is not intended for
outdoor use.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Use this appliance only in the
manner intended by the manufacturer.
If you have questions, contact Miele.
~b) Before servicing or cleaning the
appliance, switch power off at the
service panel and lock the service
disconnecting means to prevent power
from being switched on accidentally. If
the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
~c) Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
3

~d) Before connecting the appliance
to the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply.
This data must correspond to prevent
appliance damage. If in doubt consult a
qualified electrician.
~e) Installation work and repairs
should only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous.
~f) Only open the housing as
described in the enclosed "Installation
diagram" and in the "Cleaning and care"
section of this manual. Under no
circumstances should any other parts
of the housing be opened. Tampering
with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operation faults.
~g) Before discarding an old
appliance, disconnect it from the power
supply and remove the power cord to
prevent hazards.
Use
,WARNING
TO REDUCE THE RISK OF A
COOKTOP GREASE FIRE:
~a) Never leave surface units
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~b) Always turn the hood on when
cooking at a high heat.
~c) Clean the ventilation hood
frequently. Grease should not be
allowed to accumulate on the fan or
filter.
~d) Use the proper pan size. Always
use cookware appropriate for the size
of the cooking area.
~e) Do not flambé or grill with an
open flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING
TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE
EVENT OF A COOKTOP
GREASE FIRE, OBSERVE THE
FOLLOWING*:
~a) SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~b) NEVER PICK UP A FLAMING
PAN - You may be burned.
~c) DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
~d) Use a fire extinguisher ONLY if:
1) You have a class ABC
extinguisher, and you know how to
operate it.
2) The fire is small and contained in
the area where it started.
3) The fire department is being
called.
4)You can fight the fire with your
back to an exit.
*Based on "Kitchen Firesafety Tips"
published by NAFTA
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate
electrical components and cause a
short circuit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
~b) Sufficient air is needed for
combustion and exhausting of gases
through the flue (chimney of fuel
burning equipment to prevent back
drafting. Follow the heating equipment
manufacturer’s guideline and safety
standards such as those published by
the National Fire Protection Association
(NFPA) and the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and
the local code authorities.
~c) When cutting or drilling into the
wall or ceiling, do not damage electrical
wiring and other hidden utilities.
~d) Ducted hoods must always be
vented to the outdoors.
~e) Do not use this hood with any
solid-state speed control device.
~f) Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~g) Do not install this hood over
cooktops that burn solid fuel.
~h) Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood given in the
"Appliance dimensions" section of this
manual.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~i) Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork.
~j) Seek professional advice before
connecting an exhaust hood vent to an
existing, inactive chimney or vent flue.
~k) Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
,WARNING
TO REDUCE THE RISK OF
FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
6

The ventilation hood offers two modes
of operation:
Air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
The DA 2280 is equipped with one
non-return flap, the DA 2210 comes
with two non-return flaps.
Recirculation mode
Air is drawn through the grease filters
and active charcoal filters. The filtered
air is then recirculated back into the
kitchen.
The active charcoal filter and the
installation kit may be purchased from
Miele.
Before using the hood in
recirculation mode, ensure that the
active charcoal filters are in place,
see "Cleaning and Care".
Functional description
7

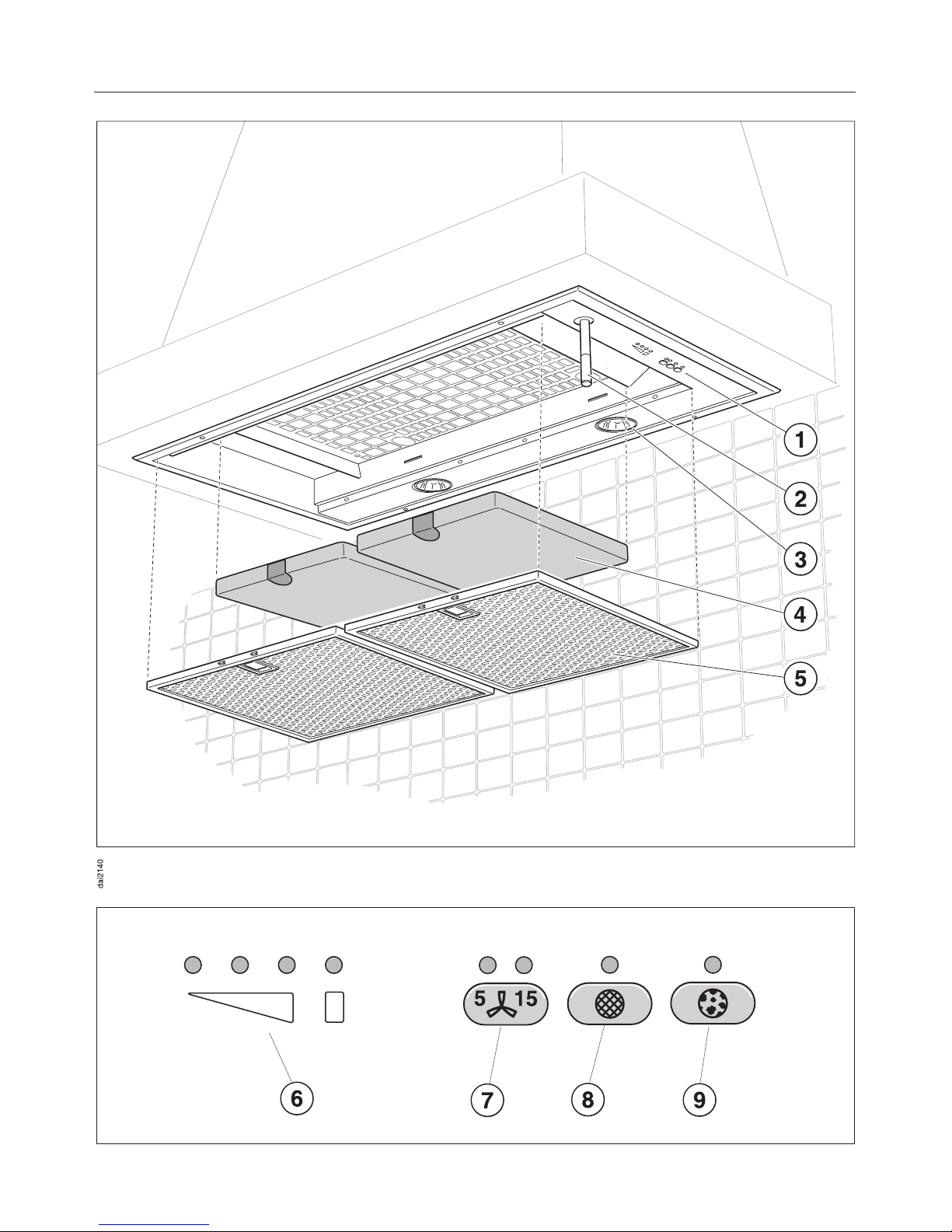

Guide to the Ventilation System
8

aControl panel
bJoystick
The fan and light can be operated with
the joystick.
cOverhead lighting
dCharcoal filters
optional accessory for recirculation
mode
DA 2280: 2 filters
DA 2210: 4 filters
eGrease filters
fFan power selection
gDelayed Shut Down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or
15 minutes.

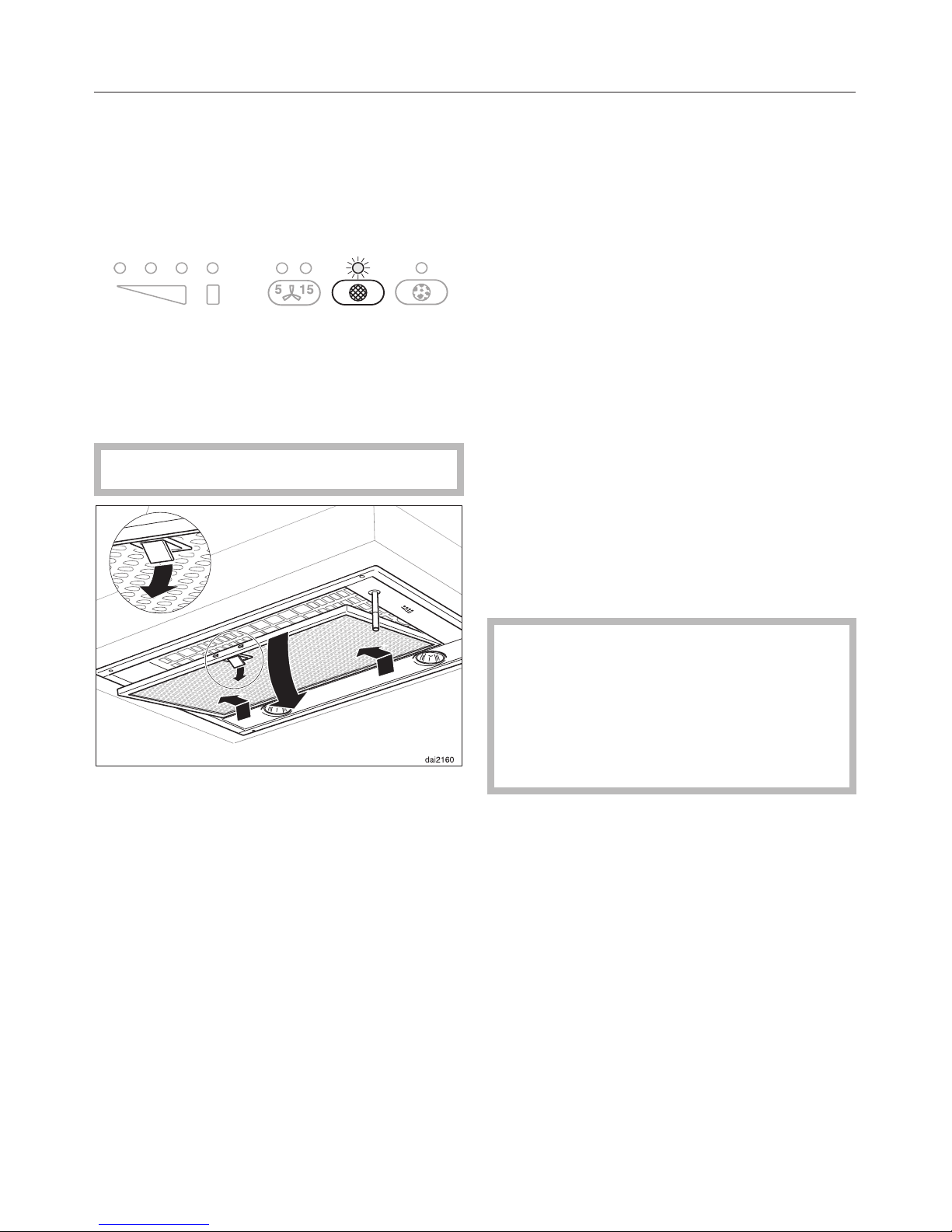

hGrease filter button
The indicator next to the grease filter
button lights when the grease filters
need to be cleaned. This button is also
used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filters
have been in use (see "Operation/
Filter timers").
–to change the number of hours
counted by the grease filter timer
(see "Operation/Reprogramming the
timers").
iCharcoal filter button
The indicator next to the charcoal filter
button lights when the charcoal filters
need to be replaced.
This button is also used:
–to reset the charcoal filter timer after
changing the filter (see "Cleaning
and care").
–to show how long the charcoal filters
have been in use (see "Operation/
Filter timers").
–to change the number of hours
counted by the charcoal filter timer
(see "Operation/Reprogramming the
timers").
Guide to the Ventilation System
9

Joystick
The joystick controls the fan power and
overhead lighting.
Turning on the fan
^Press the joystick once to the right.
The fan runs at power level "2" and the
second indicator of the fan power scale
lights.
Selecting the power level
^Press the joystick to the right, to
increase the fan speed. Press it to
the left to decrease the fan speed.
The corresponding fan power indicator
lights.
Level "1" to "3" are usually sufficient for
normal cooking.
Intensive setting
Level "4" should be used for a short
period when frying or cooking food with
a strong aroma.
Fan performance
DA 2280
The maximum air flow capacity is
425 cfm. Factors such as narrow duct
diameters and bends will affect this
value.
DA 2210
The maximum air flow capacity is
850 cfm. Factors such as narrow duct
diameters and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
There will also be a slight decrease in
airflow for hoods operated in
recirculation mode due to the active
charcoal filters.
Operation
10

Automatically switching back to the
"Intensive" setting
The intensive level "4" can be
programmed to automatically switch
back to level "3" after 10 minutes.
^Turn the fan and the lights off.
^Press and hold the Delay Shut Down
button for 10 secs. The first indicator
of the fan power levels lights.
^Press the joystick once either
backwards or forwards.
The second indicator lights.
^Press the joystick once to the left.
The third indicator lights.
^Press the joystick again either once
backwards or once forwards.
If the power level indicators "1" and "4"
flash the automatic switch back is not
activated.
To activate the automatic switch
back
^Press the joystick once to the right.
The power level indicators "1" and "4"
light.
To deactivate the automatic switch
back
^Press the joystick once to the left.
^Press the Delay Shut Down button to
confirm the setting.
Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running:
Press once = 5 minutes delay
(left indicator lights)
Press twice = 15 minutes delay
(right indicator lights)
^To cancel the Delayed Shut Down
feature press the button again.
Turning off the fan
^Hold the joystick to the left until the
fan shuts off and the fan power
indicators go out.
Automatic Safety Shut Off
The fan will turn off automatically
10 hours after the last movement of the
joystick. The lighting remains on.
^Press the joystick once to the right to
turn the fan back on again.
Operation
11

Overhead lighting
The overhead lighting can be turned on
and off independently of the fan.
^To turn the light on or off, press the
joystick either once backwards or
once forwards.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
and hold the joystick backwards or
forwards.
The lighting will dim until the joystick
is released.
^If the joystick is pressed again, the
lighting will brighten until the joystick
is released.
If the joystick is pressed continuously,
the light will cycle between bright and
dark.
Operation
12

Filter timers
Grease filter timer
A timer monitors the hours of operation.
The indicator for the grease filter will
light after 30 hours of fan operation. The
grease filters must then be cleaned.
After the grease filters have been
cleaned and put back in place, the
grease filter timer must be reset.
^To do this press the grease filter
button for about 3 seconds.
The indicator will go out.
To change the hours of operation, see
"Reprogramming the timers".
Charcoal filters
The timer for the charcoal filter is not
preset. To program this timer, see
"Operation / Reprogramming the
charcoal filter timer". The charcoal filter
indicator will light, once the selected
time has elapsed. The charcoal filters
must then be replaced and the
charcoal filter timer must be reset.
^To do this, press the charcoal filter
button for about 3 seconds.
The indicator will go out.
Checking the filter timers
To check the percentage of time set
already used:
^Press the joystick to the left to turn
the fan on.
^Press the grease filter or charcoal
filter button.
The number of flashing indicators show
the percentage of programmed hours
that have been used.
1 indicator = 25 %
2 indicators = 50 %
3 indicators = 75 %
4 indicators = 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
13

Reprogramming the timers
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40 or 50 hours.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally. Otherwise grease
which has accumulated over a long
period of time will harden on the
filters making cleaning more difficult.
Reprogramming the grease filter
timer
^Press the joystick to the left to turn
the fan off.
^Press the Delayed Shut Down and
the grease filter buttons at the same
time.
The grease filter indicator and one of
the fan power indicators will flash.
The fan power indicators show the
programmed time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the joystick to select the desired
time. Press it to the left for a shorter
operating time, to the right for a
longer operating time.
^Store the selection by pressing the
grease filter button.
All indicators will go out.
If the procedure is not stored within
4 minutes of programming the hood will
automatically default to the "old" data.
Operation
14

Reprogramming the charcoal filter
timer
The active charcoal filters can only be
used in recirculation mode and cannot
be used to exhaust fumes.
The charcoal filter timer is not preset.
Before using the hood in recirculation
mode, the charcoal filter timer must be
programmed.
^Press the joystick to the left to turn
the fan off.
^Press the Delayed Shut Down and
charcoal filter buttons at the same
time.
The indicator for the charcoal filter and
one of the fan power scale indicators
will flash.
The indicators of the fan power scale
show the programmed time:
1st indicator from the left = 120 hours
2nd indicator from the left= 180 hours
3rd indicator from the left= 240 hours
4th indicator from the left = unlimited
^Use the joystick to select the desired
time. Press it to the left for a shorter
operating time, to the right for a
longer operating time.
^Store the selection by pressing the
charcoal filter button.
All indicators will go out.
If the procedure is not stored within 4
minutes of programming, the hood will
automatically default to the "old" data.
Operation
15

,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "Important Safety
Instructions".
,The halogen bulbs are very hot
when in use. They stay hot for some
time after turned off. Use caution,
danger of burns.
Wet cleaning the hot bulbs will
cause damage.
Wait a few minutes after turning
them off before cleaning.
Cleaning the casing
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with a mild solution of
warm water and liquid dish soap
applied with a soft sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents
e.g. powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
–limescale removers.
These will damage the surface.
Stainless steel colored controls
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and care
16

Grease filters
The reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every3-4weeks, when the grease
filter indicator lights, or when they are
visibly dirty, whichever comes first.
,A dirty filter is a fire hazard.
^To remove the grease filters pull the
locking clips forward. Lower the filter
45° unhook it at the rear and take it
out. Support the grease filters so that
they do not fall onto the cooktop.
Cleaning the grease filters
^By hand: use a scrub brush with a
solution of warm water and mild
detergent.
Do not use pure detergent,
aggressive all purpose cleaners,
oven sprays or limescale removers.
They could destroy the filters.
^In a dishwasher: place the filters
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Use a wash program with a max.
temperature of 150°F (65°C). In a
Miele dishwasher use the "Normal"
program.
Use the recommended amount of
dishwasher detergent. Overuse could
destroy the filter.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter will not be
affected by this discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing to prevent the risk of fire.
Cleaning and care
17

Inserting the grease filters
When putting the grease filters back
make sure that the locking clips are
visibly facing the cooking surface.
If the filters are incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage it from the
casing.
^After returning the grease filters,
press and hold the grease filter
button for 3 seconds to reset the
timer. The indicator light will go out.
^If the grease filters are cleaned
before the grease filter timer has
reached its maximum, press the
grease filter button for 6 seconds to
reset the counter to zero.
Cleaning and care
18

Active charcoal filter
DA 2280 uses 2 active charcoal filters
DA 2210 uses 4 active charcoal filters
In recirculation mode active charcoal
filters must be used in addition to the
grease filters. It is designed to absorb
cooking odors.
The active charcoal filters will be
replaced in the canopy above the
grease filters.
Replacement active charcoal filters
can be ordered from Miele.
^Remove the grease filters to access
the charcoal filters. See "Cleaning
and Care - Grease filters".
^Insert the charcoal filters.
Before using:
^Program the charcoal filter timer, see
"Operation / Reprogramming the
charcoal filter timer".
Replace the active charcoal filters when
the charcoal filter indicator lights, at
least every 6 months or when they no
longer absorb odors efficiently.
^After replacing the charcoal filters,
press and hold the charcoal filter
button for about 3 seconds to reset
the charcoal filter timer.
The indicator light will go out.
^If the charcoal filters are replaced
before the timer has reached its
maximum, the charcoal filter button
should be pressed for 6 seconds to
reset the counter to zero.
Cleaning and care
19

Changing the light bulb
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before changing the light bulbs,
disconnect the hood from the power
supply, see "Important Safety
Instructions".
When in use halogen bulbs become
extremely hot, and they can burn
your hands. Do not attempt to
change the bulbs until they have
had sufficient time to cool down.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease the life of
the bulb.
Follow the bulb manufacturer’s
instructions.
^Remove the grease filters.
^If existent remove the active charcoal
filters.
^Reach through the grille opening and
push the light fixture downwards.
^Turn the bulb counterclockwise and
pull it out of its socket.
^Replace the bulb with a new one
(GU/GZ 10, 120V, 50W) in the
reverse order and push upwards.
^Return the grease filters and if
existent the active charcoal filters.
Cleaning and care
20
