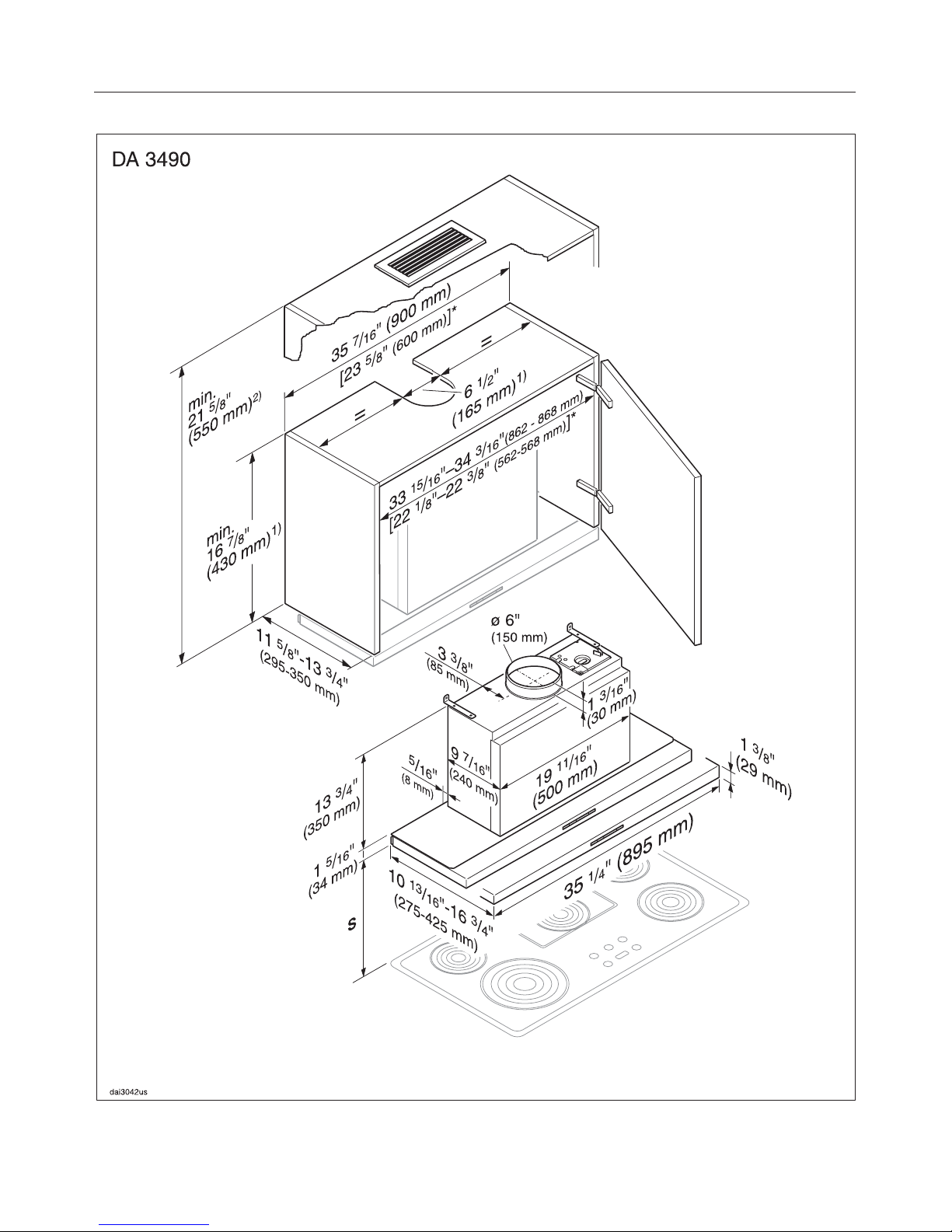

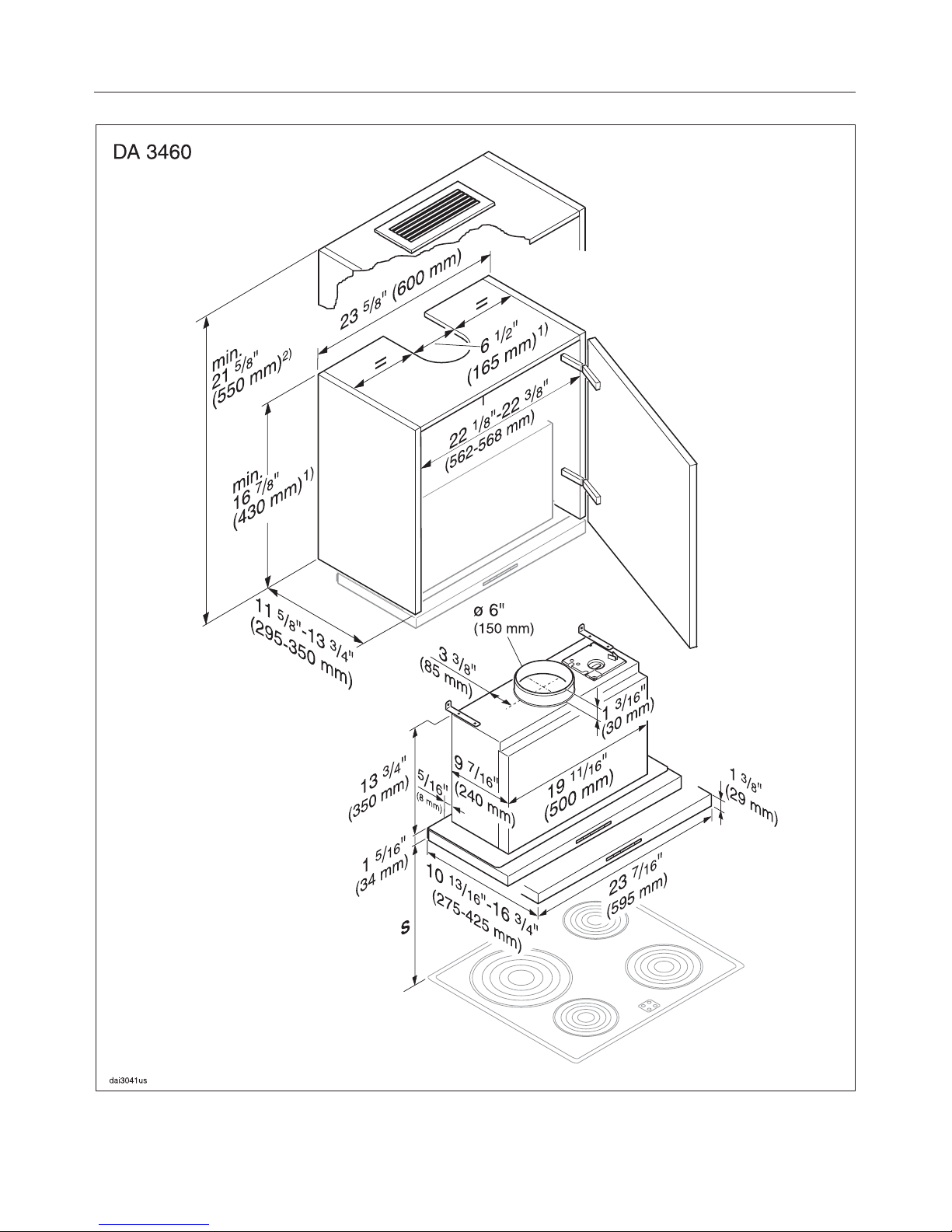

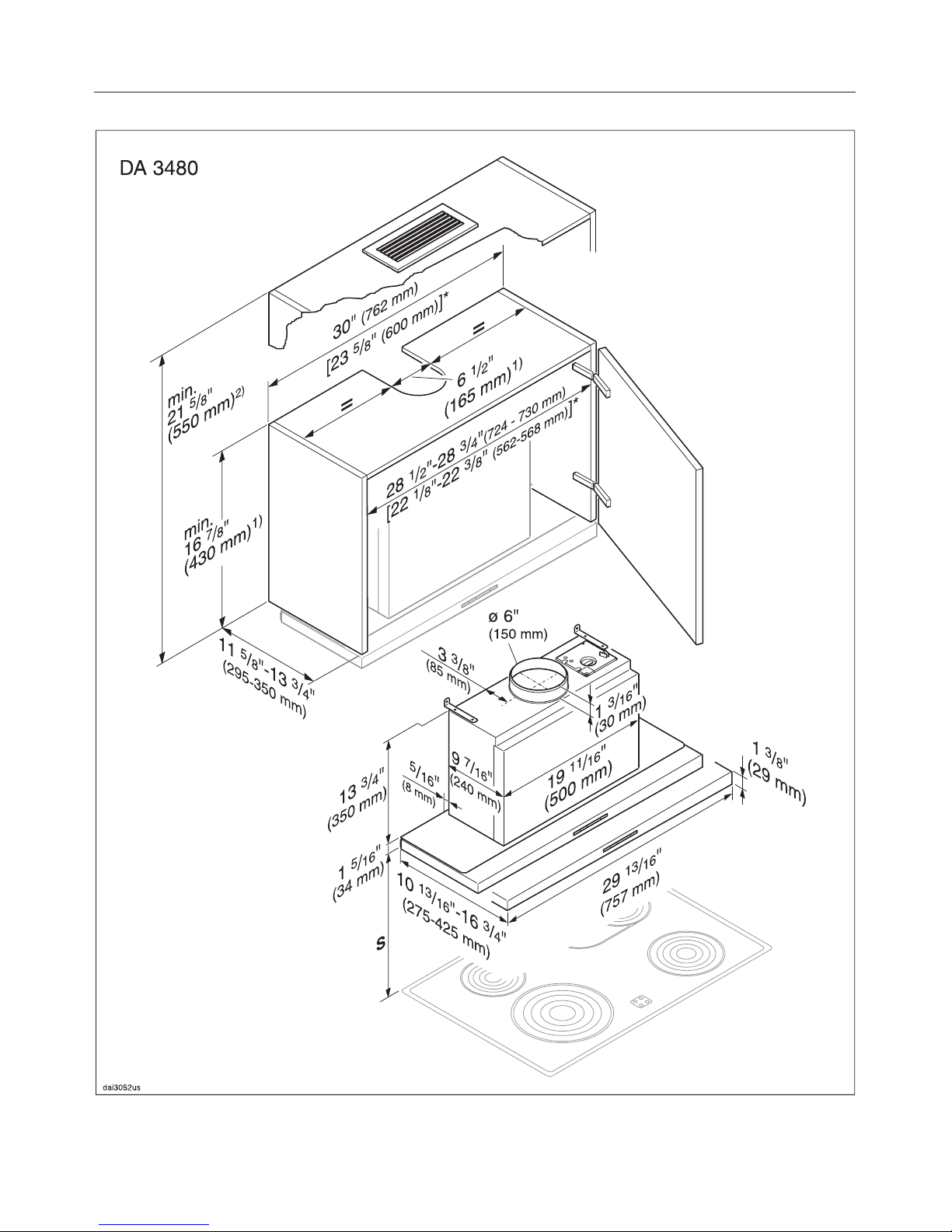

Appliance dimensions
20

* The hood can also be installed in a 23 5/8" (60 cm) cabinet.
Appliance dimensions
21

* The hood can also be installed in a 23 5/8" (60 cm) cabinet.
Appliance dimensions
22

1) Air extraction mode; consider accessories when measuring cabinet height and
cut-outs (e.g. muffler).
2) Recirculation mode with Installation kit DUU 151
Distance between cooktop and hood (S)
Do not install this exhaust hood over cooktops burning solid fuel.
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood:
Miele Cooktops Non-Miele
Cooktops
Electric Cooktops 24" (610 mm)
Electric Barbeques and Fryers 26" (660 mm)
Multiburner Gas cooktops
<43,000 BTU (12.6 KW)
and no burner > 15,000 BTU (4.5 KW)
26" (660 mm) 30" (760 mm)
Single burner (Wok) < 20,500 BTU (6 KW) 26" (660 mm) 30" (760 mm)
All other gas cooktops 30" (760 mm)
– If several gas surfaces are installed under the hood, the total output must be
considered when determining the minimum safety distance.
– If installing the exhaust hood in an overhead cabinet or if using a front panel
made of wood or plastic, observe the instructions of the manufacturer of the
gas cooktop regarding the use of flammable materials above the cooktop. If not
otherwise specified in the instructions, ensure a distance of at least 30”
(760 mm) from the gas cooktop.
–If local building codes require a greater safety distance, follow their requirement.
– If there is more than one appliance beneath the hood and they have different
minimum safety distances always select the greater distance.
See "Important Safety Instructions" for further information.
Appliance dimensions
23

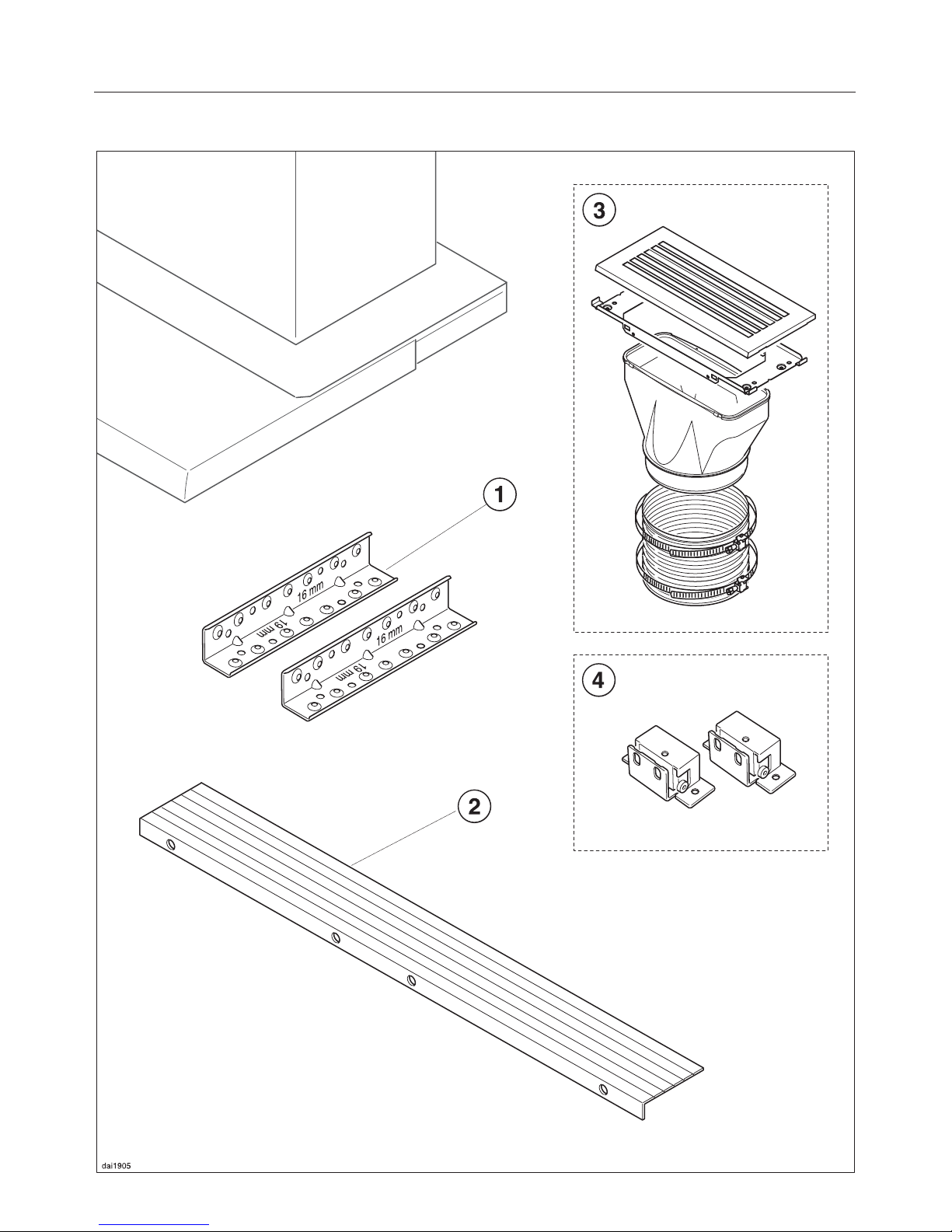

Installation accessories
Installation
24

a2 runners
(1 x right, 1x left) to support the hood
in the cabinet.
b1 spacer strip
to conceal the gap between the rear
of the appliance and the wall.

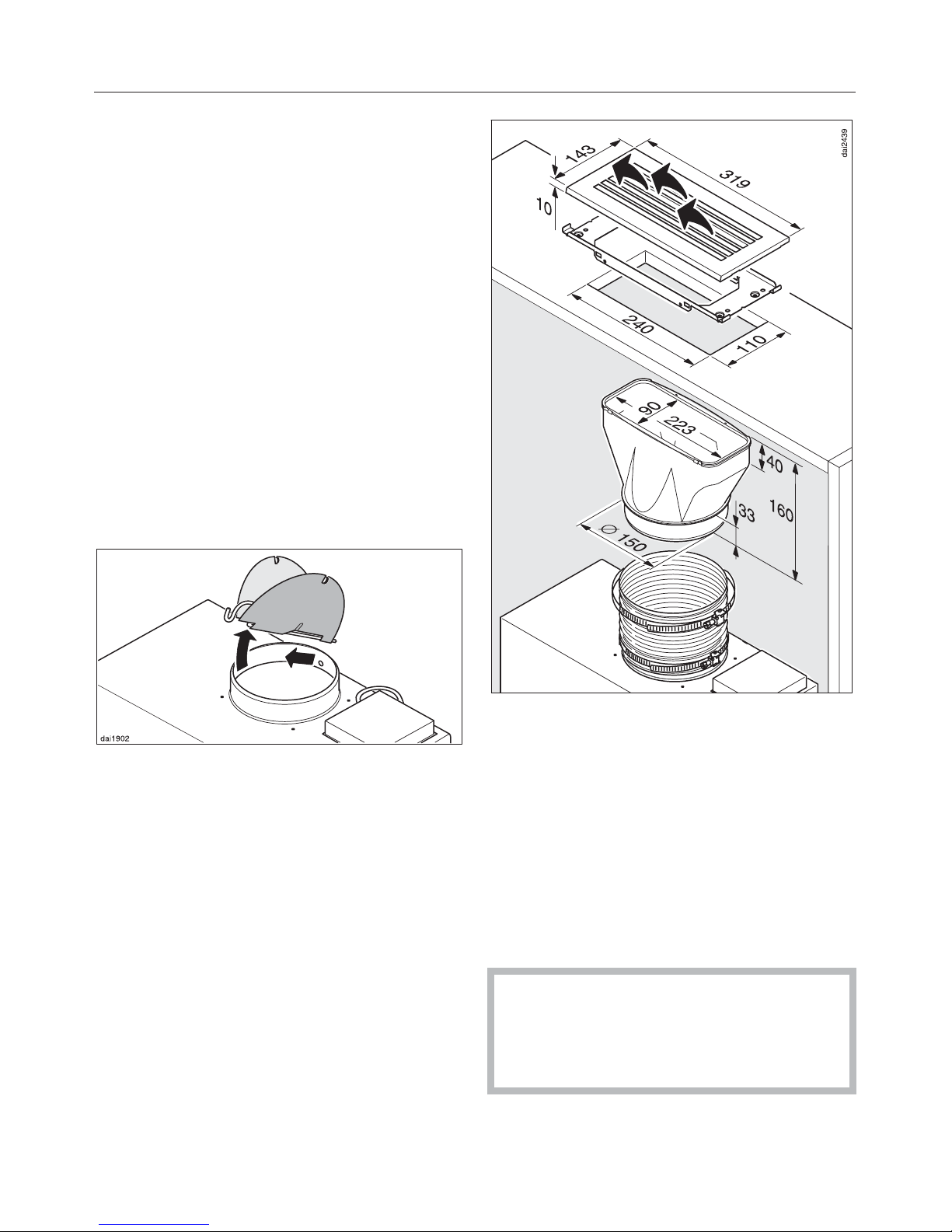

cInstallation kit for recirculation
mode; contains air outlet grille, hose
and hose clips
(optional accessory)
dInstallation kit DML 400 to install a
custom panel
contains retractable brackets and
screws (optional accessory)
,CAUTION
To avoid risk of hand or other injury,
avoid contact with sharp edges
during the assembly and installation
process.
8 screws4x15mm
to anchor the ventilation hood in the
cabinet.
8 screws M4 x 12 mm
to anchor the ventilation hood at the
runners.
4 screws could be used (alternatively to
the plastic rivet) to fix the spacer bar.
2 screws4x15mm
to anchor the ventilation hood at rear
wall.
4 plastic rivets
to connect the space bar with the
appliance rear wall.
Installation
25

Installation
26

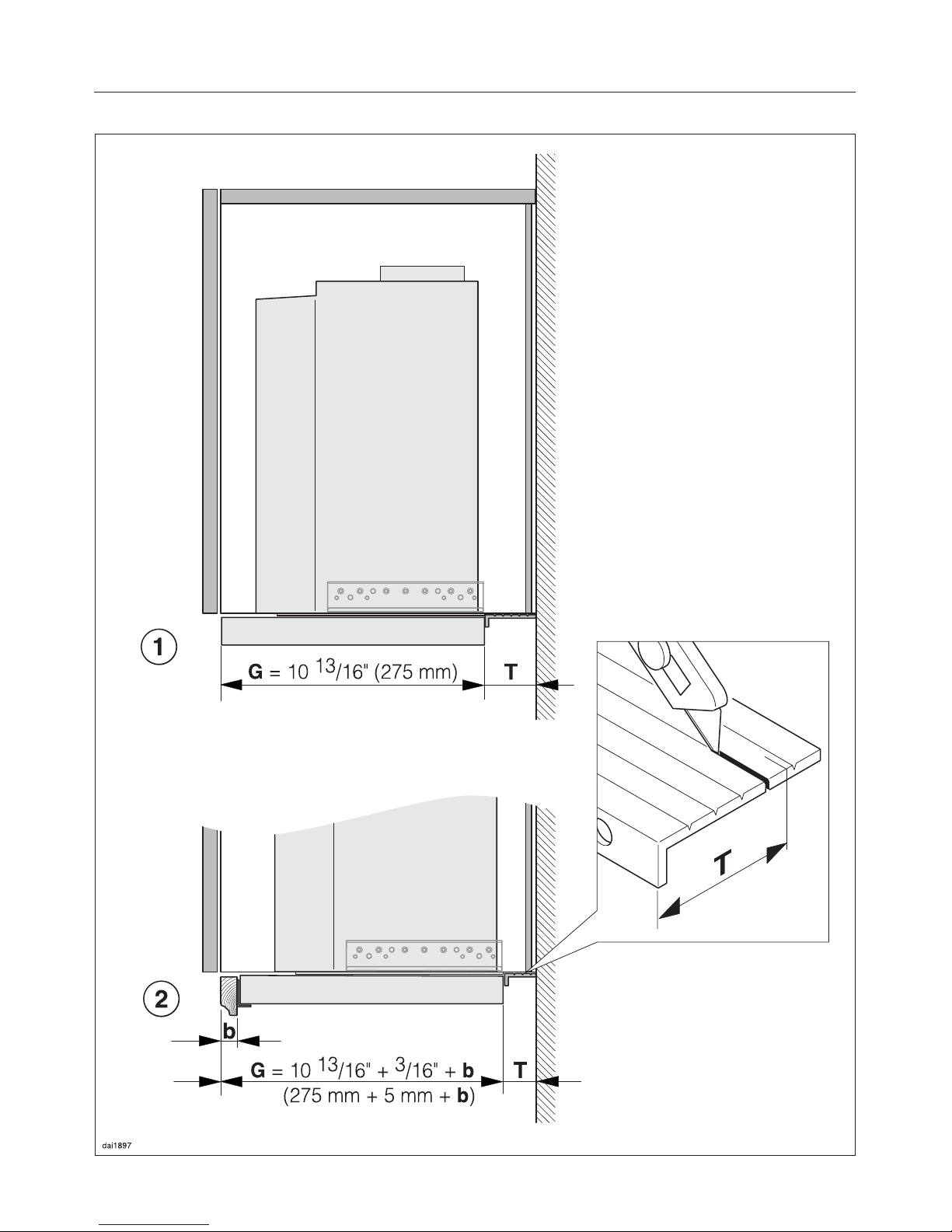

1. Installing the space bar
T=K cabinet depth minus G hood
depth
^The hood depth Gdepends on the
custom panel:
–aHood installed without front panel
–bHood installed with a cabinet
matching custom panel
These measures are only valid for the
installation if the front panel sits flush
with the cabinet corpus (without the
door).
If the front panel should be installed
recessed or flush with the cabinet door,
adjust the measure Taccordingly.
^Cut the supplied space bar to
measure T.
Clip it with a knife at the predeter-
mined breaking point of the next
lower measure.
^Screw the space bar flush with the
wall under the cabinet side walls.
^At the front edge of the spacer strip
draw a vertical line on left and right
side of the inside cabinet.
Installation
27

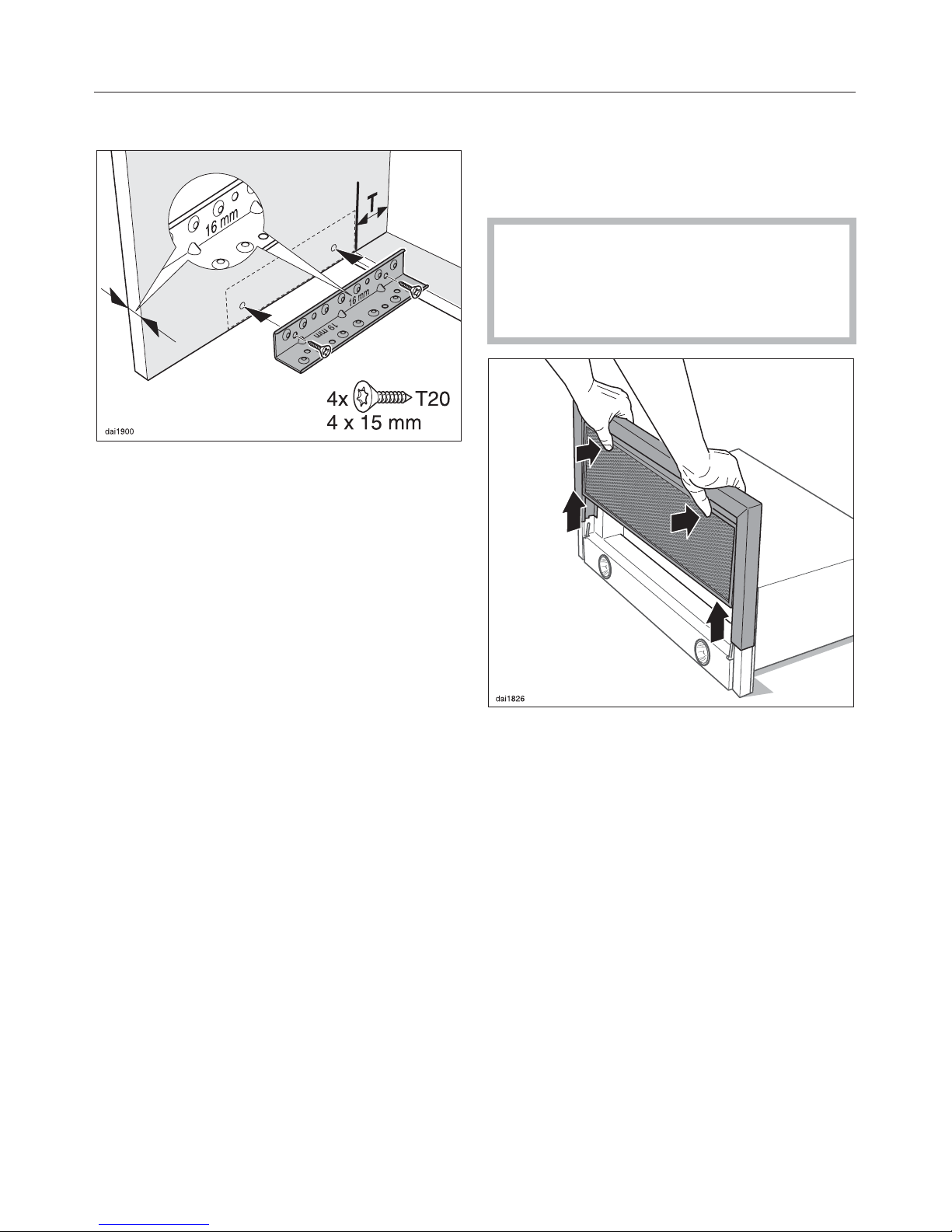

2. Runners
The runners are made for side walls of
5/8" (16 mm) and 3/4" (19 mm). Screw
on the angled side which has the
imprint of the respective cabinet wall
measure.
^Align the runners with the drawn line
and be sure that they are flush with
the lower edge of the cabinet side
wall. Screw the runners on the left
and right side in the cabinet.
3. Installing the hood in the
cabinet
^Lay the hood on its back side.
Do not remove the installation
protector between the deflector and
casing before the installation is
completed.
^Hold the grease filter and pull it out
along with the deflector.
Installation
28

^Take the grease filter out and put it
aside.
^Push the deflector back in.
^When installing a 29 13/16" (80 cm) or
a351/4" (90 cm) hood into a 23 5/8"
(60 cm) cabinet, unscrew the
deflector spring clips while the
deflector is pulled out.
^Insert the hood into the cabinet from
below and until the spring clips click
into place.
^To dismount the appliance: unscrew
the screws to the left and the right of
the inner side of the hood. The
installation springs loosen and the
hood can be removed from the
cabinet.
Installation
29

4. Secure the appliance
^Push the hood back so it sits flush
with the front of the spacer strip.
^Pull the deflector out.
^Screw the hood, with 4 screws, onto
the runners.
^Remove the installation protection
between the deflector and casing.
^Loosen the screws of the fixing
brackets on the hood top.
^Push the bracket flush to the wall or
the cabinet back wall.
Fig 1
^Screw the fixing brackets to the
cabinet rear wall.
Fig 2
^Align the casing and tighten the
screws.
Installation
30

The DA3460, DA3480 and DA3490
Built-In Ventilation Hoods all include
brackets to affix the hood body to
the rear wall of the enclosing
cabinet. (Fig. 1) These brackets are
necessary to ensure the long-term
rigidity and stability of the installed
appliance. In many cases, we have
found that the rear walls of some
cabinets are not structurally reliable.
This may be due to the materials
used, or the thickness of the rear
wall.
In this case, to guarantee a solid
connection, these brackets must be
attached to a structurally sound
surface (such as the wall behind the
cabinet) to maintain the hood's level
attitude (Fig 2). Depending on the
cabinet and wall construction,
alternative hardware may be
required. Please use hardware
which is designed to be used for
your specific installation application.
Failure to do so may cause the hood
to lean forward and cause
permanent damage to the sliding
shelf. This damage is not covered
by the warranty!
^Connect the space bar from the rear
with 4 plastic rivets at the hood rear
side.
5. Install the front panel
if necessary
The installation kit DML 400 is
necessary. It can be obtained as an
optional accessory from Miele. The
installation kit has an installation manual
supplied.
Installation
31

Weight of the front panel
The weight of the front panel must not
exceed 2.8 lbs (1.3 kg). This applies for
front panels with a depth of up to 1 1/4"
(30 mm). In the case of front panels of
greater depth or greater weight, the
weight must be reduced by milling out
the back of the panel, for instance.
^The deflector can be adjusted up to
13/8" (35 mm) towards the front with
the two adjusting screws left and
right in the deflector. Adjust the
deflector until it is flush with the front
of the adjacent cabinetry.

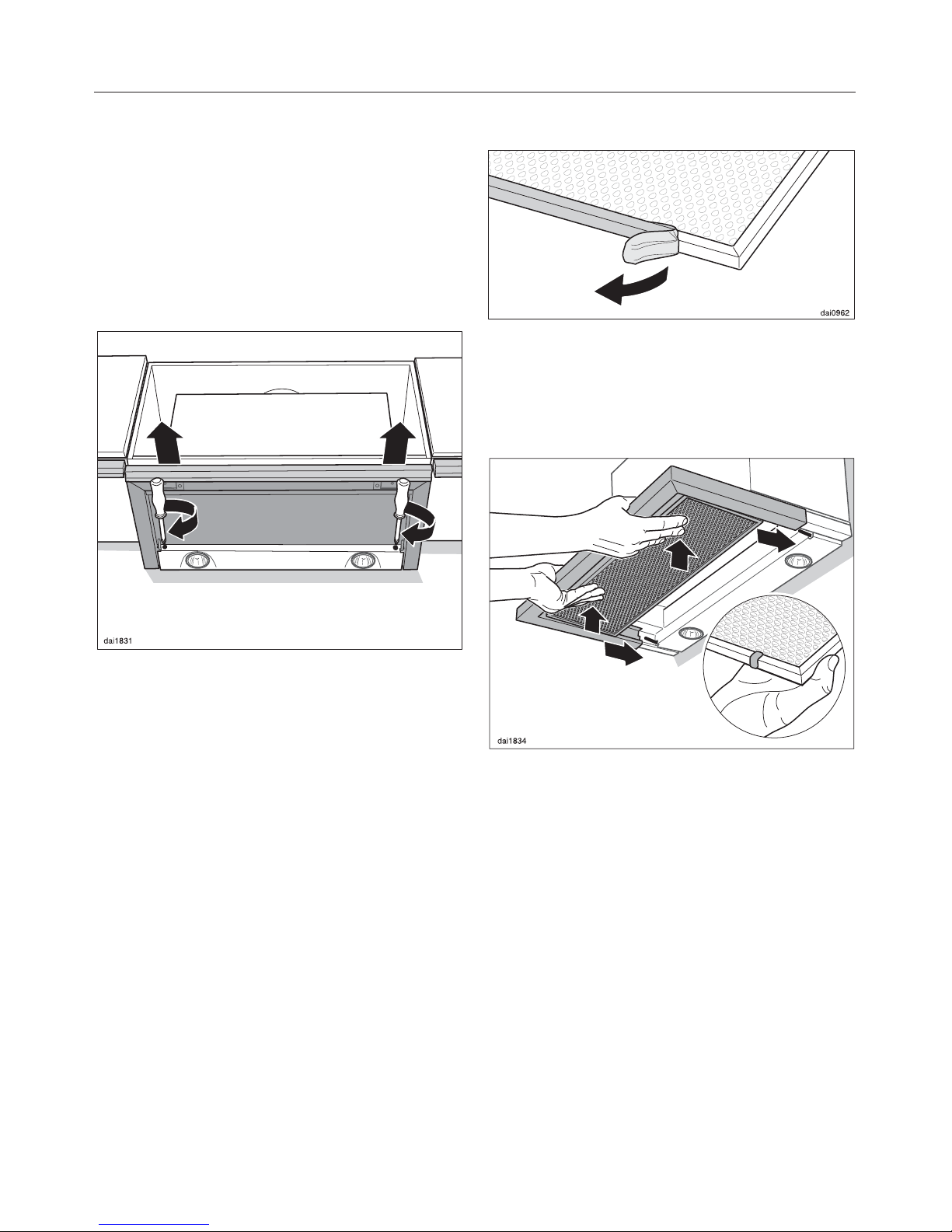

6. Install the grease filter
^Remove the protective film from the
grease filter frame.
^To reinsert the grease filter, pull the
deflector out.
^Make sure that the red plastic
guides are at the front and facing up.
^Insert the grease filter into the
deflector, and push upwards. It
should glide onto the fixing pins.
Installation
32

7. Venting
Air extraction mode
^Complete the venting installation, see
"Air extraction".
Recirculation mode
If the hood cannot be installed for air
extraction the appliance must be
connected for recirculation mode.
For recirculation mode a respective
installation kit is recommended which
can be obtained from Miele.
In addition an active charcoal filter is
needed.
^The non-return flap is not needed for
the recirculation mode. Pull the
non-return flap off the bracket from
the vent connection.
^Install the installation kit as described
in the manual supplied with the kit.
^Make sure that the slats in the grill
point towards the center of the room
and not towards a wall or the ceiling.
^Install the Active Charcoal Filter (see
"Cleaning and care").
8. Electrical connection
Refer to the notes in "Electrical
connection" and "Important Safety
Instructions" before connecting to
the mains.
^Plug in the power cord.
Installation
33

,WARNING
Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood
should be vented outside of the
building only.
Do not vent exhaust air into
spaces within walls or ceilings or
in attics, crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk of
personal injury. Follow all local building
codes when installing the hood.
Exhaust ducting and connections
Use smooth or flexible pipework made
from approved non-flammable
materials for exhaust ducting.
To achieve the most efficient air
extraction and quietest noise levels,
consider the following:
– The diameter of the ductwork should
not be less than 6" (150 mm).
– If flat ducting is used, the cross
section must not be smaller than the
cross section of the ventilation
exhaust.
– The ducting should be as short and
straight as possible.
– Use ductwork with a wide radius.
– The exhaust duct must not be bent
or compressed.
– Make sure all connections are
secure.
– Where the ductwork is horizontal, it
must slope away from the hood at
least 1/8" per foot (1 cm per meter) to
prevent condensation dripping into
the appliance.
– If the exhaust is ducted through an
outside wall, a Telescopic Wall Vent
can be used.
Air extraction
34

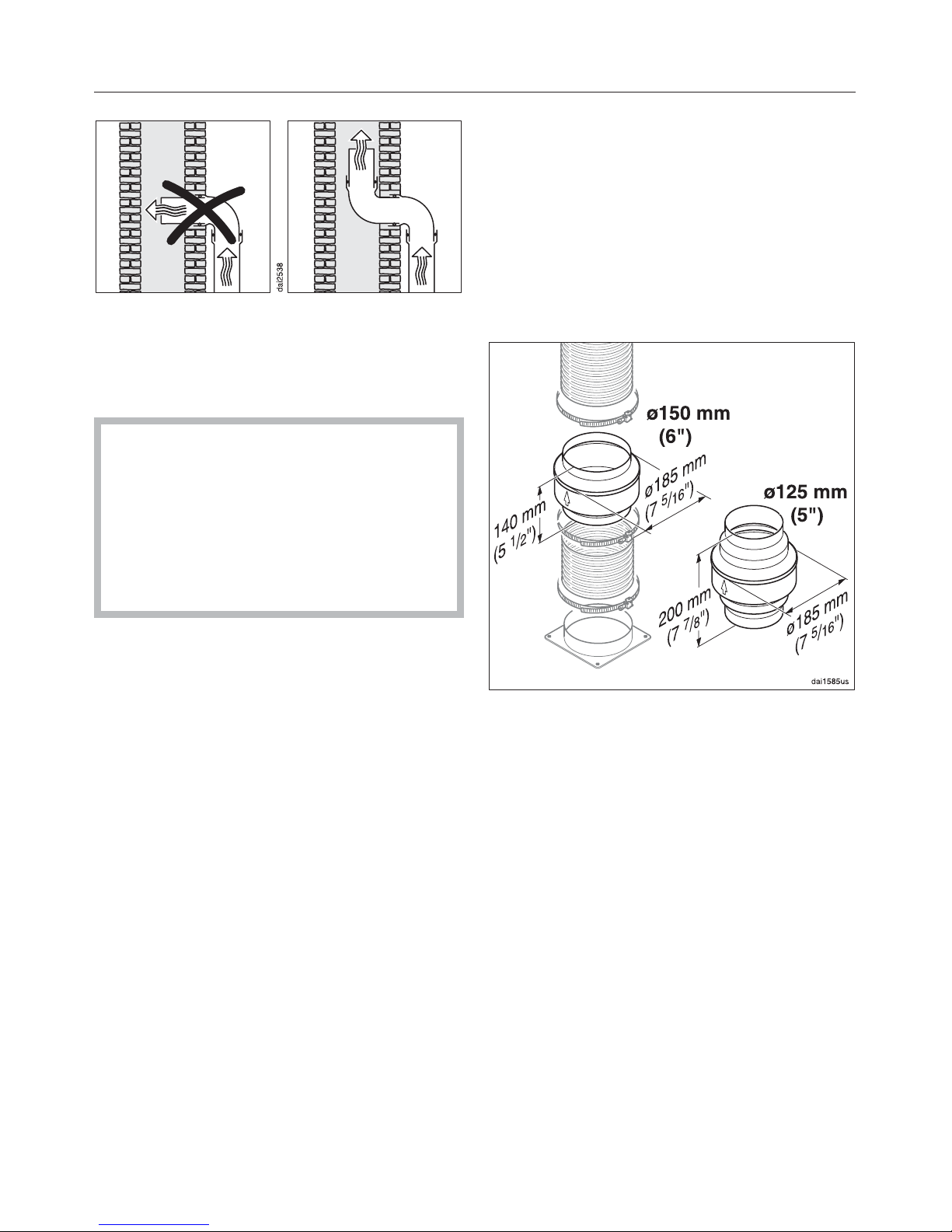

– If the exhaust is ducted into an
inactive flue, the air must be expelled
parallel to the flow direction of the
flue.
Never connect an exhaust hood to
an active chimney, dryer vent, flue,
or room venting ductwork. Seek
professional advice before
connecting an exhaust hood vent to
an existing, inactive chimney or vent
flue.
Important
If the ductwork runs through rooms,
ceilings, garages, etc. where
temperature variations exist, it may
need to be insulated to reduce
condensation.
Condensate trap
optional accessory
In some cases, a condensate trap may
also be required to collect and
evaporate any condensate which may
occur. This optional accessory is
available for ducts 5" (125 mm) and 6"
(150 mm) in diameter.
When installing a condensate trap,
ensure that it is positioned vertically
and if possible directly above the
exhaust outlet.
Air extraction
35

,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance
is OFF while installation or repair
work is performed.
^Verify that the voltage, load and
circuit rating information found on the
data plate (located behind the
grease filters), match the household
electrical supply before installing the
hood.
^Use only with ventilation hood
cord-connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning the
electrical connection of this appliance
to your power supply, please consult a
licensed electrician or call Miele’s
Technical Service Department.
,WARNING:
THIS APPLIANCE MUST BE
GROUNDED
Grounding Instructions
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug. The plug must
be plugged into an outlet that is
properly installed and grounded.
WARNING - Improper grounding can
result in a risk of electric shock.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet
near the appliance.
Important
The hood comes equipped witha4ft
(1.2 m) power cord with a NEMA 5-15
molded plug for connection to a
120 VAC, 60 Hz, 15 A power outlet.
Electrical connection
36

Maximum load ...............450W
Light.....................2x50W
Voltage .....................120V
Frequency ..................60Hz
Circuit rating..................15A
Weight
DA 3460 ...........27.6 lb (12.5 kg)
DA 3480 ...........29.8 lb (13.5 kg)
DA 3490 .............32lb(14.5 kg)
Technical Data
37
